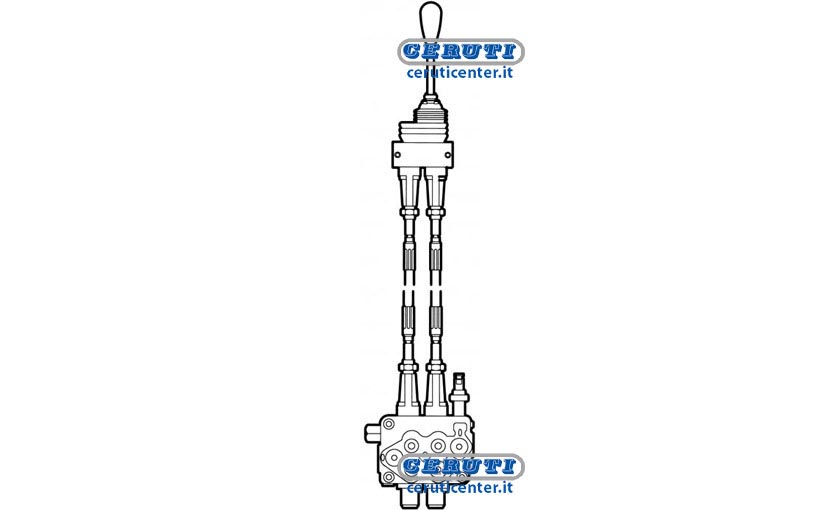

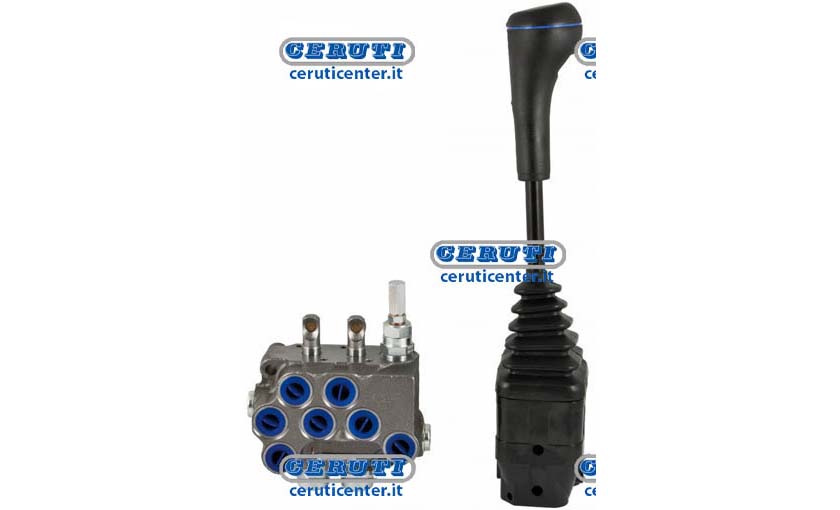

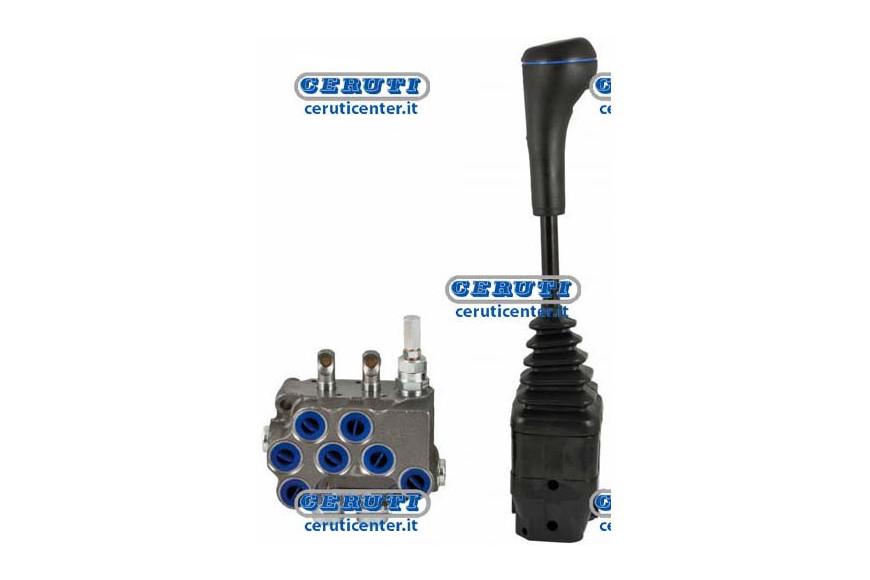

Distributor Complete With Cable And Joystick Flow Rate 60 L / Min Cable Length 2000 Mm - Distr. 2 De / De Levers With 1/2 "Cloch
Available for order
SHIPPED IN 2 / 3 DAYS
Price shown is inclusive of VAT
Price excl. VAT € 577.96
VAT "IVA IT 22%" € 127.15
Distr. 2 Levers De / De Cloche With 1/2 "
DN type monoblock directional control valves are standardly configured for power beyond connection. This connection is made screwing a sleeve (shown in the picture to the right, coded DACO) into the machined seat. You can, then, connect to a downstream valve. If the sleeve is plugged, the open center valve becomes a closed center valve.
Lever 1 Double effect
Lever 2 Double effect
Nominal coupling 1/2" Gas
Model DN
Flow rate 60 l/min

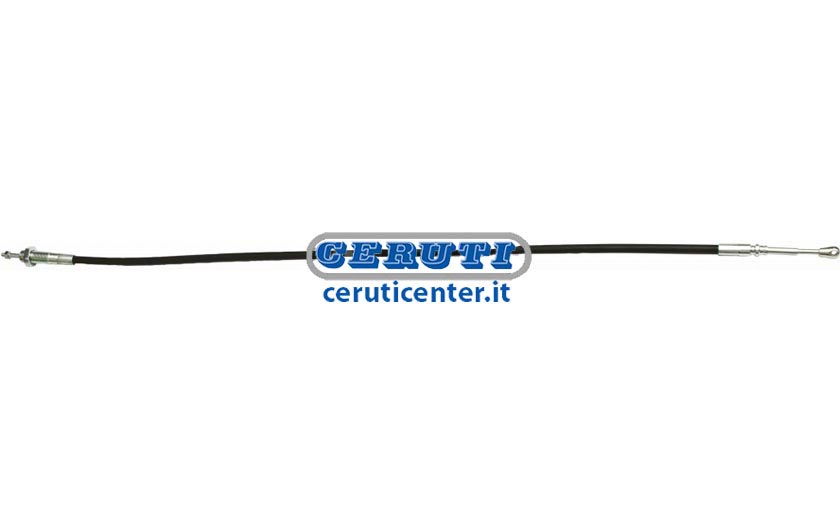

Cable length 2000 mm
Circuit diagram
Lever position layout

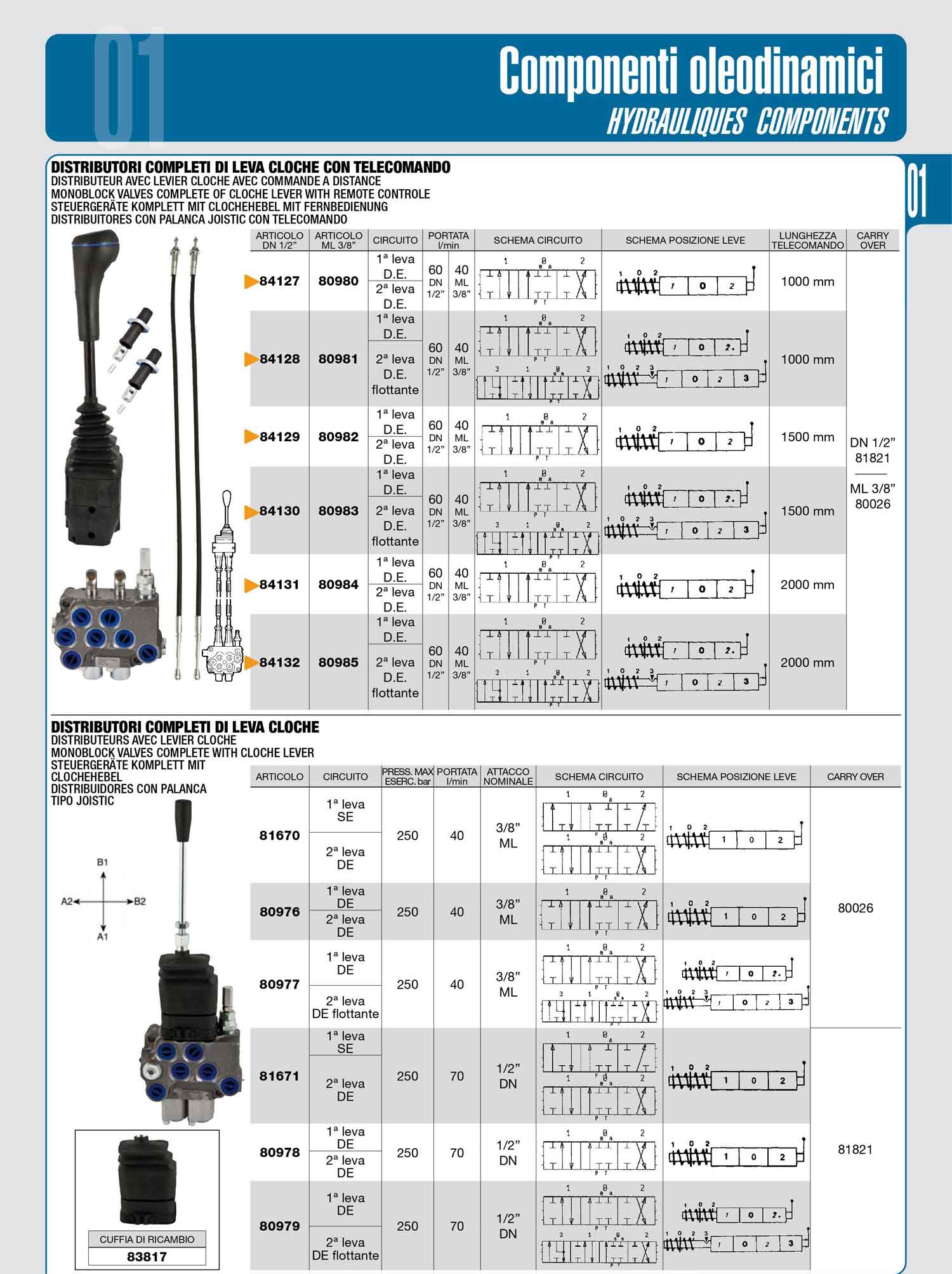

Below you will find one or two pages of the agricultural spare parts catalogue and all the products shown, which can be purchased.
Depending on the size or specification required, identify the product code (typically 5 numbers)
Below each image in the catalogue, you will find the article codes for purchasing.
Stock: the quantity shown (available), is for shipment within 3/4 working days.
To view additional information on a product, click on the code or thumbnail, then 'Show Details'.
Prices are per unit including 22% VAT.
If you do not find a product in the list, search for the 5-number code with the search engine above.
- Our technical department is available and will get back to you as soon as possible.
