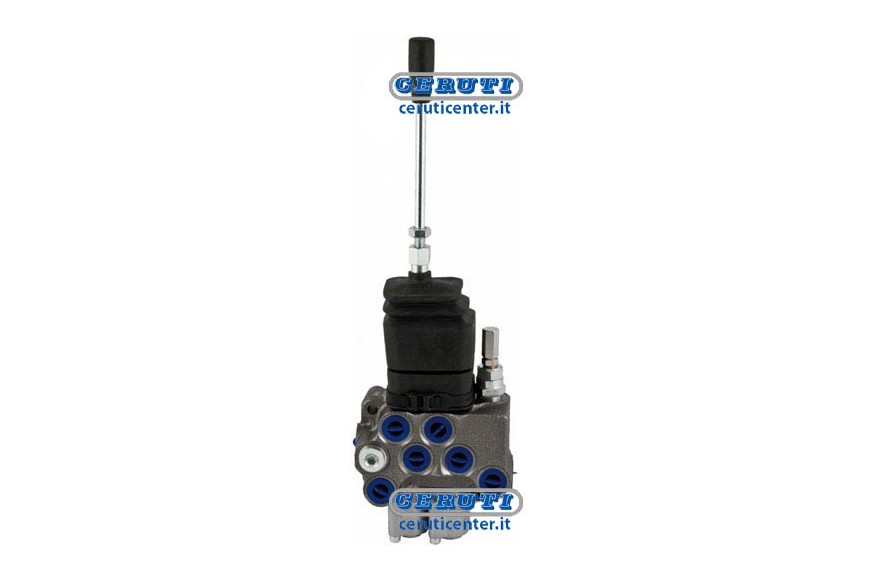

Monoblock Valves Complete With Cloche Lever Flow Rate 70 L/Min Nominal Coupling 1/2" Gas
Monoblock Valves Complete With Cloche Lever Flow Rate 70 L/Min Nominal Coupling 1/2" Gas
0/0

Distributor Complete With Cloche Lever Flow Rate 70 L / Min Nominal Connection 1/2 "Gas - Distr. Se / De Att.1 / 2" With Cloche

CC-81671

CURRENTLY UNAVAILABLE

Notify me when this item is back in stock

Order Online

  • Delivery Italy: 1/2 days, from 9.90 €
  • Delivery Europe: 2/3 days, from 17.90 €

N. of days may vary for locations that are difficult to reach

Price shown is inclusive of VAT

Price excl. VAT €558.09

VAT "IVA IT 22%" €122.78

€680.87  VAT inc.

€558.09 VAT exc.

block Non disponibile

Distr. Se / De Att.1 / 2 "With Cloche

DN type monoblock directional control valves are standardly configured for power beyond connection. This connection is made screwing a sleeve (shown in the picture to the right, coded DACO) into the machined seat. You can, then, connect to a downstream valve. If the sleeve is plugged, the open center valve becomes a closed center valve.

Lever 1 Simple effect

Lever 2 Double effect

Maximum pressure 250 Bar

Model DN

Flow rate 70 l/min

Nominal coupling 1/2" Gas

Circuit diagram -

Lever position layout

Movement

Below you will find one or two pages of the agricultural spare parts catalogue and all the products shown, which can be purchased.

Depending on the size or specification required, identify the product code (typically 5 numbers)

Below each image in the catalogue, you will find the article codes for purchasing.

Stock: the quantity shown (available), is for shipment within 3/4 working days.

To view additional information on a product, click on the code or thumbnail, then 'Show Details'.

Prices are per unit including 22% VAT.

If you do not find a product in the list, search for the 5-number code with the search engine above.

Video: How to Consult the Catalogue?
  • Our technical department is available and will get back to you as soon as possible.
  • In addition, send photographs via Whatsapp or Email indicating your need.
  • Click on the shopping cart icon to add 'one unit'.
  • The shipping cost is calculated at checkout.
Zoom and panning Use +/− to zoom and drag with the mouse to move around. Informational only
Spare parts :18
84127
www.ceruticenter.it/32799-small_default/r.jpg
Distributor Complete With Cable And Joystick Flow Rate 60 L / Min Cable Length 1000 Mm - Distr. 2 De / De Levers With 1/2 "Cloch 84127
Unit price, VAT incl.
681.58 €

Available for order

Qty
84128
www.ceruticenter.it/32802-small_default/r.jpg
Distributor Complete With Cable And Joystick Flow Rate 60 L / Min Cable Length 1000 Mm - Distr. 2 De / De Flot Levers With Cloch 84128
Unit price, VAT incl.
766.62 €

Available for order

Qty
84129
www.ceruticenter.it/32800-small_default/r.jpg
Distributor Complete With Cable And Joystick Flow Rate 60 L / Min Cable Length 1500 Mm - Distr. 2 De / De Levers With 1/2 "Cloch 84129
Unit price, VAT incl.
688.9 €

Available for order

Qty
84130
www.ceruticenter.it/32803-small_default/r.jpg
Distributor Complete With Cable And Joystick Flow Rate 60 L / Min Cable Length 1500 Mm - Distr. 2 De / De Flot Levers With Cloch 84130
Unit price, VAT incl.
773.94 €

Available for order

Qty
84131
www.ceruticenter.it/32801-small_default/r.jpg
Distributor Complete With Cable And Joystick Flow Rate 60 L / Min Cable Length 2000 Mm - Distr. 2 De / De Levers With 1/2 "Cloch 84131
Unit price, VAT incl.
705.11 €

Available for order

Qty
84132
www.ceruticenter.it/32804-small_default/r.jpg
Distributor Complete With Cable And Joystick Flow Rate 60 L / Min Cable Length 2000 Mm - Distr. 2 De / De Flot Levers With Cloch 84132
Unit price, VAT incl.
790.16 €

Available for order

Qty
80980
www.ceruticenter.it/32793-small_default/r.jpg
Distributor Complete With Cable And Joystick Flow Rate 40 L / Min Cable Length 1000 Mm - Distr. 2 Lever De / De With Cloche And 80980
Unit price, VAT incl.
600.08 €

Available for order

Qty
80981
www.ceruticenter.it/32794-small_default/r.jpg
Distributor Complete With Cable And Joystick Flow Rate 40 L / Min Cable Length 1000 Mm - Distr. 2 De / De Flot Levers With Cloch 80981
Unit price, VAT incl.
689.9 €

Available for order

Qty
80982
www.ceruticenter.it/32795-small_default/r.jpg
Distributor Complete With Cable And Joystick Capacity 40 L / Min Cable Length 1500 Mm - Distr. 2 De / De Levers With Cloche And 80982
Unit price, VAT incl.
608 €

Available for order

Qty
80983
www.ceruticenter.it/32796-small_default/r.jpg
Distributor Complete With Cable And Joystick Flow Rate 40 L / Min Cable Length 1500 Mm - Distr. 2 Lever De / De Flot.Cloche 1500 80983
Unit price, VAT incl.
697.82 €

Available for order

Qty
80984
www.ceruticenter.it/32797-small_default/r.jpg
Distributor Complete With Cable And Joystick Capacity 40 L / Min Cable Length 2000 Mm - Distr. 2 De / De + Cloche Levers L.2000 80984
Unit price, VAT incl.
625.53 €

Available for order

Qty
80985
www.ceruticenter.it/32798-small_default/r.jpg
Distributor Complete With Cable And Joystick Capacity 40 L / Min Cable Length 2000 Mm - Distr. 2 De / De Flot Levers With Cloche 80985
Unit price, VAT incl.
715.36 €

Available for order

Qty
81670
www.ceruticenter.it/33241-small_default/r.jpg
Distributor Complete With Cloche Lever Flow Rate 40 L / Min Nominal Attack 3/8 "Gas - Distr. Se / De Att. 3/8" With Cloche - Ref 81670
Unit price, VAT incl.
564.29 €

Available for order

Qty
80976
www.ceruticenter.it/33242-small_default/r.jpg
Distributor Complete With Cloche Lever Flow Rate 40 L / Min Nominal Attack 3/8 "Gas - De / De Att. 3/8" Distr. With Cloche - Ref 80976
Unit price, VAT incl.
608.94 €

Available for order

Qty
80977
www.ceruticenter.it/33243-small_default/r.jpg
Distributor Complete With Cloche Lever Flow Rate 40 L / Min Nominal Connection 3/8 "Gas - De/De Flot. Att. 3/8" With Cloche - Re 80977
Unit price, VAT incl.
821.66 €

CURRENTLY UNAVAILABLE

Notify me when this item is back in stock

81671
www.ceruticenter.it/33244-small_default/r.jpg
Distributor Complete With Cloche Lever Flow Rate 70 L / Min Nominal Connection 1/2 "Gas - Distr. Se / De Att.1 / 2" With Cloche 81671
Unit price, VAT incl.
680.87 €

CURRENTLY UNAVAILABLE

Notify me when this item is back in stock

80978
www.ceruticenter.it/33245-small_default/r.jpg
Distributor Complete With Cloche Lever Flow Rate 70 L / Min Nominal Connection 1/2 "Gas - De / De Att. 1/2" Dist. With Cloche - 80978
Unit price, VAT incl.
791.69 €

Available for order

Qty
80979
www.ceruticenter.it/33246-small_default/r.jpg
Distributor Complete With Cloche Lever Flow Rate 70 L / Min Nominal Connection 1/2 "Gas - De / De Flot Distr. 1/2" Attack To Clo 80979
Unit price, VAT incl.
727.07 €

Available for order

Qty
