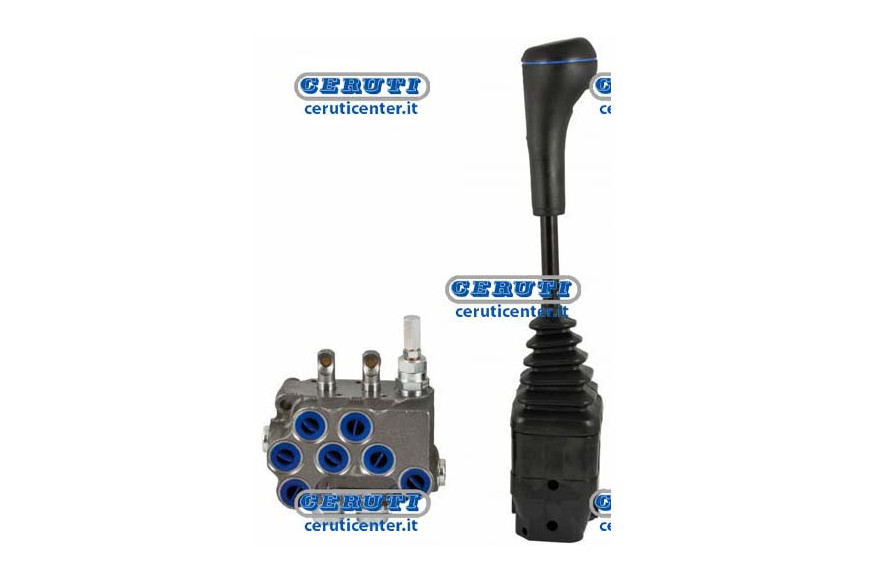

Monoblock Valves Complete Of Cloche Lever With Remote Controle Flow Rate 40 L/Min Cable Length 2000 Mm

0/0

Distributor Complete With Cable And Joystick Capacity 40 L / Min Cable Length 2000 Mm - Distr. 2 De / De + Cloche Levers L.2000

Name: Distributor Complete With Cable And Joystick Capacity 40 L / Min Cable Length 2000 Mm - Distr. 2 De / De + Cloche Levers L.2000
Brand: Generico
SKU: CC-80984
Price: 625.53 EUR
Availability: InStock

Ref: CC-80984

Available for order

SHIPPED IN 2 / 3 DAYS

Order Online

Delivery Italy: 1/2 days, from 9.90 €
Delivery Europe: 2/3 days, from 17.90 €

N. of days may vary for locations that are difficult to reach

€625.53 VAT inc.

€512.73 VAT exc.

Quantity

Description

Distr.2 Levers De / De + Cloche L.2000

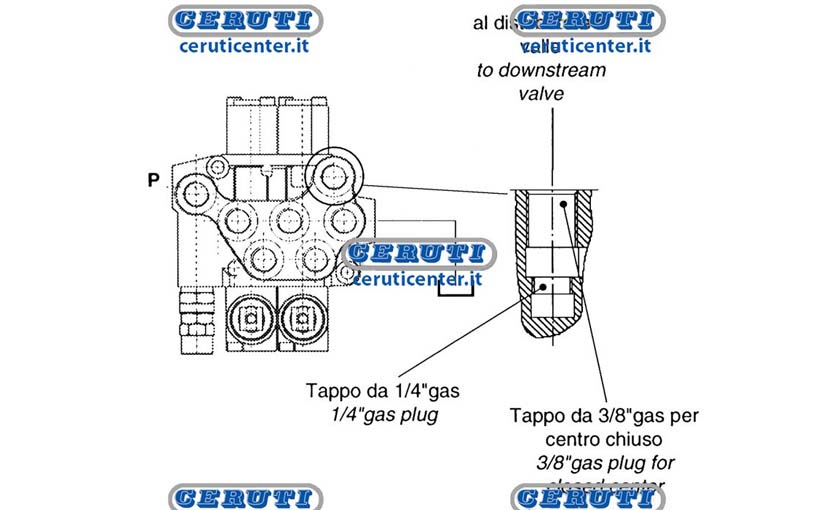

ML type monoblock directional control valves are standardly configured for power beyond connection. This connection can be realized plugging with a 1/4” gas plug the hole indicated in the drawing to the right. The upper port is used for the connection with a dowstream valve. The valve can be converted to a closed center valve by plugging this port.

Lever 1 Double effect

Lever 2 Double effect

Nominal coupling 3/8" Gas

Model ML

Flow rate 40 l/min

Cable length 2000 mm

Circuit diagram

Lever position layout

net weight 7.64 kg
