Self-Lubricating Rod Ends In Steel-Steel Lh Thread

0/0

Joint Heads D.6 Self-lubricating Left Fil - Self-lubricating Joint Heads In Steel-Steel Left Thread - Ref. 62899

Name: Joint Heads D.6 Self-lubricating Left Fil - Self-lubricating Joint Heads In Steel-Steel Left Thread - Ref. 62899
Brand: Generico
SKU: CC-62899
Price: 5.55 EUR
Availability: InStock

Ref: CC-62899

Available for order

SHIPPED IN 2 / 3 DAYS

Order Online

Delivery Italy: 1/2 days, from 9.90 €
Delivery Europe: 2/3 days, from 17.90 €

N. of days may vary for locations that are difficult to reach

€5.55 VAT inc.

€4.55 VAT exc.

Quantity

Description and Data sheet

Articulated Heads D.6 Autolubrific.Fil Sx

Self-lubricating, maintenance-free.

Reduced play increase during operation.

Enduring, limited torque values constant over time.

Can function when immersed, or in the presence of oil.

Operating temperature: -30° + 150°.

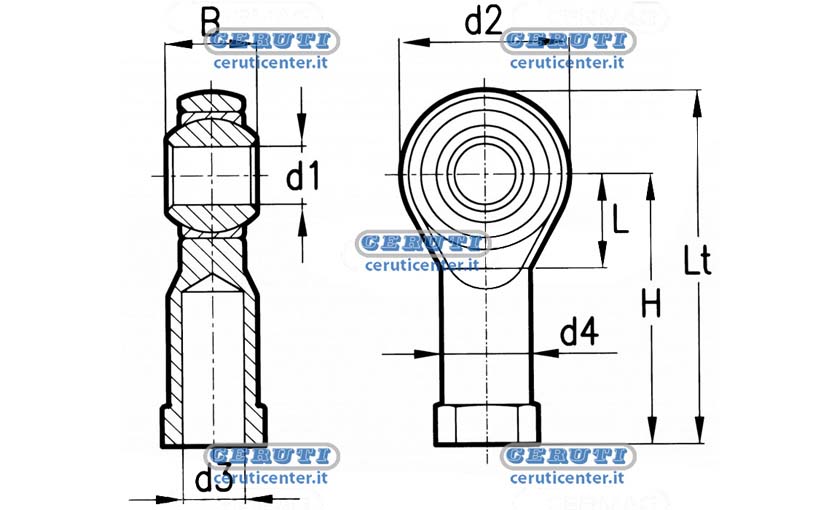

d1 6 mm

d2 20 mm

d3 M 6 mm

d4 10 mm

b 9 mm

l 11 mm

h 30 mm

It 40 mm

static load 700 daN

net weight 0.026 kg

Data sheet

B: 9 mm
Static load: 700 daN
d1: 6 mm
d2: 20 mm
d3: M 6 mm
d4: 10 mm
h: 30 mm
THE: 11 mm
lt: 40 mm
