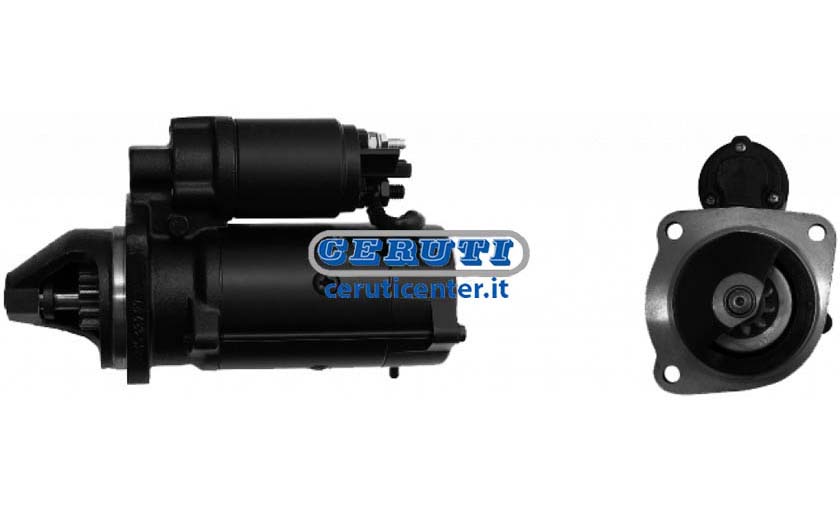

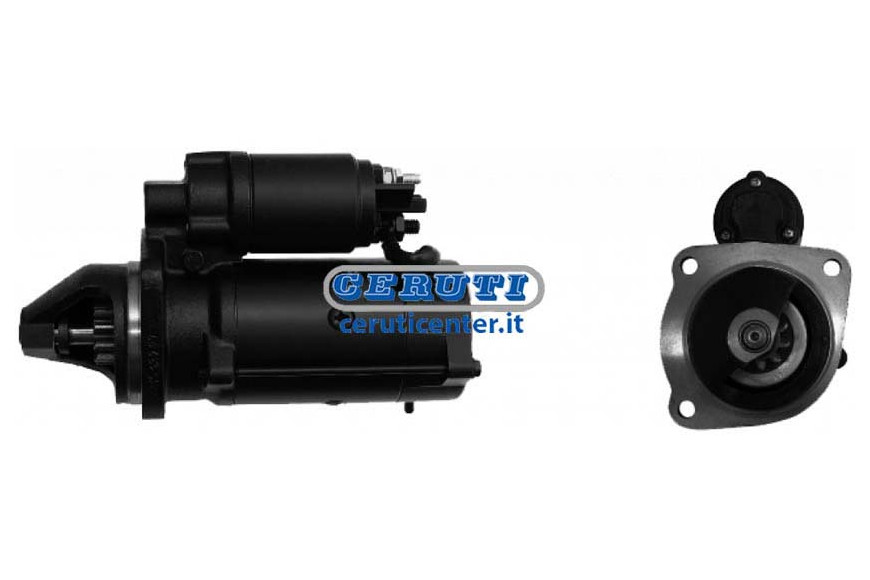

Starter Motor 12V 3,2Kw - Starter Motor With Reducer For Tractors - Ref. 12800

Name: Starter Motor 12V 3,2Kw - Starter Motor With Reducer For Tractors - Ref. 12800
Brand: Mahle
SKU: CC-12800
Price: 505.51 EUR
Availability: InStock

Ref: CC-12800

Available for order

SHIPPED IN 2 / 3 DAYS

Order Online

Delivery Italy: 1/2 days, from 9.90 €
Delivery Europe: 2/3 days, from 17.90 €

N. of days may vary for locations that are difficult to reach

€505.51 VAT inc.

€414.35 VAT exc.

Quantity

Description and Data sheet

OEM code 3586849,2873K405,2873K624,2873K625,2873K626,2873K634,3873K627,2873K405,2873K624,2873K625,2873K626,2873K634,3586849,3873K627,6005003154,6005021272,6005700081,7700011850,7701031686,3542185M91,3542185M92,3546391M91,1691806R1,1860093M2,1868285R3,1868287T,3539

Starter Motor 12V 3,2Kw

voltage 12 V

number of teeth 10

power 3,2 kW

With reducer

net weight 8.98 kg

link applicazioni

Landini

10000s125001300014500656560f/l/v68606880757560f/l78607880858560f/l8860 - 88809080959880C75/85/95Cf6830Cf75Cf85Motorino avviamento per 4-6 cilindri

Below you will find one or two pages of the agricultural spare parts catalogue and all the products shown, which can be purchased.

Depending on the size or specification required, identify the product code (typically 5 numbers)

Below each image in the catalogue, you will find the article codes for purchasing.

Stock: the quantity shown (available), is for shipment within 3/4 working days.

To view additional information on a product, click on the code or thumbnail, then 'Show Details'.

Prices are per unit including 22% VAT.

If you do not find a product in the list, search for the 5-number code with the search engine above.
