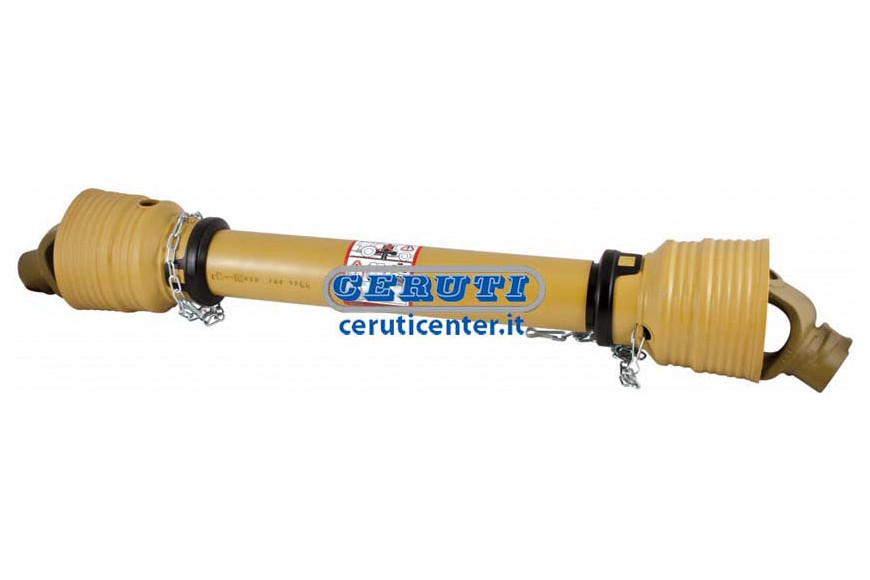

PTO Shaft for Cat 6 x 1000 Tractor CE Approved

OEM Code 73312309

Cardano L.1000 Cat.6 Barbed

cardan category 6

cruise 30.2X92 mm

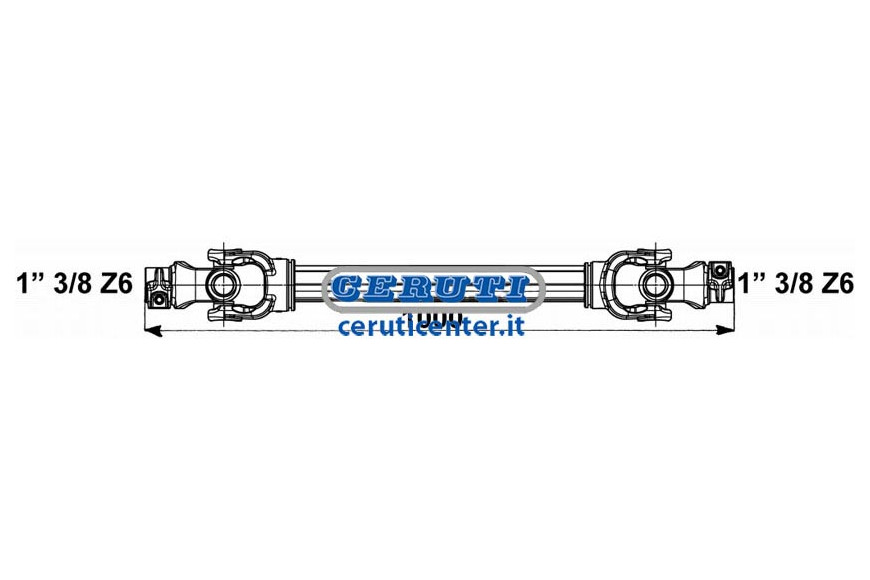

length of closed cardan shaft 1000 mm

power 540 rpm (10th) 51 kW - 69 HP

torque 540 rpm (10°) 900 Nm

power 1000 rpm (5th) 78 kW - 106 HP

torque 1000 rpm (5°) 748 Nm

net weight 15.85 kg

Spare parts

30124 - External Tube Joint 1" 3/8 Z=6

30132 - Internal Tube Joint 1" 3/8 Z=6

30143 - Outer Tube Fork

30154 - Inner Tube Fork

30170 - Splined Fork With Button Category 6 1" 3/8 Attachment - Z.6

30171 - Slotted Fork With Button Category 6 1" 3/4 Attachment - Z.6

30181 - External Cardan Tube With Triangular Profile Type By-Py - 3000 Mm

30188 - Internal Cardan Tube With Triangular Profile Type By-Py - 3000 Mm

30641 - Agricultural Cardan Drives

31230 - Splined Fork With Button Category 6 1" 3/8 Connection - Z.21

31231 - Slotted Fork With Button Category 6 1" 3/4 Connection - Z.20

Spare part for

30823 - Triangular Profile PTO Shaft With Mounted Shear Bolt Limiter - Category 5

30829 - Triangular Profile PTO Shaft With Freewheel Mounted - Category 6

30834 - Triangular Profile PTO Shaft With Mounted Friction Disc Clutch - Category 4
