Relays Voltage 12 V Current Intensity 30/40 A - Ref. 36436

Name: Relays Voltage 12 V Current Intensity 30/40 A - Ref. 36436
Brand: Cobo
SKU: CC-36436
Price: 8.65 EUR
Availability: InStock

Ref: CC-36436

Available for order

SHIPPED IN 2 / 3 DAYS

N. of days may vary for locations that are difficult to reach

€8.65 VAT inc.

€7.09 VAT exc.

Quantity

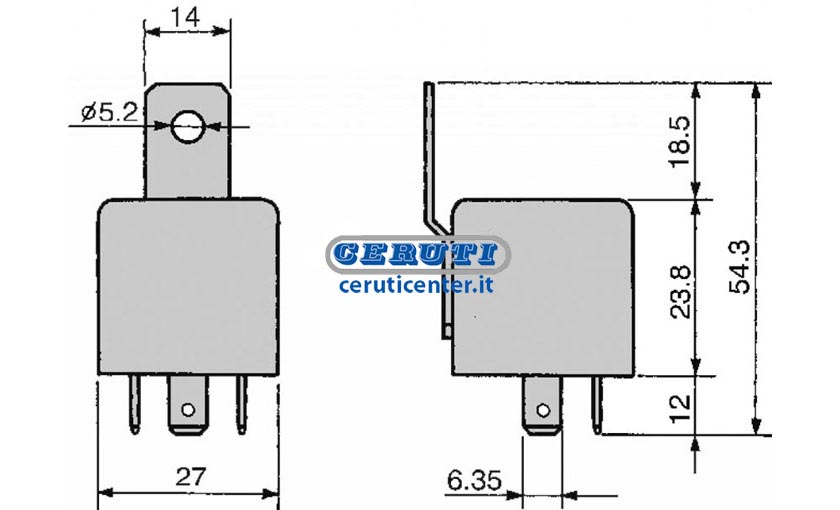

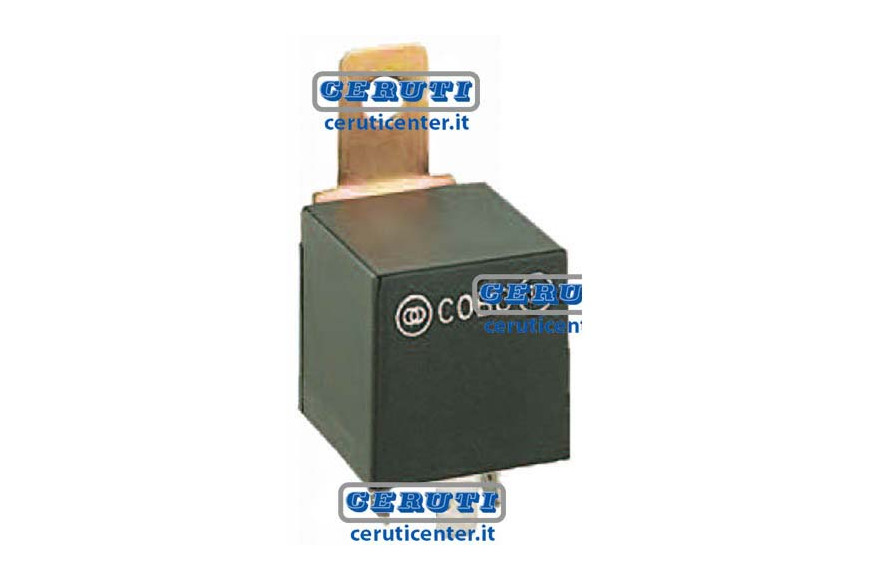

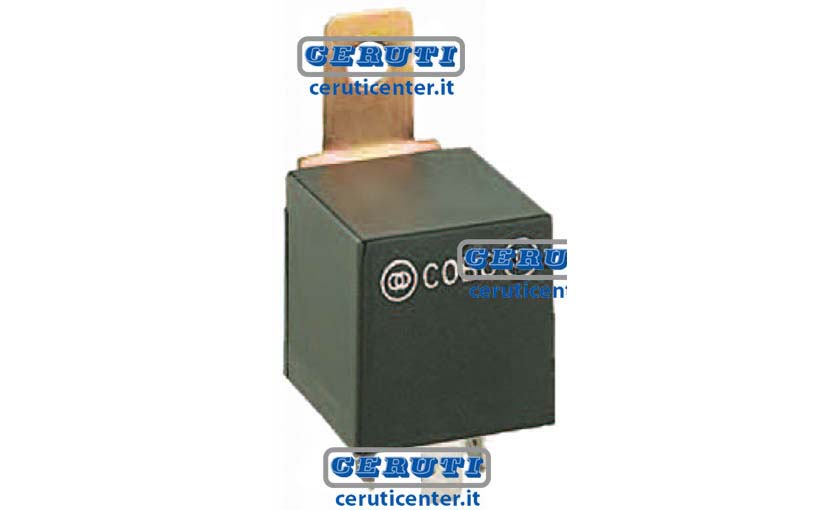

Relays 12V 30 / 40A With Movable Bracket

voltage 12 V

current intensity 30/40 A

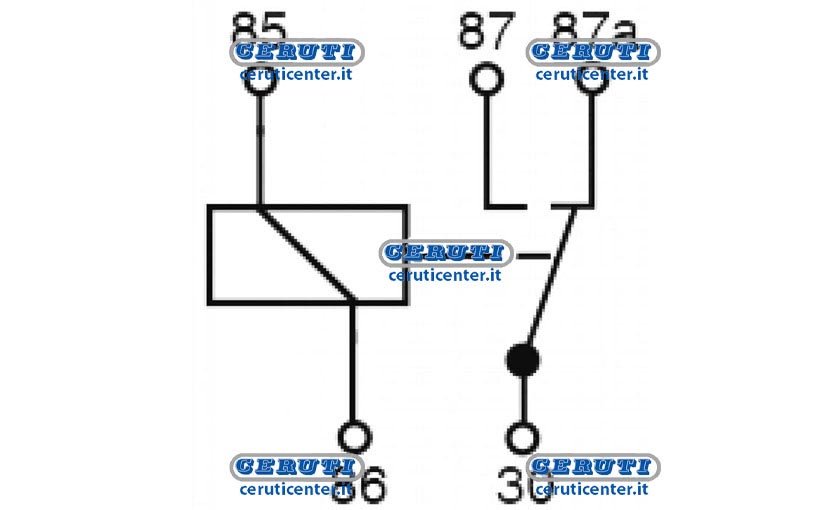

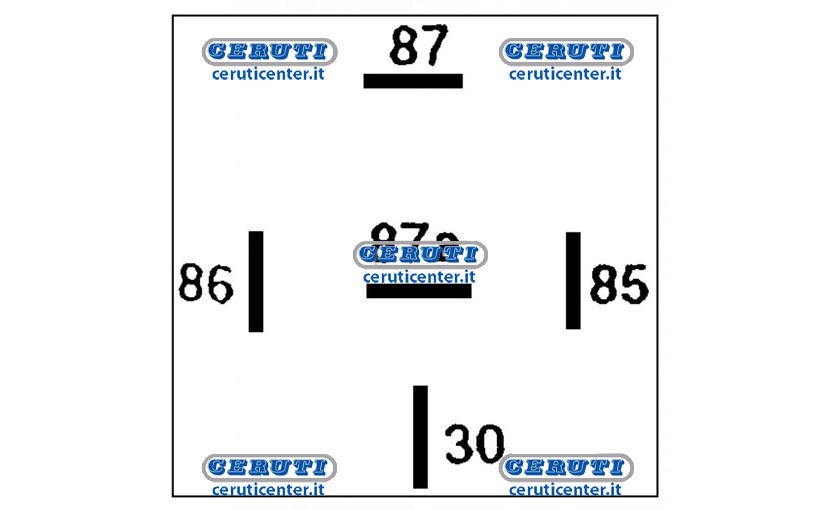

connections 30 - Polo + diretto dalla batteria

87 - Polo + utilizzatore

87a - Polo + utilizzatore

85 - Alimentazione relay

86 - Alimentazione relay

net weight 0.033 kg

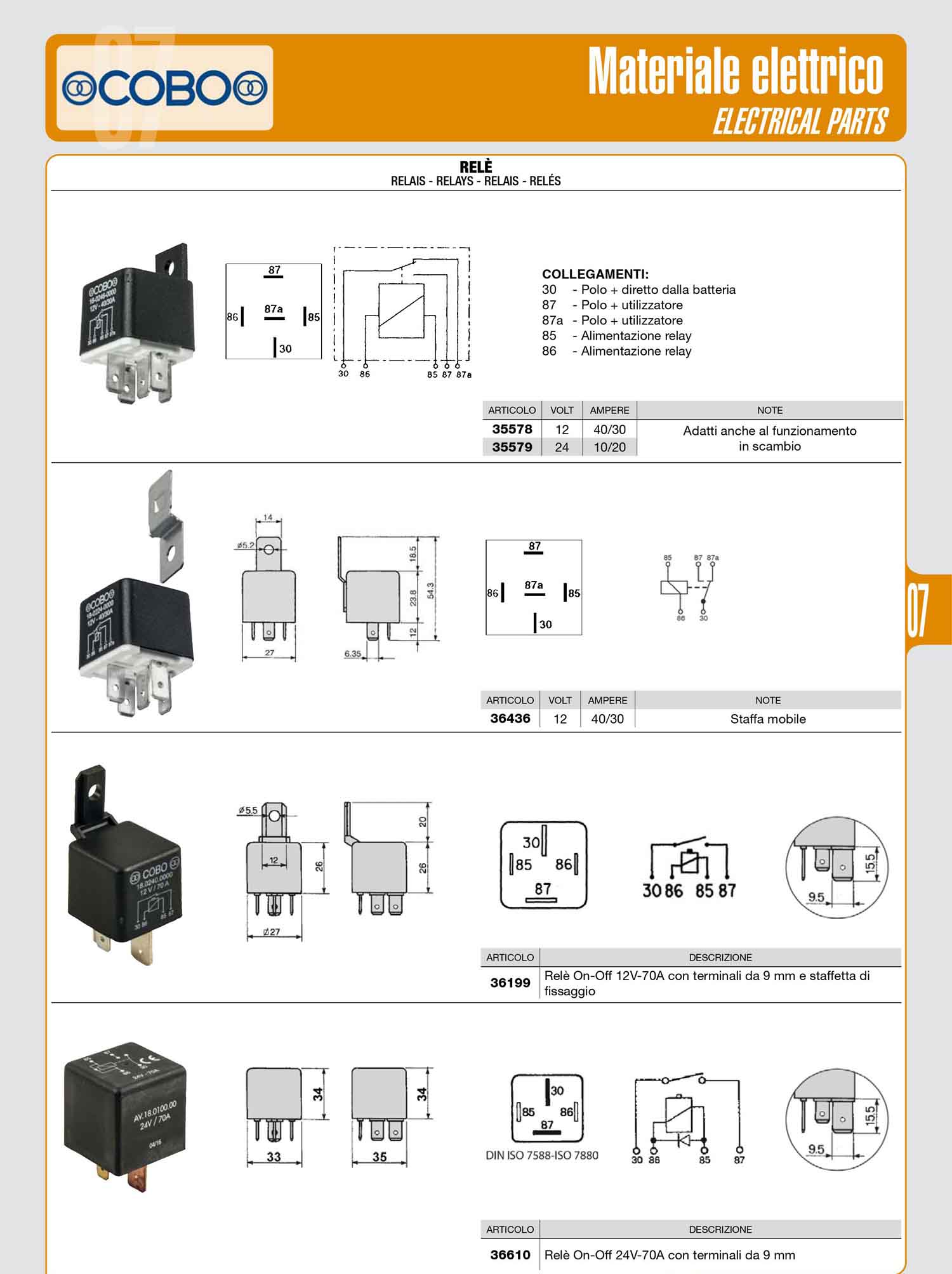

Below you will find one or two pages of the agricultural spare parts catalogue and all the products shown, which can be purchased.

Depending on the size or specification required, identify the product code (typically 5 numbers)

Below each image in the catalogue, you will find the article codes for purchasing.

Stock: the quantity shown (available), is for shipment within 3/4 working days.

To view additional information on a product, click on the code or thumbnail, then 'Show Details'.

Prices are per unit including 22% VAT.

If you do not find a product in the list, search for the 5-number code with the search engine above.
