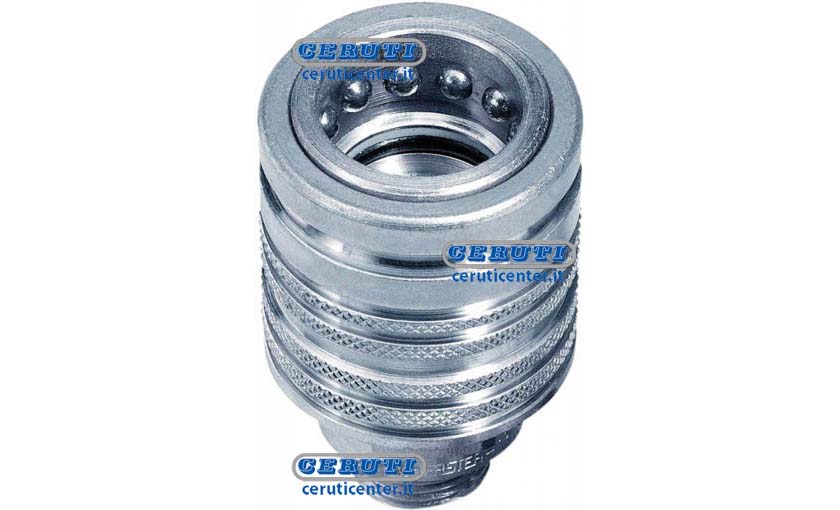

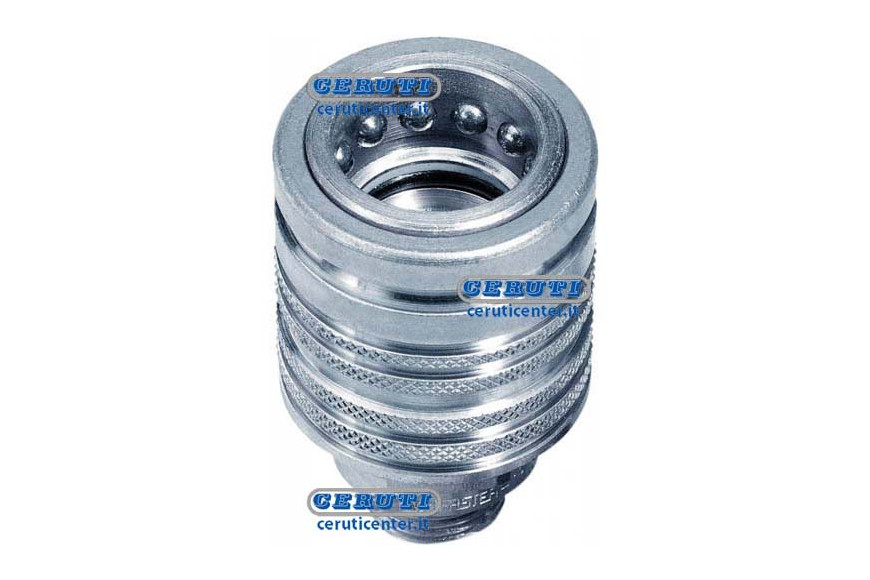

Push-Pull Type Female Quick Coupling With Ogive Attack Cpv Series Attack M16X1.5 - Inn. Quick Female Connection M16X1.5 - Ref. 8
Available for order
SHIPPED IN 2 / 3 DAYS
Order Online
- Delivery Italy: 1/2 days, from 9.90 €
- Delivery Europe: 2/3 days, from 17.90 €
N. of days may vary for locations that are difficult to reach
Price shown is inclusive of VAT
Price excl. VAT €21.04
VAT "IVA IT 22%" €4.63
OEM code CPV082/1615F
Inn. Quick Coupling Female M16X1,5
- Connection: pushing the male part(push).
- Disconnection: pulling the male part(pull).
- Occlusion: with protruding valve.
- Pluggable: in the absence of pressure.
- Disconnection under pressure: only as an emergency maneuver.
- Interchangeability: ISO 7241-1 part A standard

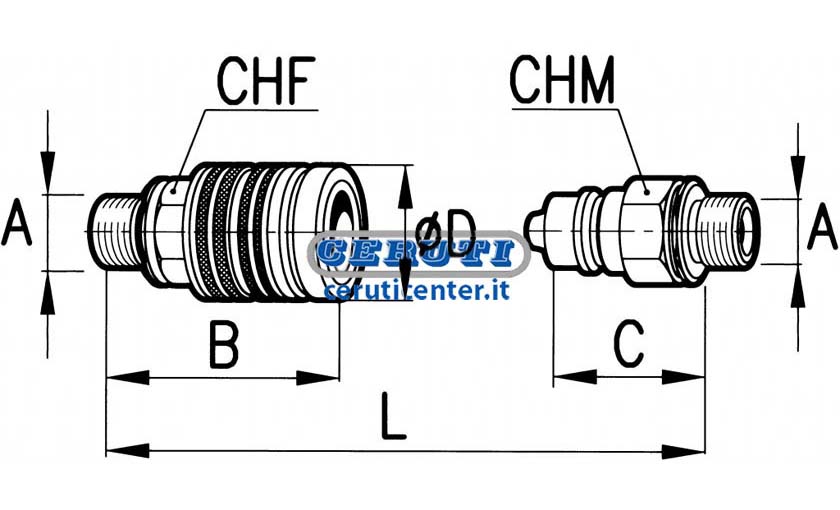

Thread Male - DIN 2353
External diameter - D 38 mm
Length - B 63,8 mm
L 100 mm
CH 27 mm
A M16x1,5
Series CPV
Coupling M16x1,5
net weight 0.246 kg
