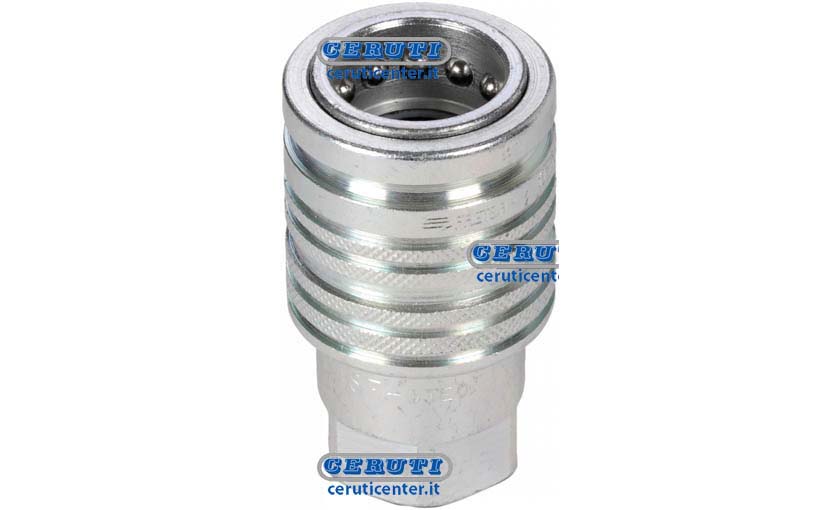

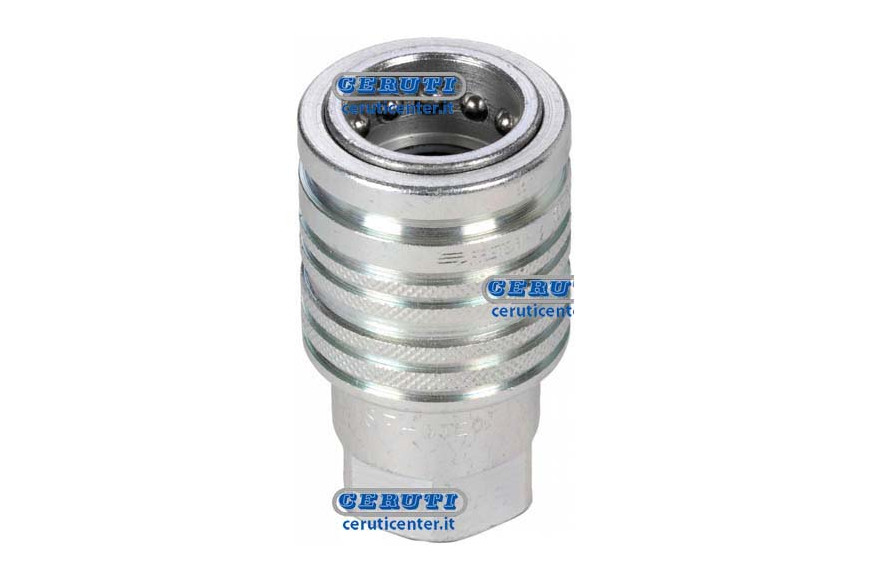

Pv Series Push-Pull Female Valve Quick Coupling 1/2 "Gas Connection - Suitable for PV 12 GAS F, PV12GASF - Ref. 80388
Currently not available
Try checking again later, or contact us for availability.
Price shown is inclusive of VAT
Price excl. VAT €7.79
VAT "IVA IT 22%" €1.71

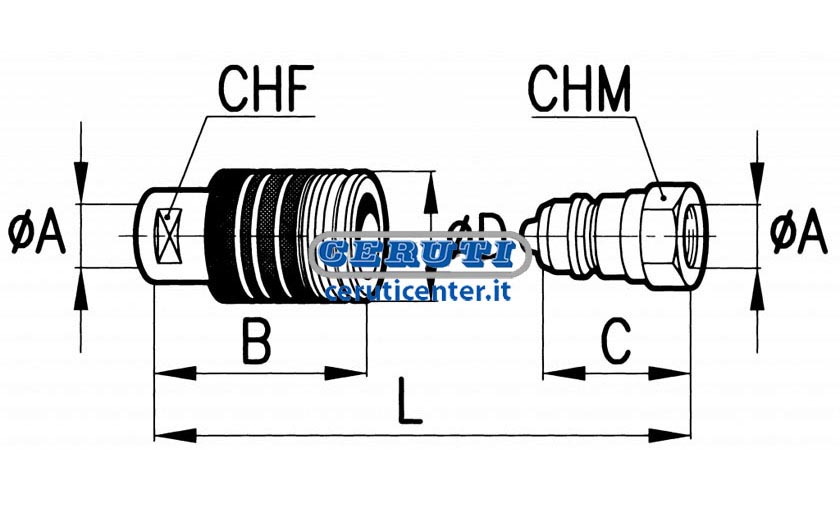

Key - CH
- 27 mm
Outer diameter - D
- 38 mm
Threading - A
- Femmina - 1/2" Gas
Length - B
- 66 mm
Length - L
- 88 mm
series
- PV
OEM code PV 12 GAS F,PV12GASF
Inn.Rapido Valv. Push-Pull F 1/2 "
- Connection: pushing the male part(push).
- Disconnection: pulling the male part(pull).
- Occlusion: with protruding valve.
- Pluggable: in the absence of pressure.
- Disconnection under pressure: only as an emergency maneuver.
- Interchangeability: ISO 7241-1 part A standard
Thread Female
External diameter - D 38 mm
Length - B 66 mm
L 88 mm
CH 27 mm
A 1/2" Gas
Series PV
Coupling 1/2" Gas
net weight 0.27 kg
Below you will find one or two pages of the agricultural spare parts catalogue and all the products shown, which can be purchased.
Depending on the size or specification required, identify the product code (typically 5 numbers)
Below each image in the catalogue, you will find the article codes for purchasing.
Stock: the quantity shown (available), is for shipment within 3/4 working days.
To view additional information on a product, click on the code or thumbnail, then 'Show Details'.
Prices are per unit including 22% VAT.
If you do not find a product in the list, search for the 5-number code with the search engine above.
- Our technical department is available and will get back to you as soon as possible.
- In addition, send photographs via Whatsapp or Email indicating your need.
- Click on the shopping cart icon to add 'one unit'.
- The shipping cost is calculated at checkout.
