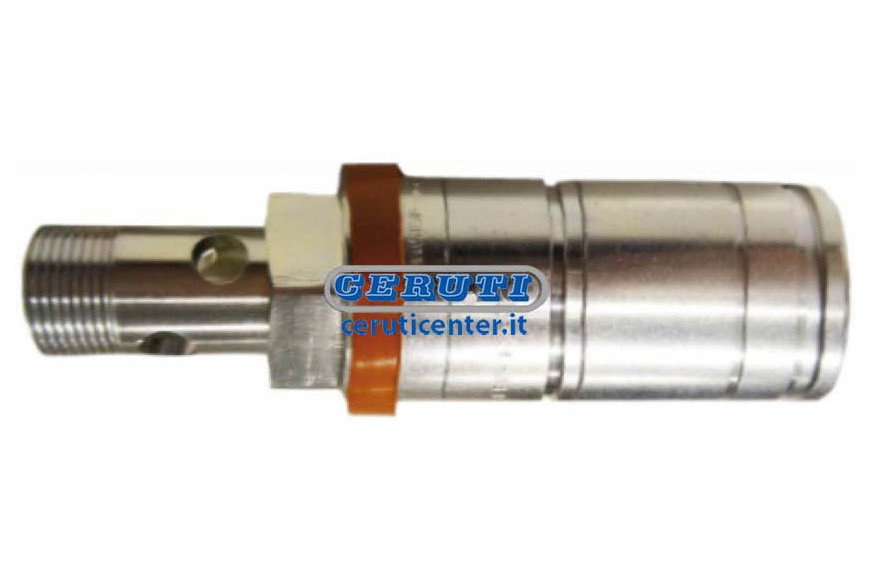

1/2 "Female Quick Coupling Bulkhead Type 3Cfpv Series - 3Cfhf M22X1.5 Coupling - Female Quick Coupling 22X1.5 Pass. - Ref. 83606
Available for order
SHIPPED IN 2 / 3 DAYS
Order Online
- Delivery Italy: 1/2 days, from 9.90 €
- Delivery Europe: 2/3 days, from 17.90 €
N. of days may vary for locations that are difficult to reach
Price shown is inclusive of VAT
Price excl. VAT €92.91
VAT "IVA IT 22%" €20.44
OEM code 0.010.9832.0,3CFPV19/2215 F
Inn. Female Quick Pass. 22X1.5
- Connection: pushing the male part(push).
- Disconnection: pulling the male part(pull).
- Occlusion: with protruding valve.
- Pluggable: only male part under pressure.
- Disconnection under pressure: only as an emergency maneuver.
- Interchangeability: ISO 7241-1 part A standard.

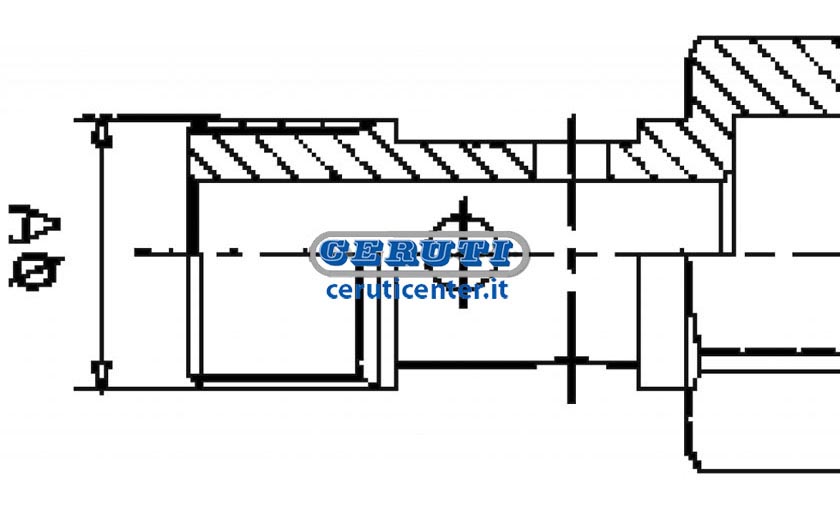

Thread Male
External diameter - D 38 mm
Length - B 134,8 mm
CH 32 mm
A M22x1,5
Series 3CFPV
Coupling M22x1,5
net weight 0.54 kg
Below you will find one or two pages of the agricultural spare parts catalogue and all the products shown, which can be purchased.
Depending on the size or specification required, identify the product code (typically 5 numbers)
Below each image in the catalogue, you will find the article codes for purchasing.
Stock: the quantity shown (available), is for shipment within 3/4 working days.
To view additional information on a product, click on the code or thumbnail, then 'Show Details'.
Prices are per unit including 22% VAT.
If you do not find a product in the list, search for the 5-number code with the search engine above.
- Our technical department is available and will get back to you as soon as possible.
- In addition, send photographs via Whatsapp or Email indicating your need.
- Click on the shopping cart icon to add 'one unit'.
- The shipping cost is calculated at checkout.
