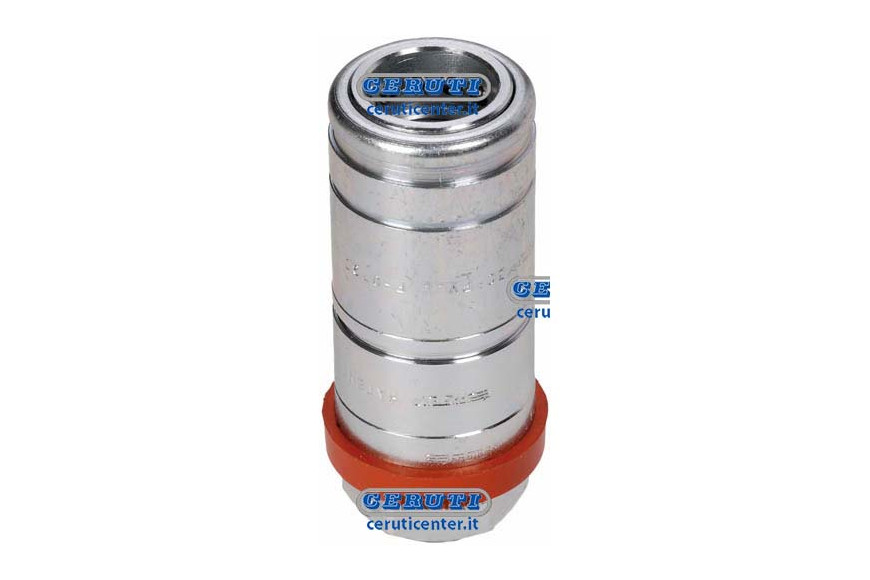

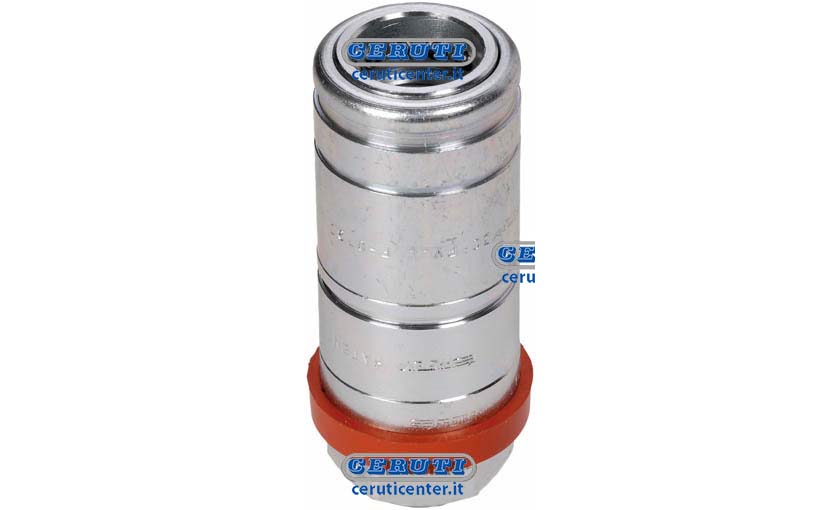

Female Quick Coupling With Pressurized Male For Rigid Hoses Series 3Cfpv - 3Cfhf Connection 1/2 "Npt - Ref. 80560
CURRENTLY UNAVAILABLE
Order Online
- Delivery Italy: 1/2 days, from 9.90 €
- Delivery Europe: 2/3 days, from 17.90 €
N. of days may vary for locations that are difficult to reach
Price shown is inclusive of VAT
Price excl. VAT €49.91
VAT "IVA IT 22%" €10.98
OEM code 5152194,5189323,3CFPV 12 NPT F,3CFPV12NPTF
Inn.Rap.Tipo Push-Pull Rigid Pipes
- Connection: pushing the male part(push).
- Disconnection: pulling the male part(pull).
- Occlusion: with protruding valve.
- Pluggable: only male part under pressure.
- Disconnection under pressure: only as an emergency maneuver.
- Interchangeability: ISO 7241-1 part A standard.
Thread Female
External diameter - D 38 mm
Length - B 108 mm
L 129,3 mm
CH 27 mm
A 1/2" NPT
Series 3CFPV
Coupling 1/2" NPT
net weight 0.54 kg

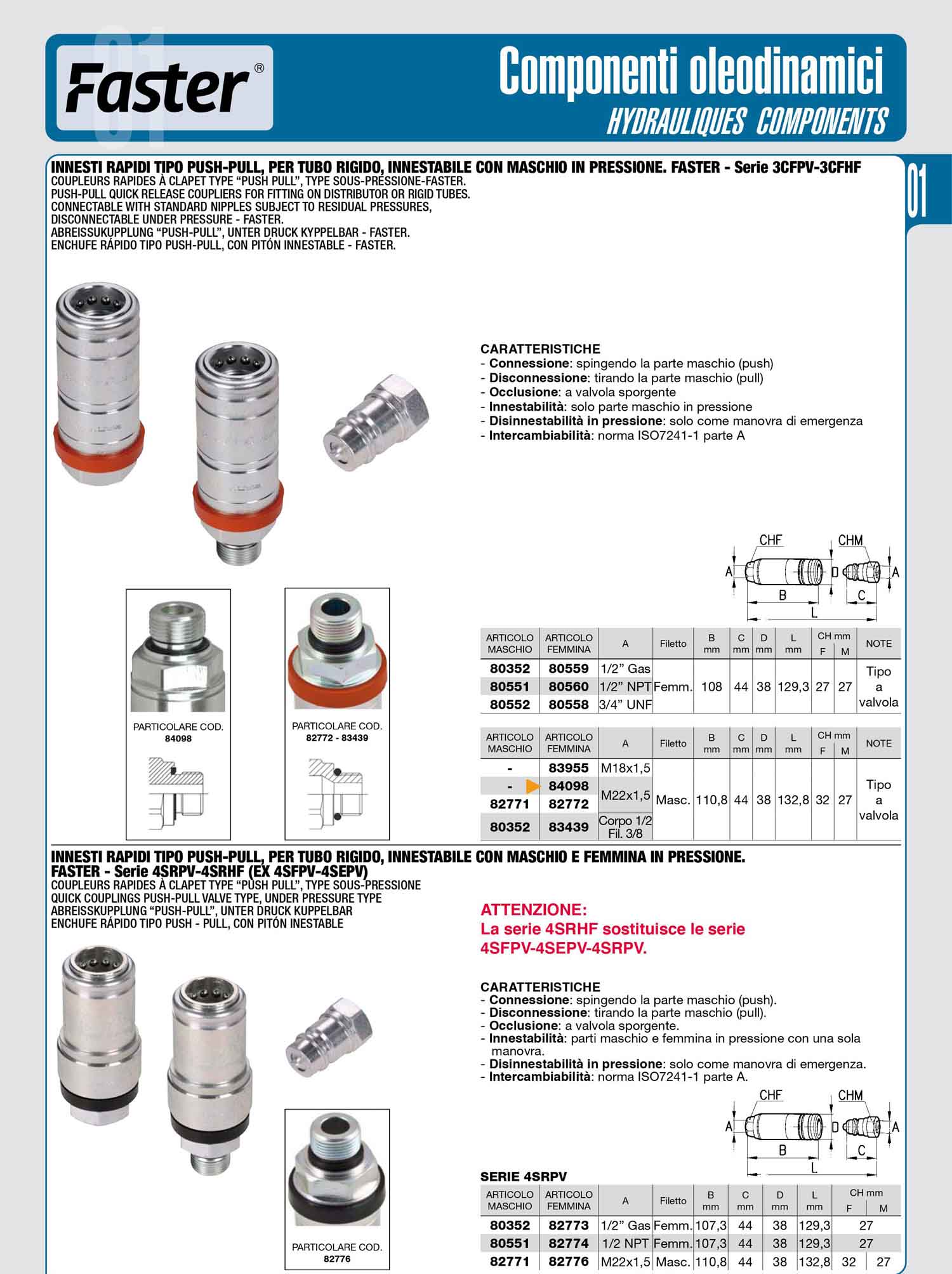

Below you will find one or two pages of the agricultural spare parts catalogue and all the products shown, which can be purchased.
Depending on the size or specification required, identify the product code (typically 5 numbers)
Below each image in the catalogue, you will find the article codes for purchasing.
Stock: the quantity shown (available), is for shipment within 3/4 working days.
To view additional information on a product, click on the code or thumbnail, then 'Show Details'.
Prices are per unit including 22% VAT.
If you do not find a product in the list, search for the 5-number code with the search engine above.
- Our technical department is available and will get back to you as soon as possible.
- In addition, send photographs via Whatsapp or Email indicating your need.
