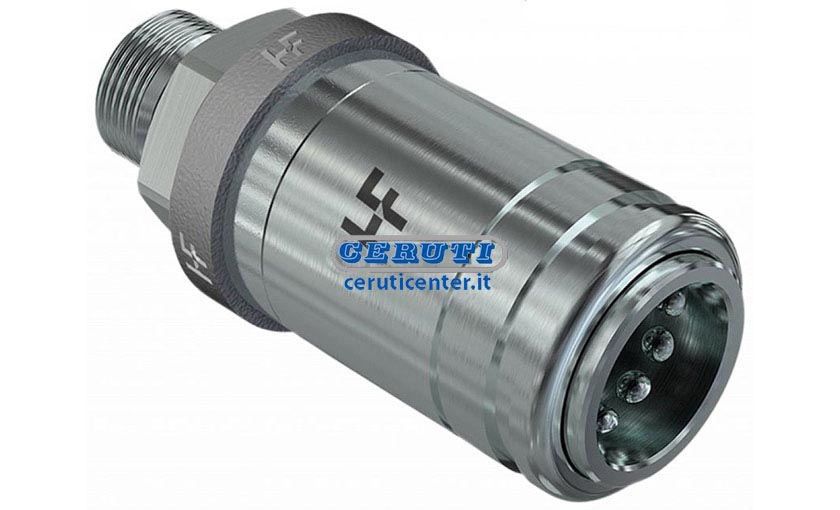

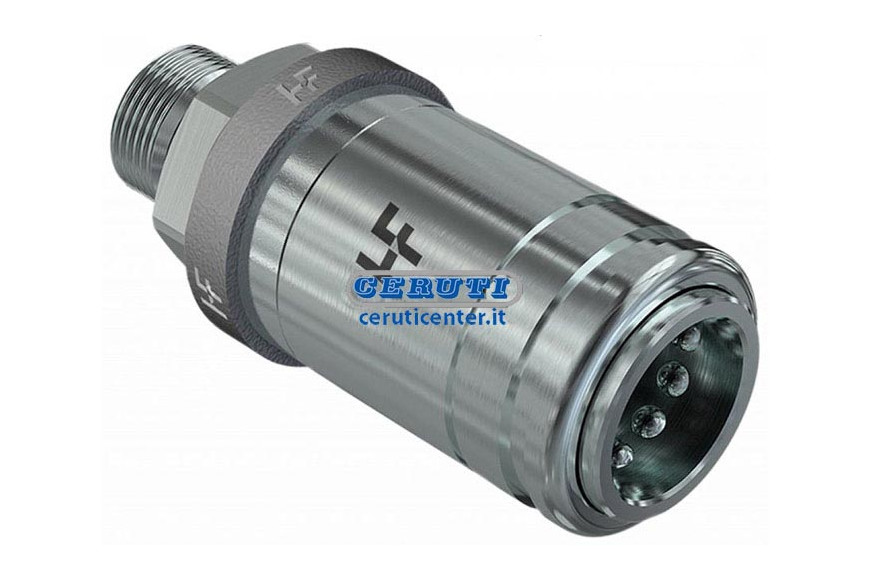

Female Quick Coupling For High Flow Rates From 1/2 ”4Skhf Series Connection M22X1,5 - Adaptable to 4SKF0821 / 2215F - Ref. 83968
Available for order
SHIPPED IN 2 / 3 DAYS
Order Online
- Delivery Italy: 1/2 days, from 9.90 €
- Delivery Europe: 2/3 days, from 17.90 €
N. of days may vary for locations that are difficult to reach
Price shown is inclusive of VAT
Price excl. VAT €124.40
VAT "IVA IT 22%" €27.37
OEM code 4SKF0821/2215F
Rap Graft. M22X1,5 Female 4Skhf
Series Interchange: ISO 7241-A
Valve Type: Poppet
Connection: Push to Connect
Disconnection: Pull to Disconnect
Connection Under Pressure: Allowed Both Halves up to W.P.
Compact push-pull couplings for application with higher flow rate and limited space, connectable under residual pressure in both male and female side.
Can be screwed directly into valve ports or rigid pipes.
Breakaway function. ISO 7241 part A interchange.
Flow rate up to 250 l/min.
Reduced dimensions: 15 mm shorter than standard version.

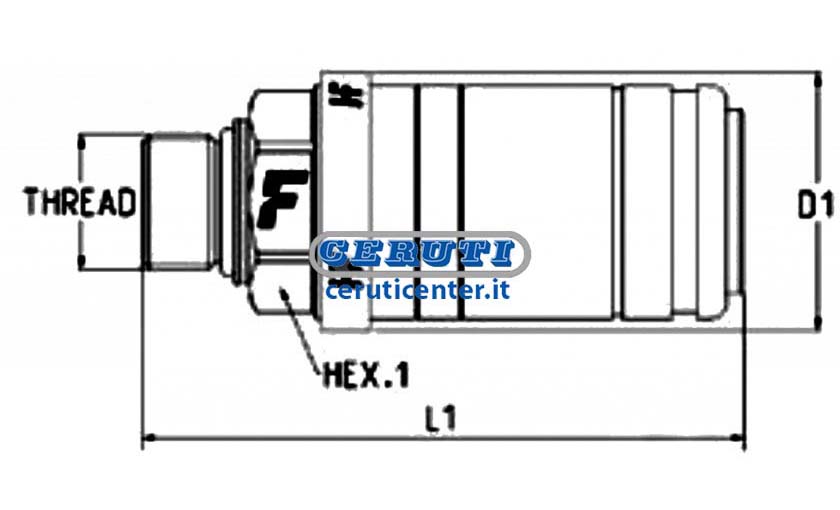

Thread Male
Flow rate 70 l/min
HEX. 1 32 mm
Length - L1 94,2 mm
External diameter - D1 42 mm
Operating pressure 25 MPa
Bursting pressure 100 MPa
Series 4SKHF
Coupling M22x1,5
