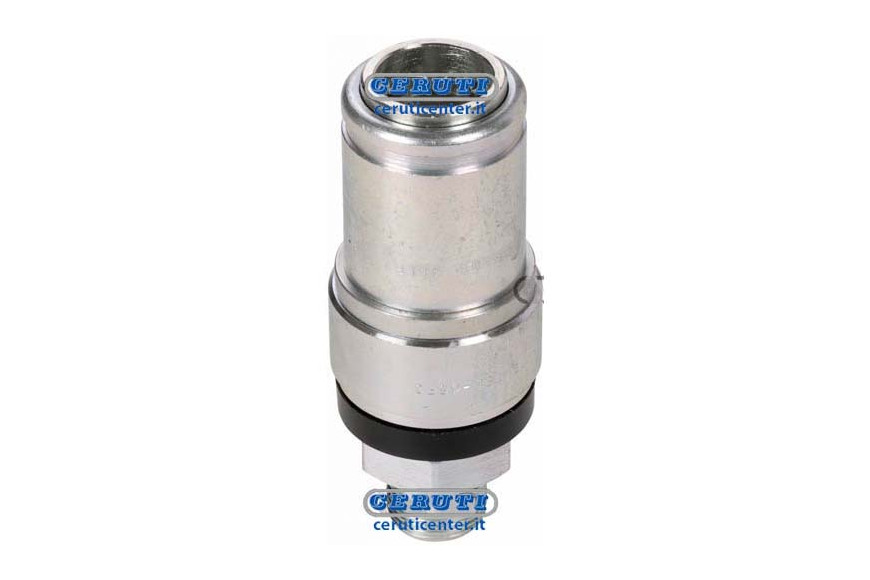

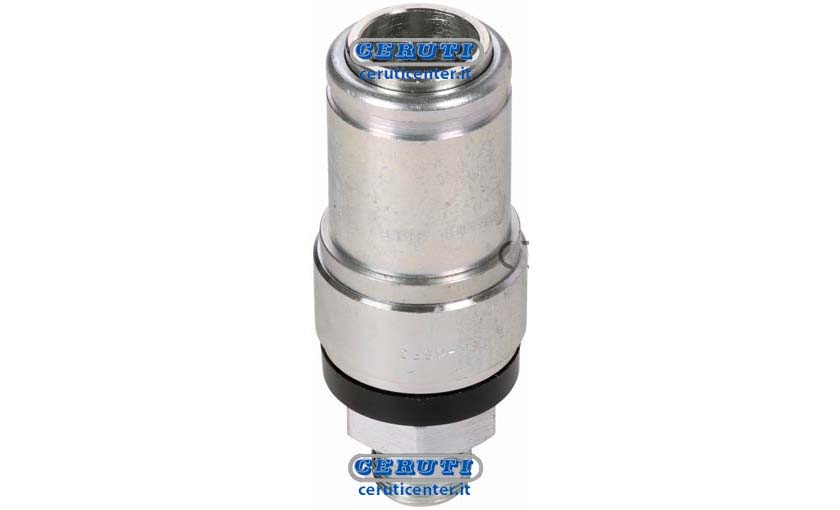

Quick Coupling With Male And Female Under Pressure For Rigid Hoses Series 4Srpv Attack M22X1,5 - Ref. 82776
Available for order
SHIPPED IN 2 / 3 DAYS
Order Online
- Delivery Italy: 1/2 days, from 9.90 €
- Delivery Europe: 2/3 days, from 17.90 €
N. of days may vary for locations that are difficult to reach
Price shown is inclusive of VAT
Price excl. VAT €116.91
VAT "IVA IT 22%" €25.72
OEM code 4SRPV081/22 FH,4SRPV081/22FH
Quick Coupling Valve F M22X1,5
- Connection: pushing the male part(push).
- Disconnection: pulling the male part(pull).
- Occlusion: with protruding valve.
- Pluggable: male and female parts under pressure with a single maneuver.
- Disconnection under pressure: only as an emergency maneuver.
- Interchangeability: ISO 7241-1 part A standard.
ATTENTION: the 4SRPV series replaces the 4SFPV and 4SEPV series
Thread Male
External diameter - D 38 mm
Length - B 110,8 mm
L 132,8 mm
A M22x1,5
CH 32 mm
Series 4SRPV
Coupling M22x1,5
net weight 0.528 kg
