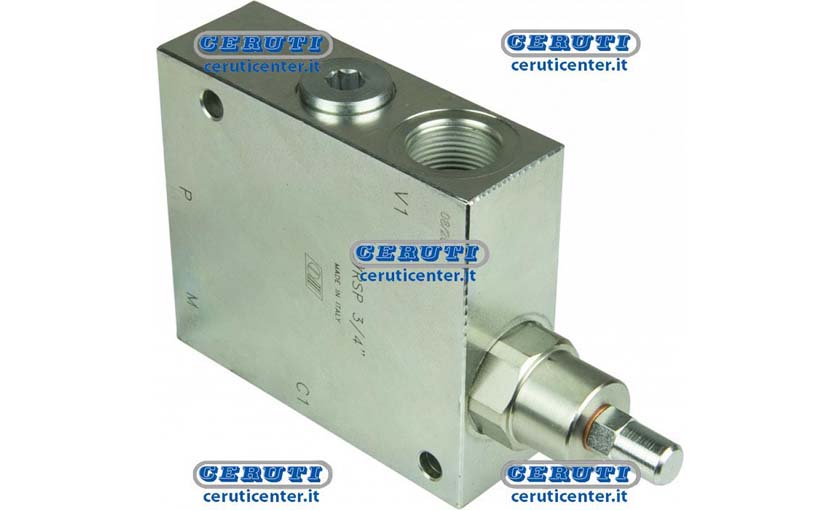

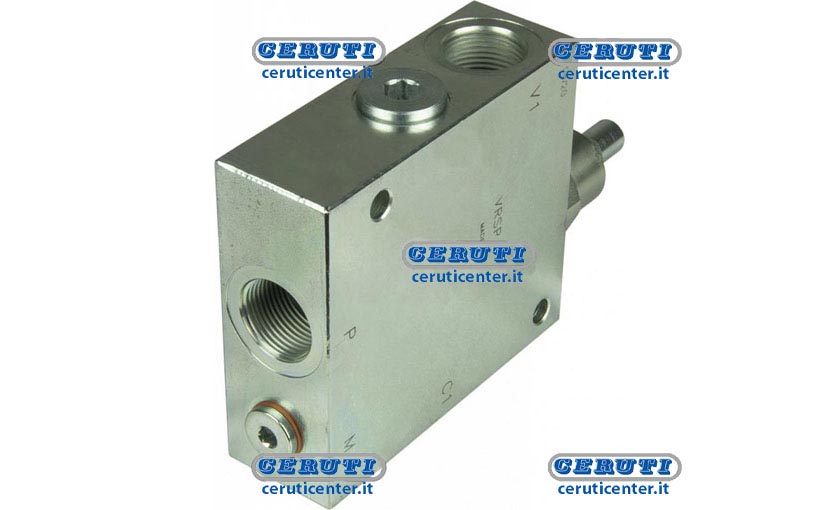

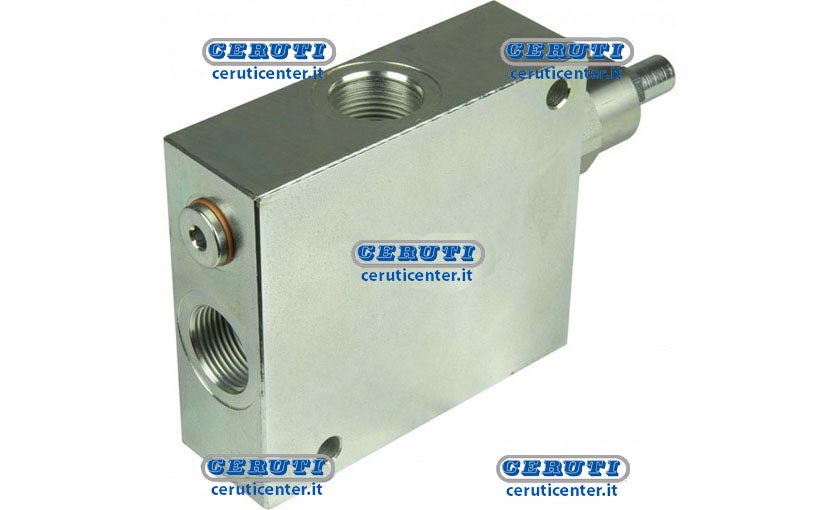

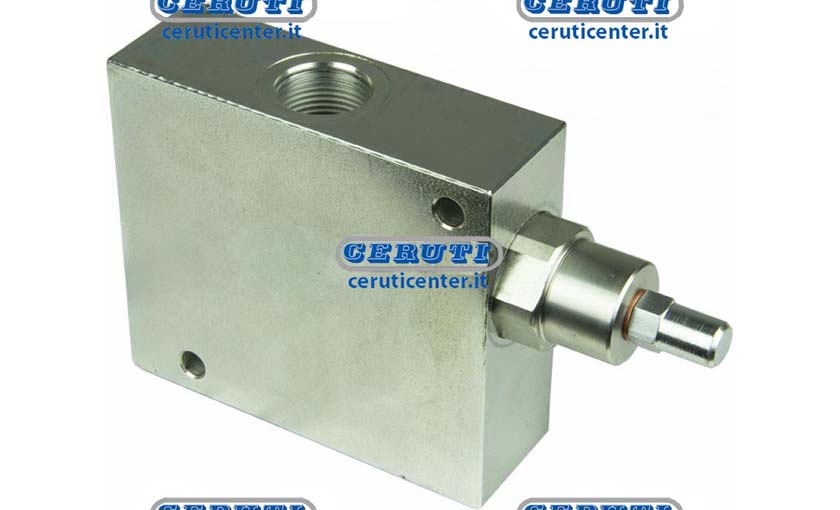

Valve Regenerative Circuit 3/4 "

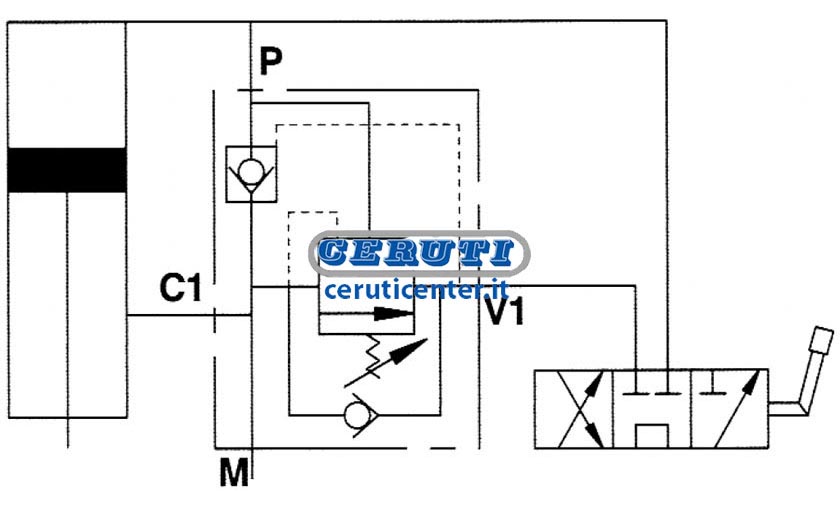

This valve allows to recover the oil from the rod to port C1 and to send it to the bottom valve through the port P, adding it to the pomp fl ow rate.
When the pressure in the bottom valve of the cylinder achieves the setting value, oil from the rod is sent to the tank through port V1, restoring a non regenerative system with maximum thrust.
Maximum pressure 350 Bar
Maximum flow rate 95 l/min
Piloting ratio 1:5,5
Pressure renge 60-110 Bar
Couplings 3/4" Gas
