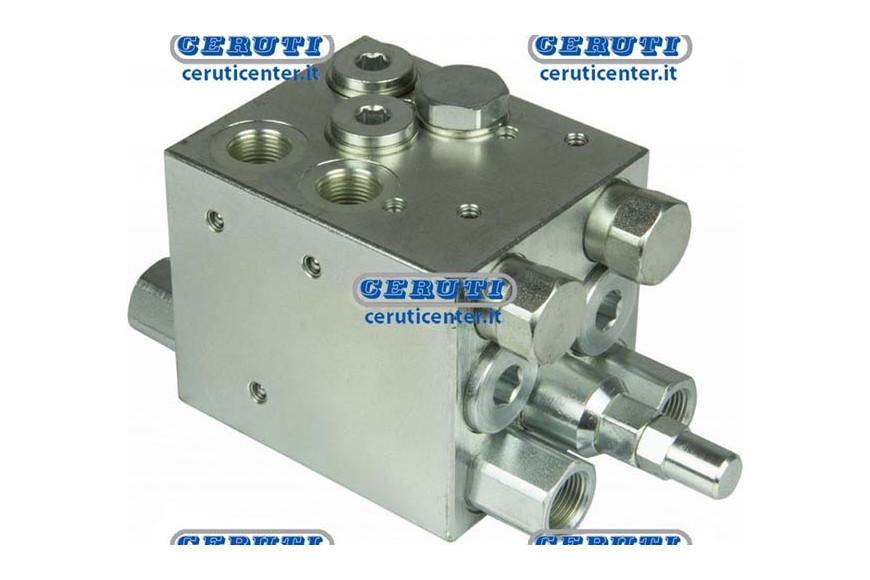

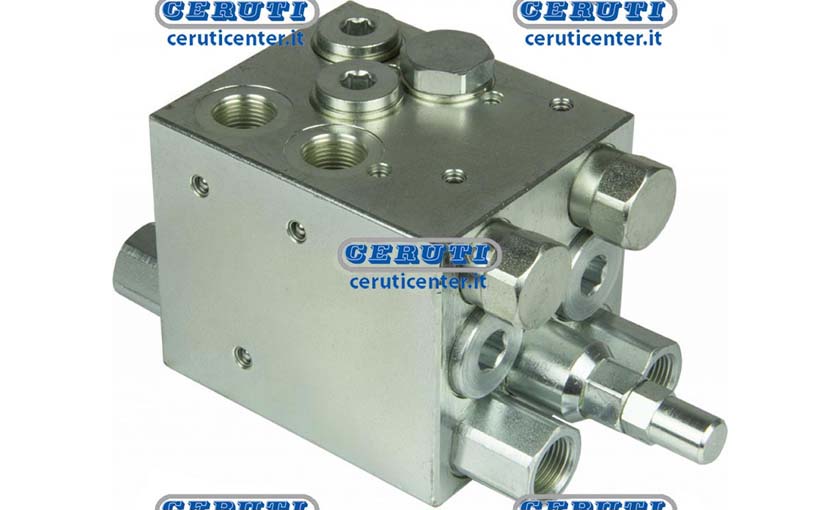

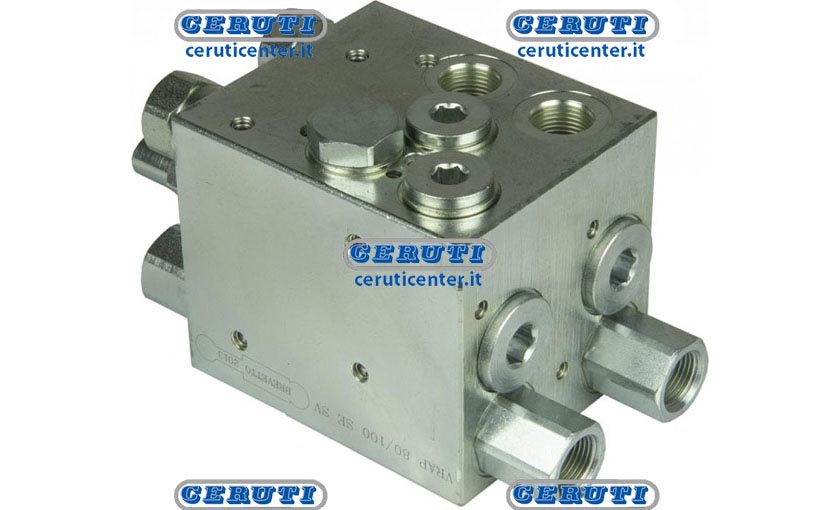

Single Acting Plow Tipping Valve With Load Alignment With Tractor In Furrow - Ref. 84114
Available for order
SHIPPED IN 2 / 3 DAYS
Order Online
- Delivery Italy: 1/2 days, from 9.90 €
- Delivery Europe: 2/3 days, from 17.90 €
N. of days may vary for locations that are difficult to reach
Price shown is inclusive of VAT
Price excl. VAT €618.42
VAT "IVA IT 22%" €136.05
Se 80/100 Abbat.Aratro Valve Sv
VRAP 80/100 SE SV

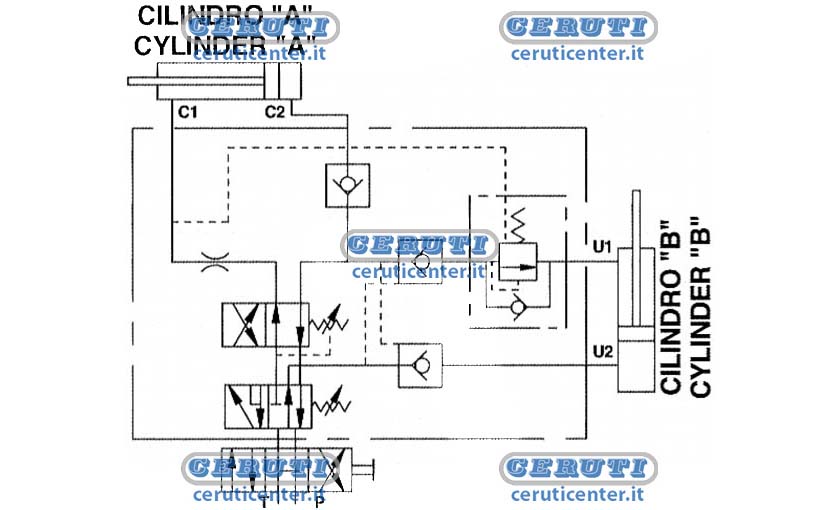

This valve has been designed for use with two cylinders in sequence for reversible plough to obtain the automatic alignment of load and its overturning.
Maximum pressure 400 Bar
Max exchange pressure 230 Bar
Couplings 3/8" Gas
