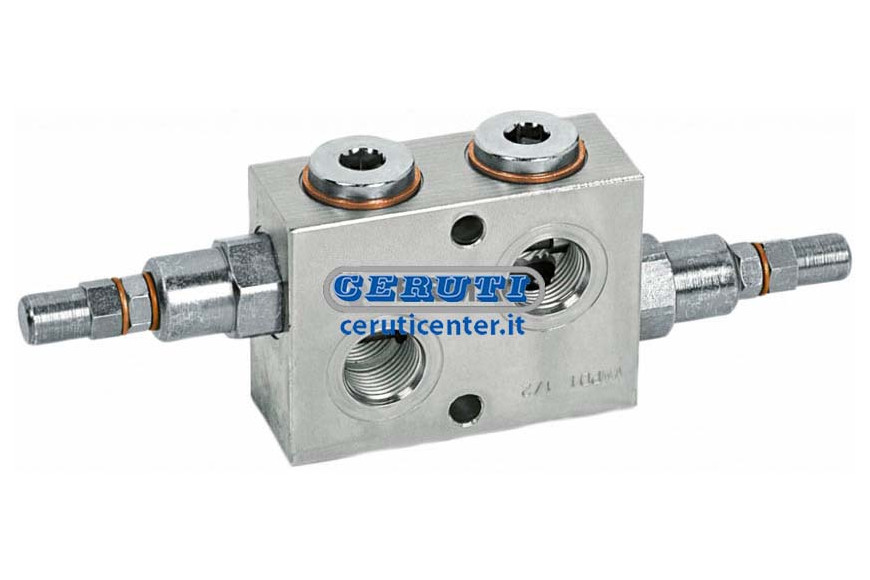

Double Crossed Maximum Pressure Valve Maximum Flow 70 L / Min. 1/2 "Gas Connections - Ref. 83383
Available for order
SHIPPED IN 2 / 3 DAYS
Order Online
- Delivery Italy: 1/2 days, from 9.90 €
- Delivery Europe: 2/3 days, from 17.90 €
N. of days may vary for locations that are difficult to reach
Price shown is inclusive of VAT
Price excl. VAT €78.71
VAT "IVA IT 22%" €17.32
Press.Doppia Incroc.1 Valve Max / 2
Mode up by 2 relief valves with crossed tank, this valve is used to block pressure to a certain setting in the 2 ports of an actuator/ hydraulic motor.
It’s ideal to provide protection against sudden shock pressures and to adjust different pressures in the 2 ports of an hydraulic circuit as well.
The 6 ports (2 ways in and 4 ways out reversible) enable to use just 1 valves for 2 cylinders.
maximum pressure 10 - 180 bar
maximum flow rate 70 l/min
couplings 1/2" GAS
net weight 1.47 kg
