Block And Control Of The Double Acting Descent Valve Couplings 1/2" Gas

0/0

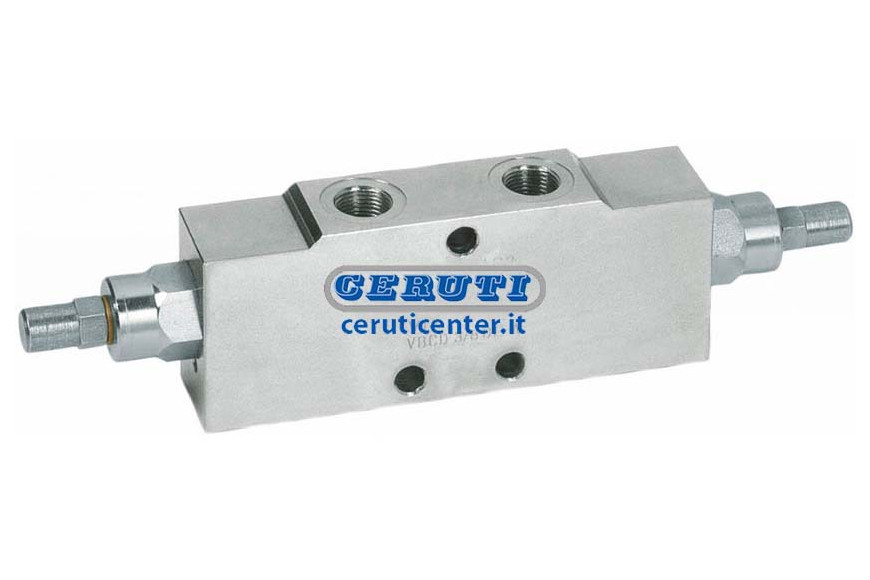

Double Effect Downward Lock And Control Valve 1/2 "Gas Connections - Ref. 82226

Name: Double Effect Downward Lock And Control Valve 1/2 "Gas Connections - Ref. 82226
Brand: MadeinItaly
SKU: CC-82226
Price: 106.81 EUR
Availability: InStock

Ref: CC-82226

Availability: 1

SHIPPED WITHIN 24 HOURS (MON–FRI)

Order Online

Only this item: Next working day dispatch
Delivery Italy: 1/2 days, from 9.90 €
Delivery Europe: 2/3 days, from 17.90 €

N. of days may vary for locations that are difficult to reach

Collection in shop, free of charge, at:

Vermezzo con Zelo (MI)

See Opening Hours and Address:

Monday to Friday: 08:30-12, 14-18
Saturday: 08:30-12
Sunday: Closed

Via Guglielmo Marconi, 2, 20071 Vermezzo con Zelo MI, Italia

€106.81 VAT inc.

€87.55 VAT exc.

Quantity

Description and Data sheet

Of D.E. Block Valve Online 1/2

This valve is used to provide smooth control when lowering loads, to give protection when hydraulic hose breaks itself and to provide the overload protection for the actuator.

It works in both direction.

It can accept open centre or closed centre directional valve.

maximum pressure 350 bar

flow rate 60 l/min

piloting ratio 1:4,25

couplings 1/2" GAS

net weight 1.888 kg

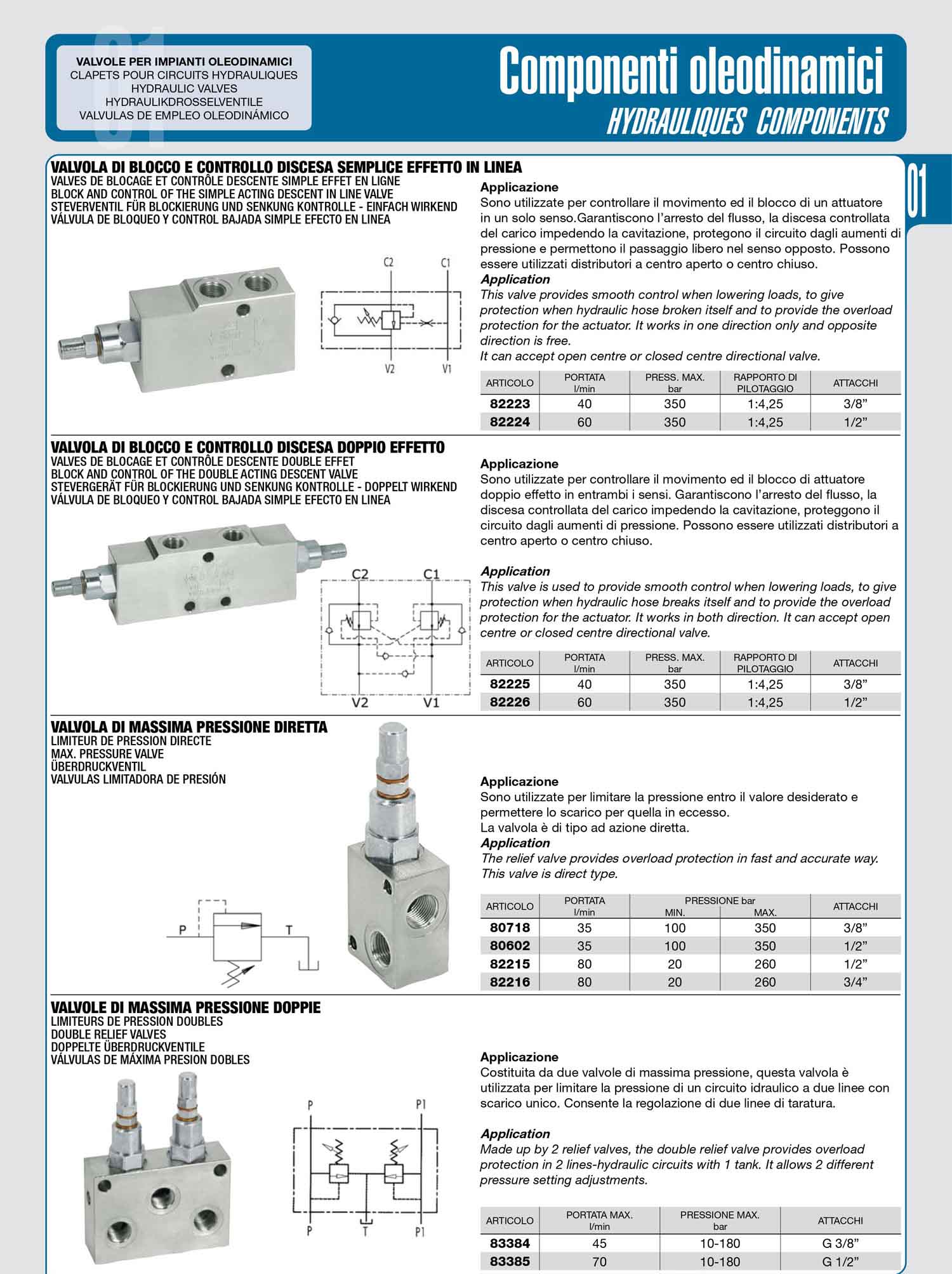

Below you will find one or two pages of the agricultural spare parts catalogue and all the products shown, which can be purchased.
