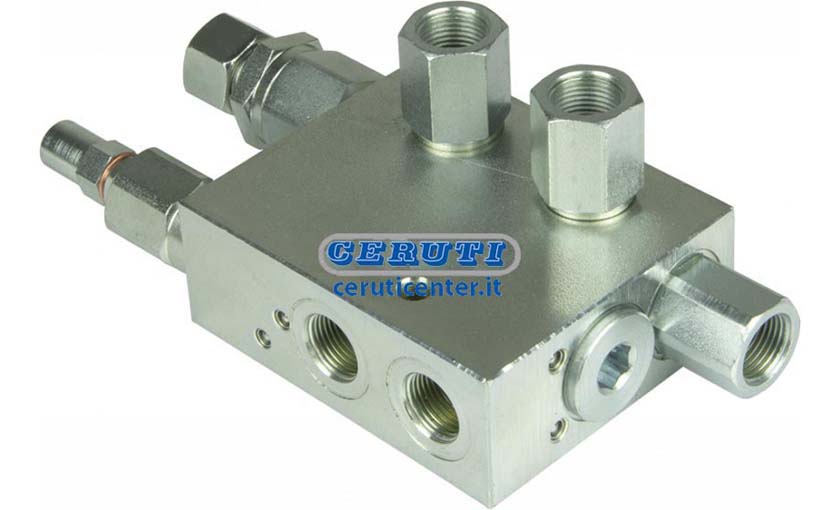

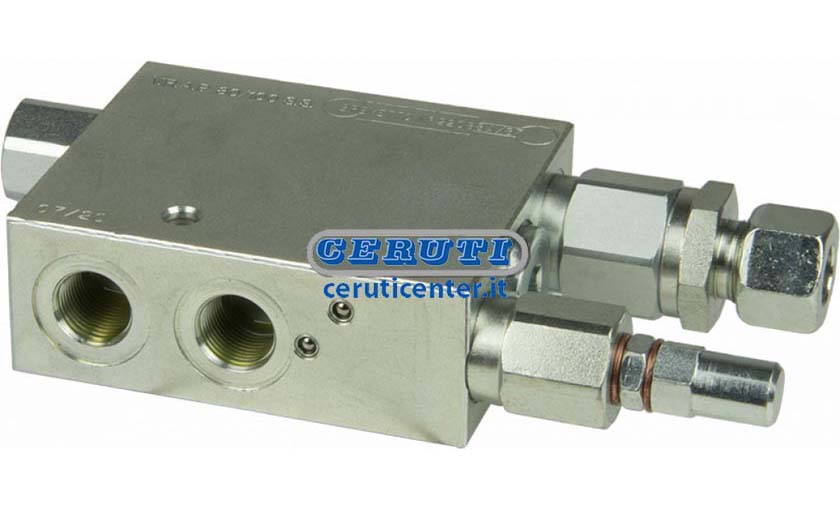

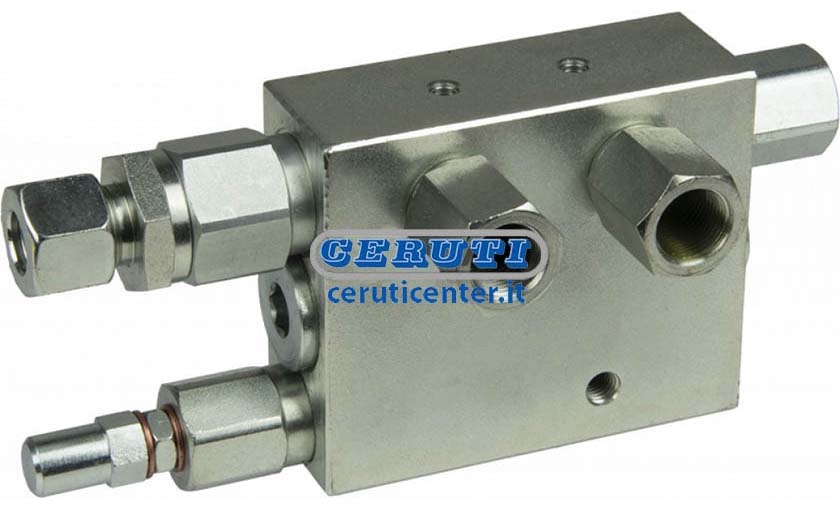

Double Acting Plow Tipping Valve With Load Alignment - Ref. 84113
Available for order
SHIPPED IN 2 / 3 DAYS
Order Online
- Delivery Italy: 1/2 days, from 9.90 €
- Delivery Europe: 2/3 days, from 17.90 €
N. of days may vary for locations that are difficult to reach
Price shown is inclusive of VAT
Price excl. VAT €212.78
VAT "IVA IT 22%" €46.81
Dumper Valve. Plow 80/100 Ss

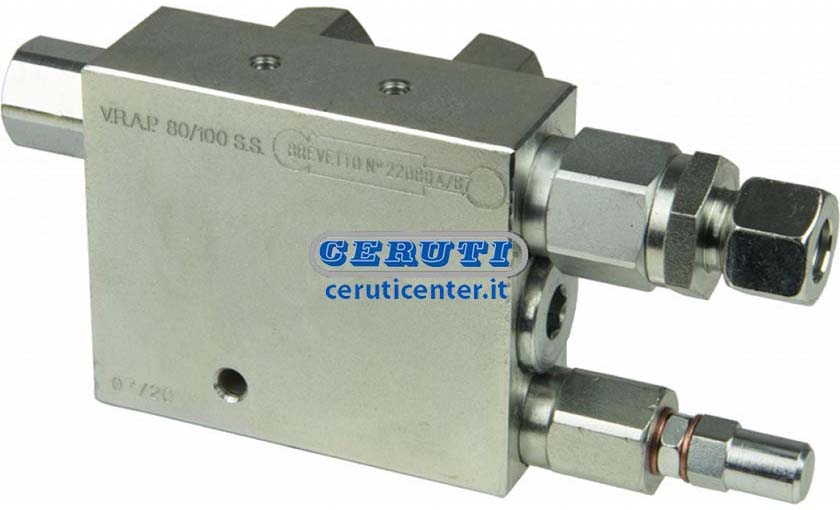

VRAP 80/100 SS

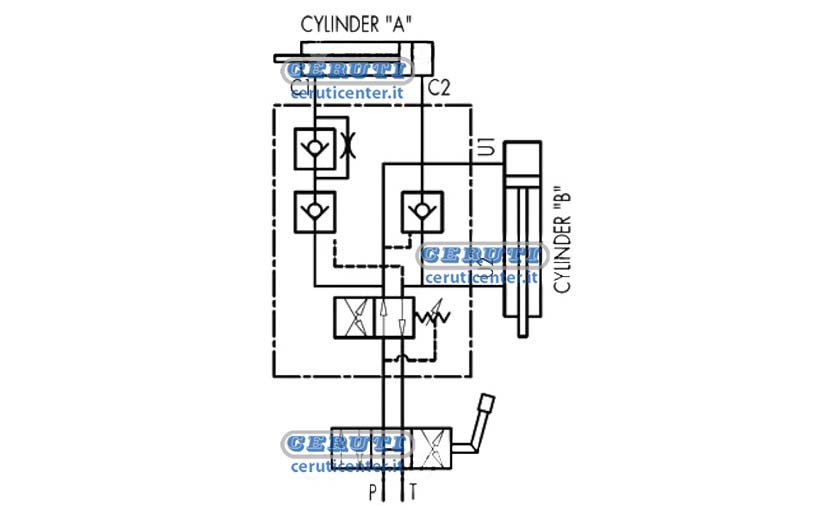

This valve has been designed for use on cylinders for reversible ploughs to obtain the automatic oil fl ow reversal, and therefore the reversal of the hydraulic cylinder which rotates the plough.
Maximum pressure 400 Bar
Max exchange pressure 250 Bar
Coupling C1 12 mm
Couplings C2-P-T 3/8" Gas

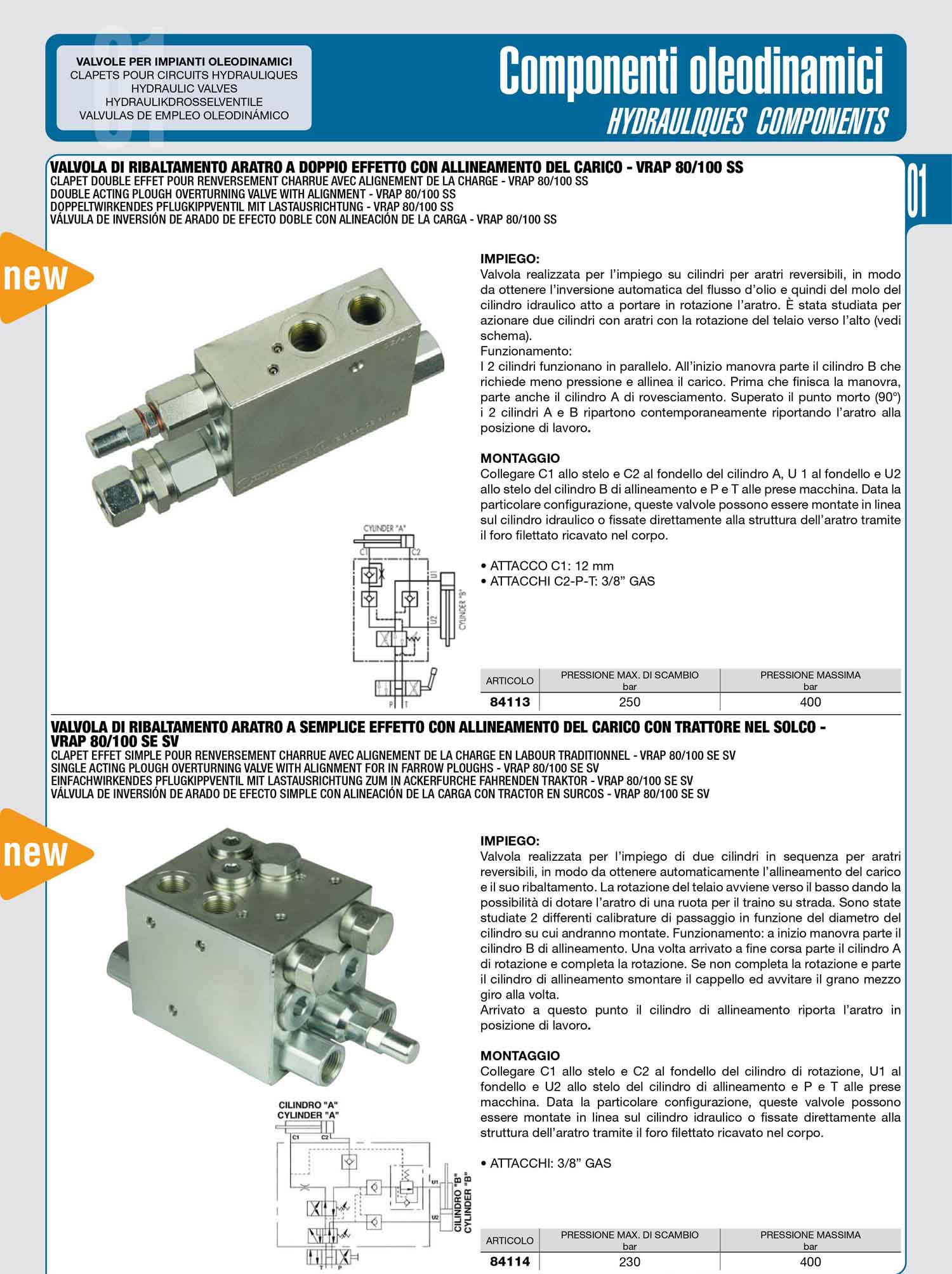

Below you will find one or two pages of the agricultural spare parts catalogue and all the products shown, which can be purchased.
Depending on the size or specification required, identify the product code (typically 5 numbers)
Below each image in the catalogue, you will find the article codes for purchasing.
Stock: the quantity shown (available), is for shipment within 3/4 working days.
To view additional information on a product, click on the code or thumbnail, then 'Show Details'.
Prices are per unit including 22% VAT.
If you do not find a product in the list, search for the 5-number code with the search engine above.
- Our technical department is available and will get back to you as soon as possible.
- In addition, send photographs via Whatsapp or Email indicating your need.
- Click on the shopping cart icon to add 'one unit'.
- The shipping cost is calculated at checkout.
