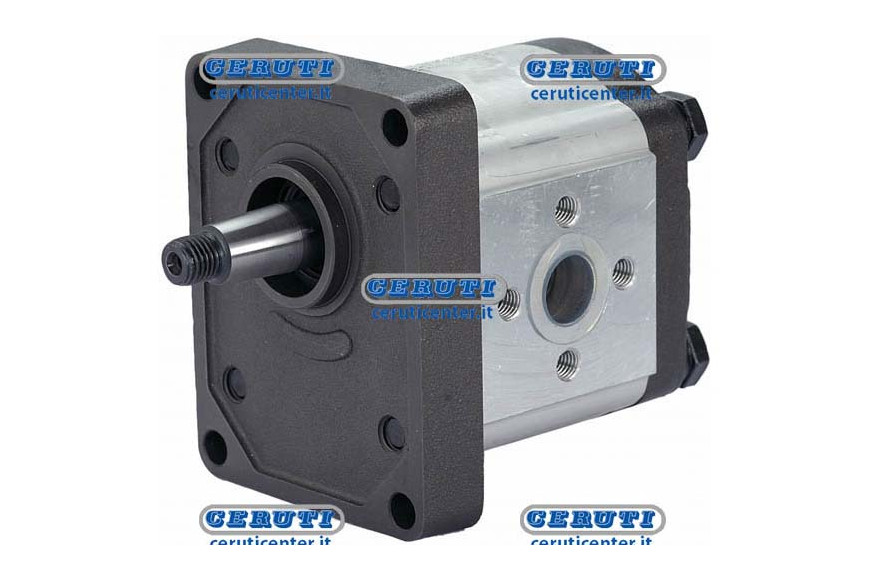

Pumps Gr. 2 (Standard Type) - 12 Cm3, Left Taper 1:8 Swept Volume 12 Cc Rotation Left
Pumps Gr. 2 (Standard Type) - 12 Cm3, Left Taper 1:8 Swept Volume 12 Cc Rotation Left
0/0

Gear Pump Group 2 Standard Conicity 1 - 8 Displacement 12 Cc Left Rotation - Hydr. Gr2 A25X Left In Cast Iron - Ref. 81615

CC-81615

Available for order

SHIPPED IN 2 / 3 DAYS

Order Online

  • Delivery Italy: 1/2 days, from 9.90 €
  • Delivery Europe: 2/3 days, from 17.90 €

N. of days may vary for locations that are difficult to reach

Price shown is inclusive of VAT

Price excl. VAT €164.15

VAT "IVA IT 22%" €36.11

€200.26  VAT inc.

€164.15 VAT exc.

OEM code 8280040,5129478,5179730,5179729

Idr Pump. Gr2 A25X Left Cast Iron

Aluminum pump with cast iron cover and metric thread

Maximum pressure 250 Bar

Plessey original references A22X-A25X

A 48,6 mm

B 42,3 mm

Thread suction M8

Center-distance suction 40 mm

Thread delivery M6

Center distance delivery 30 mm

Fixing holes 7 mm

Taper 1:8

Centering Ø 36,5 mm

Group 2

Swept volume 12 cc

Rotation Left

net weight 4 kg

link applicazioni

Fiat

4504664744805005405555.4656657058064065.4665.666506556666667068070.6675076677678080.4680.5680.6080.6680.7080.7580.7680.95805880980

Below you will find one or two pages of the agricultural spare parts catalogue and all the products shown, which can be purchased.

Depending on the size or specification required, identify the product code (typically 5 numbers)

Below each image in the catalogue, you will find the article codes for purchasing.

Stock: the quantity shown (available), is for shipment within 3/4 working days.

To view additional information on a product, click on the code or thumbnail, then 'Show Details'.

Prices are per unit including 22% VAT.

If you do not find a product in the list, search for the 5-number code with the search engine above.

Video: How to Consult the Catalogue?
  • Our technical department is available and will get back to you as soon as possible.
  • In addition, send photographs via Whatsapp or Email indicating your need.
  • Click on the shopping cart icon to add 'one unit'.
  • The shipping cost is calculated at checkout.
Zoom and panning Use +/− to zoom and drag with the mouse to move around. Informational only
Spare parts :10
81613
www.ceruticenter.it/33182-small_default/-.jpg
Gear Pump Group 2 Standard Taper 1 - 8 Displacement 8.2 Cc Left Rotation - Hydr. Gr2 A18X Left In Cast Iron - Ref. 81613 81613
Unit price, VAT incl.
200.26 €

Available for order

Qty
81614
www.ceruticenter.it/33183-small_default/-.jpg
Gear Pump Group 2 Standard Taper 1 - 8 Displacement 8.2 Cc Right Rotation - Hydr. Gr2 C18X Dx In Cast Iron - Ref. 81614 81614
Unit price, VAT incl.
200.26 €

Available for order

Qty
81615
www.ceruticenter.it/33178-small_default/-.jpg
Gear Pump Group 2 Standard Conicity 1 - 8 Displacement 12 Cc Left Rotation - Hydr. Gr2 A25X Left In Cast Iron - Ref. 81615 81615
Unit price, VAT incl.
200.26 €

Available for order

Qty
81616
www.ceruticenter.it/33179-small_default/-.jpg
Gear Pump Group 2 Standard Conicity 1 - 8 Displacement 12 Cc Right Rotation - Hydr. Gr2 C25X Dx In Cast Iron - Ref. 81616 81616
Unit price, VAT incl.
200.26 €

Available for order

Qty
81617
www.ceruticenter.it/33180-small_default/-.jpg
Gear Pump Group 2 Standard Taper 1 - 8 Displacement 14 Cc Left Rotation - Hydr. Gr2 A31X Left In Cast Iron - Ref. 81617 81617
Unit price, VAT incl.
200.26 €

Available for order

Qty
81618
www.ceruticenter.it/33181-small_default/-.jpg
Gear Pump Group 2 Standard Taper 1 - 8 Displacement 14 Cc Right Rotation - Hydr. Gr2 C31X Dx In Cast Iron - Ref. 81618 81618
Unit price, VAT incl.
200.26 €

Available for order

Qty
81619
www.ceruticenter.it/33184-small_default/-.jpg
Gear Pump Group 2 Standard Conicity 1 - 8 Displacement 16 Cc Left Rotation - Hydr. Gr2 A33X Left In Cast Iron - Ref. 81619 81619
Unit price, VAT incl.
200.26 €

Available for order

Qty
81620
www.ceruticenter.it/33185-small_default/-.jpg
Gear Pump Group 2 Standard Taper 1 - 8 Displacement 16 Cc Right Rotation - Hydr. Gr2 C33X Dx In Cast Iron - Ref. 81620 81620
Unit price, VAT incl.
200.26 €

Available for order

Qty
81621
www.ceruticenter.it/33186-small_default/-.jpg
Gear Pump Group 2 Standard Conicity 1 - 8 Displacement 19 Cc Left Rotation - Hydr. Gr2 A42X Sx In Cast Iron - Ref. 81621 81621
Unit price, VAT incl.
200.26 €

Available for order

Qty
81622
www.ceruticenter.it/33187-small_default/-.jpg
Gear Pump Group 2 Standard Taper 1 - 8 Displacement 19 Cc Right Rotation - Hydr. Gr2 C42X Dx In Cast Iron - Ref. 81622 81622
Unit price, VAT incl.
200.26 €

CURRENTLY UNAVAILABLE

Notify me when this item is back in stock
