Bidirectional Gear Motors Group 3,5 - Standard Version - Conical Shaft - National Production - 41 Cm3, Bidirectional - Ref. 8220
CC-82205
CURRENTLY UNAVAILABLE
Order Online
- Delivery Italy: 1/2 days, from 9.90 €
- Delivery Europe: 2/3 days, from 17.90 €
N. of days may vary for locations that are difficult to reach
Price shown is inclusive of VAT
Price excl. VAT €0.00
VAT "IVA IT 22%" €0.00

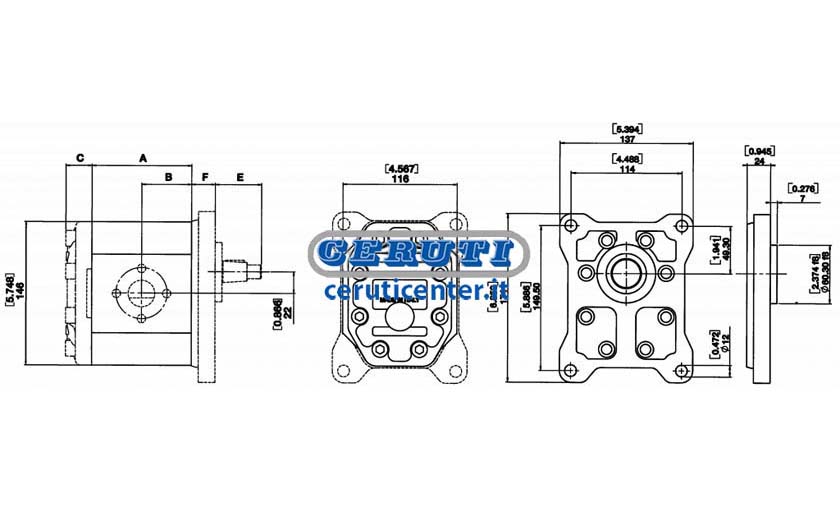

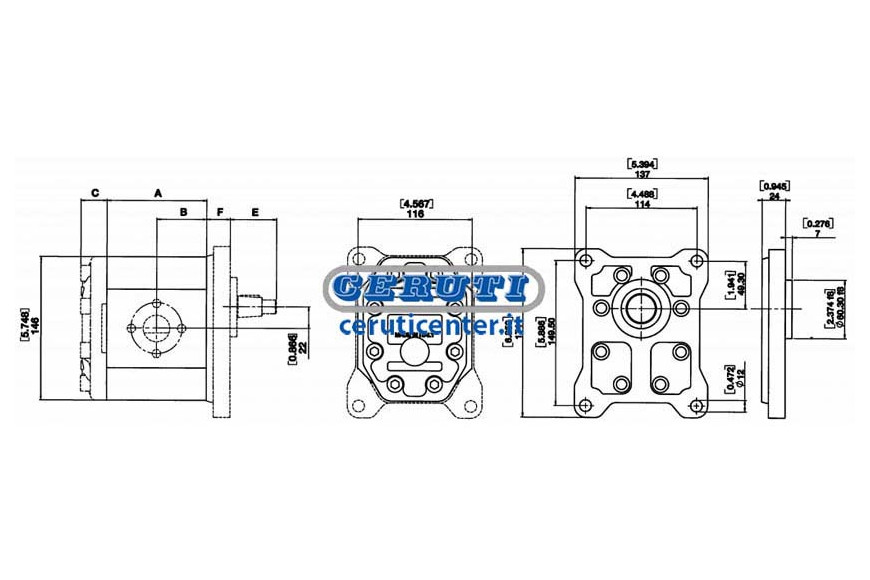

Motor Gr.3,5 Cc Gears. 41
swept volume 41 cm3
a 101 mm
b 50 mm
thread suction M10
center-distance suction 51 mm
thread delivery M10
center distance delivery 51 mm
continuous pressure 220 bar
intermittent pressure 250 bar
peak pressure 300 bar
maximum rotational speed 2800 giri/min
minimum rotational speed 600 giri/min
taper 18
centering 60,3
net weight 9.5 kg
