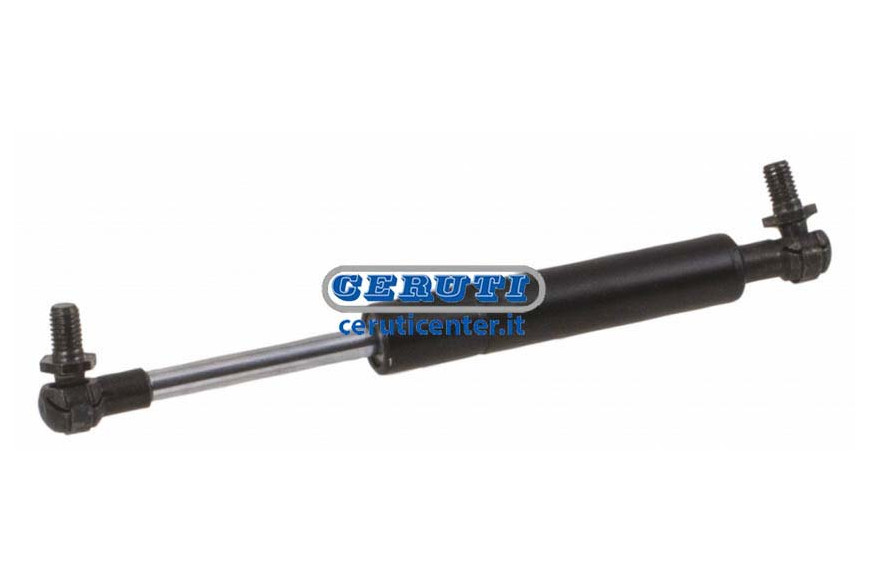

Gas Spring Force 200 N Minimum Length 185 Mm Maximum Length 285 Mm - Suitable for AL71413, 315826 - Ref. 63411
Available for order
SHIPPED IN 2 / 3 DAYS
Order Online
- Delivery Italy: 1/2 days, from 9.90 €
- Delivery Europe: 2/3 days, from 17.90 €
N. of days may vary for locations that are difficult to reach
Price shown is inclusive of VAT
Price excl. VAT €19.09
VAT "IVA IT 22%" €4.20
OEM code AL71413,315826
Gas Spring J-Deere-Door Windshield

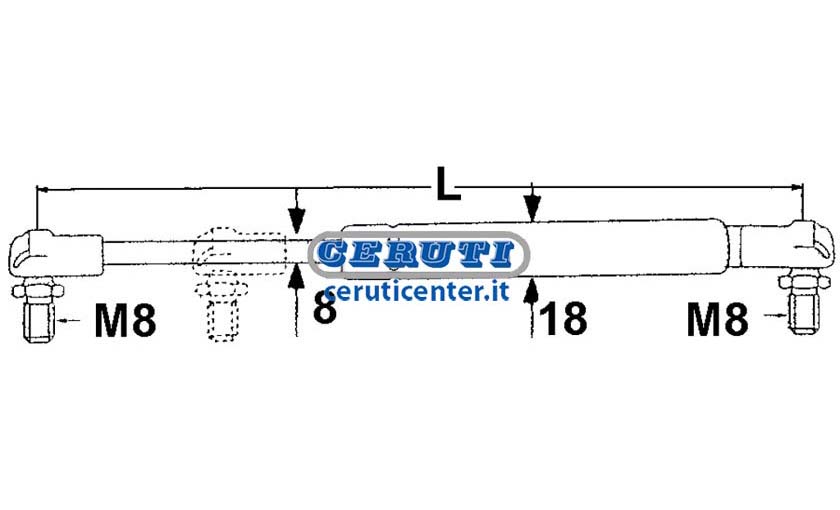

Stem terminal M8 threaded pin
Pipe terminal M8 threaded pin
Stem diameter 8 mm
Pipe diameter 18 mm
Stroke 100 mm
Strength 200 N
Minimum length 185 mm
Maximum length 285 mm
net weight 0.224 kg
link applicazioni
John deere
530053105400541055005510
