Vane Flowmeter Flow Rate 10/200 L/Min - Ref. 27650

Name: Vane Flowmeter Flow Rate 10/200 L/Min - Ref. 27650
Brand: Arag
SKU: CC-27650
Price: 383.95 EUR
Availability: InStock

Ref: CC-27650

Available for order

SHIPPED IN 2 / 3 DAYS

N. of days may vary for locations that are difficult to reach

€383.95 VAT inc.

€314.71 VAT exc.

Quantity

OEM code 4626415

Flowmeter Wolf 10/200 Lt

Hi-precision and good price/performance ratio

T5 male/female fork connector for direct connection to control units

Operating status LED

Sapphire paddle pin to minimize rotational friction and maximize sensitivity and accurancy

Paddle assembly equipped with "TWIST" system for either cleaning or replacing operations without the need of any tools

Fully sealed and watertight electronic sensor

Tipical error: 1% of the full scale

Power supply 4 to 26 Vdc

Max. consumption 25 mA

0-12 Vdc pulse output with frequency proportional to rate

Parts in contact with the fluid are made of fiberglass and Delrin reinforced Nylon

flow rate 10/200 l/min

coupling T5

net weight 2.29 kg

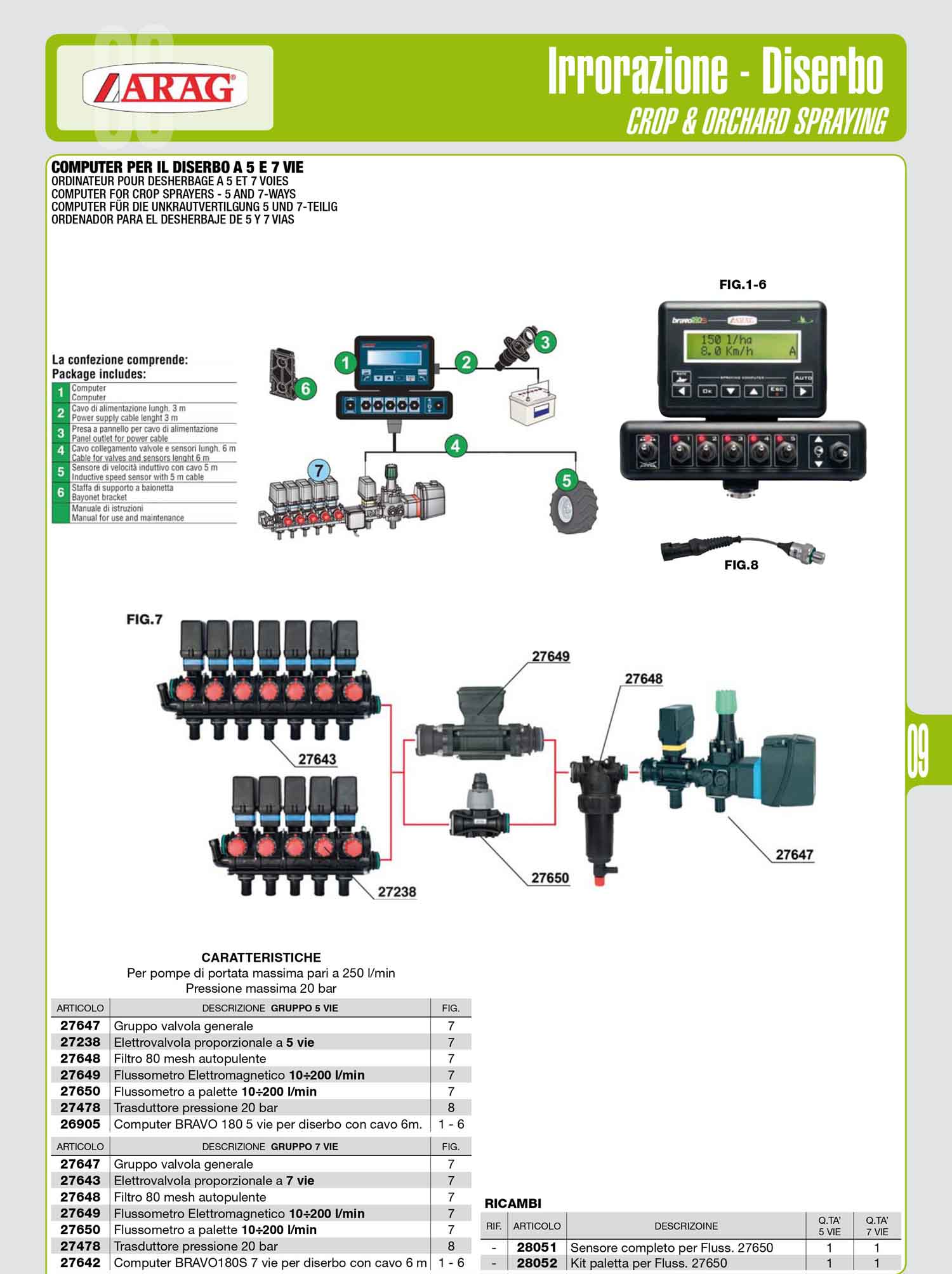

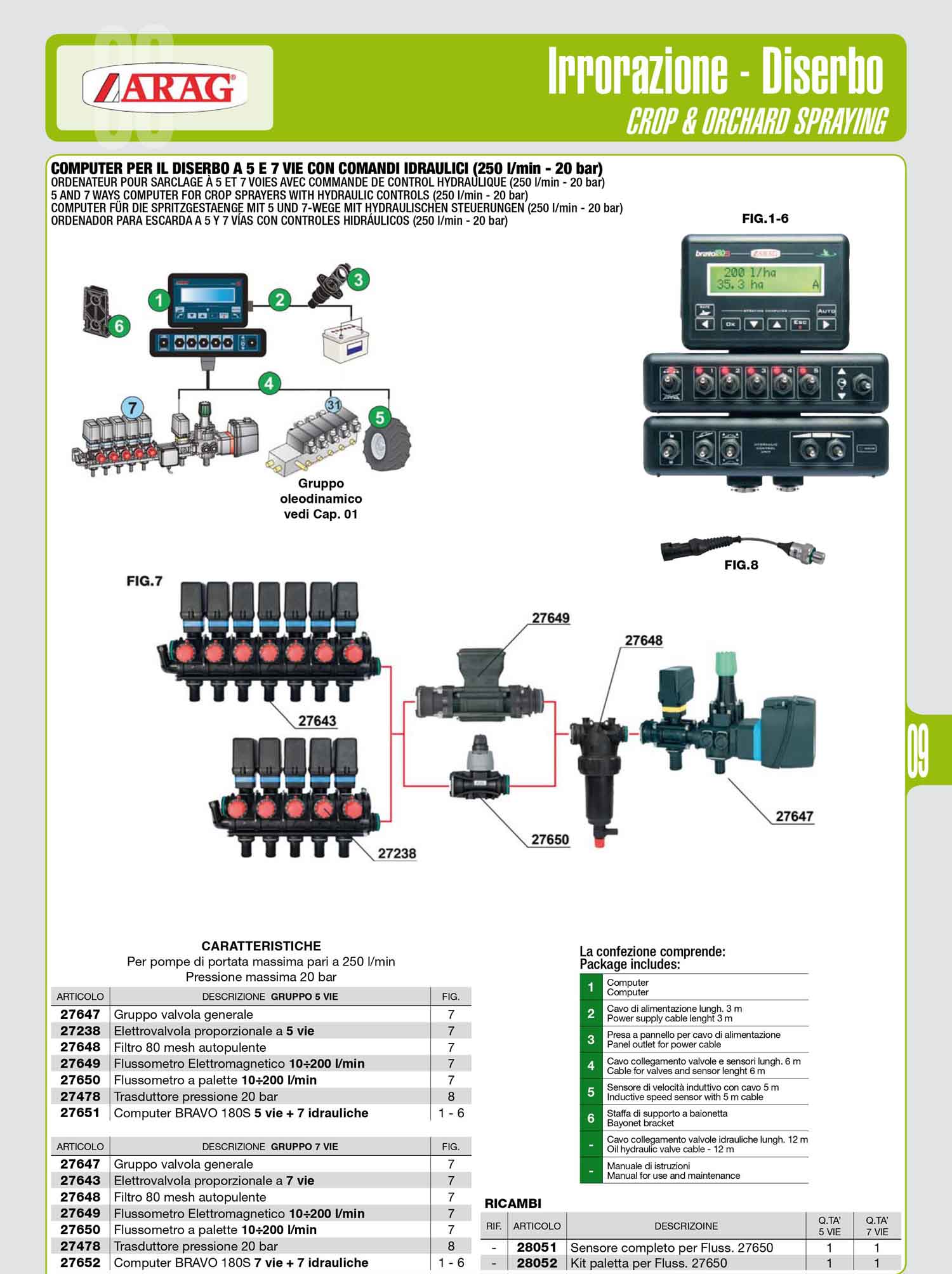

Below you will find one or two pages of the agricultural spare parts catalogue and all the products shown, which can be purchased.

Depending on the size or specification required, identify the product code (typically 5 numbers)

Below each image in the catalogue, you will find the article codes for purchasing.

Stock: the quantity shown (available), is for shipment within 3/4 working days.

To view additional information on a product, click on the code or thumbnail, then 'Show Details'.

Prices are per unit including 22% VAT.

If you do not find a product in the list, search for the 5-number code with the search engine above.
