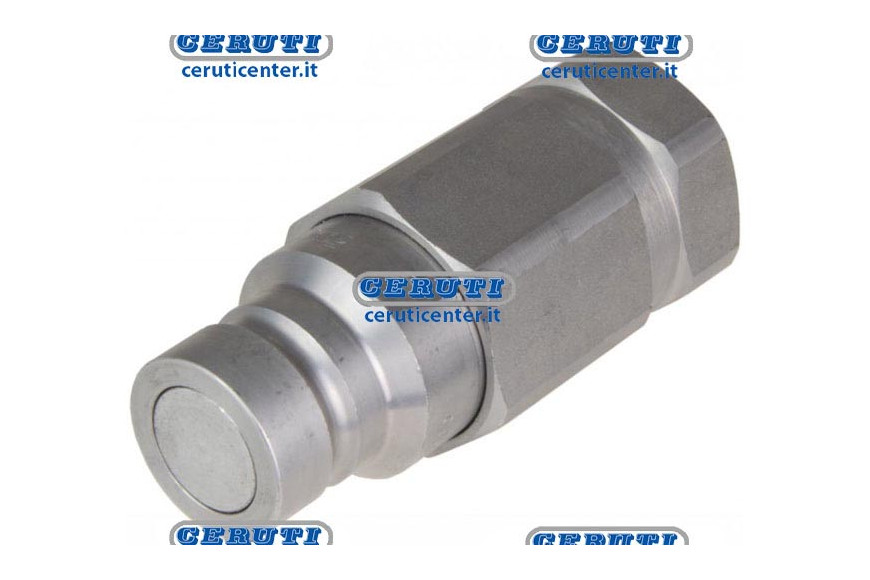

Ffh Series Flat Face Male Quick Coupling 1/2 "Gas Connection - Ref. 81390
CURRENTLY UNAVAILABLE
Order Online
- Delivery Italy: 1/2 days, from 9.90 €
- Delivery Europe: 2/3 days, from 17.90 €
N. of days may vary for locations that are difficult to reach
Price shown is inclusive of VAT
Price excl. VAT €23.91
VAT "IVA IT 22%" €5.26
OEM code FFH08 12 GAS M,FFH0812GASM
Rapid Flat Base Graft M 1/2 "
- Surface treatment: Zinc-Nickel
- Connection: pushing the male part (push)
- Disconnection: by pulling back the ring nut
- Occlusion: with flat valve
- Pluggable: in the absence of pressure
- Disconnection under pressure: not allowed
- Interchangeability: ISO 16028 standard
ATTENTION:
The FFH series is completely interchangeable with the FFI, 2FFI, FFN 3/8 "and 2FFN 3/8" series.
For the FFN and 2FFN series replace both the male and the female.

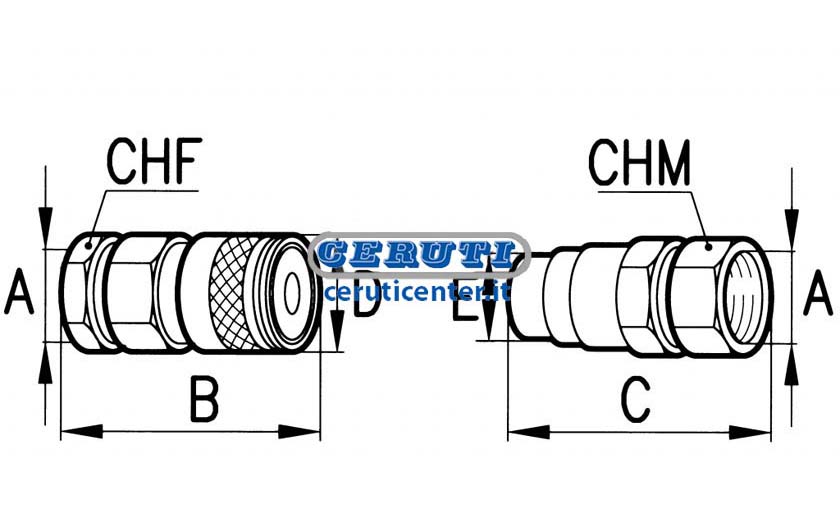

Thread Female
External diameter - E 24,5 mm
Length FFI - C 78,5 mm
Length 2FFI - C 87,5 mm
A 1/2" Gas
CHM 32 mm
Regulations standards DIN 3852-X
Series FFH
Coupling 1/2" Gas
net weight 0.32 kg
Below you will find one or two pages of the agricultural spare parts catalogue and all the products shown, which can be purchased.
Depending on the size or specification required, identify the product code (typically 5 numbers)
Below each image in the catalogue, you will find the article codes for purchasing.
Stock: the quantity shown (available), is for shipment within 3/4 working days.
To view additional information on a product, click on the code or thumbnail, then 'Show Details'.
Prices are per unit including 22% VAT.
If you do not find a product in the list, search for the 5-number code with the search engine above.
- Our technical department is available and will get back to you as soon as possible.
- In addition, send photographs via Whatsapp or Email indicating your need.
- Click on the shopping cart icon to add 'one unit'.
- The shipping cost is calculated at checkout.
