«L» End Coupling
«L» End Coupling
0/0

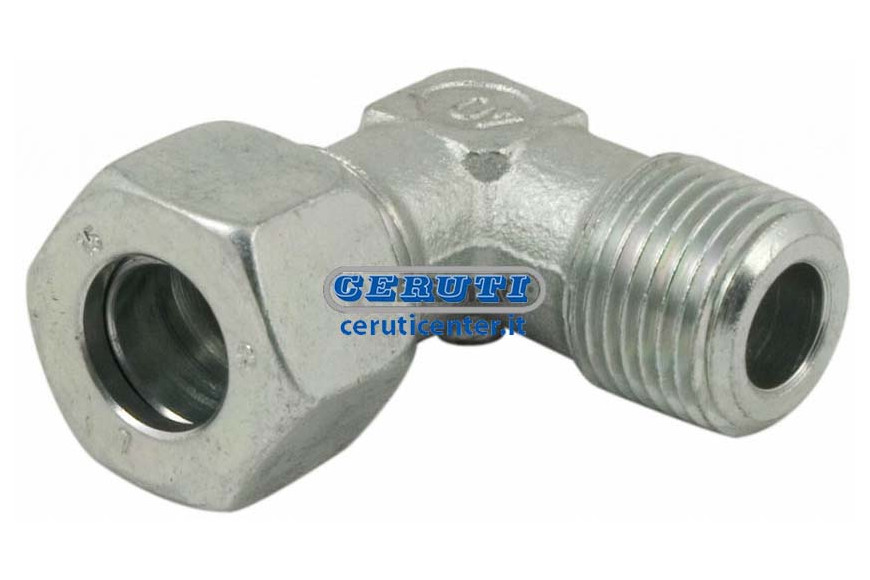

«L» End Coupling - Ref. 82950

CC-82950

Available for order

SHIPPED IN 2 / 3 DAYS

Order Online

  • Delivery Italy: 1/2 days, from 9.90 €
  • Delivery Europe: 2/3 days, from 17.90 €

N. of days may vary for locations that are difficult to reach

Price shown is inclusive of VAT

Price excl. VAT € 12.56

VAT "IVA IT 22%" € 2.76

€ 15.32  VAT inc.

€ 12.56 VAT exc.

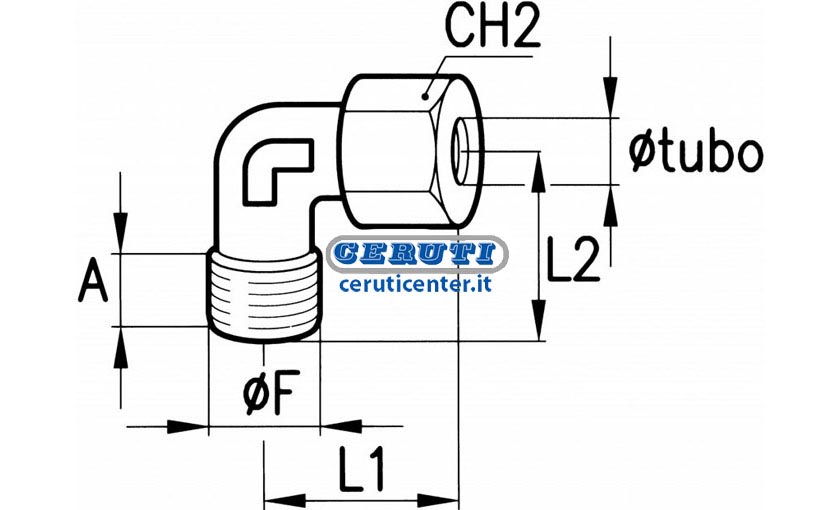

Fitting Ends' L 16X3 / 8 "

series S

tube diameter 16 mm

diameter f 3/8"

ch2 30 mm

a 12 mm

l1 12 mm

l2 24,5 mm

net weight 0.203 kg

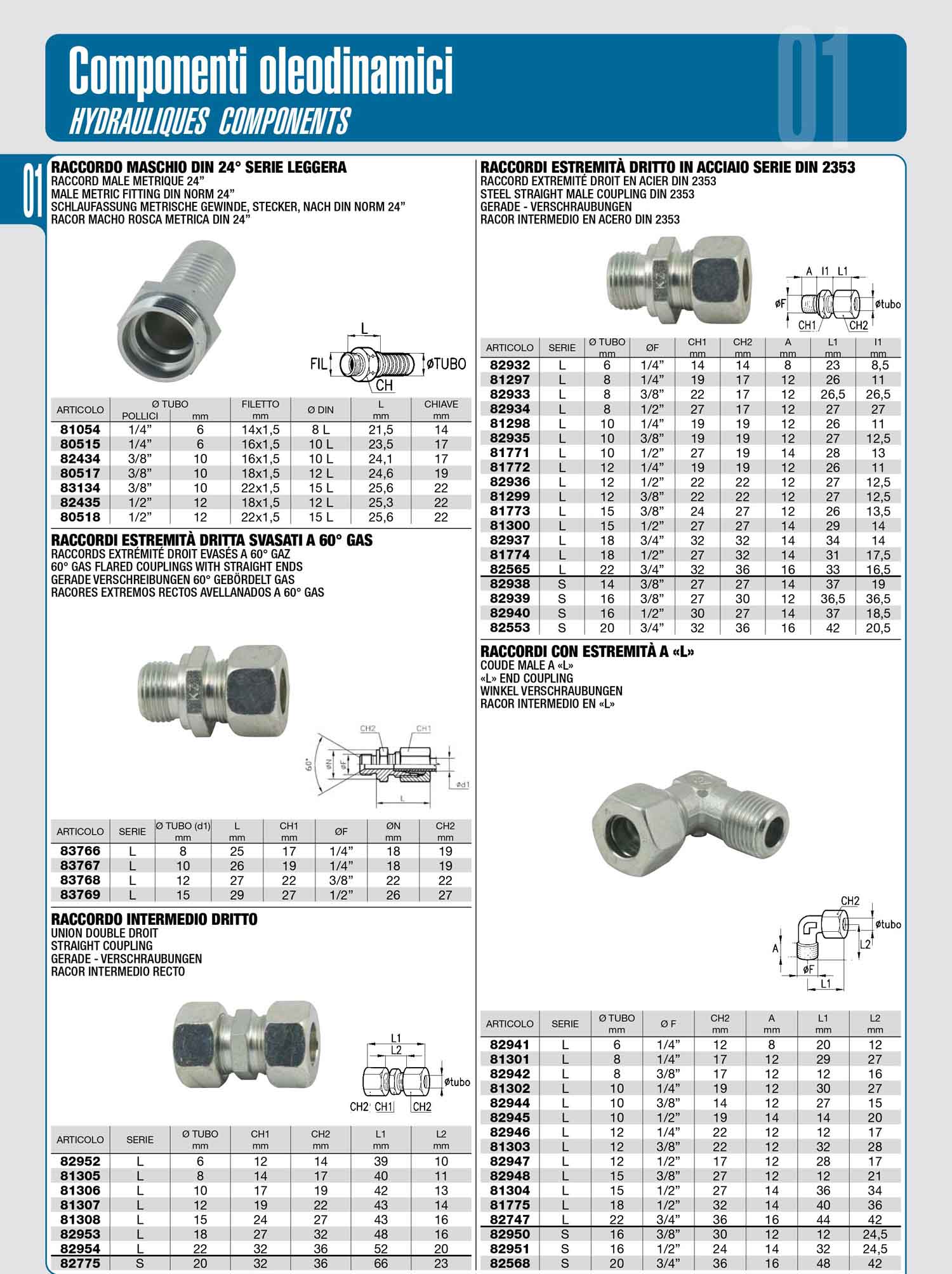

Below you will find one or two pages of the agricultural spare parts catalogue and all the products shown, which can be purchased.

Depending on the size or specification required, identify the product code (typically 5 numbers)

Below each image in the catalogue, you will find the article codes for purchasing.

Stock: the quantity shown (available), is for shipment within 3/4 working days.

To view additional information on a product, click on the code or thumbnail, then 'Show Details'.

Prices are per unit including 22% VAT.

If you do not find a product in the list, search for the 5-number code with the search engine above.

Video: How to Consult the Catalogue?
  • Our technical department is available and will get back to you as soon as possible.
  • In addition, send photographs via Whatsapp or Email indicating your need.
  • Click on the shopping cart icon to add 'one unit'.
  • The shipping cost is calculated at checkout.
Zoom and panning Use +/− to zoom and drag with the mouse to move around. Informational only
