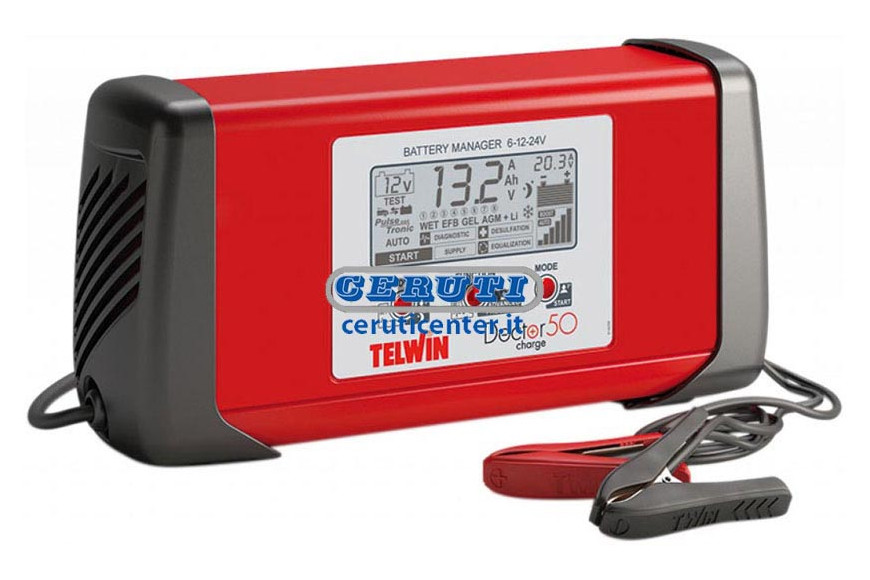

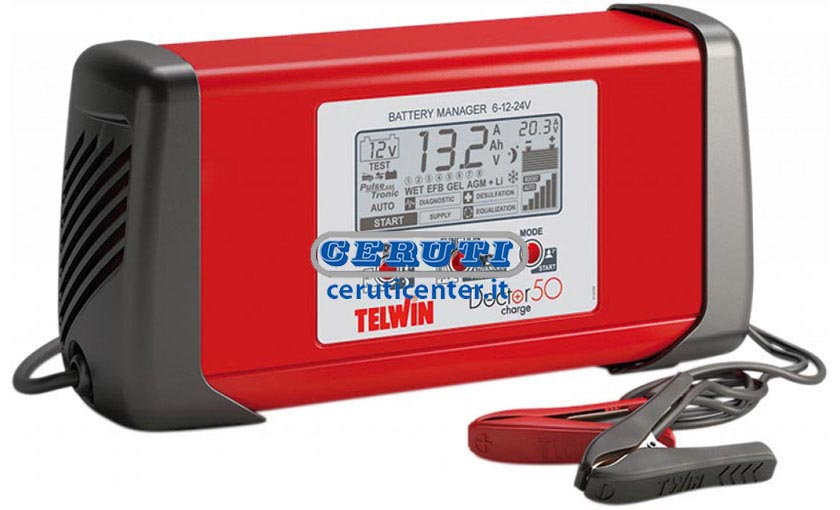

Battery Charger Maintainer 6/12 / 24V - Doctor Charge 50 - Ref. 36786

Doctor Charger Charge 50

FEATURES:

Electronic BATTERY MANAGER for total maintenance of WET, GEL, AGM, MF, PbCa, EFB und Li batteries at 6/12/24V and for support activities when intervening on vehicles in workshops, repair shops and car dealer premises.

The innovative Power Stream technology guarantees better performance, up to 50% more than traditional battery chargers.

The Pulse Tronic technology guarantees optimal battery charging over 8 phases.

Doctor Charge 50 carries out 5 functions:

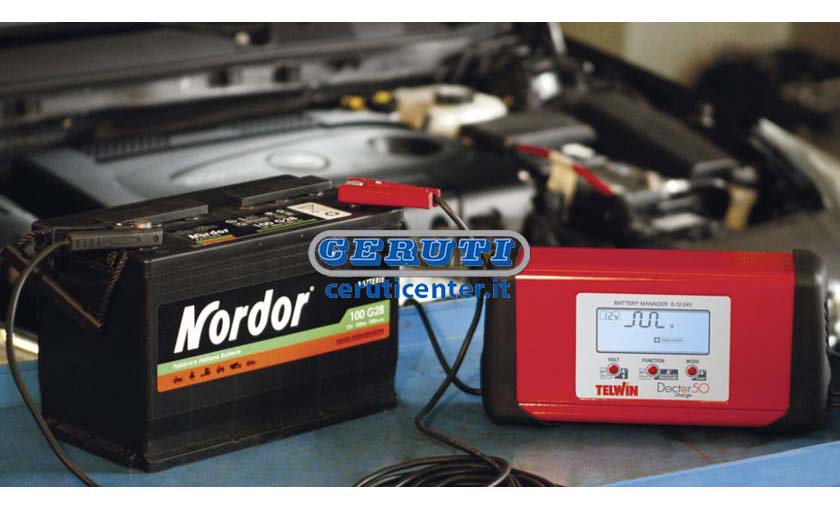

1. automatic charge and maintenance of batteries with PULSE TRONIC technology, even in diffi cult environmental conditions (low temperatures);

2. battery tests such as voltage at terminals, starting capacity and operational check of the vehicle alternator;

3. recovery of sulphated or very discharged batteries, and recovery of optimal operation with periodic regeneration;

4. stable power supply source for battery changes (to protect the on-board electronics), for diagnostic activities (operation checks carried out on the vehicles), for keeping the batteries of display vehicles in showrooms operational;

5. vehicles start aid.

Based on the SMPS (Switch Mode Power Supply) Technology.

In case of black-outs or repetitive uses Doctor Charge 50 can set itself at the last settings carried out, furthermore the cables can be calibrated according to their type (different lengths and/or ections).

Many protections available.

Fit with PFC device.

Voltage 230V 1ph

Frequency 50/60 Hz

Power absorbed in charge 600 W

Charging voltage 6/12/24 V

Effective charging current 45/45/23 A

Charging current EN60335-2-29 40/40/20 A

Minimum reference nominal capacity 10 Ah

Maximum reference nominal capacity 600 Ah

Adjustment positions 7

Dimensions 330x100x160 mm

net weight 4.076 kg
