List of products by brand MadeinItaly

List Grid

2139 Products

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 22 Cc Rotation Left

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 22 Cc Left Rotation - Hydraulic Pump Gr3 Left Cc. 22 - Ref. 82177

Ref. CC-82177

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 22 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 220 Bar
Intermittent pressure: 250 Bar
Peak pressure: 310 Bar
Rotation: Sinistra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

MadeinItaly

€504.17 VAT inc.

€413.25 VAT exc.

Data sheet

Displacement: 22 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 220 Bar
Intermittent pressure: 250 Bar
Peak pressure: 310 Bar
Rotation: Sinistra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 22 Cc Rotation Right

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 22 Cc Right Rotation - Hydraulic Pump Gr3 Dx Cc. 22 - Ref. 82168

Ref. CC-82168

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 22 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 220 Bar
Intermittent pressure: 250 Bar
Peak pressure: 310 Bar
Rotation: Destra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

MadeinItaly

€504.17 VAT inc.

€413.25 VAT exc.

Data sheet

Displacement: 22 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 220 Bar
Intermittent pressure: 250 Bar
Peak pressure: 310 Bar
Rotation: Destra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 26 Cc Rotation Left

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 26 Cc Left Rotation - Hydraulic Pump Gr3 Left Cc. 26 - Ref. 82178

Ref. CC-82178

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 26 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 300 Bar
Rotation: Sinistra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

MadeinItaly

€512.40 VAT inc.

€420.00 VAT exc.

Data sheet

Displacement: 26 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 300 Bar
Rotation: Sinistra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 26 Cc Rotation Right

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 26 Cc Right Rotation - Hydraulic Pump Gr3 Dx Cc. 26 - Ref. 82169

Ref. CC-82169

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 26 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 300 Bar
Rotation: Destra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

MadeinItaly

€512.40 VAT inc.

€420.00 VAT exc.

Data sheet

Displacement: 26 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 300 Bar
Rotation: Destra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 31 Cc Rotation Left

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 31 Cc Left Rotation - Hydraulic Pump Gr3 Left Cc. 31 - Ref. 82179

Ref. CC-82179

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 31 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 280 Bar
Rotation: Sinistra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

MadeinItaly

€516.06 VAT inc.

€423.00 VAT exc.

Data sheet

Displacement: 31 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 280 Bar
Rotation: Sinistra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 31 Cc Rotation Right

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 31 Cc Right Rotation - Hydraulic Pump Gr3 Dx Cc. 31 - Ref. 82170

Ref. CC-82170

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 31 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 280 Bar
Rotation: Destra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

MadeinItaly

€516.06 VAT inc.

€423.00 VAT exc.

Data sheet

Displacement: 31 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 280 Bar
Rotation: Destra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

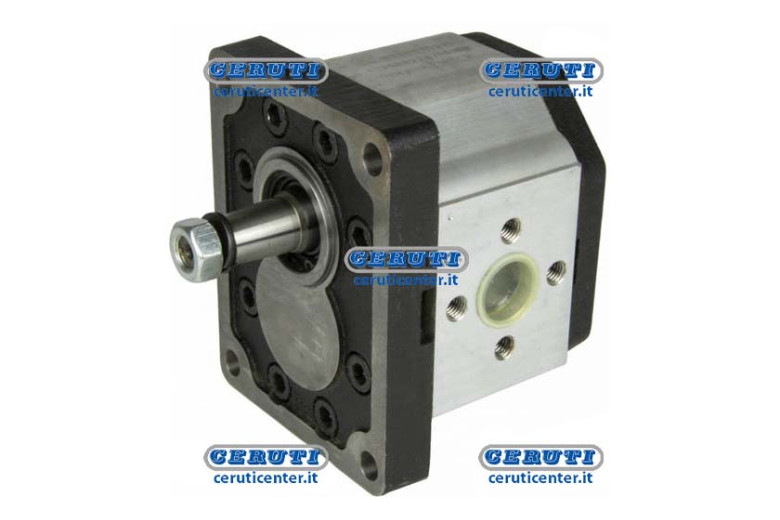

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 36 Cc Rotation Right

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 36 Cc Right Rotation - Hydraulic Pump Gr3 Dx Cc. 36 - Ref. 82171

Ref. CC-82171

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 36 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 45.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 91 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 280 Bar
Rotation: Destra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

MadeinItaly

€523.38 VAT inc.

€429.00 VAT exc.

Data sheet

Displacement: 36 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 45.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 91 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 280 Bar
Rotation: Destra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 41 Cc Rotation Left

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 41 Cc Left Rotation - Hydraulic Pump Gr3 Left Cc. 41 - Ref. 82181

Ref. CC-82181

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 41 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 101 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 280 Bar
Rotation: Sinistra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

MadeinItaly

€534.36 VAT inc.

€438.00 VAT exc.

Data sheet

Displacement: 41 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 101 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 280 Bar
Rotation: Sinistra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 41 Cc Rotation Right

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 41 Cc Right Rotation - Hydraulic Pump Gr3 Dx Cc. 41 - Ref. 82172

Ref. CC-82172

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 41 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 101 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 280 Bar
Rotation: Destra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

MadeinItaly

€535.28 VAT inc.

€438.75 VAT exc.

Data sheet

Displacement: 41 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 101 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 280 Bar
Rotation: Destra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 47 Cc Rotation Left

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 47 Cc Left Rotation - Hydraulic Pump Gr3 Left Cc. 47 - Ref. 82182

Ref. CC-82182

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 47 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 101 mm
Continuous pressure: 180 Bar
Intermittent pressure: 210 Bar
Peak pressure: 270 Bar
Rotation: Sinistra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

MadeinItaly

€543.52 VAT inc.

€445.51 VAT exc.

Data sheet

Displacement: 47 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 101 mm
Continuous pressure: 180 Bar
Intermittent pressure: 210 Bar
Peak pressure: 270 Bar
Rotation: Sinistra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 47 Cc Rotation Right

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 47 Cc Right Rotation - Hydraulic Pump Gr3 Dx Cc. 47 - Ref. 82173

Ref. CC-82173

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 47 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 101 mm
Continuous pressure: 180 Bar
Intermittent pressure: 210 Bar
Peak pressure: 270 Bar
Rotation: Destra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

MadeinItaly

€543.52 VAT inc.

€445.51 VAT exc.

Data sheet

Displacement: 47 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 101 mm
Continuous pressure: 180 Bar
Intermittent pressure: 210 Bar
Peak pressure: 270 Bar
Rotation: Destra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 51 Cc Rotation Left

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 51 Cc Left Rotation - Hydraulic Pump Gr3 Left Cc. 51 - Ref. 82183

Ref. CC-82183

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 51 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 101 mm
Continuous pressure: 180 Bar
Intermittent pressure: 210 Bar
Peak pressure: 270 Bar
Rotation: Sinistra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

MadeinItaly

€550.84 VAT inc.

€451.51 VAT exc.

Data sheet

Displacement: 51 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 101 mm
Continuous pressure: 180 Bar
Intermittent pressure: 210 Bar
Peak pressure: 270 Bar
Rotation: Sinistra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 51 Cc Rotation Right

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 51 Cc Right Rotation - Hydraulic Pump Gr3 Dx Cc. 51 - Ref. 82174

Ref. CC-82174

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 51 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 101 mm
Continuous pressure: 180 Bar
Intermittent pressure: 210 Bar
Peak pressure: 270 Bar
Rotation: Destra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

MadeinItaly

€550.84 VAT inc.

€451.51 VAT exc.

Data sheet

Displacement: 51 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 101 mm
Continuous pressure: 180 Bar
Intermittent pressure: 210 Bar
Peak pressure: 270 Bar
Rotation: Destra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

Non disponibile

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 61 Cc Rotation Left

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 61 Cc Left Rotation - Hydraulic Pump Gr3 Left Cc. 61 - Ref. 82184

Ref. CC-82184

MadeinItaly

CURRENTLY UNAVAILABLE

Notify me when this item is back in stock

Technical Data Sheet

Displacement: 61 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 54.3 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 108 mm
Continuous pressure: 150 Bar
Intermittent pressure: 180 Bar
Peak pressure: 200 Bar
Rotation: Sinistra
Maximum rotation speed: 2500 rpm
Minimum rotation speed: 600 rpm

MadeinItaly

€570.05 VAT inc.

€467.25 VAT exc.

Data sheet

Displacement: 61 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 54.3 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 108 mm
Continuous pressure: 150 Bar
Intermittent pressure: 180 Bar
Peak pressure: 200 Bar
Rotation: Sinistra
Maximum rotation speed: 2500 rpm
Minimum rotation speed: 600 rpm

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 61 Cc Rotation Right

MadeinItaly

Gear Pump Group 3 Standard Conicity 1 - 8 Displacement 61 Cc Right Rotation - Hydraulic Pump Gr3 Dx Cc. 61 - Ref. 82175

Ref. CC-82175

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 61 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 54.3 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 108 mm
Continuous pressure: 150 Bar
Intermittent pressure: 180 Bar
Peak pressure: 200 Bar
Rotation: Destra
Maximum rotation speed: 2500 rpm
Minimum rotation speed: 600 rpm

MadeinItaly

€570.05 VAT inc.

€467.25 VAT exc.

Data sheet

Displacement: 61 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 54.3 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 108 mm
Continuous pressure: 150 Bar
Intermittent pressure: 180 Bar
Peak pressure: 200 Bar
Rotation: Destra
Maximum rotation speed: 2500 rpm
Minimum rotation speed: 600 rpm

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 36 Cc Rotation Left

MadeinItaly

Gear Pumps - Gr 3 Taper 1:8 Swept Volume 36 Cc Rotation Left - Ref. 82180

Ref. CC-82180

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Displacement: 36 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 45.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 91 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 280 Bar
Rotation: Sinistra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

MadeinItaly

€523.38 VAT inc.

€429.00 VAT exc.

Data sheet

Displacement: 36 cm³
Tapering: 1:08
Centring diameter: 50.8 mm
Distance to hole centre - A: 45.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Fixing flange holes: 4x10.8 mm
Group: 3
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 91 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Peak pressure: 280 Bar
Rotation: Sinistra
Maximum rotation speed: 3000 rpm
Minimum rotation speed: 700 rpm

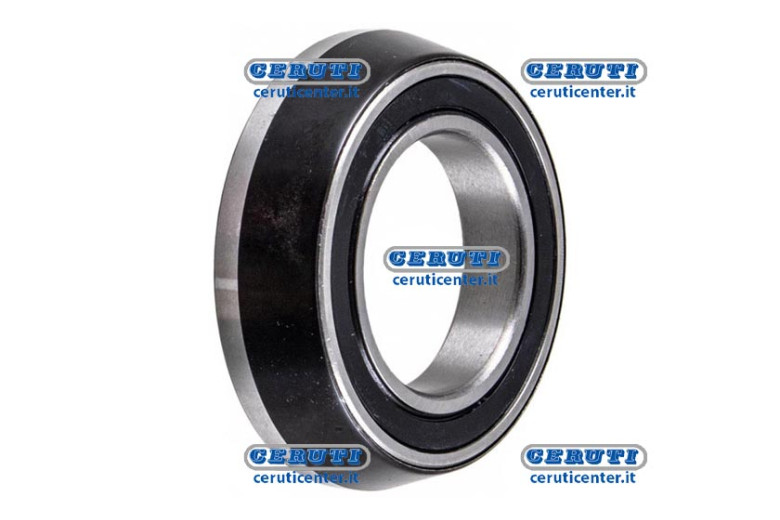

Gearbox Thrust Bearing 90X50X22

MadeinItaly

Gearbox Thrust Bearing 90X50X22 - Ref. 15280

Ref. CC-15280

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

height: 22 mm
Outer diameter: 90 mm
inside diameter: 50 mm

MadeinItaly

€24.95 VAT inc.

€20.45 VAT exc.

Data sheet

height: 22 mm
Outer diameter: 90 mm
inside diameter: 50 mm

Non disponibile

Large Rotating Light (Ø 140 Mm)

MadeinItaly

Girofari Tipo Grande (Ø 140 Mm) - Ref. 35677

Ref. CC-35677

MadeinItaly

CURRENTLY UNAVAILABLE

Notify me when this item is back in stock

MadeinItaly

€0.00 VAT inc.

€0.00 VAT exc.

View product

Rotating Beacon With Rod - 12V-H21W

MadeinItaly

Girofaro 12V-H21W Con Base Ad Asta Rigid - Ref. 36648

Ref. CC-36648

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

height: 161 mm
Diameter: 109 mm

Minimum order: 4 pieces

MadeinItaly

Minimum order: 4 pieces

€29.37 VAT inc.

€24.07 VAT exc.

Minimum order: 4 pieces

Data sheet

height: 161 mm
Diameter: 109 mm

PROMO

Led Rotating Beacon With Rod

MadeinItaly

Save €3.84

Girofaro Led 12/24V With Rigid Base Ad Asta - Girofaro Mini-Plus Led B.Asta - Ref. 36642

Ref. CC-36642

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

height: 161 mm
Diameter: 109 mm

Minimum order: 5 pieces

MadeinItaly

Minimum order: 5 pieces

List Price €56.91

Save €3.84 -7%

€53.07 VAT inc.

€43.50 VAT exc.

Minimum order: 5 pieces

Data sheet

height: 161 mm
Diameter: 109 mm

Showing 881 to 900 of 2139 products

Page 45 of 107

1
…
43
44
45
46
…
106
107
