2139 Products

Motor Gr. 2 (Standard Type) - 14,5 Cm3 Bidirectional

MadeinItaly

Bidirectional Gear Motors Group 2 - Standard Version - Conical Shaft - National Production - 14.5 Cm3, Bidirectional - Ref. 8216

Ref. CC-82164

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Centring: 36.5 mm
Displacement: 14.5 cc
Tapering: 1:08
Distance from hole centre - B: 38 mm
Suction flange threading: M8
Outlet flange threading: M8

Intake flange centre distance: 40 mm
Outlet flange centre distance: 40 mm
Length - A: 76 mm
Continuous pressure: 230 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 280 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

MadeinItaly

€315.65 VAT inc.

€258.73 VAT exc.

Data sheet

Centring: 36.5 mm
Displacement: 14.5 cc
Tapering: 1:08
Distance from hole centre - B: 38 mm
Suction flange threading: M8
Outlet flange threading: M8
Intake flange centre distance: 40 mm
Outlet flange centre distance: 40 mm
Length - A: 76 mm
Continuous pressure: 230 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 280 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

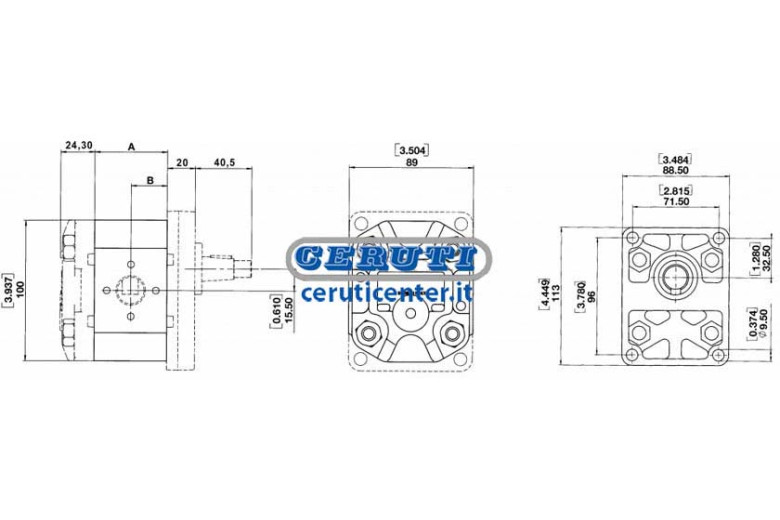

Motor Gr. 2 (Standard Type) - 17 Cm3 Bidirectional

MadeinItaly

Bidirectional Gear Motors Group 2 - Standard Version - Conical Shaft - National Production - 17 Cm3, Bidirectional - Ref. 82165

Ref. CC-82165

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Centring: 36.5 mm
Displacement: 17 cc
Tapering: 1:08
Distance from hole centre - B: 38 mm
Suction flange threading: M8
Outlet flange threading: M8

Intake flange centre distance: 40 mm
Outlet flange centre distance: 40 mm
Length - A: 76 mm
Continuous pressure: 230 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 280 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

MadeinItaly

€315.65 VAT inc.

€258.73 VAT exc.

Data sheet

Centring: 36.5 mm
Displacement: 17 cc
Tapering: 1:08
Distance from hole centre - B: 38 mm
Suction flange threading: M8
Outlet flange threading: M8
Intake flange centre distance: 40 mm
Outlet flange centre distance: 40 mm
Length - A: 76 mm
Continuous pressure: 230 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 280 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

Motor Gr. 2 (Standard Type) - 26 Cm3 Bidirectional

MadeinItaly

Bidirectional Gear Motors Group 2 - Standard Version - Conical Shaft - National Production - 26 Cm3, Bidirectional - Ref. 82167

Ref. CC-82167

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Centring: 36.5 mm
Displacement: 26 cc
Tapering: 1:08
Distance from hole centre - B: 44 mm
Suction flange threading: M8
Outlet flange threading: M8

Intake flange centre distance: 40 mm
Outlet flange centre distance: 40 mm
Length - A: 88 mm
Continuous pressure: 180 Bar
Intermittent pressure: 190 Bar
Maximum pressure: 210 Bar
Maximum rotation speed: 3000 giri/min
Minimum rotation speed: 700 giri/min

MadeinItaly

€331.02 VAT inc.

€271.33 VAT exc.

Data sheet

Centring: 36.5 mm
Displacement: 26 cc
Tapering: 1:08
Distance from hole centre - B: 44 mm
Suction flange threading: M8
Outlet flange threading: M8
Intake flange centre distance: 40 mm
Outlet flange centre distance: 40 mm
Length - A: 88 mm
Continuous pressure: 180 Bar
Intermittent pressure: 190 Bar
Maximum pressure: 210 Bar
Maximum rotation speed: 3000 giri/min
Minimum rotation speed: 700 giri/min

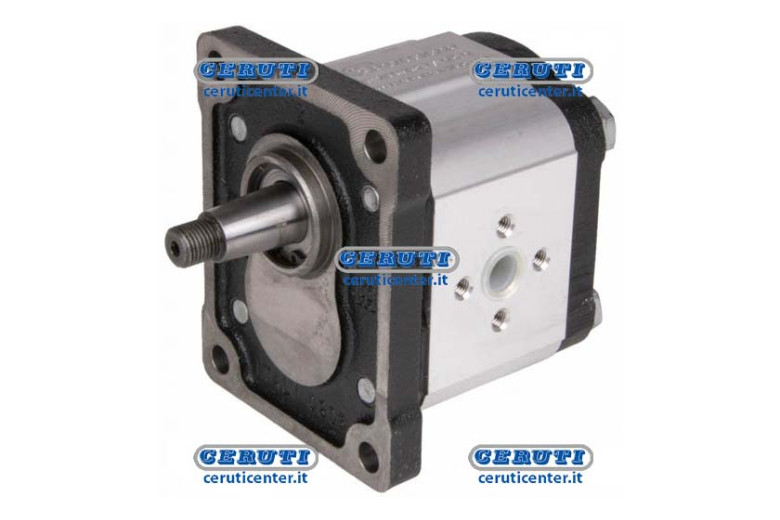

Motor Gr. 2 (Standard Type) - 8,5 Cm3 Bidirectional

MadeinItaly

Bidirectional Gear Motors Group 2 - Standard Version - Conical Shaft - National Production - 8.5 Cm3, Bidirectional - Ref. 82162

Ref. CC-82162

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Centring: 36.5 mm
Displacement: 8.5 cc
Tapering: 1:08
Distance from hole centre - B: 26 mm
Suction flange threading: M6
Outlet flange threading: M6

Intake flange centre distance: 30 mm
Outlet flange centre distance: 30 mm
Length - A: 52 mm
Continuous pressure: 230 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 280 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

MadeinItaly

€306.42 VAT inc.

€251.16 VAT exc.

Data sheet

Centring: 36.5 mm
Displacement: 8.5 cc
Tapering: 1:08
Distance from hole centre - B: 26 mm
Suction flange threading: M6
Outlet flange threading: M6
Intake flange centre distance: 30 mm
Outlet flange centre distance: 30 mm
Length - A: 52 mm
Continuous pressure: 230 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 280 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

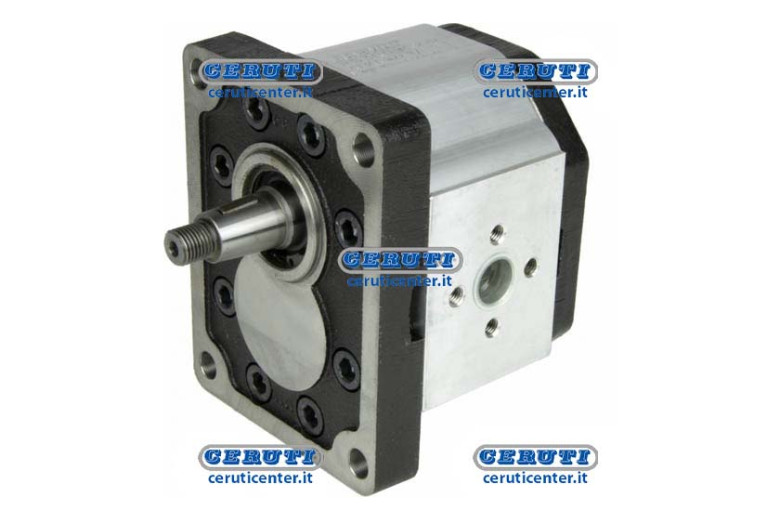

Motor Gr. 3 (Mod. Standard) - 22 Cm3 Bidirectional

MadeinItaly

Bidirectional Gear Motors Group 3 - Standard Version - Conical Shaft - National Production - 22 Cm3, Bidirectional - Ref. 82186

Ref. CC-82186

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Centring: 50.8 mm
Displacement: 22 cc
Tapering: 1:08
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 220 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 310 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

MadeinItaly

€691.74 VAT inc.

€567.00 VAT exc.

Data sheet

Centring: 50.8 mm
Displacement: 22 cc
Tapering: 1:08
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 220 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 310 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

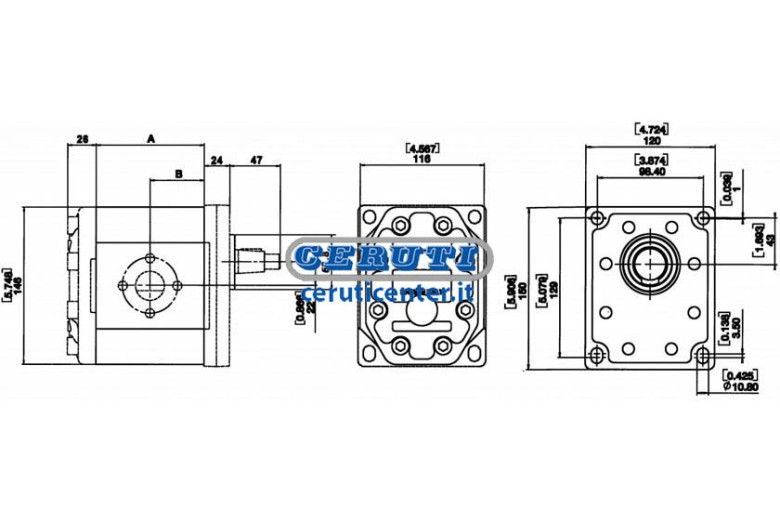

Motor Gr. 3 (Mod. Standard) - 26 Cm3 Bidirectional

MadeinItaly

Bidirectional Gear Motors Group 3 - Standard Version - Conical Shaft - National Production - 26 Cm3, Bidirectional - Ref. 82187

Ref. CC-82187

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Centring: 50.8 mm
Displacement: 26 cc
Tapering: 1:08
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 300 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

MadeinItaly

€702.72 VAT inc.

€576.00 VAT exc.

Data sheet

Centring: 50.8 mm
Displacement: 26 cc
Tapering: 1:08
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 300 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

Motor Gr. 3 (Mod. Standard) - 31 Cm3 Bidirectional

MadeinItaly

Bidirectional Gear Motors Group 3 - Standard Version - Conical Shaft - National Production - 31 Cm3, Bidirectional - Ref. 82188

Ref. CC-82188

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Centring: 50.8 mm
Displacement: 31 cc
Tapering: 1:08
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8

Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 280 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

MadeinItaly

€706.38 VAT inc.

€579.00 VAT exc.

Data sheet

Centring: 50.8 mm
Displacement: 31 cc
Tapering: 1:08
Distance to hole centre - A: 43.5 mm
Suction flange threading: M10
Outlet flange threading: M8
Intake flange centre distance: 51 mm
Outlet flange centre distance: 40 mm
Length - B: 87 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 280 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

Motor Gr. 3 (Mod. Standard) - 36 Cm3 Bidirectional

MadeinItaly

Bidirectional Gear Motors Group 3 - Standard Version - Conical Shaft - National Production - 36 Cm3, Bidirectional - Ref. 82189

Ref. CC-82189

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Centring: 50.8 mm
Displacement: 36 cc
Tapering: 1:08
Distance to hole centre - A: 45.5 mm
Suction flange threading: M10
Outlet flange threading: M10

Intake flange centre distance: 51 mm
Outlet flange centre distance: 51 mm
Length - B: 91 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 280 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

MadeinItaly

€713.70 VAT inc.

€585.00 VAT exc.

Data sheet

Centring: 50.8 mm
Displacement: 36 cc
Tapering: 1:08
Distance to hole centre - A: 45.5 mm
Suction flange threading: M10
Outlet flange threading: M10
Intake flange centre distance: 51 mm
Outlet flange centre distance: 51 mm
Length - B: 91 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 280 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

Motor Gr. 3 (Mod. Standard) - 41 Cm3 Bidirectional

MadeinItaly

Bidirectional Gear Motors Group 3 - Standard Version - Conical Shaft - National Production - 41 Cm3, Bidirectional - Ref. 82190

Ref. CC-82190

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Centring: 50.8 mm
Displacement: 41 cc
Tapering: 1:08
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M10

Intake flange centre distance: 51 mm
Outlet flange centre distance: 51 mm
Length - B: 101 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 280 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

MadeinItaly

€724.68 VAT inc.

€594.00 VAT exc.

Data sheet

Centring: 50.8 mm
Displacement: 41 cc
Tapering: 1:08
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M10
Intake flange centre distance: 51 mm
Outlet flange centre distance: 51 mm
Length - B: 101 mm
Continuous pressure: 210 Bar
Intermittent pressure: 250 Bar
Maximum pressure: 280 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

Motor Gr. 3 (Mod. Standard) - 47 Cm3 Bidirectional

MadeinItaly

Bidirectional Gear Motors Group 3 - Standard Version - Conical Shaft - National Production - 47 Cm3, Bidirectional - Ref. 82191

Ref. CC-82191

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Centring: 50.8 mm
Displacement: 47 cc
Tapering: 1:08
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M10

Intake flange centre distance: 51 mm
Outlet flange centre distance: 51 mm
Length - B: 101 mm
Continuous pressure: 180 Bar
Intermittent pressure: 210 Bar
Maximum pressure: 270 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

MadeinItaly

€732.00 VAT inc.

€600.00 VAT exc.

Data sheet

Centring: 50.8 mm
Displacement: 47 cc
Tapering: 1:08
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M10
Intake flange centre distance: 51 mm
Outlet flange centre distance: 51 mm
Length - B: 101 mm
Continuous pressure: 180 Bar
Intermittent pressure: 210 Bar
Maximum pressure: 270 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

Motor Gr. 3 (Mod. Standard) - 51 Cm3 Bidirectional

MadeinItaly

Bidirectional Gear Motors Group 3 - Standard Version - Conical Shaft - National Production - 51 Cm3, Bidirectional - Ref. 82192

Ref. CC-82192

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Centring: 50.8 mm
Displacement: 51 cc
Tapering: 1:08
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M10

Intake flange centre distance: 51 mm
Outlet flange centre distance: 51 mm
Length - B: 101 mm
Continuous pressure: 180 Bar
Intermittent pressure: 210 Bar
Maximum pressure: 270 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

MadeinItaly

€739.32 VAT inc.

€606.00 VAT exc.

Data sheet

Centring: 50.8 mm
Displacement: 51 cc
Tapering: 1:08
Distance to hole centre - A: 50.5 mm
Suction flange threading: M10
Outlet flange threading: M10
Intake flange centre distance: 51 mm
Outlet flange centre distance: 51 mm
Length - B: 101 mm
Continuous pressure: 180 Bar
Intermittent pressure: 210 Bar
Maximum pressure: 270 Bar
Maximum rotation speed: 3500 giri/min
Minimum rotation speed: 700 giri/min

Motor Gr. 3 (Mod. Standard) - 61 Cm3 Bidirectional

MadeinItaly

Bidirectional Gear Motors Group 3 - Standard Version - Conical Shaft - National Production - 61 Cm3, Bidirectional - Ref. 82193

Ref. CC-82193

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Centring: 50.8 mm
Displacement: 61 cc
Tapering: 1:08
Distance to hole centre - A: 54.3 mm
Suction flange threading: M10
Outlet flange threading: M10

Intake flange centre distance: 51 mm
Outlet flange centre distance: 51 mm
Length - B: 108 mm
Continuous pressure: 150 Bar
Intermittent pressure: 180 Bar
Maximum pressure: 200 Bar
Maximum rotation speed: 3000 giri/min
Minimum rotation speed: 600 giri/min

MadeinItaly

€761.28 VAT inc.

€624.00 VAT exc.

Data sheet

Centring: 50.8 mm
Displacement: 61 cc
Tapering: 1:08
Distance to hole centre - A: 54.3 mm
Suction flange threading: M10
Outlet flange threading: M10
Intake flange centre distance: 51 mm
Outlet flange centre distance: 51 mm
Length - B: 108 mm
Continuous pressure: 150 Bar
Intermittent pressure: 180 Bar
Maximum pressure: 200 Bar
Maximum rotation speed: 3000 giri/min
Minimum rotation speed: 600 giri/min

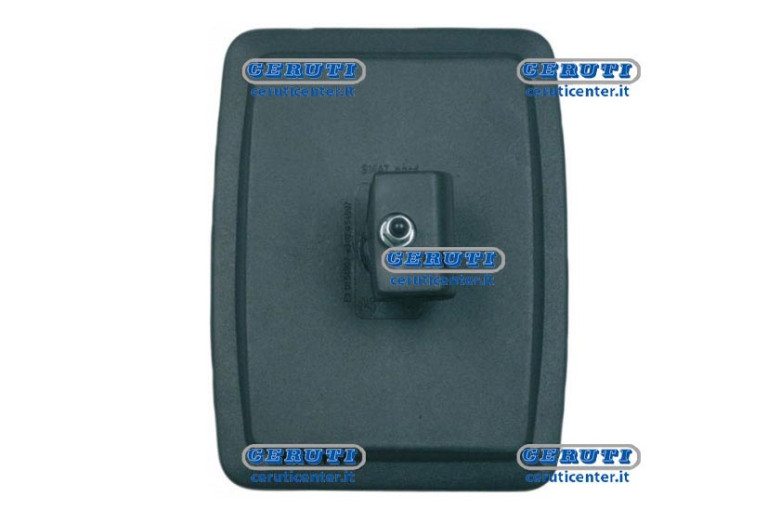

Base

MadeinItaly

Black cup 236X180 V / White - Ref. 60547

Ref. CC-60547

MadeinItaly

Availability: 4

SHIPPED WITHIN 24 HOURS (MON–FRI)

MadeinItaly

€14.35 VAT inc.

€11.76 VAT exc.

View product

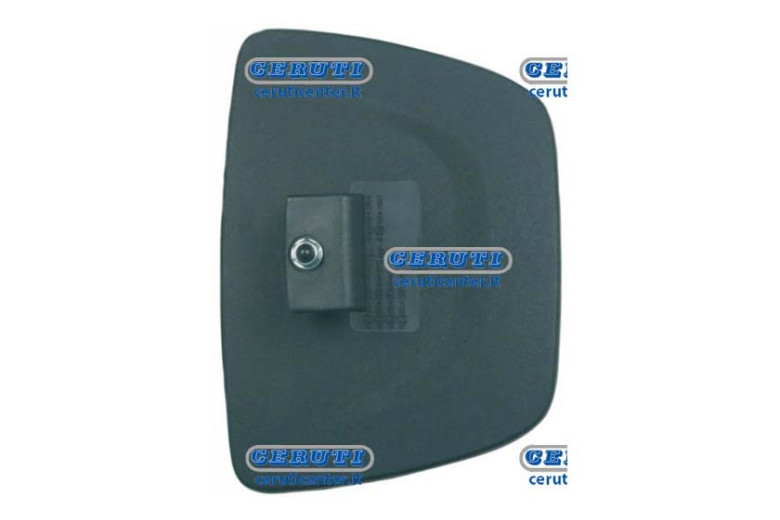

Base

MadeinItaly

Black Cup 246X182 C / White Glass - Adaptable ER262065 - Ref. 63578

Ref. CC-63578

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

MadeinItaly

€19.19 VAT inc.

€15.73 VAT exc.

View product

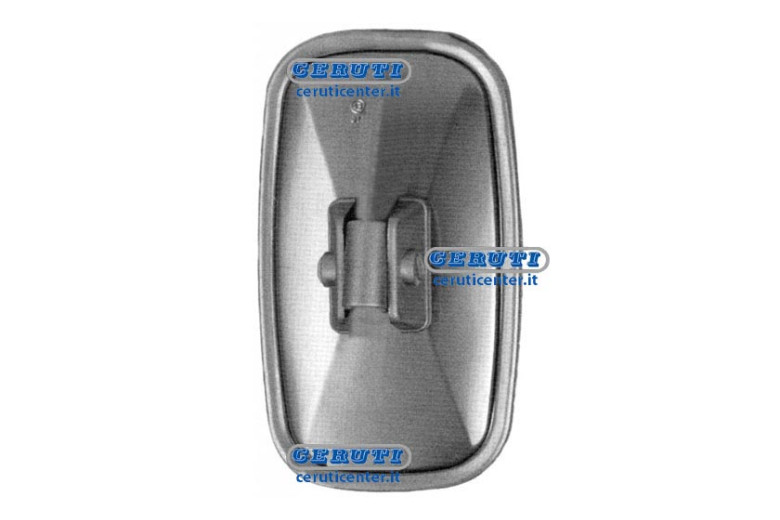

Black Base With Clamp

MadeinItaly

Black Cup 354X169 White Glass - Suitable for 4697662, 4995043, 4672587 - Ref. 62772

Ref. CC-62772

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

measure: 354x169 mm

MadeinItaly

€23.29 VAT inc.

€19.09 VAT exc.

Data sheet

measure: 354x169 mm

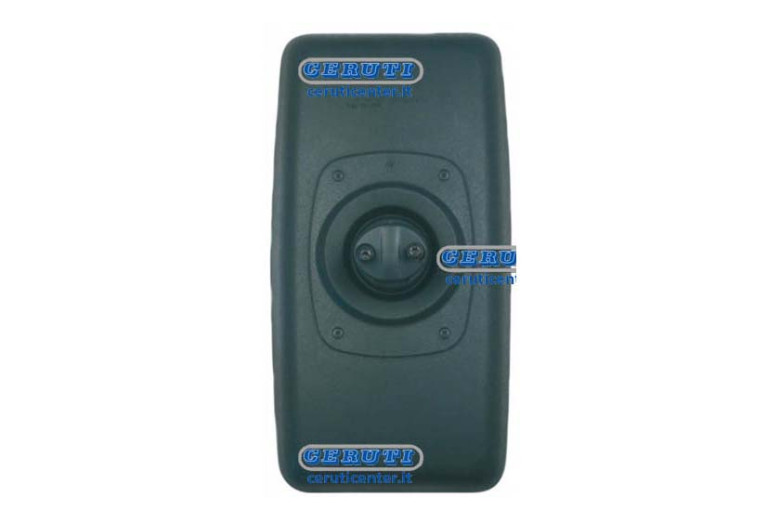

Base

MadeinItaly

Black Cup 371X197 C / White Glass - Adaptable 079352, 97.368.914, 97368914 - Ref. 63579

Ref. CC-63579

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

measure: 371x197 mm

MadeinItaly

€33.49 VAT inc.

€27.45 VAT exc.

Data sheet

measure: 371x197 mm

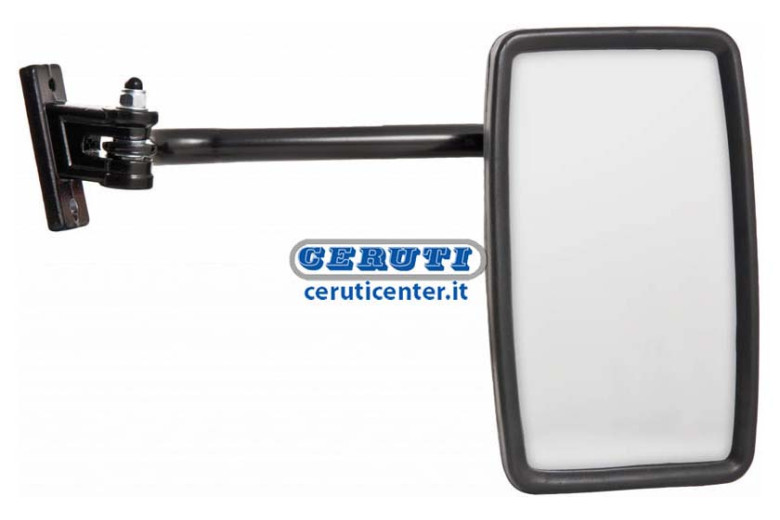

Black Base White Glass

MadeinItaly

Black cup235X140V White Brieda - Suitable for 93904082, 30000514 - Ref. 60535

Ref. CC-60535

MadeinItaly

Availability: 1

SHIPPED WITHIN 24 HOURS (MON–FRI)

Technical Data Sheet

measure: 235x140 mm

MadeinItaly

€22.59 VAT inc.

€18.51 VAT exc.

Data sheet

measure: 235x140 mm

Block And Control Of The Simple Acting Descent In Line Valve Couplings 1/2" Gas

MadeinItaly

Block valve and simple effect downward control in line with 1/2 "gas connections - Ref. 82224

Ref. CC-82224

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Attacks: 1/2" GAS
Scope: 60 l/min
Maximum pressure: 350 bar
Pilot Report: 1:4,25

MadeinItaly

€70.76 VAT inc.

€58.00 VAT exc.

Data sheet

Attacks: 1/2" GAS
Scope: 60 l/min
Maximum pressure: 350 bar
Pilot Report: 1:4,25

Block And Control Of The Simple Acting Descent In Line Valve Couplings 3/8" Gas

MadeinItaly

Block Valve And Single Acting In-Line Down Control Valve 3/8 "Gas Connections - Ref. 82223

Ref. CC-82223

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

Attacks: 3/8" GAS
Scope: 40 l/min
Maximum pressure: 350 bar
Pilot Report: 1:4,25

MadeinItaly

€67.65 VAT inc.

€55.45 VAT exc.

Data sheet

Attacks: 3/8" GAS
Scope: 40 l/min
Maximum pressure: 350 bar
Pilot Report: 1:4,25

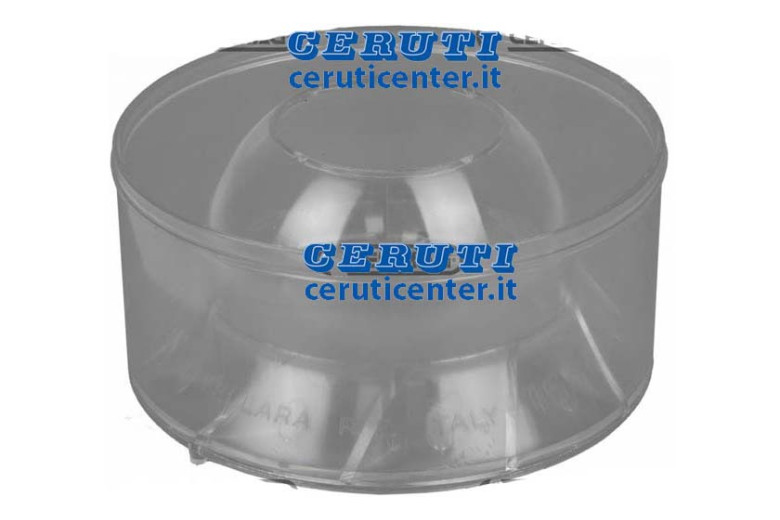

Cyclon Prefilter Element

MadeinItaly

Body Trasp.Pref. Acme-Rugg.Slanzi - Transparent Parts For Cyclone Prefilters - Ref. 10057

Ref. CC-10057

MadeinItaly

Available for order

SHIPPED IN 2 / 3 DAYS

Technical Data Sheet

height: 57 mm
Diameter: 116 mm

MadeinItaly

€12.26 VAT inc.

€10.05 VAT exc.

Data sheet

height: 57 mm
Diameter: 116 mm

Showing 201 to 220 of 2139 products

Page 11 of 107

1
…
9
10
11
12
…
106
107
