Ersatzteile Rasenmäher GGP (Stiga Group) EL 420 1800W EM MG HW 1842-2 (2014) - 294420068/ZE

Kaufen Sie originale Ersatzteile für den GGP (Stiga Group) Rasenmäher EL 420 1800W EM MG HW 1842-2 direkt aus der illustrierten Teileliste (IPL). Große Auswahl an vorrätigen Artikeln für schnellen Versand.

Kein Bild

Rasenmäher

Ausgewähltes Modell

ModellEL 420 1800W EM MG HW 1842-2
Änderung
Jahr2014
Änderung
Art.-Nr. / PNC294420068/ZE
Änderung

Illustrierte Ersatzteilliste

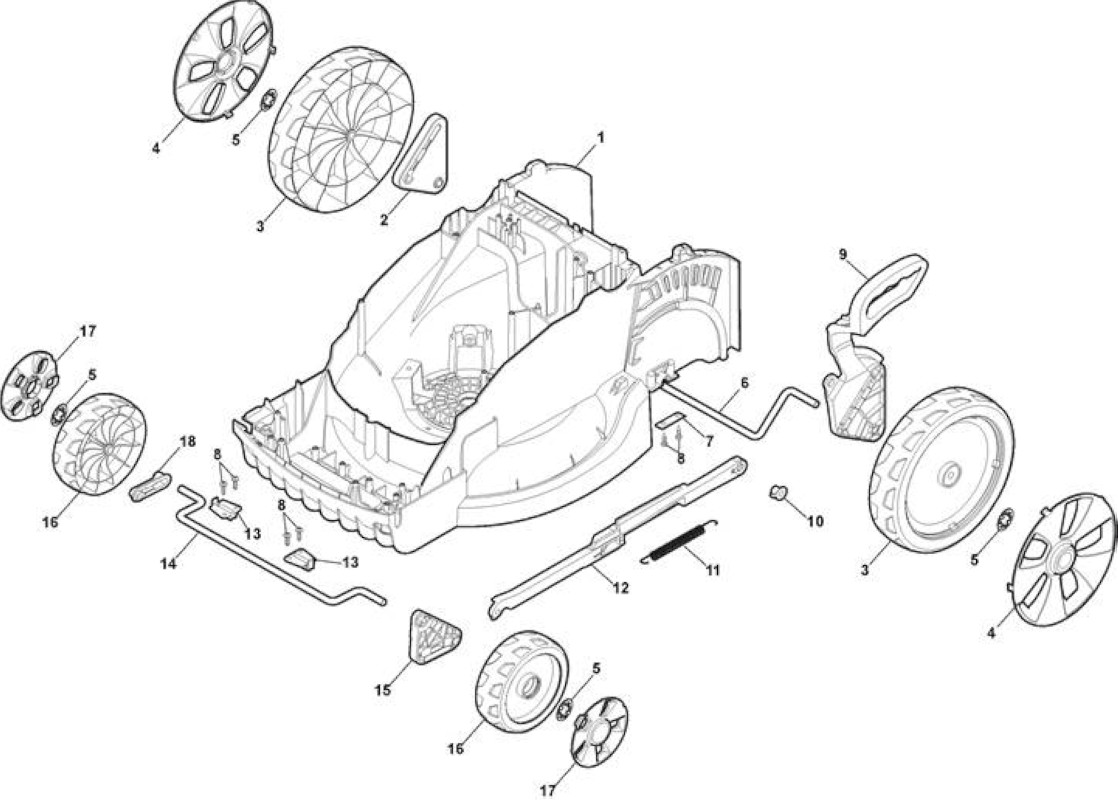

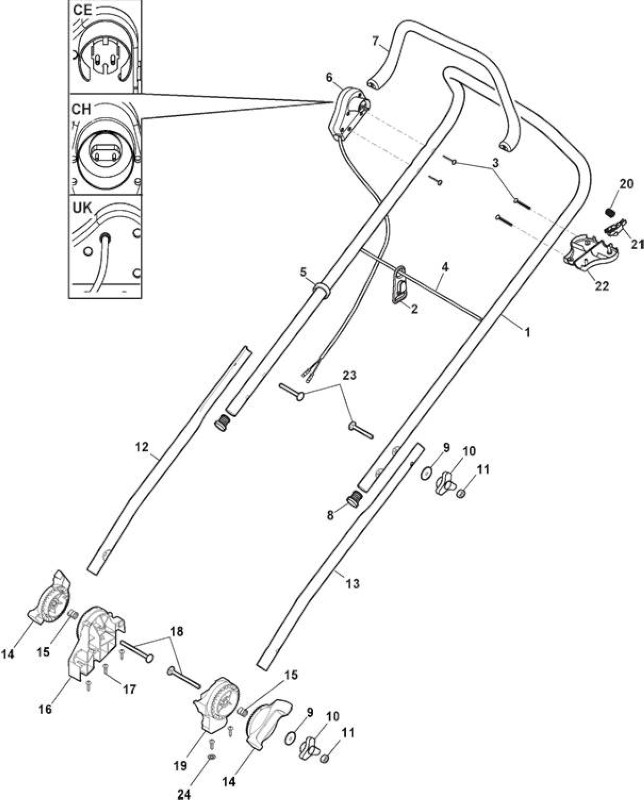

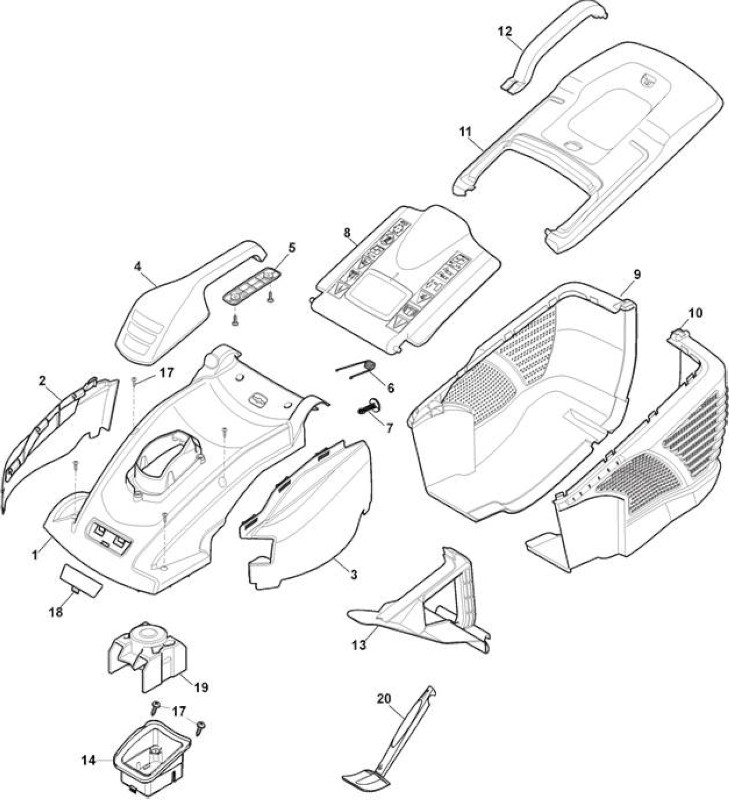

Wähle eine der 4 Explosionszeichnungen, um das Teil auf der Zeichnung zu finden.

Suche nach Name, Teilenummer oder früherer Referenz.

Original-Ersatzteile ST.-S.P.A.
Alle Ersatzteile dieser Explosionszeichnung (68)

Deck Cover [Yellow] El 420 - Stiga Genuine Part - 322055180/0 Lower Handle Cover - Stiga Genuine Part - 322393659/0 Spring - Stiga Genuine Part - 122450470/0 01478963R Security Pin - Stiga Genuine Part - 322524356/0 Sostituito da 322486395/0 Lower Right Grassbox [Grey] - Stiga Genuine Part - 322486395/0 Sostituito da 322486396/0 Lower Left Grassbox [Grey] - Stiga Genuine Part - 322486396/0 Grasscatcher Top [Grey] - Stiga Genuine Part - 322486329/0 Grasscatch. Handle El340/380/420 Black- Stiga Genuine Part - 322393666/0 Grasscatcher Handle [Grey] - Stiga Genuine Part - 322393718/0 Mulching Plug [El420]- Stiga Genuine Part - 322140243/0 Motor Case - Stiga Genuine Part - 322393672/0 Selbstschneidende Schraube 20 mm – Original Stiga – 112728714/0 – ersetzt – 112728692/0 Cover Plate [Grey] - Stiga Genuine Part - 322055168/0 Cover Plate [Grey] - Stiga Genuine Part - 322055252/0 Motor Cap El 380/420 - Stiga Genuine Part - 322393676/0 Scraper - Stiga Genuine Part - 113300215/0 Chassis El 420 Grey Stiga Ncs S8000-N - Stiga Genuine Part - 322066784/0 - replaces - 322066761/0 R/H Rear Wheel Support Plate [Grey] - Stiga Genuine Part - 322785387/0 Supporto Ruota - 322785450/1 - Originale Stiga - Sostituisce - 322785450/0 Wheel D250 [Black]- Stiga Genuine Part - 322686105/0 Avio CS D240 Radkappe Grau RAL 9022 - Original Stiga - 322110637/0 Starlock Washer D10- Stiga Genuine Part - 112604903/0 Rear Wheels Axle - Stiga Genuine Part - 122033427/0 Axle Stop Plate- Stiga Genuine Part - 322545142/0 Height Adjust Lever [Grey] - Stiga Genuine Part - 322785388/1 - replaces - 322785388/0 Height Adjust Lever [Grey] - Stiga Genuine Part - 322785443/1 - replaces - 322785443/0 Bush- Stiga Genuine Part - 322524354/0 Spring - Stiga Genuine Part - 122446195/0 Height Adjust Rod [Black] - Stiga Genuine Part - 322869685/0 Befestigungsplatte Vorderachse - Original Stiga - 322785415/0 Front Wheel Axle El 420 - Stiga Genuine Part - 122033426/0 Left Front Support Plate Black El38/42 - Stiga Genuine Part - 322785422/0 Wheel D150 [Black]- Stiga Genuine Part - 322686104/0 Hub Cap D 150 [Grey] - Stiga Genuine Part - 322110685/0 Vorderradträger Grau - Original Stiga - 322785449/0 - ersetzt - 322785385/0 Upper Handle - Stiga Genuine Part - 381007516/0 Cableholder For Electric Lawnmowers- Stiga Genuine Part - 322195101/4 - replaces - 122195101/2 Self-Tap Screw Torx K40 X 25 - Stiga Genuine Part - 112728701/0 Dead Hand Switch Fairlead Short Hooking - Stiga Genuine Part - 122010250/0 Cable Clamp - Stiga Genuine Part - 122192000/1 - replaces - 118810110/0 Dead Hand Switch [Ce Type] L 1435Mm - Stiga Genuine Part - 381600547/2 - replaces - 381600503/1 Short Dead Hand Switch Lever Black - Stiga Genuine Part - 322322880/2 Handle Cap D20- Stiga Genuine Part - 118566112/0 Washer M6 6.6 X 24 X 2- Stiga Genuine Part - 112523050/0 3 Spoke Handwheel [Black] - Stiga Genuine Part - 122399900/0 - replaces - 322399804/1 Special Nut M6 X 0.75 - Stiga Genuine Part - 112154521/0 R/H Lower Handle - Stiga Genuine Part - 381007517/0 L/H Lower Handle - Stiga Genuine Part - 381007518/0 Handle Joint Grey - Stiga Genuine Part - 322246100/0 Handle Joint [Grey] - Stiga Genuine Part - 322246102/0 Spring - Stiga Genuine Part - 122430210/0 - replaces - 1111-1138-01 Right Handle Joint [Grey] - Stiga Genuine Part - 322745055/0 - replaces - 322745052/0 Carriage Bolt M6 X 65 - Stiga Genuine Part - 122943017/0 Left Handle Joint [Grey] - Stiga Genuine Part - 322745051/0 Left Handle Joint [Grey] - Stiga Genuine Part - 322745056/0 Spring - Stiga Genuine Part - 122450115/0 Left Fulcrum Pin- Stiga Genuine Part - 322230350/2 - replaces - 322230350/1 Left Hand Switch Support Cover- Stiga Genuine Part - 322785144/1 - replaces - 322785144/0 Carriage Bolt M6 X 50 - Stiga Genuine Part - 122943016/0 Flache Unterlegscheibe M5 5,3×10×1 verzinkt – Original Stiga – 112521320/0 – Ersetzt – 118800479/0 Befestigungsschraube – Original Stiga – 112728904/0 – ersetzt – 112728699/0 Washer M5 5.5 X 15 X 1.6- Stiga Genuine Part - 112523020/0 Fan/Blade Holder- Stiga Genuine Part - 322465644/1 - replaces - 322465644/0 Winged Blade El420- Stiga Genuine Part - 181004161/0 - replaces - 3610342-01A M9-Messerbefestigungsschraube für Elektrorasenmäher – Original Stiga – 381004352/1 – Ersetzt – 381004352/0 Belt-Electric Motor - Stiga Genuine Part - 118810092/0
