Frontmäher mit Auffangbehälter Stiga · Ersatzteilkatalog
Ersatzteile Frontmäher mit Auffangbehälter (2018) - 2F2020821/S17 Stiga MPV 520 W
Kaufen Sie originale Ersatzteile für den Stiga Frontmäher mit Auffangbehälter MPV 520 W direkt aus der illustrierten Teileliste (IPL). Große Auswahl an vorrätigen Artikeln für schnellen Versand.
Frontmäher mit Auffangbehälter
Illustrierte Ersatzteilliste

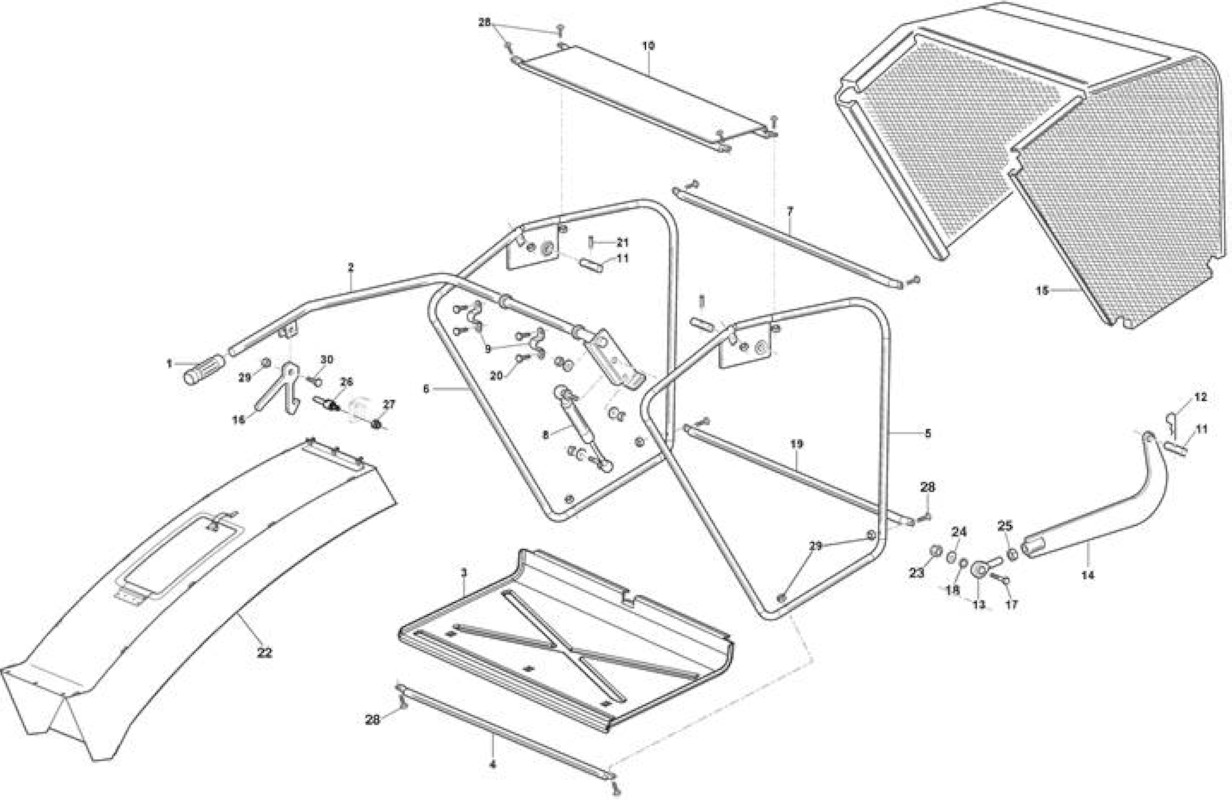

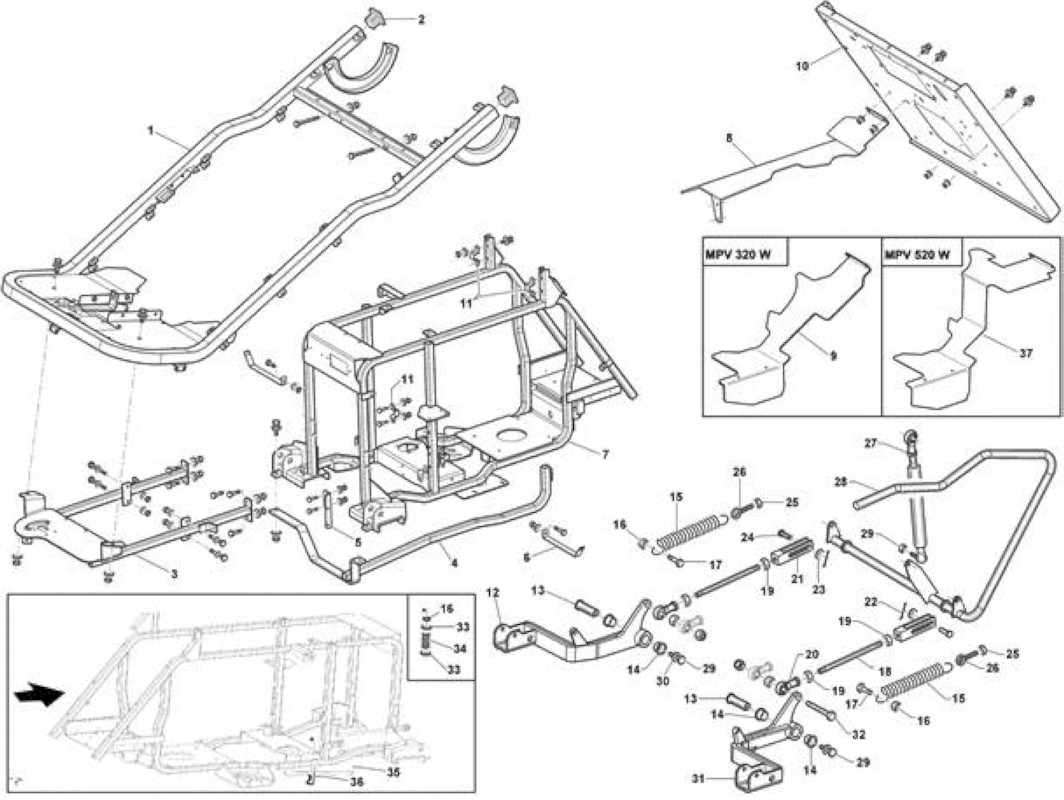

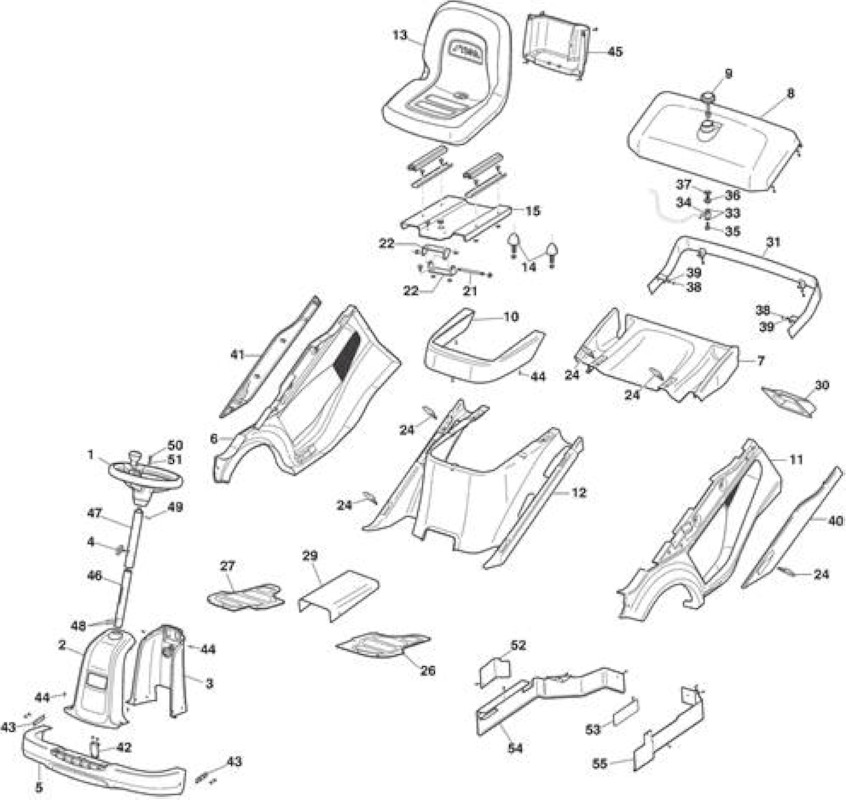

Wähle eine der 11 Explosionszeichnungen, um das Teil auf der Zeichnung zu finden.
Abschnitt 1
Abschnitt 2
Abschnitt 3
Abschnitt 4
Abschnitt 5
Abschnitt 6
Alle Ersatzteile für: Frontmäher mit Auffangbehälter
Suche nach Name, Teilenummer oder früherer Referenz.
Suche unter den 119 Ersatzteilen des Modells
Nach Name, Code oder Referenz in der Explosionszeichnung suchen Search
Alle Ersatzteile dieser Explosionszeichnung (119)
Steering Wheel [Black]- Stiga Genuine Part - 337961200/0 Steering Column Cover [Yellow]- Stiga Genuine Part - 337110344/0 Wing Nut- Stiga Genuine Part - 337394201/0 Engine Cover [Grey]- Stiga Genuine Part - 337110348/0 Gtr Fuel Tank [Grey Ncs]- Stiga Genuine Part - 337735113/0 Fuel Tank Cap - Stiga Genuine Part - 118830360/0 Upper Frame Cover [Yellow]- Stiga Genuine Part - 337110347/0 Central Cover [Grey]- Stiga Genuine Part - 337110346/0 Seat Plate Grommet - Stiga Genuine Part - 118830364/0 Locking Knob - Stiga Genuine Part - 118830359/0 L/H Rubber Footboard Cover [Black]- Stiga Genuine Part - 337110357/0 R/H Rubber Footboard Cover [Black]- Stiga Genuine Part - 337110356/0 Cap - Stiga Genuine Part - 118830357/0 Rear Cap - Stiga Genuine Part - 118830493/0 Joint - Stiga Genuine Part - 118830387/0 Hex-Head Screw M5 X 10- Stiga Genuine Part - 112788800/0 Flache Unterlegscheibe M5 5,3×10×1 verzinkt – Original Stiga – 112521320/0 – Ersetzt – 118800479/0 Torx-Blechschraube K50×16 - Original Stiga - 112728697/0 Rear Seat Tray [Black]- Stiga Genuine Part - 337592350/0 Locating Pin- Stiga Genuine Part - 9595-0256-01 Screw Te M8X20 Uni 5739 Acc.8.8- Stiga Genuine Part - 112793102/0 Washer M8 Uni 1751 Wz- Stiga Genuine Part - 112583500/0 R/H Protection Guard [Black]- Stiga Genuine Part - 337060029/0 L/H Protection Guard [Black]- Stiga Genuine Part - 337060030/0 External Frame [Grey] - Stiga Genuine Part - 118830719/0 Rear Cover Plate - Stiga Genuine Part - 118830682/0 Low Self-Locking Nut M8- Stiga Genuine Part - 112155000/0 - replaces - 9747-0831-02 Hex-Head Screw M8 X 30- Stiga Genuine Part - 112793701/0 - replaces - 112793700/0 M10 Unterlegscheibe 10,5×20×2, verzinkt – Original Stiga – 112521360/0 Hexagon Nut M8 Uni 5588 Acc.6S- Stiga Genuine Part - 112293200/0 - replaces - 9799-0831-02 Vite Te M8X16 Uni 5739 Acc. 8.8 Zincata - Originale Stiga - 112792611/0 - sostituisce - 9997-0816-16 Washer M8 8.4 X 24 X 2- Stiga Genuine Part - 112523060/0 Grasscatcher Bottom Cover - Stiga Genuine Part - 118830489/0 Copertura Laterale Sinstra - Originale Stiga - 118830499/0 Copertura Destra - Originale Stiga - 118830500/0 Grasscatcher Bag - Stiga Genuine Part - 118830693/0 Rivet D4.8 X 12- Stiga Genuine Part - 112500070/0 Screw M6 X 30- Stiga Genuine Part - 112728721/0 Selbstsichernde Mutter M6 niedrig - Original Stiga - 112154510/0 - Ersetzt - 6981279 Vite Te M6X18 Uni 5739 Acc. 8.8 Zincata - Originale Stiga - 112791213/1 - sostituisce - 112791200/1 Throttle Lever Assembly - NO LONGER AVAILABLE Zündkerze (RC12YC) – Original Stiga – 1111-9206-01 – ersetzt – 4730000-01A Washer M8 8.4 X 16 X 1.6- Stiga Genuine Part - 112521350/0 Hex-Head Screw M8 X 25- Stiga Genuine Part - 112793301/0 - replaces - 9997-0825-16 Screw M6S M5 X 20- Stiga Genuine Part - 9997-0520-16 Ball Bearing - Stiga Genuine Part - 118830371/0 Pulley - Stiga Genuine Part - 118830533/0 Pto Belt For Collecting 2017 V-Belt Spb 2330 - Stiga Genuine Part - 118830010/0 Circlip D35- Stiga Genuine Part - 112610800/0 - replaces - 112610002/0 Transmission Belt For Collecting 20 V-Belt Xpa 690 - Stiga Genuine Part - 118830012/0 Niedrige selbstsichernde Mutter M10 - Original Stiga - 112156602/0 - ersetzt - 9747-1031-02 Engine Belt For Collecting 2017 V-Belt Xpa 1082 - Stiga Genuine Part - 118830011/0 Dado Autobl.M12 Basso Uni7474 Acc.6S - Originale Stiga - 112156603/0 - sostituisce - 9747-1231-02 M12 Unterlegscheibe 13×24×2,5 verzinkt - Original Stiga - 112521370/0 Roll Pin D5 X 32- Stiga Genuine Part - 112645705/0 - replaces - 112645707/0 Straight Grease Nipple M6 X 1- Stiga Genuine Part - 112379511/0 - replaces - 9501-0500-00 Bearing 6202 2Rs C3 - Stiga Genuine Part - 119216048/0 - replaces - 119216033/1 Electromagnetic Clutch - Stiga Genuine Part - 118830398/0 Handle - Stiga Genuine Part - 118830450/0 Screw M6Sf M8 X 20 Tl- Stiga Genuine Part - 9959-0820-16 Bearing 6204-C-2Hrs- Stiga Genuine Part - 119216047/0 - replaces - 9549-0056-01 Circlip D20- Stiga Genuine Part - 112609260/0 - replaces - 9650-0020-04 Transmission Engine Cable - Stiga Genuine Part - 118830510/0 Screw Te M6X25 Uni 5739 Acc.8.8- Stiga Genuine Part - 112791500/0 - replaces - 9997-0625-16 Screw Mf6S M8 X 30- Stiga Genuine Part - 9924-0830-16 Absorber Damper - Stiga Genuine Part - 118830388/0 Support Assembly - Stiga Genuine Part - 118830498/0 Transaxle [Hydro Gear G700] - Stiga Genuine Part - 118830414/0 Steering Shaft - Stiga Genuine Part - 118830431/0 Parking Brake Cable - Stiga Genuine Part - 118830487/0 Wheel Hub - Stiga Genuine Part - 118830415/0 Oil Filter - Stiga Genuine Part - 118830389/0 Right Stub Axle - Stiga Genuine Part - 118830458/0 Washer M16 17 X 30 X 3- Stiga Genuine Part - 112521390/0 Tie Rod - Stiga Genuine Part - 118830438/0 Lever Arm - Stiga Genuine Part - 118830457/0 Screw M6S 10 X 40- Stiga Genuine Part - 9997-1040-16 Pulley Fan Kit - Stiga Genuine Part - 118830538/0 Hex-Head Screw M8 X 45- Stiga Genuine Part - 112691200/0 Tyre 140-6 6Pr - Stiga Genuine Part - 118830354/0 Wheel Assembly 16 X 7.50-8 - Stiga Genuine Part - 118830683/0 - replaces - 118830355/0 Valvola X Ruota Fm - Originale Stiga - 9545-0500-00 - sostituisce - 118830353/0 Coppiglia A Molla D1,8 Per Alberi D6/8 - Originale Stiga - 124487997/0 - sostituisce - 118800087/0 Hour Counter - Stiga Genuine Part - 118830392/0 Microswitch - Stiga Genuine Part - 118830391/0 Central Harness Assembly - Stiga Genuine Part - 187040319/0 Switch - Stiga Genuine Part - 118830396/0 Ignition Switch - Stiga Genuine Part - 118830393/0 Front Led Light- Stiga Genuine Part - 387184250/0 Microswitch - Stiga Genuine Part - 118830505/0 Diode - Stiga Genuine Part - 118830395/0 Sostituito da 118830013/0 Toothed Belt Gt2 2400 - Stiga Genuine Part - 118830013/0 Pulley - Stiga Genuine Part - 118830456/0 Pulley - Stiga Genuine Part - 118830479/0 Flache Unterlegscheibe M10 11×30×2,5 verzinkt – Original Stiga – 112523080/0 – Ersetzt – 125670027/0 Pulley Shaft - Stiga Genuine Part - 118830406/0 Blade Shaft - Stiga Genuine Part - 118830408/0 Dust Cover - Stiga Genuine Part - 118830497/0 Blade Shaft Support - Stiga Genuine Part - 118830404/0 Blade Shaft Support - Stiga Genuine Part - 118830405/0 Blade Tips Ccw For Collecting 2017 Pulley Support - NO LONGER AVAILABLE Blade Shaft Cover - Stiga Genuine Part - 118830515/0 Blade Disc Assembly R/H - Stiga Genuine Part - 118830481/0 Wheel Fork Support - Stiga Genuine Part - 118830690/0 Bush - Stiga Genuine Part - 118830503/0 Washer M16 17 X 30 X 3- Stiga Genuine Part - 112521395/0 Deflector Plate - Stiga Genuine Part - 118830427/0 Transmission Cover - Stiga Genuine Part - 118830691/0 Pin - Stiga Genuine Part - 118830433/0 Washer M10- Stiga Genuine Part - 112585100/0 Blade Tips Cw For Collecting 2017 Blade Disc Assembly L/H - Stiga Genuine Part - 118830482/0 Screw - Stiga Genuine Part - 118830536/0 Hex-Head Screw M8X70 Uni 5737 Acc.8.8- Stiga Genuine Part - 112691600/0
Inkl. MwSt.
Ersatzhistorie
Dieses Ersatzteil [ref] ist das neueste in der Ersatzteilkette.
Ersetzte Teile
