OREC                           ISSUED NO. HRC813/EUO-1

Parts catalogue FLAIL MOWER

(EXPORT MODEL)











HRC813-OH

MODEL              CODE





HRC813/H                0335-○○○○○























CONTENTS



Fig. 1

HANDLE --------------------------------------

1

Fig. 2

FRAME ----------------------------------------

3

Fig. 3

TRANSMISSION ----------------------------

8

Fig. 4

ROTARY COVER ---------------------------

14

Fig. 5

CRAWLER ------------------------------------

19

Fig. 6

ENGINE ---------------------------------------

22

Fig. 7

LABEL -----------------------------------------

24



OREC CO.,LTD

Update : Jan.2019

1/25

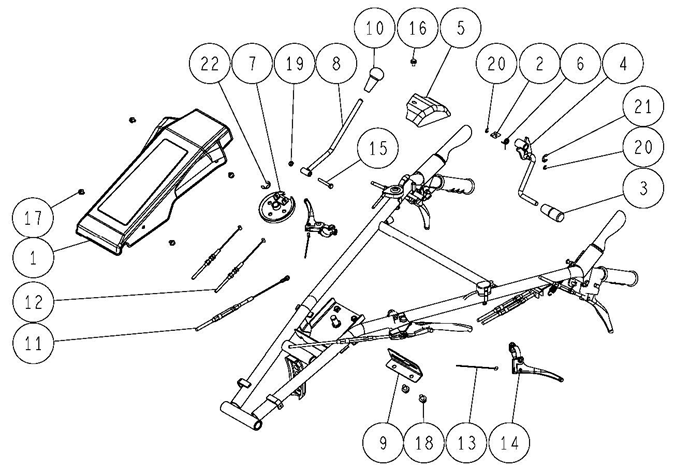

HANDLE   1/2





Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

80-1310-223-00

Handle Bonnet





1



2

80-1417-253-00

Stopper





1



3

80-1417-255-00

Lever Grip (Red) 10





1



4

0211-20400

Blade Tension Lever





1



5

0211-20500

Upper Cover





1



6

0211-70410

Stopper Return Spring





1



7

0334-10200

Wire Guide (H) CMP





1



8

0334-10300

Change Lever CMP





1



9

0334-10400

Change Guide





1



10

0334-70200

Lever Grip 10 (Black)





1



11

0334-70700

Tension Wire





1



12

0336-70100

Change Wire





2



13

83-1110-965-20

Tension Wire





2



14

83-1415-453-10

Lever 27-05-0822S





2



15

89-1111-060402

Hexagonal Bolt M6*40





1



16

89-1137-060122

Hexagonal Bolt (PW) M6*12





1



17

89-1158-060102

Cross recess Headed Screw (PWSW) M6*10





4



18

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16





2



19

89-1551-060002

Hexagonal U Nut M6





1



20

89-2521-000050

E Type Ring 5





2



21

89-2521-000100

E Type Ring 10





1



22

89-2521-000120

E Type Ring 12





1



2/25

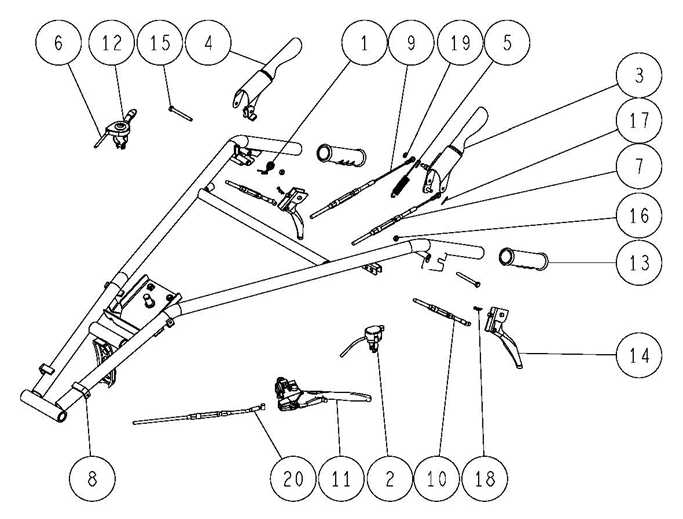

HANDLE   2/2







Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

80-1417-971-10

Blade Clutch Lever Return Spring





1



2

80-1614-280-00

Switch Assy





1



3

0211-20200

Driving Clutch Lever





1



4

0211-20300

Blade Clutch Lever





1



5

0211-20600

Brake Spring





1



6

0301-71200

Throttle Wire (GX270.340)





1



7

0304-70610

Brake Wire





1



8

0334-12100

Handle CMP





1



9

0334-70700

Tension Wire





1



10

0334-70800

Side Clutch Wire





2



11

83-1182-455-10

Lever 2705-S820M





1



12

0301-77100

Throttle Lever





1



13

83-1560-414-00

Handle Grip 27





2



14

83-1761-457-00

Side Clutch Lever





2



15

89-1113-060602

Hexagonal Bolt (8T) M6*60





2



16

89-1551-060002

Hexagonal U Nut M6





2



17

89-2120-200152

Split Pin 2*15





1



18

89-2131-060002

Snap Pin 6





2



19

89-2521-000050

E Type Ring 5





1



20

0251-72130

Up/Down, Right/Left Wire





1



3/25

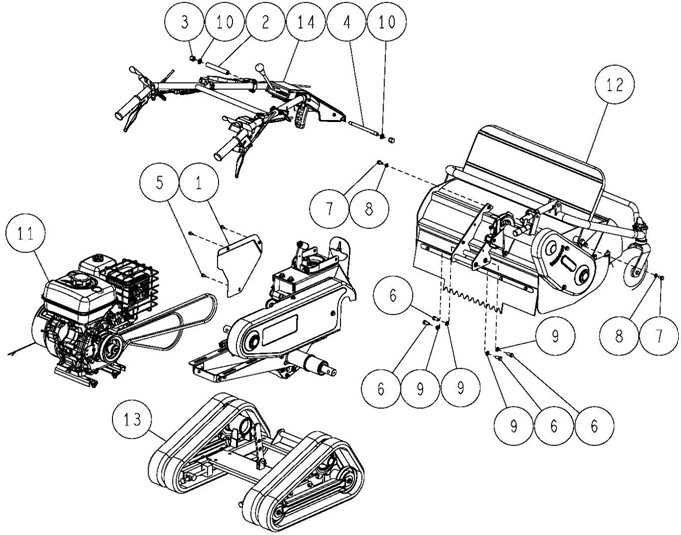

FRAME   1/5









Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

0334-60100

Side Cover CMP





1



2

80-1210-222-00

Handle Setting Collar





1



3

80-1310-228-00

Handle Fix Nut





2



4

83-1210-133-00

Setting Bolt M12*160





1



5

89-1137-060152

Hexagonal Bolt (PW) M6*15





3



6













0244-83200

Mini Hexagonal Bolt (PWSW) M10*25 (7T Lock)





4



7

89-1253-080162

Flange Mini Hexagonal Bolt (8T) M8*16





2



8

89-1750-080002

Spring Washer 8





2



9













10

89-1750-120002

Spring Washer 12





2



11

Engine Part

-





1

Page. 22 ~

12

Rotary Cover Part

-





1

Page. 14 ~

13

Crawler Part

-





1

Page. 19 ~

14

Handle Part

-





1

Page. 1 ~

4/25

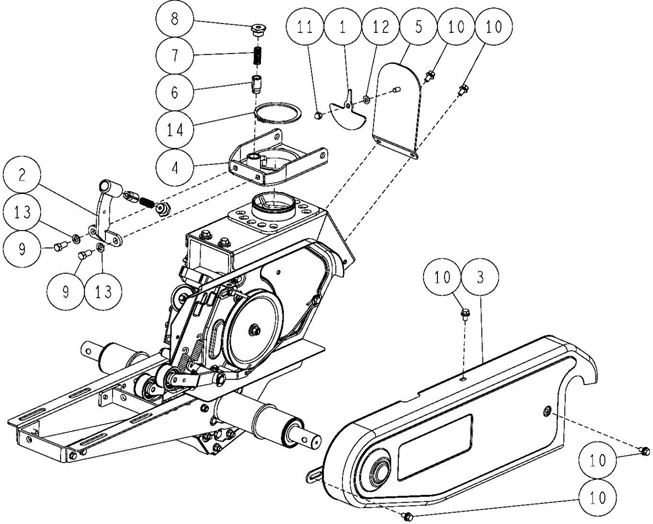

FRAME   2/5









Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

0227-12200

Pointer for Clinometer





1



2

0302-10100

Handle Up/Down Stopper Arm CMP (GX270.340)





1



3













0302-60100

Belt Cover Outside CMP (GX340)





1



4

0334-20300

Turntable for Handle CMP





1



5

0334-21200

Clinometer Panel CMP





1



6

80-1210-216-00

Stopper Pin





2



7

80-1210-217-00

Stopper Spring





2



8

80-1310-215-00

Stopper Cap





2



9

89-1211-100202

Mini Hexagonal Bolt M10*20





2



10

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16





5



11

89-1563-080003

Bag Hexagonal U Nut M8(UNI)





1



12

89-1711-080002

Flat Washer 8





1



13

89-1750-100002

Spring Washer 10





2



14

89-2511-000850

Snap Ring (S85)





1



5/25

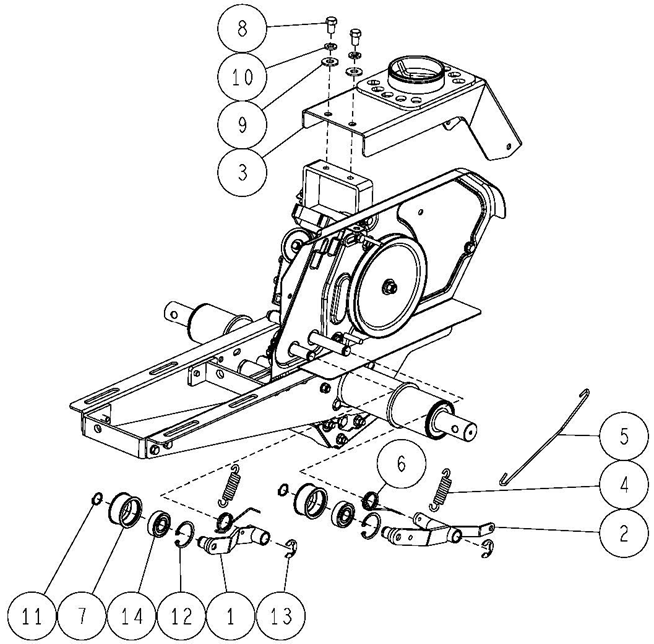

FRAME   3/5



Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

0211-54200

Driving Tension Arm





1



2

0256-40400

Knife Tension Arm





1



3

0334-21100

Under Bonnet CMP





1



4

80-1560-551-00

Return Spring





2



5

80-1614-374-30

Brake Rod





1



6

80-1614-552-00

Tension Spring





2



7

83-1032-765-00

Tension Pulley





2



8

89-1211-100162

Mini Hexagonal Bolt M10*16





2



9

89-1713-100002

Flat Washer 10 (large)





2



10

89-1750-100002

Spring Washer 10





2



11

89-2511-000170

Snap Ring (S17)





2



12

89-2512-000400

Snap Ring (R40)





2



13

89-2521-000150

E Type Ring 15





2



14

89-3115-062034

Bearing 6203 2RS





2



6/25

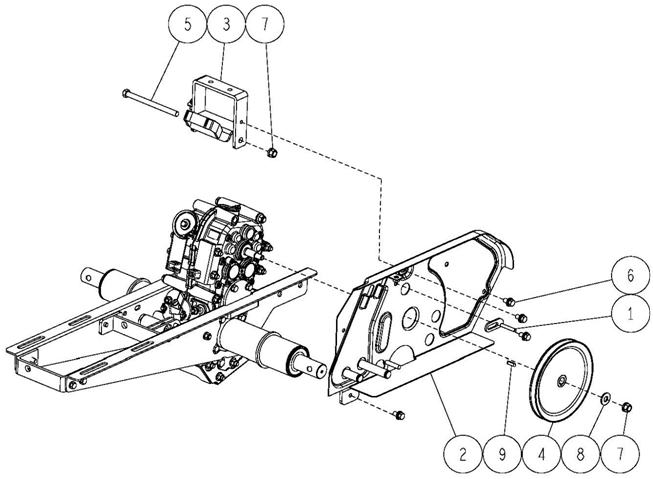

FRAME   4/5





















Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

0225-40600

Belt Holder





1



2

0304-62200

Belt Cover Inside CMP (GX270.340)





1



3

0334-20100

Under Bonnet Setting CMP





1



4

80-1614-521-00

Transmission Pulley





1



5

89-1213-101302

Mini Hexagonal Bolt (8T) M10*130





1



6

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16





4



7

89-1543-100002

Mini Hexagonal Nut (SW) M10





2



8

89-1713-100002

Flat Washer 10 (large)





1



9

89-2150-050200

Key 5*20 (round)





1



7/25

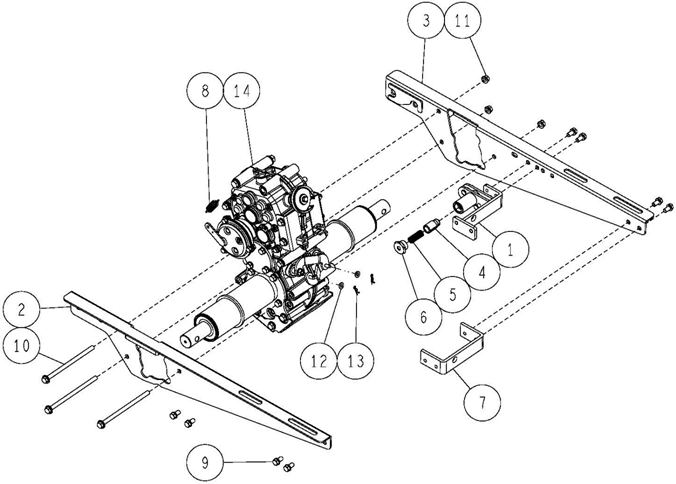

FRAME   5/5







Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

0295-80100

Crawler Fix Bracket





1



2













0304-20100

Main Frame (L) CMP (HRC:GX340)





1



3













0304-20200

Main Frame (R) CMP (HRC:GX340)





1



4

80-1210-216-00

Stopper Pin





1



5

80-1210-217-00

Stopper Spring





1



6

80-1310-215-00

Stopper Cap





1



7

80-1415-326-00

Rear Bracket





1



8

80-1614-315-00

Return Spring





1



9

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16





8



10













89-1253-081503

Flange Mini Hexagonal Bolt (8T) M8*150





3



11

89-1543-080002

Mini Hexagonal Nut (SW) M8





3



12

89-1711-060002

Flat Washer 6





2



13

89-2132-060002

Snap Pin 6 (with stopper)





2



14

Transmission Part

-





1

Page. 8 ~

8/25

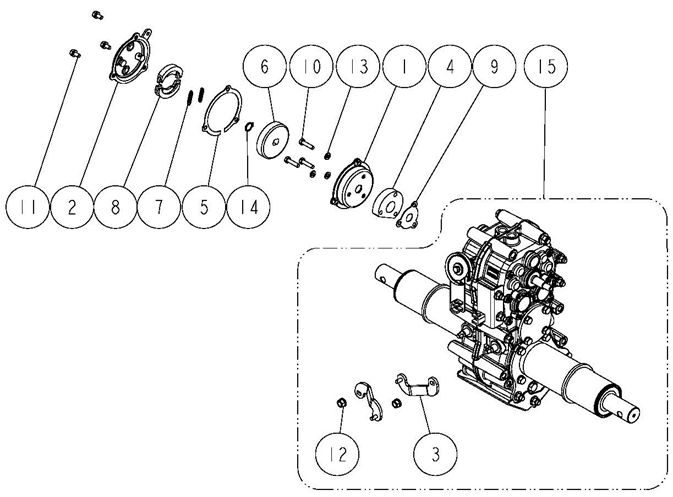

TRANSMISSION   1/6











Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

80-1614-312-00

Brake Cover CMP





1



2

80-1614-314-00

Brake Cover





1



3

80-1920-153-00

Side Clutch Arm





2



4

80-1920-313-00

Brake Cover Spacer





1



5

0211-31800

Brake Packing (Large)





1



6

85-1711-315-00

Brake Drum





1



7

85-1711-317-00

Shoe Return Spring





2



8

85-1711-318-00

Brake Shoe Set





1



9

85-1445-317-00

Brake Packing (Small)





1



10

89-1111-060252

Hexagonal Bolt M6*25





3



11

89-1132-060122

Hexagonal Bolt (SW) M6*12





3



12

89-1543-080002

Mini Hexagonal Nut (SW) M8





2



13

89-1750-060002

Spring Washer 6





3



14

89-2511-000140

Snap Ring (S14)





1



15













0335-01000

Transmission Assy HRC813





1



9/25

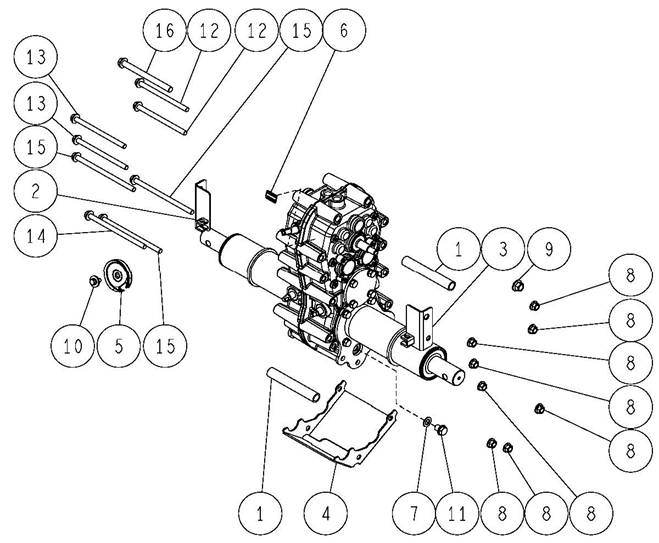

TRANSMISSION   2/6



Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

80-1565-159-00

Shaft BB Reinforce Pipe





2



2

80-1920-197-00

Side Clutch Wire Receiver (L)





1



3

80-1920-198-00

Side Clutch Wire Receiver (R)





1



4

0282-01100

Transmission Guard





1



5

0334-00300

Wire Guide (M) CMP





1



6













0335-71210

Label, Transmission (HRC803)





1



7

83-1020-349-00

Copper Packing 10.5*18*1.6





1



8

83-1484-255-00

Lock Nut ZUF M8





9



9

83-1493-255-00

Flange Lock Nut M10 (slender)





1



10

83-1565-111-00

Hexagonal Bolt (with Big Washer) M6*16





1



11

89-1252-100123

Flange Mini Hexagonal Bolt M10*12 (slender)





1



12

89-1253-081153

Flange Mini Hexagonal Bolt (8T) M8*115





2



13

89-1253-081203

Flange Mini Hexagonal Bolt (8T) M8*120





2



14

89-1253-081353

Flange Mini Hexagonal Bolt (8T) M8*135





2



15

89-1253-081403

Flange Mini Hexagonal Bolt (8T) M8*140





3



16

89-1254-101153

Flange Mini Hexagonal Bolt M10*115 P=1.25





1



10/25

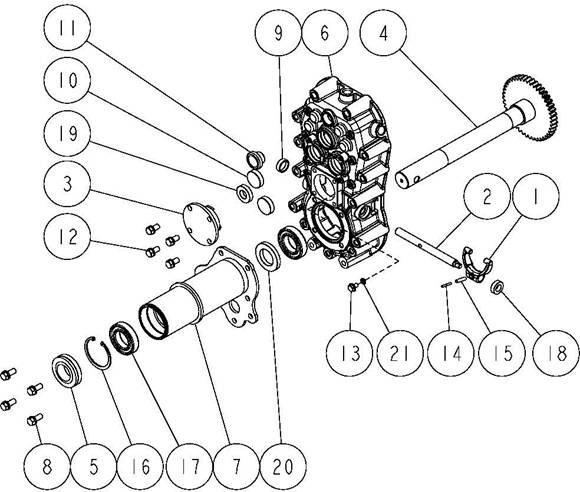

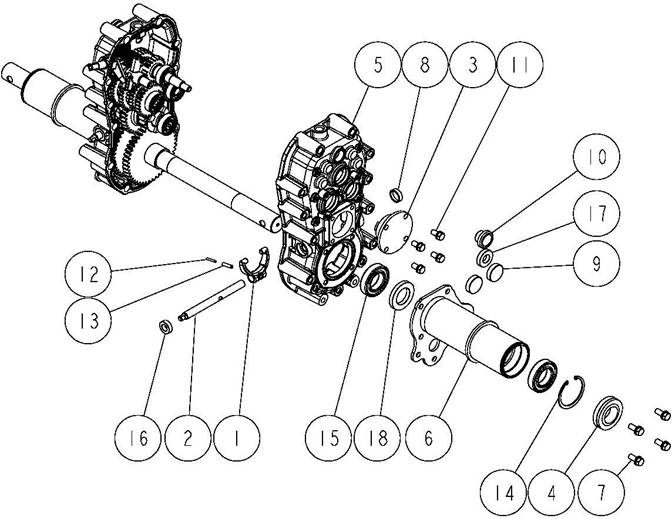

TRANSMISSION   3/6



Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

80-1415-114-00

Side Clutch Fork





1



2

80-1425-112-00

Driving Clutch Folk Shaft





1



3

80-1575-152-10

Side Clutch Shaft BB Case





1



4

0297-08000

Oil Seal AP 35.55.16





1



5

0301-00210

Transmission Case (R )





1



6













0302-00400

Shaft BB Case (R )





1



7

83-1415-127-00

Seal Bolt (SW) M8*20





4



8

83-1415-671-00

Blind Cover 22





1



9

83-1415-672-00

Blind Cover 30





2



10

83-1517-685-00

Oil Cap 20





1



11

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16





4



12

89-2111-030020

Spring Pin 3*20





1



13

89-2111-050020

Spring Pin 5*20





1



14

89-2512-000550

Snap Ring (R55)





1



15

89-3115-060064

Bearing 6006 2RS





2



16

89-5121-122207

Oil Seal UE 12.22.7





1



17

89-5121-153007

Oil Seal UE 15.30.7





1



18

89-5121-305007

Oil Seal UE 30.50.7





1



11/25

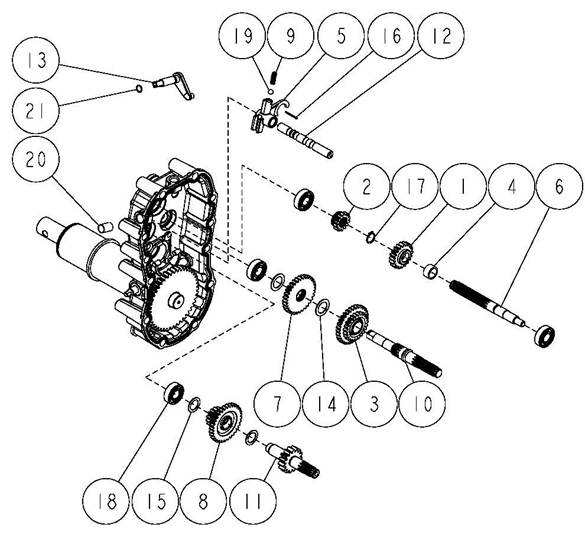

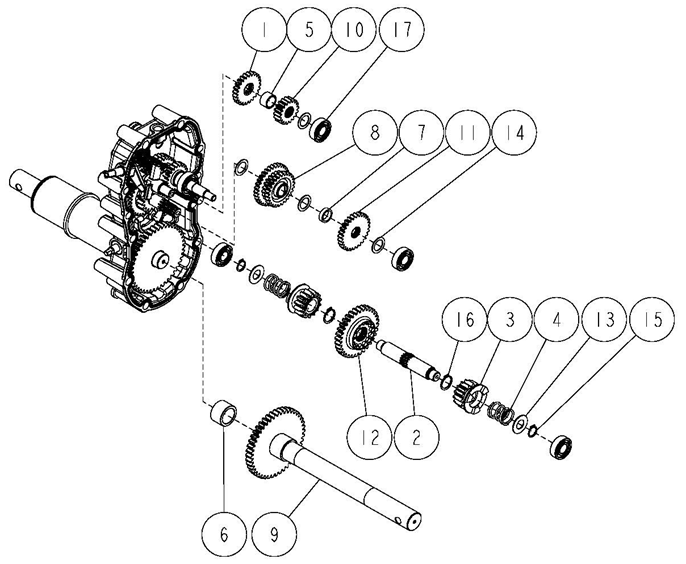

TRANSMISSION   4/6



Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

80-1575-129-10

2nd Shaft Gear 24T





1



2

80-1575-140-00

Side Clutch Shaft





1



3

80-1575-141-00

Side Clutch Gear 14T





2



4

80-1575-162-00

Side Clutch Spring





2



5

80-1920-130-00

Collar Ａ





1



6

80-1920-147-00

Axle Collar





1



7

0223-02500

Collar 6L





1



8

0251-01610

3nd Shaft Gear 22T





1



9













0283-00110

Axle CMP





1



10

0282-00500

2nd Shaft Gear 18T





1



11

0282-00600

3rd Shaft Gear 28T





1



12

0334-00100

Side Clutch Gear 32T





1



13

83-1633-362-10

Thrust Washer 15*30*1.2





2



14

83-1830-368-00

Thrust Washer 18*26*1.0





4



15

89-2511-000150

Snap Ring (S15)





2



16

89-2511-000200

Snap Ring (S20)





2



17

89-3111-062024

Bearing 6202





4



12/25

TRANSMISSION   5/6





Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

0223-00600

1st Shaft Gear 20T





1



2

0223-00700

1st Shaft Shift Gear 14T





1



3

0223-01200

Back Gear CMP





1



4

0223-02400

Collar 11L





1



5

0251-00300

Shift Folk





1



6

0251-01100

Trasmission 1st Shaft





1



7

0251-01300

2nd Shaft Gear 32T





1



8

0251-02100

3rd Shaft Gear 14T CMP





1



9

0282-00400

Spring





1



10

0301-00500

2nd Shaft





1



11

0334-00200

3rd Shaft





1



12

0334-00400

Shift Fork Shaft





1



13

0334-00500

Swing Arm





1



14

83-1310-371-00

Thrust Washer 20*30*1.0





2



15

83-1830-368-00

Thrust Washer 18*26*1.0





2



16

89-2120-200202

Split Pin 2*20





1



17

89-2511-000160

Snap Ring (S16)





1



18

89-3111-062024

Bearing 6202





4



19

89-3410-075000

Steel Ball 7.5





1



20

89-3510-012200

DU Bush 12.20





1



21

89-5221-009000

O Ring P9





1



13/25

TRANSMISSION   6/6



Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

80-1415-114-00

Side Clutch Fork





1



2

80-1425-112-00

Driving Clutch Folk Shaft





1



3

80-1575-152-10

Side Clutch Shaft BB Case





1



4













0283-00110

Axle CMP





1



5

0297-08000

Oil Seal AP 35.55.16





1



6

0301-00110

Transmission Case (L )





1



7













0302-00300

Shaft BB Case (L )





1



8

83-1415-127-00

Seal Bolt (SW) M8*20





4



9

83-1415-671-00

Blind Cover 22





1



10

83-1415-672-00

Blind Cover 30





2



11

83-1517-685-00

Oil Cap 20





1



12

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16





4



13

89-1251-060102

Flange Hexagonal Bolt M6*10





1



14

89-2111-030020

Spring Pin 3*20





1



15

89-2111-050020

Spring Pin 5*20





1



16

89-2512-000550

Snap Ring (R55)





1



17

89-3115-060064

Bearing 6006 2RS





2



18

89-5121-122207

Oil Seal UE 12.22.7





1



19

89-5121-153007

Oil Seal UE 15.30.7





1



20

89-5121-305007

Oil Seal UE 30.50.7





1



21

89-5230-060000

Seal Washer 6





1



14/25

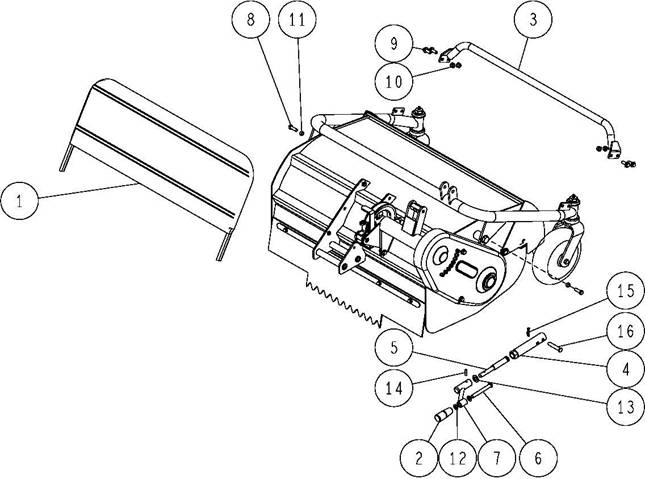

ROTARY COVER    1/5













Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1













0204-60700

Safety Cover





1



2

0006-70500

Lever Gripe (Black) 10





1



3













0204-61200

Front Bumper





1



4

0285-61200

Height Adjusting Bolt Receiver CMP





1



5

0285-62400

Height Adjusting Bolt CMP





1



6

0285-77000

Round Head Pin 10*80





1



7

84-1723-739-00

Cutting Height Adjusting Handle





1



8

89-1211-080252

Mini Hexagonal Bolt M8*25





2



9

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20





4



10

89-1543-080002

Mini Hexagonal Nut (SW) M8





4



11

89-1611-080042

Mini Hexagonal Nut M8





2



12

89-1711-100002

Flat Washer 10*18*1.6





2



13

89-1714-120002

Flat Washer 12





1



14

89-2111-050022

Spring Pin 5*22





1



15

89-2131-100002

Snap Pin 10





1



16

89-2181-100502

Flat Head Pin 10*50





1



15/25

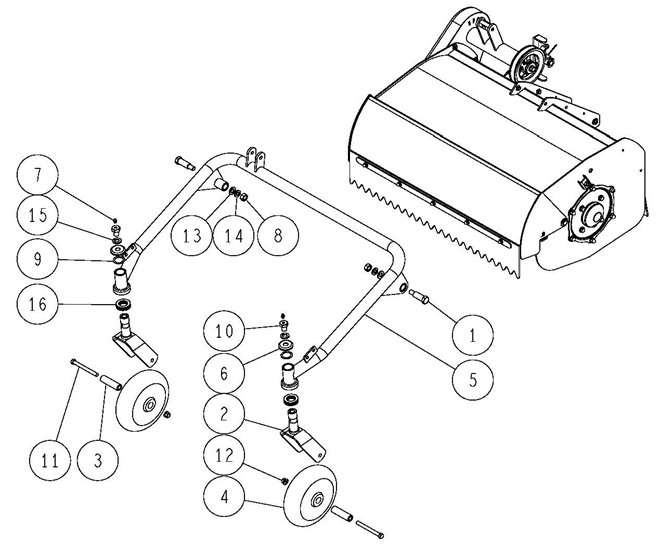

ROTARY COVER    2/5







Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

80-1610-714-00

Front Arm Setting Shaft





2



2

80-1614-725-20

Front Wheel Fork





2



3

80-1614-726-00

Front Wheel Collar





2



4

80-1614-727-00

Front Wheel





2



5













0204-61100

Front Arm CMP





1



6

0256-60700

Dust Cover





2



7

83-1415-975-00

Grease Nipple M6





2



8

83-1610-192-00

Hexagonal Nut (slender) M12 P=1.25





2



9

83-1783-376-00

Thrust Washer 25*34*1.0





2



10

84-1783-791-00

Grease Nipple Bolt M14





2



11

89-1211-100952

Mini Hexagonal Bolt M10*95





2



12

89-1543-100002

Mini Hexagonal Nut (SW) M10





2



13

89-1714-120002

Flat Washer 12





2



14

89-1750-120002

Spring Washer 12





2



15

89-1750-140002

Spring Washer 14





2



16

89-3370-051105

Thrust Bearing 51105





2



16/25

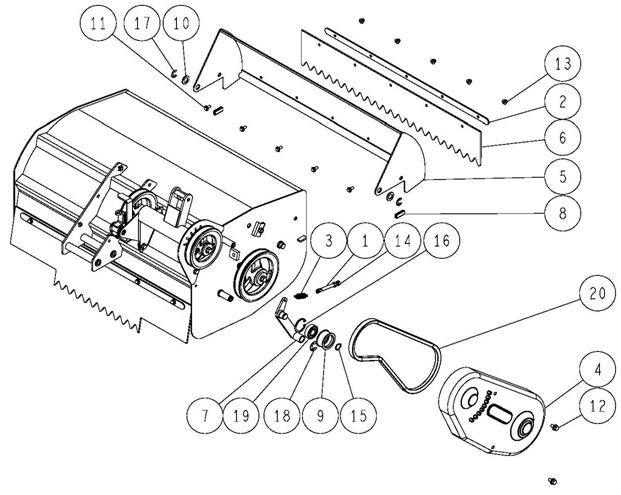

ROTARY COVER    3/5



Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

80-1182-527-00

Tension Pulling Bolt





1



2













0204-60600

Flapper Holder





1



3

80-1614-315-00

Return Spring





1



4

80-1614-694-10

Knife Belt Cover





1



5













0204-60300

Front Cover CMP





1



6













0204-60400

Front Flapper





1



7

0211-63200

Front Tension Arm CMP





1



8

0285-66100

Rubber L30





2



9

83-1032-765-00

Tension Pulley





1



10

83-1630-342-00

Washer 16*26*2.3





2



11

89-1137-060152

Hexagonal Bolt (PW) M6*15





6



12

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16





2



13

89-1581-060042

Flange Cap Nut M6





6



14

89-1611-080042

Mini Hexagonal Nut M8





2



15

89-2511-000170

Snap Ring (S17)





1



16

89-2512-000400

Snap Ring (R40)





1



17

89-2521-000120

E Type Ring 12





2



18

89-2521-000150

E Type Ring 15





1



19

89-3115-062034

Bearing 6203 2RS





1



20













89-6123-003902

V Belt SB-39 (W800)





1




17/25

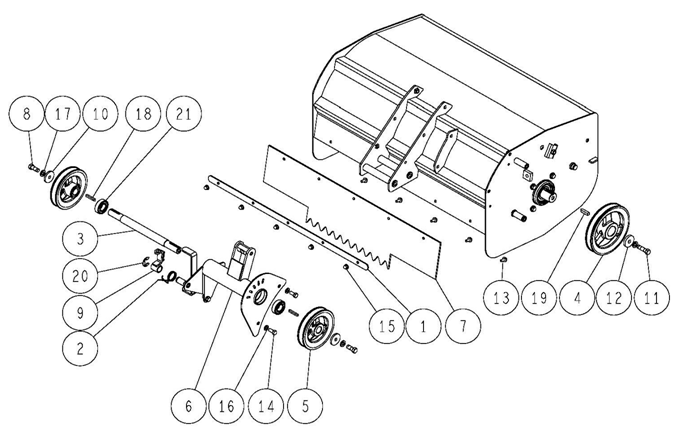

ROTARY COVER    4/5



Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1













0204-60600

Flapper Holder





1



2

80-1614-373-20

Knife Brake Spring





1



3













0204-40110

Supporter Shaft





1



4

80-1614-634-20

Knife Pulley 155





1



5

80-1614-636-00

Supporter Pulley





2



6













0204-40200

Supporter Pipe CMP





1



7













0204-60500

Rear Flapper





1



8

0212-72100

Hexagonal Bolt(8T) M10*25(Meck)





2



9

0231-37100

Knife Brake





1



10

83-1565-315-00

Washer 8*36*4.5





2



11

83-1610-125-00

Hexagonal Bolt (8T) M10*35





1



12

83-1610-322-00

Washer 10*36*6





1



13

89-1137-060152

Hexagonal Bolt (PW) M6*15





6



14

89-1213-080182

Mini Hexagonal Bolt (8T) M8*18





4



15

89-1581-060042

Flange Cap Nut M6





6



16

89-1750-080002

Spring Washer 8





4



17

89-1750-100002

Spring Washer 10





3



18

89-2151-050350

Key 5*35 (half round)





2



19

89-2151-070300

Key 7*30 (half round)





1



20

89-2521-000150

E Type Ring 15





1



21

89-3115-060044

Bearing 6004 2RS





2



18/25

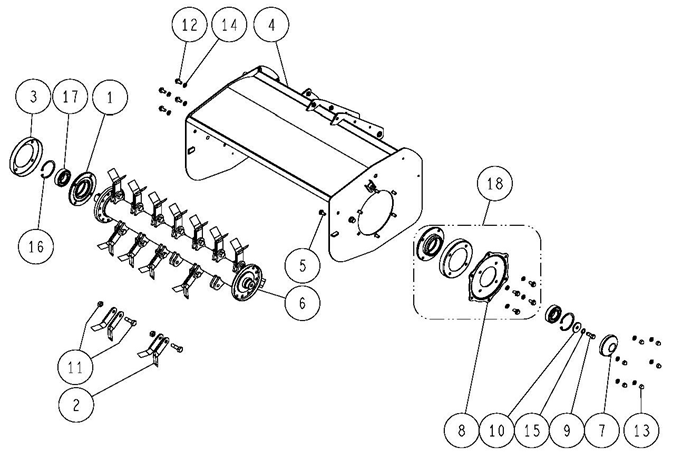

ROTARY COVER    5/5







Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

80-1610-804-00

BB Case





2



2

80-1610-821-00

Hammer Knife Blade





46



3

80-1612-813-00

Dust Cover





2



4













0204-60110

Rotary Cover CMP





1



5

80-1614-705-00

Flat Head Bolt M8*18





6



6













0204-50000

Knife Drum ASSY





1



7

80-1614-810-00

BB Case Cover





1



8

0285-60400

Knife Shaft BB Case Holder





1



9

83-1610-124-00

Hexagonal Bolt (8T) M10*25 (left screw)





1



10

83-1610-321-00

Washer 10*36*4.5





1



11

83-1610-835-00

Knife Setting Bolt Set





23



12

89-1253-080162

Flange Mini Hexagonal Bolt (8T) M8*16





8



13

89-1671-080042

Mini Cap Nut M8





6



14

89-1750-080002

Spring Washer 8





14



15

89-1812-100002

Toothed washer (inside) 10





1



16

89-2512-000620

Snap Ring (R62)





2



17

89-3115-062064

Bearing 6206 2RS





2



18

0285-60100

Knife Shaft BB Case Set





1



19/25

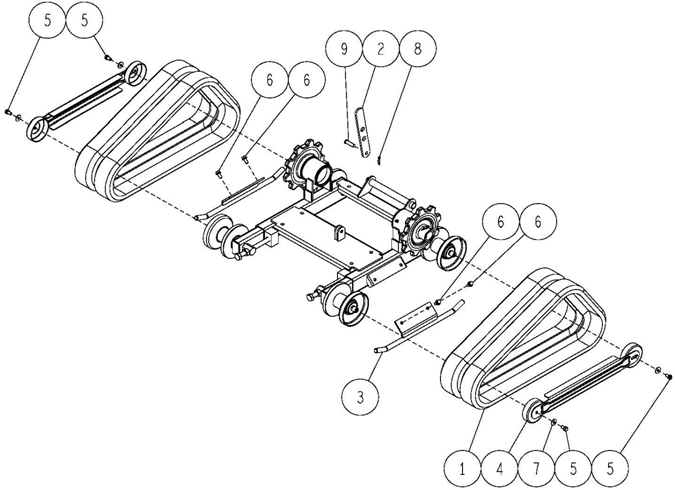

CRAWLER   1/3























Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

0282-70200

Rubber Crawler 160W*60P*24L





2



2

0295-80310

Fix Bar





1



3

0334-31100

Crawler Tension Bar CMP





2



4

0334-31200

Crawler Cover CMP





2



5

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16





4



6

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20





4



7

89-1713-080002

Flat Washer 8 (large)





4



8

89-2131-100002

Snap Pin 10





1



9

89-2181-100352

Flat Head Pin 10*35





1



20/25

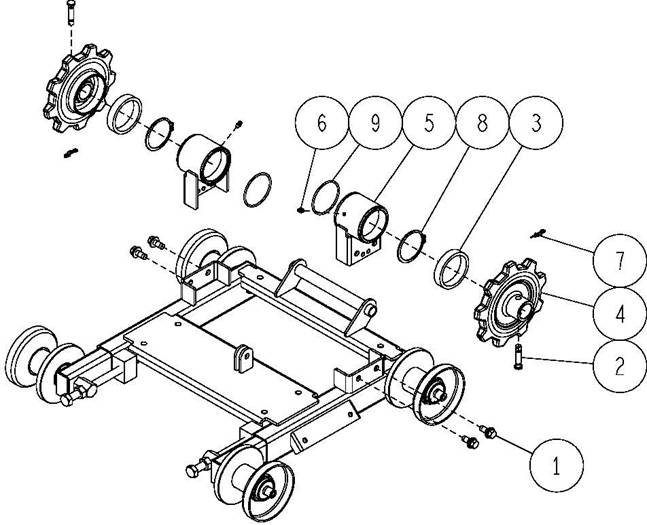

CRAWLER   2/3















Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

0244-83200

Mini Hexagonal Bolt (PWSW) M10*25 (7T Lock)





4



2

0282-31310

Axle Pin 10*50





2



3

0282-70300

Dust Seal





2



4

0334-30100

Driving Sprocket CMP





2



5

0334-30200

Driving Pipe(R) CMP





2



6

83-1415-975-00

Grease Nipple M6





2



7

89-2132-100002

Snap Pin 10 (with stopper)





2



8

89-2511-000630

Snap Ring (S63)





2



9

89-5222-065000

O Ring G65





2



21/25

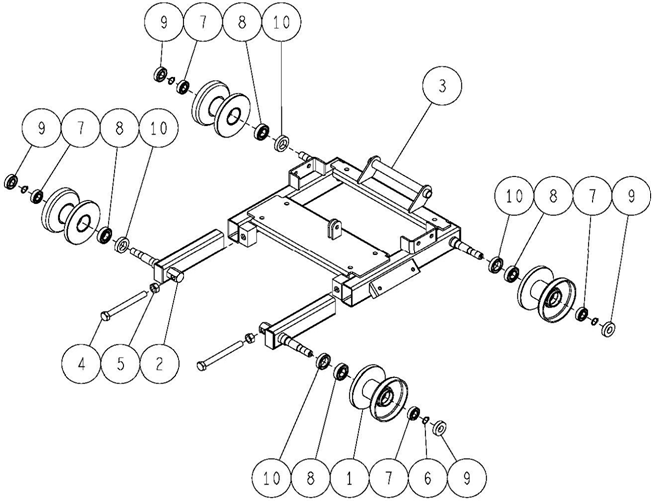

CRAWLER   3/3



















Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1

0334-30500

Turn Wheel CMP





4



2

0334-30600

Induction Ring Attachment CMP





2



3













0335-32300

Crawler Frame CMP HRC813





1



4

89-1111-141407

Hexagonal Bolt M14*140





2



5

89-1511-140042

Hexagonal Nut M14





2



6

89-2511-000170

Snap Ring (S17)





4



7

89-3115-060034

Bearing 6003 2RS





4



8

89-3115-060044

Bearing 6004 2RS





4



9

89-5121-173810

Oil Seal UE 17.38.10





4



10

89-5121-254210

Oil Seal UE 25.42.10





4



22/25





Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813









































































































































































































































































































































































23/25

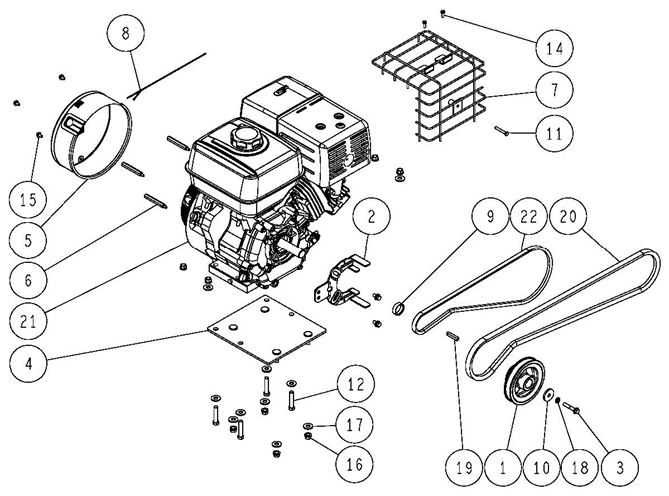

ENGINE   2/2 HRC813



Ref.

Parts Number

Parts Name

Quantity

Remarks

HRC663

HRC673

HRC813

1

80-1614-514-20

Engine Pulley 132





1



2

0291-40100

Belt Holder (GX270.340)





1



3

0299-71200

Hexagonal Bolt(8T) M8*45(Meck)





1



4

0302-21100

Engine Base CMP (GX340)





1



5

0302-60400

Recoil Cover CMP (HRC812B)





1



6

0304-61800

Recoil Cover Setting Bolt (GX270.340)





3



7

0304-62400

Muffler Guard CMP (GX340)





1



8

0304-72100

Lead Wire 300L





1



9

0310-40200

Engine Collar φ34





1



10

83-1565-315-00

Washer 8*36*4.5





1



11

89-1113-060402

Hexagonal Bolt (8T) M6*40





1



12

89-1211-100502

Mini Hexagonal Bolt M10*50





4



13

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16





2



14

89-1251-050163

Flange Hexagonal Bolt M5*16





2



15

89-1251-060102

Flange Hexagonal Bolt M6*10





3



16

89-1543-100002

Mini Hexagonal Nut (SW) M10





8



17

89-1713-100002

Flat Washer 10 (large)





10



18

89-1750-080002

Spring Washer 8





1



19

89-2151-070400

Key 7*40 (harf round)





1



20

89-6123-006302

V Belt SB-63 (W800)





1



21

9010-0171

GX340T2 SHB2





1



22

89-6122-004702

V Belt SA-47 (W800)





1



24/25

LABEL   1/2

25/25

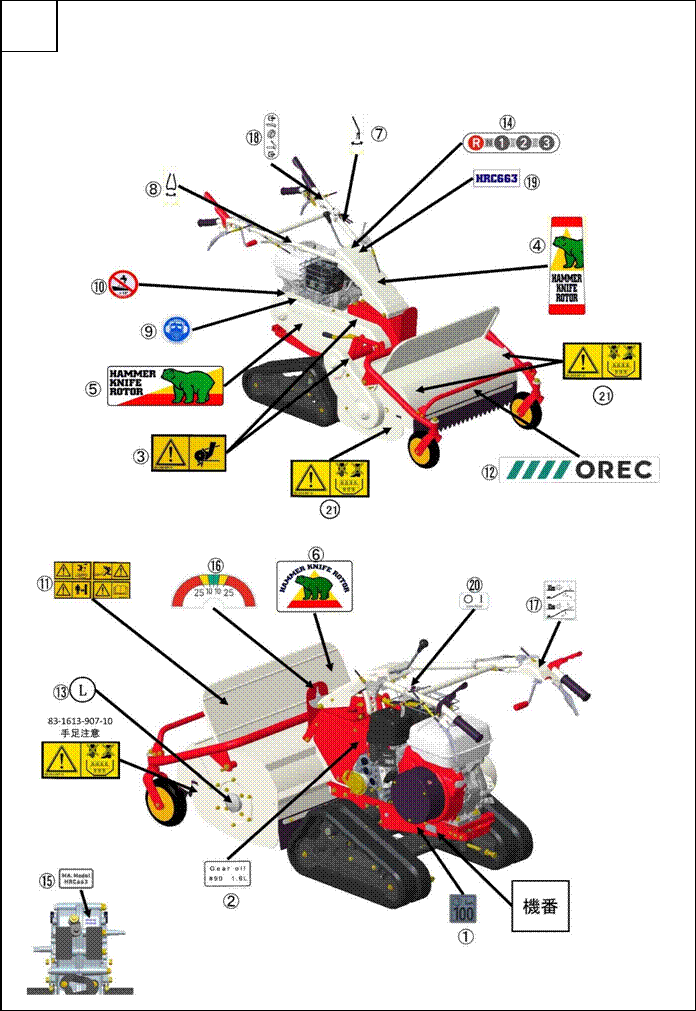

LABEL   2/2



Ref.

Parts Number

Parts Name

Quantity

Remarks





HRC813

1













0202-74400

Label, Noise 104db





1



2

80-1484-928-00

Label,Oil Quantity 1.6L





1



3

80-1488-928-10

Label, Caution for Belt Involving





2



4

80-1614-904-00

Label, Bonnet





1



5

80-1614-905-00

Label, Belt Case





1



6

80-1614-906-00

Label, Safety Cover





1



7

80-1614-917-00

Label, Handle Up/Down





1



8

80-1614-918-00

Label, Handle Right/Left





1



9

0215-83200

Label, Protection Equipment





1



10













0301-70300

Attention Mark for Slope 25°





1



11

0223-76100

Label, Caution (Large)





1



12

0285-70500

Label, OREC B09





1



13

0304-71500

Label for Left Screw





1



14

0334-71110

Label, Change





1



15













0335-71210

Label, Transmission (HRC803)





1



16

0334-71510

Clinometer Label





1



17

0334-76100

Label, Cutting





1



18

0334-76200

Label, Driving





1





19

























0335-75100

Label, Model HRC813





1



20

0334-76500

Label, Switch (ON-OFF)





1



21

83-1613-907-10

Label, Caution for Hand and Leg





4



22

-

Serial Number





1
