OREC                                        ISSUED NO. HRC662-3

Parts catalogue FLAIL MOWER

(EXPORT MODEL) HRC662

MODEL               CODE

HRC662                0282- ○○○○○






HANDLE

CONTENTS

-------------------------------------------- 1

FRAME----------------------------------------------- 3

TRANSMISSION---------------------------------- 9

ROTARY COVER-------------------------------- 14

CRAWLER----------------------------------------- 19

OREC CO.,LTD

Update : December 2009

                                               MEMO







*1) Interchangeable

*2) Serial Number : HRC662 : ~YK08D00078

*3) Serial Number : HRC662 : YK08E00079~

*4) Serial Number : HRC662 : ～YK09J00049

*5) Serial Number : HRC662 : YK09J00050~

*6) Serial Number : HRC662 : YK09L00053~

1/22

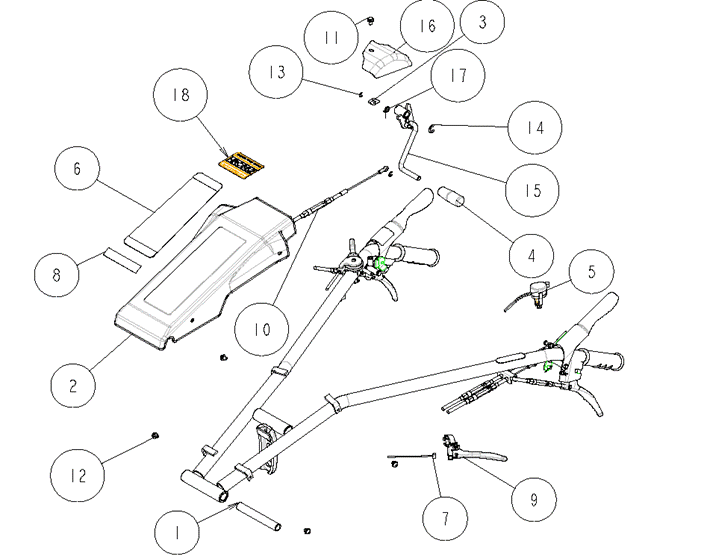

Handle    1/2



18

0282-72100

Label, Model HRC662

1



17

0211-70400

Stopper Return Spring

1





0211-70410

Stopper Return Spring

1

*1)

16

0211-20500

Upper Cover

1



15

0211-20400

Blade Tension Lever

1



14

89-2521-000100

E Type Ring 10

1



13

89-2521-000050

E Type Ring 5

2



12

89-1158-060102

Cross recess Headed Screw (PWSW) M

4



11

89-1137-060122

Hexagonal Bolt (PW) M6*12

1



10

83-1614-932-00

Tension Wire

1



9

83-1415-453-10

Lever 27-05-0822S

1



8

83-1310-902-00

OREC Mark

1



7

83-1110-965-00

Handle Up/Down, Right/Left Wire

1



6

80-1614-904-00

Label, Bonnet

1



5

80-1614-280-00

Switch Assy

1



4

80-1417-255-00

Lever Grip (Red) 10

1



3

80-1417-253-00

Stopper

1



2

80-1415-223-00

Handle Bonnet

1



1

80-1210-222-00

Handle Setting Collar

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

2/22

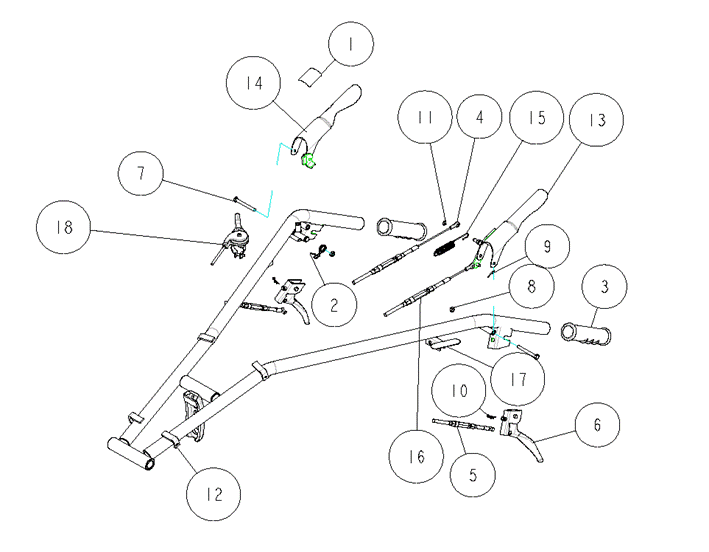

Handle    2/2





18

0226-70300

Throttle Wire Assy

1



17

0211-70600

Label, Driving

1



16

0211-70500

Brake Wire

1



15

0211-20600

Brake Spring

1



14

0211-20300

Blade Clutch Lever

1



13

0211-20200

Driving Clutch Lever

1



12

0211-20100

Handle CMP

1



11

89-2521-000050

E Type Ring 5

1



10

89-2131-060002

Snap Pin 6

2



9

89-2120-200152

Split Pin 2*15

1



8

89-1551-060002

Hexagonal U Nut M6

2



7

89-1113-060552

Hexagonal Bolt (8T) M6*55

2



6

83-1761-457-00

Side Clutch Lever

2



5

83-1614-962-00

Side Clutch Wire

2



4

83-1614-932-00

Tension Wire

1



3

83-1560-414-00

Handle Grip 27

2



2

80-1417-971-00

Blade Clutch Return Spring

1





80-1417-971-10

Blade Clutch Return Spring

1

*1)

1

80-1417-918-00

Label, Cutting

1





80-1417-918-10

Label, Cutting

1

*1)

Ref.

Parts Number

Parts Name

Quantity

Remarks

3/22

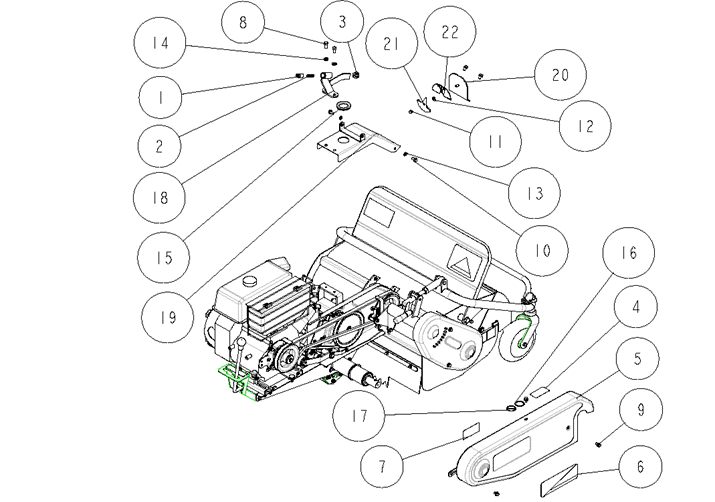

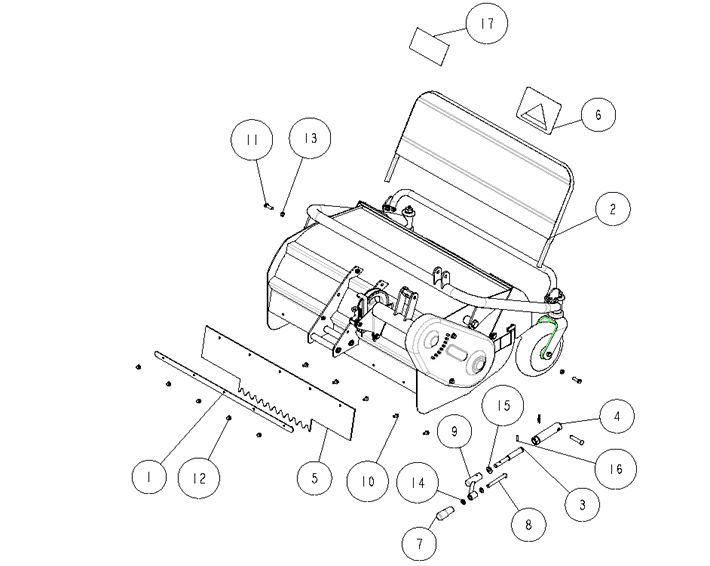

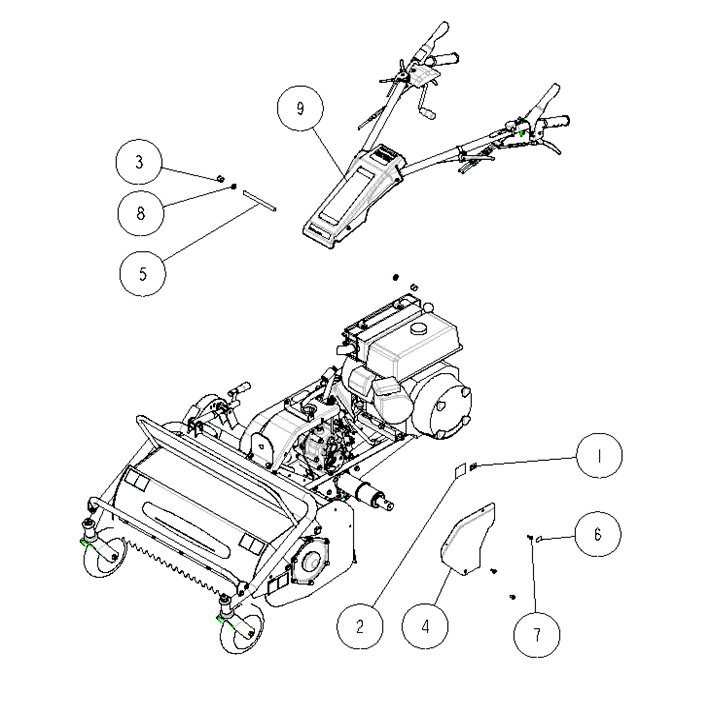

Frame    1/6





9



Handle

1



8

89-1750-120002

Spring Washer 12

2



7

89-1137-060152

Hexagonal Bolt (PW) M6*15

3



6

83-1712-923-00

Label, Oil Quantity 1.6 L

1



5

83-1210-133-00

Setting Bolt M12*160

1



4

80-1614-746-10

Side Cover

1



3

80-1310-228-00

Handle Fix Nut

2



2

80-1020-932-00

Label, Noise 100db

1



1

80-1010-933-00

Label, CE

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

4/22

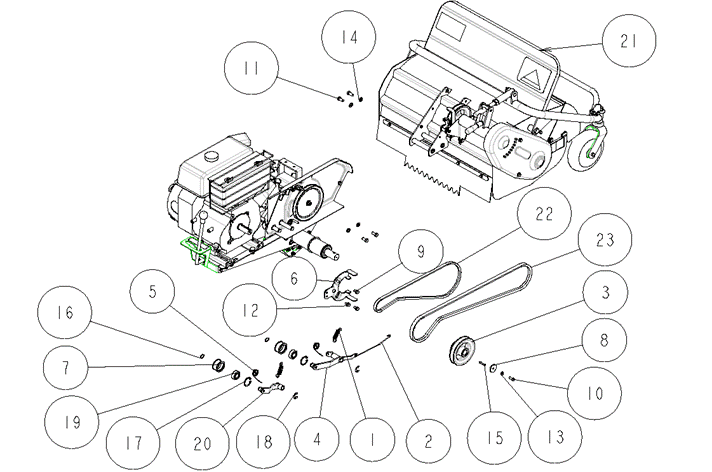

Frame 2/6



22

0282-72300

Clinometer Label

1



21

0282-20200

Pointer for Clinometer

1



20

0282-20100

Clinometer Panel

1



19

0282-11100

Under Bonnet CMP

1



18

0251-11000

Stopper for Handle Up/Down

1



17

0223-72910

Attention Mark for Slope

1



16

0215-83200

Label, Protection Equipment

1



15

0207-70800

Grommet 45-3.5

1



14

89-1750-100002

Spring Washer 10

2



13

89-1750-080002

Spring Washer 8

2



12

89-1711-080002

Flat Washer 8

1



11

89-1553-080002

Bag Hexagonal U Nut M8

1



10

89-1253-080162

Flange Mini Hexagonal Bolt (8T) M8*16

2



9

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

4



8

89-1211-100202

Mini Hexagonal Bolt M10*20

2



7

83-1614-920-10

Label, Belt Size

1



6

80-1614-905-00

Label, Belt Case

1



5

80-1614-504-20

Belt Cover CMP

1



4

80-1488-928-10

Label, Caution for Belt Involving

1



3

80-1310-215-00

Stopper Cap

1



2

80-1210-217-00

Stopper Spring

1



1

80-1210-216-00

Stopper Pin

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

5/22

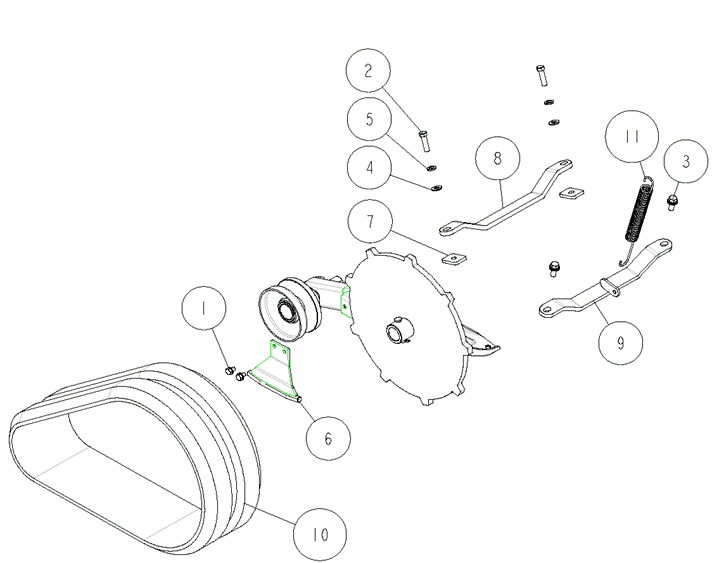

Frame    3/6



23

89-6123-006201

V Belt SBR-62

1



22

89-6122-004601

V Belt SAR-46

1



21



Rotary

1



20

0211-54200

Driving Tension Arm

1



19

89-3115-062034

Bearing 6203 2RS

2



18

89-2521-000150

E Type Ring 15

2



17

89-2512-000400

Snap Ring (R40)

2



16

89-2511-000170

Snap Ring (S17)

2



15

89-2151-070400

Key 7*40 (harf round)

1



14

89-1750-100002

Spring Washer 10

4



13

89-1750-080002

Spring Washer 8

1



12

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

1



11

89-1213-100202

Mini Hexagonal Bolt (8T) M10*20

4



10

89-1213-080202

Mini Hexagonal Bolt (8T) M8*20

1



9

89-1132-080162

Hexagonal Bolt (SW) M8*16

2



8

83-1565-315-00

Washer 8*36*4.5

1



7

83-1032-765-00

Tension Pulley

2



6

80-1614-561-20

Belt Holder

1



5

80-1614-552-00

Tension Spring

2



4

80-1614-546-10

Knife Tension Arm

1



3

80-1614-514-20

Engine Pulley 132

1



2

80-1614-374-30

Brake Rod

1



1

80-1560-551-00

Return Spring

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

6/22

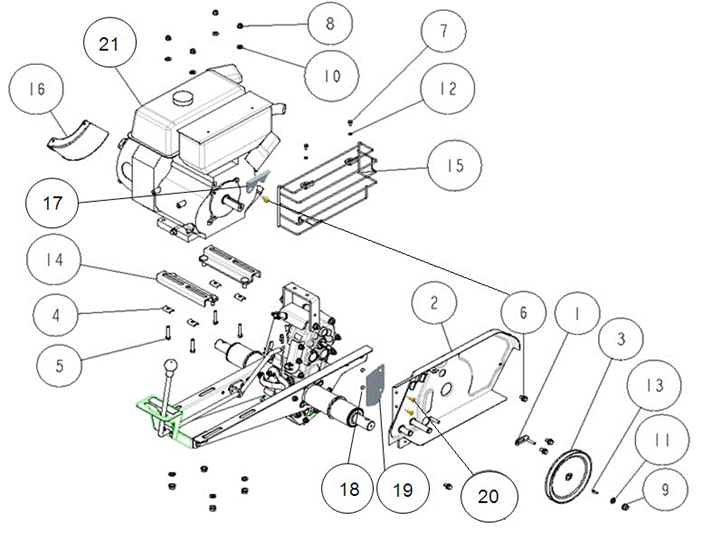

Frame    4/6



21



Engine

1



20

89-1390-060122

Welded Bolt M6*12

2

*6)

19

0285-52300

Supplementary Cover, inside(,Kawasaki)

1

*6)

18

89-1581-060042

Flange Cap Nut M6

2

*6)

17

0285-52100

Supplementary Cover, Kawasaki Engine

1

*6)

16

0282-60300

Crawler Guard CMP

1



15

0223-60700

Muffler Guard CMP

1



14

0211-30300

Engine Fitting Plate with Bolt (M)

2



13

89-2150-050200

Key 5*20 (round)

1



12

89-1750-050003

Spring Washer 5

2



11

89-1711-100002

Flat Washer 10

4



10

89-1711-080002

Flat Washer 8

4



9

89-1543-100002

Mini Hexagonal Nut (SW) M10

5



8

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



7

89-1251-050123

Flange Hexagonal Bolt M5*12

2



6

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

4



5

89-1213-080402

Mini Hexagonal Bolt (8T) M8*40

4



4

83-1310-387-00

Wire-Stop Plate A8(80-1210-318-00)

4



3

80-1614-521-00

Transmission Pulley

1



2

80-1614-501-20

Belt Cover Inside CMP

1





0211-50100

Belt Cover Inside CMP

1

*1)

1

80-1321-561-10

Belt Holder

1





0225-40600

Belt Holder

1

*1)

Ref.

Parts Number

Parts Name

Quantity

Remarks

7/22

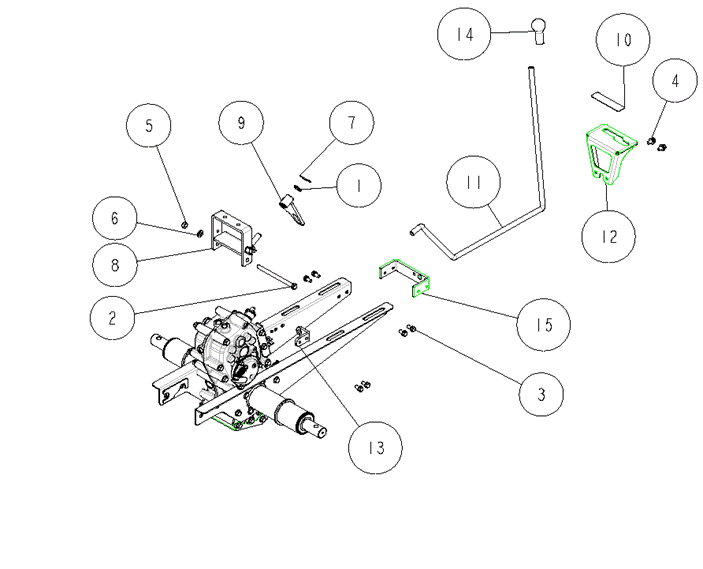

Frame    5/6



15

0256-20500

Rear Bracket

1

*2)



0256-20510

Rear Bracket

1

*3)

14

0253-79100

Lever Grip 12.7

1



13

0253-22500

Change Rod Setting

1



12

0253-22400

Change Guide CMP

1

*2)



0253-22410

Change Guide CMP

1

*3)

11

0253-16100

Change Lever CMP

1



10

0251-70400

Label, Change

1



9

0251-11600

Change Lever Arm CMP

1



8

0251-11300

Change Plate

1



7

89-2131-120002

Snap Pin 12

1



6

89-1750-100002

Spring Washer 10

1



5

89-1611-100042

Mini Hexagonal Nut M10

1



4

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



3

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

6



2

89-1213-101302

Mini Hexagonal Bolt (8T) M10*130

1



1

83-1565-329-00

Washer 13*22*2.3

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

8/22



Frame    6/6



17

0282-01000

Transmission Assy

1



16

89-2511-000140

Snap Ring (S14)

1



15

89-2132-060002

Snap Pin 6 (with stopper)

2



14

89-1711-060002

Flat Washer 6

2



13

89-1543-080002

Mini Hexagonal Nut (SW) M8

3



12

89-1253-081453

Flange Mini Hexagonal Bolt (8T) M8*145

3



11

89-1132-060122

Hexagonal Bolt (SW) M6*12

6



10

85-1445-317-00

Brake Packing (Small)

1



9

85-1711-317-00

Shoe Return Spring

2



8

85-1711-316-00

Brake Shoe Set

1



7

85-1711-315-00

Brake Drum

1



6

0211-31800

Brake Packing (Large)

1



5

80-1614-315-00

Return Spring

1



4

80-1614-314-00

Brake Cover

1



3

80-1614-312-00

Brake Cover CMP

1



2

80-1614-302-20

Main Frame (R) CMP

1



1

80-1614-301-20

Main Frame (L) CMP

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

9/22

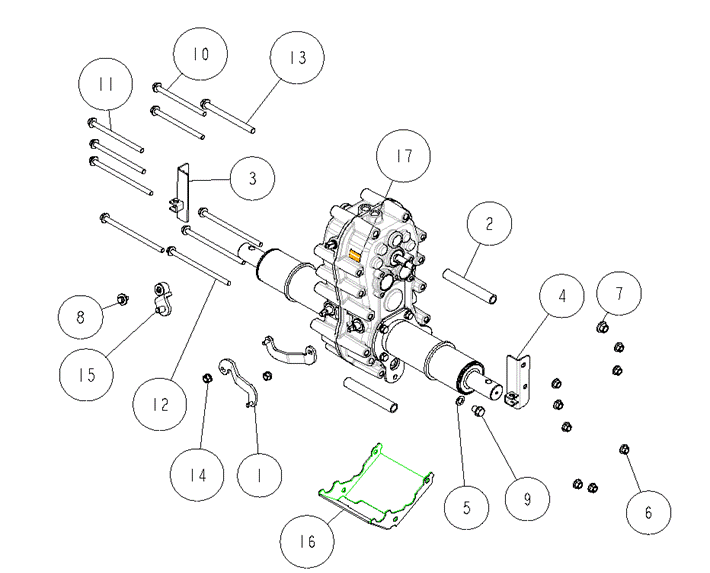

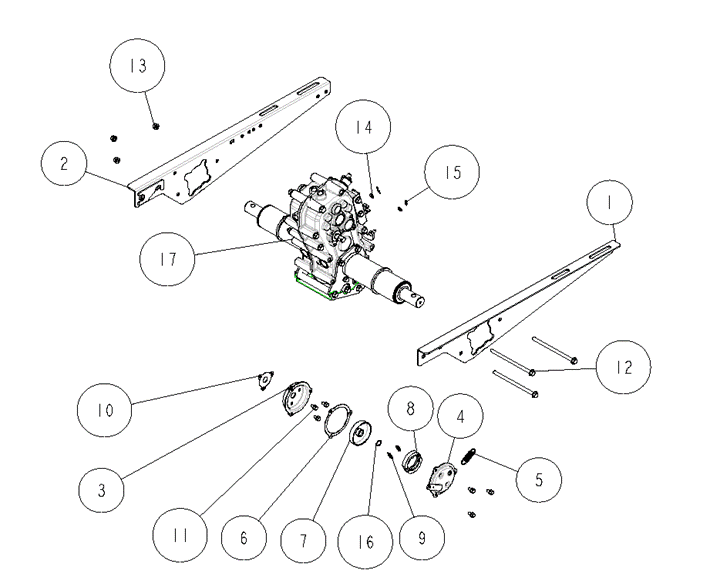

Transmission    1/5



17

0256-71200

Label, Transmission

1



16

0282-01100

Transmission Guard

1



15

0251-04300

Change Arm CMP

1



14

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



13

89-1254-101153

Flange Mini Hexagonal Bolt M10*115 P=

1



12

89-1253-081403

Flange Mini Hexagonal Bolt (8T) M8*140

5



11

89-1253-081203

Flange Mini Hexagonal Bolt (8T) M8*120

2



10

89-1253-081153

Flange Mini Hexagonal Bolt (8T) M8*115

2



9

89-1251-100122

Flange Mini Hexagonal Bolt M10*12

1



8

83-1565-111-00

Hexagonal Bolt (with Big Washer) M6*16

1



7

83-1493-255-00

Flange Lock Nut M10 (slender)

1



6

83-1484-255-00

Lock Nut ZUF M8

9



5

83-1020-349-00

Copper Packing 10.5*18*1.6

1



4

80-1614-198-10

Side Clutch Wire Stopper (R)

1



3

80-1565-197-00

Side Clutch Wire Stopper (L)

1



2

80-1565-159-00

Shaft BB Reinforce Pipe

2



1

80-1565-153-00

Side Clutch Arm

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

10/22

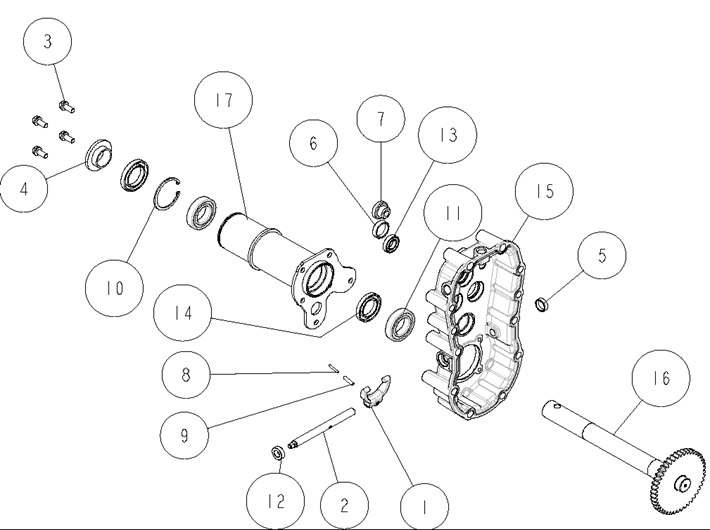

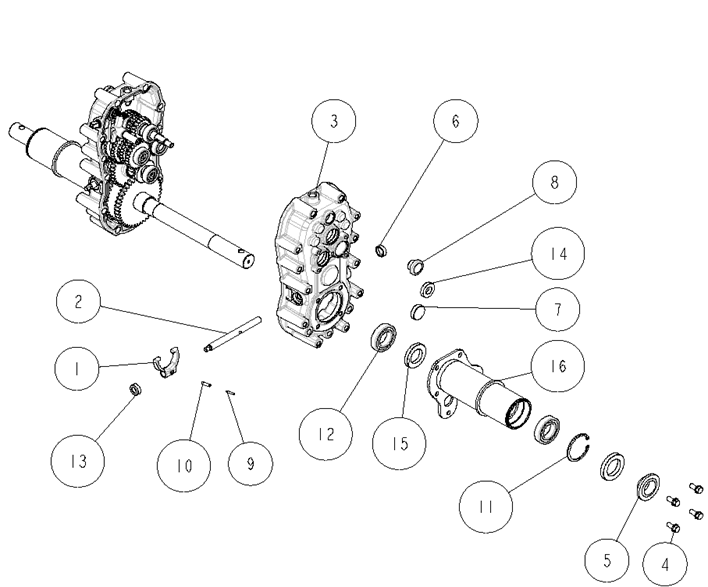

Transmission    2/5



16

0282-00310

Shaft BB Case (R)

1



15

89-5121-305007

Oil Seal UE 30.50.7

1



14

89-5121-153007

Oil Seal UE 15.30.7

1



13

89-5121-122207

Oil Seal UE 12.22.7

1



12

89-3115-060044

Bearing 6004 2RS

2



11

89-2512-000550

Snap Ring (R55)

1



10

89-2111-050020

Spring Pin 5*20

1



9

89-2111-030020

Spring Pin 3*20

1



8

83-1517-685-00

Oil Cap 20

1



7

83-1415-672-00

Blind Cover 30

1



6

83-1415-671-00

Blind Cover 22

1



5

83-1415-662-00

Oil Seal AP 35.55.8

1



4

83-1415-127-00

Seal Bolt (SW) M8*20

4



3

80-1614-103-00

Transmission Case (R)

1



2

80-1425-112-00

Driving Clutch Folk Shaft

1



1

80-1415-114-00

Side Clutch Fork

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

11/22

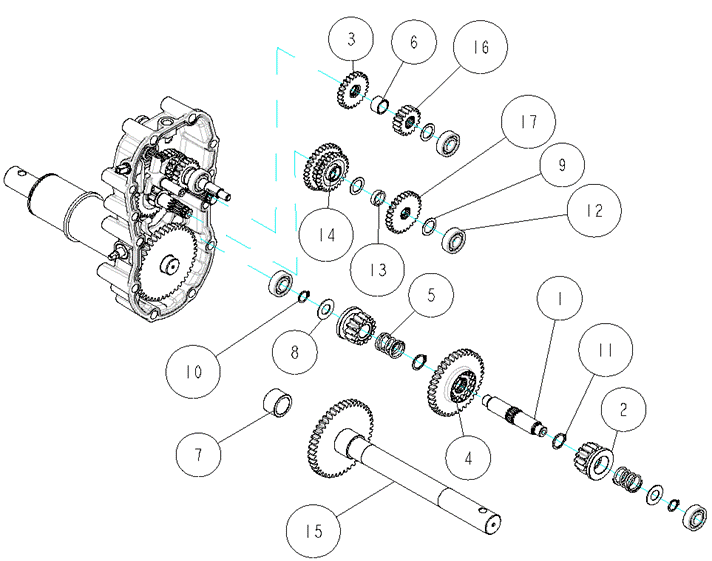

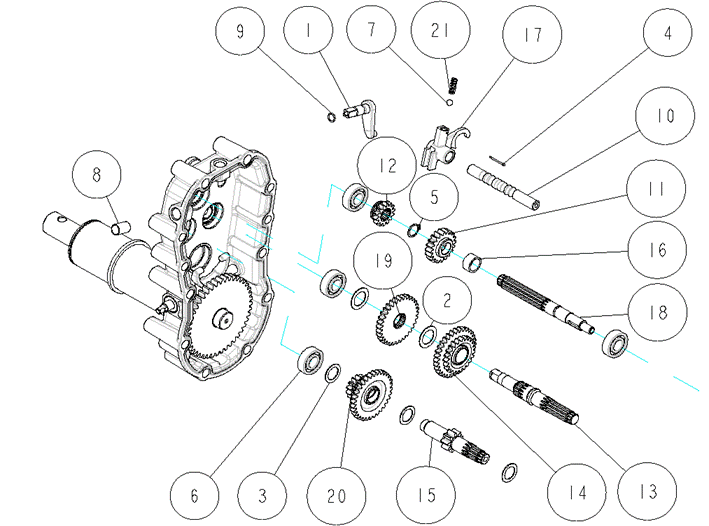

Transmission    3/5



17

0282-00600

3rd Shaft Gear 28T

1



16

0282-00500

2nd Shaft Gear 18T

1



15

0282-00110

Axle CMP

1



14

0251-01610

3nd Shaft Gear 22T

1



13

0223-02500

Collar 6L

1



12

89-3111-062024

Bearing 6202

4



11

89-2511-000200

Snap Ring (S20)

2



10

89-2511-000150

Snap Ring (S15)

2



9

83-1830-368-00

Thrust Washer 18*26*1.0

1



8

83-1633-362-10

Thrust Washer 15*30*1.2

2



7

80-1920-147-00

Axle Collar

1



6

80-1920-130-00

Collar Ａ

1



5

80-1575-162-00

Side Clutch Spring

2



4

80-1575-142-00

Side Clutch Gear 38T

1



3

80-1575-129-10

2nd Shaft Gear 24T

1



2

80-1032-141-00

Side Clutch Gear 14T

2



1

80-1032-140-00

Side Clutch Shaft

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

12/22



Transmission    4/5



21

0282-00400

Spring

1



20

0251-02100

3rd Shaft Gear 14T CMP

1



19

0251-01300

2nd Shaft Gear 32T

1



18

0251-01100

Trasmission 1st Shaft

1



17

0251-00300

Shift Folk

1



16

0223-02400

Collar 11L

1



15

0223-01400

3rd Shaft

1



14

0223-01200

Back Gear CMP

1



13

0223-00800

2nd Shaft

1



12

0223-00700

1st Shaft Shift Gear 14T

1



11

0223-00600

1st Shaft Gear 20T

1



10

0223-00400

Shift Fork Shaft

1



9

89-5221-009000

O Ring P9

1



8

89-3510-012200

DU Bush 12.20

1



7

89-3410-075000

Steel Ball 7.5

1



6

89-3111-062024

Bearing 6202

4



5

89-2511-000160

Snap Ring (S16)

1



4

89-2120-200202

Split Pin 2*20

1



3

83-1830-368-00

Thrust Washer 18*26*1.0

3



2

83-1310-371-00

Thrust Washer 20*30*1.0

2



1

80-1575-109-00

Swing Arm

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

13/22



Transmission    5/5







17

0282-00210

Shaft BB Case (L)

1



16

0282-00110

Axle CMP

1



15

0251-00100

Transmission Case (L)

1



14

89-5121-305007

Oil Seal UE 30.50.7

1



13

89-5121-153007

Oil Seal UE 15.30.7

1



12

89-5121-122207

Oil Seal UE 12.22.7

1



11

89-3115-060044

Bearing 6004 2RS

2



10

89-2512-000550

Snap Ring (R55)

1



9

89-2111-050020

Spring Pin 5*20

1



8

89-2111-030020

Spring Pin 3*20

1



7

83-1517-685-00

Oil Cap 20

1



6

83-1415-672-00

Blind Cover 30

1



5

83-1415-671-00

Blind Cover 22

1



4

83-1415-662-00

Oil Seal AP 35.55.8

1



3

83-1415-127-00

Seal Bolt (SW) M8*20

4



2

80-1425-112-00

Driving Clutch Folk Shaft

1



1

80-1415-114-00

Side Clutch Fork

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

14/22



Rotary cover    1/5

17

0223-76100

Label, Caution (Large)

1



16

89-2111-050022

Spring Pin 5*22

1



15

89-1714-120002

Flat Washer 12

1



14

89-1711-100002

Flat Washer 10

2



13

89-1611-080042

Mini Hexagonal Nut M8

2



12

83-1575-189-00

Flange Cap Nut M6

5



11

89-1211-080252

Mini Hexagonal Bolt M8*25

2



10

89-1137-060152

Hexagonal Bolt (PW) M6*15

5



9

84-1723-739-00

Cutting Height Adjusting Handle

1



8

83-1713-166-00

Round Headed Pin 10*80

1



7

83-1210-425-00

Lever Grip 10

1



6

80-1614-906-00

Label, Safety Cover

1



5

80-1614-782-10

Rear Flapper

1



4

80-1614-742-10

Height Adjusting Bolt Receiver

1





0285-61200

Height Adjusting Bolt Receiver

1

*1)

3

80-1614-724-10

Height Adjusting Bolt CMP

1





0285-62400

Height Adjusting Bolt CMP

1

*1)

2

80-1613-733-10

Safety Cover

1



1

80-1610-787-00

Flapper Holder

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

15/22

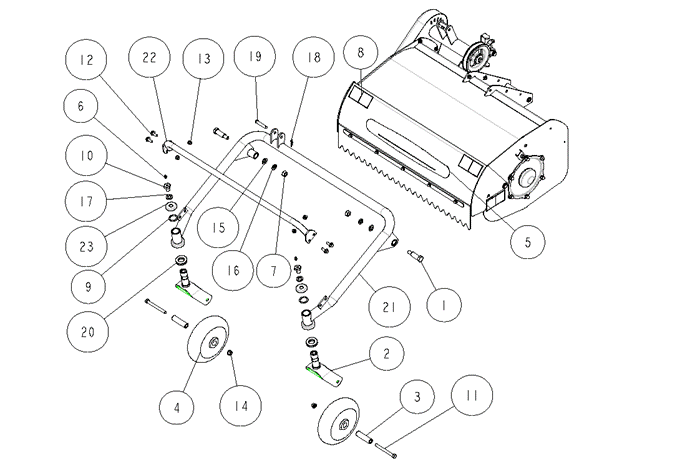

Rotary cover    2/5



23

0256-60700

Dust Cover

2



22

0211-60500

Front Bumper

1



21

0211-60400

Front Arm CMP

1



20

89-3370-051105

Thrust Bearing 51105

1



19

89-2181-100502

Flat Head Pin 10*50

1



18

89-2131-100002

Snap Pin 10

1



17

89-1750-140002

Spring Washer 14

2



16

89-1750-120002

Spring Washer 12

2



15

89-1714-120002

Flat Washer 12

2



14

89-1543-100002

Mini Hexagonal Nut (SW) M10

2



13

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



12

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20

4



11

89-1211-100952

Mini Hexagonal Bolt M10*95

2





89-1211-100902

Mini Hexagonal Bolt M10*90

2

*1)

10

84-1783-791-00

Grease Nipple Bolt M14

2



9

83-1783-376-00

Thrust Washer 25*34*1.0

2



8

83-1613-907-00

Label, Caution for Hand and Leg

2





83-1613-907-10

Label, Caution for Hand and Leg

2

*1)

7

83-1610-192-00

Hexagonal Nut (slender) M12 P=1.25

2



6

83-1415-975-00

Grease Nipple M6

2



5

83-1050-901-00

Label, OREC

1



4

80-1614-727-00

Front Wheel

2



3

80-1614-726-00

Front Wheel Collar

2



2

80-1614-725-20

Front Wheel Fork

2



1

80-1614-714-00

Front Arm Setting Shaft

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

16/22

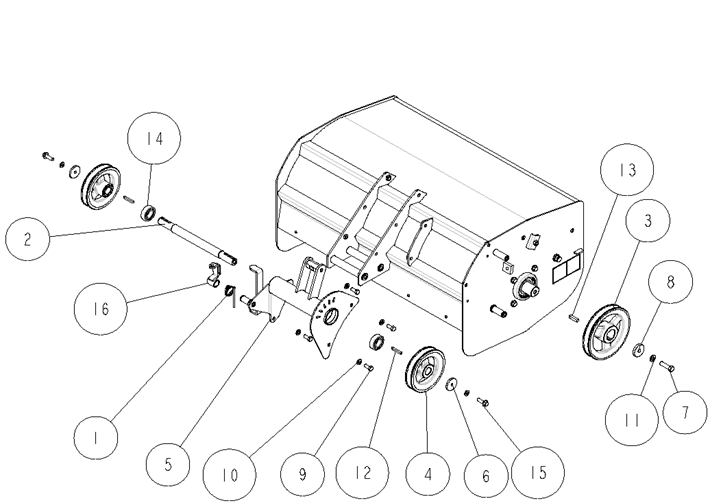

Rotary cover    3/5





19

89-6123-003901

V Belt LBR-39

1



18

0211-63200

Front Tension Arm CMP

1



17

89-3115-062034

Bearing 6203 2RS

1



16

89-2521-000150

E Type Ring 15

1



15

89-2521-000120

E Type Ring 12

2



14

89-2512-000400

Snap Ring (R40)

1



13

89-2511-000170

Snap Ring (S17)

1



12

89-1611-080042

Mini Hexagonal Nut M8

2



11

83-1575-189-00

Flange Cap Nut M6

5



10

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



9

89-1137-060152

Hexagonal Bolt (PW) M6*15

5



8

83-1032-765-00

Tension Pulley

1



7

80-1675-357-00

Thrust Washer 16*23*2.3

2



6

80-1614-781-10

Front Flapper

1



5

80-1614-764-00

Front Cover CMP

1



4

80-1614-694-10

Knife Belt Cover

1



3

80-1614-315-00

Return Spring

1



2

80-1610-787-00

Flapper Holder

1



1

80-1182-827-00

Tension Pulling Bolt

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

17/22

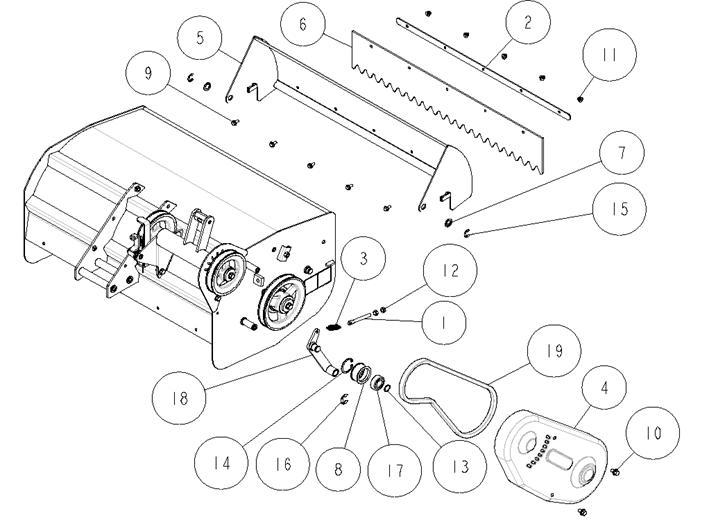

Rotary cover    4/5







16

0231-37100

Knife Brake

1



15

0212-72100

Hexagonal Bolt(8T) M10*25(Meck)

2



14

89-3115-060044

Bearing 6004 2RS

2



13

89-2151-070300

Key 7*30 (half round)

1



12

89-2151-050350

Key 5*35 (half round)

2



11

89-1750-100002

Spring Washer 10

3



10

89-1750-080002

Spring Washer 8

4



9

89-1213-080182

Mini Hexagonal Bolt (8T) M8*18

4



8

83-1610-322-00

Washer 10*36*6

1



7

83-1610-125-00

Hexagonal Bolt (8T) M10*35

1



6

83-1610-321-00

Washer 10*36*4.5

2



5

80-1614-691-30

Supporter Pipe CMP

1



4

80-1614-636-00

Supporter Pulley

2



3

80-1614-634-20

Knife Pulley 155

1



2

80-1614-621-30

Supporter Shaft

1



1

80-1614-373-20

Knife Brake Spring

1



Ref.

Parts Number

Parts Name

Quantity

Remarks


18/22

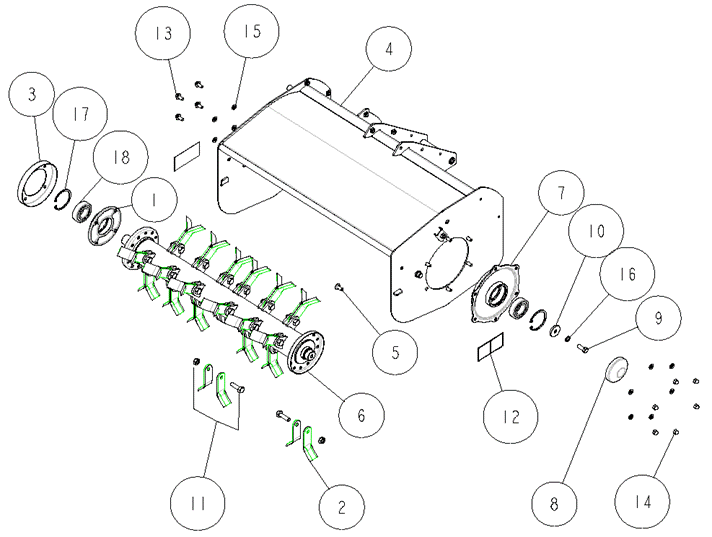

Rotary cover    5/5



18

89-3115-062064

Bearing 6206 2RS

2



17

89-2512-000620

Snap Ring (R62)

2



16

89-1812-100002

Toothed washer (inside) 10

1



15

89-1750-080002

Spring Washer 8

10



14

89-1671-080042

Mini Cap Nut M8

6



13

89-1253-080162

Flange Mini Hexagonal Bolt (8T) M8*16

4



12

83-1613-907-00

Label, Caution for Hand and Leg

2





83-1613-907-10

Label, Caution for Hand and Leg

2

*1)

11

83-1610-835-00

Knife Setting Bolt Set

19



10

83-1610-321-00

Washer 10*36*4.5

1



9

83-1610-124-00

Hexagonal Bolt (8T) M10*25 (left screw)

1



8

80-1614-810-00

BB Case Cover

1



7

80-1614-804-20

Knife Shaft BB Case CMP

1

*4)



0285-60100

Knife Shaft BB Case Set

1

*5)

6

80-1614-800-00

Knife Drum ASSY

1



5

80-1614-705-00

Flat Head Bolt M8*18

6



4

80-1614-703-30

Rotary Cover CMP

1



3

80-1612-813-00

Dust Cover

1



2

80-1610-821-00

Hammer Knife Blade

38



1

80-1610-804-00

BB Case

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

19/22



Crawler    1/4





































8

8

89-1711-100002

Flat Washer 10

2



7

0282-70300

Dust Seal

1



6

0282-70200

Rubber Crawler 160W*60P*24L

1



5

0282-30600

Stone Guard CMP

1



4

0282-30100

Driving Sprocket CMP

1



3

89-2181-100502

Flat Head Pin 10*50

1





0282-31300

Axle Pin 10*50

1

*1)

2

89-2132-100002

Snap Pin 10 (with stopper)

1



1

89-1132-080122

Hexagonal Bolt (SW) M8*12

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

8



20/22

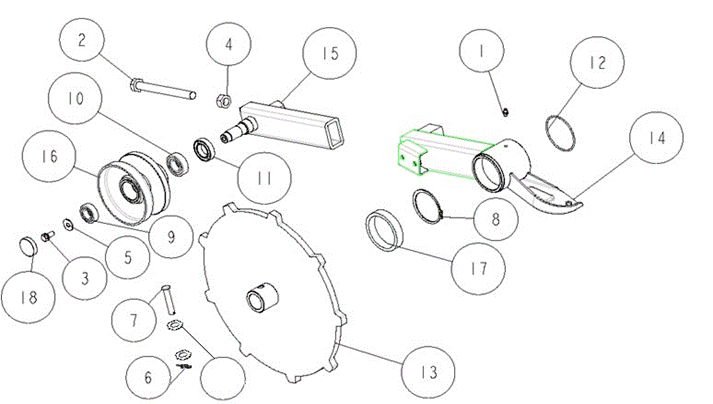

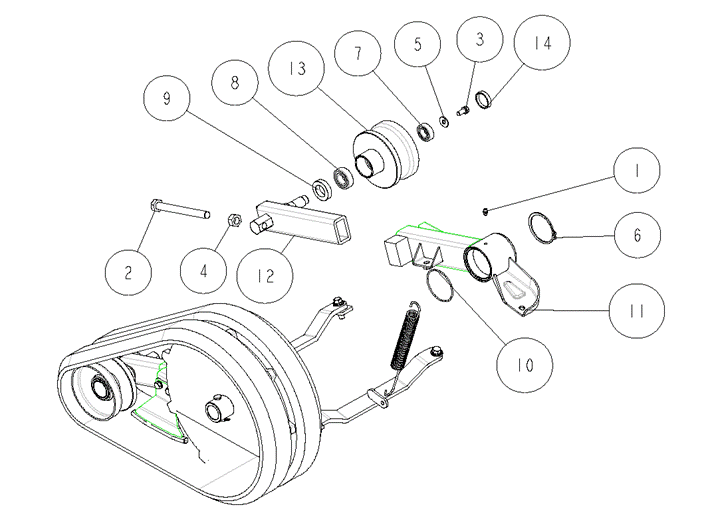

Crawler    2/4









14

0282-70400

Blind Cover 35

1



13

0282-30500

Turn Wheel CMP

1



12

0282-30400

Induction Ring Attachment CMP

1



11

0282-30200

Crawler Arm (L) CMP

1



10

89-5222-065000

O Ring G65

1



9

89-5121-254210

Oil Seal UE 25.42.10

1



8

89-3115-060044

Bearing 6004 2RS

1



7

89-3115-060034

Bearing 6003 2RS

1



6

89-2511-000630

Snap Ring (S63)

1



5

89-1713-080002

Flat Washer 8 (large)

1



4

89-1511-140042

Hexagonal Nut M14

1



3

89-1232-080182

Mini Hexagonal Bolt (SW) M8*18

1





89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

1

*1)

2

89-1111-141407

Hexagonal Bolt M14*140

1



1

83-1415-975-00

Grease Nipple M6

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

21/22



Crawler    3/4









11

0282-71100

Tension Spring for Crawler

1



10

0282-70200

Rubber Crawler 160W*60P*24L

1



9

0282-31200

Connecting Bar (Front)

1



8

0282-31100

Connecting Bar (Rear)

1



7

0282-30800

Spacer for Connecting Bar

2



6

0282-30600

Stone Guard CMP

1



5

89-1750-100002

Spring Washer 10

2



4

89-1712-100002

Flat Washer 10*21*2.1

2



3

89-1236-100252

Mini Hexagonal Bolt (PWSW) M10*25

2



2

89-1213-100352

Mini Hexagonal Bolt (8T) M10*35

2



1

89-1132-080122

Hexagonal Bolt (SW) M8*12

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

22/22

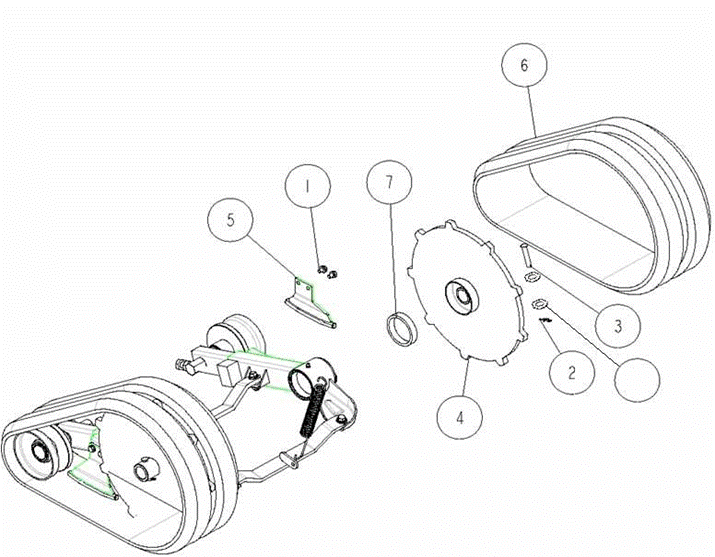

Crawler    4/4





































19

19

89-1711-100002

Flat Washer 10

2



18

0282-70400

Blind Cover 35

1



17

0282-70300

Dust Seal

1



16

0282-30500

Turn Wheel CMP

1



15

0282-30400

Induction Ring Attachment CMP

1



14

0282-30300

Crawler Arm (R) CMP

1



13

0282-30100

Driving Sprocket CMP

1



12

89-5222-065000

O Ring G65

1



11

89-5121-254210

Oil Seal UE 25.42.10

1



10

89-3115-060044

Bearing 6004 2RS

1



9

89-3115-060034

Bearing 6003 2RS

1



8

89-2511-000630

Snap Ring (S63)

1



7

89-2181-100502

Flat Head Pin 10*50

1





0282-31300

Axle Pin 10*50

1

*1)

6

89-2132-100002

Snap Pin 10 (with stopper)

1



5

89-1713-080002

Flat Washer 8 (large)

1



4

89-1511-140042

Hexagonal Nut M14

1



3

89-1232-080182

Mini Hexagonal Bolt (SW) M8*18

1





89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

1

*1)

2

89-1111-141407

Hexagonal Bolt M14*140

1



1

83-1415-975-00

Grease Nipple M6

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

19
