OREC                              ISSUED NO. HRH801/OH-1

Parts catalogue FLAIL MOWER

(EXPORT MODEL) HRH801-OH



MODEL              CODE

HRH801/H            0225-○○○○○



























CONTENTS



Fig. 1

HANDLE -----------------------------

1

Fig. 2

FRAME ------------------------------

4

Fig. 3

TRANSMISSION ------------------

10

Fig. 4

HST -----------------------------------

15

Fig. 5

ROTARY COVER -----------------

17

Fig. 6

ENGINE -----------------------------

22

Fig. 7

LABEL -------------------------------

24



OREC CO.,LTD

Update : Jan 2015



1/25

HANDLE    1/3











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1210-222-00

Handle Setting Collar

1



2

80-1415-223-00

Handle Bonnet

1



3

80-1417-253-00

Stopper

1



4

80-1417-255-00

Lever Grip (Red) 10

1



5

80-1417-966-00

Clutch Spring

1



6

80-1614-280-00

Switch Assy

1



7

0211-70410

Stopper Return Spring

1



8

0225-72200

Blade Clutch Wire (HRH801/H)

1



9

0301-71200

Throttle Wire (GX270.340)

1



10

0305-70200

Lever Cap

1



11

0320-10200

Wire Arm

1



12

0320-10300

Knife Tension Lever

1



13

0320-10400

Lock Lever

1



14

0320-70200

Knife Wire Return Spring

1



15

0320-70300

Spring for Lock Lever Return

1



16

83-1530-463-00

Throttle Lever 27 (Steel)

1



17

83-1565-328-00

Washer 12*25*2.3

1



18

89-1158-060102

Cross recess Headed Screw (PWSW) M

4



19

89-2521-000050

E Type Ring 5

1



20

89-2521-000100

E Type Ring 10

2



2/25

HANDLE    2/3









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1614-314-00

Brake Cover

1



2

0225-10600

Change Drum

1



3

0225-72400

Change Wire (HRH801/H)

2



4

0320-10500

Change Brake Stay CMP

1



5

0320-10600

Change Return Arm

1



6

0320-10700

Change Lever

1



7

0320-70400

Change Lever Return Spring

1



8

0320-70500

Change Return Spring

1



9

83-1711-426-00

Lever Grip 12

1



10

85-1711-317-00

Shoe Return Spring

2



11

85-1711-318-00

Brake Shoe Set

1



12

89-1111-060402

Hexagonal Bolt M6*40

1



13

89-1113-060122

Hexagonal Bolt (8T) M6*12

3



14

89-1543-080003

Mini Hexagonal Nut (SW) M8

4



15

89-1551-060002

Hexagonal U Nut M6

1



16

89-1750-060002

Spring Washer 6

3



17

89-2521-000050

E Type Ring 5

2



18

89-2521-000070

E Type Ring 7

1



19

89-2521-000120

E Type Ring 12

1



3/25

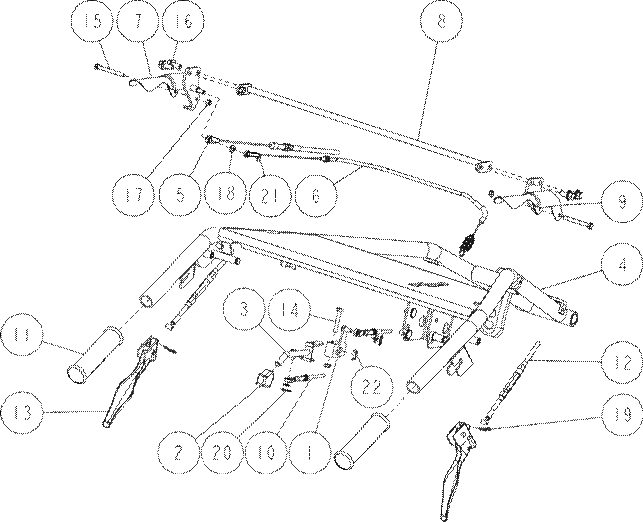

HANDLE    3/3



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1321-245-00

Lever Arm

1



2

80-1761-291-00

Lever Cap

1



3

0225-11100

Lever

1



4

0225-12300

Handle CMP (HRH801/H)

1



5

0225-72300

Driving Clutch Wire (HRH801/H)

1



6

0225-72500

Change Brake Wire (HRH801/H)

1



7

0320-11200

Driving Clutch Lever (L)

1



8

0320-11300

Connection Bar CMP

1



9

0320-11400

Driving Clutch Lever (R)

1



10

0324-72100

Handle Up/Down, Right/Left Wire

2



11

83-1560-414-00

Handle Grip 27

2



12

83-1614-962-00

Side Clutch Wire

2



13

83-1761-457-00

Side Clutch Lever

2



14

89-1111-060402

Hexagonal Bolt M6*40

1



15

89-1113-060552

Hexagonal Bolt (8T) M6*55

2



16

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

4



17

89-1551-060002

Hexagonal U Nut M6

3



18

89-1711-060002

Flat Washer 6

3



19

89-2131-080002

Snap Pin 8

2



20

89-2132-060002

Snap Pin 6 (with stopper)

2



21

89-2521-000050

E Type Ring 5

1



22

89-2521-000100

E Type Ring 10

1



4/25

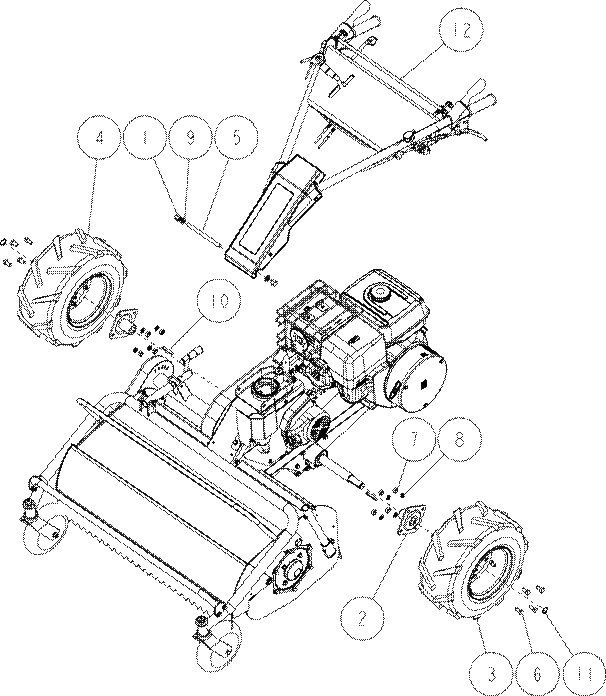

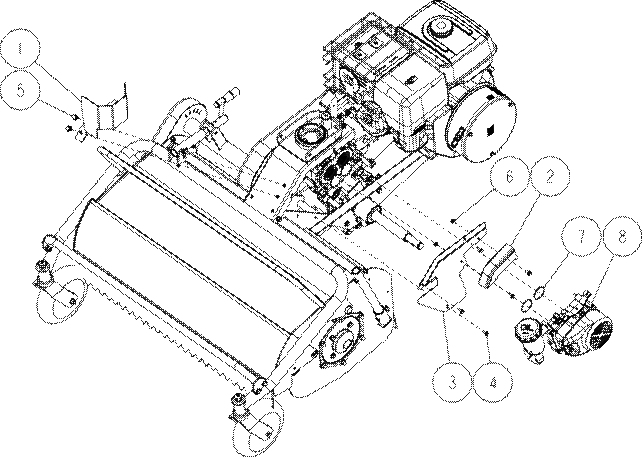

FRAME    1/6



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1310-228-00

Handle Fix Nut

2



2

80-1565-413-10

Wheel Boss

2



3

80-1751-411-00

Tire (L) Assy (16*7.00-8)

1



4

80-1751-412-00

Tire (R) Assy (16*7.00-8)

1



5

83-1210-133-00

Setting Bolt M12*160

1



6

89-1111-100202

Hexagonal Bolt M10*20

8



7

89-1511-100042

Hexagonal Nut M10

8



8

89-1750-100002

Spring Washer 10

8



9

89-1750-120002

Spring Washer 12

2



10

89-2150-070500

Key 7*50 (round)

2



11

89-2511-000220

Snap Ring (S22)

2



12

Handle Part

-

1

Page. 1 ～

5/25

FRAME    2/6





















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0225-02400

HST Oil Tank Setting CMP (HRH801/H)

1



2

0225-60200

Sub Side Cover

1



3

0225-60300

Side Cover & Nut Set

1



4

89-1137-060152

Hexagonal Bolt (PW) M6*15

5



5

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



6

89-1531-060042

Flange Nut M6

2



7

89-5222-040000

O Ring G40

2



8

HST Part

-

1

Page. 15 ～

6/25

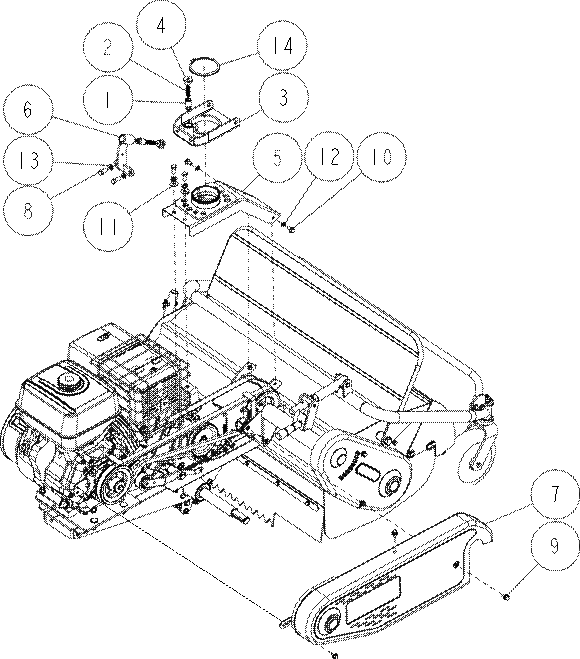

FRAME    3/6



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1210-216-00

Stopper Pin

2



2

80-1210-217-00

Stopper Spring

2



3

80-1310-203-00

Turntable for Handle

1



4

80-1310-215-00

Stopper Cap

2



5

0225-12500

Under Bonnet CMP (HRH801/H)

1



6

0302-10100

Handle Up/Down Stopper Arm CMP (GX

1



7

0302-60100

Belt Cover Outside CMP (GX340)

1



8

89-1211-100202

Mini Hexagonal Bolt M10*20

4



9

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



10

89-1253-080162

Flange Mini Hexagonal Bolt (8T) M8*16

2



11

89-1713-100002

Flat Washer 10 (large)

2



12

89-1750-080002

Spring Washer 8

2



13

89-1750-100002

Spring Washer 10

4



14

89-2511-000850

Snap Ring (S85)

1



7/25

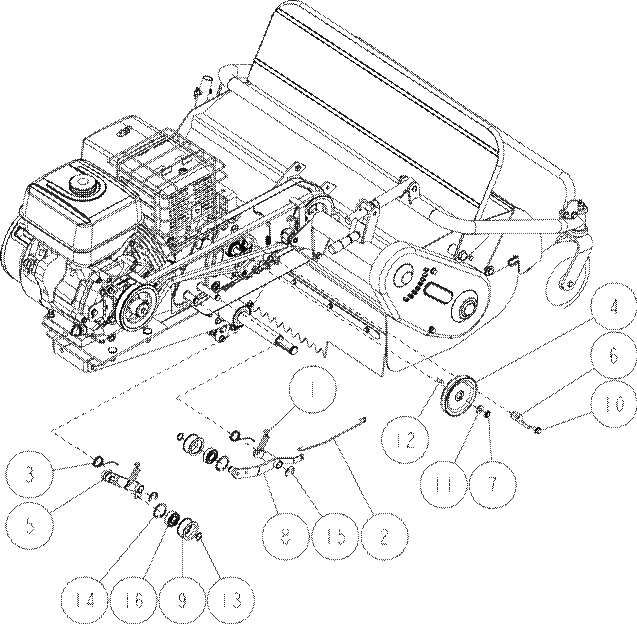

FRAME    4/6



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1560-551-00

Return Spring

2



2

80-1614-374-30

Brake Rod

1



3

80-1614-552-00

Tension Spring

2



4

0225-40200

Transmission Pulley

1



5

0225-40300

Driving Tension Arm

1



6

0225-40600

Belt Holder

1



7

0225-71900

Hexagonal U Nut M10 (Thin Type)

1



8

0256-40400

Knife Tension Arm

1



9

83-1032-765-00

Tension Pulley

2



10

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

1



11

89-1712-100002

Flat Washer 10*21*2.1

1



12

89-2150-050200

Key 5*20 (round)

1



13

89-2511-000170

Snap Ring (S17)

2



14

89-2512-000400

Snap Ring (R40)

2



15

89-2521-000150

E Type Ring 15

2



16

89-3115-062034

Bearing 6203 2RS

2



8/25

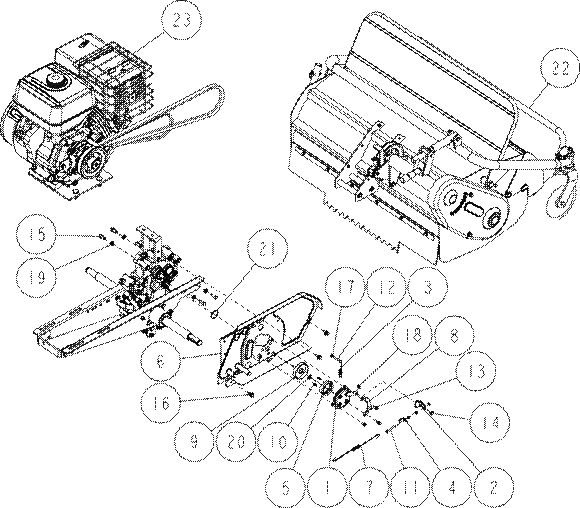

FRAME    5/6



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1614-314-00

Brake Cover

1



2

0225-30210

Brake Support Arm

1



3

0225-30300

Brake Pulling Spring

1



4

0225-30500

Adjuster Fitting

1



5

0225-31300

Brake Shoe Set (W2019)

1



6

0225-40400

Belt Cover Inside CMP

1



7

0225-40800

Drive Brake Pulling Spring

1



8

0225-40900

Brake Stopper CMP

1



9

85-1711-315-00

Brake Drum

1



10

85-1711-317-00

Shoe Return Spring

2



11

89-1111-060402

Hexagonal Bolt M6*40

1



12

89-1113-060352

Hexagonal Bolt (8T) M6*35

1



13

89-1132-060122

Hexagonal Bolt (SW) M6*12

3



14

89-1137-060152

Hexagonal Bolt (PW) M6*15

1



15

89-1213-100202

Mini Hexagonal Bolt (8T) M10*20

4



16

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



17

89-1511-060042

Hexagonal Nut M6

4



18

89-1551-060002

Hexagonal U Nut M6

1



19

89-1750-100002

Spring Washer 10

4



20

89-2511-000140

Snap Ring (S14)

1



21

89-5222-030000

O Ring G30

1



22

Rotary Cover Part

-

1

Page. 17 ～

23

Engine Part

-

1

Page. 22 ～

9/25

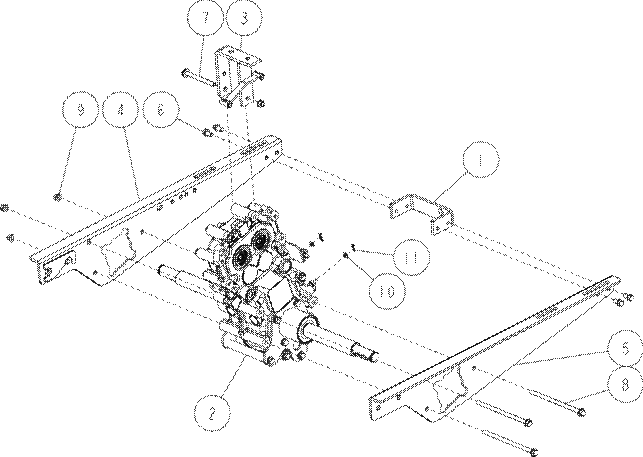

FRAME    6/6

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1415-326-00

Rear Bracket

1



2

0225-01000

Transmission Case Assy

1



3

0225-12200

Under Bonnet Setting CMP (HRH801/H)

1



4

0291-20100

Main Frame (R) CMP (GX340)

1



5

0291-20200

Main Frame (L) CMP (GX340)

1



6

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

4



7

89-1253-080853

Flange Mini Hexagonal Bolt (8T) M8*85

1



8

89-1253-081503

Flange Mini Hexagonal Bolt (8T) M8*150

3



9

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



10

89-1711-060002

Flat Washer 6

2



11

89-2132-060002

Snap Pin 6 (with stopper)

2



10/25

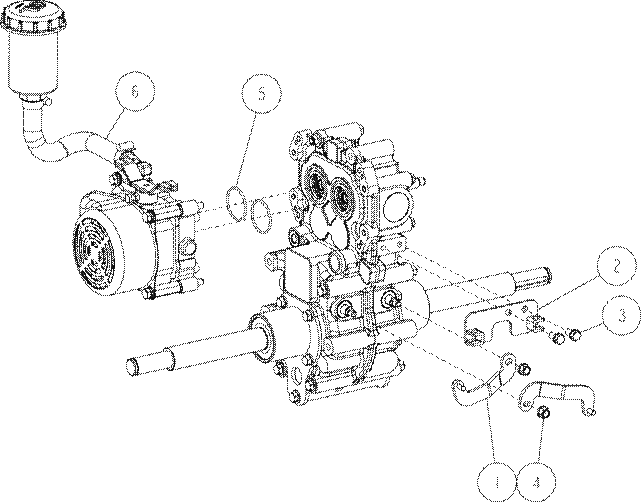

TRANSMISSION     1/5





















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1565-153-00

Side Clutch Arm

2



2

0225-00900

Receiver for Side Clutch Wire

1



3

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

2



4

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



5

89-5222-040000

O Ring G40

2



6

HST Part

-

1

Page. 15 ～

11/25

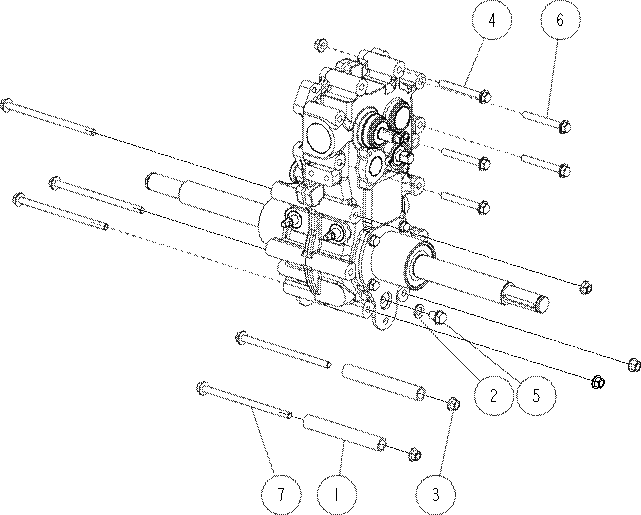

TRANSMISSION     2/5



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0225-01800

Reinforcement Pipe

2



2

83-1020-349-00

Copper Packing 10.5*18*1.6

1



3

83-1484-255-00

Lock Nut ZUF M8

6



4

89-1251-080703

Flange Mini Hexagonal Bolt M8*70

1



5

89-1251-100122

Flange Mini Hexagonal Bolt M10*12

1



6

89-1253-080653

Flange Mini Hexagonal Bolt (8T) M8*65

4



7

89-1253-081403

Flange Mini Hexagonal Bolt (8T) M8*140

5



12/25

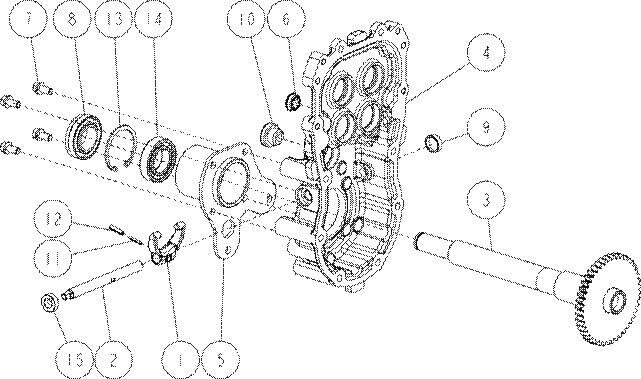

TRANSMISSION     3/5















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1310-150-10

Shaft Pin

1



2

80-1415-114-00

Side Clutch Fork

1



3

80-1425-112-00

Driving Clutch Folk Shaft

1



4

0204-00100

Axle CMP

1



5

0225-00100

Transmission Case (R)

1



6

0225-00600

Shaft BB Case (R)

1



7

0225-70800

Blind Cover 40

1



8

0225-70900

Blind Cover 25

1



9

0225-72100

Seal Bolt (SW) M8*18

4



10

0297-08000

Oil Seal AP 35.55.16

1



11

83-1415-671-00

Blind Cover 22

1



12

83-1415-672-00

Blind Cover 30

1



13

89-1151-060102

Cross recess Headed Screw M6*10

3



14

89-2111-030020

Spring Pin 3*20

1



15

89-2111-050020

Spring Pin 5*20

1



16

89-2512-000550

Snap Ring (R55)

1



17

89-3111-060064

Bearing 6006

1



18

89-5121-122207

Oil Seal UE 12.22.7

1



19

89-5222-030000

O Ring G30

1



13/25

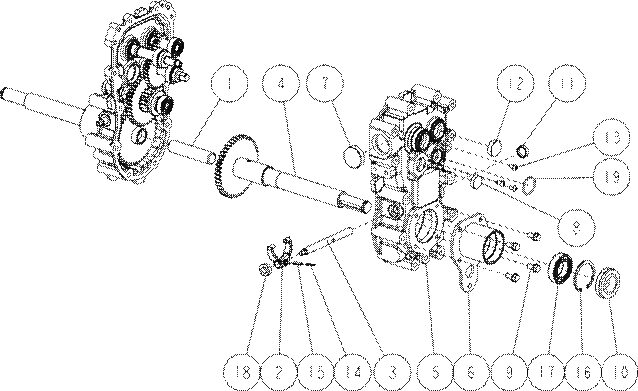

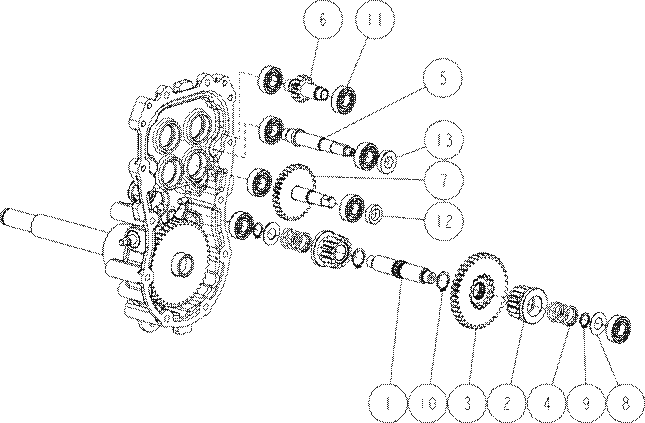

TRANSMISSION     4/5

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1032-140-00

Side Clutch Shaft

1



2

80-1032-141-00

Side Clutch Gear 14T

2



3

80-1575-142-00

Side Clutch Gear 38T

1



4

80-1575-162-00

Side Clutch Spring

2



5

0225-00300

B Axle

1



6

0225-00400

C Axle

1



7

0225-00500

D Axle

1



8

83-1633-362-10

Thrust Washer 15*30*1.2

2



9

89-2511-000150

Snap Ring (S15)

2



10

89-2511-000200

Snap Ring (S20)

2



11

89-3111-062024

Bearing 6202

8



12

89-5121-152507

Oil Seal UE 15.25.7

1



13

89-5121-153007

Oil Seal UE 15.30.7

1



14/25

TRANSMISSION     5/5



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1415-114-00

Side Clutch Fork

1



2

80-1425-112-00

Driving Clutch Folk Shaft

1



3

0204-00100

Axle CMP

1



4

0225-00200

Transmission Case (L)

1



5

0225-00700

Shaft BB Case (L)

1



6

0225-71100

Oil Gauge 20

1



7

0225-72100

Seal Bolt (SW) M8*18

4



8

0297-08000

Oil Seal AP 35.55.16

1



9

83-1415-671-00

Blind Cover 22

1



10

83-1517-685-00

Oil Cap 20

1



11

89-2111-030020

Spring Pin 3*20

1



12

89-2111-050020

Spring Pin 5*20

1



13

89-2512-000550

Snap Ring (R55)

1



14

89-3111-060064

Bearing 6006

1



15

89-5121-122207

Oil Seal UE 12.22.7

1



15/25

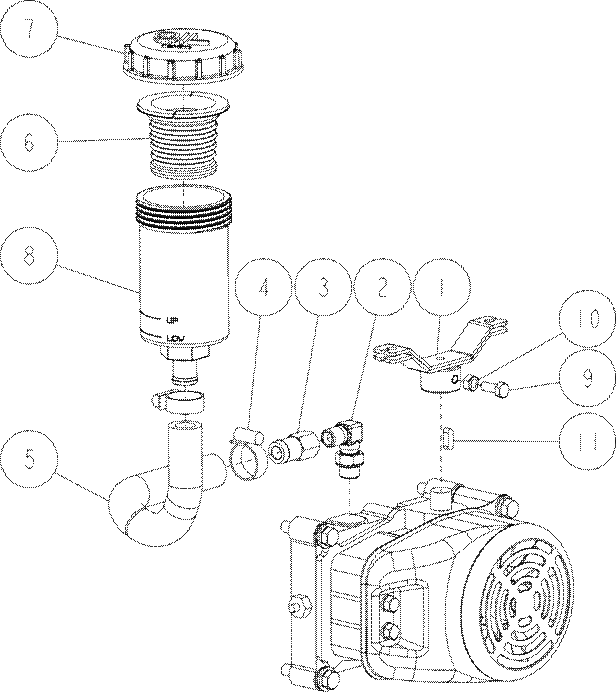

HST    1/2





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0225-00810

Control Arm CMP

1



2

0225-01500

Port Joint

1



3

0225-01600

Port Joint Adapter

1



4

0228-70200

Hose Band 24

2



5

0244-72700

HST Oil Hose

1



6

0289-71200

Waterproof Packing

1



7

0312-01800

HST Oil Tank Cap

1



8

0320-06100

HST Oil Tank CMP

1



9

89-1113-060162

Hexagonal Bolt (8T) M6*16

1



10

89-1511-060042

Hexagonal Nut M6

1



11

89-2150-050150

Key 5*15 (round)

1



16/25

HST    2/2











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0225-01110

Fan Cover CMP

1



2

0225-02100

HST Unit

1



3

0225-02200

Fan

1



4

0225-02300

Fan Cover Setting Bolt M8

2



5

89-1132-060122

Hexagonal Bolt (SW) M6*12

2



6

89-1172-060065

Hexagonal Hole Screw M6*6

1



7

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



8

89-1253-080402

Flange Mini Hexagonal Bolt (8T) M8*40

2



9

89-1711-080002

Flat Washer 8

2



10

89-1750-080002

Spring Washer 8

4



11

89-2150-050150

Key 5*15 (round)

1



17/25

ROTARY COVER     1/5













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1614-906-00

Label, Safety Cover

1



2

0204-60700

Safety Cover

1



3

0204-61200

Front Bumper

1



4

0223-76100

Label, Caution (Large)

1



5

0285-61200

Height Adjusting Bolt Receiver CMP

1



6

0285-62400

Height Adjusting Bolt CMP

1



7

0285-77000

Round Head Pin 10*80

1



8

83-1210-425-00

Lever Grip 10

1



9

84-1723-739-00

Cutting Height Adjusting Handle

1



10

89-1211-080252

Mini Hexagonal Bolt M8*25

2



11

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20

4



12

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



13

89-1611-080042

Mini Hexagonal Nut M8

2



14

89-1711-100002

Flat Washer 10*18*1.6

2



15

89-1714-120002

Flat Washer 12

1



16

89-2111-050022

Spring Pin 5*22

1



17

89-2131-100002

Snap Pin 10

1



18

89-2181-100502

Flat Head Pin 10*50

1



18/25

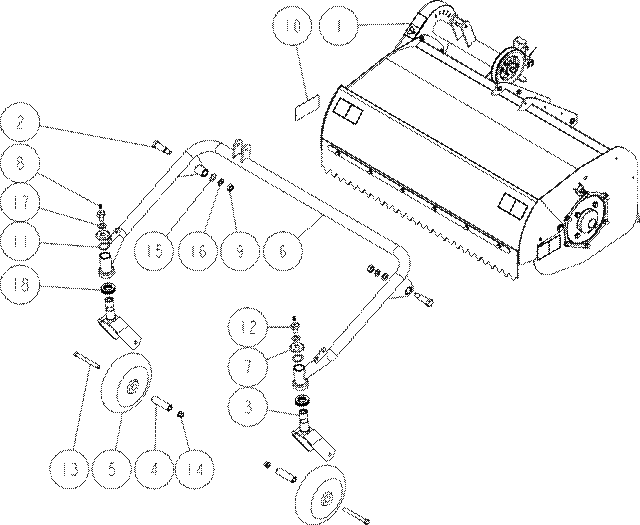

ROTARY COVER     2/5







Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1488-928-10

Label, Caution for Belt Involving

1



2

80-1610-714-00

Front Arm Setting Shaft

2



3

80-1614-725-20

Front Wheel Fork

2



4

80-1614-726-00

Front Wheel Collar

2



5

80-1614-727-00

Front Wheel

2



6

0204-61100

Front Arm CMP

1



7

0256-60700

Dust Cover

2



8

83-1415-975-00

Grease Nipple M6

2



9

83-1610-192-00

Hexagonal Nut (slender) M12 P=1.25

2



10

83-1613-907-00

Label, Caution for Hand and Leg

4



11

83-1783-376-00

Thrust Washer 25*34*1.0

2



12

84-1783-791-00

Grease Nipple Bolt M14

2



13

89-1211-100952

Mini Hexagonal Bolt M10*95

2



14

89-1543-100002

Mini Hexagonal Nut (SW) M10

2



15

89-1714-120002

Flat Washer 12

2



16

89-1750-120002

Spring Washer 12

2



17

89-1750-140002

Spring Washer 14

2



18

89-3370-051105

Thrust Bearing 51105

2



19/25

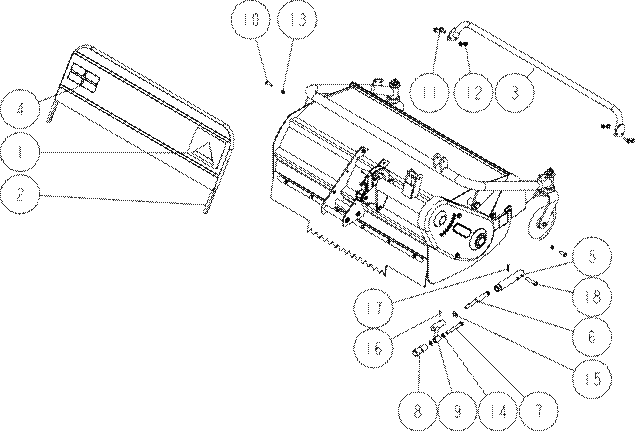

ROTARY COVER     3/5











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1182-527-00

Tension Pulling Bolt

1



2

80-1614-315-00

Return Spring

1



3

80-1614-694-10

Knife Belt Cover

1



4

0204-60300

Front Cover CMP

1



5

0204-60400

Front Flapper

1



6

0204-60500

Rear Flapper

1



7

0204-60600

Flapper Holder

2



8

0211-63200

Front Tension Arm CMP

1



9

83-1032-765-00

Tension Pulley

1



10

83-1630-342-00

Washer 16*26*2.3

2



11

89-1137-060152

Hexagonal Bolt (PW) M6*15

12



12

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



13

89-1581-060042

Flange Cap Nut M6

12



14

89-1611-080042

Mini Hexagonal Nut M8

2



15

89-2511-000170

Snap Ring (S17)

1



16

89-2512-000400

Snap Ring (R40)

1



17

89-2521-000120

E Type Ring 12

2



18

89-2521-000150

E Type Ring 15

1



19

89-3115-062034

Bearing 6203 2RS

1



20

89-6123-003902

V Belt SB-39 (W800)

1



20/25

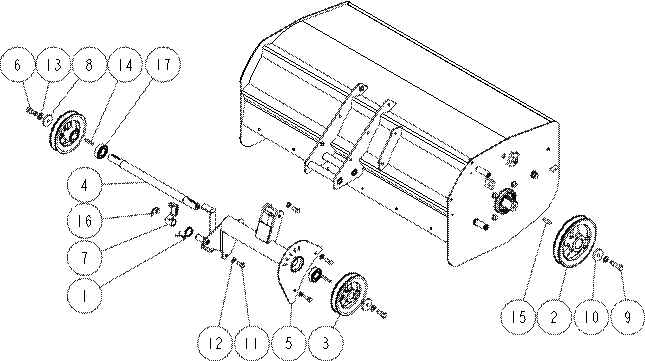

ROTARY COVER     4/5



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1614-373-20

Knife Brake Spring

1



2

80-1614-634-20

Knife Pulley 155

1



3

80-1614-636-00

Supporter Pulley

2



4

0204-40110

Supporter Shaft

1



5

0204-40200

Supporter Pipe CMP

1



6

0212-72100

Hexagonal Bolt(8T) M10*25(Meck)

2



7

0231-37100

Knife Brake

1



8

83-1565-315-00

Washer 8*36*4.5

2



9

83-1610-125-00

Hexagonal Bolt (8T) M10*35

1



10

83-1610-322-00

Washer 10*36*6

1



11

89-1213-080182

Mini Hexagonal Bolt (8T) M8*18

4



12

89-1750-080002

Spring Washer 8

4



13

89-1750-100002

Spring Washer 10

3



14

89-2151-050350

Key 5*35 (half round)

2



15

89-2151-070300

Key 7*30 (half round)

1



16

89-2521-000150

E Type Ring 15

1



17

89-3115-060044

Bearing 6004 2RS

2



21/25

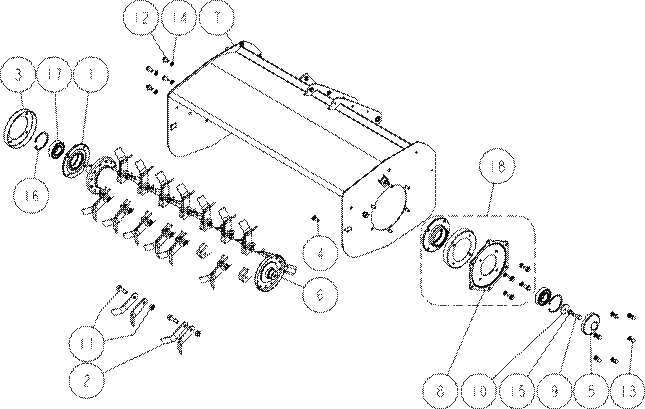

ROTARY COVER     5/5















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1610-804-00

BB Case

2



2

80-1610-821-00

Hammer Knife Blade

46



3

80-1612-813-00

Dust Cover

2



4

80-1614-705-00

Flat Head Bolt M8*18

6



5

80-1614-810-00

BB Case Cover

1



6

0204-50000

Knife Drum ASSY

1



7

0204-60110

Rotary Cover CMP

1



8

0285-60400

Knife Shaft BB Case Holder

1



9

83-1610-124-00

Hexagonal Bolt (8T) M10*25 (left screw)

1



10

83-1610-321-00

Washer 10*36*4.5

1



11

83-1610-835-00

Knife Setting Bolt Set

23



12

89-1253-080162

Flange Mini Hexagonal Bolt (8T) M8*16

8



13

89-1671-080042

Mini Cap Nut M8

6



14

89-1750-080002

Spring Washer 8

14



15

89-1812-100002

Toothed washer (inside) 10

1



16

89-2512-000620

Snap Ring (R62)

2



17

89-3115-062064

Bearing 6206 2RS

2



18

0285-60100

Knife Shaft BB Case Set

1



22/25

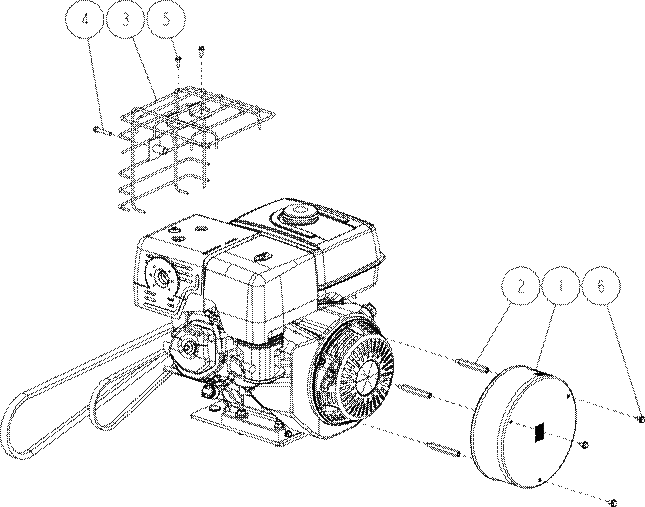

ENGINE    1/2





















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0302-60200

Recoil Cover CMP (GX340)

1



2

0304-61800

Recoil Cover Setting Bolt (GX270.340)

3



3

0304-62400

Muffler Guard CMP (GX340)

1



4

89-1111-060352

Hexagonal Bolt M6*35

1



5

89-1251-050163

Flange Hexagonal Bolt M5*16

2



6

89-1251-060102

Flange Hexagonal Bolt M6*10

3



23/25

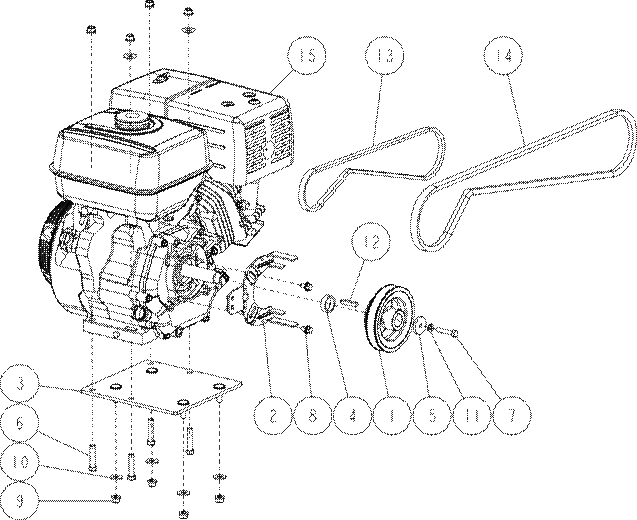

ENGINE    2/2











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0225-40100

Engine Pulley

1



2

0225-41100

Belt Holder CMP (HRH801/H)

1



3

0302-21100

Engine Base CMP (GX340)

1



4

0310-40200

Engine Collar φ34

1



5

83-1565-315-00

Washer 8*36*4.5

1



6

89-1211-100452

Mini Hexagonal Bolt M10*45

4



7

89-1213-080402

Mini Hexagonal Bolt (8T) M8*40

1



8

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



9

89-1543-100002

Mini Hexagonal Nut (SW) M10

8



10

89-1713-100002

Flat Washer 10 (large)

6



11

89-1750-080002

Spring Washer 8

1



12

89-2151-070400

Key 7*40 (harf round)

1



13

89-6122-004102

V Belt SA-41 (W800)

1



14

89-6123-006302

V Belt SB-63 (W800)

1



15

9010-0071

GX340UT2 SE

1



24/25

LABEL    1/2





⑭

⑧                     /



⑱

⑤



serial number

⑩               ②         ➃





⑯

⑮





③                                            ⑱





④

⑦      ⑥

⑫       ⑨



⑬

①

➃

25/25

LABEL    2/2



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1488-928-10

Label, Caution for Belt Involving

2



2

80-1614-904-00

Label, Bonnet

1



3

80-1614-905-00

Label, Belt Case

1



4

80-1614-906-00

Label, Safety Cover

1



5

0202-74400

Label, Noise 104db

1



6

0215-83200

Label, Protection Equipment

1



7

0223-72910

Attention Mark for Slope

1



8

0223-76100

Label, Caution (Large)

1



9

0225-70600

Label, HST

1



10

0225-70700

Label, Model

1



11

0225-72600

Label, Driving & Blade

1



12

0225-72700

Label, Change

1



13

0301-70500

Label, Throttle(GX270.340)

1



14

0304-71500

Label for Left Screw

1



15

83-1050-901-00

Label, OREC

1



16

83-1310-902-00

OREC Mark

1



17

83-1415-927-00

Label,Oil Quantity 1.4L

1



18

83-1613-907-10

Label, Caution for Hand and Leg

4
