Ref.	Parts No.	Parts Name	Quantity	Remarks
			HRH 801
			FE290D
52	80-1210-216-00	Stopper Pin	2
53	80-1210-217-00	Stopper Spring	2
54	80-1310-215-00	Stopper Cap	2
55	83-1213-133-00	Setting Bolt M12*160	1
56	80-1210-222-00	Handle Setting Collar	1
57	89-1750-120002	Spring Washer 12	2
58	80-1310-228-00	Handle Fix Nut	2
59	80-1330-214-10	Stopper for Handle Up/Down	1
60	89-1211-100202	Mini Hexagonal Bolt M10*20	2
61	89-1750-100002	Spring Washer 10	4
62	89-1711-100002	Flat Washer 10	4
63	80-1614-732-20	Under Bonnet CMP	1
64	89-1211-100162	Mini Hexagonal Bolt M10*16	2
65	89-1750-080002	Spring Washer 8	2
66	89-1213-080162	Mini Hexagonal Bolt (8T) M8*16	2
67	0225-11300	Under Bonnet Setting	1
68	89-1253-080853	Flange Hexagonal Bolt (8T) M8*85	1
69	0225-60100	Side Cover	1
70	89-1131-060152	Hexagonal Bolt(PW) 6*15	5
71	0225-60200	Sub Side Cover	1
72	83-1712-923-00	Label, Oil Quantity 1.6 L	1
73	0225-11200	Handle Bonnet	1
74	0225-70500	Label, Bonnet	1
75	0225-70700	Label, Model	1
76	83-1415-909-00	Label, Caution for Engine etc	1	*2)
	0223-76200	Label, Caution for Engine etc	1	*1) *3)
77	83-1310-902-00	OREC Mark	1
MEMO *1)Interchangeable *2)Serial Number : ~YH03M00080 *3)Serial Number : YH03M00081~

Ref.	Parts No.	Parts Name	Quantity	Remarks
			HRH 801
			FE290D
51	89-2150-050150	Key 5*15(round)	2
52	0225-02300	Fan Cover Setting Bolt M8	1
53	89-1253-080402	Flange Hexagonal Bolt (8T) M8*40	2
54	89-1750-080002	Spring Washer 8	4
55	89-1711-080002	Flat Washer 8	2
56	0225-01110	Fan Cover CMP	1
57	89-1233-080162	Mini Hexagonal Bolt (PWSW) M8*16	2
58	89-1132-060122	Hexagonal Bolt (SW) M6*12	4
59	0225-00800	Control Arm CMP	1
60	89-1113-060162	Hexagonal Bolt (8T) M6*16	1
61	89-1511-060042	Hexagonal Nut M6	1
62	0225-01500	Port Joint	1
63	0225-01600	Port Joint Adapter	1
64	0207-08100	Horse Band 30	2
65	0225-01900	Oil Horse	1
66	0207-07620	Oil Tank	1
67	0207-71300	Filter(with level)	1
68	0207-08400	Cap Packing	1
69	0207-08300	Oil Tank Cap	1
70	0225-01700	Receiver for Change Wire	1
71	89-1711-060002	Flat Washer 6	2
72	89-2120-200152	Split Pin 2*15	2
MEMO *1)Interchangeable *2)Serial Number : ~YH03M00080 *3)Serial Number : YH03M00081~

Ref.	Parts No.	Parts Name	Quantity	Remarks
			HRH 801
			FE290D
51	89-2150-070500	Key 7x50	2
52	80-1751-412-00	Tire(R) ASSY	1
53	80-1751-411-00	Tire(L) ASSY	1
54	80-1565-413-00	Wheel Boss	2
55	89-1543-100002	Mini Hexagonal Nut(SW) M10	8
55	89-1211-100202	Mini Hexagonal Bolt M10*20	8
56	89-2511-000220	Snap Ring 22	2
57	80-1614-504-20	Belt Cover CMP	1
58	83-1260-908-00	Label, Caution for Back	1	*2)
59	80-1488-928-00	Label, Caution for Pinching	1	*2)
	80-1488-928-10	Label, Caution for Pinching	1	*1) *3)
60	0225-71600	Label, Belt Size	1
61	80-1614-905-00	Label, Belt Case	1
62	0223-72900	Attention Mark for Slope	1	*3)
63	0215-83200	Label, Protection Equipment	1	*3)
64	80-1020-932-00	Label, Noise 100db	1
65	80-1010-933-00	Label, CE	1
MEMO *1)Interchangeable *2)Serial Number : ~YH03M00080 *3)Serial Number : YH03M00081~

Ref.	Parts No.	Parts Name	Quantity	Remarks
			HRH 801
			FE290D
52	89-1750-100002	Spring Washer 10	1
53	83-1610-125-00	Hexagonal Bolt(8T) M10x35	1
54	80-1614-804-20	Knife Shaft BB Case CMP	1
55	83-1610-321-00	Washer 10x36x4.5	1
56	89-1812-100002	Tooth Washer 10	1
57	83-1610-124-00	Hexagonal Bolt(8T) M10x25(left screw)	1
58	80-1610-919-00	Label for Left Screw	1
59	80-1614-810-00	BB Case Cover	1
60	80-1614-705-00	Flat Head Bolt M8x18	6
61	89-1671-080042	Mini Bag Nut M8	6
62	80-1614-632-00	Front Tension Arm CMP	1
63	89-2512-000400	Snap Ring 40	1
64	89-3115-062034	Bearing 6203 2RS	1
65	83-1032-765-00	Tension Pulley	1
66	89-2511-000170	Snap Ring 17	1
67	89-6123-003902	V Belt LB-39 W800	1
68	80-1614-315-00	Return Spring	1
69	80-1182-527-00	Tension Pulling Bolt	1
70	89-1611-080042	Mini Hexagonal Nut M8	4
71	80-1614-694-10	Knife Belt Cover	1
72	89-1233-080162	Mini Hexagonal Bolt (PWSW) M8*16	2
73	0204-60300	Front Cover CMP	1
74	83-1110-332-00	Washer 15x26x2.3	2
75	89-2521-000120	E-type Ring 12	2
76	0204-60400	Front Flapper	1
77	0204-70600	Flapper Holder	2
78	89-1137-060152	Hexagonal Bolt(PW) M6*15	12
79	83-1575-189-00	Flange Cap Nut M6	12
80	0204-60500	Rear Flapper	1
81	0204-60700	Safety Cover	1
82	80-1614-906-00	Label, Safety Cover	1
83	89-1211-080252	Mini Hexagonal Bolt M8*25	2
84	83-1613-907-00	Label, Caution for Hand and Leg	4	*2)
	83-1613-907-10	Label, Caution for Hand and Leg	4	*1) *3)
85	83-1415-912-00	Label, Caution for Hitting Object	1	*2)
86	83-1415-913-00	Label, Eye Guard	1	*2)
87	80-1484-A47-00	Label, Caution(large)	1	*2)
	0223-76100	Label, Caution(large)	1	*1) *3)
88	0204-61200	Front Bumper	1
89	89-1253-080202	Mini Flange Bolt(8T) M8*20	4
90	89-1543-080002	Mini Hexagonal Nut (SW) M8	4
91	80-1488-928-10	Label, Caution for Pinching	1	*3)
92	83-1050-901-00	Label, OREC	1
MEMO *1)Interchangeable *2)Serial Number : ~YH03M00080 *3)Serial Number : YH03M00081~

OREC ISSUED NO. HRH801-2

Parts catalogue FLAIL MOWER

(EXPORT MODEL)

HRH801

MODEL CODE NO.

HRH801 0225-?????

CONTENTS

Fig.1 HANDLE 1

Fig.2 TRANSMISSION 5

Fig.3 FRAME 9

Fig.4 ROTARY COVER 13

OREC CO.,LTD.

Update : Dec 2003

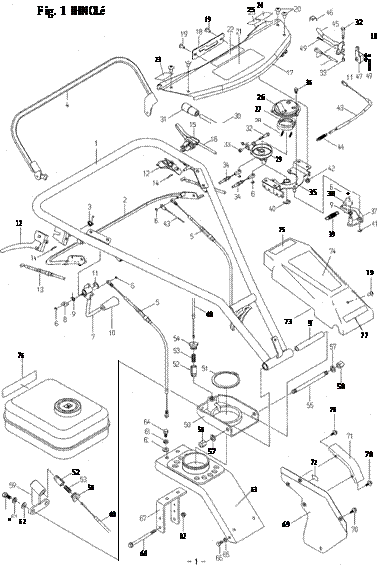

FIG. 1 HANDLE

- 4 -

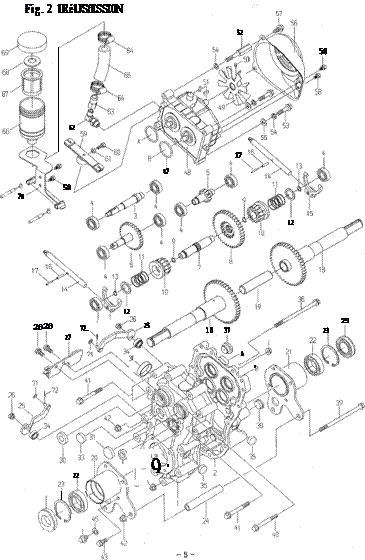

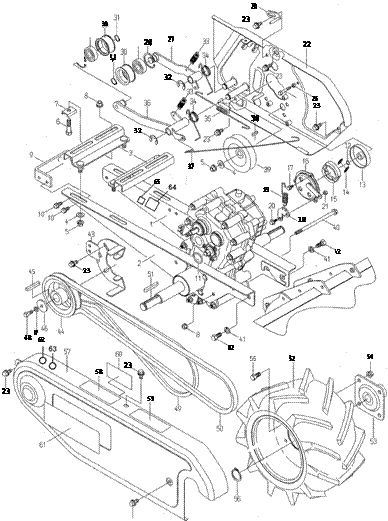

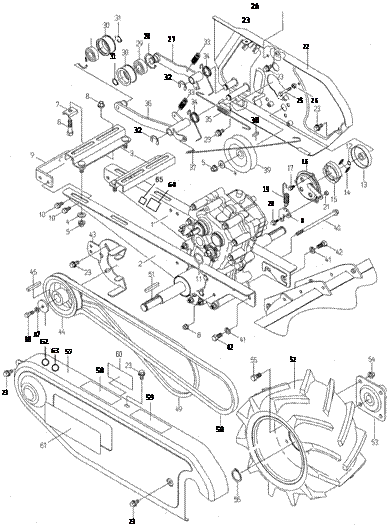

FIG. 2 TRANSMISSION

- 8 -

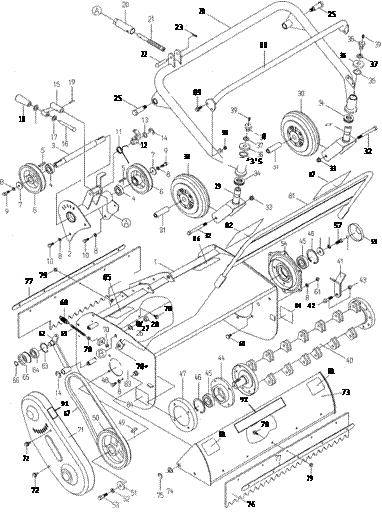

FIG. 3 FRAME

- 12 -

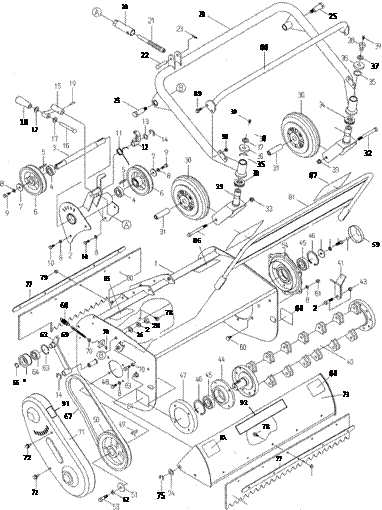

FIG. 4 ROTARY COVER

- 16 -

7ig. 4 ROTéRY CORR

— 13 —

FIG. 1 HANDLE

FIG. 2 TRANSMISSION

FIG. 3 FRAME

FIG. 4 ROTARY COVER

- 2 -

- 6 -

- 10 -

- 14 -

Fig.4R0TÆYC0VER

23

- 11 -

—15-
