OREC ISSUED NO. HR802/OH-3

Parts catalogue FLAIL MOWER

(EXPORT MODEL)

HR802-OH

MODEL CODE

HR802/H 0291-○○○○○

CONTENTS

Fig. 1	HANDLE ---------------------------------	1
Fig. 2	FRAME -----------------------------------	3
Fig. 3	TRANSMISSION ----------------------	10
Fig. 4	ROTARY COVER ---------------------	16
Fig. 5	ENGINE ----------------------------------	21
Fig. 6	LABEL -----------------------------------	23

OREC CO.,LTD

Update : Sep. 2019

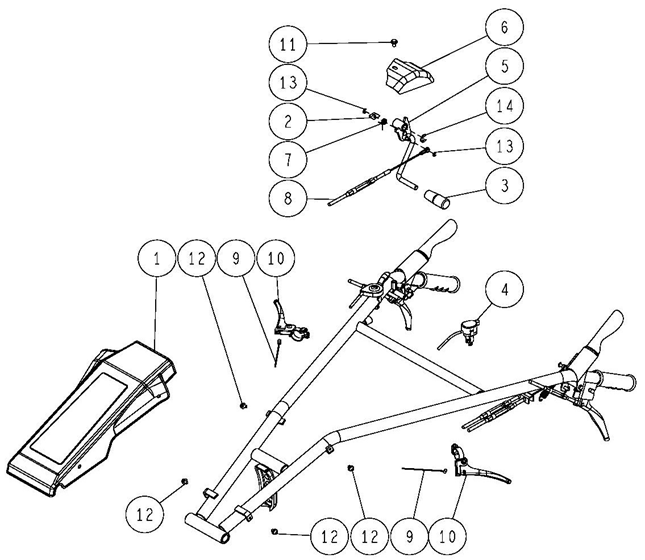

1/24	HANDLE 1/2
*1) Interchangeable *2) HR662 : ~ YD18M00655 *3) HR802 : ~ YG18M00088 *4) HR662 : YD19A00001 ~ *5) HR802 : YG19A00001 ~
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1415-223-00	Handle Bonnet		1
2	80-1417-253-00	Stopper		1
3	80-1417-255-00	Lever Grip (Red) 10		1
4	80-1614-280-00	Switch Assy		1
5	0211-20400	Blade Tension Lever		1
6	0211-20500	Upper Cover		1
7	0211-70410	Stopper Return Spring		1
8	0334-70700	Tension Wire		1	*4) *5)
	83-1614-932-10	Tension Wire (SUS)		1	*1) *2) *3)
	83-1614-932-00	Tension Wire		1	*2) *3)
9	83-1110-965-00	Handle Up/Down, Right/Left Wire		2
10	83-1415-453-10	Lever 27-05-0822S		2
11	89-1137-060122	Hexagonal Bolt (PW) M6*12		1
12	89-1158-060102	Cross recess Headed Screw (PWSW) M6*10		4
13	89-2521-000050	E Type Ring 5		2
14	89-2521-000100	E Type Ring 10		1

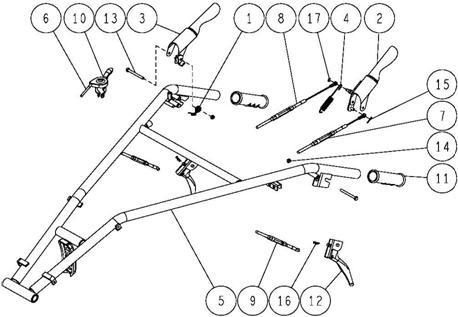

2/24	HANDLE 2/2
*1) Interchangeable *2) HR662 : ~ YD18M00655 *3) HR802 : ~ YG18M00088 *4) HR662 : YD19A00001 ~ *5) HR802 : YG19A00001 ~
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1417-971-10	Blade Clutch Lever Return Spring		1
2	0211-20200	Driving Clutch Lever		1
3	0211-20300	Blade Clutch Lever		1
4	0211-20600	Brake Spring		1
5	0285-11100	Handle CMP		1	*4) *5)
	0211-20100	Handle CMP		1	*2) *3)
6	0301-71200	Throttle Wire (GX270.340)		1
7	0304-70610	Brake Wire		1	*4) *5)
	0211-70510	Brake Wire (SUS)		1	*1) *2) *3)
	0211-70500	Brake Wire		1	*2) *3)
8	0334-70700	Tension Wire		1	*4) *5)
	83-1614-932-10	Tension Wire (SUS)		1	*1) *2) *3)
	83-1614-932-00	Tension Wire		1	*2) *3)
9	0334-70800	Side Clutch Wire		2	*4) *5)
	83-1614-962-10	Side Clutch Wire (SUS)		2	*1) *2) *3)
	83-1614-962-00	Side Clutch Wire		2	*2) *3)
10	0301-77100	Throttle Lever		1	*1) *4) *5)
	83-1530-463-00	Throttle Lever 27 (Steel)		1	*2) *3)
11	83-1560-414-00	Handle Grip 27		2
12	83-1761-457-00	Side Clutch Lever		2
13	89-1113-060602	Hexagonal Bolt (8T) M6*60		2
14	89-1551-060002	Hexagonal U Nut M6		2
15	89-2120-200152	Split Pin 2*15		1
16	89-2131-060002	Snap Pin 6		2
17	89-2521-000050	E Type Ring 5		1

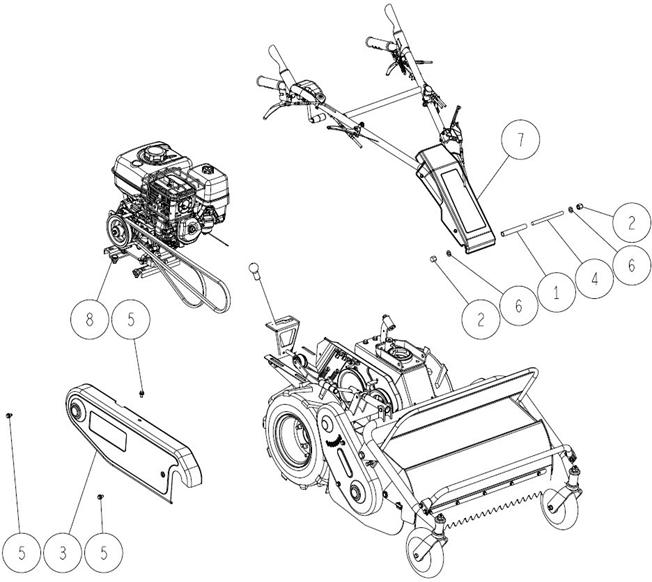

3/24	FRAME 1/7
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1210-222-00	Handle Setting Collar		1
2	80-1310-228-00	Handle Fix Nut		2
3	0304-62100	Belt Cover Outside CMP (GX270)		1
4	83-1210-133-00	Setting Bolt M12*160		1
5	89-1233-080162	Mini Hexagonal Bolt (PWSW) M8*16		3
6	89-1750-120002	Spring Washer 12		2
7	Handle Part	-		1	Page. 1 ~
8	Engine Part	-		1	Page. 21 ~

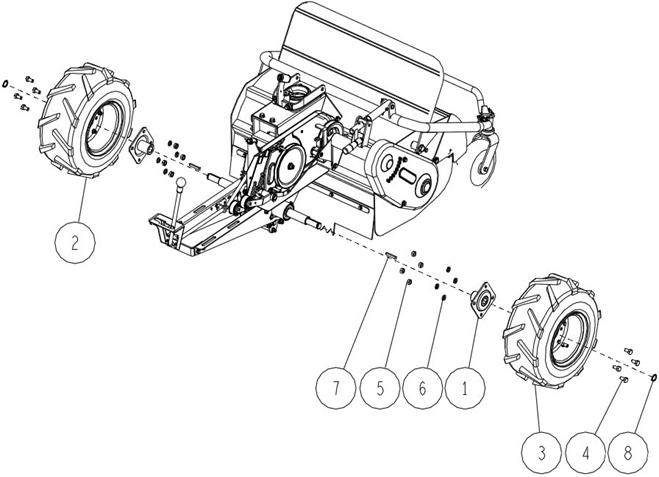

4/24	FRAME 2/7
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1565-413-10	Wheel Boss		2	*1)
	80-1565-413-00	Wheel Boss		2
2	80-1751-411-00	Tire (L) Assy (16*7.00-8)		1
3	80-1751-412-00	Tire (R) Assy (16*7.00-8)		1
4	89-1111-100202	Hexagonal Bolt M10*20		8
5	89-1511-100042	Hexagonal Nut M10		8
6	89-1750-100002	Spring Washer 10		8
7	89-2150-070500	Key 7*50 (round)		2
8	89-2511-000220	Snap Ring (S22)		2

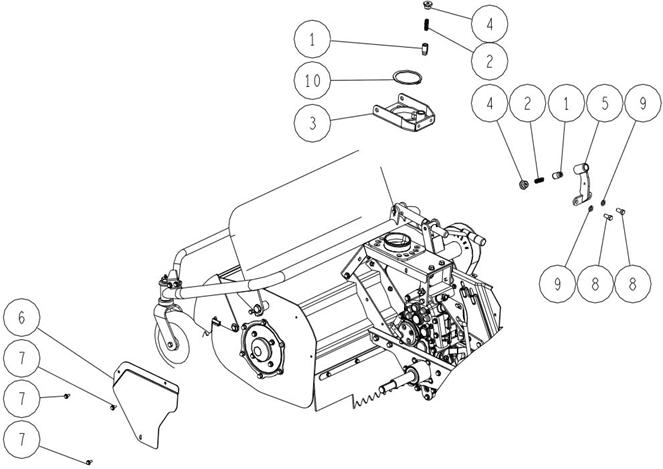

5/24	FRAME 3/7
*1) Interchangeable *2) HR662 : ~ YD18M00655 *3) HR802 : ~ YG18M00088 *4) HR662 : YD19A00001 ~ *5) HR802 : YG19A00001 ~
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1210-216-00	Stopper Pin		2
2	80-1210-217-00	Stopper Spring		2
3	0334-20300	Turntable for Handle		1	*1)
	80-1310-203-00	Turntable for Handle		1
4	80-1310-215-00	Stopper Cap		2
5	0302-10100	Handle Up/Down Stopper Arm CMP (GX270.340)		1
6	0334-60100	Side Cover CMP		1	*4) *5)
	80-1614-746-10	Side Cover		1	*2) *3)
7	89-1137-060152	Hexagonal Bolt (PW) M6*15		3
8	89-1211-100202	Mini Hexagonal Bolt M10*20		2
9	89-1750-100002	Spring Washer 10		2
10	89-2511-000850	Snap Ring (S85)		1

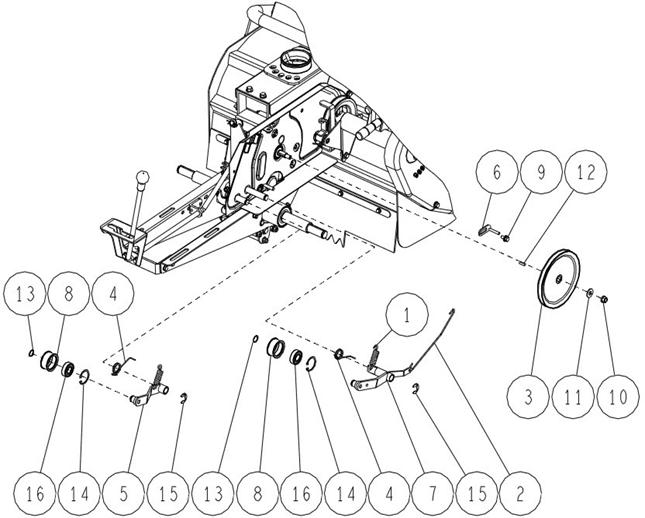

6/24	FRAME 4/7
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1560-551-00	Return Spring		2
2	80-1614-374-30	Brake Rod		1
3	80-1614-521-00	Transmission Pulley		1
4	80-1614-552-00	Tension Spring		2
5	0211-54200	Driving Tension Arm		1
6	0225-40600	Belt Holder		1
7	0256-40400	Knife Tension Arm		1
8	83-1032-765-00	Tension Pulley		2
9	89-1233-080162	Mini Hexagonal Bolt (PWSW) M8*16		1
10	89-1543-100002	Mini Hexagonal Nut (SW) M10		1
11	89-1713-100002	Flat Washer 10 (large)		1
12	89-2150-050200	Key 5*20 (round)		1
13	89-2511-000170	Snap Ring (S17)		2
14	89-2512-000400	Snap Ring (R40)		2
15	89-2521-000150	E Type Ring 15		2
16	89-3115-062034	Bearing 6203 2RS		2

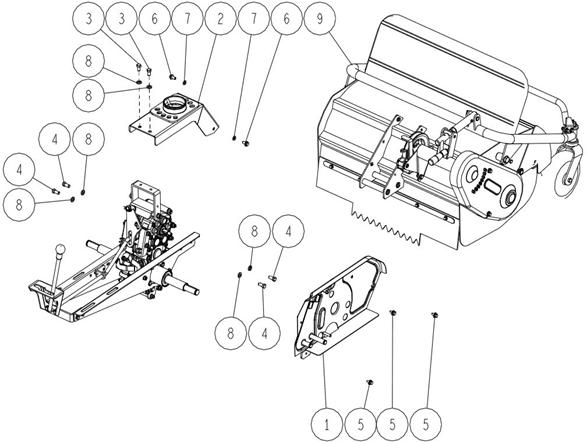

7/24	FRAME 5/7
*1) Interchangeable *2) HR662 : ~ YD18M00655 *3) HR802 : ~ YG18M00088 *4) HR662 : YD19A00001 ~ *5) HR802 : YG19A00001 ~
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	0304-62200	Belt Cover Inside CMP (GX270.340)		1
2	0334-21100	Under Bonnet CMP		1	*4) *5)
	0285-10100	Under Bonnet CMP(GX270.340)		1	*2) *3)
3	89-1211-100162	Mini Hexagonal Bolt M10*16		2
4	89-1213-100202	Mini Hexagonal Bolt (8T) M10*20		4
5	89-1233-080162	Mini Hexagonal Bolt (PWSW) M8*16		3
6	89-1253-080162	Flange Mini Hexagonal Bolt (8T) M8*16		2
7	89-1750-080002	Spring Washer 8		2
8	89-1750-100002	Spring Washer 10		6
9	Rotary Cover Part	-		1	Page. 16 ~

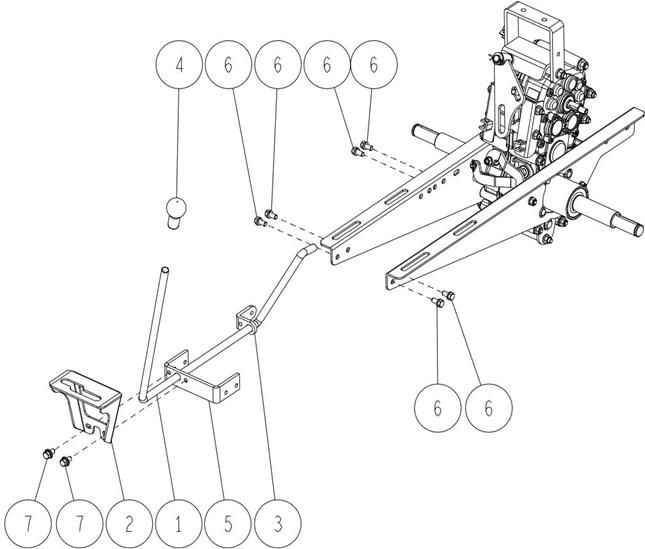

8/24	FRAME 6/7
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	0253-16100	Change Lever CMP		1
2	0253-22410	Change Guide CMP		1
3	0253-22500	Change Rod Setting		1
4	0253-79100	Lever Grip 12.7		1
5	0256-20510	Rear Bracket		1
6	89-1232-080162	Mini Hexagonal Bolt (SW) M8*16		6
7	89-1233-080162	Mini Hexagonal Bolt (PWSW) M8*16		2

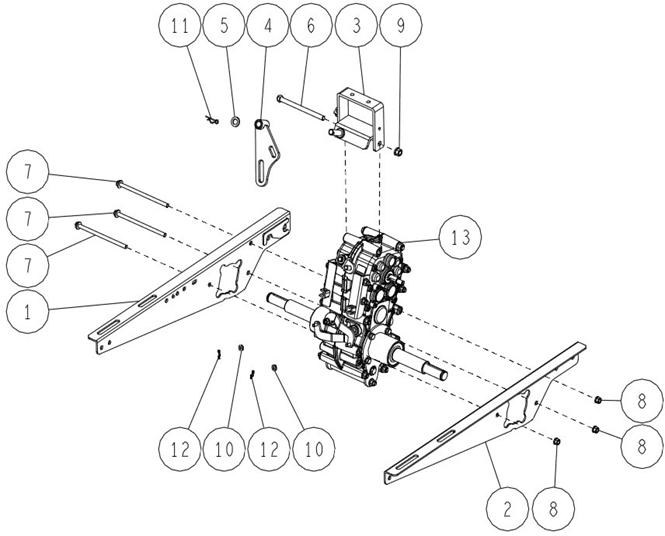

9/24	FRAME 7/7
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	0291-20200	Main Frame (L) CMP (GX340)		1
2	0291-20100	Main Frame (R) CMP (GX340)		1
3	0251-11300	Change Plate		1
4	0253-11500	Change Lever Arm CMP		1	*1)
	0251-11600	Change Lever Arm CMP		1
5	83-1565-329-00	Washer 13*22*2.3		1
6	89-1213-101302	Mini Hexagonal Bolt (8T) M10*130		1
7	89-1253-081453	Flange Mini Hexagonal Bolt (8T) M8*145		3
8	89-1543-080002	Mini Hexagonal Nut (SW) M8		3
9	89-1543-100002	Mini Hexagonal Nut (SW) M10		1
10	89-1711-060002	Flat Washer 6		2
11	89-2131-120002	Snap Pin 12		1
12	89-2132-060002	Snap Pin 6 (with stopper)		2
13	Transmission Part	-		1	Page. 10 ~

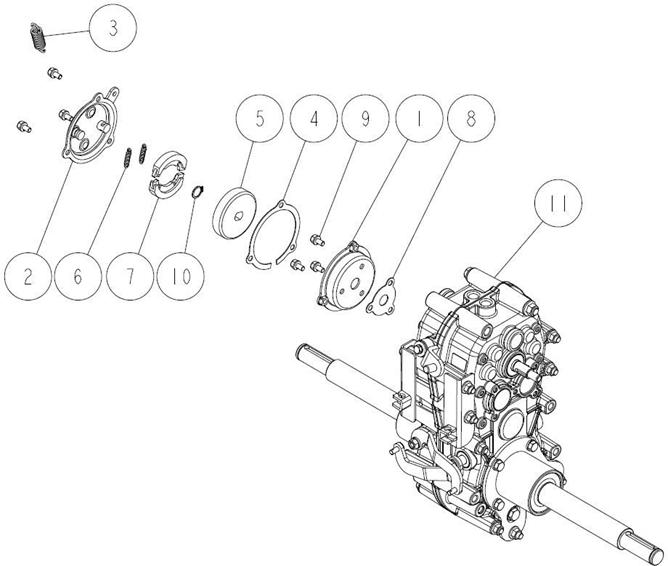

10/24	TRANSMISSION 1/6
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1614-312-00	Brake Cover CMP		1
2	80-1614-314-00	Brake Cover		1
3	80-1614-315-00	Return Spring		1
4	0211-31800	Brake Packing (Large)		1
5	85-1711-315-00	Brake Drum		1
6	85-1711-317-00	Shoe Return Spring		2
7	85-1711-318-00	Brake Shoe Set		1
8	85-1445-317-00	Brake Packing (Small)		1
9	89-1132-060122	Hexagonal Bolt (SW) M6*12		6
10	89-2511-000140	Snap Ring (S14)		1
11	0291-09000	Transmission Assy HR802		1

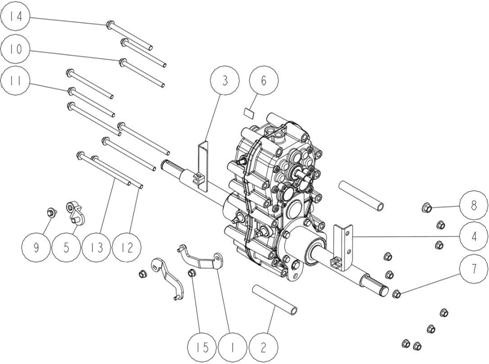

11/24	TRANSMISSION 2/6
*1) Interchangeable *2) HR662 : ~ YD18M00655 *3) HR802 : ~ YG18M00088 *4) HR662 : YD19A00001 ~ *5) HR802 : YG19A00001 ~
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1565-153-00	Side Clutch Arm		2
2	80-1565-159-00	Shaft BB Reinforce Pipe		2
3	80-1565-197-00	Side Clutch Wire Stopper (L)		1
4	80-1614-198-10	Side Clutch Wire Stopper (R)		1
5	0251-04300	Change Arm CMP		1
6	0291-70210	Label, Transmission (HR802)		1	*1) *5)
	0291-70200	Label, Transmission HR802		1	*3)
7	83-1484-255-00	Lock Nut ZUF M8		9
8	83-1493-255-00	Flange Lock Nut M10 (slender)		1
9	83-1565-111-00	Hexagonal Bolt (with Big Washer) M6*16		1
10	89-1253-081153	Flange Mini Hexagonal Bolt (8T) M8*115		2
11	89-1253-081203	Flange Mini Hexagonal Bolt (8T) M8*120		2
12	89-1253-081353	Flange Mini Hexagonal Bolt (8T) M8*135		2
13	89-1253-081403	Flange Mini Hexagonal Bolt (8T) M8*140		3
14	89-1254-101153	Flange Mini Hexagonal Bolt M10*115 P=1.25		1
15	89-1543-080002	Mini Hexagonal Nut (SW) M8		2

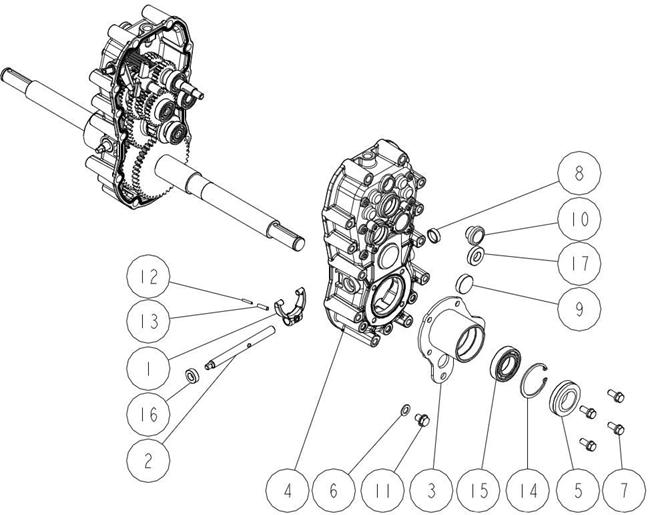

12/24	TRANSMISSION 3/6
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1415-114-00	Side Clutch Fork		1
2	80-1425-112-00	Driving Clutch Folk Shaft		1
3	80-1565-156-00	Shaft BB Case (R)		1
4	0285-00200	Transmission Case (R)		1
5	0297-08000	Oil Seal AP 35.55.16		1
6	83-1020-349-00	Copper Packing 10.5*18*1.6		1
7	83-1415-127-00	Seal Bolt (SW) M8*20		4
8	83-1415-671-00	Blind Cover 22		1
9	83-1415-672-00	Blind Cover 30		1
10	83-1517-685-00	Oil Cap 20		1
11	89-1252-100123	Flange Mini Hexagonal Bolt M10*12 (slender)		1
12	89-2111-030020	Spring Pin 3*20		1
13	89-2111-050020	Spring Pin 5*20		1
14	89-2512-000550	Snap Ring (R55)		1
15	89-3111-060064	Bearing 6006		1
16	89-5121-122207	Oil Seal UE 12.22.7		1
17	89-5121-153007	Oil Seal UE 15.30.7		1

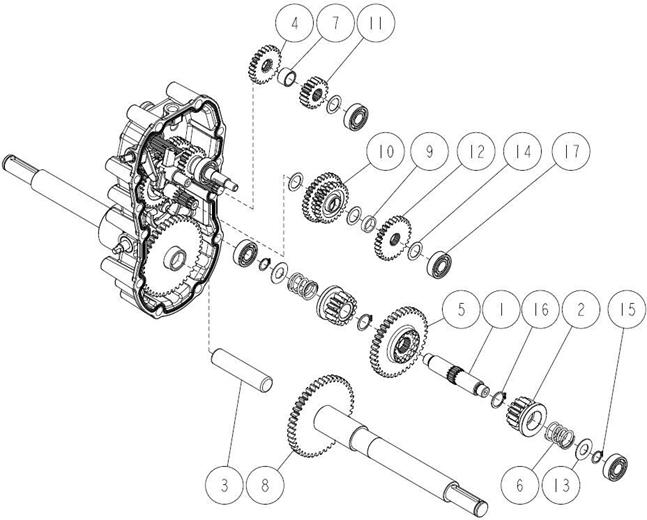

13/24	TRANSMISSION 4/6
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1032-140-00	Side Clutch Shaft		1
2	80-1032-141-00	Side Clutch Gear 14T		2
3	80-1310-150-10	Shaft Pin		1
4	80-1575-129-10	2nd Shaft Gear 24T		1
5	80-1575-142-00	Side Clutch Gear 38T		1
6	80-1575-162-00	Side Clutch Spring		2
7	80-1920-130-00	Collar A		1
8	0204-00100	Axle CMP		1
9	0223-02500	Collar 6L		1
10	0251-01610	3nd Shaft Gear 22T		1
11	0282-00500	2nd Shaft Gear 18T		1
12	0282-00600	3rd Shaft Gear 28T		1
13	83-1633-362-10	Thrust Washer 15*30*1.2		2
14	83-1830-368-00	Thrust Washer 18*26*1.0		4
15	89-2511-000150	Snap Ring (S15)		2
16	89-2511-000200	Snap Ring (S20)		2
17	89-3111-062024	Bearing 6202		4

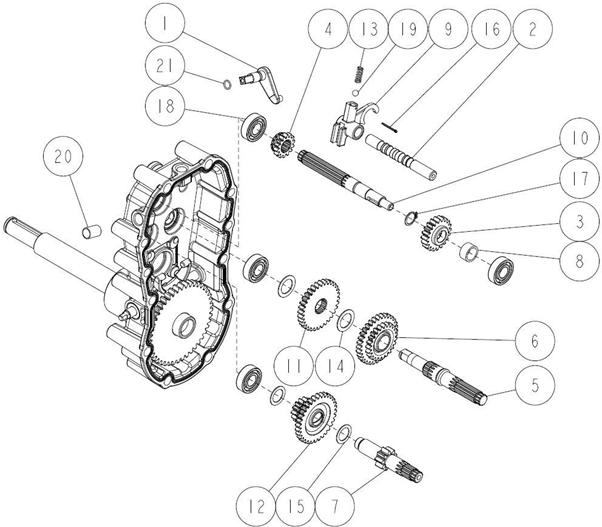

14/24	TRANSMISSION 5/6
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1575-109-00	Swing Arm		1
2	0223-00400	Shift Fork Shaft		1
3	0223-00600	1st Shaft Gear 20T		1
4	0223-00700	1st Shaft Shift Gear 14T		1
5	0223-00800	2nd Shaft		1
6	0223-01200	Back Gear CMP		1
7	0223-01400	3rd Shaft		1
8	0223-02400	Collar 11L		1
9	0251-00300	Shift Folk		1
10	0251-01100	Trasmission 1st Shaft		1
11	0251-01300	2nd Shaft Gear 32T		1
12	0251-02100	3rd Shaft Gear 14T CMP		1
13	0282-00400	Spring		1
14	83-1310-371-00	Thrust Washer 20*30*1.0		2
15	83-1830-368-00	Thrust Washer 18*26*1.0		2
16	89-2120-200202	Split Pin 2*20		1
17	89-2511-000160	Snap Ring (S16)		1
18	89-3111-062024	Bearing 6202		4
19	89-3410-075000	Steel Ball 7.5		1
20	89-3510-012200	DU Bush 12.20		1
21	89-5221-009000	O Ring P9		1

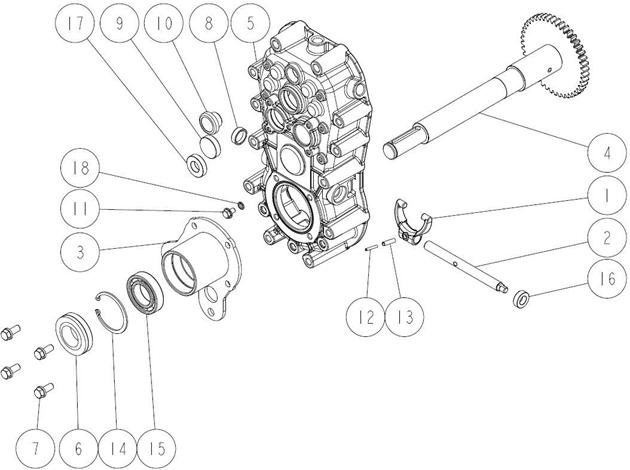

15/24	TRANSMISSION 6/6
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1415-114-00	Side Clutch Fork		1
2	80-1425-112-00	Driving Clutch Folk Shaft		1
3	80-1565-155-00	Shaft BB Case (L)		1
4	0204-00100	Axle CMP		1
5	0251-00110	Transmission Case (L)		1
6	0297-08000	Oil Seal AP 35.55.16		1
7	83-1415-127-00	Seal Bolt (SW) M8*20		4
8	83-1415-671-00	Blind Cover 22		1
9	83-1415-672-00	Blind Cover 30		1
10	83-1517-685-00	Oil Cap 20		1
11	89-1251-060102	Flange Hexagonal Bolt M6*10		1
12	89-2111-030020	Spring Pin 3*20		1
13	89-2111-050020	Spring Pin 5*20		1
14	89-2512-000550	Snap Ring (R55)		1
15	89-3111-060064	Bearing 6006		1
16	89-5121-122207	Oil Seal UE 12.22.7		1
17	89-5121-153007	Oil Seal UE 15.30.7		1
18	89-5230-060000	Seal Washer 6		1

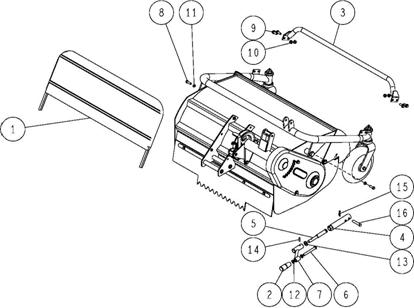

16/24	ROTARY COVER 1/5
*1) Interchangeable *2) HR662 : ~ YD18M00655 *3) HR802 : ~ YG18M00088 *4) HR662 : YD19A00001 ~ *5) HR802 : YG19A00001 ~
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	0204-60700	Safety Cover		1
2	0006-70500	Lever Gripe (Black) 10		1	*1)
	83-1210-425-00	Lever Grip 10		1
3	0204-61200	Front Bumper		1
4	0285-61200	Height Adjusting Bolt Receiver CMP		1
5	0285-62400	Height Adjusting Bolt CMP		1
6	0285-77000	Round Head Pin 10*80		1
7	84-1723-739-00	Cutting Height Adjusting Handle		1
8	89-1211-080252	Mini Hexagonal Bolt M8*25		2
9	89-1253-080202	Flange Mini Hexagonal Bolt (8T) M8*20		4
10	89-1543-080002	Mini Hexagonal Nut (SW) M8		4
11	89-1611-080042	Mini Hexagonal Nut M8		2
12	89-1711-100002	Flat Washer 10*18*1.6		2
13	89-1714-120002	Flat Washer 12		1
14	89-2111-050022	Spring Pin 5*22		1
15	89-2131-100002	Snap Pin 10		1
16	89-2181-100502	Flat Head Pin 10*50		1

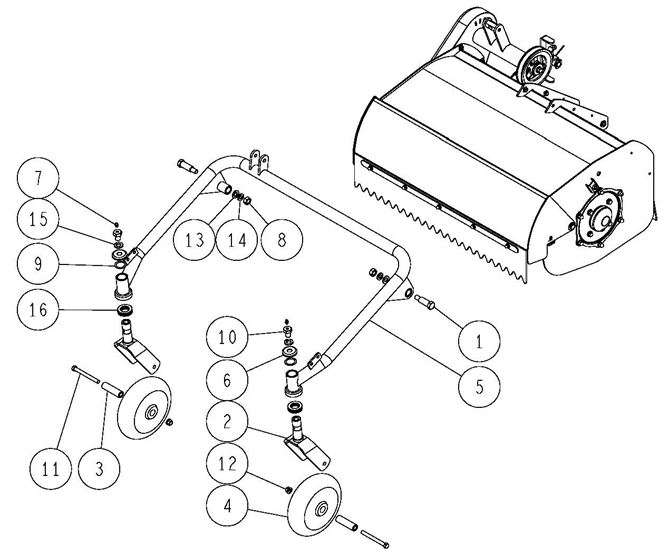

17/24	ROTARY COVER 2/5
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1610-714-00	Front Arm Setting Shaft		2
2	80-1614-725-20	Front Wheel Fork		2
3	80-1614-726-00	Front Wheel Collar		2
4	80-1614-727-00	Front Wheel		2
5	0204-61100	Front Arm CMP		1
6	0256-60700	Dust Cover		2
7	83-1415-975-00	Grease Nipple M6		2
8	83-1610-192-00	Hexagonal Nut (slender) M12 P=1.25		2
9	83-1783-376-00	Thrust Washer 25*34*1.0		2
10	84-1783-791-00	Grease Nipple Bolt M14		2
11	89-1211-100952	Mini Hexagonal Bolt M10*95		2
12	89-1543-100002	Mini Hexagonal Nut (SW) M10		2
13	89-1714-120002	Flat Washer 12		2
14	89-1750-120002	Spring Washer 12		2
15	89-1750-140002	Spring Washer 14		2
16	89-3370-051105	Thrust Bearing 51105		2

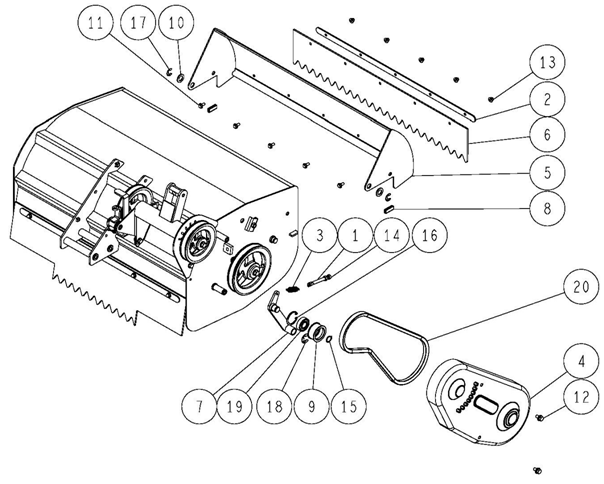

18/24	ROTARY COVER 3/5
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1182-527-00	Tension Pulling Bolt		1
2	0204-60600	Flapper Holder		1
3	80-1614-315-00	Return Spring		1
4	80-1614-694-10	Knife Belt Cover		1
5	0204-60300	Front Cover CMP		1
6	0204-60400	Front Flapper		1
7	0211-63200	Front Tension Arm CMP		1
8	0285-66100	Rubber L30		2
9	83-1032-765-00	Tension Pulley		1
10	83-1630-342-00	Washer 16*26*2.3		2
11	89-1137-060152	Hexagonal Bolt (PW) M6*15		6
12	89-1233-080162	Mini Hexagonal Bolt (PWSW) M8*16		2
13	89-1581-060042	Flange Cap Nut M6		6
14	89-1611-080042	Mini Hexagonal Nut M8		2
15	89-2511-000170	Snap Ring (S17)		1
16	89-2512-000400	Snap Ring (R40)		1
17	89-2521-000120	E Type Ring 12		2
18	89-2521-000150	E Type Ring 15		1
19	89-3115-062034	Bearing 6203 2RS		1
20	89-6123-003902	V Belt SB-39 (W800)		1

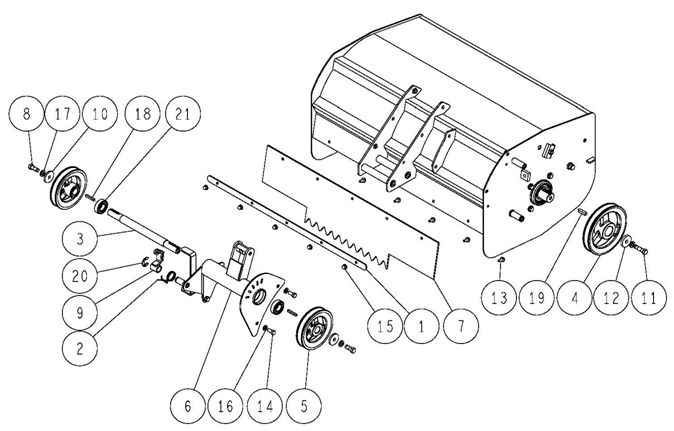

19/24	ROTARY COVER 4/5
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	0204-60600	Flapper Holder		1
2	80-1614-373-20	Knife Brake Spring		1
3	0204-40110	Supporter Shaft		1
4	80-1614-634-20	Knife Pulley 155		1
5	80-1614-636-00	Supporter Pulley		2
6	0204-40200	Supporter Pipe CMP		1
7	0204-60500	Rear Flapper		1
8	0212-72100	Hexagonal Bolt(8T) M10*25(Meck)		2
9	0231-37100	Knife Brake		1
10	83-1610-321-00	Washer 10*36*4.5		2
11	83-1610-125-00	Hexagonal Bolt (8T) M10*35		1
12	83-1610-322-00	Washer 10*36*6		1
13	89-1137-060152	Hexagonal Bolt (PW) M6*15		6
14	89-1213-080182	Mini Hexagonal Bolt (8T) M8*18		4
15	89-1581-060042	Flange Cap Nut M6		6
16	89-1750-080002	Spring Washer 8		4
17	89-1750-100002	Spring Washer 10		3
18	89-2151-050350	Key 5*35 (half round)		2
19	89-2151-070300	Key 7*30 (half round)		1
20	89-2521-000150	E Type Ring 15		1
21	89-3115-060044	Bearing 6004 2RS		2

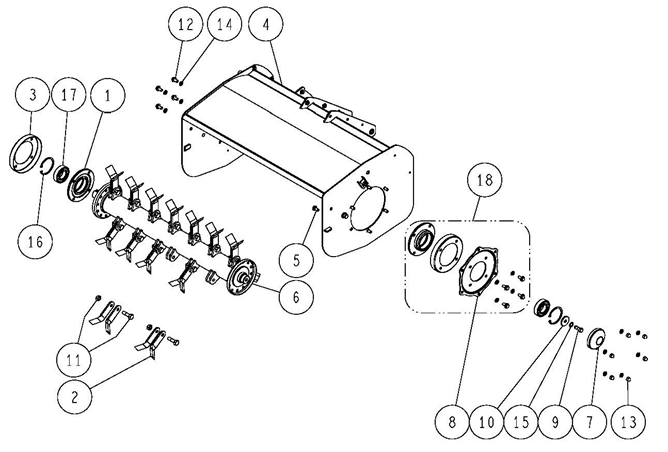

20/24	ROTARY COVER 5/5
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1610-804-00	BB Case		2
2	80-1610-821-00	Hammer Knife Blade		46
3	80-1612-813-00	Dust Cover		2
4	0204-60110	Rotary Cover CMP		1
5	80-1614-705-00	Flat Head Bolt M8*18		6
6	0204-50000	Knife Drum ASSY		1
7	80-1614-810-00	BB Case Cover		1
8	0285-60400	Knife Shaft BB Case Holder		1
9	83-1610-124-00	Hexagonal Bolt (8T) M10*25 (left screw)		1
10	83-1610-321-00	Washer 10*36*4.5		1
11	83-1610-835-00	Knife Setting Bolt Set		23
12	89-1253-080162	Flange Mini Hexagonal Bolt (8T) M8*16		8
13	89-1671-080042	Mini Cap Nut M8		6
14	89-1750-080002	Spring Washer 8		14
15	89-1812-100002	Toothed washer (inside) 10		1
16	89-2512-000620	Snap Ring (R62)		2
17	89-3115-062064	Bearing 6206 2RS		2
18	0285-60100	Knife Shaft BB Case Set		1

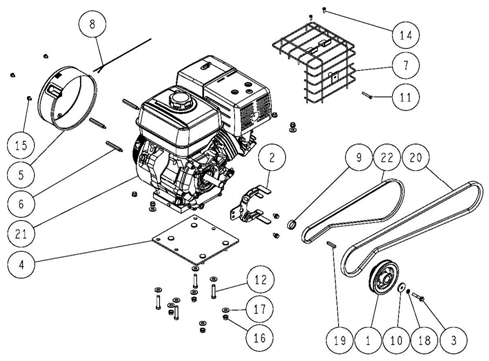

22/24	ENGINE (GX340) 1/1
*1) Interchangeable *2) HR662 : ~ YD18M00655 *3) HR802 : ~ YG18M00088 *4) HR662 : YD19A00001 ~ *5) HR802 : YG19A00001 ~
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	80-1614-514-20	Engine Pulley 132		1
2	0291-40100	Belt Holder (GX270.340)		1
3	0299-71200	Hexagonal Bolt(8T) M8*45(Meck)		1
4	0302-21100	Engine Base CMP (GX340)		1
5	0302-60200	Recoil Cover CMP (GX340)		1
6	0304-61800	Recoil Cover Setting Bolt (GX270.340)		3
7	0304-62400	Muffler Guard CMP (GX340)		1
8	0304-72100	Lead Wire 300L (GX270.340)		1	*5)
9	0310-40200	Engine Collar φ34		1
10	83-1565-315-00	Washer 8*36*4.5		1
11	89-1113-060402	Hexagonal Bolt (8T) M6*40		1
12	89-1211-100502	Mini Hexagonal Bolt M10*50		4	*5)
	89-1211-100452	Mini Hexagonal Bolt M10*45		4	*3)
13	89-1233-080162	Mini Hexagonal Bolt (PWSW) M8*16		2
14	89-1251-050163	Flange Hexagonal Bolt M5*16		2
15	89-1251-060102	Flange Hexagonal Bolt M6*10		3
16	89-1543-100002	Mini Hexagonal Nut (SW) M10		8
17	89-1713-100002	Flat Washer 10 (large)		10
18	89-1750-080002	Spring Washer 8		1
19	89-2151-070400	Key 7*40 (harf round)		1
20	89-6123-006302	V Belt SB-63 (W800)		1
21	GX340T2	GX340UT2 SE		1
22	89-6122-004602	V Belt SA-46 (W800)		1

23/24

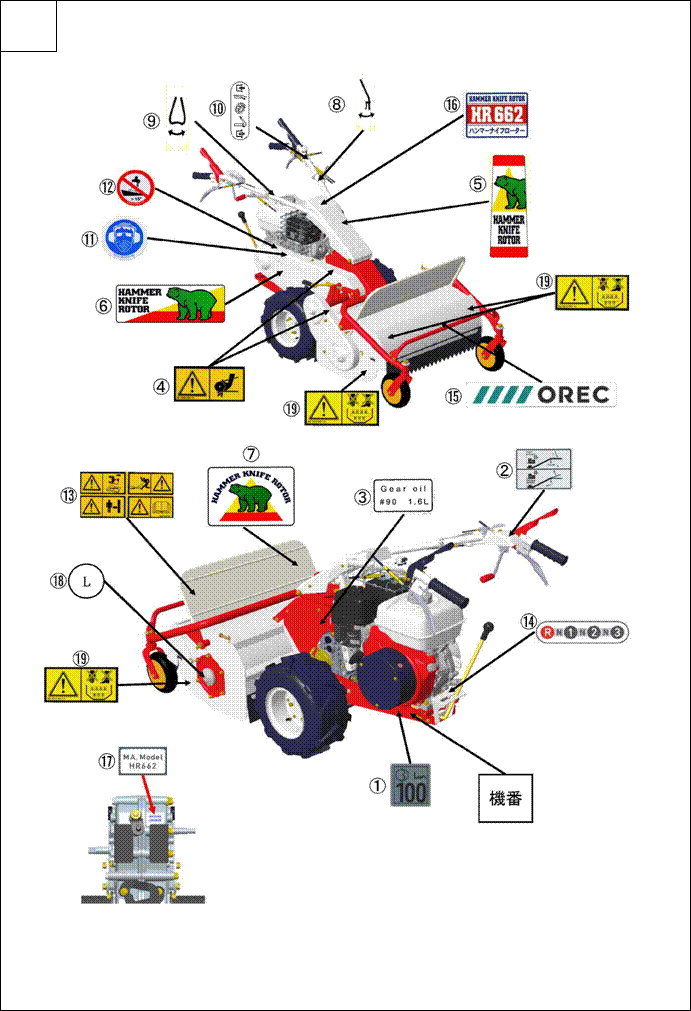

LABEL 1/2

24/24	LABEL 2/2
	*1) *2) *4)	Interchangeable HR662 : ~ YD18M00655 HR662 : YD19A00001 ~	*3) *5)	HR802 : ~ YG18M00088 HR802 : YG19A00001 ~
Ref.	Parts Number	Parts Name	Quantity		Remarks
				HR802
1	0202-74400	Label, Noise 104db		1
2	80-1417-918-10	Label, Cutting		1
3	80-1484-928-00	Label,Oil Quantity 1.6L		1
4	80-1488-928-10	Label, Caution for Belt Involving		2
5	80-1614-904-00	Label, Bonnet		1
6	80-1614-905-00	Label, Belt Case		1
7	80-1614-906-00	Label, Safety Cover		1
8	80-1614-917-00	Label, Handle Up/Down		1
9	80-1614-918-00	Label, Handle Right/Left		1
10	0211-70600	Label, Driving		1
11	0215-83200	Label, Protection Equipment		1
12	0223-72910	Attention Mark for Slope		1
13	0223-76100	Label, Caution (Large)		1
14	0256-72500	Label, Change		1	*1) *4) *5)
	0251-70400	Label, Change		1	*2) *3)
15	0291-70100	Label, Model HR802		1
16	0291-70210	Label, Transmission (HR802)		1	*1) *5)
	0291-70200	Label, Transmission HR802		1	*3)
17	0285-70500	Label, New Logo OREC B09		1	*1)
	83-1050-901-00	Label, OREC		1
18	0304-71500	Label for Left Screw		1
19	83-1613-907-10	Label, Caution for Hand and Leg		4
20	-	Serial Number		1
21	0334-76500	Label, Switch(ON-OFF)		1	*4) *5)
