OREC                          ISSUED NO. HR672/812/OH-1

Parts catalogue FLAIL MOWER

(EXPORT MODEL)

HR672-OH HR812-OH



MODEL              CODE

HR672/H            0285-○○○○○

HR812/H            0291-○○○○○











CONTENTS



Fig. 1

HANDLE ------------------------

1

Fig. 2

FRAME --------------------------

3

Fig. 3

TRANSMISSION --------------

8

Fig. 4

ROTARY COVER -------------

14

Fig. 5

ENGINE -------------------------

19

Fig. 6

LABEL ---------------------------

21



OREC CO.,LTD

Update : Dec. 2016

1/22

HANDLE    1/2



Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1415-223-00

Handle Bonnet

1

1



2

80-1417-253-00

Stopper

1

1



3

80-1417-255-00

Lever Grip (Red) 10

1

1



4

80-1417-918-10

Label, Cutting

1

1



5

80-1614-280-00

Switch Assy

1

1



6

80-1614-917-00

Label, Handle Up/Down

1

1



7

80-1614-918-00

Label, Handle Right/Left

1

1



8

83-1110-965-00

Handle Up/Down, Right/Left Wire

2

2



9

83-1415-453-10

Lever 27-05-0822S

2

2



10

83-1614-932-00

Tension Wire

1

1



11

89-1137-060122

Hexagonal Bolt (PW) M6*12

1

1



12

89-1158-060102

Cross recess Headed Screw (PWSW

4

4



13

89-2521-000050

E Type Ring 5

2

2



14

89-2521-000100

E Type Ring 10

1

1



15

0211-20400

Blade Tension Lever

1

1



16

0211-20500

Upper Cover

1

1



17

0211-70410

Stopper Return Spring

1

1





2/22

HANDLE    2/2





Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1417-971-10

Blade Clutch Lever Return Spring

1

1



2

83-1530-463-00

Throttle Lever 27 (Steel)

1

1



3

83-1560-414-00

Handle Grip 27

2

2



4

83-1614-932-10

Tension Wire

1

1



5

83-1614-962-10

Side Clutch Wire

2

2



6

83-1761-457-00

Side Clutch Lever

2

2



7

89-1113-060602

Hexagonal Bolt (8T) M6*60

2

2



8

89-1551-060002

Hexagonal U Nut M6

2

2



9

89-2120-200152

Split Pin 2*15

1

1



10

89-2131-060002

Snap Pin 6

2

2



11

89-2521-000050

E Type Ring 5

1

1



12

0211-20100

Handle CMP

1

1



13

0211-20200

Driving Clutch Lever

1

1



14

0211-20300

Blade Clutch Lever

1

1



15

0211-20600

Brake Spring

1

1



16

0211-70510

Brake Wire

1

1



17

0211-70600

Label, Driving

1

1



18

0301-70500

Label, Throttle(GX270.340)

1

1



19

0301-71200

Throttle Wire (GX270.340)

1

1



3/22

FRAME    1/5











Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1565-413-10

Wheel Boss

2

2



2

80-1614-746-10

Side Cover

1

1



3

80-1751-411-00

Tire (L) Assy (16*7.00-8)

1

1



4

80-1751-412-00

Tire (R) Assy (16*7.00-8)

1

1



5

0302-60100

Belt Cover Outside CMP (GX340)



1



0304-62100

Belt Cover Outside CMP (GX270)

1





6

89-1111-100202

Hexagonal Bolt M10*20

8

8



7

89-1137-060152

Hexagonal Bolt (PW) M6*15

3

3



8

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3

3



9

89-1511-100042

Hexagonal Nut M10

8

8



10

89-1750-100002

Spring Washer 10

8

8



11

89-2150-070500

Key 7*50 (round)

2

2



12

89-2511-000220

Snap Ring (S22)

2

2





4/22

FRAME    2/5















Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1210-216-00

Stopper Pin

2

2



2

80-1210-217-00

Stopper Spring

2

2



3

80-1210-222-00

Handle Setting Collar

1

1



4

80-1310-203-00

Turntable for Handle

1

1



5

80-1310-215-00

Stopper Cap

2

2



6

80-1310-228-00

Handle Fix Nut

2

2



7

0302-10100

Handle Up/Down Stopper Arm CMP

1

1



8

83-1210-133-00

Setting Bolt M12*160

1

1



9

89-1211-100202

Mini Hexagonal Bolt M10*20

2

2



10

89-1750-100002

Spring Washer 10

2

2



11

89-1750-120002

Spring Washer 12

2

2



12

89-2511-000850

Snap Ring (S85)

1

1



13

Handle Part

-

1

1

Page 1 ～

14

Engine Part

-

1

1

Page 19 ～



5/22

FRAME    3/5











Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1560-551-00

Return Spring

2

2



2

80-1614-374-30

Brake Rod

1

1



3

80-1614-521-00

Transmission Pulley

1

1



4

80-1614-552-00

Tension Spring

2

2



5

0225-40600

Belt Holder

1

1



6

0211-54200

Driving Tension Arm

1

1



7

0256-40400

Knife Tension Arm

1

1



8

83-1032-760-00

Tension Pulley Assy

2

2



9

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

1

1



10

89-1543-100002

Mini Hexagonal Nut (SW) M10

1

1



11

89-1713-100002

Flat Washer 10 (large)

1

1



12

89-2150-050200

Key 5*20 (round)

1

1



13

89-2511-000170

Snap Ring (S17)

2

2



14

89-2521-000150

E Type Ring 15

2

2



6/22

FRAME    4/5











Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

0253-16100

Change Lever CMP

1

1



2

0302-22100

Change Guide CMP (GX340)



1



0253-22410

Change Guide CMP

1





3

0253-22500

Change Rod Setting

1

1



4

0253-79100

Lever Grip 12.7

1

1



5

0256-20510

Rear Bracket

1

1



6

0285-10100

Under Bonnet CMP(GX270.340)

1

1



7

0304-62200

Belt Cover Inside CMP (GX270.340)

1

1



8

89-1211-100162

Mini Hexagonal Bolt M10*16

2

2



9

0244-83200

Mini Hexagonal Bolt (PWSW) M10*25 (7T Lock)



4



89-1213-100202

Mini Hexagonal Bolt (8T) M10*20

4





10

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

6

6



11

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

5

5



12

89-1253-080162

Flange Mini Hexagonal Bolt (8T) M8*

2

2



13

89-1750-080002

Spring Washer 8

2

2



14

89-1750-100002

Spring Washer 10

6

2



15

Rotary Cover Part

-

1

1

Page 14 ～

7/22

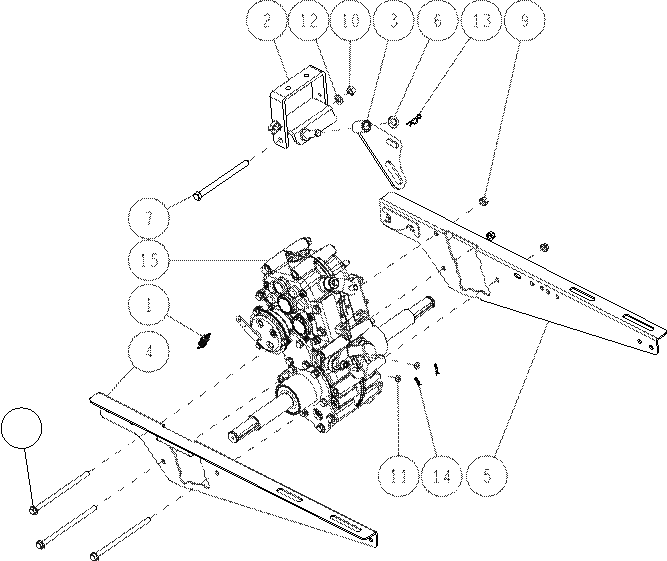

FRAME    5/5





Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1614-315-00

Return Spring

1

1



2

0251-11300

Change Plate

1

1



3

0253-11500

Change Lever Arm CMP

1

1



4

0304-20100

Main Frame (L) CMP (HRC:GX340)



1



0301-20100

Main Frame (L) CMP

1





5

0304-20200

Main Frame (R) CMP (HRC:GX340)



1



0301-20200

Main Frame (R) CMP

1





6

83-1565-329-00

Washer 13*22*2.3

1

1



7

89-1213-101302

Mini Hexagonal Bolt (8T) M10*130

1

1



8

89-1253-081453

Flange Mini Hexagonal Bolt (8T) M8*145

3

3



9

89-1543-080002

Mini Hexagonal Nut (SW) M8

3

3



10

89-1611-100042

Mini Hexagonal Nut M10

1

1



11

89-1711-060002

Flat Washer 6

2

2



12

89-1750-100002

Spring Washer 10

1

1



13

89-2131-120002

Snap Pin 12

1

1



14

89-2132-060002

Snap Pin 6 (with stopper)

2

2



15

Transmission Part

-

1

1

Page 8 ～

8/22

TRANSMISSION     1/6









Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1614-312-00

Brake Cover CMP

1

1



2

80-1614-314-00

Brake Cover

1

1



3

80-1920-153-00

Side Clutch Arm

2

2



4

80-1920-313-00

Brake Cover Spacer

1

1



5

0211-31800

Brake Packing (Large)

1

1



6

85-1711-315-00

Brake Drum

1

1



7

85-1711-317-00

Shoe Return Spring

2

2



8

85-1711-318-00

Brake Shoe Set

1

1



9

85-1445-317-00

Brake Packing (Small)

1

1



10

89-1132-060122

Hexagonal Bolt (SW) M6*12

3

3



11

89-1132-060252

Hexagonal Bolt (SW) M6*25

3

3



12

89-1543-080002

Mini Hexagonal Nut (SW) M8

2

2



13

89-2511-000140

Snap Ring (S14)

1

1



14

0291-08000

Transmission Case Assy (HR812)



1



0285-08000

Transmission Case Assy (HR672)

1







9/22

TRANSMISSION     2/6





Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1565-159-00

Shaft BB Reinforce Pipe

2

2



2

80-1920-197-00

Side Clutch Wire Receiver (L)

1

1



3

80-1920-198-00

Side Clutch Wire Receiver (R)

1

1



4

0251-04300

Change Arm CMP

1

1



5

0291-70800

Label, Transmission HR812



1



0285-70800

Label, Transmission HR672

1





6

83-1020-349-00

Copper Packing 10.5*18*1.6

1

1



7

83-1484-255-00

Lock Nut ZUF M8

9

9



8

83-1493-255-00

Flange Lock Nut M10 (slender)

1

1



9

83-1565-111-00

Hexagonal Bolt (with Big Washer) M6*16

1

1



10

89-1251-100122

Flange Mini Hexagonal Bolt M10*12

1

1



11

89-1253-081153

Flange Mini Hexagonal Bolt (8T) M8*115

2

2



12

89-1253-081203

Flange Mini Hexagonal Bolt (8T) M8*120

2

2



13

89-1253-081353

Flange Mini Hexagonal Bolt (8T) M8*135

4

4



14

89-1253-081403

Flange Mini Hexagonal Bolt (8T) M8*140

1

1



15

89-1254-101153

Flange Mini Hexagonal Bolt M10*115 P=1.25

1

1





10/22

TRANSMISSION     3/6



Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1415-114-00

Side Clutch Fork

1

1



2

80-1425-112-00

Driving Clutch Folk Shaft

1

1



3

80-1575-152-10

Side Clutch Shaft BB Case

1

1



4

0285-00400

Shaft BB Case (R) (HR672)

1

1



5

0297-08000

Oil Seal AP 35.55.16

1

1



6

0301-00210

Transmission Case (R )

1

1



7

83-1415-127-00

Seal Bolt (SW) M8*20

4

4



8

83-1415-671-00

Blind Cover 22

1

1



9

83-1415-672-00

Blind Cover 30

2

2



10

83-1517-685-00

Oil Cap 20

1

1



11

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

4

4



12

89-2111-030020

Spring Pin 3*20

1

1



13

89-2111-050020

Spring Pin 5*20

1

1



14

89-2512-000550

Snap Ring (R55)

1

1



15

89-3111-060064

Bearing 6006

2

2



16

89-5121-122207

Oil Seal UE 12.22.7

1

1



17

89-5121-153007

Oil Seal UE 15.30.7

1

1



11/22

TRANSMISSION     4/6



Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1575-129-10

2nd Shaft Gear 24T

1

1



2

80-1575-140-00

Side Clutch Shaft

1

1



3

80-1575-141-00

Side Clutch Gear 14T

2

2



4

80-1575-142-00

Side Clutch Gear 38T

1

1



5

80-1575-162-00

Side Clutch Spring

2

2



6

80-1920-130-00

Collar Ａ

1

1



7

80-1920-147-00

Axle Collar

1

1



8

0223-02500

Collar 6L

1

1



9

0251-01610

3nd Shaft Gear 22T

1

1



10

0282-00500

2nd Shaft Gear 18T

1

1



11

0282-00600

3rd Shaft Gear 28T

1

1



12

0291-00100

Axle CMP (HR812)



1



0285-00100

Axle CMP (HR672)

1





13

83-1633-362-10

Thrust Washer 15*30*1.2

2

2



14

83-1830-368-00

Thrust Washer 18*26*1.0

4

4



15

89-2511-000150

Snap Ring (S15)

2

2



16

89-2511-000200

Snap Ring (S20)

2

2



17

89-3111-062024

Bearing 6202

4

4



12/22

TRANSMISSION     5/6



Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1575-109-00

Swing Arm

1

1



2

0223-00400

Shift Fork Shaft

1

1



3

0223-00600

1st Shaft Gear 20T

1

1



4

0223-00700

1st Shaft Shift Gear 14T

1

1



5

0223-01200

Back Gear CMP

1

1



6

0223-01400

3rd Shaft

1

1



7

0223-02400

Collar 11L

1

1



8

0251-00300

Shift Folk

1

1



9

0251-01100

Trasmission 1st Shaft

1

1



10

0251-01300

2nd Shaft Gear 32T

1

1



11

0251-02100

3rd Shaft Gear 14T CMP

1

1



12

0282-00400

Spring

1

1



13

0301-00500

2nd Shaft

1

1



14

83-1310-371-00

Thrust Washer 20*30*1.0

2

2



15

83-1830-368-00

Thrust Washer 18*26*1.0

2

2



16

89-2120-200202

Split Pin 2*20

1

1



17

89-2511-000160

Snap Ring (S16)

1

1



18

89-3111-062024

Bearing 6202

4

4



19

89-3410-075000

Steel Ball 7.5

1

1



20

89-3510-012200

DU Bush 12.20

1

1



21

89-5221-009000

O Ring P9

1

1



13/22

TRANSMISSION     6/6







Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1415-114-00

Side Clutch Fork

1

1



2

80-1425-112-00

Driving Clutch Folk Shaft

1

1



3

80-1575-152-10

Side Clutch Shaft BB Case

1

1



4

0291-00100

Axle CMP (HR812)



1



0285-00100

Axle CMP (HR672)

1





5

0285-00300

Shaft BB Case (L) (HR672)

1

1



6

0297-08000

Oil Seal AP 35.55.16

1

1



7

0301-00110

Transmission Case (L )

1

1



8

83-1415-127-00

Seal Bolt (SW) M8*20

4

4



9

83-1415-671-00

Blind Cover 22

1

1



10

83-1415-672-00

Blind Cover 30

2

2



11

83-1517-685-00

Oil Cap 20

1

1



12

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

4

4



13

89-1251-060102

Flange Hexagonal Bolt M6*10

1

1



14

89-2111-030020

Spring Pin 3*20

1

1



15

89-2111-050020

Spring Pin 5*20

1

1



16

89-2512-000550

Snap Ring (R55)

1

1



17

89-3111-060064

Bearing 6006

2

2



18

89-5121-122207

Oil Seal UE 12.22.7

1

1



19

89-5121-153007

Oil Seal UE 15.30.7

1

1



20

89-5230-060000

Seal Washer 6

1

1



14/22

ROTARY COVER     1/5







Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

0204-60700

Safety Cover



1



80-1613-733-10

Safety Cover

1





2

80-1614-906-00

Label, Safety Cover

1





3

0204-61200

Front Bumper



1



0211-60500

Front Bumper

1





4

0223-76100

Label, Caution (Large)

1

1



5

0285-61200

Height Adjusting Bolt Receiver CMP

1

1



6

0285-62400

Height Adjusting Bolt CMP

1

1



7

0285-77000

Round Head Pin 10*80

1

1



8

83-1210-425-00

Lever Grip 10

1

1



9

84-1723-739-00

Cutting Height Adjusting Handle

1

1



10

89-1211-080252

Mini Hexagonal Bolt M8*25

2

2



11

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*

4

4



12

89-1543-080002

Mini Hexagonal Nut (SW) M8

4

4



13

89-1611-080042

Mini Hexagonal Nut M8

2

2



14

89-1711-100002

Flat Washer 10*18*1.6

2

2



15

89-1714-120002

Flat Washer 12

1

1



16

89-2111-050022

Spring Pin 5*22

1

1



17

89-2131-100002

Snap Pin 10

1

1



18

89-2181-100502

Flat Head Pin 10*50

1

1





15/22

ROTARY COVER     2/5





Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1610-714-00

Front Arm Setting Shaft

2

2



2

80-1614-725-20

Front Wheel Fork

2

2



3

80-1614-726-00

Front Wheel Collar

2

2



4

80-1614-727-00

Front Wheel

2

2



5

0204-61100

Front Arm CMP



1



0211-60400

Front Arm CMP

1





6

0256-60700

Dust Cover

2

2



7

83-1415-975-00

Grease Nipple M6

2

2



8

83-1610-192-00

Hexagonal Nut (slender) M12 P=1.25

2

2



9

83-1613-907-10

Label, Caution for Hand and Leg

2

2



10

83-1783-376-00

Thrust Washer 25*34*1.0

2

2



11

84-1783-791-00

Grease Nipple Bolt M14

2

2



12

89-1211-100952

Mini Hexagonal Bolt M10*95

2

2



13

89-1543-100002

Mini Hexagonal Nut (SW) M10

2

2



14

89-1714-120002

Flat Washer 12

2

2



15

89-1750-120002

Spring Washer 12

2

2



16

89-1750-140002

Spring Washer 14

2

2



17

89-3370-051105

Thrust Bearing 51105

2

2





16/22

ROTARY COVER     3/5





Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1182-527-00

Tension Pulling Bolt

1

1



2

80-1488-928-10

Label, Caution for Belt Involving

1

1



3

0204-60600

Flapper Holder



1



80-1610-787-00

Flapper Holder

1





4

80-1614-315-00

Return Spring

1

1



5

80-1614-694-10

Knife Belt Cover

1

1



6

0204-60300

Front Cover CMP



1



80-1614-764-00

Front Cover CMP

1





7

0204-60400

Front Flapper



1



80-1614-781-10

Front Flapper

1





8

0211-63200

Front Tension Arm CMP

1

1



9

83-1032-765-00

Tension Pulley

1

1



10

83-1630-342-00

Washer 16*26*2.3

2

2



11

89-1137-060152

Hexagonal Bolt (PW) M6*15

5

6



12

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2

2



13

89-1581-060042

Flange Cap Nut M6

5

6



14

89-1611-080042

Mini Hexagonal Nut M8

2

2



15

89-2511-000170

Snap Ring (S17)

1

1



16

89-2512-000400

Snap Ring (R40)

1

1



17

89-2521-000120

E Type Ring 12

2

2



18

89-2521-000150

E Type Ring 15

1

1



19

89-3115-062034

Bearing 6203 2RS

1

1



20

89-6123-003902

V Belt SB-39 (W800)



1



89-6123-003901

V Belt LBR-39

1





17/22

ROTARY COVER     4/5





Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

0204-60600

Flapper Holder



1



80-1610-787-00

Flapper Holder

1





2

80-1614-373-20

Knife Brake Spring

1

1



3

0204-40110

Supporter Shaft



1



80-1614-621-30

Supporter Shaft

1





4

80-1614-634-20

Knife Pulley 155

1

1



5

80-1614-636-00

Supporter Pulley

2

2



6

0204-40200

Supporter Pipe CMP



1



80-1614-691-30

Supporter Pipe CMP

1





7

0204-60500

Rear Flapper



1



80-1614-782-10

Rear Flapper

1





8

0212-72100

Hexagonal Bolt(8T) M10*25(Meck)

2

2



9

0231-37100

Knife Brake

1

1



10

83-1565-315-00

Washer 8*36*4.5

2

2



11

83-1610-125-00

Hexagonal Bolt (8T) M10*35

1

1



12

83-1610-322-00

Washer 10*36*6

1

1



13

89-1137-060152

Hexagonal Bolt (PW) M6*15

5

6



14

89-1213-080182

Mini Hexagonal Bolt (8T) M8*18

4

4



15

89-1581-060042

Flange Cap Nut M6

5

6



16

89-1750-080002

Spring Washer 8

4

4



17

89-1750-100002

Spring Washer 10

3

3



18

89-2151-050350

Key 5*35 (half round)

2

2



19

89-2151-070300

Key 7*30 (half round)

1

1



20

89-2521-000150

E Type Ring 15

1

1



21

89-3115-060044

Bearing 6004 2RS

2

2



18/22

ROTARY COVER     5/5









Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1610-804-00

BB Case

2

2



2

80-1610-821-00

Hammer Knife Blade

38

46



3

80-1612-813-00

Dust Cover

2

2



4

0204-60110

Rotary Cover CMP



1



80-1614-703-30

Rotary Cover CMP

1





5

80-1614-705-00

Flat Head Bolt M8*18

6

6



6

0204-50000

Knife Drum ASSY



1



80-1614-800-00

Knife Drum ASSY

1





7

80-1614-810-00

BB Case Cover

1

1



8

0285-60400

Knife Shaft BB Case Holder

1

1



9

83-1610-124-00

Hexagonal Bolt (8T) M10*25 (left scr

1

1



10

83-1610-321-00

Washer 10*36*4.5

1

1



11

83-1610-835-00

Knife Setting Bolt Set

19

23



12

83-1613-907-10

Label, Caution for Hand and Leg

2

2



13

89-1253-080162

Flange Mini Hexagonal Bolt (8T) M8*

8

8



14

89-1671-080042

Mini Cap Nut M8

6

6



15

89-1750-080002

Spring Washer 8

14

14



16

89-1812-100002

Toothed washer (inside) 10

1

1



17

89-2512-000620

Snap Ring (R62)

2

2



18

89-3115-062064

Bearing 6206 2RS

2

2



19

0285-60100

Knife Shaft BB Case Set

1

1





19/22

ENGINE     1/2



Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1614-514-20

Engine Pulley 132

1





2

80-1614-561-20

Belt Holder

1





3

0211-31100

Whirl Stop Plate A10 (H14)

4





4

0304-61400

Recoil Cover CMP (GX270)

1





5

0304-61800

Recoil Cover Setting Bolt (GX270.34

3





6

0304-62300

Supplementary Cover, Honda Engine

1





7

0304-62500

Muffler Guard CMP (GX270)

1





8

0304-72100

Lead Wire 300L (GX270.340)

1





9

0334-20200

Engine Fitting Plate with Bolt

2





10

83-1565-315-00

Washer 8*36*4.5

1





11

89-1111-060352

Hexagonal Bolt M6*35

1





12

89-1211-100402

Mini Hexagonal Bolt M10*40

4





13

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3





14

89-1251-050163

Flange Hexagonal Bolt M5*16

2





15

89-1251-060102

Flange Hexagonal Bolt M6*10

3





16

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*

1





17

89-1543-100002

Mini Hexagonal Nut (SW) M10

8





18

89-1713-100002

Flat Washer 10 (large)

6





19

89-1750-080002

Spring Washer 8

1





20

89-2151-070400

Key 7*40 (harf round)

1





21

9009-0271

GX270UT2 SAX4

1





22

89-6123-006301

V Belt SBR-63

1





23

89-6122-004601

V Belt SAR-46

1





20/22

ENGINE     2/2



Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1614-514-20

Engine Pulley 132



1



2

0291-40100

Belt Holder (GX270.340)



1



3

0299-71200

Hexagonal Bolt(8T) M8*45(Meck)



1



4

0302-21100

Engine Base CMP (GX340)



1



5

0302-60200

Recoil Cover CMP (GX340)



1



6

0304-61800

Recoil Cover Setting Bolt (GX270.340)

3



7

0304-62300

Supplementary Cover, Honda Engine

1



8

0304-62400

Muffler Guard CMP (GX340)



1



9

0304-72100

Lead Wire 300L (GX270.340)



1



10

0310-40200

Engine Collar φ34



1



11

83-1565-315-00

Washer 8*36*4.5



1



12

89-1111-060352

Hexagonal Bolt M6*35



1



13

89-1211-100502

Mini Hexagonal Bolt M10*50



4



14

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16



3



15

89-1251-050163

Flange Hexagonal Bolt M5*16



2



16

89-1251-060102

Flange Hexagonal Bolt M6*10



3



17

89-1543-100002

Mini Hexagonal Nut (SW) M10



8



18

89-1713-100002

Flat Washer 10 (large)



10



19

89-1750-080002

Spring Washer 8



1



20

89-2151-070400

Key 7*40 (harf round)



1



21

89-6123-006302

V Belt SB-63 (W800)



1



22

9010-0071

GX340UT2 SE



1



23

89-6122-004602

V Belt SA-46 (W800)



1





21/22

LABEL    1/2





⑭

⑳  L              ④

⑱

⑥





② ①

⑯                    serial

number







21          ⑧

⑤                          ⑬       ⑫

➃





⑮





⑩

⑦

⑨          ⑱











③           ⑲             ➃

22/22

LABEL    2/2



Ref.

Parts Number

Parts Name

Quantity

Remarks

HR672

HR812

1

80-1010-933-00

Label, CE

1





2

80-1020-932-00

Label, Noise 100db

1





0202-74400

Label, Noise 104db



1



3

80-1417-918-10

Label, Cutting

1

1



4

80-1484-928-00

Label,Oil Quantity 1.6L

1

1



5

80-1488-928-10

Label, Caution for Belt Involving

2

2



6

80-1614-904-00

Label, Bonnet

1

1



7

80-1614-905-00

Label, Belt Case

1

1



8

80-1614-906-00

Label, Safety Cover

1

1



9

80-1614-917-00

Label, Handle Up/Down

1

1



10

80-1614-918-00

Label, Handle Right/Left

1

1



11

0211-70600

Label, Driving

1

1



12

0215-83200

Label, Protection Equipment

1

1



13

0223-72910

Attention Mark for Slope

1

1



14

0223-76100

Label, Caution (Large)

1

1



15

0251-70400

Label, Change

1

1



16

0285-70500

Label, New Logo OREC B09

1

1



17

0285-70700

Label, Model HR672

1





0291-70700

Label, Model HR812



1



18

0285-70800

Label, Transmission HR672

1





0291-70800

Label, Transmission HR812



1



19

0301-70500

Label, Throttle(GX270.340)

1

1



20

0304-71500

Label for Left Screw

1

1



21

83-1613-907-10

Label, Caution for Hand and Leg

4

4
