OREC                                         ISSUED NO. HR662-1

Parts catalogue FLAIL MOWER

(EXPORT MODEL) HR662/802

MODEL                       CODE

HR662                0285-○○○○○

HR802                0291-○○○○○










HANDLE

CONTENTS

-------------------------------------------- 1

FRAME----------------------------------------------- 3

TRANSMISSION---------------------------------- 9

ROTARY COVER------------------------------- 14

CRAWLER----------------------------------------- 19

OREC CO.,LTD

Updated since November, 2010

1/18

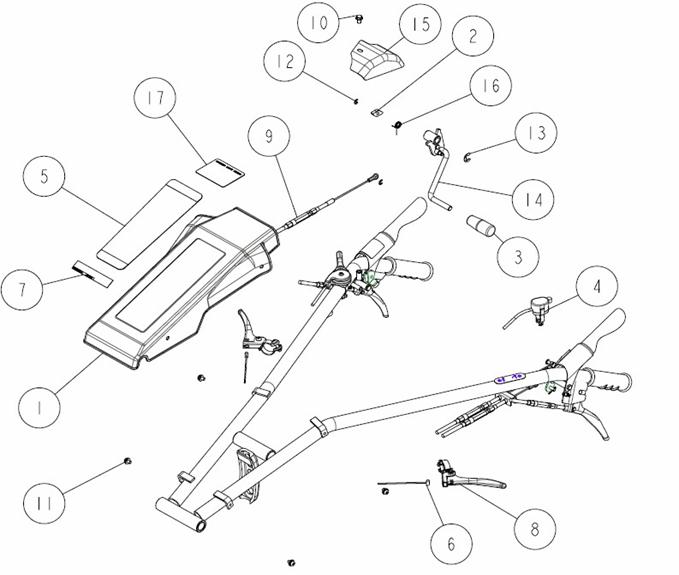

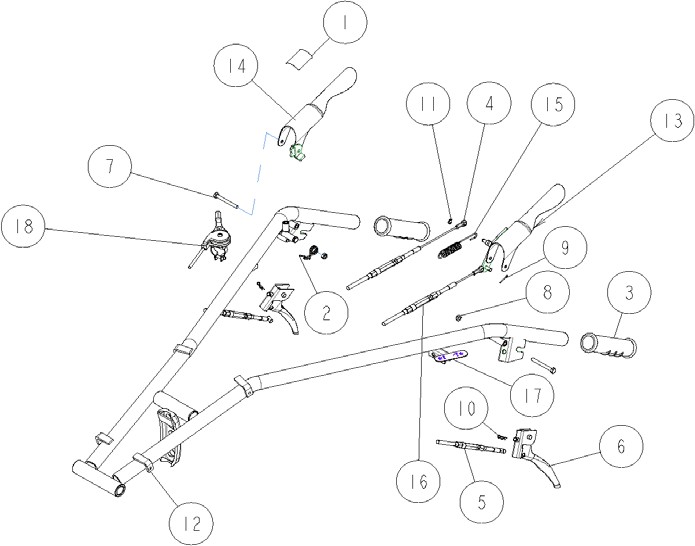

Handle    1/2



17

0285-70100

Label, Model HR662

1







0291-70100

Label, Model HR802



1



16

0211-70410

Stopper Return Spring

1

1



15

0211-20500

Upper Cover

1

1



14

0211-20400

Blade Tension Lever

1

1



13

89-2521-000100

E Type Ring 10

1

1



12

89-2521-000050

E Type Ring 5

2

2



11

89-1158-060102

Cross recess Headed Screw (PWSW) M6

4

4



10

89-1137-060122

Hexagonal Bolt (PW) M6*12

1

1



9

83-1614-932-00

Tension Wire

1

1



8

83-1415-453-10

Lever 27-05-0822S

2

2



7

83-1310-902-00

OREC Mark

1

1



6

83-1110-965-10

Handle Up/Down, Right/Left Wire

2

2



5

80-1614-904-00

Label, Bonnet

1

1



4

80-1614-280-00

Switch Assy

1

1



3

80-1417-255-00

Lever Grip (Red) 10

1

1



2

80-1417-253-00

Stopper

1

1



1

80-1415-223-00

Handle Bonnet

1

1



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity

2/18



Handle    2/2







18

0226-70300

Throttle Wire Assy

1

1



17

0211-70600

Label, Driving

1

1



16

0211-70500

Brake Wire

1

1



15

0211-20600

Brake Spring

1

1



14

0211-20300

Blade Clutch Lever

1

1



13

0211-20200

Driving Clutch Lever

1

1



12

0211-20100

Handle CMP

1

1



11

89-2521-000050

E Type Ring 5

1

1



10

89-2131-060002

Snap Pin 6

2

2



9

89-2120-200152

Split Pin 2*15

1

1



8

89-1551-060002

Hexagonal U Nut M6

2

2



7

89-1113-060552

Hexagonal Bolt (8T) M6*55

2

2



6

83-1761-457-00

Side Clutch Lever

2

2



5

83-1614-962-00

Side Clutch Wire

2

2



4

83-1614-932-00

Tension Wire

1

1



3

83-1560-414-00

Handle Grip 27

2

2



2

80-1417-971-10

Blade Clutch Return Spring

1

1



1

80-1417-918-10

Label, Cutting

1

1



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity

3/18

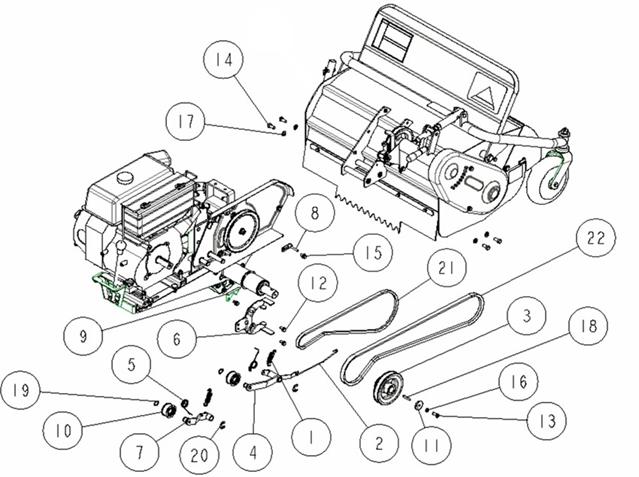

Frame    1/6





16

83-1712-923-00

Label, Oil Quantity 1.6 L

1

1



15

80-1020-932-00

Label, Noise 100db

1

1



14

80-1010-933-00

Label, CE

1

1



13

89-2511-000220

Snap Ring (S22)

2

2



12

89-2150-070500

Key 7*50 (round)

2

2



11

89-1750-120002

Spring Washer 12

2

2



10

89-1543-100002

Mini Hexagonal Nut (SW) M10

8

8



9

89-1211-100202

Mini Hexagonal Bolt M10*20

8

8



8

89-1137-060152

Hexagonal Bolt (PW) M6*15

3

3



7

83-1210-133-00

Setting Bolt M12*160

1

1



6

80-1751-412-00

Tire (R) Assy (16*7.00-8)

1

1



5

80-1751-411-00

Tire (L) Assy (16*7.00-8)

1

1



4

80-1614-746-10

Side Cover

1

1



3

80-1565-413-10

Wheel Boss

2

2



2

80-1310-228-00

Handle Fix Nut

2

2



1

80-1210-222-00

Handle Setting Collar

1

1



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity



4/18



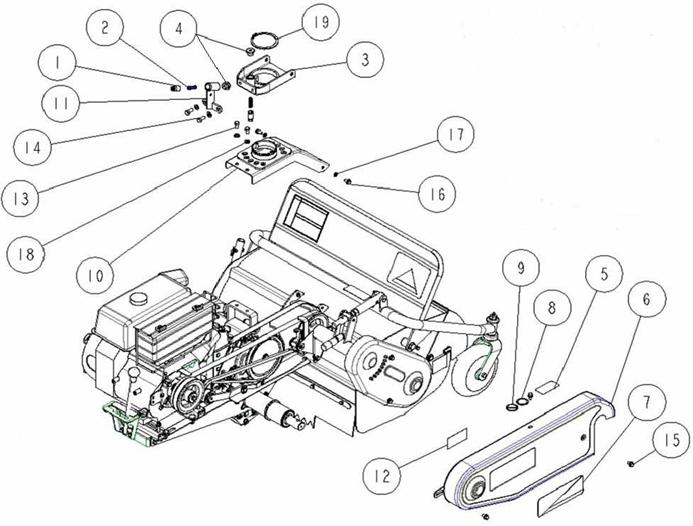

Frame    2/6



19

89-2511-000850

Snap Ring (S85)

1

1



18

89-1750-100002

Spring Washer 10

4

4



17

89-1750-080002

Spring Washer 8

2

2



16

89-1253-080162

Flange Mini Hexagonal Bolt (8T) M8*16

2

2



15

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3

3



14

89-1211-100202

Mini Hexagonal Bolt M10*20

2

2



13

89-1211-100162

Mini Hexagonal Bolt M10*16

2

2



12

83-1614-920-10

Label, Belt Size

1

1



11

80-1330-214-10

Stopper for Handle Up/Down

1

1



10

80-1614-732-20

Under Bonnet CMP

1

1



9

0223-72910

Attention Mark for Slope

1

1



8

0215-83200

Label, Protection Equipment

1

1



7

80-1614-905-00

Label, Belt Case

1

1



6

80-1614-504-20

Belt Cover CMP

1

1



5

80-1488-928-10

Label, Caution for Belt Involving

1

1



4

80-1310-215-00

Stopper Cap

2

2



3

80-1310-203-00

Turntable for Handle

1

1



2

80-1210-217-00

Stopper Spring

2

2



1

80-1210-216-00

Stopper Pin

2

2



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity



5/18



Frame    3/6



22

89-6123-006201

V Belt SBR-62

1







89-6123-006202

V Belt SB-62 (W800)



1



21

89-6122-004601

V Belt SAR-46

1







89-6122-004602

V Belt SA-46 (W800)



1



20

89-2521-000150

E Type Ring 15

2

2



19

89-2511-000170

Snap Ring (S17)

2

2



18

89-2151-070300

Key 7*30 (half round)

1

1



17

89-1750-100002

Spring Washer 10

4

4



16

89-1750-080002

Spring Washer 8

1

1



15

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2

2



14

89-1213-100202

Mini Hexagonal Bolt (8T) M10*20

4

4



13

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20

1

1



12

89-1132-080162

Hexagonal Bolt (SW) M8*16

2

2



11

83-1565-315-00

Washer 8*36*4.5

1

1



10

83-1032-760-00

Tension Pulley Assy

2

2



9

0285-52100

Supplementary Cover, Kawasaki Engine

1

1



8

0225-40600

Belt Holder

1

1



7

0211-54200

Driving Tension Arm

1

1



6

80-1614-561-20

Belt Holder

1

1



5

80-1614-552-00

Tension Spring

2

2



4

80-1614-546-10

Knife Tension Arm

1

1



3

80-1614-514-20

Engine Pulley 132

1

1



2

80-1614-374-30

Brake Rod

1

1



1

80-1560-551-00

Return Spring

2

2



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity



6/18



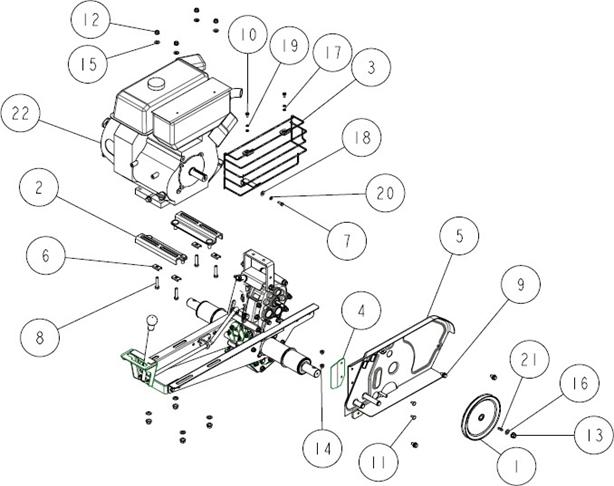

Frame    4/6



22

9002-0111

FE250D CG81(OIL)

1







9003-0110

FE290D CG80



1



21

89-2150-050200

Key 5*20 (round)

1

1



20

89-1750-060002

Spring Washer 6

1

1



19

89-1750-050003

Spring Washer 5

2

2



18

89-1713-060002

Flat Washer 6 (large)

1

1



17

89-1712-050003

Flat Washer 5

2

2



16

89-1711-100002

Flat Washer 10

5

5



15

89-1711-080002

Flat Washer 8

4

4



14

89-1581-060042

Flange Cap Nut M6

2

2



13

89-1543-100002

Mini Hexagonal Nut (SW) M10

5

5



12

89-1543-080002

Mini Hexagonal Nut (SW) M8

4

4



11

89-1390-060122

Welded Bolt M6*12

2

2



10

89-1251-050123

Flange Hexagonal Bolt M5*12

2

2



9

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3

3



8

89-1213-080402

Mini Hexagonal Bolt (8T) M8*40

4

4



7

89-1111-060162

Hexagonal Bolt M6*16

1

1



6

83-1310-387-00

Wire-Stop Plate A8(80-1210-318-00)

4

4



5

0211-50100

Belt Cover Inside CMP

1

1



4

0285-52300

Supplementary Cover, inside(,Kawasaki)

1

1



3

0223-60700

Muffler Guard CMP

1

1



2

0211-30300

Engine Fitting Plate with Bolt (M)

2

2



1

80-1614-521-00

Transmission Pulley

1

1



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity



7/18



Frame    5/6







15

0251-70400

Label, Change

1

1



14

0256-20510

Rear Bracket

1

1



13

0253-79100

Lever Grip 12.7

1

1



12

0253-22500

Change Rod Setting

1

1



11

0253-22410

Change Guide CMP

1

1



10

0253-16100

Change Lever CMP

1

1



9

0251-11600

Change Lever Arm CMP

1

1



8

0251-11300

Change Plate

1

1



7

89-2131-120002

Snap Pin 12

1

1



6

89-1750-100002

Spring Washer 10

1

1



5

89-1611-100042

Mini Hexagonal Nut M10

1

1



4

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2

2



3

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

6

6



2

89-1213-101302

Mini Hexagonal Bolt (8T) M10*130

1

1



1

83-1565-329-00

Washer 13*22*2.3

1

1



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity

8/18



Frame    6/6





17

0285-09000

Transmission Assy HR662

1







0291-09000

Transmission Assy HR802



1



16

0211-31800

Brake Packing (Large)

1

1



15

89-2511-000140

Snap Ring (S14)

1

1



14

89-2132-060002

Snap Pin 6 (with stopper)

2

2



13

89-1711-060002

Flat Washer 6

2

2



12

89-1543-080002

Mini Hexagonal Nut (SW) M8

3

3



11

89-1253-081453

Flange Mini Hexagonal Bolt (8T) M8*145

3

3



10

89-1132-060122

Hexagonal Bolt (SW) M6*12

6

6



9

85-1445-317-00

Brake Packing (Small)

1

1



8

85-1711-317-00

Shoe Return Spring

2

2



7

85-1711-318-00

Brake Shoe Set

1

1



6

85-1711-315-00

Brake Drum

1

1



5

80-1614-315-00

Return Spring

1

1



4

80-1614-314-00

Brake Cover

1

1



3

80-1614-312-00

Brake Cover CMP

1

1



2

80-1614-302-20

Main Frame (R) CMP

1

1



1

80-1614-301-20

Main Frame (L) CMP

1

1



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity

9/18



Transmission    1/5



17

0285-70200

Label, Transmission HR662

1





0291-70200

Label, Transmission HR802



1



16

0251-04300

Change Arm CMP

1

1



15

89-1543-080002

Mini Hexagonal Nut (SW) M8

2

2



14

89-1254-101153

Flange Mini Hexagonal Bolt M10*115 P=

1

1



13

89-1253-081403

Flange Mini Hexagonal Bolt (8T) M8*140

3

3



12

89-1253-081353

Flange Mini Hexagonal Bolt (8T) M8*135

2

2



11

89-1253-081203

Flange Mini Hexagonal Bolt (8T) M8*120

2

2



10

89-1253-081153

Flange Mini Hexagonal Bolt (8T) M8*115

2

2



9

89-1251-100122

Flange Mini Hexagonal Bolt M10*12

1

1



8

83-1565-111-00

Hexagonal Bolt (with Big Washer) M6*16

1

1



7

83-1493-255-00

Flange Lock Nut M10 (slender)

1

1



6

83-1484-255-00

Lock Nut ZUF M8

9

9



5

83-1020-349-00

Copper Packing 10.5*18*1.6

1

1



4

80-1614-198-10

Side Clutch Wire Stopper (R)

1

1



3

80-1565-197-00

Side Clutch Wire Stopper (L)

1

1



2

80-1565-159-00

Shaft BB Reinforce Pipe

2

2



1

80-1565-153-00

Side Clutch Arm

2

2



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity



10/18



Transmission    2/5









15

89-5121-153007

Oil Seal UE 15.30.7

1

1



14

89-5121-122207

Oil Seal UE 12.22.7

1

1



13

89-3111-060064

Bearing 6006

1

1



12

89-2512-000550

Snap Ring (R55)

1

1



11

89-2111-050020

Spring Pin 5*20

1

1



10

89-2111-030020

Spring Pin 3*20

1

1



9

83-1517-685-00

Oil Cap 20

1

1



8

83-1415-672-00

Blind Cover 30

1

1



7

83-1415-671-00

Blind Cover 22

1

1



6

83-1415-662-00

Oil Seal AP 35.55.8

1

1



5

83-1415-127-00

Seal Bolt (SW) M8*20

4

4



4

80-1614-103-00

Transmission Case (R)

1

1



3

80-1565-156-00

Shaft BB Case (R)

1

1



2

80-1425-112-00

Driving Clutch Folk Shaft

1

1



1

80-1415-114-00

Side Clutch Fork

1

1



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity



11/18



Transmission    3/5





17

0282-00600

3rd Shaft Gear 28T

1

1



16

0282-00500

2nd Shaft Gear 18T

1

1



15

0251-01610

3nd Shaft Gear 22T

1

1



14

0223-02500

Collar 6L

1

1



13

89-3111-062024

Bearing 6202

4

4



12

89-2511-000200

Snap Ring (S20)

2

2



11

89-2511-000150

Snap Ring (S15)

2

2



10

83-1830-368-00

Thrust Washer 18*26*1.0

4

4



9

83-1633-362-10

Thrust Washer 15*30*1.2

2

2



8

80-1920-130-00

Collar Ａ

1

1



7

80-1614-146-10

Axle CMP

1





0204-00100

Axle CMP



1



6

80-1575-162-00

Side Clutch Spring

2

2



5

80-1575-142-00

Side Clutch Gear 38T

1

1



4

80-1575-129-10

2nd Shaft Gear 24T

1

1



3

80-1310-150-10

Shaft Pin

1

1



2

80-1032-141-00

Side Clutch Gear 14T

2

2



1

80-1032-140-00

Side Clutch Shaft

1

1



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity

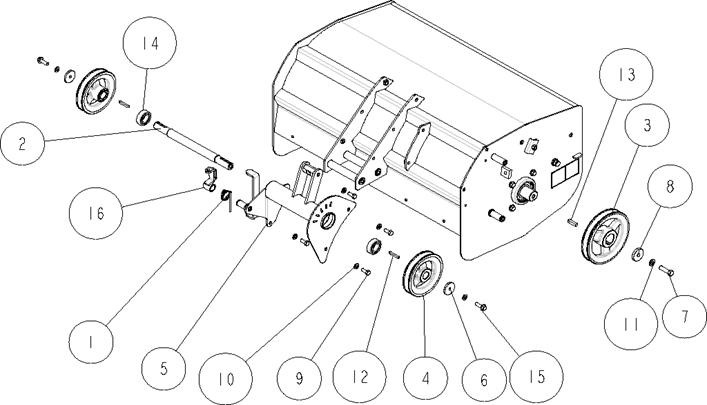

12/18



Transmission    4/5



21

0251-02100

3rd Shaft Gear 14T CMP

1

1



20

0251-01300

2nd Shaft Gear 32T

1

1



19

0251-01100

Trasmission 1st Shaft

1

1



18

0251-00300

Shift Folk

1

1



17

0223-02400

Collar 11L

1

1



16

0223-01400

3rd Shaft

1

1



15

0223-01200

Back Gear CMP

1

1



14

0223-00800

2nd Shaft

1

1



13

0223-00700

1st Shaft Shift Gear 14T

1

1



12

0223-00600

1st Shaft Gear 20T

1

1



11

0223-00400

Shift Fork Shaft

1

1



10

89-5221-009000

O Ring P9

1

1



9

89-3510-012200

DU Bush 12.20

1

1



8

89-3410-075000

Steel Ball 7.5

1

1



7

89-3111-062024

Bearing 6202

4

4



6

89-2511-000160

Snap Ring (S16)

1

1



5

89-2120-200202

Split Pin 2*20

1

1



4

83-1830-368-00

Thrust Washer 18*26*1.0

2

2



3

83-1310-371-00

Thrust Washer 20*30*1.0

2

2



2

80-1575-109-00

Swing Arm

1

1



1

0282-00400

Spring

1

1



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity



13/18



Transmission    5/5







16

0251-00100

Transmission Case (L)

1

1



15

89-5121-153007

Oil Seal UE 15.30.7

1

1



14

89-5121-122207

Oil Seal UE 12.22.7

1

1



13

89-3111-060064

Bearing 6006

1

1



12

89-2512-000550

Snap Ring (R55)

1

1



11

89-2111-050020

Spring Pin 5*20

1

1



10

89-2111-030020

Spring Pin 3*20

1

1



9

83-1517-685-00

Oil Cap 20

1

1



8

83-1415-672-00

Blind Cover 30

1

1



7

83-1415-671-00

Blind Cover 22

1

1



6

83-1415-662-00

Oil Seal AP 35.55.8

1

1



5

83-1415-127-00

Seal Bolt (SW) M8*20

4

4



4

80-1614-146-10

Axle CMP

1





0204-00100

Axle CMP



1



3

80-1565-155-00

Shaft BB Case (L)

1

1



2

80-1425-112-00

Driving Clutch Folk Shaft

1

1



1

80-1415-114-00

Side Clutch Fork

1

1



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity

14/18



Rotary cover    1/5

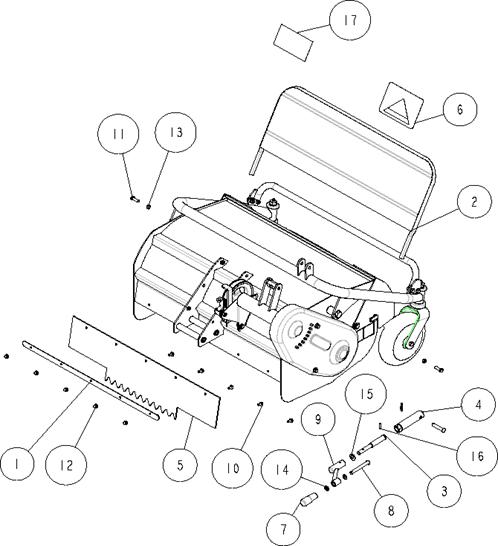

17

0223-76100

Label, Caution (Large)

1

1



16

89-2111-050022

Spring Pin 5*22

1

1



15

89-1714-120002

Flat Washer 12

1

1



14

89-1711-100002

Flat Washer 10

2

2



13

89-1611-080042

Mini Hexagonal Nut M8

2

2



12

83-1575-189-00

Flange Cap Nut M6

5

6



11

89-1211-080252

Mini Hexagonal Bolt M8*25

2

2



10

89-1137-060152

Hexagonal Bolt (PW) M6*15

5

6



9

84-1723-739-00

Cutting Height Adjusting Handle

1

1



8

83-1713-166-00

Round Headed Pin 10*80

1

1



7

83-1210-425-00

Lever Grip 10

1

1



6

80-1614-906-00

Label, Safety Cover

1

1



5

80-1614-782-10

Rear Flapper

1







0204-60500

Rear Flapper



1



4

0285-61200

Height Adjusting Bolt Receiver

1

1



3

0285-62400

Height Adjusting Bolt CMP

1

1



2

80-1613-733-10

Safety Cover

1







0204-60700

Safety Cover



1



1

80-1610-787-00

Flapper Holder

1







0204-70600

Flapper Holder



1



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity



15/18



Rotary cover    2/5

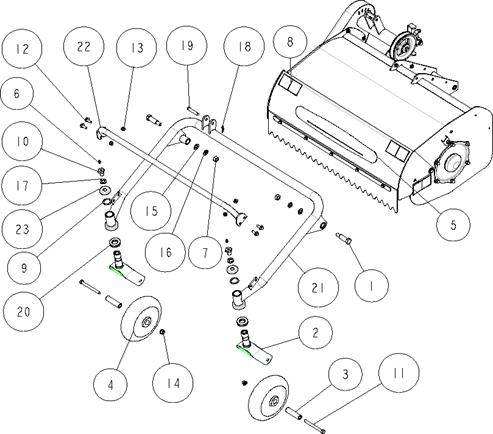

23

0256-60700

Dust Cover

2

2



22

0211-60500

Front Bumper

1







0204-61200

Front Bumper



1



21

0211-60400

Front Arm CMP

1







0204-61100

Front Arm CMP



1



20

89-3370-051105

Thrust Bearing 51105

2

2



19

89-2181-100502

Flat Head Pin 10*50

1

1



18

89-2131-100002

Snap Pin 10

1

1



17

89-1750-140002

Spring Washer 14

2

2



16

89-1750-120002

Spring Washer 12

2

2



15

89-1714-120002

Flat Washer 12

2

2



14

89-1543-100002

Mini Hexagonal Nut (SW) M10

2

2



13

89-1543-080002

Mini Hexagonal Nut (SW) M8

4

4



12

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20

4

4



11

89-1211-100952

Mini Hexagonal Bolt M10*95

2

2



10

84-1783-791-00

Grease Nipple Bolt M14

2

2



9

83-1783-376-00

Thrust Washer 25*34*1.0

2

2



8

83-1613-907-10

Label, Caution for Hand and Leg

2

2



7

83-1610-192-00

Hexagonal Nut (slender) M12 P=1.25

2

2



6

83-1415-975-00

Grease Nipple M6

2

2



5

83-1050-901-00

Label, OREC

1

1



4

80-1614-727-00

Front Wheel

2

2



3

80-1614-726-00

Front Wheel Collar

2

2



2

80-1614-725-20

Front Wheel Fork

2

2



1

80-1614-714-00

Front Arm Setting Shaft

2

2



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity



16/18



Rotary cover    3/5



19

89-6123-003901

V Belt LBR-39

1







89-6123-003902

V Belt SB-39 (W800)



1



18

0211-63200

Front Tension Arm CMP

1

1



17

89-3115-062034

Bearing 6203 2RS

1

1



16

89-2521-000150

E Type Ring 15

1

1



15

89-2521-000120

E Type Ring 12

2

2



14

89-2512-000400

Snap Ring (R40)

1

1



13

89-2511-000170

Snap Ring (S17)

1

1



12

89-1611-080042

Mini Hexagonal Nut M8

2

2



11

83-1575-189-00

Flange Cap Nut M6

5

6



10

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2

2



9

89-1137-060152

Hexagonal Bolt (PW) M6*15

5

6



8

83-1032-765-00

Tension Pulley

1

1



7

80-1675-357-00

Thrust Washer 16*23*2.3

2

2



6

80-1614-781-10

Front Flapper

1







0204-60400

Front Flapper



1



5

80-1614-764-00

Front Cover CMP

1







0204-60300

Front Cover CMP



1



4

80-1614-694-10

Knife Belt Cover

1

1



3

80-1614-315-00

Return Spring

1

1



2

80-1610-787-00

Flapper Holder

1







0204-70600

Flapper Holder



1



1

80-1182-827-00

Tension Pulling Bolt

1

1



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity



17/18



Rotary cover    4/5

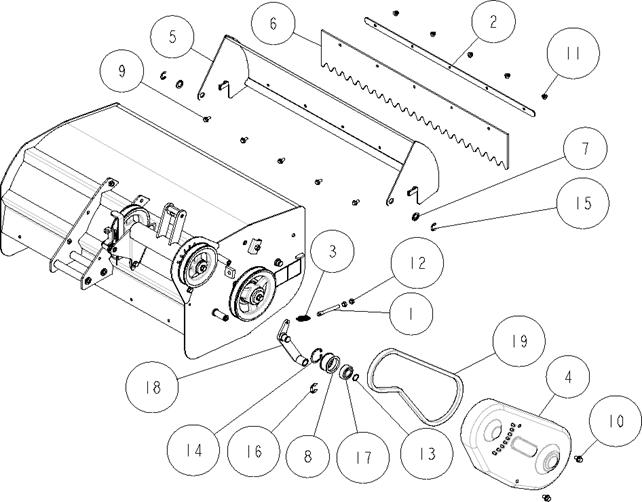

16

0231-37100

Knife Brake

1

1



15

0212-72100

Hexagonal Bolt(8T) M10*25(Meck)

2

2



14

89-3115-060044

Bearing 6004 2RS

2

2



13

89-2151-070300

Key 7*30 (half round)

1

1



12

89-2151-050350

Key 5*35 (half round)

2

2



11

89-1750-100002

Spring Washer 10

3

3



10

89-1750-080002

Spring Washer 8

4

4



9

89-1213-080182

Mini Hexagonal Bolt (8T) M8*18

4

4



8

83-1610-322-00

Washer 10*36*6

1

1



7

83-1610-125-00

Hexagonal Bolt (8T) M10*35

1

1



6

83-1610-321-00

Washer 10*36*4.5

2

2



5

80-1614-691-30

Supporter Pipe CMP

1







0204-40200

Supporter Pipe CMP



1



4

80-1614-636-00

Supporter Pulley

2

2



3

80-1614-634-20

Knife Pulley 155

1

1



2

80-1614-621-30

Supporter Shaft

1







0204-40110

Supporter Shaft



1



1

80-1614-373-20

Knife Brake Spring

1

1



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity



18/18



Rotary cover    5/5

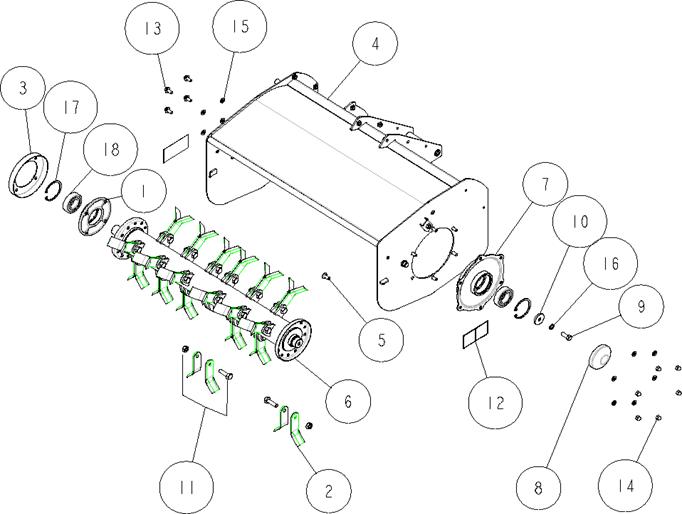

18

89-3115-062064

Bearing 6206 2RS

2

2



17

89-2512-000620

Snap Ring (R62)

2

2



16

89-1812-100002

Toothed washer (inside) 10

1

1



15

89-1750-080002

Spring Washer 8

10

10



14

89-1671-080042

Mini Cap Nut M8

6

6



13

89-1253-080162

Flange Mini Hexagonal Bolt (8T) M8*16

4

4



12

83-1613-907-10

Label, Caution for Hand and Leg

2

2



11

83-1610-835-00

Knife Setting Bolt Set

19

23



10

83-1610-321-00

Washer 10*36*4.5

1

1



9

83-1610-124-00

Hexagonal Bolt (8T) M10*25 (left screw)

1

1



8

80-1614-810-00

BB Case Cover

1

1



7

0285-60100

Knife Shaft BB Case Set

1

1



6

80-1614-800-00

Knife Drum ASSY

1







0204-50000

Knife Drum ASSY



1



5

80-1614-705-00

Flat Head Bolt M8*18

6

6



4

80-1614-703-30

Rotary Cover CMP

1







0204-60110

Rotary Cover CMP



1



3

80-1612-813-00

Dust Cover

1

1



2

80-1610-821-00

Hammer Knife Blade

38

46



1

80-1610-804-00

BB Case

1

1



Ref.

Parts Number

Parts Name

662

802

Remarks

Quantity

                                                       MEMO
