OREC                                                                     ISSUED NO.HR531‐1

Parts Catalogue



FLAIL MOWER

(EXPORT MODEL)

HR531




MODEL        CODE

HR531         0256-?????

HR661         80-1614-???-??

HR661A      0211-?????



CONTENTS

Handle........................................................ 1

Frame......................................................... 4

Transmission........................................... 11

Rotary cover.............................................. 16

OREC CO.,LTD.

Update : March     2006

1/20 Handle   1/3

14

0256-71100

Label, Model HR531

1



13

0211-70400

Stopper return spring

1



12

0211-20500

Upper cover

1



11

0211-20400

Blade tension lever

1



10

89-2521-000100

E Type Ring 10

1



9

89-2521-000050

E Type Ring 5

2



8

89-1158-060102

Mini Screw(PWSW) M6*10

4



7

89-1137-060122

Hexagonal Bolt (PW) M6*12

1



6

83-1614-932-00

Tension Wire

1



5

83-1310-902-00

OREC Mark

1



4

80-1614-904-00

Label, Bonnet

1



3

80-1417-255-00

Lever Grip(Red) 10

1



2

80-1417-253-00

Stopper

1



1

80-1415-223-00

Handle Bonnet

1



Ref.

Parts Number

Parts Name

Quantity

Remarks


2/20

Handle   2/3





17

0256-71500

Label, Handle Up/Down

1



16

0256-71400

Label, Throttle

1



15

0256-70200

Handle Up/Down Wire

1



14

0256-70100

Throttle Wire

1



13

89-2181-060162

Flat Head Pin 6*16

1



12

89-2132-060002

Snap Pin 6

1



11

89-1711-120003

Washer 13*21

2



10

89-1239-080302

Mini Hexagonal Bolt (PWSW) M8*30

1



9

89-1161-050123

Tapping Screw 5*12

2



8

80-1515-262-00

Arm Grip

1



7

80-1484-273-10

Differential Lock Lever

1



6

80-1484-262-00

Arm Grip (Red)

1



5

80-1437-261-00

Throttle Lever

1



4

80-1020-270-00

Inner Collar

1



3

80-1020-263-00

Control Lever Shaft Spring

1



2

80-1020-262-00

Control Lever Shaft

1



1

80-1020-231-00

Control Cover

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

Casella di testo: mmozzato 2008-05-29 10:10:17 -------------------------------------------- CAVO GAS HONDA 0226-70500


3/20

Handle   3/3







17

0256-10100

Handle CMP

1



16

0211-70600

Label, Driving

1



15

0211-70500

Brake Wire

1



14

0211-20600

Brake Spring

1



13

0211-20300

Blade clutch lever

1



12

0211-20200

Driving clutch lever

1



11

89-2521-000050

E Type Ring 5

1



10

89-2131-060002

Snap Pin 6

2



9

89-2120-200152

Split Pin 2*15

1



8

89-1551-060002

Hexagonal U Nut M6

2



7

89-1113-060552

Hexagonal Bolt (8T) M6*55

2



6

83-1761-457-00

Side Clutch Lever

2



5

83-1614-962-00

Side Clutch Wire

2



4

83-1614-932-00

Tension Wire

1



3

83-1560-414-00

Handle Grip 27

2



2

80-1417-971-00

Blade clutch return spring

1



1

80-1417-918-00

Label, Cutting

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

4/20

Frame   1/7



14



Handle





13

89-2511-000220

Snap Ring (S22)

2



12

89-2150-070500

Key 7*50 (Round)

2



11

89-1750-120002

Spring Washer 12

2



10

89-1543-100002

Mini Hexagonal Nut(SW) M10

8



9

89-1211-100202

Mini Hexagonal Bolt M10*20

8



8

89-1137-060152

Hexagonal Bolt(PW) M6*15

3



7

83-1210-133-00

Setting Bolt M12X160

1



6

80-1711-412-00

Tire Assy (Right) 400-7

1



5

80-1711-411-00

Tire Assy (Left) 400-7

1



4

80-1614-746-10

Side Cover

1



3

80-1565-413-00

Wheel Boss

2



2

80-1310-228-00

Handle Fix Nut

2



1

80-1210-222-00

Handle Setting Collar

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

5/20

Frame   2/7





16

0256-10200

Under Bonnet CMP

1



15

0251-11000

Stopper for Handle Up/Down

1



14

0223-72910

Attention Mark for Slope

1



13

0215-83200

Label, Protection Equipment

1



12

0207-70800

Grommet 45-3.5

1



11

89-1750-100002

Spring Washer 10

2



10

89-1750-080002

Spring Washer 8

2



9

89-1253-080162

Flange Hexagonal Bolt (8T) M8*16

2



8

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



7

89-1211-100202

Mini Hexagonal Bolt M10*20

2



6

80-1614-905-00

Label, Belt Case

1



5

80-1614-504-20

Belt Cover CMP

1



4

80-1488-926-10

Label, Caution for Knife

1



3

80-1310-215-00

Stopper Cap

1



2

80-1210-217-00

Stopper Spring

1



1

80-1210-216-00

Stopper Pin

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

6/20

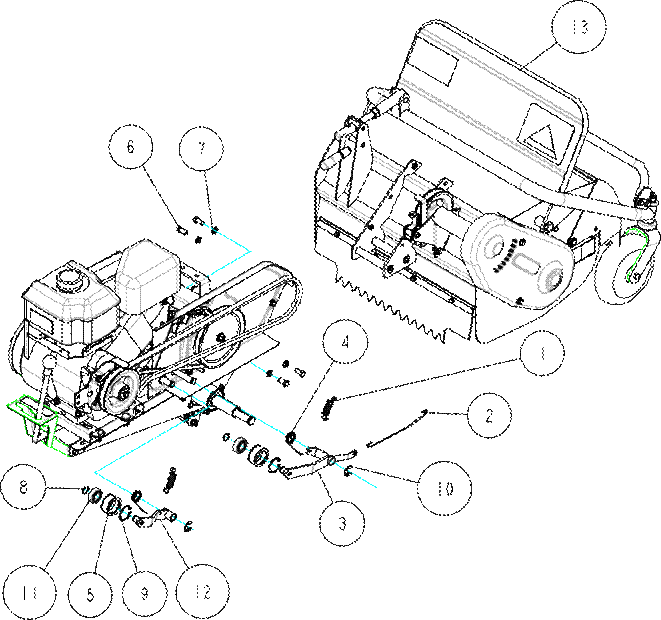

Frame   3/7









13



Rotary





12

0211-54200

Driving Tension Arm

1



11

89-3115-062034

Bearing 6203 2RS

2



10

89-2521-000150

E Type Ring 15

2



9

89-2512-000400

Snap Ring (R40)

2



8

89-2511-000170

Snap Ring (S17)

2



7

89-1750-100002

Spring Washer 10

4



6

89-1213-100202

Mini Hexagonal Bolt (8T) M10*20

4



5

83-1032-765-00

Tension Pulley

2



4

80-1614-552-00

Tension Spring

2



3

0256-40400

Knife Tension Arm

1



2

80-1614-374-30

Brake Rod

1



1

80-1560-551-00

Return Spring

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

7/20

Frame   4/7







16

89-6123-006301

V Belt LB-63

1



15

89-6122-004601

V Belt LA-46

1



14

0256-40300

Engine Pulley

1



13

0214-72100

Label, Caution for Engine etc

1



12

0211-50100

Belt Cover Inside CMP

1



11

89-2151-050400

Key 5*40(harf round)

1



10

89-2150-050200

Key 5*20(Round)

1



9

89-1750-080002

Spring Washer 8

1



8

89-1711-100002

Flat Washer 10

1



7

89-1543-100002

Mini Hexagonal Nut(SW) M10

1



6

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

6



5

0023-72300

Hexagonal Bolt(8T) M8*28(Meck)

1



4

83-1020-312-00

Washer 8*30*3.2

1



3

80-1614-561-20

Belt Holder

1



2

80-1614-521-00

Transmission Pulley

1



1

80-1321-561-10

Belt Holder

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

8/20

Frame   5/7















11



Engine

1



10

0256-20100

Free Base

2



9

0229-61600-00

Recoil Cover Setting Bolt

4



8

0239-61100

Recoil Cover (R)

1



7

89-1750-050003

Spring Washer 5

4



6

89-1713-080002

Flat Washer 8

4



5

89-1711-100002

Flat Washer 10

4



4

89-1543-100002

Mini Hexagonal Nut(SW) M10

4



3

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



2

89-1213-080402

Mini Hexagonal Bolt (8T) M8*40

4



1

83-1575-189-00

Flange Cap Nut M6

4



Ref.

Parts Number

Parts Name

Quantity

Remarks

9/20

Frame   6/7

















15

0256-20500

Rear Bracket

1



14

0253-79100

Lever Grip 12.7

1



13

0253-22500

Change Rod Setting

1



12

0253-22400

Change Guide CMP

1



11

0253-16100

Change Lever CMP

1



10

0251-70400

Label, Change

1



9

0251-11600

Change Lever Arm CMP

1



8

0251-11300

Change Plate

1



7

89-2131-120002

Snap Pin 12

1



6

89-1750-100002

Spring Washer 10

1



5

89-1611-100042

Mini Hexagonal Nut M10

1



4

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



3

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

6



2

89-1213-101302

Mini Hexagonal Bolt (8T) M10*130

1



1

83-1565-329-00

Washer 13*22*2.3

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

10/20

Frame   7/7





19



Transmission





18

89-2511-000140

Snap Ring (S14)

1



17

89-2132-060002

Snap Pin 6

2



16

89-1711-060002

Flat Washer 6

2



15

89-1543-080002

Mini Hexagonal Nut (SW) M8

3



14

89-1253-081453

Small Flange Bolt (8T)M8*145

3



13

89-1132-060122

Hexagonal Bolt (SW) M6*12

6



12

85-1445-317-00

Brake Packing(small)

1



11

85-1711-317-00

Shoe Return Spring

2



10

85-1711-316-00

Brake Shoe

1



9

85-1711-315-00

Brake Drum

1



8

0211-31800

Brake Packing(large)

1



7

80-1614-315-00

Return Spring

1



6

80-1614-314-00

Brake Cover

1



5

80-1614-312-00

Brake Cover CMP

1



4

80-1614-302-20

Main Frame(R) CMP

1



3

80-1614-301-20

Main Frame(L) CMP

1



2

80-1020-932-00

Label, Noise 100db

1



1

80-1010-933-00

Label, CE

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

11/20

Transmission   1/5



17

0256-71200

Label, Transmission

1



16

0251-04300

Change Arm CMP

1



15

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



14

89-1254-101153

Flange Hexagonal Bolt M10*1.25*115

1



13

89-1253-081403

Flange Hexagonal Bolt (8T) M8*140

3



12

89-1253-081353

Flange Hexagonal Bolt (8T) M8*135

2



11

89-1253-081203

Small Flange Bolt (8T)M8*120

2



10

89-1253-081153

Small Flange Bolt (8T)M8*115

2



9

89-1251-100122

Flange Hexagonal Bolt M10*12

1



8

83-1565-111-00

Hexagonal Bolt(with Big Washer) M6x16

1



7

83-1493-255-00

Flange Lock Nut M10(Slender)

1



6

83-1484-255-00

Rock Nut ZUF M8

9



5

83-1020-349-00

Copper Packing 10.5*18*1.6

1



4

80-1614-198-10

Side Clutch Wire Stopper (R)

1



3

80-1565-197-00

Side Clutch Wire Stopper (L)

1



2

80-1565-159-00

Shaft BB Reinforce Pipe

2



1

80-1565-153-00

Side Clutch Arm

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

12/20

Transmission   2/5



15

89-5121-153007

Oil Seal UE 15.30.7

1



14

89-5121-122207

Oil Seal UE 12.22.7

1



13

89-3111-060064

Bearing 6006

1



12

89-2512-000550

Snap Ring (R55)

1



11

89-2111-050020

Spring Pin 5*20

1



10

89-2111-030020

Spring Pin 3*20

1



9

83-1517-685-00

Oil Cap

1



8

83-1415-672-00

Blind Cover 30

1



7

83-1415-671-00

Blind Cover 22

1



6

83-1415-662-00

Oil Seal AP 35.55.8

1



5

83-1415-127-00

Seal Bolt (SW) M8*20

4



4

80-1614-103-00

Transmission Case (R)

1



3

80-1565-156-00

Shaft BB Case (R)

1



2

80-1425-112-00

Driving Clutch Folk Shaft

1



1

80-1415-114-00

Side Clutch Folk

1



Ref.

Parts Number

Parts Name

Quantity

Remarks


13/20

Transmission   3/5





17

0256-00100

Axle CMP

1



16

0223-02500

Collar 6L

2



15

0223-02400

Collar 11L

1



14

0223-01600

3rd Shaft Gear 28T CMP

1



13

0223-01500

3rd Shaft Gear 31T

1



12

0223-01100

2nd Shaft Gear 21T

1



11

0223-00900

2nd Shaft Gear 15T

1



10

89-3111-062024

Bearing 6202

4



9

89-2511-000200

Snap Ring (S20)

2



8

89-2511-000150

Snap Ring (S15)

2



7

83-1830-368-00

Thrust Washer 18*26*1.0

1



6

83-1633-362-10

Thrust Washer 15*30*1.2

2



5

80-1575-162-00

Side Clutch Spring

2



4

80-1575-142-00

Side Clutch Gear 38T

1



3

80-1310-150-10

Shaft Pin

1



2

80-1032-141-00

Side Clutch Gear 14T

2



1

80-1032-140-00

Side Clutch Shaft

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

14/20

Transmission   4/5





21

0251-01100

Trasmission 1st Shaft

1



20

0251-00300

Shift Folk

1



19

0223-02400

Collar 11L

1



18

0223-02100

3rd Shaft Gear 20T CMP

1



17

0223-01400

3rd Shaft

1



16

0223-01300

2nd Shaft Gear 28T

1



15

0223-01200

Back Gear CMP

1



14

0223-00800

2nd Shaft

1



13

0223-00700

1st Shaft Shift Gear 14T

1



12

0223-00600

1st Shaft Gear 20T

1



11

0223-00400

Shift Fork Shaft

1



10

89-5221-009000

O Ring P9

1



9

89-3510-012200

DU Bush 12.20

1



8

89-3410-075000

Steel Ball 7.5

1



7

89-3111-062024

Bearing 6202

4



6

89-2511-000160

Snap Ring (S16)

1



5

89-2120-200202

Split Pin 2*20

1



4

83-1830-368-00

Thrust Washer 18*26*1.0

3



3

83-1310-371-00

Thrust Washer 20*30*1.0

1



2

80-1575-109-00

Swing Arm

1



1

80-1310-138-00

Spring 1.4

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

15/20

Transmission   5/5











16

0256-00100

Axle CMP

1



15

0251-00100

Transmission Case (L)

1



14

89-5121-153007

Oil Seal UE 15.30.7

1



13

89-5121-122207

Oil Seal UE 12.22.7

1



12

89-3111-060064

Bearing 6006

1



11

89-2512-000550

Snap Ring (R55)

1



10

89-2111-050020

Spring Pin 5*20

1



9

89-2111-030020

Spring Pin 3*20

1



8

83-1517-685-00

Oil Cap

1



7

83-1415-672-00

Blind Cover 30

1



6

83-1415-671-00

Blind Cover 22

1



5

83-1415-662-00

Oil Seal AP 35.55.8

1



4

83-1415-127-00

Seal Bolt (SW) M8*20

4



3

80-1565-155-00

Shaft BB Case (L)

1



2

80-1425-112-00

Driving Clutch Folk Shaft

1



1

80-1415-114-00

Side Clutch Folk

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

16/20

Rotary cover    1/5





19

0256-60600

Flapper Holder

1



18

0256-60400

Rear Flapper

1



17

0256-60100

Safety Cover

1



16

0223-76100

Label, Caution (Large)

1



15

89-2181-100502

Flat Head Pin 10*50

1



14

89-2131-100002

Snap Pin 10

1



13

89-2111-050022

Spring Pin 5*22

1



12

89-1714-120002

Flat Washer 12

1



11

89-1711-100002

Flat Washer 10

2



10

89-1611-080042

Mini Hexagonal Nut M8

2



9

89-1211-080252

Mini Hexagonal Bolt M8*25

2



8

89-1137-060152

Hexagonal Bolt(PW) M6*15

4



7

84-1723-739-00

Cutting Height Adjusting Handle

1



6

83-1713-166-00

Round Head Pin 10*80

1



5

83-1575-189-00

Flange Cap Nut M6

4



4

83-1210-425-00

Lever Grip 10

1



3

80-1614-906-00

Label, Safety Cover

1



2

80-1614-742-10

Height Adjusting Bolt Receiver

1



1

80-1614-724-10

Height Adjusting Bolt CMP

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

17/20

Rotary cover    2/5





21

84-1783-729-00

Dust Cover

2



20

0256-60500

Front Bumper

1



19

0256-60300

Front Arm CMP

1



18

89-3370-051105

Thrust Bearing 51105

2



17

89-1750-140002

Spring Washer 14

2



16

89-1750-120002

Spring Washer 12

2



15

89-1714-120002

Flat Washer 12

2



14

89-1543-100002

Mini Hexagonal Nut(SW) M10

2



13

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



12

89-1253-080202

Flange Hexagonal Bolt (8T) M8*20

4



11

89-1211-100952

Mini Hexagonal Bolt M10*95

2



10

84-1783-791-00

Grease Nipple Bolt M14

2



9

83-1783-376-00

Thrust Washer 25*34*1.0

2



8

83-1613-907-00

Label, Caution for Hand and Leg

2



7

83-1610-192-00

Hexagonal Nut(slender) M12 P=1.25

2



6

83-1415-975-00

Grease Nipple M6

2



5

83-1050-901-00

Label, OREC

1



4

80-1614-727-00

Front Wheel

2



3

80-1614-726-00

Front Wheel Collar

2



2

80-1614-725-20

Front Fork CMP

2



1

80-1610-714-00

Front Arm Setting Shaft

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

18/20

Rotary cover    3/5









19

89-6123-003901

V Belt LB-39

1



18

0256-60600

Flapper Holder

1



17

0256-60200

Front Flapper

1



16

0256-50200

Front Cover CMP

1



15

0211-63200

Front Tension Arm CMP

1



14

89-3115-062034

Bearing 6203 2RS

1



13

89-2521-000150

E Type Ring 15

1



12

89-2521-000120

E Type Ring 12

2



11

89-2512-000400

Snap Ring (R40)

1



10

89-2511-000170

Snap Ring (S17)

1



9

89-1611-080042

Mini Hexagonal Nut M8

2



8

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



7

89-1137-060152

Hexagonal Bolt(PW) M6*15

4



6

83-1575-189-00

Flange Cap Nut M6

4



5

83-1032-765-00

Tension Pulley

1



4

80-1675-357-00

Washer 16*23*2.3

2



3

80-1614-694-10

Knife Belt Cover

1



2

80-1614-315-00

Return Spring

1



1

80-1182-527-00

Tension Pulling Bolt

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

19/20

Rotary cover    4/5























18

0256-40500

Knife Pulley

1



17

0256-40200

Supporter Shaft

1



16

0256-40100

Supporter Pipe CMP

1



15

0212-72100

Hexagonal Bolt(8T) M10*25(Meck)

2



14

89-3115-060044

Bearing 6004 2RS

2



13

89-2521-000150

E Type Ring 15

1



12

89-2151-070300

Key 7*30 (Half Round)

1



11

89-2151-050350

Key 5*35 (Half Round)

2



10

89-1750-100002

Spring Washer 10

3



9

89-1750-080002

Spring Washer 8

4



8

89-1213-080182

Mini Hexagonal Bolt (8T) M8*18

4



7

83-1610-322-00

Washer 10*36*6

1



6

83-1610-321-00

Washer 10*36*4.5

2



5

83-1610-125-00

Hexagonal Bolt(8T) M10x35

1



4

83-1020-363-00

Thrust Washer 16*24*1.0

1



3

80-1614-636-00

Supporter Pulley

2



2

80-1614-373-20

Knife Brake Spring

1



1

80-1417-371-00

Knife Brake

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

20/20

Rotary cover    5/5



18

0256-51000

Knife Drum ASSY

1



17

0256-50100

Rotary Cover CMP

1



16

89-3115-062064

Bearing 6206 2RS

2



15

89-2512-000620

Snap Ring (R62)

2



14

89-1812-100002

Tooth Washer 10

1



13

89-1750-080002

Spring Washer 8

10



12

89-1671-080042

Mini Hexagonal Cap Nut M8

6



11

89-1253-080162

Flange Hexagonal Bolt (8T) M8*16

4



10

83-1613-907-00

Label, Caution for Hand and Leg

2



9

83-1610-835-00

Setting Bolt SET

16



8

83-1610-321-00

Washer 10*36*4.5

1



7

83-1610-124-00

Hexagonal Bolt(8T) M10x25(left scre

1



6

80-1614-810-00

BB Case Cover

1



5

80-1614-804-20

Knife Shaft BB Case CMP

1



4

80-1614-705-00

Flat Head Bolt M8x18

6



3

80-1612-813-00

Dust Cover

1



2

80-1610-821-00

Hammer Knife Blade

32



1

80-1610-804-00

BB Case

1



Ref.

Parts Number

Parts Name

Quantity

Remarks
