OREC

ISSUED NO. LS460-3

Parts catalogue Transporter

(EXPORT MODEL)

(SERIAL No.UC07J00161～)

LS460  (SERIAL No.～UC07B00160)

MODEL                      CODE NO.



LS461                      0919-△△△△△ LS460



CONTENTS

TRANSMISSION--------------------------------- 1

HANDLE------------------------------------------- 6

ENGINE-------------------------------------------- 7

FRAME-------------------------------------------- 8

CRAWLER---------------------------------------- 9

PLATFORM-------------------------------------- 11

OREC CO.,LTD

Update : December 200

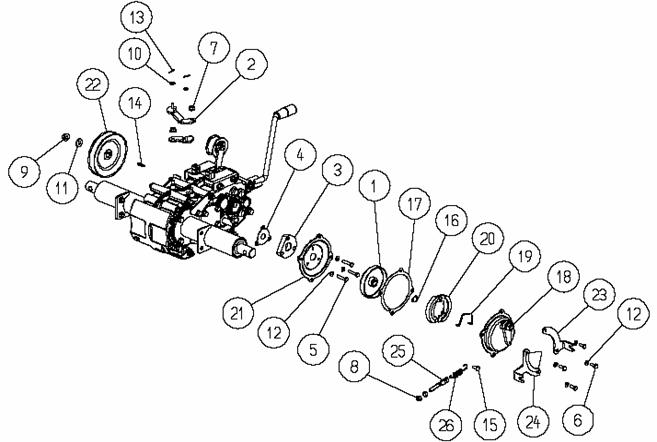

Transmission 1/5                                                                       1/12





Transmission ASSY



Excluding items in Remark1





Brake ASSY(LS460)



1,17,18,19,20 Including

26

0919-70300

Brake Pulling Spring

1

Remarks 1

25

0919-01800

Brake Adjuster

1

Remarks 1

24

0919-01300

Receive for Brake Spring

1

Remarks 1

23

0919-01110

Receive for Brake Wire

1



22

0913-50200

Transmission Pulley

1

Remarks 1

21

0913-02600

Brake Cover CMP

1



20

0244-88100

Brake Shoe

1



19

80-1030-285-00

Shoe Return Spring

1



18

0207-73100

Brake Cap Assy

1



17

0919-70800

Brake Cover PK (PA-7)

1



16

89-2511-000150

Snap Ring (S15)

1



15

89-2181-060162

Flat Head Pin 6*16

1

Remarks 1

14

89-2150-050180

Key 5*18 (round)

1

Remarks 1

13

89-2120-200152

Split Pin 2*15

2

Remarks 1

12

89-1750-060002

Spring Washer 6

7



11

89-1711-100002

Flat Washer 10

1

Remarks 1

10

89-1711-060002

Flat Washer 6

2

Remarks 1

9

89-1631-100042

Flange Mini Hexagonal Nut M10

1

Remarks 1

8

89-1543-080002

Mini Hexagonal Nut (SW) M8

2

Remarks 1

7

89-1511-080042

Hexagonal Nut M8

2



6

89-1113-060162

Hexagonal Bolt (8T) M6*16

4



5

89-1111-060252

Hexagonal Bolt M6*25

3



4

85-1445-317-00

Brake Packing (Small)

1



3

80-1920-313-00

Brake Cover Spacer

1



2

80-1920-153-00

Side Clutch Arm

2



1

80-1030-282-00

Brake Drum (PA-7)

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

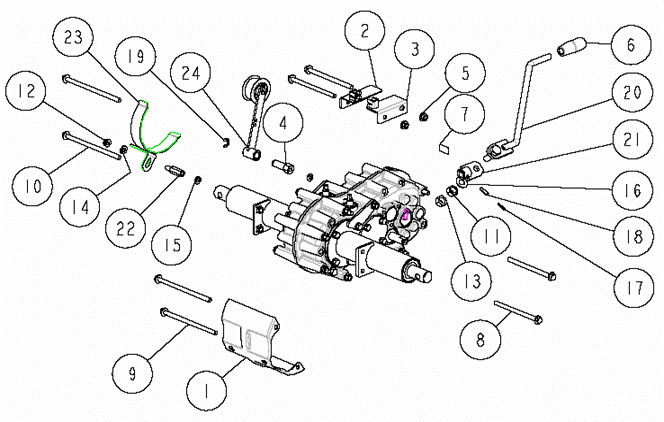

Transmission 2/5                                                                       2/12

24

0919-50200

Drive Tension Arm

1

Remarks 1

23

0919-40400

Belt Cover (Under)

1

Remarks 1

22

0919-01200

Belt Cover Setting Bolt A

1



21

0913-02200

Change Arm CMP

1



20

0913-02100

Shift Rod CMP

1



19

89-2521-000100

E Type Ring 10

1

Remarks 1

18

89-2111-050020

Spring Pin 5*20

1



17

89-2111-030020

Spring Pin 3*20

1



16

89-1852-120000

Belleville Spring H12

1



15

89-1750-080002

Spring Washer 8

2



14

89-1711-080002

Flat Washer 8

1

Remarks 1

13

89-1551-120002

Hexagonal U Nut M12

1



12

89-1543-080002

Mini Hexagonal Nut (SW) M8

2

Remarks 1

11

89-1511-120042

Hexagonal Nut M12

1



10

89-1251-081503

Flange Mini Hexagonal Bolt M8*150

2



9

89-1251-081453

Flange Mini Hexagonal Bolt M8*145

4



8

89-1251-081203

Flange Mini Hexagonal Bolt M8*120

6



7

83-1712-923-00

Label, Oil Quantity 1.6 L

1



6

83-1711-426-00

Lever Grip 12

1

Remarks 1

5

83-1484-255-00

Lock Nut ZUF M8

9



4

80-1920-535-00

Driving Tension Arm Setting Shaft

1



3

80-1920-198-00

Side Clutch Wire Receiver (R)

1



2

80-1920-197-00

Side Clutch Wire Receiver (L)

1



1

80-1920-117-00

Transmission Guard

1



Ref.

Parts Number

Parts Name

Quantity

Remarks




Transmission

3/5



3/12

18

0913-01200

1st Shaft Shift Gear 14T

1



17

89-3410-075000

Steel Ball 7.5

1



16

89-2511-000200

Snap Ring (S20)

2



15

89-2511-000160

Snap Ring (S16)

1



14

89-2511-000150

Snap Ring (S15)

2



13

89-2120-200202

Split Pin 2*20

1



12

83-1633-362-10

Thrust Washer 15*30*1.2

2



11

83-1020-361-00

Thrust Washer 15*24*1.0

1



10

80-1923-107-00

Shift Fork Shaft

1



9

80-1920-121-00

Top Gear 23T

1



8

80-1920-119-00

Collar D

1



7

80-1920-118-10

Main Shaft

1



6

80-1575-162-00

Side Clutch Spring

2



5

80-1575-142-00

Side Clutch Gear 38T

1



4

80-1575-141-00

Side Clutch Gear 14T

2



3

80-1575-140-00

Side Clutch Shaft

1



2

80-1575-108-10

1st Shaft Shift Folk

1



1

80-1310-138-00

Spring 1.4

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

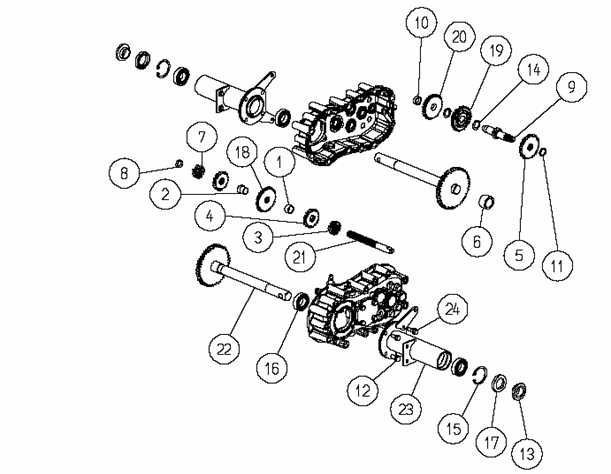

Transmission 4/5                                                                       4/12

24

0919-72400

Seal Bolt (SW) M8*25

4



23

0919-01400

Axle BB Case

2



22

0914-01200

Axle

2



21

0913-01600

2 Shaft

1



20

0913-01500

3 Shaft Gear 32T

1



19

0913-01400

Back Gear CMP

1



18

0913-01300

2 Shaft Gear 32T

1



17

89-5121-304707

Oil Seal UE 30.47.7

2



16

89-3111-060054

Bearing 6005

4



15

89-2512-000470

Snap Ring (R47)

2



14

83-1830-368-00

Thrust Washer 18*26*1.0

2



13

83-1415-663-00

Oil Seal AP 30.47.7

2



12

83-1415-127-00

Seal Bolt (SW) M8*20

8



11

83-1017-365-10

Thrust Washer 17*23*1.0

1



10

80-1923-141-00

Collar D

1



9

80-1923-138-00

3 Shaft

1



8

80-1923-134-00

Collar C

1



7

80-1923-129-00

2 Shaft Gear 14T

1



6

80-1920-147-00

Axle Collar

1



5

80-1920-140-00

3 Shaft Gear 31T

1



4

80-1920-133-00

2 Shaft Gear 23T

2



3

80-1920-132-00

2 Shaft Gear 15T

1



2

80-1920-131-00

Collar B

1



1

80-1920-130-00

Collar Ａ

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

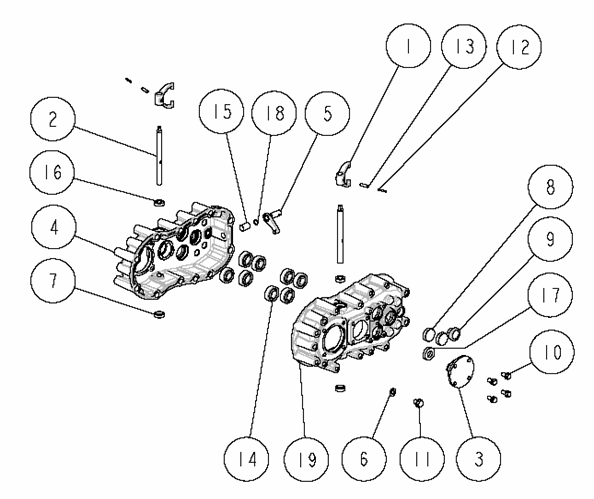

Transmission 5/5                                               5/12

19

0915-00200

Transmission Case (L)

1



18

89-5221-009000

O Ring P9

1



17

89-5121-153007

Oil Seal UE 15.30.7

2



16

89-5121-122207

Oil Seal UE 12.22.7

2



15

89-3510-012200

DU Bush 12.20

1



14

89-3111-062024

Bearing 6202

8



13

89-2111-050020

Spring Pin 5*20

2



12

89-2111-030020

Spring Pin 3*20

2



11

89-1252-100122

Flange Mini Hexagonal Bolt M10*12 (slende

1



10

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

8



9

83-1517-685-00

Oil Cap 20

2



8

83-1415-672-00

Blind Cover 30

4



7

83-1415-671-00

Blind Cover 22

2



6

83-1020-349-00

Copper Packing 10.5*18*1.6

1



5

80-1920-106-00

Swing Arm

1



4

80-1920-103-00

Transmission Case (R)

1



3

80-1575-152-10

Side Clutch Shaft BB Case

2



2

80-1425-112-00

Driving Clutch Folk Shaft

2



1

80-1415-114-00

Side Clutch Fork

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

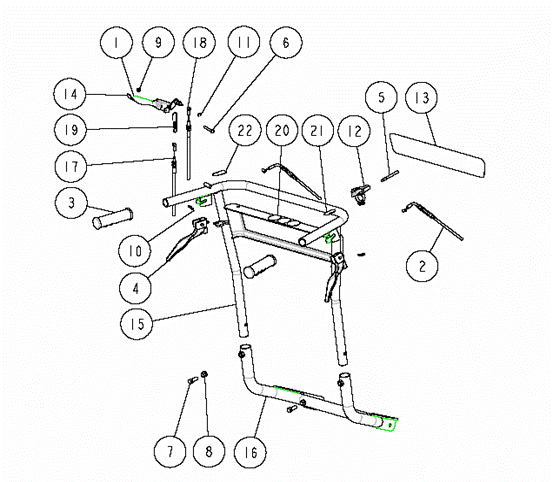

Handle                                                                       6/12

22

0919-73400

Label for Side Clutch (L)

1



21

0919-73200

Label for Side Clutch (R)

1



20

0919-71800

Label, Caution (LS)

1



19

0919-70400

Spring for Brake Lever

1



18

0919-70200

Driving Clutch Wire

1



17

0919-70100

Brake Wire

1



16

0919-10100

Handle Setting CMP

1



15

0915-80100

Handle CMP

1



14

0914-80100

Driving Clutch Lever

1



13

0913-73300

Plate

1



5,12

0913-71500

Throttle Wire Assy

1



12

0226-70400

Throttle Lever 27

1



11

89-2521-000050

E Type Ring 5

1



10

89-2131-080002

Snap Pin 8

2



9

89-1553-060002

Bag Hexagonal U Nut M6

1



8

89-1543-100002

Mini Hexagonal Nut (SW) M10

2



7

89-1213-100252

Mini Hexagonal Bolt (8T) M10*25

2



6

89-1113-060402

Hexagonal Bolt (8T) M6*40

1



5

0030-70600

Throttle Wire

1



4

83-1761-457-00

Side Clutch Lever

2



3

83-1560-414-00

Handle Grip 27

2



2

83-1425-937-00

Side Clutch Wire

2



1

80-1920-A09-00

Label, Driving

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

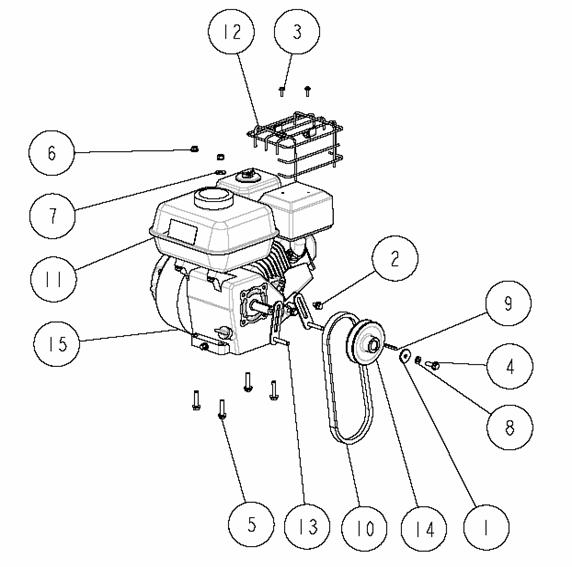

engine                                                                       7/12

15

9006-0071

Engine GX160 SHRY

1



14

0919-50100

Engine Pulley

1



13

0913-50600

Engine Pulley Belt Holder

2



12

0902-60100

Muffler Guard CMP

1



11

0214-72100

Label, Caution for Engine etc

1



10

89-6123-003000

V Belt LB-30

1



9

89-2150-050350

Key 5*35 (round)

1



8

89-1750-080002

Spring Washer 8

1



7

89-1713-080002

Flat Washer 8 (large)

2



6

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



5

89-1253-080352

Flange Mini Hexagonal Bolt (8T) M8*

4



4

89-1253-080252

Flange Mini Hexagonal Bolt (8T) M8*

1



3

89-1251-050163

Flange Hexagonal Bolt M5*16

2



2

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



1

83-1020-312-00

Washer 8*30*3.2

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

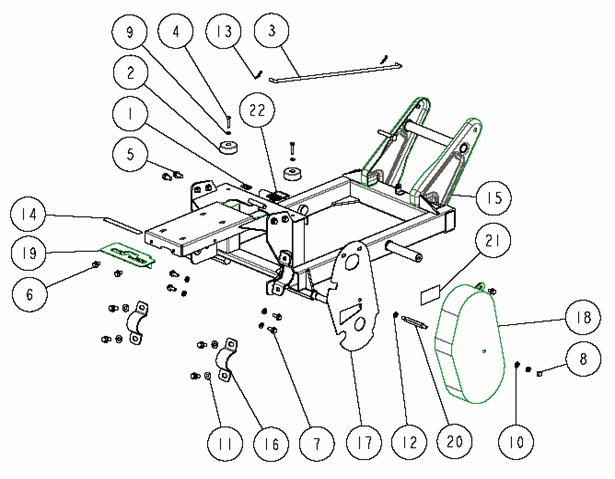

Frame                                                                       8/12

22

0919-73100

Label, Noise 101db

1



21

0919-71500

Label, Belt Size

1



20

0919-40510

Belt Cover Setting Bolt B

1



19

0919-40310

Change Guide

1



18

0919-40210

Belt Cover

1



17

0919-40110

Belt Cover (IN)

1



16

0919-20200

Axle BB Case Holder

2



15

0919-20100

Frame

1



14

0913-72300

Label, Change

1



13

89-2131-080002

Snap Pin 8

2



12

89-1750-080002

Spring Washer 8

6



11

89-1714-100002

Flat Washer 10

4



10

89-1711-080002

Flat Washer 8

1



9

89-1711-060002

Flat Washer 6

2



8

89-1571-080042

Cap Nut M8

1



7

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*

4



6

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

3



5

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

8



4

89-1111-060302

Hexagonal Bolt M6*30

2



3

80-1920-711-00

Platform Support Bar

1



2

80-1920-306-00

Stopper Rubber B-4

2



1

80-1010-933-00

Label, CE

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

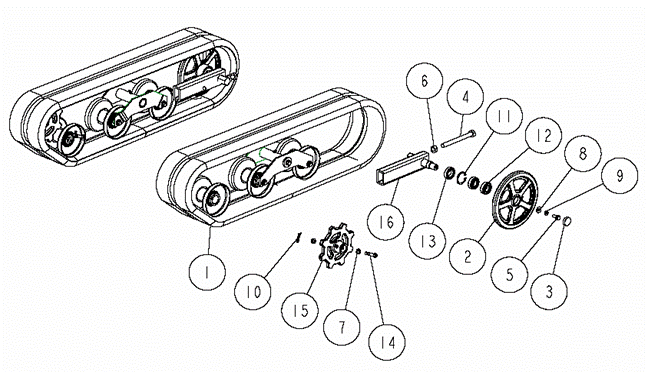

Crawler 1/2                                                                       9/12

16

0914-30400

Induction Ring Attachment

2



15

0913-31100

Driving Sprocket

2



14

0282-31300

Axle Pin 10*50

2



13

89-5121-254210

Oil Seal UE 25.42.10

2



12

89-3115-060044

Bearing 6004 2RS

4



11

89-2512-000420

Snap Ring (R42)

2



10

89-2132-100002

Snap Pin 10 (with stopper)

2



9

89-1750-080002

Spring Washer 8

2



8

89-1713-080002

Flat Washer 8 (large)

2



7

89-1711-100002

Flat Washer 10

4



6

89-1511-140042

Hexagonal Nut M14

2



5

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*

2



4

89-1111-141407

Hexagonal Bolt M14*140

2



3

83-1415-672-00

Blind Cover 30

2



2

80-1920-412-00

Idle Roller

2



1

80-1920-401-00

Rubber Crawler 160W*60P*35L

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

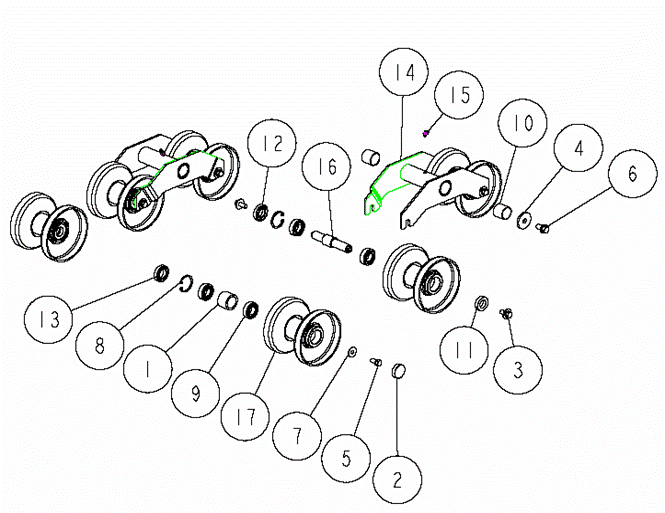

Crawler 2/2                                                                     10/12

17

0914-30500

Turn Wheel

6



16

0914-30200

Shaft for Turn Wheel Setting

4



15

0913-70700

Grease Nipple B-Type M6

2



14

0913-30800

Turn Wheel Setting

2



13

89-5121-203508

Oil Seal UE 20.35.8

2



12

89-5121-173507

Oil Seal UE 17.35.7

4



11

89-5121-173008

Oil Seal UE 17.30.8

4



10

89-3510-025250

DU Bush 25.25

4



9

89-3115-060034

Bearing 6003 2RS

12



8

89-2512-000350

Snap Ring (R35)

6



7

89-1713-080002

Flat Washer 8 (large)

2



6

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

2



5

89-1232-080182

Mini Hexagonal Bolt (SW) M8*18

2



4

83-1610-321-00

Washer 10*36*4.5

2



3

83-1490-114-00

Mini Hexagonal Bolt (PWSW) M8*20

8



2

83-1415-672-00

Blind Cover 30

2



1

80-1920-142-00

Spacer for Turn Wheel

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

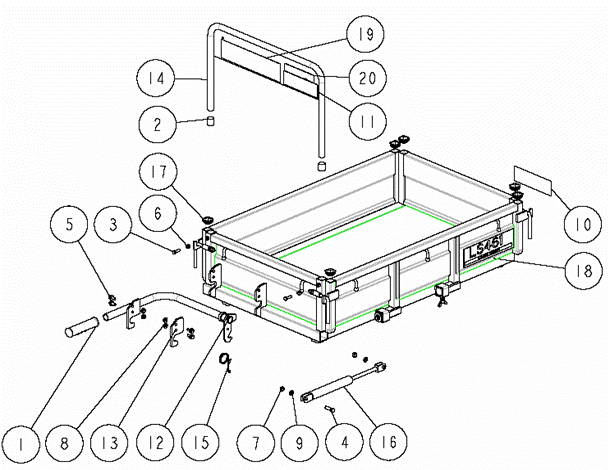

Platform 1/2                                                                     11/12

20

0919-71900

Label, Slope Loading Capacity 200Kg

1

1



19

0919-71700

Label, Caution (Large)

1

1



18

0919-71100

Label, Side (LS460)



2



0919-71110

Label, Side (LS461)

2





17

0919-70700

Pipe Cap

6





16

0919-70600

Gas Spring (KPF100-50)

1

1



15

0919-70500

Platform Lock Spring

1

1



14

0919-60500

Rear Frame for Platform



1



0919-60510

Rear Frame for Platform

1





13

0919-60400

Stopper Support



2



0919-60410

Stopper Support

2





12

0919-60300

Platform Stopper



1



0919-60310

Platform Stopper

1





11

0914-77600

Label,Caution

1





10

0913-73200

Label, Front

1

1



9

89-1711-100002

Flat Washer 10

2

2



8

89-1631-080042

Flange Mini Hexagonal Nut M8

4

2



7

89-1561-100002

Mini Hexagonal U Nut M10

2

2



6

89-1543-080002

Mini Hexagonal Nut (SW) M8

2





5

89-1233-080252

Mini Hexagonal Bolt (PWSW) M8*25

4

2



4

89-1211-100302

Mini Hexagonal Bolt M10*30

1

1



3

89-1211-080252

Mini Hexagonal Bolt M8*25

2





2

83-1565-402-00

Cap

2





1

83-1410-412-00

Handle Grip 25

1

1



Ref.

Parts Number

Parts Name

LS461

LS460

Remarks

Quantity

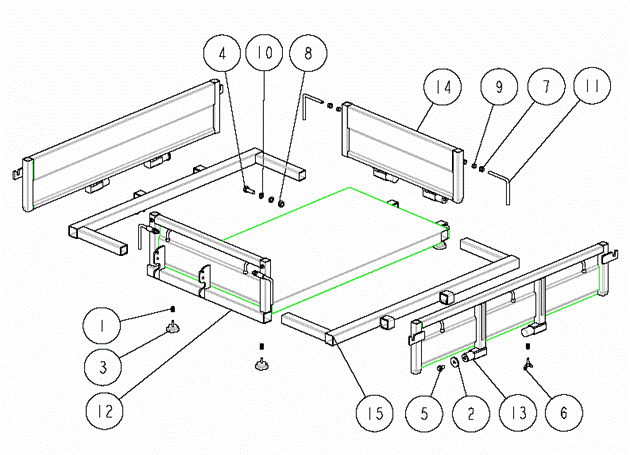

Platform 2/2                                                                      12/12

15

0913-60500

Slide Pipe CMP



2



0919-60800

Slide Pipe CMP

2





14

0913-60200

Front Frame for Platform



1



0919-60700

Front Frame for Platform

1





13

0919-60200

Side Frame for Platform



2



0919-60210

Side Frame for Platform

2





12

0919-60100

Platform



1



0919-60110

Platform

1





11

0913-71100

Platform Stopper

4

4



10

89-1711-120002

Flat Washer 12

4

4



9

89-1611-100042

Mini Hexagonal Nut M10

4

4



8

89-1551-120002

Hexagonal U Nut M12

2

2



7

89-1543-100002

Mini Hexagonal Nut (SW) M10

4

4



6

89-1311-080202

Butterfly (Large) Bolt M8*20

3

3



5

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

3

3



4

89-1113-120352

Hexagonal Bolt (8T) M12*35

2

2



3

83-1920-102-00

Knob Bolt M8*20

4

4



2

83-1610-321-00

Washer 10*36*4.5

3

3



1

80-1920-717-00

Knob Spring for Platform

7

7



Ref.

Parts Number

Parts Name

LS461

LS460

Remarks

Quantity
