OREC                                              ISSUED NO. LS360-3

Parts catalogue Transporter

(EU MODEL) LS360



MODEL               CODE

LS360                0915-○○○○○

















CONTENTS

Fig. 1

TRANSMISSION  -------------------------------------

1

Fig. 2

ENGINE  -------------------------------------------------

6

Fig. 3

FRAME  --------------------------------------------------

7

Fig. 4

HANDLE  ------------------------------------------------

9

Fig. 5

CRAWLER  ---------------------------------------------

11

Fig. 6

PLATFORM  --------------------------------------------

13







OREC CO.,LTD







Update : February 2012

                                                         MEMO













*1) Interchangeable

*2) Serial Number : LS360 : ~UB05K00141

*3) Serial Number : LS360 : UB05K00142~

*4) Serial Number : LS360 : ~UB06M00005

*5) Serial Number : LS360 : UB07A00001~

*6) Serial Number : LS360 : ~UB07A00034

*7) Serial Number : LS360 : UB07G00035~

*8) Serial Number : LS360 : ~UB07G00159

*9) Serial Number : LS360 : UB07H00160~

*10) Serial Number : LS360 : ~UB08H00210

*11) Serial Number : LS360 : UB08K00211~

*12) Serial Number : LS360 : ~UB09H00066

*13) Serial Number : LS360 : UB10G00007~

*14) Serial Number : LS360 : UB11A00001~

*15) Serial Number : LS360 : ~UB11A00078

*16) Serial Number : LS360 : UB11C00091~

*17) Serial Number : LS360 : ~UB11C00096

*18) Serial Number : LS360 : UB12A00001~

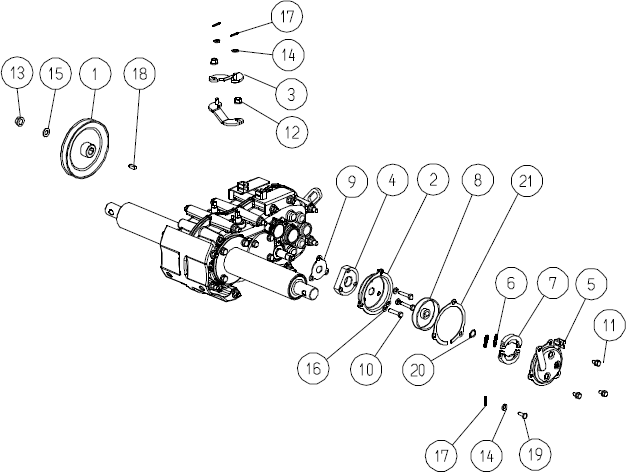

Transmission 1/5                                                                                          1/14











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1516-521-00

Transmission Pulley

1

Remark 1

2

80-1614-312-00

Brake Cover CMP

1



3

80-1920-153-00

Side Clutch Arm

2



4

80-1920-313-00

Brake Cover Spacer

1



5

85-1445-311-00

Brake (Main Body)

1



5-8

0914-73000

Brake Assy (W6308)

1



6

85-1711-317-00

Shoe Return Spring

2



7

85-1711-316-00

Brake Shoe Set

1





85-1711-318-00

Brake Shoe Set

1

*1)

8

85-1445-313-00

Brake Drum

1



9

85-1445-317-00

Brake Packing (Small)

1



10

89-1111-060252

Hexagonal Bolt M6*25

3



11

89-1132-060122

Hexagonal Bolt (SW) M6*12

3



12

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



13

89-1631-100042

Flange Mini Hexagonal Nut M10

1

Remark 1

14

89-1711-060002

Flat Washer 6

3



15

89-1711-100002

Flat Washer 10*18*1.6

1

Remark 1

16

89-1750-060002

Spring Washer 6

3



17

89-2120-200152

Split Pin 2*15

3



18

89-2150-050180

Key 5*18 (round)

1

Remark 1

19

89-2181-060162

Flat Head Pin 6*16

1



20

89-2511-000130

Snap Ring (S13)

1



21

0211-31800

Brake Packing (Large)

1





0915-01000

Transmission Assy LS360

1

Excluding items in Remark 1

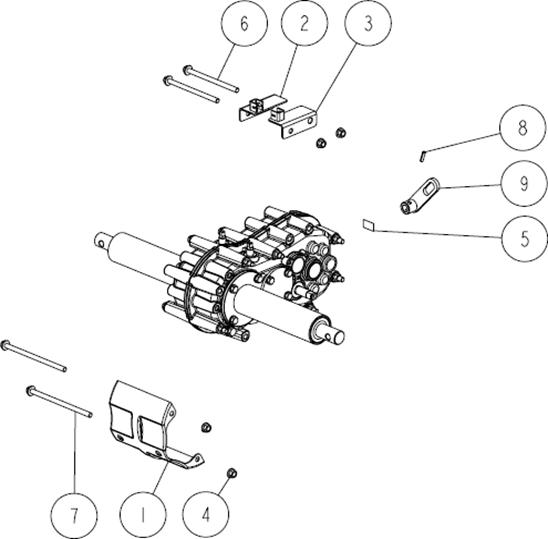

Transmission 2/5                                                                                          2/14



































Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1920-117-00

Transmission Guard

1



2

80-1920-197-00

Side Clutch Wire Receiver (L)

1



3

80-1920-198-00

Side Clutch Wire Receiver (R)

1



4

83-1484-255-00

Lock Nut ZUF M8

12



5

83-1712-923-00

Label, Oil Quantity 1.6 L

1



6

89-1251-081203

Flange Mini Hexagonal Bolt M8*120

6



7

89-1251-081453

Flange Mini Hexagonal Bolt M8*145

6



8

89-2111-050020

Spring Pin 5*20

1



9

0915-01300

Change Arm

1

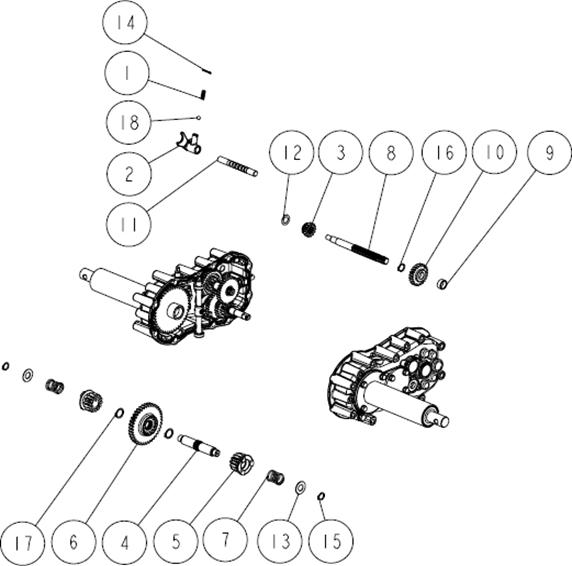

Transmission 3/5                                                                                          3/14











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1310-138-00

Spring 1.4

1



2

80-1575-108-10

1st Shaft Shift Folk

1



3

80-1575-120-10

1st Shaft Shift Gear 14T

1

*4)



0913-01200

1st Shaft Shift Gear 14T

1

*1) *5)

4

80-1575-140-00

Side Clutch Shaft

1



5

80-1575-141-00

Side Clutch Gear 14T

2



6

80-1575-142-00

Side Clutch Gear 38T

1



7

80-1575-162-00

Side Clutch Spring

2



8

80-1920-118-10

Main Shaft

1



9

80-1920-119-00

Collar D

1



10

80-1920-121-00

Top Gear 23T

1



11

80-1923-107-00

Shift Fork Shaft

1



12

83-1020-361-00

Thrust Washer 15*24*1.0

1



13

83-1633-362-10

Thrust Washer 15*30*1.2

2



14

89-2120-200202

Split Pin 2*20

1



15

89-2511-000150

Snap Ring (S15)

2



16

89-2511-000160

Snap Ring (S16)

1



17

89-2511-000200

Snap Ring (S20)

2



18

89-3410-075000

Steel Ball 7.5

1

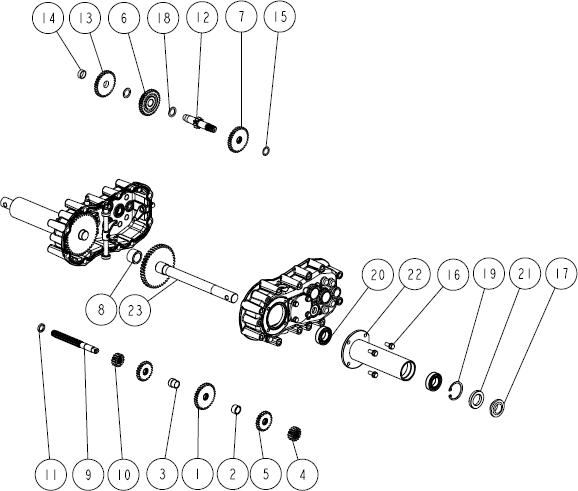

Transmission 4/5                                                                                          4/14









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1920-128-00

2 Shaft Gear 32T



*4)



0913-01300

2 Shaft Gear 32T

1

*1) *5)

2

80-1920-130-00

Collar Ａ

1



3

80-1920-131-00

Collar B

1



4

80-1920-132-00

2 Shaft Gear 15T

1



5

80-1920-133-00

2 Shaft Gear 23T

2



6

80-1920-139-00

Back Gear CMP

1

*4)



0913-01400

Back Gear CMP

1

*1) *5)

7

80-1920-140-00

3 Shaft Gear 31T

1



8

80-1920-147-00

Axle Collar

1



9

80-1923-127-00

2 Shaft

1



10

80-1923-129-00

2 Shaft Gear 14T

1



11

80-1923-134-00

Collar C

1



12

80-1923-138-00

3 Shaft

1



13

80-1923-140-00

3 Shaft Gear 32T

1

*4)



0913-01500

3 Shaft Gear 32T

1

*1) *5)

14

80-1923-141-00

Collar D

1



15

83-1017-365-10

Thrust Washer 17*23*1.0

1



16

83-1415-127-00

Seal Bolt (SW) M8*20

8



17

83-1415-663-00

Oil Seal AP 30.47.7

2



18

83-1830-368-00

Thrust Washer 18*26*1.0

2



19

89-2512-000470

Snap Ring (R47)

2



20

89-3111-060054

Bearing 6005

4



21

89-5121-304707

Oil Seal UE 30.47.7

2



22

0914-01100

Axle BB Case

2



23

0914-01200

Axle

2

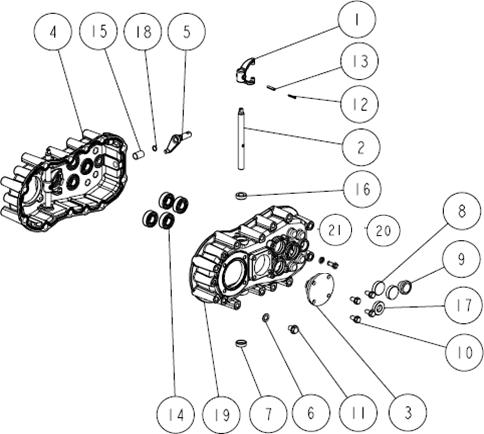

Transmission 5/5                                                                                          5/14

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1415-114-00

Side Clutch Fork

2



2

80-1425-112-00

Driving Clutch Folk Shaft

2



3

80-1575-152-10

Side Clutch Shaft BB Case

2



4

80-1920-103-00

Transmission Case (R)

1

*15)



0914-00100

Transmission Case (R)

1

*1) *16)

5

80-1920-106-00

Swing Arm

1



6

83-1020-349-00

Copper Packing 10.5*18*1.6

1



7

83-1415-671-00

Blind Cover 22

2



8

83-1415-672-00

Blind Cover 30

4



9

83-1517-685-00

Oil Cap 20

2



10

89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

8



11

89-1252-100123

Flange Mini Hexagonal Bolt M10*12 (slender)

1



12

89-2111-030020

Spring Pin 3*20

2



13

89-2111-050020

Spring Pin 5*20

2



14

89-3111-062024

Bearing 6202

8



15

89-3510-012200

DU Bush 12.20

1



16

89-5121-122207

Oil Seal UE 12.22.7

2



17

89-5121-153007

Oil Seal UE 15.30.7

2



18

89-5221-009000

O Ring P9

1



19

0915-00200

Transmission Case (L)

1

*15)



0915-00900

Transmission Case (L) Set



*1) Including items Remark 2



0915-00210

Transmission Case (L)

1

*16)  Remark 2

20

89-1251-060102

Flange Hexagonal Bolt M6*10

1

*16)  Remark 2

21

89-5230-060000

Seal Washer 6

1

*16)  Remark 2

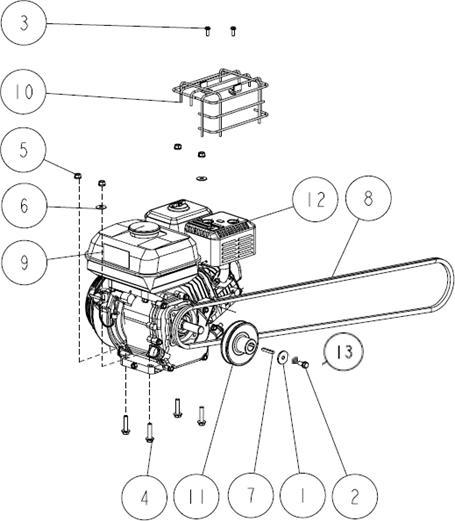

Engine                                                                                          6/14

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

83-1020-312-00

Washer 8*30*3.2

1



2

89-1232-080182

Mini Hexagonal Bolt (SW) M8*18

1





89-1253-080252

Flange Mini Hexagonal Bolt (8T) M8*25

1

*1) *11)

3

89-1251-050163

Flange Hexagonal Bolt M5*16

2

HONDA GX120

4

89-1253-080352

Flange Mini Hexagonal Bolt (8T) M8*35

4



5

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



6

89-1713-080002

Flat Washer 8 (large)

2



7

89-2150-050350

Key 5*35 (round)

1



8

89-6122-007401

V Belt LAR-74

1



9

0214-72100

Label, Caution for Engine etc

1

HONDA GX120

10

0902-60100

Muffler Guard CMP

1

*17) HONDA



0915-60200

Muffler Guard CMP

1

*18) HONDA

11

0915-50700

Engine Pulley

1



12



Engine GM132PN-20D

1

*10) MITSUBISHI



9011-0820

Engine GB130PN-204

1

*1) *14) MITSUBISHI



9003-0171

Engine GX120K1 SAR4

1

*17) HONDA



9003-0271

Engine GX120UT2 SAR4

1

*1) *18) HONDA

13

89-1750-080002

Spring Washer 8

1

*11)

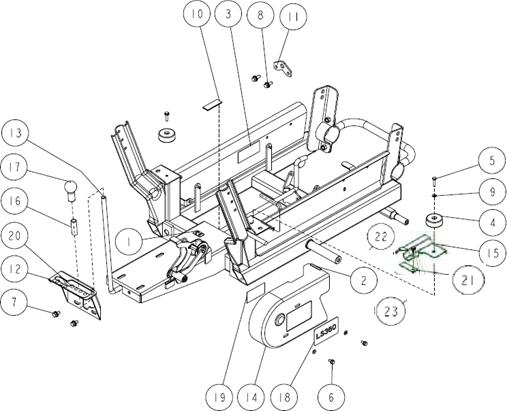

Frame 1/2                                                                                          7/14

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1010-933-00

Label, CE

1



2

80-1482-492-00

Rubber L40

1



3

80-1488-928-10

Label, Caution for Belt Involving

2



4

80-1920-306-00

Stopper Rubber B-4

2



5

89-1111-060252

Hexagonal Bolt M6*25

2



6

89-1132-060122

Hexagonal Bolt (SW) M6*12

2



7

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



8

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



9

89-1711-060002

Flat Washer 6

4



10

0207-63300

Left Cover Pad

1



11

0915-20310

Change Rod Setting

1



12

0915-20410

Change Guide

1



13

0915-21110

Shift Rod

1



14

0915-46300

Belt Cover

1

*8)



0915-46500

Belt Cover (Mitsubishi)

1

*9) MITSUBISHI



0915-46600

Belt Cover(Honda)

1

*9) HONDA

15

0915-56700

Sub. Belt Cover

1



16

0915-70100

Rubber for Shift Rod

1



17

0915-70200

Grip, Rubber 12.7

1



18

0915-77100

Label, Model LS360

1

*6)



0915-77110

Label, Model LS360

1

*7)

19

0915-77200

Label, Belt Size

1



20

0915-77300

Label, Change

1



21

0915-56600

Sub. Belt Cover Support

1

*5)

22

89-1132-060122

Hexagonal Bolt (SW) M6*12

1

*5)

23

89-1711-060002

Flat Washer 6

1

*5)

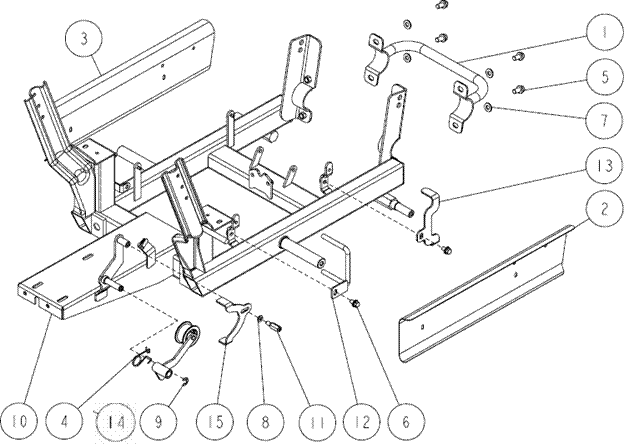

Frame 2/2                                                                                          8/14

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1920-354-00

Bumper

1



2

80-1920-751-10

Guard (Right)

1



3

0915-65200

Guard (Left)

1



4

80-1923-552-00

Drive Tension Return Spring

1



5

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

4



6

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



7

89-1714-100002

Flat Washer 10

4



8

89-1750-080002

Spring Washer 8

1



9

89-2521-000100

E Type Ring 10

1



10

0915-20110

Frame

1



11

0915-46400

Belt Cover Setting Bolt

1



12

0915-50500

Driving Belt Supporter

1



13

0915-50600

Front Belt Supporter

1



14

0915-54200

Drive Tension Arm

1



15

0915-56200

Engine Pulley Belt Holder

1

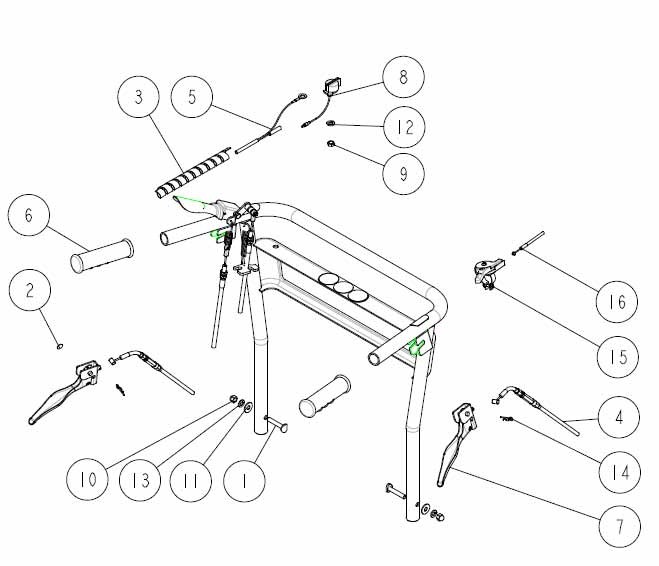

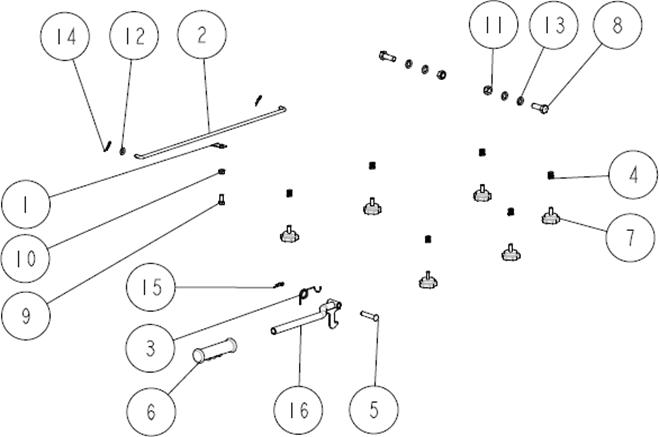

Handle 1/2                                                                                          9/14













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1021-227-00

Handle Fixing Bolt M8*45

2



2

80-1610-919-00

Label for Left Screw

1



3

80-1920-389-00

Spiral Tube

1

MITSUBISHI

4

83-1920-962-00

Side Clutch Wire

2



5

80-1923-288-00

Engine Stop Wire Harness

1

MITSUBISHI

6

83-1560-414-00

Handle Grip 27

2



7

83-1761-457-00

Side Clutch Lever

2



8

0016-72500

Engine Stop Switch

1

MITSUBISHI

9

89-1513-080042

Hexagonal Nut (3 sorts) M8

1

MITSUBISHI

10

89-1671-080043

Mini Cap Nut M8

2



11

89-1713-080003

Flat Washer 8 (large)

2



12

89-1750-080002

Spring Washer 8

1

MITSUBISHI

13

89-1750-080003

Spring Washer 8

2



14

89-2131-080002

Snap Pin 8

2



15

0914-75100

Throttle Wire

1



16

0914-75200

Throttle Lever 27

1



15,16

0914-75000

Throttle Wire Assy

1

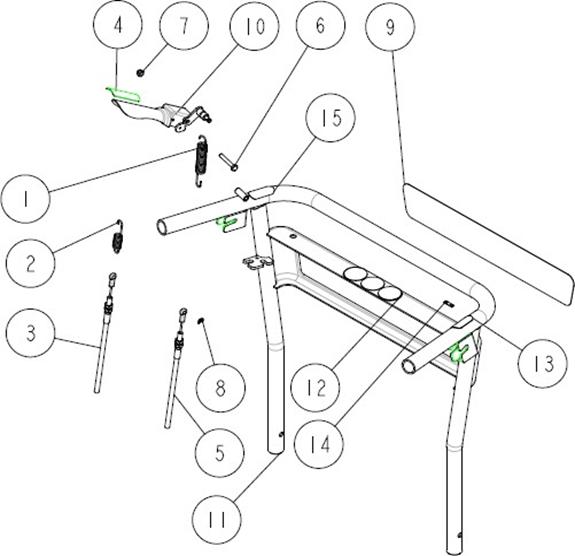

Handle 2/2                                                                                        10/14



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1920-A04-00

Clutch Lever Return Spring

1



2

80-1920-A05-00

Spring for Brake Return

1



3

80-1920-A07-00

Brake Wire

1



4

80-1920-A09-00

Label, Driving

1



5

80-1923-961-00

Driving Clutch Wire

1



6

89-1113-060402

Hexagonal Bolt (8T) M6*40

1



7

89-1553-060002

Bag Hexagonal U Nut M6

1



8

89-2521-000050

E Type Ring 5

1



9

80-1920-901-00

Plate

1

*6)



0913-73300

Plate

1

*7)

10

0914-80100

Driving Clutch Lever

1



11

0915-80100

Handle CMP

1



12

0919-71800

Label, Caution (LS)

1



13

0919-73200

Label for Side Clutch (R)

1

*5)

14

0919-73300

Label,Engine Stop

1

*5) MITSUBISHI

15

0919-73400

Label for Side Clutch (L)

1

*5)

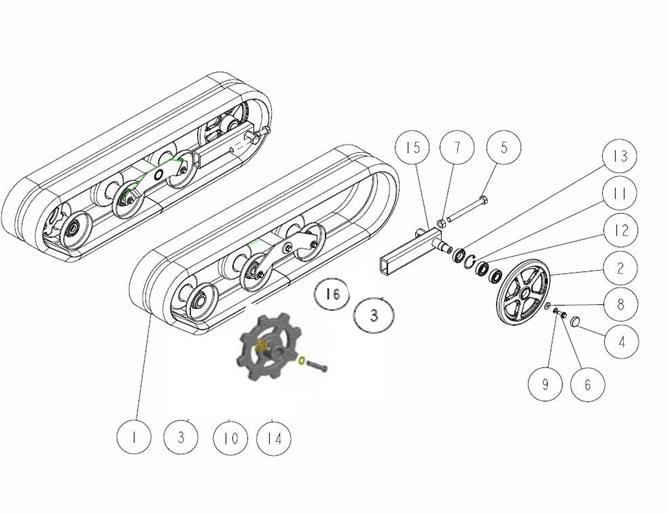

Crawler 1/2                                                                                        11/14

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1920-401-00

Rubber Crawler 160W*60P*35L

2



2

80-1920-412-00

Idle Roller

2



3

83-1210-162-00

Round Headed Pin 10*55

2

*12)



0282-31300

Axle Pin 10*50

2

*1) *13)

4

83-1415-672-00

Blind Cover 30

2



5

89-1111-141407

Hexagonal Bolt M14*140

2



6

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20

2



7

89-1511-140042

Hexagonal Nut M14

2



8

89-1713-080002

Flat Washer 8 (large)

2



9

89-1750-080002

Spring Washer 8

2



10

89-2132-100002

Snap Pin 10 (with stopper)

2



11

89-2512-000420

Snap Ring (R42)

2



12

89-3115-060044

Bearing 6004 2RS

4



13

89-5121-254210

Oil Seal UE 25.42.10

2



14

0914-30100

Driving Sprocket

2

*4)



0913-31100

Driving Sprocket

2

*1) *5)

15

0914-30400

Induction Ring Attachment

2



16

89-1711-100002

Flat Washer 10*18*1.6

2

*13)

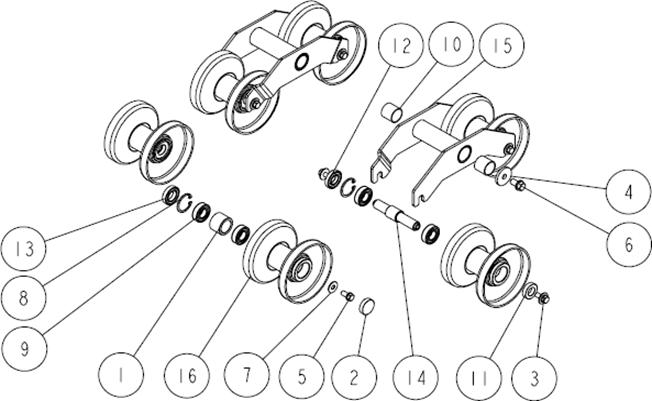

Crawler 2/2                                                                                        12/14































Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1920-142-00

Spacer for Turn Wheel

2



2

83-1415-672-00

Blind Cover 30

2



3

83-1490-114-00

Mini Hexagonal Bolt (PWSW) M8*20

8

*2)



89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

8

*1) *3)

4

83-1610-321-00

Washer 10*36*4.5

2



5

89-1232-080182

Mini Hexagonal Bolt (SW) M8*18

2





89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

2

*1)

6

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

2



7

89-1713-080002

Flat Washer 8 (large)

2



8

89-2512-000350

Snap Ring (R35)

6



9

89-3115-060034

Bearing 6003 2RS

12



10

89-3511-025250

DU Bush 25.25.36F

4

*2)



89-3510-025250

DU Bush 25.25

4

*1) *3)

11

89-5121-173008

Oil Seal UE 17.30.8

4



12

89-5121-173507

Oil Seal UE 17.35.7

4



13

89-5121-203508

Oil Seal UE 20.35.8

2



14

0914-30200

Shaft for Turn Wheel Setting

4



15

0914-30300

Turn Wheel Setting

2



16

0914-30500

Turn Wheel

6





Platform 1/2                                                                                        13/14





























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1920-674-00

Fix Spring

1



2

80-1920-711-00

Platform Support Bar

1



3

80-1920-716-00

Platform Lock Spring

1



4

80-1920-717-00

Knob Spring for Platform

6



5

83-1210-162-00

Round Headed Pin 10*55

1



6

83-1654-433-00

Lock Lever Grip

1



7

83-1920-102-00

Knob Bolt M8*20

6



8

89-1113-120352

Hexagonal Bolt (8T) M12*35

2

*12)



89-1113-120402

Hexagonal Bolt (8T) M12*40

2

*1) *13)

9

89-1211-080202

Mini Hexagonal Bolt M8*20

1



10

89-1543-080003

Mini Hexagonal Nut (SW) M8

1



11

89-1551-120002

Hexagonal U Nut M12

2



12

89-1711-080002

Flat Washer 8

1



13

89-1711-120002

Flat Washer 12

4



14

89-2131-080002

Snap Pin 8

2



15

89-2131-100002

Snap Pin 10

1



16

80-1924-706-00

Platform Stopper

1

*6)



0915-61100

Platform Stopper

1

*1) *7)

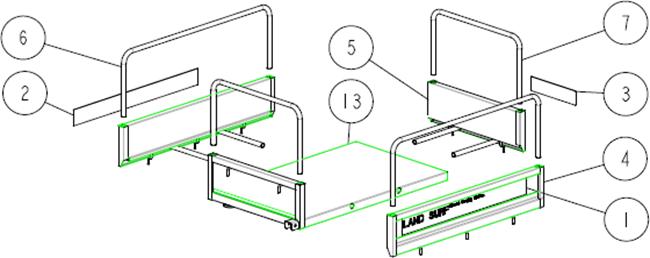

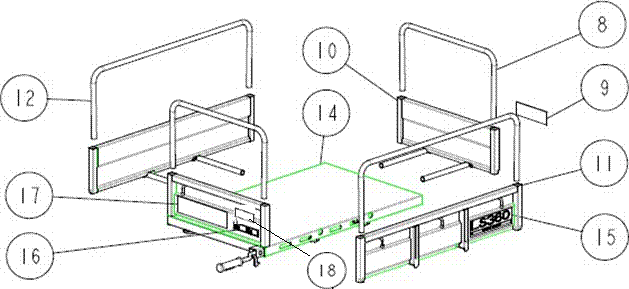

Platform 2/2                                                                                        14/14

～UB07A00034

UB07G00035～

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1920-904-00

LS Label (L)

1

*6)

2

80-1920-905-00

LS Label (R)

1

*6)

3

80-1920-906-00

Label, OREC

1

*6)

4

80-1923-724-00

Side Frame for Platform

2

*6)

5

80-1923-725-00

Front Frame for Platform

1

*6)

6

80-1923-734-00

Side Pipe for Platform

2

*6)

7

80-1923-735-10

Front Pipe for Platform

2



8

80-1923-735-10

Front Pipe for Platform

2



9

0913-73200

Label, Front

1

*7)

10

0914-60300

Front Frame for Platform

1

*7)

11

0914-60400

Side Frame for Platform

2

*7)

12

0914-61200

Side Pipe for Platform

2

*7)

13

0915-60100

Platform

1



14

0915-60100

Platform

1



15

0915-77110

Label, Model LS360

2

*7)

16

0915-78100

Label,Loading Capacity 350

1

*6)



0915-77400

Label,Loading Capacity (Inclination) 170

1

*7)

17

0919-71700

Label, Caution (Large)

1

*7)

18

0914-77600

Label,Caution

1

*7)
