OREC                                             ISSUED NO. LS280-3

Parts catalogue Transporter

(EXPORT MODEL) LS280

MODEL               CODE

LS280                0914-○○○○○



























CONTENTS

Fig. 1 TRANSMISSION---------------------------------------- 1

Fig. 2 ENGINE--------------------------------------------------- 6

Fig. 3 FRAME---------------------------------------------------- 8

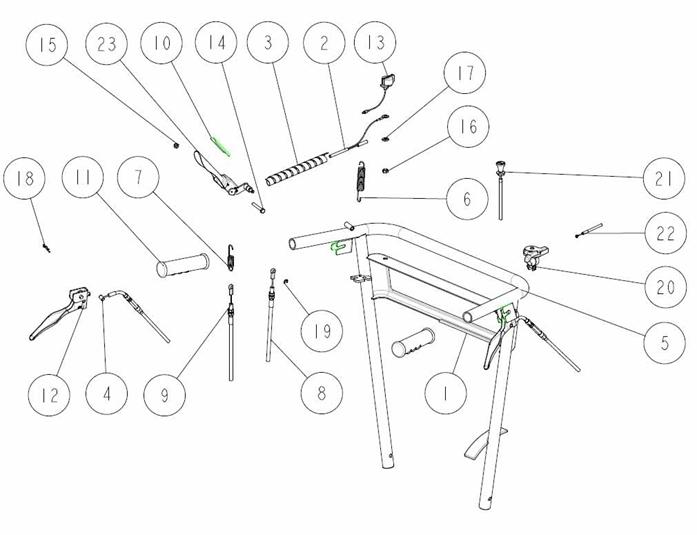

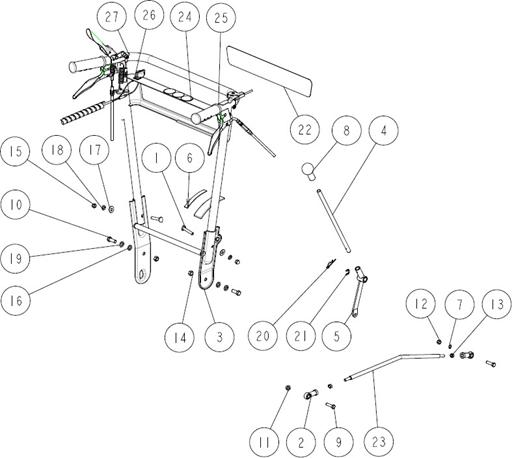

Fig. 4 HANDLE------------------------------------------------- 10

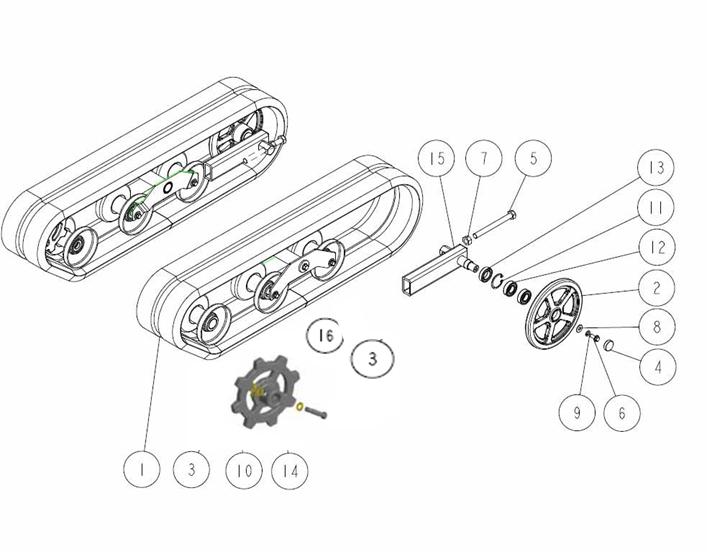

Fig. 5 CRAWLER----------------------------------------------- 12

Fig. 6 PLATFORM--------------------------------------------- 14





OREC CO.,LTD







Update : February 2012

                                                        MEMO







*1) Interchangeable

*2) Serial Number : LS280 : ~UA05K00005

*3) Serial Number : LS280 : UA05K00006~

*4) Serial Number : LS280 : ~UA06J00100

*5) Serial Number : LS280 : UA07A00001~

*6) Serial Number : LS280 : ~UA07G00042

*7) Serial Number : LS280 : UA07G00043~

*8) Serial Number : LS280 : ~UA08B00029

*9) Serial Number : LS280 : UA08G00030~

*10) Serial Number : LS280 : ~UA09H00066

*11) Serial Number : LS280 : UA09K00067~

*12) Serial Number : LS280 : ~UA11A00066

*13) Serial Number : LS280 : UA11C00067~

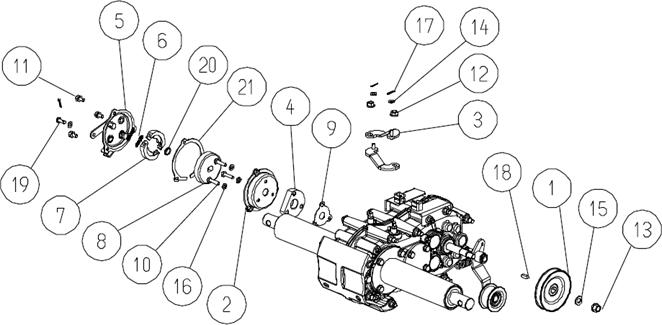

Transmission 1/5                                                                                            1/15































Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1516-521-00

Transmission Pulley

1

Remark 1

2

80-1614-312-00

Brake Cover CMP

1



3

80-1920-153-00

Side Clutch Arm

2



4

80-1920-313-00

Brake Cover Spacer

1



5

85-1445-311-00

Brake (Main Body)

1



5-8

0914-73000

Brake Assy (W6308)

1



6

85-1711-317-00

Shoe Return Spring

2



7

85-1711-316-00

Brake Shoe Set

1





85-1711-318-00

Brake Shoe Set

1

*1)

8

85-1445-313-00

Brake Drum

1



9

85-1445-317-00

Brake Packing (Small)

1



10

89-1111-060252

Hexagonal Bolt M6*25

3



11

89-1132-060122

Hexagonal Bolt (SW) M6*12

3



12

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



13

89-1543-100002

Mini Hexagonal Nut (SW) M10

1

Remark 1

14

89-1711-060002

Flat Washer 6

3



15

89-1711-100002

Flat Washer 10*18*1.6

1

Remark 1

16

89-1750-060002

Spring Washer 6

3



17

89-2120-200152

Split Pin 2*15

3



18

89-2150-050180

Key 5*18 (round)

1

Remark 1

19

89-2181-060162

Flat Head Pin 6*16

1



20

89-2511-000130

Snap Ring (S13)

1



21

0211-31800

Brake Packing (Large)

1





0914-01000

Transmission Assy LS280

1

Excluding items in Remark 1

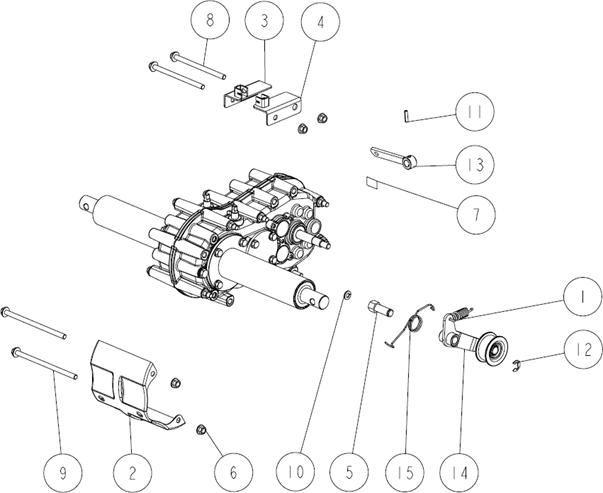

Transmission 2/5                                                                                            2/15























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1425-551-00

Differential Lock Spring

1

Remark 1

2

80-1920-117-00

Transmission Guard

1



3

80-1920-197-00

Side Clutch Wire Receiver (L)

1



4

80-1920-198-00

Side Clutch Wire Receiver (R)

1



5

80-1920-535-00

Driving Tension Arm Setting Shaft

1

Remark 1

6

83-1484-255-00

Lock Nut ZUF M8

11



7

83-1712-923-00

Label, Oil Quantity 1.6 L

1



8

89-1251-081203

Flange Mini Hexagonal Bolt M8*120

6



9

89-1251-081453

Flange Mini Hexagonal Bolt M8*145

6



10

89-1750-080002

Spring Washer 8

1

Remark 1

11

89-2111-050020

Spring Pin 5*20

1



12

89-2521-000100

E Type Ring 10

1

Remark 1

13

0914-01300

Change Arm

1



14

0914-50300

Driving Tension Arm

1

*8)     Remark 1



0914-51000

Driving Tension Arm Set

1

*1) Including items Remark 2



0914-50310

Driving Tension Arm

1

*9)     Remark 1, Remark 2

15

0914-55200

Driving Tension Arm Return Spring

1

*8)     Remark 1



0223-71100

Blade Clutch Return Spring

1

*9)     Remark 1, Remark 2

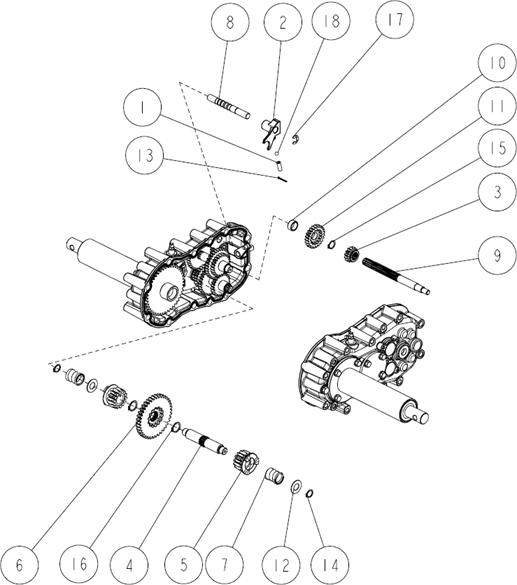

Transmission 3/5                                                                                            3/15







Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1310-138-00

Spring 1.4

1



2

80-1575-108-10

1st Shaft Shift Folk

1



3

80-1575-120-10

1st Shaft Shift Gear 14T

1

*4)



0913-01200

1st Shaft Shift Gear 14T

1

*1) *5)

4

80-1575-140-00

Side Clutch Shaft

1



5

80-1575-141-00

Side Clutch Gear 14T

2



6

80-1575-142-00

Side Clutch Gear 38T

1



7

80-1575-162-00

Side Clutch Spring

2



8

80-1920-107-00

Shift Fork Shaft

1



9

80-1920-118-10

Main Shaft

1



10

80-1920-119-00

Collar D

1



11

80-1920-121-00

Top Gear 23T

1



12

83-1633-362-10

Thrust Washer 15*30*1.2

2



13

89-2120-200202

Split Pin 2*20

1



14

89-2511-000150

Snap Ring (S15)

2



15

89-2511-000160

Snap Ring (S16)

1



16

89-2511-000200

Snap Ring (S20)

2



17

89-2521-000100

E Type Ring 10

1



18

89-3410-075000

Steel Ball 7.5

1

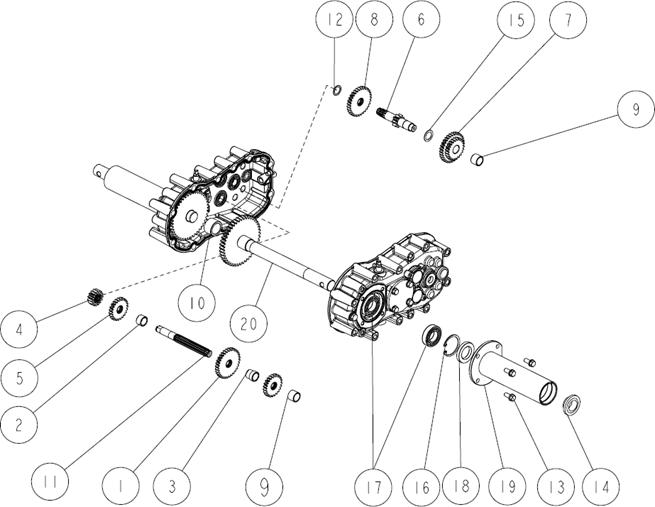

Transmission 4/5                                                                                            4/15













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1920-128-00

2 Shaft Gear 32T

1

*4)



0913-01300

2 Shaft Gear 32T

1

*1) *5)

2

80-1920-130-00

Collar Ａ

1



3

80-1920-131-00

Collar B

1



4

80-1920-132-00

2 Shaft Gear 15T

1



5

80-1920-133-00

2 Shaft Gear 23T

2



6

80-1923-138-00

3 Shaft

1



7

80-1920-139-00

Back Gear CMP

1

*4)



0913-01400

Back Gear CMP

1

*1) *5)

8

80-1920-140-00

3 Shaft Gear 31T

1



9

80-1920-141-00

Collar C

2



10

80-1920-147-00

Axle Collar

1



11

80-1923-127-00

2 Shaft

1



12

83-1017-365-10

Thrust Washer 17*23*1.0

1



13

83-1415-127-00

Seal Bolt (SW) M8*20

8



14

83-1415-663-00

Oil Seal AP 30.47.7

2



15

83-1830-368-00

Thrust Washer 18*26*1.0

1



16

89-2512-000470

Snap Ring (R47)

2



17

89-3111-060054

Bearing 6005

4



18

89-5121-304707

Oil Seal UE 30.47.7

2



19

0914-01100

Axle BB Case

2



20

0914-01200

Axle

2

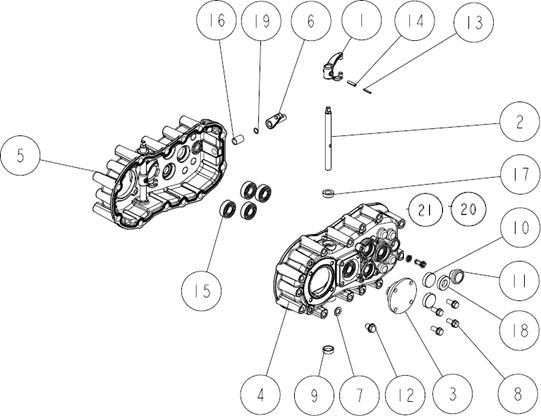

Transmission 5/5                                                                                            5/15

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1415-114-00

Side Clutch Fork

2



2

80-1425-112-00

Driving Clutch Folk Shaft

2



3

80-1575-152-10

Side Clutch Shaft BB Case

2



4

80-1920-101-00

Transmission Case (L)

1

*12)



0914-00900

Transmission Case (L) Set

1

*1) Including items Remark 3



0914-00200

Transmission Case (L)

1

*13)  Remark 3

5

80-1920-103-00

Transmission Case (R)

1

*12)



0914-00100

Transmission Case (R)

1

*1) *13)

6

80-1920-106-00

Swing Arm

1



7

83-1020-349-00

Copper Packing 10.5*18*1.6

1



8

89-1238-080162

Mini Hexagonal Bolt (SW) M8*16

8



9

83-1415-671-00

Blind Cover 22

2



10

83-1415-672-00

Blind Cover 30

4



11

83-1517-685-00

Oil Cap 20

2



12

89-1252-100123

Flange Mini Hexagonal Bolt M10*12 (slender)

1



13

89-2111-030020

Spring Pin 3*20

2



14

89-2111-050020

Spring Pin 5*20

2



15

89-3111-062024

Bearing 6202

8



16

89-3510-012200

DU Bush 12.20

1



17

89-5121-122207

Oil Seal UE 12.22.7

2



18

89-5121-153007

Oil Seal UE 15.30.7

2



19

89-5221-009000

O Ring P9

1



20

89-1251-060102

Flange Hexagonal Bolt M6*10

1

*13)  Remark 3

21

89-5230-060000

Seal Washer 6

1

*13)  Remark 3

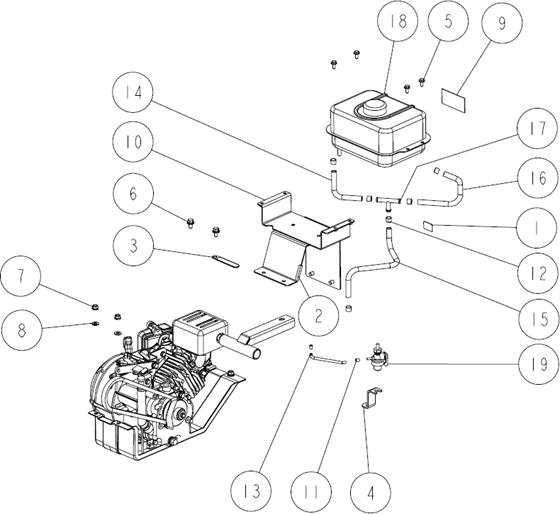

Engine 1/2                                                                                            6/15















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1010-933-00

Label, CE

1



2

80-1482-492-00

Rubber L40

1





0223-71500

Rubber L92

1

*9)

3

80-1792-988-00

Harness Clip 8

1



4

80-1920-304-00

Fuel Cock Attachment

1



5

89-1137-060152

Hexagonal Bolt (PW) M6*15

4



6

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

4



7

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



8

89-1711-080002

Flat Washer 8

4



9

0214-72100

Label, Caution for Engine etc

1



10

0914-50400

Fuel Tank Attachment

1



11

88-92037-2116

Hose Clip

2



12

88-92170-2082

Hose Clip

6



13

Engine Parts

Fuel Hose (A)

1



14

Engine Parts

Fuel Hose (B)

1



15

Engine Parts

Fuel Hose (C)

1



16

Engine Parts

Fuel Hose (D)

1



17

88-92005-1143

Fuel Hose Joint

1



18

Engine Parts

Fuel Tank CMP

1



19

88-51023-2131

Fuel Cock Assy

1

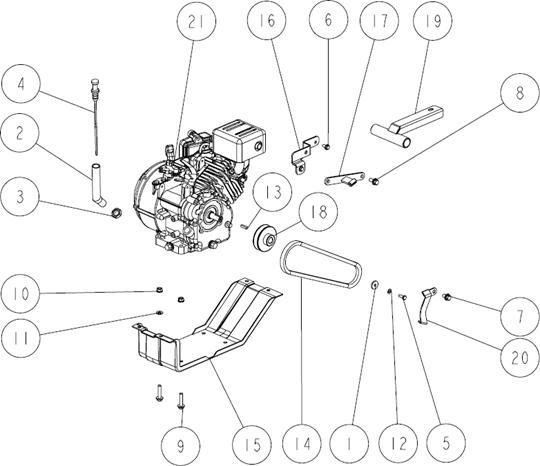

Engine 2/2                                                                                            7/15

















Ref.

Parts Number

Parts Name

Quantity

Remarks

21



Engine FJ100D BG81

1



20

0914-51300

Engine Pulley Belt Stopper

1



19

0914-51200

Exhaust Pipe

1



18

0914-51100

Engine Pulley

1



17

0914-50200

Plate

1

*8)



0914-50210

Plate

1

*9)     Remark 2

16

0914-50100

Plate Setting Base

1



15

0914-20300

Engine Base

1



14

89-6122-002801

V Belt LA-28

1



13

89-2152-050200

Key 5*20

1



12

89-1750-060002

Spring Washer 6

1



11

89-1711-080002

Flat Washer 8

1



10

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



9

89-1253-080352

Flange Mini Hexagonal Bolt (8T) M8*35

4



8

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

1



7

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

1



6

89-1137-060152

Hexagonal Bolt (PW) M6*15

2



5

89-1113-060162

Hexagonal Bolt (8T) M6*16

1



4

0026-70700

Oil Gauge

1



3

0026-20200

Nut M18 P=2.5

1



2

0026-20100

Tube Oil Gauge

1



1

83-1482-311-00

Washer 6.5*22*3.2

1

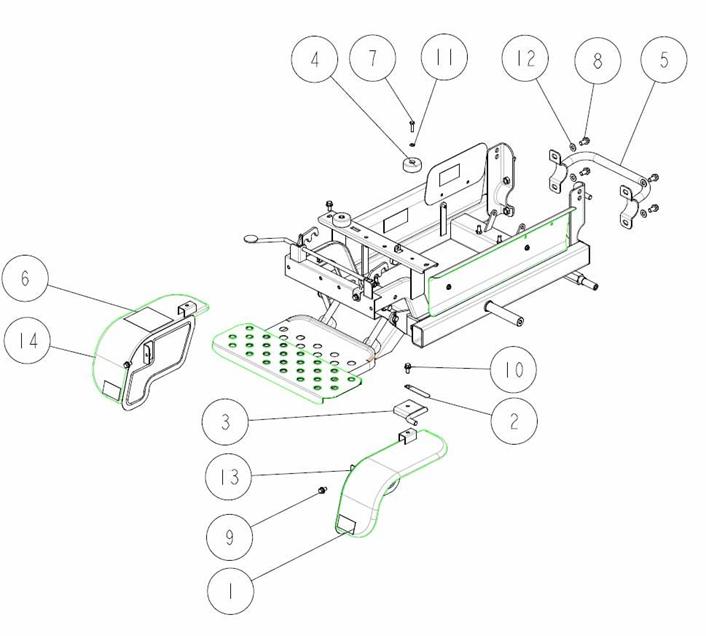

Frame 1/2                                                                                            8/15













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1484-907-00

Reflection Seat (Yellow)

2



2

80-1792-988-00

Harness Clip 8

1



3

80-1920-303-00

Stopper Lock Pin

1



4

80-1920-306-00

Stopper Rubber B-4

2



5

80-1920-354-00

Bumper

1



6

80-1920-A08-00

Label

1



7

89-1111-060252

Hexagonal Bolt M6*25

2



8

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

4



9

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



10

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



11

89-1711-060002

Flat Washer 6

2



12

89-1714-100002

Flat Washer 10

4



13

0914-40100

Fender (Right)

1



14

0914-40200

Fender (Left)

1

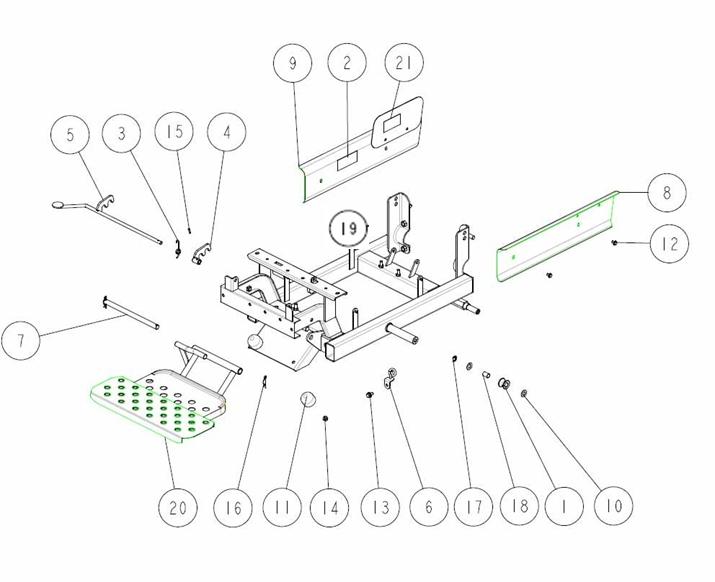

Frame 2/2                                                                                            9/15

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1484-354-10

Brake Rod Roller

1



2

80-1488-928-10

Label, Caution for Belt Involving

2



3

80-1920-215-10

Stopper Return Spring

1



4

80-1920-216-20

Handle Up/Down Stopper Arm

1



5

80-1920-217-20

Handle Up/Down Stopper Pedal

1



6

80-1920-302-00

Recoil Grip Holder

1



7

80-1920-393-00

Step Setting Shaft

1



8

80-1920-751-10

Guard (Right)

1



9

80-1920-752-20

Guard (Left)

1



10

83-1020-355-00

Thrust Washer 12*24*1.0

2



11

84-1783-647-00

Stopper Rubber EH-1003

2



12

89-1137-060122

Hexagonal Bolt (PW) M6*12

4



13

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

1



14

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



15

89-2111-040018

Spring Pin 4*18

1



16

89-2131-160002

Snap Pin 16

2



17

89-2521-000100

E Type Ring 10

1



18

89-3510-012200

DU Bush 12.20

1



19

0914-20100

Frame

1



20

0914-21100

Step

1



21

0914-77200

Label, Belt Size

1




Handle 1/2                                                                                          10/15





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1021-227-00

Handle Fixing Bolt M8*45

2



2

80-1487-963-00

Rod End HS8

2



3

80-1920-201-00

Handle Attachment

1



4

80-1920-262-00

Change Lever

1



5

80-1920-263-30

Change Lever Attachment

1



6

80-1920-911-10

Label, Change

1



7

83-1920-311-00

Washer 8.1*12*0.5

1



8

83-1920-731-00

Grip, Rubber 12

1



9

89-1211-080302

Mini Hexagonal Bolt M8*30

2



10

89-1213-100252

Mini Hexagonal Bolt (8T) M10*25

2



11

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



12

89-1561-080002

Mini Hexagonal U Nut M8

1



13

89-1611-080042

Mini Hexagonal Nut M8

2



14

89-1611-100042

Mini Hexagonal Nut M10

2



15

89-1671-080043

Mini Cap Nut M8

2



16

89-1711-100002

Flat Washer 10*18*1.6

2



17

89-1713-080003

Flat Washer 8 (large)

2



18

89-1750-080003

Spring Washer 8

2



19

89-1750-100002

Spring Washer 10

2



20

89-2131-160002

Snap Pin 16

1



21

89-2521-000100

E Type Ring 10

1



22

80-1920-901-00

Plate

1

*6)



0913-73300

Plate

1

*7)

23

0914-11100

Shift Rod

1



24

0919-71800

Label, Caution (LS)

1



25

0919-73200

Label for Side Clutch (R)

1

*5)

26

0919-73300

Label,Engine Stop

1

*5)

27

0919-73400

Label for Side Clutch (L)

1

*5)

Handle 2/2                                                                                          11/15





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1020-752-00

Rubber L200

1



2

80-1260-288-20

Engine Stop Wire Harness

1



3

80-1920-389-00

Spiral Tube

1



4

83-1920-962-00

Side Clutch Wire

2



5

80-1920-A01-00

Handle

1



6

80-1920-A04-00

Clutch Lever Return Spring

1



7

80-1920-A05-00

Spring for Brake Return

1



8

80-1920-A06-00

Driving Clutch Wire

1



9

80-1920-A07-00

Brake Wire

1



10

80-1920-A09-00

Label, Driving

1



11

83-1560-414-00

Handle Grip 27

2



12

83-1761-457-00

Side Clutch Lever

2



13

0016-72500

Engine Stop Switch

1



14

89-1113-060402

Hexagonal Bolt (8T) M6*40

1



15

89-1553-060002

Bag Hexagonal U Nut M6

1



16

89-1613-080042

Mini Hexagonal Nut (3 Sorts) M8

1



17

89-1750-080002

Spring Washer 8

1



18

89-2131-080002

Snap Pin 8

2



19

89-2521-000050

E Type Ring 5

1



20

0226-70400

Throttle Lever 27 (Resin)

1



21

0914-70100

Wire, Choke

1



20,21

0914-75000

Throttle Wire Assy

1



22

0914-75100

Throttle Wire

1



23

0914-80100

Driving Clutch Lever

1



Crawler 1/2                                                                                          12/15

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1920-401-00

Rubber Crawler 160W*60P*35L

2



2

80-1920-412-00

Idle Roller

2



3

83-1210-162-00

Round Headed Pin 10*55

2

*10)



0282-31300

Axle Pin 10*50

2

*1) *11)

4

83-1415-672-00

Blind Cover 30

2



5

89-1111-141407

Hexagonal Bolt M14*140

2



6

89-1253-080202

Flange Mini Hexagonal Bolt (8T) M8*20

2



7

89-1511-140042

Hexagonal Nut M14

2



8

89-1713-080002

Flat Washer 8 (large)

2



9

89-1750-080002

Spring Washer 8

2



10

89-2132-100002

Snap Pin 10 (with stopper)

2



11

89-2512-000420

Snap Ring (R42)

2



12

89-3115-060044

Bearing 6004 2RS

4



13

89-5121-254210

Oil Seal UE 25.42.10

2



14

0914-30100

Driving Sprocket

2

*4)



0913-31100

Driving Sprocket

2

*1) *5)

15

0914-30400

Induction Ring Attachment

2



16

89-1711-100002

Flat Washer 10*18*1.6

4

*11)


Crawler 2/2                                                                                          13/15





















































































Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1920-142-00

Spacer for Turn Wheel

2



2

83-1415-672-00

Blind Cover 30

2



3

89-1232-080182

Mini Hexagonal Bolt (SW) M8*18

8

*2)



89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

8

*1) *3)

4

83-1610-321-00

Washer 10*36*4.5

2



5

89-1232-080182

Mini Hexagonal Bolt (SW) M8*18

2





89-1232-080162

Mini Hexagonal Bolt (SW) M8*16

2

*1)

6

89-1232-100202

Mini Hexagonal Bolt (SW) M10*20

2



7

89-1713-080002

Flat Washer 8 (large)

2



8

89-2512-000350

Snap Ring (R35)

6



9

89-3115-060034

Bearing 6003 2RS

12



10

89-3511-025250

DU Bush 25.25.36F

4

*2)



89-3510-025250

DU Bush 25.25

4

*1) *3)

11

89-5121-173008

Oil Seal UE 17.30.8

4



12

89-5121-173507

Oil Seal UE 17.35.7

4



13

89-5121-203508

Oil Seal UE 20.35.8

2



14

0914-30200

Shaft for Turn Wheel Setting

4



15

0914-30300

Turn Wheel Setting

2



16

0914-30500

Turn Wheel

6



Platform 1/2                                                                                          14/15





















































































Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1920-674-00

Fix Spring

1



2

80-1920-711-00

Platform Support Bar

1



3

80-1920-716-00

Platform Lock Spring

6



4

80-1920-717-00

Knob Spring for Platform

6



5

83-1210-162-00

Round Headed Pin 10*55

1



6

83-1654-433-00

Lock Lever Grip

1



7

83-1920-102-00

Knob Bolt M8*20

6



8

89-1113-120352

Hexagonal Bolt (8T) M12*35

2





89-1113-120402

Hexagonal Bolt (8T) M12*40

2

*1)

9

89-1211-080202

Mini Hexagonal Bolt M8*20

1



10

89-1541-080003

Hexagonal Nut (SW) M8

1



11

89-1551-120002

Hexagonal U Nut M12

2



12

89-1711-080002

Flat Washer 8

1



13

89-1711-120002

Flat Washer 12

4



14

89-2131-080002

Snap Pin 8

2



15

89-2131-100002

Snap Pin 10

1



16

80-1920-706-10

Platform Stopper

1

*6)



0914-61100

Platform Stopper

1

*1) *7)

17

0914-70200

Insulation Plate (230*290)

1



Platform 2/2                                                                                          15/15

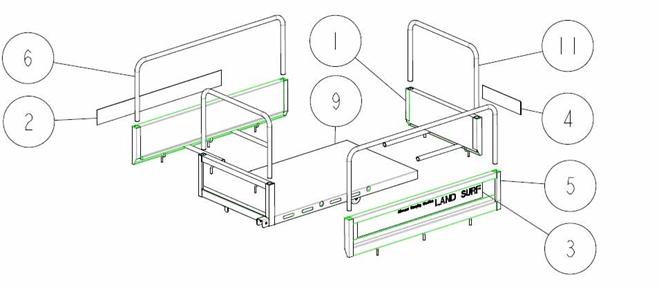

～UA07G00042

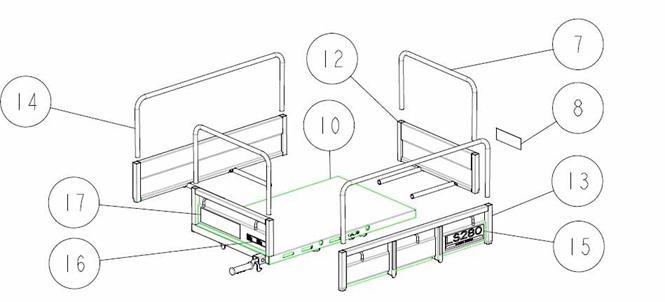

UA07G00043 ～

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1920-725-20

Front Frame

1

*6)

2

80-1920-904-00

LS Label (L)

1

*6)

3

80-1920-905-00

LS Label (R)

1

*6)

4

80-1920-906-00

Label, OREC

1

*6)

5

80-1923-724-00

Side Frame for Platform

2

*6)

6

80-1923-734-00

Side Pipe for Platform

2

*6)

7

80-1923-735-10

Front Pipe for Platform

2

*7)

8

0913-73200

Label, Front

1

*7)

9

0914-60100

Platform

1

*6)

10

0914-60110

Platform

1

*7)

11

0914-60200

Front Frame Pipe

2

*6)

12

0914-60300

Front Frame for Platform

1

*7)

13

0914-60400

Side Frame for Platform

2

*7)

14

0914-61200

Side Pipe for Platform

2

*7)

15

0914-77110

Label, Model LS280

2

*7)

16

0914-77300

Label, Loading Capacity 250

1

*6)



0914-77400

Label,Loading Capacity (Inclination) 125

1

*1) *7)

17

0919-71700

Label, Caution (Large)

1

*7)

18

0914-77600

Label,Caution

1

*7)
