OREC                                               ISSUED NO. LS260-1

Parts catalogue Transporter

(EXPORT MODEL)





LS260



MODEL               CODE NO.



LS260                  0916-∆∆∆∆∆













CONTENTS



Fig.1

TRANSMISSION-------------------------------

1

Fig.2

ENGINE -----------------------------------------

6

Fig.3

FRAME ------------------------------------------

8

Fig.4

HANDLE ----------------------------------------

10

Fig.5

CRAWLER -------------------------------------

12

Fig.6

PLATFORM ------------------------------------

13





OREC CO.,LTD.





Update : January 2006




Transmission

1/5



1/14



0916-01000

Transmission ASSY

1

Excluding items in Remark 1

19

0211-31800

Brake Packing(Large)

1



18

89-2511-000130

Snap Ring (S13)

1



17

89-2181-060162

Flat Head Pin 6*16

1



16

89-2150-050180

Key 5*18(Round)

1

Remark 1

15

89-2120-200152

Split Pin 2*15

3



14

89-1750-060002

Spring Washer 6

3



13

89-1711-100002

Flat Washer 10

1

Remark 1

12

89-1711-060002

Flat Washer 6

3



11

89-1543-100002

Mini Hexagonal Nut(SW) M10

1

Remark 1

10

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



9

89-1132-060122

Hexagonal Bolt (SW) M6*12

3



8

89-1111-060302

Hexagonal Bolt M6*30

3



7

85-1445-317-00

Brake Packing(Small)

1



6

85-1445-313-00

Brake Drum

1



5

  85-1445-311-00

Brake

1



4

80-1920-313-00

Brake Cover Spacer

1



3

80-1920-153-00

Side Clutch Arm

2



2

80-1614-312-00

Brake Cover CMP

1



1

80-1516-521-00

Transmission Pulley

1

Remark 1

Ref.

Parts Number

Parts Name

Quantity

Remarks




Transmission

2/5



2/14

16

0916-50300

Driving Tension Arm

1

Remark 1

15

0914-01300

Change Arm

1



14

89-2521-000100

E Type Ring 10

1

Remark 1

13

89-2111-050020

Spring Pin 5*20

1



12

89-1750-080002

Spring Washer 8

1

Remark 1

11

89-1251-081453

Flange Hexagonal Bolt M8*145

6



10

89-1251-081203

Flange Hexagonal Bolt M8*120

6



9

83-1712-923-00

Label, Oil Quantity 1.6 L

1



8

83-1484-255-00

Lock Nut ZUF M8

11



7

80-1920-554-10

Driving Tension Wire Holder

1

Remark 1

6

80-1920-552-00

Driving Tension Arm Return Spring

1

Remark 1

5

80-1920-535-00

Driving Tension Arm Setting Shaft

1

Remark 1

4

80-1920-198-00

Side Clutch Wire Receiver (Right)

1



3

80-1920-197-00

Side Clutch Wire Receiver (L)

1



2

80-1920-117-00

Transmission Guard

1



1

80-1425-551-00

Differential Lock Spring

1

Remark 1

Ref.

Parts Number

Parts Name

Quantity

Remarks

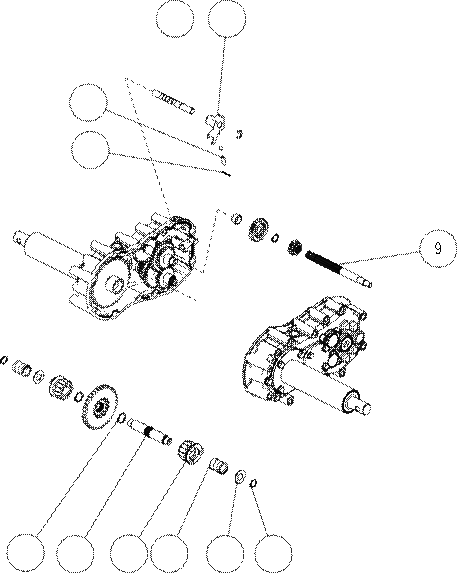

Transmission

3/5





























































































































3/14

18

89-3410-075000

Steel Ball 7.5

1



17

89-2521-000100

E Type Ring 10

1



16

89-2511-000200

Snap Ring (S20)

2



15

89-2511-000160

Snap Ring (S16)

1



14

89-2511-000150

Snap Ring (S15)

2



13

89-2120-200202

Split Pin 2*20

1



12

83-1633-362-10

Thrust Washer 15*30*1.2

2



11

80-1920-121-00

Top Gear 23T

1



10

80-1920-119-00

Collar D

1



9

80-1920-118-10

Main Shaft

1



8

80-1920-107-00

Shift Fork Shaft

1



7

80-1575-162-00

Side Clutch Spring

2



6

80-1575-142-00

Side Clutch Gear 38T

1



5

80-1575-141-00

Side Clutch Gear 14T

2



4

80-1575-140-00

Side Clutch Shaft

1



3

80-1575-120-10

1st Shaft Shift Gear 14T

1



2

80-1575-108-10

1st Shaft Shift Folk

1



1

80-1310-138-00

Spring 1.4

1



Ref.

Parts Number

Parts Name

Quantity

Remarks




Transmission

4/5



4/14

20

0914-01200

Axle

2



19

0914-01100

Axle BB Case

2



18

89-5121-304707

Oil Seal UE 30.47.7

2



17

89-3111-060054

Bearing 6005

4



16

89-2512-000470

Snap Ring (R47)

2



15

83-1830-368-00

Thrust Washer 18*26*1.0

1



14

83-1415-663-00

Oil Seal AP 30.47.7

2



13

83-1415-127-00

Seal Bolt (SW) M8*20

8



12

83-1017-365-10

Thrust Washer 17*23*1.0

1



11

80-1923-127-00

2 Shaft

1



10

80-1920-147-00

Axle Collar

1



9

80-1920-141-00

Collar C

2



8

80-1920-140-00

3 Shaft Gear 31T

1



7

80-1920-139-00

Back Gear CMP

1



6

80-1920-138-00

3 Shaft

1



5

80-1920-133-00

2 Shaft Gear 23T

2



4

80-1920-132-00

2 Shaft Gear 15T

1



3

80-1920-131-00

Collar B

1



2

80-1920-130-00

Collar Ａ

1



1

80-1920-128-00

2 Shaft Gear 32T

1



Ref.

Parts Number

Parts Name

Quantity

Remarks




Transmission

5/5



5/14

19

89-5221-009000

O Ring P9

1



18

89-5121-153007

Oil Seal UE 15.30.7

2



17

89-5121-122207

Oil Seal UE 12.22.7

2



16

89-3510-012200

DU Bush 12.20

1



15

89-3111-062024

Bearing 6202

8



14

89-2111-050020

Spring Pin 5*20

2



13

89-2111-030020

Spring Pin 3*20

2



12

89-1252-100123

Flange Mini Hexagonal Bolt(slender) M10*12

1



11

83-1517-685-00

Oil Cap 20

2



10

83-1415-672-00

Blind Cover 30

4



9

83-1415-671-00

Blind Cover 22

2



8

89-1238-080162

Mini Hexagonal Bolt (SW) M8*16

8



7

83-1020-349-00

Copper Packing 10.5*18*1.6

1



6

80-1920-106-00

Swing Arm

1



5

80-1920-103-00

Transmission Case (R)

1



4

80-1920-101-00

Transmission Case (L)

1



3

80-1575-152-10

Side Clutch Shaft BB Case

2



2

80-1425-112-00

Differential Lock Fork Shaft

2



1

80-1415-114-00

Side Clutch Folk

2



Ref.

Parts Number

Parts Name

Quantity

Remarks




Engine 1/2





6/14

19

88-51023-2131

Fuel Cock Assy

1



18

Engine Parts

Fuel Tank CMP

1



17

88-92005-1143

Fuel Hose Joint

1



16

Engine Parts

Fuel Hose (D)

1



15

Engine Parts

Fuel Hose (C)

1



14

Engine Parts

Fuel Hose (B)

1



13

Engine Parts

Fuel Hose (A)

1



12

88-92170-2082

Hose Clip

6



11

88-92037-2116

Hose Clip

2



10

0914-50400

Fuel Tank Attachment

1



9

0214-72100

Label, Caution for Engine etc

1



8

89-1711-080002

Flat Washer 8

4



7

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



6

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

4



5

89-1137-060152

Hexagonal Bolt(PW) M6*15

4



4

80-1920-304-00

Fuel Cock Attachment

1



3

80-1792-988-00

Harness Clip 8

1



2

80-1482-492-00

Rubber L40

1



1

80-1010-933-00

Label, CE

1



Ref.

Parts Number

Parts Name

Quantity

Remarks




Engine 2/2





7/14

22



Engine

1



21

0916-50200

Plate

1



20

0914-51300

Engine Pulley Belt Stopper

1



19

0914-51200

Exhaust Pipe

1



18

0914-51100

Engine Pulley

1



17

0914-50100

Plate Setting Base

1



16

0914-20300

Engine Base

1



15

89-6122-003201

V Belt LA-32

1



14

89-2152-050200

Key 5*20

1



13

89-1750-060002

Spring Washer 6

1



12

89-1711-080002

Flat Washer 8

4



11

89-1543-080002

Mini Hexagonal Nut (SW) M8

4



10

89-1253-080352

Mini Hexagonal Bolt(8T) M8*35

4



9

89-1233-080202

Mini Hexagonal Bolt(PWSW) M8*20

1



8

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

1



7

89-1137-060152

Hexagonal Bolt(PW) M6*15

2



6

89-1113-060162

Hexagonal Bolt (8T) M6*16

1



5

0026-70700

Oil Gauge

1



4

0026-20200

Nut M18 P=2.5

1



3

0026-20100

Tube Oil Gauge

1



2

83-1565-315-00

Washer 8x36x4.5

1



1

83-1482-311-00

Washer 6.5*22*3.2

1



Ref.

Parts Number

Parts Name

Quantity

Remarks




Frame 1/2





8/14

20

0916-71100

Label, Model LS260

1



19

0914-40200

Fender (Left)

1



18

0914-40100

Fender (Right)

1



17

89-1714-100002

Flat Washer 10

4



16

89-1711-060002

Flat Washer 6

2



15

89-1233-080202

Mini Hexagonal Bolt(PWSW) M8*20

6



14

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

2



13

89-1232-100202

Mini Hexagonal Bolt(SW) M10*20

4



12

89-1111-060252

Hexagonal Bolt M6*25

2



11

83-1260-908-10

Attention Mark for Reversing

1



10

80-1920-A08-00

Label

1



9

80-1920-939-00

Label, Caution

1



8

80-1920-937-00

Label, Caution

1



7

80-1920-903-00

LS Label

1



6

80-1920-658-00

Stone Guard

2



5

80-1920-354-00

Bumper

1



4

80-1920-306-00

Stopper Rubber B-4

2



3

80-1920-303-00

Stopper Lock Pin

1



2

80-1792-988-00

Harness Clip 8

1



1

80-1484-907-00

Reflection Seat (Yellow)

2



Ref.

Parts Number

Parts Name

Quantity

Remarks




Frame 2/2





9/14

21

0916-77200

Label, Belt Size

1



20

0916-20100

Frame

1



19

89-3510-012200

DU Bush 12.20

1



18

89-2521-000100

E Type Ring 10

1



17

89-2131-160002

Snap Pin 16

2



16

89-2111-040018

Spring Pin 4*18

1



15

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



14

89-1233-080162

Mini Hexagonal Bolt (PWSW) M8*16

1



13

89-1137-060122

Hexagonal Bolt (PW) M6*12

4



12

84-1783-647-00

Stopper Rubber EH-1003

2



11

83-1020-355-00

Thrust Washer 12*24*1.0

2



10

80-1920-752-20

Guard (Left)

1



9

80-1920-751-10

Guard (Right)

1



8

80-1920-393-00

Step Setting Shaft

1



7

80-1920-392-00

Step

1



6

80-1920-302-00

Recoil Grip Holder

1



5

80-1920-217-20

Handle Up/Down Stopper Pedal

1



4

80-1920-216-20

Handle Up/Down Stopper Arm

1



3

80-1920-215-10

Stopper Return Spring

1



2

80-1920-937-00

Label, Caution

2



1

80-1484-354-10

Brake Rod Roller

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

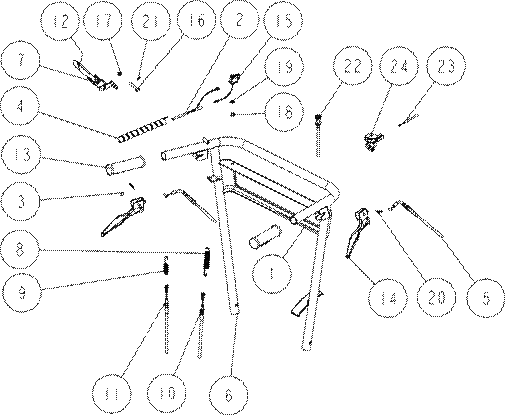

Handle 1/2





10/14

23

89-2521-000100

E Type Ring 10

1



22

89-2131-160002

Snap Pin 16

1



21

89-1750-100002

Spring Washer 10

2



20

89-1750-080003

Spring Washer 8

2



19

89-1713-080003

Flat Washer 8

2



18

89-1711-100002

Flat Washer 10

2



17

89-1711-080002

Flat Washer 8

1



16

89-1671-080043

Mini Hexagonal Cap Nut M8

2



15

89-1611-100042

Mini Hexagonal Nut M10

2



14

89-1611-080042

Mini Hexagonal Nut M8

2



13

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



12

89-1213-100252

Mini Hexagonal Bolt(8T) M10*25

2



11

89-1211-080302

Mini Hexagonal Bolt M8*30

2



10

83-1920-731-00

Grip, Rubber 12

1



9

83-1920-311-00

Washer 8.1*12*0.5

1



8

80-1920-911-10

Label, Change

1



7

80-1920-901-00

Plate

1



6

80-1920-263-30

Change Lever Attachment

1



5

80-1920-262-00

Change Lever

1



4

80-1920-261-10

Shift Rod

1



3

80-1920-201-00

Handle Attachment

1



2

80-1487-963-00

Rod End HS8

2



1

80-1021-227-00

Handle Fixing Bolt M8*45

2



Ref.

Parts Number

Parts Name

Quantity

Remarks




Handle 2/2





11/14

23~24

0914-75000

Throttle Wire ASSY

1



24

0914-75200

Throttle Lever 27

1



23

0914-75100

Throttle Wire

1



22

0914-70100

Wire, Choke

1



21

89-2521-000050

E Type Ring 5

1



20

89-2131-080002

Snap Pin 8

2



19

89-1750-080002

Spring Washer 8

1



18

89-1513-080042

Hexagonal Nut (3 sorts) M8

1



17

89-1553-060002

Bag Hexagonal U Nut M6

1



16

89-1113-060452

Hexagonal Bolt (8T) M6*45

1



15

0016-72500

Engine Stop Switch

1



14

83-1761-457-00

Side Clutch Lever

2



13

83-1560-414-00

Handle Grip 27

2



12

80-1920-A09-00

Label, Driving

1



11

80-1920-A07-00

Brake Wire

1



10

80-1920-A06-00

Driving Clutch Wire

1



9

80-1920-A05-00

Spring for Brake Return

1



8

80-1920-A04-00

Clutch Lever Return Spring

1



7

80-1920-A02-00

Driving Clutch Lever

1



6

80-1920-A01-00

Handle

1



5

80-1920-962-00

Side Clutch Wire

2



4

80-1920-389-00

Spiral Tube

1



3

80-1610-919-00

Label for Left Screw

1



2

80-1260-288-20

Engine Stop Wire Harness

1



1

80-1020-752-00

Rubber L200

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

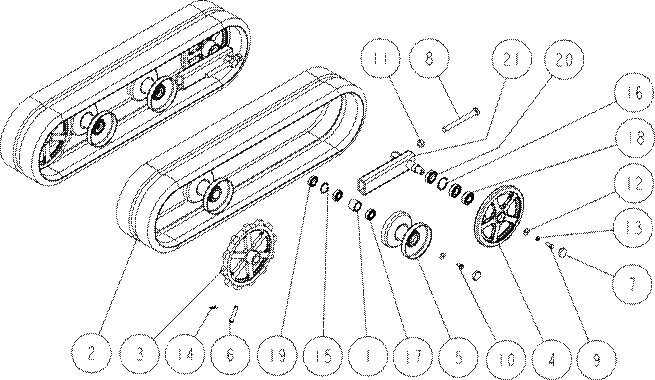

Crawler





12/14

21

0914-30400

Induction Ring Attachment

2



20

89-5121-254210

Oil Seal UE 25.42.10

2



19

89-5121-203508

Oil Seal UE 20.35.8

4



18

89-3115-060044

Bearing 6004 2RS

4



17

89-3115-060034

Bearing 6003 2RS

8



16

89-2512-000420

Snap Ring (R42)

2



15

89-2512-000350

Snap Ring (R35)

4



14

89-2132-100002

Snap Pin 10

2



13

89-1750-080002

Spring Washer 8

2



12

89-1713-080002

Flat Washer 8

6



11

89-1511-140042

Hexagonal Nut M14

2



10

89-1232-080182

Mini Hexagonal Bolt (SW) M8*18

4



9

89-1213-080202

Mini Hexagonal Bolt (8T) M8*20

2



8

89-1111-141407

Hexagonal Bolt M14*140

2



7

83-1415-672-00

Blind Cover 30

6



6

83-1210-162-00

Round Headed Pin 10*55

2



5

80-1920-421-10

Turn Wheel

4



4

80-1920-412-00

Idle Roller

2



3

80-1920-411-00

Driving Sprocket

2



2

80-1920-401-00

Rubber Crawler 160W*60P*35L

2



1

80-1920-142-00

Spacer for Turn Wheel

4



Ref.

Parts Number

Parts Name

Quantity

Remarks

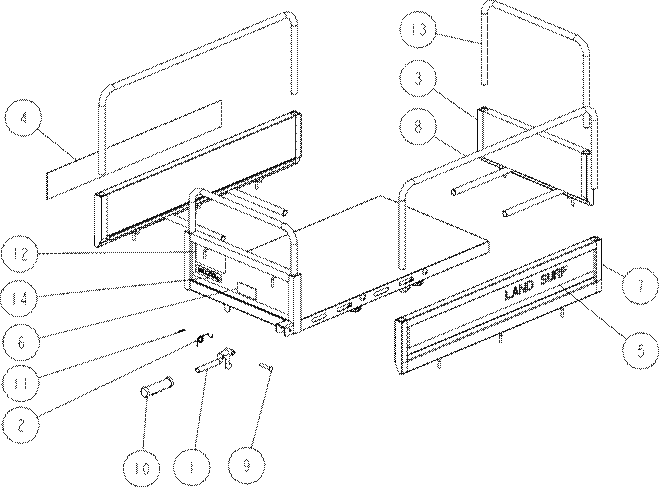

Platform 1/2





13/14

14

0914-77300

Label, Loading Capacity 250

1



13

0914-60200

Front Frame Pipe

2



12

0223-76100

Label, Caution (Large)

1



11

89-2131-100002

Snap Pin 10

1



10

83-1654-433-00

Lock Lever Grip

1



9

83-1210-162-00

Round Headed Pin 10*55

1



8

80-1923-734-00

Side Pipe for Platform

2



7

80-1923-724-00

Side Frame for Platform

2



6

80-1920-936-00

Label, Caution

1



5

80-1920-905-00

LS Label (R)

1



4

80-1920-904-00

LS Label (L)

1



3

80-1920-725-20

Front Frame

1



2

80-1920-716-00

Platform Lock Spring

1



1

80-1920-706-10

Platform Stopper

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

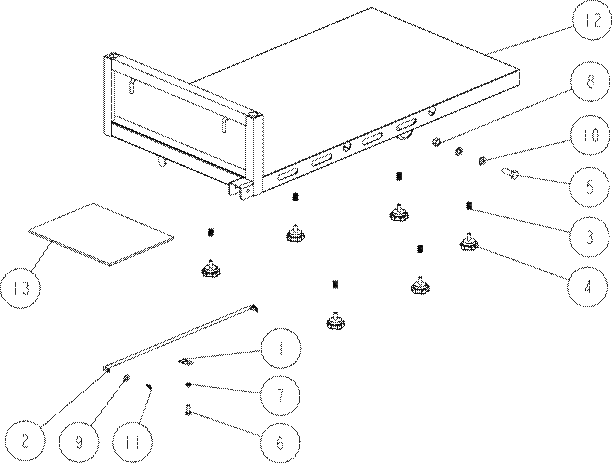

Platform 2/2





14/14

13

0914-70200

Insulation Plate(230*290)

1



12

0914-60100

Platform

1



11

89-2131-080002

Snap Pin 8

2



10

89-1711-120002

Flat Washer 12

4



9

89-1711-080002

Flat Washer 8

1



8

89-1551-120002

Hexagonal U Nut M12

2



7

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



6

89-1211-080202

Mini Hexagonal Bolt M8*20

1



5

89-1113-120352

Hexagonal Bolt (8T) M12*35

2



4

83-1920-102-00

Knob Bolt M8*20

6



3

80-1920-717-00

Knob Spring for Platform

6



2

80-1920-711-00

Platform Support Bar

1



1

80-1920-674-00

Fix Spring

1



Ref.

Parts Number

Parts Name

Quantity

Remarks
