OREC ISSUED NO. LS250-2
Parts catalogue Transporter
(EXPORT MODEL)
LS250
MODEL CODE NO.
LS250 80-1920-??? -??
CONTENTS
Fig.1 HANDLE------------------------------------------- 1
Fig.2 FRAME--------------------------------------------- 3
Fig.3 TRANSMISSION-------------------------------- 7
Fig.4 TRANSMISSION OUT SIDE-------------- 9
Fig.5 PLATFORM------------------------------------ 11

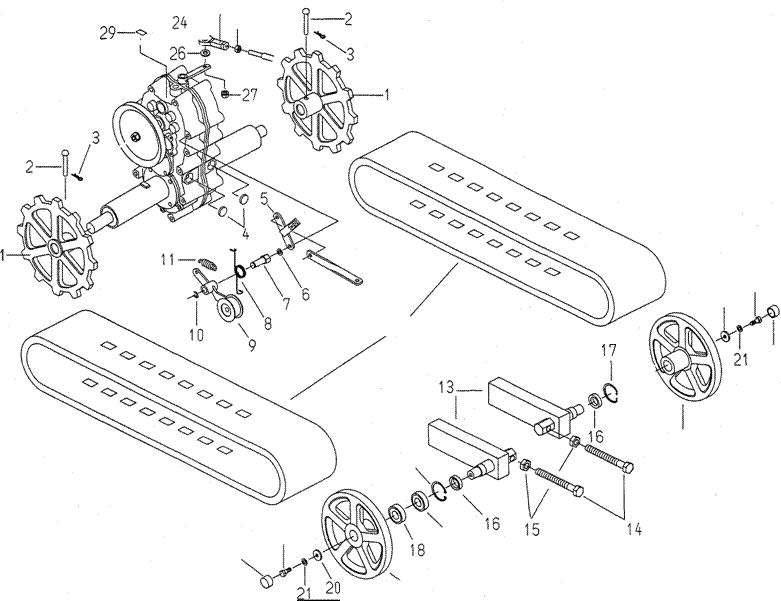

Fig.6 CRAWLER------------------------------------- 13
OREC CO.,LTD.
Update : February 2004
Fig.1 HANDLE
|
Ref. |
Parts No. |
Parts Name |
Quantity LS250 FA130D |
Remarks |
|
1 |
80-1920-A01-00 |
Handle |
1 |
|
|
2 |
80-1920-201-00 |
Handle Attachment |
1 |
|
|
3 |
80-1920-263-20 |
Change Lever Attachment |
1 |
|
|
|
80-1920-263-30 |
Change Lever Attachment |
1 |
*1) |
|
4 |
80-1920-262-00 |
Change Lever |
1 |
|
|
5 |
83-1920-731-00 |
Grip, Rubber 12 |
1 |
|
|
6 |
89-1111-080302 |
Hexagonal Bolt M8*30 |
1 |
|
|
7 |
89-1541-080002 |
Hexagonal Nut (SW) M8 |
1 |
|
|
8 |
80-1487-963-00 |
Rod End HS8 |
1 |
*2) |
|
|
80-1481-963-00 |
Link Ball BL8D (L) |
1 |
*1) *3) |
|
9 |
89-1511-080042 |
Hexagonal Nut M8 |
1 |
|
|
10 |
89-2131-160002 |
Snap Pin 16 |
1 |
|
|
11 |
89-2521-000100 |
Snap Ring E Type 10 |
1 |
|
|
12 |
89-1113-100252 |
Hexagonal Bolt (8T) M10*25 |
2 |
|
|
13 |
89-1750-100002 |
Spring Washer 10 |
2 |
|
|
14 |
89-1711-100002 |
Flat Washer 10 |
2 |
|
|
15 |
89-1750-080002 |
Spring Washer 8 |
3 |
|
|
16 |
89-1571-080043 |
Cap Nut M8 |
2 |
|
|
17 |
80-1021-227-00 |
Handle Fixing Bolt M8*45 |
2 |
|
|
18 |
83-1761-457-00 |
Lever |
2 |
|
|
19 |
89-2131-080002 |
Snap Pin 8 |
2 |
|
|
20 |
80-1920-962-00 |
Side Clutch Wire |
2 |
|
|
21 |
83-1260-461-00 |
Throttle Lever |
1 |
|
|
22 |
83-1160-951-00 |
Throttle Wire |
1 |
|
|
23 |
83-1560-414-00 |
Handle Grip 27 |
2 |
|
|
24 |
80-1920-957-00 |
Choke Wire |
1 |
|
|
25 |
80-1920-A04-00 |
Return Spring |
1 |
|
|
26 |
80-1920-A02-00 |
Driving Clutch Lever |
1 |
|
|
27 |
80-1920-A09-00 |
Label, Driving |
1 |
|
|
28 |
80-1920-A06-00 |
Driving Clutch Wire |
1 |
|
|
29 |
89-1113-060452 |
Hexagonal Bolt (8T) M6*45 |
1 |
|
|
30 |
89-1553-060002 |
Cap Nut U Type M6 |
1 |
|
|
31 |
80-1920-A05-00 |
Brake Spring |
1 |
|
|
32 |
80-1920-A07-00 |
Brake Wire |
1 |
|
|
33 |
80-1260-281-00 |
Engine Stop Switch |
1 |
|
|
34 |
80-1260-288-10 |
Engine Stop Wire Harness |
1 |
|
|
35 |
80-1920-389-00 |
Spiral Tube |
1 |
|
|
36 |
89-1513-080042 |
Hexagonal Nut (3 sorts) M8 |
1 |
|
|
37 |
80-1920-911-00 |
Cange Label |
1 |
|
|
39 |
80-1920-901-00 |
Plate |
1 |
|
|
41 |
80-1920-261-00 |
Shift Rod |
1 |
|
|
42 |
89-1511-100042 |
Hexagonal Nut M10 |
2 |
|
|
43 |
89-2521-000050 |
E-Type Ring 5 |
1 |
|
|
*1)Interchangeable *2)Serial Number : ~UA97D00132 *3)Serial Number : UA97F00133~ *4)Serial Number : ~UA98E00078 *5)Serial Number : UA98J00083~ *6)Serial Number : ~UA98M00128 *7)Serial Number : UA99M00006~ |
||||
-2-
Fig.2 FRAME
|
Ref. |
Parts No. |
Parts Name |
Quantity LS250 FA130D |
Remarks |
|
1 |
80-1920-301-20 |
Frame |
1 |
*4) |
|
|
80-1920-301-30 |
Frame |
1 |
*1) *5) |
|
2 |
80-1920-354-00 |
Bumper |
1 |
|
|
3 |
89-1211-100252 |
Mini Hexagonal Bolt M10*25 |
4 |
|
|
4 |
89-1750-100002 |
Spring Washer 10 |
4 |
|
|
5 |
89-1714-100002 |
Flat Washer 10 |
4 |
|
|
6 |
80-1920-751-00 |
Guard (Left) |
1 |
*2) |
|
|
80-1920-751-10 |
Guard (Left) |
1 |
*1) *3) |
|
7 |
80-1920-752-00 |
Guard (Right) |
1 |
*2) |
|
|
80-1920-752-10 |
Guard (Right) |
1 |
*1) *3) |
|
8 |
80-1920-753-00 |
Belt Cover |
1 |
|
|
9 |
89-1137-060102 |
Hexagonal Bolt(PW) M6*10 |
6 |
|
|
10 |
80-1920-793-00 |
Exhaust Pipe |
1 |
|
|
|
80-1920-793-20 |
Exhaust Pipe |
1 |
*1) |
|
11 |
89-1133-080202 |
Hexagonal Bolt(PWSW) M8*20 |
2 |
*4) |
|
|
89-1233-080202 |
Mini Hexagonal Bolt(PWSW) M8*20 |
6 |
*1) *5) |
|
12 |
89-5121-203508 |
Oil Seal UE 20.35.8 |
4 |
|
|
13 |
89-2512-000350 |
Snap Ring 35 |
4 |
|
|
14 |
89-3115-060034 |
Bearing 6003 2RS |
8 |
|
|
15 |
80-1920-142-00 |
Spacer(for Turn Wheel) |
4 |
|
|
16 |
80-1920-421-00 |
Turn Wheel |
4 |
|
|
17 |
89-1713-080002 |
Flat Washer 8 |
8 |
|
|
18 |
89-1750-080002 |
Spring Washer 8 |
6 |
|
|
19 |
89-1113-080202 |
Hexagonal Bolt (8T) M8*20 |
6 |
|
|
|
89-1213-080202 |
Mini Hexagonal Bolt(8T) M8*20 |
6 |
*1) |
|
20 |
83-1415-672-00 |
Blacking Cover 30 |
4 |
|
|
21 |
80-1920-461-00 |
Fender (Left) |
1 |
|
|
22 |
80-1920-462-00 |
Fender (Right) |
1 |
|
|
23 |
80-1920-217-10 |
Handle Up/Down Stopper Pedal |
1 |
|
|
|
80-1920-217-20 |
Handle Up/Down Stopper Pedal |
1 |
*1 |
|
24 |
80-1920-215-10 |
Stopper Return Spring |
1 |
|
|
25 |
80-1920-216-10 |
Handle Up/Down Stopper Arm |
1 |
|
|
|
80-1920-216-20 |
Handle Up/Down Stopper Arm |
1 |
*1 |
|
26 |
89-2111-040018 |
Spring Pin 4*18 |
1 |
|
|
27 |
80-1920-392-00 |
Step |
1 |
|
|
28 |
80-1920-393-00 |
Step Setting Shaft |
1 |
|
|
29 |
89-2131-160002 |
Snap Pin 16 |
2 |
|
|
30 |
84-1783-647-00 |
Stopper Rubber EH-1003 |
2 |
|
|
31 |
89-1541-080002 |
Hexagonal Nut (SW) M8 |
10 |
|
|
32 |
80-1920-322-00 |
Recoil Guide Roller |
1 |
*2 |
|
|
80-1484-354-00 |
Recoil Guide Roller |
1 |
*1 *3) |
|
33 |
83-1754-329-00 |
Washer 13*22*1.0 |
2 |
*2 |
|
|
83-1020-355-00 |
Washer 12*24*1.0 |
2 |
*1 *3) |
|
34 |
89-2521-000100 |
E Type Ring 10 |
1 |
|
|
35 |
80-1920-302-00 |
Recoil Grip Holder |
1 |
|
|
36 |
89-1133-080162 |
Hexagonal Bolt (PWSW) M8*16 |
8 |
|
|
37 |
80-1920-303-00 |
Stopper Lock Pin |
1 |
|
|
38 |
80-1792-988-00 |
Harness Clip 8 |
3 |
|
|
39 |
80-1920-306-00 |
Stopper Rubber B-4 |
2 |
|
|
40 |
89-1711-060002 |
Flat Washer 6 |
2 |
|
|
41 |
89-1111-060252 |
Hexagonal Bolt M6*25 |
2 |
|
|
42 |
80-1920-387-00 |
Fuel Tank Attachment |
1 |
|
|
43 |
80-1920-311-00 |
Engine Base |
1 |
|
|
44 |
89-1113-080352 |
Hexagonal Bolt (8T) M8*35 |
4 |
|
|
|
||||
-4-
69 SZ
8 ł
8č
9Z
č9
89
ć9 99*y¿ 9\
99
85
st 09
Fig.2 FRAME
|
Ref. |
Parts No. |
Parts Name |
Quantity LS250 FA130D |
Remarks |
|
45 |
Engine Parts |
Fuel Tank CMP |
1 |
|
|
46 |
Engine Parts |
Flange Nut M6 |
4 |
|
|
47 |
80-1920-971-00 |
Cushion Rubber |
1 |
|
|
48 |
80-1920-385-00 |
Packing |
1 |
|
|
49 |
80-1920-384-00 |
Fuel Hose Attachment |
1 |
|
|
50 |
80-1920-981-00 |
Hose Clip 19 |
2 |
|
|
51 |
80-1920-397-00 |
Fuel Hose |
1 |
|
|
52 |
83-1920-192-00 |
Hexagonal Nut(3 sorts) M10 |
1 |
|
|
53 |
80-1920-304-00 |
Fuel Cock Attachment |
1 |
*1 |
|
54 |
Engine Parts |
Fuel Cock |
1 |
|
|
55 |
Engine Parts |
Hose Clip |
2 |
|
|
56 |
80-1920-398-00 |
Fuel Hose |
1 |
|
|
57 |
Engine Parts |
Key 3/16*3/16*25 |
1 |
|
|
58 |
80-1920-514-00 |
Engine Pulley |
1 |
|
|
59 |
83-1020-312-00 |
Washer 8*30*3.2 |
2 |
|
|
60 |
80-1920-562-00 |
Engine Pulley Belt Stopper |
1 |
|
|
61 |
83-1415-909-00 |
Sticker for Engine(Z18-6) |
1 |
|
|
62 |
80-1488-928-00 |
Label, Caution for Belt Involving |
2 |
|
|
65 |
Not for sale |
Serial Number Plate |
1 |
|
|
66 |
80-1920-938-00 |
Label, Caution |
1 |
|
|
67 |
80-1920-939-00 |
Label, Caution |
1 |
|
|
68 |
80-1920-902-00 |
Label, LS 1 |
1 |
|
|
69 |
80-1484-907-00 |
Reflection Seat(Yellow) |
2 |
|
|
70 |
80-1920-A08-00 |
Label |
1 |
|
|
71 |
80-1920-903-00 |
LS Label |
1 |
|
|
72 |
80-1920-308-00 |
Plate |
1 |
|
|
73 |
89-1251-080552 |
Flange Hexagonal Bolt M8*55 |
1 |
|
|
74 |
80-1920-937-00 |
Label, Caution |
1 |
|
|
75 |
83-1260-908-00 |
Label, Caution |
1 |
|
|
76 |
80-1920-658-00 |
Stone Guard |
2 |
*5) |
|
*1)Interchangeable *2)Serial Number : ~UA97D00132 *3)Serial Number : UA97F00133~ *4)Serial Number : ~UA98E00078 *5)Serial Number : UA98J00083~ *6)Serial Number : ~UA98M00128 *7)Serial Number : UA99M00006~ |
||||
-6-
Fig.3 TRANSMISSION
|
Ref. |
Parts No. |
Parts Name |
Quantity LS250 FA130D |
Remarks |
|
|
80-1920-100-00 |
Transmission ASSY |
1 |
Note1 |
|
1 |
80-1575-101-10 |
Transmission Case(L) |
1 |
|
|
2 |
80-1920-103-00 |
Transmission Case(R) |
1 |
|
|
3 |
80-1920-146-00 |
Axle |
2 |
|
|
4 |
80-1920-147-00 |
Axle Collar |
1 |
|
|
5 |
80-1425-112-00 |
Drive Clutch Fork Shaft |
2 |
|
|
6 |
89-2111-050020 |
Spring Pin 5*20 |
2 |
|
|
7 |
89-2111-030020 |
Spring Pin 3*20 |
2 |
|
|
8 |
80-1415-114-00 |
Side Clutch Fork |
2 |
|
|
9 |
89-3111-062024 |
Bearing 6202 |
8 |
|
|
10 |
89-2511-000150 |
Snap Ring 15 |
4 |
*6) |
|
|
89-2511-000150 |
Snap Ring 15 |
3 |
*7) |
|
|
80-1920-141-10 |
Collar D |
1 |
*7) |
|
11 |
83-1633-362-10 |
Thrust Washer 15*30*1.2 |
2 |
|
|
12 |
80-1575-162-00 |
Side Clutch Spring |
2 |
|
|
13 |
80-1575-141-00 |
Side Clutch Gear 14T |
2 |
|
|
14 |
80-1575-142-00 |
Side Clutch Gear 38T |
1 |
|
|
15 |
80-1575-140-00 |
Side Clutch Shaft |
1 |
|
|
16 |
83-1017-365-00 |
Thrust Washer 17*24*1.0 |
1 |
|
|
17 |
80-1920-140-00 |
3 Shaft Gear 31T |
1 |
|
|
18 |
80-1920-138-00 |
3 Shaft |
1 |
*4) |
|
|
80-1923-138-00 |
3 Shaft |
1 |
*1) *5) |
|
19 |
83-1830-368-00 |
Thrust Washer 18*26*1.0 |
1 |
|
|
20 |
80-1920-139-00 |
Back Gear CMP |
1 |
|
|
21 |
80-1920-141-00 |
Collar C |
2 |
|
|
|
80-1920-141-10 |
Collar C |
2 |
*1 |
|
22 |
80-1920-127-00 |
2 Shaft |
1 |
*4) |
|
|
80-1923-127-00 |
2 Shaft |
1 |
*5) |
|
23 |
80-1920-132-00 |
2 Shaft Gear 15T |
1 |
|
|
24 |
80-1920-133-00 |
2 Shaft Gear 23T |
2 |
|
|
25 |
80-1920-130-00 |
Collar Ａ |
1 |
|
|
26 |
80-1920-128-00 |
2 Shaft Gear 32T |
1 |
|
|
27 |
80-1920-131-00 |
Collar B |
1 |
|
|
28 |
80-1920-108-00 |
1 Shaft Shift Fork |
1 |
|
|
29 |
89-3410-075000 |
Steel Ball 7.5 |
1 |
|
|
30 |
80-1310-138-00 |
Spring 1.4 |
1 |
|
|
31 |
89-2120-200202 |
Split Pin 2*20 |
1 |
|
|
32 |
80-1920-107-00 |
Shift Fork Shaft |
1 |
|
|
33 |
89-2521-000100 |
E Type Ring 10 |
1 |
|
|
34 |
80-1920-106-00 |
Swing Arm |
1 |
|
|
35 |
89-5221-009000 |
O Ring 9 |
1 |
|
|
36 |
80-1920-121-00 |
Top Gear 23T |
1 |
|
|
37 |
80-1575-120-00 |
1 Shaft Shift Gear 14T |
1 |
|
|
38 |
80-1920-118-00 |
Main Shaft |
1 |
*6) |
|
|
80-1920-118-10 |
Main Shaft |
1 |
*7) |
|
39 |
83-1020-361-00 |
Thrust Washer 15*24*1.0 |
1 |
|
|
40 |
89-2511-000200 |
Snap Ring 20 |
2 |
|
|
M E M O Note 1: Transmission ASSY consists from parts 1 to 40(this page) and 1 to 41(next page). |
||||
-8-

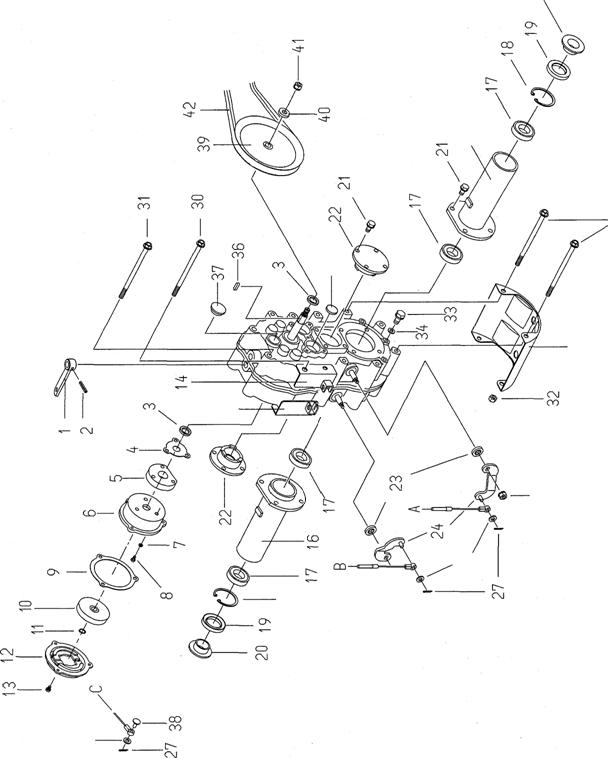

Fig.4 TRANSMISSION OUT SIDE
|
Ref. |
Parts No. |
Parts Name |
Quantity LS250 FA130D |
Remarks |
|
1 |
80-1920-264-00 |
Change Arm |
1 |
|
|
2 |
89-2111-050020 |
Spring Pin 5*20 |
1 |
|
|
3 |
89-5121-153007 |
Oil Seal UE 15.30.7 |
2 |
|
|
4 |
85-1445-317-00 |
Packing (Small) |
1 |
|
|
5 |
80-1920-313-00 |
Spacer |
1 |
|
|
6 |
80-1920-312-00 |
Brake Cover |
1 |
*4) |
|
|
80-1614-312-00 |
Brake Cover CMP |
1 |
*5) |
|
7 |
89-1750-060002 |
Spring Washer 6 |
3 |
|
|
8 |
89-1111-060252 |
Hexagonal Bolt M6*25 |
3 |
|
|
9 |
85-1445-318-00 |
Packing (Large) |
1 |
|
|
10 |
85-1445-313-00 |
Brake Drum |
1 |
|
|
11 |
89-2511-000130 |
Snap Ring 13 |
1 |
|
|
12 |
85-1445-311-00 |
Brake |
1 |
|
|
13 |
89-1132-060122 |
Bolt(SW) M6*12 |
3 |
|
|
14 |
80-1920-198-00 |
Side Clutch Wire Receiver (Left) |
1 |
|
|
15 |
80-1575-197-00 |
Side Clutch Wire Receiver |
1 |
|
|
16 |
80-1920-145-00 |
Axle BB Case |
2 |
|
|
17 |
89-3115-060054 |
Bearing 6005 2RS |
4 |
*6) |
|
|
89-3111-060054 |
Bearing 6005 |
4 |
*1) *7) |
|
18 |
89-2512-000470 |
Snap Ring 47 |
2 |
|
|
19 |
89-5121-254210 |
Oil Seal UE 25.42.10 |
4 |
|
|
20 |
83-1415-663-00 |
Adapter AP 30.47.7 |
2 |
|
|
21 |
89-1132-080162 |
Hexagonal Bolt (SW) M8*16 |
8 |
|
|
|
83-1415-127-00 |
Seal Bolt(SW) M8*20 |
8 |
*1) |
|
22 |
80-1575-152-10 |
Side Clutch Shaft BB Case |
2 |
|
|
23 |
89-5121-122207 |
Oil Seal UE 12.22.7 |
2 |
|
|
24 |
80-1920-153-00 |
Side Clutch Arm |
2 |
|
|
25 |
89-1541-080002 |
Hexagonal Nut (SW) M8 |
2 |
|
|
26 |
89-1711-060002 |
Flat Washer 6 |
3 |
|
|
27 |
89-2120-200152 |
Split Pin 2*15 |
3 |
|
|
28 |
80-1920-117-00 |
Transmission Guard |
1 |
|
|
29 |
89-1251-081453 |
Bolt, Flange M8*145 |
6 |
|
|
30 |
89-1251-081203 |
Bolt, Flange M8*120 |
5 |
|
|
31 |
89-1251-081123 |
Bolt, Flange M8*112 |
1 |
|
|
32 |
89-1555-080003 |
U Nut, Flange M8 |
12 |
|
|
|
83-1484-255-00 |
Rock Nut ZUF M8 |
12 |
*1) |
|
33 |
89-1252-100123 |
Flange Bolt(slender) M10*12 |
1 |
|
|
34 |
83-1020-349-00 |
Packing, Copper 10.5*18*1.6 |
1 |
|
|
35 |
83-1415-672-00 |
Blind Cap 30 |
4 |
|
|
36 |
89-2150-050180 |
Key 5*18 |
1 |
|
|
37 |
83-1110-683-00 |
Oil Tap 20 |
2 |
|
|
|
83-1517-683-00 |
Oil Cap 20 |
2 |
*1) |
|
38 |
89-2181-060162 |
Flat Headed Pin 6*16 |
1 |
|
|
39 |
80-1516-521-00 |
Transmission Pulley |
1 |
|
|
40 |
89-1711-100002 |
Flat Washer 10 |
1 |
|
|
41 |
89-1541-100002 |
Hexagonal Nut (SW) M10 |
1 |
|
|
42 |
89-6122-003201 |
V-belt SA-32 |
1 |
|
|
*1)Interchangeable *2)Serial Number : ~UA97D00132 *3)Serial Number : UA97F00133~ *4)Serial Number : ~UA98E00078 *5)Serial Number : UA98J00083~ *6)Serial Number : ~UA98M00128 *7)Serial Number : UA99M00006~ |
||||
-10-
Fig.5 PLATFORM
|
Ref. |
Parts No. |
Parts Name |
Quantity LS250 FA130D |
Remarks |
|
1 |
80-1920-723-00 |
Stand |
1 |
|
|
|
80-1920-723-30 |
Stand |
1 |
*1) |
|
2 |
80-1920-725-10 |
Front Frame |
1 |
|
|
|
80-1920-725-20 |
Front Frame |
1 |
*1) |
|
3 |
80-1920-735-00 |
Front Frame Pipe |
2 |
|
|
4 |
80-1920-724-10 |
Side Frame |
2 |
|
|
|
80-1920-724-20 |
Side Frame |
2 |
*1) |
|
5 |
80-1920-734-00 |
Side Frame Pipe |
2 |
|
|
6 |
80-1920-717-00 |
Knob Spring |
6 |
|
|
7 |
83-1920-102-00 |
Knob Bolt M8*20 |
6 |
|
|
8 |
80-1920-674-00 |
Fix Spring |
1 |
|
|
9 |
89-1541-080002 |
Hexagonal Nut (SW) M8 |
1 |
|
|
10 |
89-1111-080202 |
Hexagonal Bolt M8*20 |
1 |
|
|
11 |
80-1920-711-00 |
Platform Support Bar |
1 |
|
|
12 |
89-1711-080002 |
Flat Washer 8 |
2 |
|
|
13 |
89-2131-080002 |
Snap Pin 8 |
4 |
|
|
14 |
80-1920-706-10 |
Platform Stopper |
1 |
|
|
15 |
80-1920-716-00 |
Platform Lock Spring |
1 |
|
|
16 |
83-1210-162-00 |
Round Headed Pin 10*55 |
1 |
|
|
17 |
89-2131-100002 |
Snap Pin 10 |
4 |
|
|
18 |
83-1654-433-00 |
Lock Lever Grip |
1 |
|
|
19 |
89-1113-120352 |
Hexagonal Bolt (8T) M12*35 |
2 |
|
|
20 |
89-1711-120002 |
Flat Washer 12 |
4 |
|
|
21 |
89-1551-120002 |
U Nut M12 |
2 |
|
|
22 |
80-1920-905-00 |
LS Label (R) |
1 |
|
|
23 |
80-1920-904-00 |
LS Label (L) |
1 |
|
|
24 |
80-1920-906-00 |
Label, OREC |
1 |
|
|
25 |
80-1920-A03-00 |
Label, Loading Capacity |
1 |
|
|
26 |
80-1920-936-00 |
Label, Caution |
1 |
|
|
27 |
80-1484-A47-00 |
Label, Caution |
1 |
|
|
*1)Interchangeable *2)Serial Number : ~UA97D00132 *3)Serial Number : UA97F00133~ *4)Serial Number : ~UA98E00078 *5)Serial Number : UA98J00083~ *6)Serial Number : ~UA98M00128 *7)Serial Number : UA99M00006~ |
||||
-12-
Fig.6 CRAWLER
|
Ref. |
Parts No. |
Parts Name |
Quantity LS250 FA130D |
Remarks |
|
1 |
80-1920-411-00 |
Driving Sprocket |
2 |
|
|
2 |
83-1210-162-00 |
Round Headed Pin 10*55 |
2 |
|
|
3 |
89-2131-100002 |
Snap Pin 10 |
2 |
|
|
4 |
83-1415-671-00 |
Blind Cap 22 |
2 |
|
|
5 |
80-1920-554-00 |
Driving Tension Wire Holder |
1 |
|
|
6 |
89-1750-080002 |
Spring Washer 8 |
1 |
|
|
7 |
80-1920-535-00 |
Driving Tension Arm Setting Shaft |
1 |
|
|
8 |
80-1920-552-00 |
Driving Tension Arm Return Spring |
1 |
|
|
9 |
80-1920-542-00 |
Driving Tension Arm |
1 |
|
|
10 |
89-2521-000100 |
E Type Ring 10 |
1 |
|
|
11 |
80-1425-551-00 |
Tension Spring |
1 |
|
|
12 |
80-1920-401-00 |
Rubber Crawler 160W*60P*35L |
2 |
|
|
13 |
80-1920-414-00 |
Induction Ring Attachment |
2 |
*4) |
|
|
80-1923-414-00 |
Induction Ring Attachment |
2 |
*1) *5) |
|
14 |
89-1111-141202 |
Hexagonal Bolt M14*120 |
2 |
*4) |
|
|
89-1111-141302 |
Hexagonal Bolt M14*130 |
2 |
*1) *5) |
|
15 |
89-1511-140042 |
Hexagonal Nut M14 |
2 |
|
|
16 |
89-5121-254210 |
Oil Seal UE 25.42.10 |
2 |
|
|
17 |
89-2512-000420 |
Snap Ring 42 |
2 |
|
|
18 |
89-3115-060044 |
Bearing 6004 2RS |
4 |
|
|
19 |
80-1920-412-00 |
Idle Roller |
2 |
|
|
20 |
89-1713-080002 |
Flat Washer 8 |
2 |
|
|
21 |
89-1750-080002 |
Spring Washer 8 |
2 |
|
|
22 |
89-1113-080202 |
Hexagonal Bolt (8T) M8*20 |
2 |
|
|
23 |
83-1415-672-00 |
Blind Cap 30 |
2 |
|
|
24 |
89-1111-080302 |
Hexagonal Bolt M8*30 |
1 |
|
|
25 |
80-1487-963-00 |
Rod End HS8 |
1 |
|
|
26 |
89-1711-080002 |
Flat Washer 8 |
1 |
|
|
27 |
89-1541-080002 |
Hexagonal Nut (SW) M8 |
1 |
|
|
28 |
89-1511-080042 |
Hexagonal Nut M8 |
1 |
|
|
29 |
83-1712-923-00 |
Oil Level Mark 1.6 |
1 |
|
|
*1)Interchangeable *2)Serial Number : ~UA97D00132 *3)Serial Number : UA97F00133~ *4)Serial Number : ~UA98E00078 *5)Serial Number : UA98J00083~ *6)Serial Number : ~UA98M00128 *7)Serial Number : UA99M00006~ |
||||
-14-
