OREC                         ISSUED NO. GRH537PRO-02

Parts catalogue LAWN MOWER

(EXPORT MODEL) GRH537PRO(2Action)



MODEL                 CODE GRH537PRO           0269 - ○○○○○













CONTENTS



Fig. 1

TRANSMISSION ------------------

1

Fig. 2

SAFETY COVER ------------------

3

Fig. 3

DRIVE --------------------------------

6

Fig. 4

HANDLE -----------------------------

9

Fig. 5

BLADE AND BAG -----------------

12

Fig. 6

BBC -----------------------------------

13

Fig. 7

LABEL -------------------------------

14



OREC CO.,LTD

Update : Feb 2015

1/15

TRANSMISSION 1/2









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-5121-152507

Oil Seal UE 15.25.7

1



2

89-5121-102007

Oil Seal UE 10.20.7

1



3

89-3512-010200

DBB Bush 10.20

1



4

89-3511-015150

DU Bush 15.15.23F

2



5

89-2511-000100

Snap Ring (S10)

2



6

89-2150-050330

Key 5*33 (round)

1



7

83-1830-353-00

Thrust Washer 10*26*1.0

1



8

83-1020-361-00

Thrust Washer 15*24*1.0

4



9

83-1020-351-00

Thrust Washer 10*18*1.0

3



10

0276-70420

Packing G

1



11

0276-01200

Gear 54T CMP

1



12

0276-01100

Gear 10T

1



13

0276-01020

HST Unit Assy

1



14

0276-00900

Bevel Gear 20T

1



15

0276-00810

Bevel Gear 25T

1



16

0276-00420

Gear Case (G)

1



17

0269-00100

Rear Axle (GRH537)

1



2/15

TRANSMISSION 2/2













*1) Serial Number ： ~ EX14H00328 (Cutting Position ： 5 )

*2) Serial Number ： EX14K00329 ~ (Cutting Position ： 6 )

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-2511-000200

Snap Ring (S20)

1



2

89-2181-060222

Flat Head Pin 6*22

2



3

89-2181-060162

Flat Head Pin 6*16

1



4

89-2131-060002

Snap Pin 6

3



5

89-2111-050020

Spring Pin 5*20

1



6

89-1252-100123

Flange Mini Hexagonal Bolt M10*12 (slender)

2



7

89-1135-060302

Hexagonal Bolt (SW) M6*30

6



8

89-1132-060122

Hexagonal Bolt (SW) M6*12

2



9

83-1020-349-00

Copper Packing 10.5*18*1.6

2



10

80-1020-515-00

Universal Joint NC-10-37C1

1



11

0276-02600

Clutch Return Spring

1



12

0276-01900

Spring for Change Arm Return

1



13

0276-01810

Driving Change Arm

1



14

0276-01710

Driving Clutch Arm

1



15

0276-01510

Clutch Bracket CMP

1



16

0276-01610

Lock Arm Bracket (H) CMP (5 pos.)

1

*1)



0269-00200

Lock Arm Bracket (H) CMP (6 pos.)

1

*2)

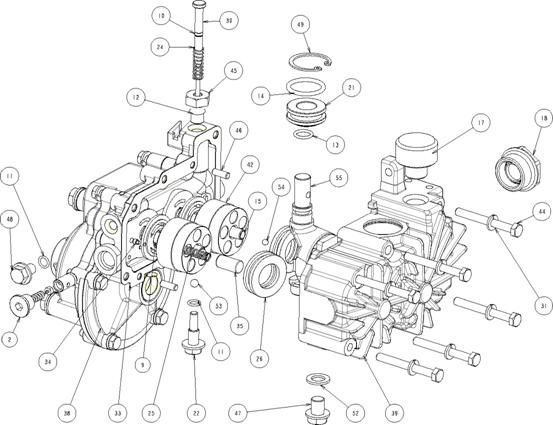

Parts No.

Parts Name

Qty

Remarks



0276-01020

HST UNIT

1

*1)*2)

2

0276-04000

SURGE CUT VALVE

1



9

0276-00700

M SHAFT

1



10

89-5221-003000

O RING P3

1



11

89-5221-007000

O RING P7

2



12

89-5221-009000

O RING P9

1



13

89-5221-011000

O RING P11

1



14

89-5221-024000

O RING P24

1



15

0276-00600

P SHAFT

1



17

0276-70100

AIR BLEEZER

1



18

83-1032-689-00

OIL GAUGE KMS28A

1



21

0276-02210

COLLAR A

1



22

0276-70600

GUIDE BOLT M8x26

1



24

0276-02600

CLUTCH PIN RETURN SPRING

1



25

0276-02100

SPRING

10



26

89-3370-051104

THRUST BEARING 51104

2



30

0276-01310

NEUTRAL PIN

1



31

89-1750-060002

SPRING WASHER 6

6



33

0276-70320

PACKING H

1



34

0276-02400

SCREW

4



35

0276-03500

PISTON

10



38

0276-00320

MISSION M

1



39

0276-00220

MISSION T

1



42

0276-03600

C/B ASSY

2



44

89-1113-060552

HEXAGONAL BOLT(8T) M6x55

6



















0276-70500





46

89-2142-050140

PARALLEL PIN 5x14

2



47

89-1252-100123

FLANGE MINI HX BOLT M10x12(SLENDER)

1



48

89-1251-080122

FLANGE MINI HX BOLT M8x12

1



49

89-2512-000300

SNAP RING 30

1



52

83-1020-349-00

COPPER PACKING 10.5x18x1.6

1



53

89-3410-060000

STEEL BALL 6.0

1



54

89-3410-045000

STEEL BALL 4.5

2



55

0276-03400

SWASH PLATE

1













*1) SERIAL NUMBER : GRH535PRO : VG07K01319 - VG07M02404

*2) SERIAL NUMBER : GRH535PRO : VG08G00147 -
















































































































45                                     HEXAGONAL BOLT M10x16                                              1

3/15

SAFETY COVER 1/3







*1) Serial Number ： ~ EX14H00328 (Cutting Position ： 5 )

*2) Serial Number ： EX14K00329 ~ (Cutting Position ： 6 )

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-1611-080043

Mini Hexagonal Nut M8

6



2

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



3

89-1253-080252

Flange Mini Hexagonal Bolt (8T) M8*25

2



4

89-1238-080252

Mini Hexagonal Bolt (SW) M8*25

4



5

89-1238-080203

Mini Hexagonal Bolt (SW) M8*20

6



6

0278-51110

Cover (Body) 537PRO

1



7

0278-21300

Front Bumper Setting Plate （R)

1



8

0278-21200

Front Bumper Setting Plate （L)

1



9

0278-30800

Front Wheel Adjusting Plate (R) 5 pos.

1

*1)



0268-34400

Front Wheel Adjusting Plate (R) 6 pos.

1

*2)

10

0278-30700

Front Wheel Adjusting Plate (L) 5 pos.

1

*1)



0268-34300

Front Wheel Adjusting Plate (L) 6 pos.

1

*2)

11

0276-30400

Rear Wheel Adjusting Plate (R) 9inch 5 pos.

1

*1)



0268-34200

Rear Wheel Adjusting Plate (R) 6 pos.

1

*2)

12

0276-30300

Rear Wheel Adjusting Plate (L) 9inch 5 pos.

1

*1)



0268-34100

Rear Wheel Adjusting Plate (L) 6 pos.

1

*2)

13

0230-20800

Front Bumper CMP

1



4/15

SAFETY COVER 2/3





*1) Serial Number ： ~ EX14H00328 (Cutting Position ： 5 )

*2) Serial Number ： EX14K00329 ~ (Cutting Position ： 6 )

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-1713-060002

Flat Washer 6 (large)

1



2

89-1611-080043

Mini Hexagonal Nut M8

2



3

89-1581-060042

Flange Cap Nut M6

5



4

89-1390-060142

Welded Bolt M6*14

5



5

89-1238-080252

Mini Hexagonal Bolt (SW) M8*25

2



6

89-1144-060163

Hexagonal Bolt with Cross Hole (PW.SW) M6*16

2



7

83-1020-148-00

Tapping Bolt M6*14

3



8

0278-74300

Discharge Duct

1



9

0278-74200

Mission Cover

1



10

0278-50400

Guide 535

1



11

0278-20600

Inside Guard CMP

1



12

0230-20700

Side Guard (5 pos.)

2

*1)



0268-60200

Side Guard (6 pos.)

2

*2)

13

0268-60100

Joint Cover

1



14

0276-60100

Lock Arm Bracket CMP

1



5/15

SAFETY COVER 3/3













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-1750-060003

Spring Washer 6

4



2

89-1571-060043

Cap Nut M6

4



3

89-1390-060123

Welded Bolt M6*12

4



4

80-1020-755-20

Side Plate (Right)

1



5

80-1020-754-20

Side Plate (Left)

1



6

80-1020-753-00

Rear Cover Spring

1



7

0278-50800

Rear Cover

1



8

0278-20700

Rear Cover Shaft

1



6/15

DRIVE 1/3















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-3115-060024

Bearing 6002 2RS

4



2

89-1713-080003

Flat Washer 8 (large)

4



3

89-1561-080003

Mini Hexagonal U Nut M8

2



4

89-1238-080203

Mini Hexagonal Bolt (SW) M8*20

2



5

83-1020-359-00

Wave Washer 16

2



6

80-1022-424-00

Front Wheel Arm Stopper

2



7

80-1020-426-10

Adjuster Grip

2



8

0268-30900

9 inch Tire (M.R.E)

2



9

0268-30600

Aluminum Front Wheel (M.R.E)

2



10

0268-31200

Front Wheel Arm CMP (R) 537PRO

1



11

0268-31100

Front Wheel Arm CMP (L) 537PRO

1



1,8,9

0268-30300

Aluminum Front Wheel Assy (9 inch)

2




7/15

DRIVE 2/3









*1) Serial Number ： ~ EX14H00328 (Cutting Position ： 5 )

*2) Serial Number ： EX14K00329 ~ (Cutting Position ： 6 )

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-1561-080003

Mini Hexagonal U Nut M8

2



2

89-1144-060163

Hexagonal Bolt with Cross Hole (PW.SW) M6*16

2



3

83-1020-987-00

Bearing ND-02S

2



4

80-1022-425-00

Rear Wheel Arm Stopper

2



5

80-1020-793-10

Flapper Setting

2



6

80-1020-426-10

Adjuster Grip

2



7

0278-70700

Arm Bolt

2



8

0276-50600

Flapper CMP

1



9

0269-01000

Transmission Assy (GRH537) 5 pos.

1

*1)



0269-01010

Transmission Assy (GRH537) 6 pos.

1

*2)

10

0268-31400

Rear Wheel Arm CMP (R) 537 (5 pos.)

1

*1)



0268-34800

Rear Wheel Arm CMP (R) 537 (6 pos.)

1

*2)

11

0268-31300

Rear Wheel Arm CMP (L) 537 (5 pos.)

1

*1)



0268-34700

Rear Wheel Arm CMP (L) 537 (6 pos.)

1

*2)

8/15

DRIVE 3/3







*1) Serial Number ： ~ EX14H00328 (Cutting Position ： 5 )

*2) Serial Number ： EX14K00329 ~ (Cutting Position ： 6 )

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-3115-060024

Bearing 6002 2RS

4



2

89-2511-000200

Snap Ring (S20)

1



3

89-2142-050250

Parallel Pin 5*25

2



4

89-2131-080002

Snap Pin 8

1



5

89-1713-080003

Flat Washer 8 (large)

2



6

89-1238-080202

Mini Hexagonal Bolt (SW) M8*20

2



7

80-1020-526-00

Drive Shaft H 136L

1

*1)



0278-00200

Drive Shaft 140L (5 pos.)

1

*2)

8

80-1020-515-00

Universal Joint NC-10-37C1

1



9

80-1020-459-00

Ratchet Assembly (Right)

1



10

80-1020-458-00

Ratchet Assembly (Left)

1



11

80-1020-433-00

Coned Disc Spring

2



12

0276-50100

Lock Arm

1



13

0268-30900

9 inch Tire (M.R.E)

2



14

0268-30700

Aluminum Rear Wheel (M.R.E)

2



15

0268-30500

Axle Clutch Guide

2



1,14,13

0268-30400

Aluminum Rear Wheel Assy (9 inch)

2



9/15

HANDLE 1/3









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-1711-120003

Flat Washer 12

1



2

89-1161-050122

Tapping Screw 5*12

2



3

80-1020-265-00

Throttle Lever (H)

1



4

80-1020-264-00

Control Washer

1



5

80-1020-263-00

Control Lever Shaft Spring

2



6

80-1020-262-00

Control Lever Shaft

1



7

80-1020-231-00

Control Cover

1



8

0276-11700

Spring For Change Lever Return

1



9

0276-10610

Wire Guide

1



10

0276-10510

Bolt for Change Lever Setting

1



11

0276-10200

Change Plate

1



12

0276-10110

Change Lever

1



13

0269-10100

Upper Handle CMP (GRH537)

1



10/15

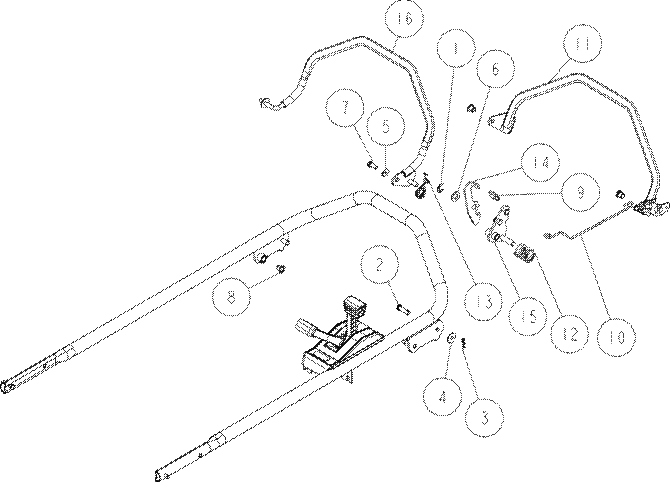

HANDLE 2/3











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-2521-000100

E Type Ring 10

1



2

89-2181-080282

Flat Head Pin 8*28

1



3

89-2131-080002

Snap Pin 8

1



4

89-1713-080003

Flat Washer 8 (large)

1



5

89-1713-060002

Flat Washer 6 (large)

1



6

89-1711-120003

Flat Washer 12

1



7

89-1135-060182

Hexagonal Bolt (SW) M6*18

1



8

80-1020-243-00

Driving Lever, Metal

3



9

0305-70200

Lever Cap

1



10

0269-71100

Shift Rod

1



11

0269-10200

Driving Clutch Lever (GRH537)

1



12

0268-70800

Damper Spring

1



13

0268-70500

Lock Arm Return Spring

1



14

0268-10700

Lock Arm

1



15

0268-10400

Clutch Arm CMP

1



16

0268-10300

Blade Clutch Lever CMP (537.538)

1



11/15

HANDLE 3/3









































Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-2181-060222

Flat Head Pin 6*22

1



2

89-2132-060002

Snap Pin 6 (with stopper)

1



3

89-1750-080003

Spring Washer 8

6



4

89-1713-080003

Flat Washer 8 (large)

6



5

89-1671-080043

Mini Cap Nut M8

6



6

0268-75100

Handle Setting Bolt M8*35

2



7

89-1213-080252

Mini Hexagonal Bolt (8T) M8*25

2



8

83-1920-311-00

Washer 8.1*12*0.5

1



9

0269-70200

Driving Clutch Wire

1



10

0269-70100

Driving Change Wire

1



11

0268-71400

Throttle Wire

1



12

0268-71100

Blade Wire

1



13

0268-70700

Blade Spring 110

1



14

0268-70600

Driving Clutch Spring

1



15

0268-10800

Handle Setting

2




12/15

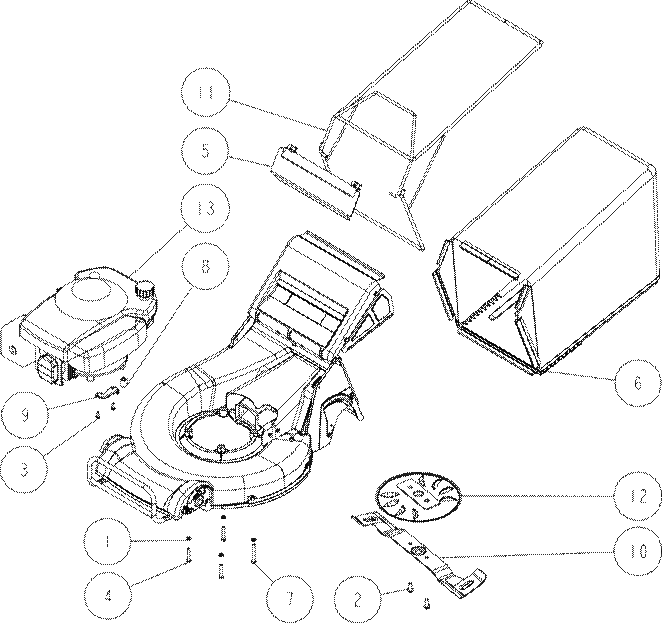

BLADE ＆ BAG 1/1





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-1750-080003

Spring Washer 8

4



2

89-1254-100252

Flange Mini Hexagonal Bolt M10*25 P=1.25

2



3

83-1020-148-00

Tapping Bolt M6*14

2



4

83-1020-116-00

Hexagonal Bolt 5/16-24*45UNF (H)

3



5

80-1022-854-00

Bag Plate

1



6

0278-77200

Bag DB 80

1



7

0278-70800

Bolt 5/16-24*63UNF (H)

1



8

0278-50500

Collar for Engine Setting

1



9

0278-50300

Blade Wire Setting

1



10

0268-72100

Wing Blade

1



11

0268-20100

Bag Frame CMP

1



12

0222-50100

BBC Cover CMP

1



13

-

Engine GXV160H2 SFE1

1



13/15

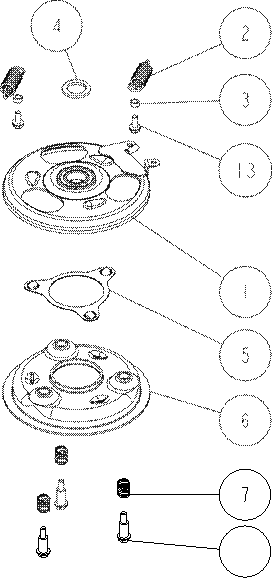

BBC 1/1



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0278-70600

Blade (H) Assy

1



2

80-1020-871-00

Clutch Return Spring (H)

2



3

80-1020-872-00

Collar (H)

2



4

80-1020-874-00

Thrust Washer (H)

1



5

80-1020-877-00

Ball Retainer (H)

1



6

80-1020-878-00

Blade Disc (H) Assy

1



7

80-1020-881-00

Spring (H)

3



8

80-1020-882-00

Blade Setting Bolt (H)

3



9

80-1020-883-00

Drive Disc (H)

1



10

80-1020-884-00

Driven Disc (H) Assy

1



11

80-1020-886-00

Clutch Spring (H)

1



12

80-1020-887-00

Ball Control Plate (H) Assy

1



13

83-1020-148-00

Tapping Bolt M6*14

2



14

83-1020-323-00

Washer 10*30*4.5

1



15

89-1254-100252

Flange Mini Hexagonal Bolt M10*25 P=1.25

1



16

89-2160-040160

Woodruff Key 4*16*6.5

1




14/15

LABEL 1/2





























































Serial Number

15/15

LABEL 2/2



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0230-71300

Driving Label

1



2

0268-73400

Blade Label (GR537)

1



3

80-1020-929-00

Notice Label (Cover)

1



4

0223-76100

Label, Caution (Large)

1



5

0223-72910

Attention Mark for Slope

1



6

80-1020-925-00

Label,Caution(small)

1



7

80-1488-926-10

Label, Caution for Knife

1



8

80-1020-926-00

Danger Label

1



9

80-1010-933-00

Label, CE

1



10

80-1020-933-00

Label, Noise 98db

1



11

0215-83200

Label, Protection Equipment

1



12

-

Serial Number

1



13

0278-70400

Label (Large)

1



14

0276-70800

Driving Change Label

1



15

80-1020-913-20

Throttle Label (H)

1



16

0269-72100

Label,Model GRH537

1



17

0276-71800

Label, (HYDROSTATIC)

1
