OREC                                     ISSUED NO. GRH535PRO-3

Parts catalogue LAWN MOWER

(EXPORT MODEL) GRH535PRO(2Action)





MODEL               CODE GRH535PRO         0276-○○○○○







CONTENTS



Fig. 1

GEAR CASE -------------------------------------

1

Fig. 2

GEAR CASE INSIDE, OUTSIDE-------------

3

Fig. 3

SAFETY COVER ---------------------------------

5

Fig. 4

WHEEL  ---------------------------------------------

7

Fig. 5

HANDLE  -------------------------------------------

11

Fig. 6

BLADE AND BAG -------------------------------

13









OREC CO.,LTD



Update : April 2009

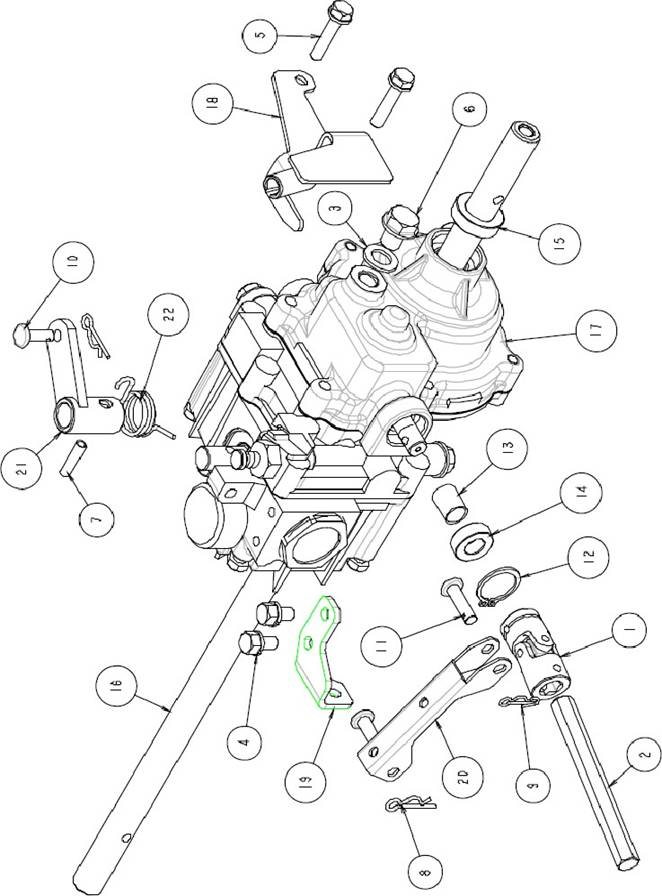

Fig.1 Gear Case







Fig.1 Gear Case



Ref.



Parts No.



Parts Name

Quantity



Remarks

GRH535 PRO

(2Action)

GXV160



0276-00010

Gear Case Assy

1

*2)



0276-00020

Gear Case Assy

1

*1) 3)

1

80-1020-515-00

Universal Joint NC-10-37C1

1



2

80-1020-526-00

Drive Shaft H 136L

1



3

83-1020-349-00

Copper Packing 10.5*18*1.6

2



4

89-1132-060122

Hexagonal Bolt (SW) M6*12

2



5

89-1135-060302

Hexagonal Bolt (SW) M6*30

2



6

89-1252-100123

Flange Mini Hexagonal Bolt M10*12

2



7

89-2111-050020

Spring Pin 5*20

1



8

89-2131-080002

Snap Pin 8

1



9

89-2132-060002

Snap Pin 6 (with stopper)

1



10

89-2181-060162

Flat Head Pin 6*16

1



11

89-2181-060222

Flat Head Pin 6*22

2



12

89-2511-000200

Snap Ring (S20)

1



13

89-3512-010200

DBB Bush 10.20

1



14

89-5121-102007

Oil Seal UE 10.20.7

3



15

89-5121-152507

Oil Seal UE 15.25.7

2



16

0276-00100

Axle

1



17

0276-00410

Gear Case (G)

1

*2)



0276-00420

Gear Case (G)

1

*3)

18

0276-01510

Clutch Bracket CMP

1



19

0276-01610

Lock Arm Bracket (H) CMP

1



20

0276-01710

Driving Clutch Arm

1



21

0276-01810

Driving Change Arm

1



22

0276-01900

Spring for Change Arm Return

1



MEMO



Note 1: Transmission ASSY consists from parts 1, 3 to 8,11 to 22(this page) and 1 to 3, 5 to 14(next page).



*1) Interchangeable

*2) Serial Number : GRH535PRO : ~VG07M02404

*3) Serial Number : GRH535PRO : VG08G00147~

*4) Serial Number : GRH535PRO : ~VG08G00266

*5) Serial Number : GRH535PRO : VG08K00837~

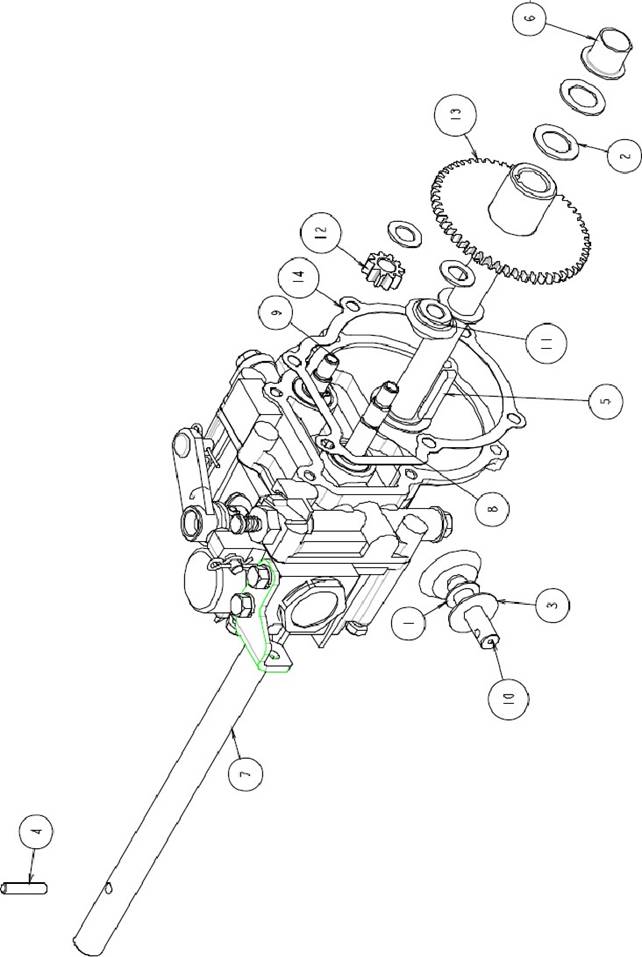

Fig.2 Gear Case

Fig 2 Gear Case



Ref.



Parts No.



Parts Name

Quantity



Remarks

GRH535 PRO

(2Action)

GXV160

1

83-1020-351-00

Thrust Washer 10*18*1.0

3



2

83-1020-361-00

Thrust Washer 15*24*1.0

4



3

83-1830-353-00

Thrust Washer 10*26*1.0

1



4

89-2142-050250

Parallel Pin 5*25

2



5

89-2150-050330

Key 5*33 (round)

1



6

89-3511-015150

DU Bush 15.15.23F

2



7

0276-00100

Axle

1



8

0276-00600

P Shaft

1



9

0276-00700

M Shaft

1



10

0276-00810

Bevel Gear 25T

1



11

0276-00900

Bevel Gear 20T

1



12

0276-01100

Gear 10T

1



13

0276-01200

Gear 54T CMP

1



14

0276-70410

Packing G

1

*2)



0276-70420

Packing G

1

*3)

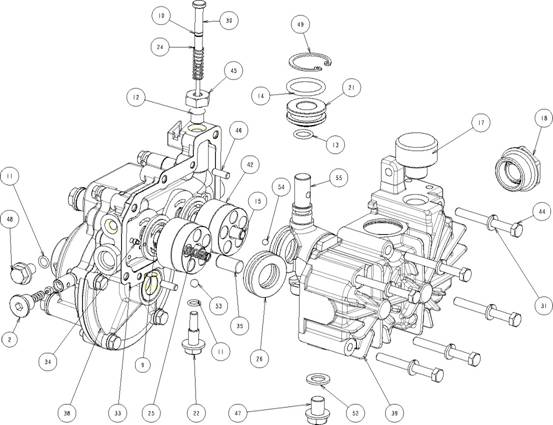

Parts No.

Parts Name

Qty

Remarks



0276-01020

HST UNIT

1

*1)*2)

2

0276-04000

SURGE CUT VALVE

1



9

0276-00700

M SHAFT

1



10

89-5221-003000

O RING P3

1



11

89-5221-007000

O RING P7

2



12

89-5221-009000

O RING P9

1



13

89-5221-011000

O RING P11

1



14

89-5221-024000

O RING P24

1



15

0276-00600

P SHAFT

1



17

0276-70100

AIR BLEEZER

1



18

83-1032-689-00

OIL GAUGE KMS28A

1



21

0276-02210

COLLAR A

1



22

0276-70600

GUIDE BOLT M8x26

1



24

0276-02600

CLUTCH PIN RETURN SPRING

1



25

0276-02100

SPRING

10



26

89-3370-051104

THRUST BEARING 51104

2



30

0276-01310

NEUTRAL PIN

1



31

89-1750-060002

SPRING WASHER 6

6



33

0276-70320

PACKING H

1



34

0276-02400

SCREW

4



35

0276-03500

PISTON

10



38

0276-00320

MISSION M

1



39

0276-00220

MISSION T

1



42

0276-03600

C/B ASSY

2



44

89-1113-060552

HEXAGONAL BOLT(8T) M6x55

6



















0276-70500





46

89-2142-050140

PARALLEL PIN 5x14

2



47

89-1252-100123

FLANGE MINI HX BOLT M10x12(SLENDER)

1



48

89-1251-080122

FLANGE MINI HX BOLT M8x12

1



49

89-2512-000300

SNAP RING 30

1



52

83-1020-349-00

COPPER PACKING 10.5x18x1.6

1



53

89-3410-060000

STEEL BALL 6.0

1



54

89-3410-045000

STEEL BALL 4.5

2



55

0276-03400

SWASH PLATE

1













*1) SERIAL NUMBER : GRH535PRO : VG07K01319 - VG07M02404

*2) SERIAL NUMBER : GRH535PRO : VG08G00147 -
















































































































45                                     HEXAGONAL BOLT M10x16                                              1

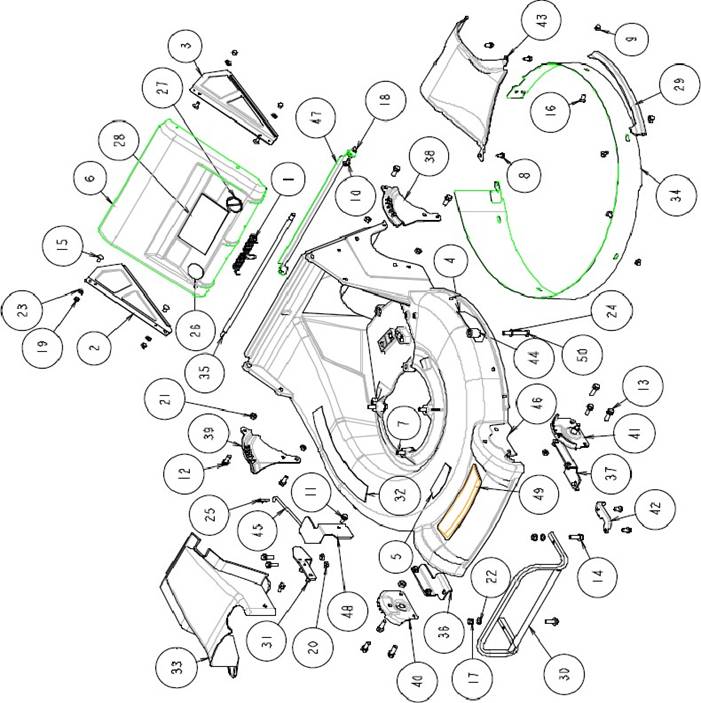

Fig.3 Safety Cover



















Fig 3 Safety Cover



Ref.



Parts No.



Parts Name

Quantity



Remarks

GRH535 PRO

(2Action)

GXV160

1

80-1020-753-00

Rear Cover Spring

1



2

80-1020-754-20

Side Plate (Left)

1



3

80-1020-755-20

Side Plate (Right)

1



4

80-1020-926-00

Danger Label

2



5

80-1020-928-00

Notice Label (Plug)

1



6

0278-50800

Rear Cover

1



7

83-1020-116-00

Hexagonal Bolt 5/16-24*45UNF (H)

3



8

83-1020-148-00

Tapping Bolt M6*14

5



9

83-1575-189-00

Flange Cap Nut M6

5



10

89-1132-060122

Hexagonal Bolt (SW) M6*12

2



11

89-1139-060163

Hexagonal Bolt (PWSW) M6*16

2



12

89-1232-080203

Mini Hexagonal Bolt (SW) M8*20

6



13

89-1232-080252

Mini Hexagonal Bolt (SW) M8*25

6



14

89-1253-080252

Flange Mini Hexagonal Bolt (8T) M

2



15

89-1390-060123

Welded Bolt M6*12

4



16

89-1390-060142

Welded Bolt M6*14

5



17

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



18

89-1571-060042

Cap Nut M6

2



19

89-1571-060043

Cap Nut M6

4



20

89-1611-080042

Mini Hexagonal Nut M8

2



21

89-1611-080043

Mini Hexagonal Nut M8

10



22

89-1712-080002

Flat Washer 8

2



23

89-1750-060003

Spring Washer 6

4



24

89-1750-080003

Spring Washer 8

4



25

89-2131-080002

Snap Pin 8

1



26

0215-83200

Label, Protection Equipment

1



27

0223-72910

Attention Mark for Slope

1





0223-72910

Attention Mark for Slope

1

*1)

28

0223-76100

Label, Caution (Large)

1



29

0230-20700

Side Guard

2



30

0230-20800

Front Bumper CMP

1



31

0276-60100

Lock Arm Bracket CMP

1



32

0276-71800

Label, (HYDROSTATIC)

1



33

80-1022-733-10

Gear Case Cover (H)

1



34

0278-20600

Inside Guard CMP

1



35

0278-20700

Rear Cover Shaft

1



36

0278-21200

Front Bumper Setting Plate （L)

1



37

0278-21300

Front Bumper Setting Plate （R)

1



38

0278-30300

Rear Wheel Adjusting Plate (L) 8inc

1





0276-30300

Rear Wheel Adjusting Plate (L) 9inch



39

0278-30400

Rear Wheel Adjusting Plate (R) 8in

1





0276-30400

Rear Wheel Adjusting Plate (R) 9inch



40

0278-30800

Front Wheel Adjusting Plate (R)

1



41

0278-30700

Front Wheel Adjusting Plate (L)

1



42

0278-50300

Blade Wire Setting

1



43

0278-50400

Guide 535

1



44

0278-50500

Collar for Engine Setting

1



45

0276-50100

Lock Arm

1



46

0278-51100

Cover Pro (Body) 535

1



47

0278-51600

Extension Flapper

1



48

0278-60100

Shaft Cover

1



49

0278-70400

Label (Large)

1



50

0278-70800

Bolt 5/16-24*63UNF (H)

1

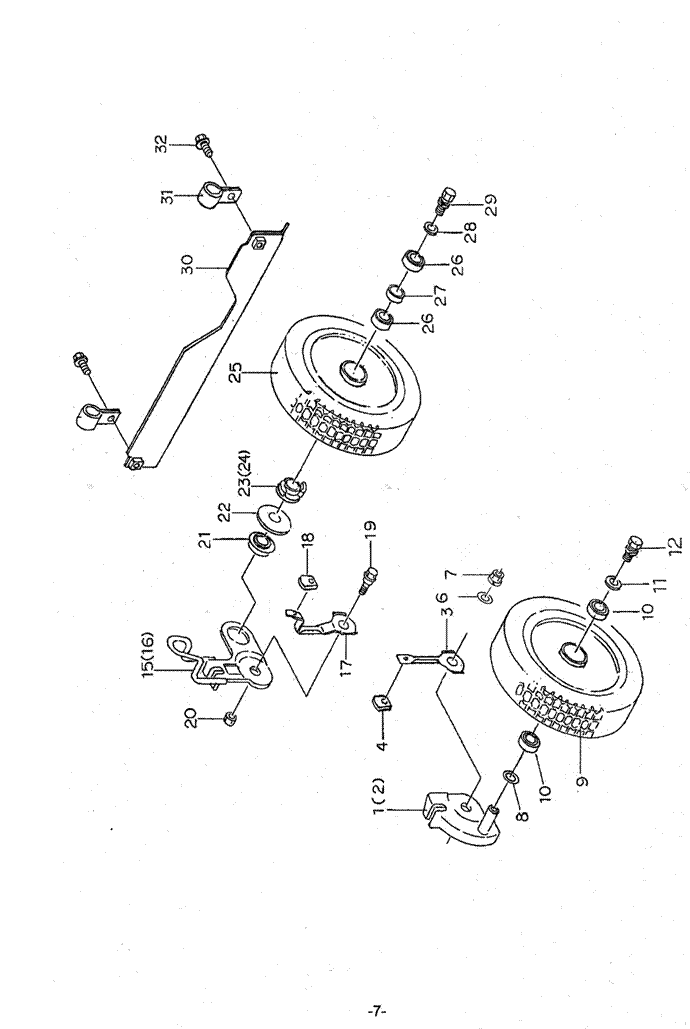

Fig.4 Wheel

Fig 4 Wheel



Ref.



Parts No.



Parts Name

Quantity



Remarks

GRH535 PRO

(2Action)

GXV160

1

0278-30500

Front Wheel Arm (L) 8inch

1





0276-30500

Front Wheel Arm (L) 9 inch

1



2

0278-30600

Front Wheel Arm (R) 8inch

1





0276-30600

Front Wheel Arm (R) 9 inch

1



3

80-1022-424-00

Front Wheel Arm Stopper

2



4

80-1020-426-10

Adjuster Grip

2



6

89-1713-080003

Flat Washer 8 (large)

2



7

89-1543-080003

Mini Hexagonal Nut (SW) M8

2



8

83-1020-361-00

Thrust Washer 15*24*1.0

2



9-10

80-1020-481-00

Steel Front Wheel Assy (OLD)

2

*4)



0278-33700

Steel Front Wheel Assy 8 inch (NE

2

*5)



0276-31700

Steel Front Wheel Assy 9 inch (NE

2



9

80-1020-483-00

Steel Front Wheel CMP (OLD)

2

*4)



0278-33100

Steel Front Wheel CMP 8 inch (NEW)

*5)



0276-31100

Steel Front Wheel CMP 9 inch (NEW)



9-1

80-1020-485-00

Rubber Wheel (OLD)



*4)



0278-33500

Rubber Wheel 8 inch (NEW)



*5)



0276-31500

Rubber Wheel 9 inch (NEW)





9-2

80-1020-487-00

Steel Front Wheel (OLD)



*4)



0278-33300

Steel Front Wheel 8 inch (NEW)



*5)



0276-31300

Steel Front Wheel 9 inch (NEW)





10

89-3115-062024

Bearing 6202 2RS

4



11

89-1713-080003

Flat Washer 8 (large)

2



12

89-1132-080203

Hexagonal Bolt (SW) M8*20

2



15

0278-30100

Rear Wheel Arm (Left)

1



16

0278-30200

Rear Wheel Arm (Right)

1



17

80-1022-425-00

Rear Wheel Arm Stopper

2



18

80-1020-426-10

Adjuster Grip

2



19

80-1020-406-10

Arm Bolt

2



20

89-1561-080003

Mini Hexagonal U Nut M8

2



21

83-1020-987-00

Bearing ND-0.2

2



22

80-1020-433-00

Coned Disc Spring

2



23

80-1020-458-00

Ratchet Assembly (Left)

1



24

80-1020-459-00

Ratchet Assembly (Right)

1



25-27

80-1020-482-00

Steel Rear Wheel Assy (OLD)

2

*4)



0278-33800

Steel Rear Wheel Assy 8 inch (NE

2

*5)



0276-31800

Steel Rear Wheel Assy 9 inch (NE

2



25

80-1020-484-00

Steel Rear Wheel CMP (OLD)

2

*4)



0278-33200

Steel Rear Wheel CMP 8 inch (NEW)

*5)



0276-31200

Steel Rear Wheel CMP 9 inch (NEW)



25-1

80-1020-485-00

Rubber Wheel (OLD)



*4)



0278-33500

Rubber Wheel 8 inch (NEW)



*5)



0276-31500

Rubber Wheel 9 inch (NEW)





25-2

80-1020-488-00

Steel Rear Wheel (OLD)



*4)



0278-33400

Steel Rear Wheel 8 inch (NEW)



*5)



0276-31400

Steel Rear Wheel 9 inch (NEW)





26

89-3115-062024

Bearing 6202 2RS

4



27

80-1020-486-00

Collar 25A*8L

2



28

89-1713-080003

Flat Washer 8 (large)

2



29

89-1132-080203

Hexagonal Bolt (SW) M8*20

2





Fig.4 Wheel

Fig 4 Wheel



Ref.



Parts No.



Parts Name

Quantity



Remarks

GRH535 PRO

(2Action)

GXV160

30

0276-50600

Flapper CMP

1



31

80-1020-793-10

Flapper Setting

2



32

89-1133-060163

Hexagonal Bolt (PWSW) M6*16

2

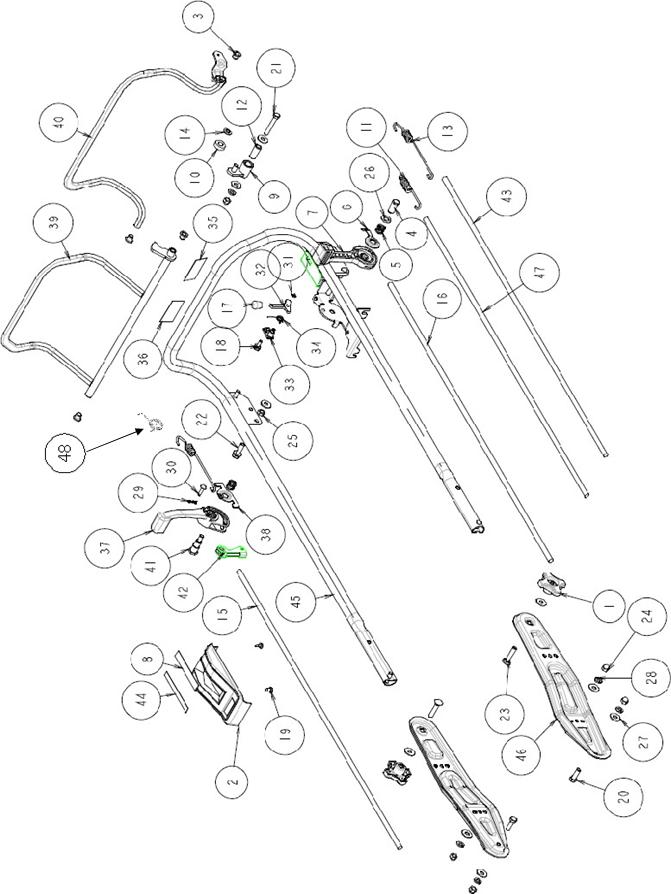

Fig.5 Handle







Fig.5 Handle



Ref.



Parts No.



Parts Name

Quantity



Remarks

GRH535 PRO

(2Action)

GXV160

1

80-1020-228-10

Knob Nut M8

2



2

80-1020-231-00

Control Cover

1



3

80-1020-243-00

Driving Lever, Metal

4



4

80-1020-262-00

Control Lever Shaft

1



5

80-1020-263-00

Control Lever Shaft Spring

2



6

80-1020-264-00

Control Washer

1



7

80-1020-265-00

Throttle Lever (H)

1



8

80-1020-913-10

Throttle Label (H)

1



9

80-1021-252-00

Blade Wire Arm

1



10

80-1021-253-00

Roller

1



11

80-1021-968-10

Blade Spring VB

1



12

80-1022-254-00

Inner Pipe 13.8*30

1



13

80-1022-966-10

Driving Clutch Spring

2



14

83-1020-395-00

Shim Washer 8*12*0.8

1



15

0276-71500

Driving Change Wire V

1



16

83-1020-955-00

Throttle Wire (H)

1



17

83-1920-425-00

Lever Grip KP204

1



18

89-1139-060163

Hexagonal Bolt (PWSW) M6*16

1



19

89-1161-050123

Tapping Screw 5*12

2



20

89-1213-080252

Mini Hexagonal Bolt (8T) M8*25

2



21

89-1213-080503

Mini Hexagonal Bolt (8T) M8*50

1



22

89-1239-080302

Mini Hexagonal Bolt (PWSW) M8*3

1



23

89-1412-080403

Handle Setting Bolt M8*40

2



24

89-1571-080043

Cap Nut M8

5



25

89-1711-080003

Flat Washer 8

1



26

89-1711-120003

Flat Washer 12

1



27

89-1713-080003

Flat Washer 8 (large)

9



28

89-1750-080003

Spring Washer 8

5



29

89-2132-060002

Snap Pin 6 (with stopper)

1



30

89-2181-060222

Flat Head Pin 6*22

1



31

89-2521-000050

E Type Ring 5

1



32

0230-10400

Lock Lever

1



33

0230-10500

Lock Lever Shaft CMP

1



34

0230-70700

Spring for Lock Lever Return

1



35

0230-71200

Blade Label

1



36

0230-71300

Driving Label

1



37

0276-10110

Change Lever

1



38

0276-10200

Change Plate

1



39

0276-10300

Blade Clutch Lever

1



40

0276-10400

Driving Clutch Lever

1



41

0276-10510

Bolt for Change Lever Setting

1



42

0276-10600

Wire Guide

1





0276-10610

Wire Guide





43

0276-70710

Driving Clutch    Wire

1



44

0276-70800

Driving Change Label

1

With Bush 08.07

45

0278-10100

Handle PRO (φ25.4)

1



46

0278-10200

Handle Setting

2



47

0278-71100

Blade Wire V

1



48

0276-11700

Spring For Change Lever Return

1





Fig.6 Blade and Bag

Fig 6 Blade and Bag



Ref.



Parts No.



Parts Name

Quantity



Remarks

GRH535 PRO

(2Action)

GXV160

1

80-1020-871-00

Clutch Return Spring (H)

2



2

80-1020-872-00

Collar (H)

2



3

83-1020-148-00

Tapping Bolt M6*14

2



4

80-1020-874-00

Thrust Washer (H)

1



5

80-1020-875-00

Ball Bearing (H)

1



6

80-1020-876-00

Blade (H) Assy

1



7

80-1020-877-00

Ball Retainer (H)

1



8

80-1020-878-00

Blade Disc (H) Assy

1



9

80-1020-879-00

Bush (H)

3



10

80-1020-881-00

Spring (H)

3



11

80-1020-882-00

Blade Setting Bolt (H)

3



12

80-1020-892-00

Woodruff Key 4*16

1





89-2160-040160

Woodruff Key 4*16*6.5



*1)

13

80-1020-883-00

Drive Disc (H)

1



14

80-1020-884-00

Driven Disc (H) Assy

1



15

80-1020-885-00

Bush (H)

2



16

80-1020-886-00

Clutch Spring (H)

1



17

80-1020-887-00

Ball Control Plate (H) Assy

1



18

80-1020-888-00

Ball Bearing (H)

1



19

83-1020-323-00

Washer 10*30*4.5

1



20

89-1254-100252

Flange Mini Hexagonal Bolt M10*25

1



21

0222-50100

BBC Cover CMP

1



22

80-1020-821-10

Blade 530

1



23

89-1254-100252

Flange Mini Hexagonal Bolt M10*25

2



24

0278-20100

Bag Flame

1



25

80-1022-854-00

Bag Plate

1



26

0230-70400

Bag C

1





80-1022-856-00

Bag C (with Hook)

1

(option)



0278-71500

Bag DB (sew a dustproof cover)

1

(option)

27

0230-71400

Dustproof Cover

1

(option)
