OREC

ISSUED NO. GR537PRO-02

Parts catalogue LAWN MOWER

(EXPORT MODEL) GR537PRO(2Action)

MODEL                 CODE GR537PRO 0268 - ○○○○○























CONTENTS



Fig. 1

TRANSMISSION ------------------

1

Fig. 2

SAFETY COVER ------------------

5

Fig. 3

DRIVE --------------------------------

8

Fig. 4

HANDLE -----------------------------

11

Fig. 5

BLADE AND BAG -----------------

14

Fig. 6

BBC -----------------------------------

15

Fig. 7

LABEL -------------------------------

16



OREC CO.,LTD

Update : Feb 2015

1/17

TRANSMISSION 1/4













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-5131-081404

Oil Seal KE 8.14.4

1



2

89-5121-152507

Oil Seal UE 15.25.7

1



3

89-5121-102007

Oil Seal UE 10.20.7

1



4

89-3512-010150

DBB Bush 10.15

1



5

89-3511-015150

DU Bush 15.15.23F

1



6

89-3511-012100

DU Bush 12.10.20F

1



7

83-1210-352-00

Thrust Washer 10*22*1.0

1



8

83-1020-355-00

Thrust Washer 12*24*1.0

1



9

83-1020-351-00

Thrust Washer 10*18*1.0

1



10

80-1020-515-00

Universal Joint NC-10-37C1

1



11

80-1020-119-10

Clutch for Driving

1



12

80-1020-113-10

Clutch Fork

1



13

0278-00500

Bevel Gear 53-tooth

1



14

0278-00400

Pinion Bevel

1



15

0268-00300

Main Shaft (3 speed type)

1



16

0268-00100

Gear Case (Inside) (3 speed type)

1



2/17

TRANSMISSION 2/4



















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-2150-050430

Key 5*43 (round)

1



2

83-1020-363-00

Thrust Washer 16*24*1.0

2



3

83-1020-361-00

Thrust Washer 15*24*1.0

2



4

80-1020-123-10

Gear (Low)

1



5

80-1020-121-10

Gear (High)

1



6

80-1020-108-00

Change Guide

1



7

0268-70200

Driving Shift Spring

1



8

0268-01200

Rear Axle (Key Type)

1



9

0268-00600

Axle Gear (Key Type)

1



10

0268-00500

Driving Change Shaft

1



11

0268-00400

Gear 26T

1



3/17

TRANSMISSION 3/4















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-5131-081404

Oil Seal KE 8.14.4

1



2

89-5121-152507

Oil Seal UE 15.25.7

1



3

89-3511-016150

DU Bush 16.15.24F

1



4

89-3511-015150

DU Bush 15.15.23F

1



5

89-3410-050000

Steel Ball 5.0

1



6

89-1254-100122

Flange Mini Hexagonal Bolt M10*12 P=1.25

1



7

89-1111-060103

Hexagonal Bolt M6*10

1



8

83-1020-349-00

Copper Packing 10.5*18*1.6

1



9

0268-70400

Shift Spring

1



10

0268-00700

Lock Arm Bracket C

1



11

0268-00200

Gear Case (Outside) (3 speed type)

1



12

0208-73800

Hexagon Tap Tight M6*25

6



13

0013-70800

Copper Packing 6

1



4/17

TRANSMISSION 4/4









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-1713-060002

Flat Washer 6 (large)

1



2

89-1541-060002

Hexagonal Nut (SW) M6

1



3

89-1144-060253

Hexagonal Bolt with Cross Hole (PW.SW) M6*25

1



4

83-1020-198-00

Square Nut M6

1



5

83-1020-148-00

Tapping Bolt M6*14

2



6

80-1515-186-00

Wire Holder

2



7

0268-71300

Driving Change Wire

1



8

0268-71200

Driving Wire

1



9

0268-70300

Change Arm Spring

1



10

0268-70100

Change Arm Return Spring

1



11

0268-01100

Change Arm B CMP

1



12

0268-00900

Change Arm A CMP

1



13

0268-00800

Clutch Arm

1



5/17

SAFETY COVER 1/3







*1) Serial Number ： ~ VG14H00725 (Cutting Position ： 5 )

*2) Serial Number ： VG14K00726 ~ (Cutting Position ： 6 )

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-1611-080043

Mini Hexagonal Nut M8

6



2

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



3

89-1253-080252

Flange Mini Hexagonal Bolt (8T) M8*25

2



4

89-1238-080252

Mini Hexagonal Bolt (SW) M8*25

4



5

89-1238-080203

Mini Hexagonal Bolt (SW) M8*20

6



6

0278-51110

Cover (Body) 537PRO

1



7

0278-21300

Front Bumper Setting Plate （R)

1



8

0278-21200

Front Bumper Setting Plate （L)

1



9

0278-30800

Front Wheel Adjusting Plate (R) 5 pos.

1

*1)



0268-34400

Front Wheel Adjusting Plate (R) 6 pos.

1

*2)

10

0278-30700

Front Wheel Adjusting Plate (L) 5 pos.

1

*1)



0268-34300

Front Wheel Adjusting Plate (L) 6 pos.

1

*2)

11

0276-30400

Rear Wheel Adjusting Plate (R) 9inch 5 pos.

1

*1)



0268-34200

Rear Wheel Adjusting Plate (R) 6 pos.

1

*2)

12

0276-30300

Rear Wheel Adjusting Plate (L) 9inch 5 pos.

1

*1)



0268-34100

Rear Wheel Adjusting Plate (L) 6 pos.

1

*2)

6/17

SAFETY COVER 2/3





*1) Serial Number ： ~ VG14H00725 (Cutting Position ： 5 )

*2) Serial Number ： VG14K00726 ~ (Cutting Position ： 6 )

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-1713-060002

Flat Washer 6 (large)

1



2

89-1611-080043

Mini Hexagonal Nut M8

2



3

89-1581-060042

Flange Cap Nut M6

5



4

89-1390-060142

Welded Bolt M6*14

5



5

89-1238-080252

Mini Hexagonal Bolt (SW) M8*25

2



6

89-1144-060163

Hexagonal Bolt with Cross Hole (PW.SW) M6*16

2



7

83-1020-148-00

Tapping Bolt M6*14

3



8

0278-74300

Discharge Duct

1



9

0278-74200

Mission Cover

1



10

0278-50400

Guide 535

1



11

0278-20600

Inside Guard CMP

1



12

0230-20700

Side Guard (5 pos.)

2

*1)



0268-60200

Side Guard (6 pos.)

2

*2)

13

0268-60100

Joint Cover

1



14

0230-60200

Lock Arm Bracket A

1



7/17

SAFETY COVER 3/3













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-1750-060003

Spring Washer 6

4



2

89-1571-060043

Cap Nut M6

4



3

89-1390-060123

Welded Bolt M6*12

4



4

80-1020-755-20

Side Plate (Right)

1



5

80-1020-754-20

Side Plate (Left)

1



6

80-1020-753-00

Rear Cover Spring

1



7

0278-50800

Rear Cover

1



8

0278-20700

Rear Cover Shaft

1



8/17

DRIVE 1/3

.

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-3115-060024

Bearing 6002 2RS

4



2

89-1713-080003

Flat Washer 8 (large)

4



3

89-1561-080003

Mini Hexagonal U Nut M8

2



4

89-1238-080203

Mini Hexagonal Bolt (SW) M8*20

2



5

83-1020-359-00

Wave Washer 16

2



6

80-1022-424-00

Front Wheel Arm Stopper

2



7

80-1020-426-10

Adjuster Grip

2



8

0268-30800

8 inch Tire (M.R.E)

2



9

0268-30600

Aluminum Front Wheel (M.R.E)

2



10

0268-31200

Front Wheel Arm CMP (R) 537PRO

1



11

0268-31100

Front Wheel Arm CMP (L) 537PRO

1



1,8,9

0268-30100

Aluminum Front Wheel Assy (8 inch)

2




9/17

DRIVE 2/3















*1) Serial Number ： ~ VG14H00725 (Cutting Position ： 5 )

*2) Serial Number ： VG14K00726 ~ (Cutting Position ： 6 )

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-1561-080003

Mini Hexagonal U Nut M8

2



2

89-1144-060163

Hexagonal Bolt with Cross Hole (PW.SW) M6*16

2



3

83-1020-987-00

Bearing ND-02S

2



4

80-1022-425-00

Rear Wheel Arm Stopper

2



5

80-1020-793-10

Flapper Setting

2



6

80-1020-792-00

Flapper

1



7

80-1020-426-10

Adjuster Grip

2



8

0278-70700

Arm Bolt

2



9

0268-31400

Rear Wheel Arm CMP (R) 537 (5 pos.)

1

*1)



0268-34800

Rear Wheel Arm CMP (R) 537 (6 pos.)

1

*2)

10

0268-31300

Rear Wheel Arm CMP (L) 537 (5 pos.)

1

*1)



0268-34700

Rear Wheel Arm CMP (L) 537 (6 pos.)

1

*2)

11

0268-01000

Gear Case Assy (3 speed type)

1



10/17

DRIVE 3/3





*1) Serial Number ： ~ VG14H00725 (Cutting Position ： 5 )

*2) Serial Number ： VG14K00726 ~ (Cutting Position ： 6 )

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-3115-060024

Bearing 6002 2RS

4



2

89-2142-050250

Parallel Pin 5*25

2



3

89-2131-080002

Snap Pin 8

1



4

89-1713-080003

Flat Washer 8 (large)

2



5

89-1238-080203

Mini Hexagonal Bolt (SW) M8*20

2



6

80-1020-515-00

Universal Joint NC-10-37C1

1



7

80-1020-459-00

Ratchet Assembly (Right)

1



8

80-1020-458-00

Ratchet Assembly (Left)

1



9

80-1020-433-00

Coned Disc Spring

2



10

0278-50900

Lock Arm 140L (5 pos.)

1

*1)



0268-50300

Lock Arm 142L (6 pos.)

1

*2)

11

0268-30800

8 inch Tire (M.R.E)

2



12

0268-30700

Aluminum Rear Wheel (M.R.E)

2



13

0268-30500

Axle Clutch Guide

2



14

0278-00200

Drive Shaft 140L (5 pos.)

1

*1)



0268-03500

Drive Shaft 145L (6 pos.)

1

*2)

1,11,12

0268-30200

Aluminum Rear Wheel Assy (8 inch)

2



11/17

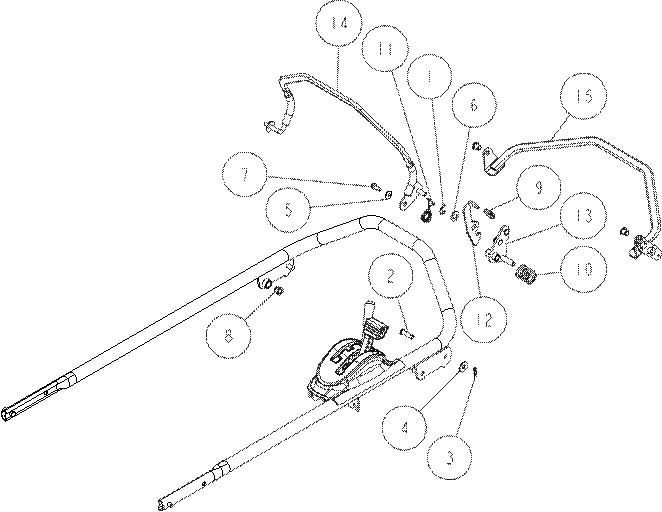

HANDLE 1/3













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-1750-080003

Spring Washer 8

1



2

89-1713-080003

Flat Washer 8 (large)

1



3

89-1711-120003

Flat Washer 12

2



4

89-1213-080553

Mini Hexagonal Bolt (8T) M8*55

1



5

89-1161-050123

Tapping Screw 5*12

2



6

80-1020-265-00

Throttle Lever (H)

1



7

80-1020-264-00

Control Washer

1



8

80-1020-263-00

Control Lever Shaft Spring

2



9

80-1020-262-00

Control Lever Shaft

1



10

0268-11100

Control Cover

1



11

0268-10900

Change Lever Inner Collar

1



12

0268-10600

Wire Arm CMP

1



13

0268-10500

Driving Change Lever

1



14

0268-10100

Upper Handle CMP (537.538)

1



15

0207-72600

Lever Grip 8 (black)

1



12/17

HANDLE 2/3









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-2521-000100

E Type Ring 10

1



2

89-2181-080282

Flat Head Pin 8*28

1



3

89-2131-080002

Snap Pin 8

1



4

89-1713-080003

Flat Washer 8 (large)

1



5

89-1713-060002

Flat Washer 6 (large)

1



6

89-1711-120003

Flat Washer 12

1



7

89-1135-060182

Hexagonal Bolt (SW) M6*18

1



8

80-1020-243-00

Driving Lever, Metal

3



9

0305-70200

Lever Cap

1



10

0268-70800

Damper Spring

1



11

0268-70500

Lock Arm Return Spring

1



12

0268-10700

Lock Arm

1



13

0268-10400

Clutch Arm CMP

1



14

0268-10300

Blade Clutch Lever CMP (537.538)

1



15

0268-10200

Driving Lever CMP (537.538)

1



13/17

HANDLE 3/3















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-2131-060002

Snap Pin 6

1



2

89-1750-080003

Spring Washer 8

6



3

89-1713-080003

Flat Washer 8 (large)

6



4

89-1711-060002

Flat Washer 6

1



5

89-1671-080043

Mini Cap Nut M8

6



6

0268-75100

Handle Setting Bolt M8*35

2



7

89-1213-080252

Mini Hexagonal Bolt (8T) M8*25

2



8

0268-71400

Throttle Wire

1



9

0268-71300

Driving Change Wire

1



10

0268-71200

Driving Wire

1



11

0268-71100

Blade Wire

1



12

0268-70700

Blade Spring 110

1



13

0268-70600

Driving Clutch Spring

1



14

0268-10800

Handle Setting

2



14/17

BLADE ＆ BAG 1/1





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

89-1750-080003

Spring Washer 8

4



2

89-1254-100252

Flange Mini Hexagonal Bolt M10*25 P=1.25

2



3

83-1020-148-00

Tapping Bolt M6*14

2



4

83-1020-116-00

Hexagonal Bolt 5/16-24*45UNF (H)

3



5

80-1022-854-00

Bag Plate

1



6

0278-77200

Bag DB 80

1



7

0278-70800

Bolt 5/16-24*63UNF (H)

1



8

0278-50500

Collar for Engine Setting

1



9

0278-50300

Blade Wire Setting

1



10

0268-72100

Wing Blade

1



11

0268-20100

Bag Frame CMP

1



12

0222-50100

BBC Cover CMP

1



13

-

Engine GXV160H2 SFE1

1



15/17

BBC 1/1



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0278-70600

Blade (H) Assy

1



2

80-1020-871-00

Clutch Return Spring (H)

2



3

80-1020-872-00

Collar (H)

2



4

80-1020-874-00

Thrust Washer (H)

1



5

80-1020-877-00

Ball Retainer (H)

1



6

80-1020-878-00

Blade Disc (H) Assy

1



7

80-1020-881-00

Spring (H)

3



8

80-1020-882-00

Blade Setting Bolt (H)

3



9

80-1020-883-00

Drive Disc (H)

1



10

80-1020-884-00

Driven Disc (H) Assy

1



11

80-1020-886-00

Clutch Spring (H)

1



12

80-1020-887-00

Ball Control Plate (H) Assy

1



13

83-1020-148-00

Tapping Bolt M6*14

2



14

83-1020-323-00

Washer 10*30*4.5

1



15

89-1254-100252

Flange Mini Hexagonal Bolt M10*25 P=1.25

1



16

89-2160-040160

Woodruff Key 4*16*6.5

1




16/17

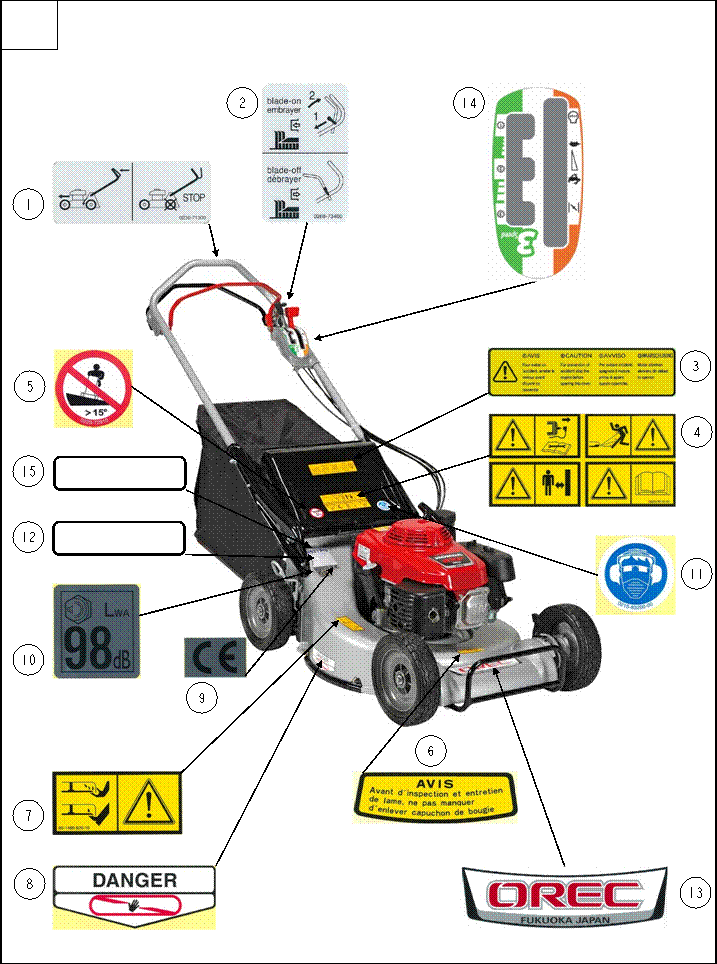

LABEL 1/2





















































GR537Pro







Serial Number

17/17

LABEL 2/2



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0230-71300

Driving Label

1



2

0268-73400

Blade Label (GR537)

1



3

80-1020-929-00

Notice Label (Cover)

1



4

0223-76100

Label, Caution (Large)

1



5

0223-72910

Attention Mark for Slope

1



6

80-1020-925-00

Label,Caution(small)

1



7

80-1488-926-10

Label, Caution for Knife

1



8

80-1020-926-00

Danger Label

1



9

80-1010-933-00

Label, CE

1



10

80-1020-933-00

Label, Noise 98db

1



11

0215-83200

Label, Protection Equipment

1



12

-

Serial Number

1



13

0278-70400

Label (Large)

1



14

0268-73300

Label,Control

1



15

0268-73200

Label,Model GR537Pro

1
