OREC                                      ISSUED NO. GR535PRO-3

Parts catalogue LAWN MOWER

(EXPORT MODEL) GR535PRO(2Action)









MODEL               CODE GR535PRO         0278-○○○○○









CONTENTS



Fig. 1

GEAR CASE -------------------------------------

1

Fig. 2

GEAR CASE INSIDE, OUTSIDE-------------

3

Fig. 3

SAFETY COVER ---------------------------------

5

Fig. 4

WHEEL  ---------------------------------------------

9

Fig. 5

HANDLE  -------------------------------------------

11

Fig. 6

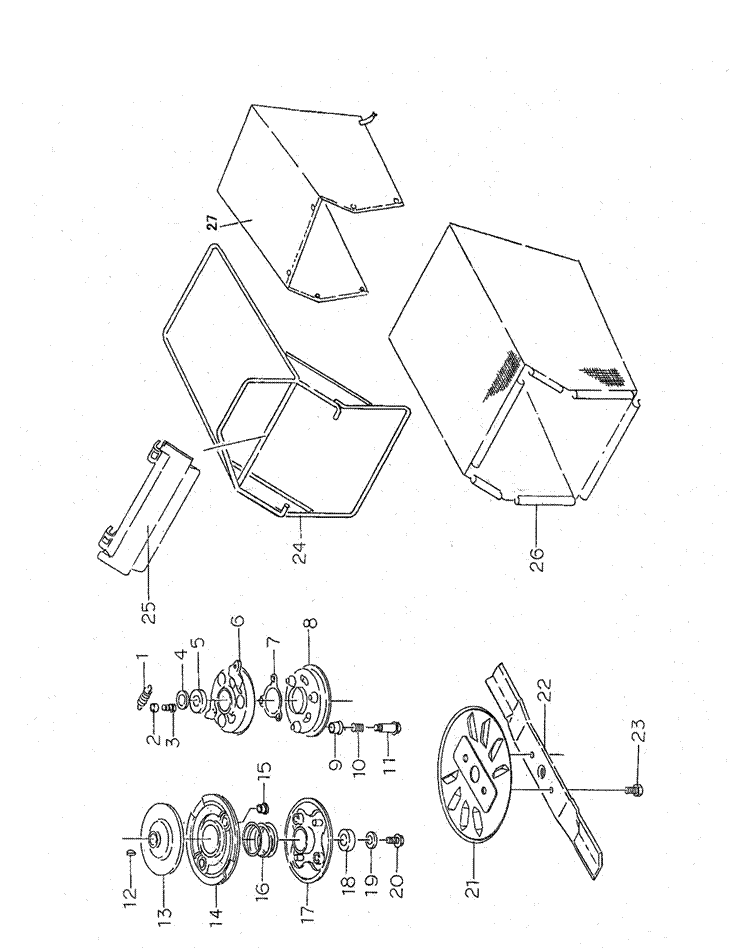

BLADE AND BAG -------------------------------

15









OREC CO.,LTD



Update : April 2009

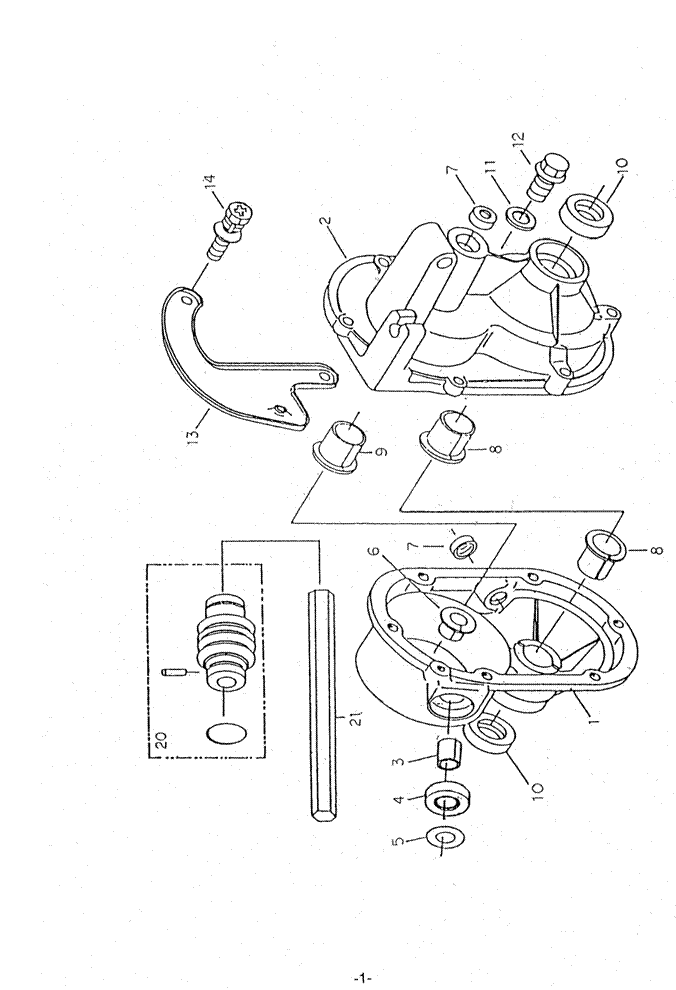

Fig.1 Gear Case

Fig.1 Gear Case



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535 PRO

(2Action)

GXV160



0278-00000

Gear Case Assy

1



1

80-1020-101-00

Gear Case (Inside)

1



2

80-1020-103-00

Gear Case (Outside)

1



3

89-3512-010150

DBB Bush 10.15

1



4

89-5121-102007

Oil Seal UE 10.20.7

1



5

83-1210-352-00

Thrust Washer 10*22*1.0

1



6

89-3511-012100

DU Bush 12.10.20F

1



7

89-5131-081404

Oil Seal KE 8.14.4

2



8

89-3511-015150

DU Bush 15.15.23F

2



9

89-3511-016150

DU Bush 16.15.24F

1



10

89-5121-152507

Oil Seal UE 15.25.7

2



11

83-1020-349-00

Copper Packing 10.5*18*1.6

1



12

89-1254-100143

Flange Mini Hexagonal Bolt M10*14

1



13

80-1020-198-10

Lock Arm Bracket B

1



14

89-1144-060223

Hexagonal Bolt with Cross Hole (P

6



20

80-1020-515-00

Universal Joint NC-10-37C1

2



21

0278-00200

Drive Shaft 140L

1



MEMO



Note 1: Transmission ASSY consists from parts 1 to 20(this page) and 1 to 23,25(next page).



*1) Interchangeable

*2) Serial Number : GR535PRO : ~VG07C01046

*3) Serial Number : GR535PRO : VG07J01245~

*4) Serial Number : GR535PRO : ~VG08D00120

*5) Serial Number : GR535PRO : VG08K00787~

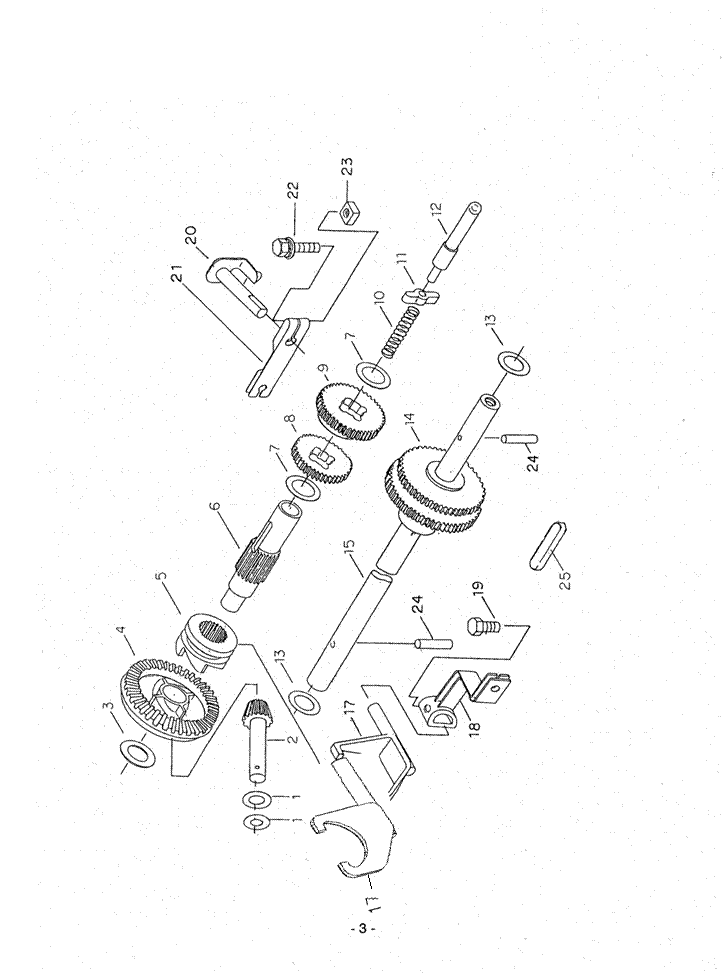

Fig.2 Gear Case (Inside, Outside)

Fig 2 Gear Case (Inside, Outside)



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535 PRO

(2Action)

GXV160

1

83-1020-351-00

Thrust Washer 10*18*1.0

2



2,4

0278-00300

Pinion Bevel & Bevel Gear Assy

1



2

0278-00400

Pinion Bevel

1



3

83-1020-355-00

Thrust Washer 12*24*1.0

1



4

0278-00500

Bevel Gear 53-tooth

1



5

80-1020-119-10

Clutch for Driving

1



6

80-1020-118-20

Main Shaft

1



7

83-1020-363-00

Thrust Washer 16*24*1.0

2



8,9

80-1020-125-10

Gear Assy (Low and High)

1



8

80-1020-123-10

Gear (Low)

1



9

80-1020-121-10

Gear (High)

1



10

80-1020-161-00

Driving Shift Spring

1



11

80-1020-108-00

Change Guide

1



12

80-1020-107-00

Driving Change Shaft

1



13

83-1020-361-00

Thrust Washer 15*24*1.0

2



14

0230-00300

Axle Gear (Key Type)

1



15

0278-00100

Axle (Key Type)

1



17

80-1020-113-00

Clutch Fork

1



18

80-1020-153-10

Clutch Arm

1



19

89-1113-060123

Hexagonal Bolt (8T) M6*12

1



20

80-1020-106-00

Driving Shift Arm

1



21

80-1020-193-10

Change Arm

1



22

89-1144-060253

Hexagonal Bolt with Cross Hole (P

1



23

83-1020-198-00

Square Nut M6

1



24

89-2142-050250

Parallel Pin 5*25

2



25

89-2150-050330

Key 5*33 (round)

1





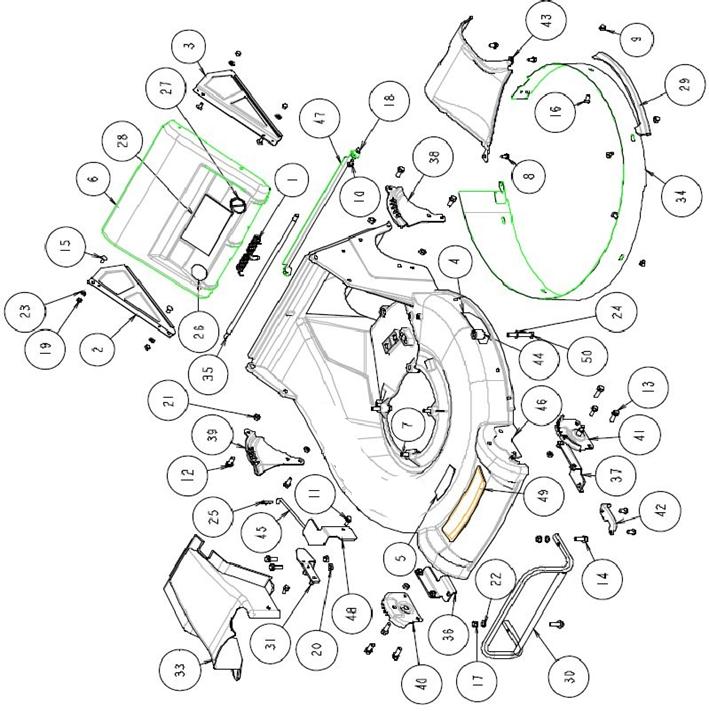

Fig.3 Safety Cover













Fig 3 Safety Cover



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535 PRO

(2Action)

GXV160

1

80-1020-753-00

Rear Cover Spring

1



2

80-1020-754-20

Side Plate (Left)

1



3

80-1020-755-20

Side Plate (Right)

1



4

80-1020-926-00

Danger Label

2



5

80-1020-928-00

Notice Label (Plug)

1



6

80-1022-751-00

Rear Cover

1

*2)



0278-50800

Rear Cover

1

*1) *3)

7

83-1020-116-00

Hexagonal Bolt 5/16-24*45UNF (H)

3



8

83-1020-148-00

Tapping Bolt M6*14

5



9

83-1575-189-00

Flange Cap Nut M6

5



10

89-1132-060122

Hexagonal Bolt (SW) M6*12

2



11

89-1139-060163

Hexagonal Bolt (PWSW) M6*16

2



12

89-1232-080203

Mini Hexagonal Bolt (SW) M8*20

6



13

89-1232-080252

Mini Hexagonal Bolt (SW) M8*25

6



14

89-1253-080252

Flange Mini Hexagonal Bolt (8T) M

2



15

89-1390-060123

Welded Bolt M6*12

4



16

89-1390-060142

Welded Bolt M6*14

5



17

89-1543-080002

Mini Hexagonal Nut (SW) M8

2



18

89-1571-060042

Cap Nut M6

2



19

89-1571-060043

Cap Nut M6

4



20

89-1611-080042

Mini Hexagonal Nut M8

2



21

89-1611-080043

Mini Hexagonal Nut M8

10



22

89-1712-080002

Flat Washer 8

2



23

89-1750-060003

Spring Washer 6

4



24

89-1750-080003

Spring Washer 8

4



25

89-2131-080002

Snap Pin 8

1



26

0215-83200

Label, Protection Equipment

1



27

0223-72900

Attention Mark for Slope

1





0223-72910

Attention Mark for Slope

1

*1)

28

0223-76100

Label, Caution (Large)

1



29

0230-20700

Side Guard

2



30

0230-20800

Front Bumper CMP

1



31

0230-60200

Lock Arm Bracket A

1



33

80-1022-733-10

Gear Case Cover (H)

1



34

0278-20600

Inside Guard CMP

1



35

0278-20700

Rear Cover Shaft

1



36

0278-21200

Front Bumper Setting Plate （L)

1



37

0278-21300

Front Bumper Setting Plate （R)

1



38

0278-30300

Rear Wheel Adjusting Plate (L) 8inc

1



39

0278-30400

Rear Wheel Adjusting Plate (R) 8in

1



40

0278-30800

Front Wheel Adjusting Plate (R)

1



41

0278-30700

Front Wheel Adjusting Plate (L)

1



42

0278-50300

Blade Wire Setting

1



43

0278-50400

Guide 535

1



44

0278-50500

Collar for Engine Setting

1



45

0278-50900

Lock Arm

1



46

0278-51100

Cover Pro (Body) 535

1



47

0278-51600

Extension Flapper

1



48

0230-60110

Shaft Cover 53H

1

*2)



0278-60100

Shaft Cover

1

*1) *3)

Fig.3 Safety Cover













Fig 3 Safety Cover



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535 PRO

(2Action)

GXV160

49

0278-70400

Label (Large)

1



50

0278-70800

Bolt 5/16-24*63UNF (H)

1



51

80-1010-933-00

Label, CE

1



52

80-1020-933-00

Label, Noise 98db

1

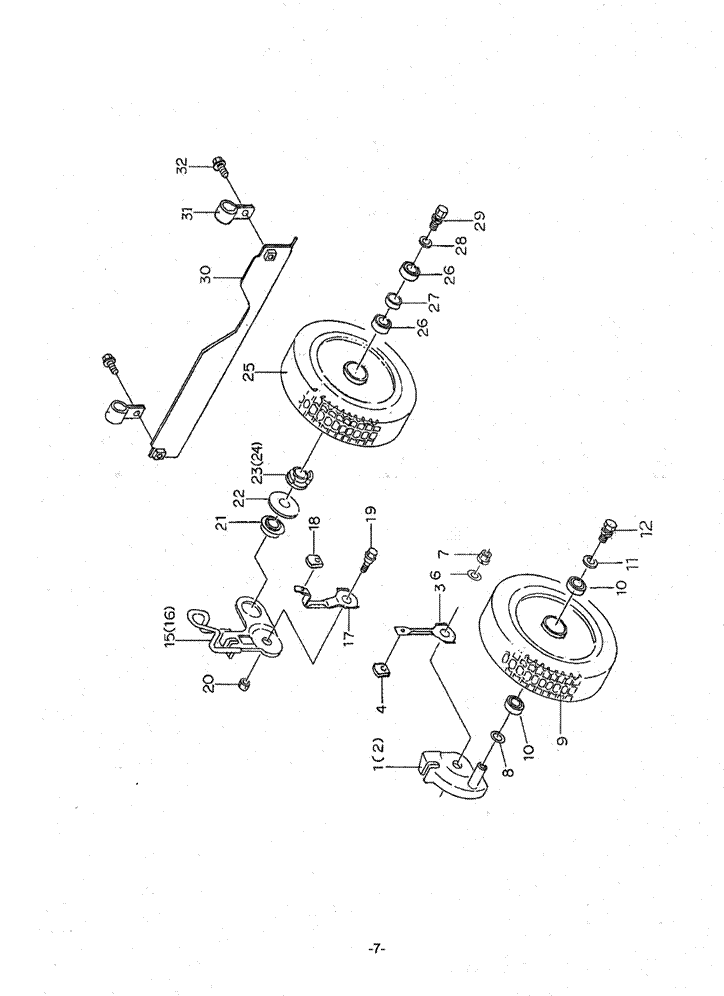

Fig.4 Wheel

Fig 4 Wheel



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535 PRO

(2Action)

GXV160

1

0278-30500

Front Wheel Arm (L) 8inch

1



2

0278-30600

Front Wheel Arm (R) 8inch

1



3

80-1022-424-00

Front Wheel Arm Stopper

2



4

80-1020-426-10

Adjuster Grip

2



6

89-1713-080003

Flat Washer 8 (large)

2



7

89-1543-080003

Mini Hexagonal Nut (SW) M8

2



8

83-1020-361-00

Thrust Washer 15*24*1.0

2



9-10

80-1020-481-00

Steel Front Wheel Assy (OLD)

2

*4)



0278-33700

Steel Front Wheel Assy 8 inch (NE

2

*5)

9

80-1020-483-00

Steel Front Wheel CMP (OLD)

2

*4)



0278-33100

Steel Front Wheel CMP 8 inch (NE

2

*5)

9-1

80-1020-485-00

Rubber Wheel (OLD)



*4)



0278-33500

Rubber Wheel 8 inch (NEW)



*5)

9-2

80-1020-487-00

Steel Front Wheel (OLD)



*4)



0278-33300

Steel Front Wheel 8 inch (NEW)



*5)

10

89-3115-062024

Bearing 6202 2RS

4



11

89-1713-080003

Flat Washer 8 (large)

2



12

89-1132-080203

Hexagonal Bolt (SW) M8*20

2



15

0278-30100

Rear Wheel Arm (Left)

1



16

0278-30200

Rear Wheel Arm (Right)

1



17

80-1022-425-00

Rear Wheel Arm Stopper

2



18

80-1020-426-10

Adjuster Grip

2



19

80-1020-406-10

Arm Bolt

2



20

89-1561-080003

Mini Hexagonal U Nut M8

2



21

83-1020-987-00

Bearing ND-0.2

2



22

80-1020-433-00

Coned Disc Spring

2



23

80-1020-458-00

Ratchet Assembly (Left)

1



24

80-1020-459-00

Ratchet Assembly (Right)

1



25-27

80-1020-482-00

Steel Rear Wheel Assy (OLD)

2

*4)



0278-33800

Steel Rear Wheel Assy 8 inch (NE

2

*5)

25

80-1020-484-00

Steel Rear Wheel CMP (OLD)

2

*4)



0278-33200

Steel Rear Wheel CMP 8 inch (NE

2

*5)

25-1

80-1020-485-00

Rubber Wheel (OLD)



*4)



0278-33500

Rubber Wheel 8 inch (NEW)



*5)

25-2

80-1020-488-00

Steel Rear Wheel (OLD)



*4)



0278-33400

Steel Rear Wheel 8 inch (NEW)



*5)

26

89-3115-062024

Bearing 6202 2RS

4



27

80-1020-486-00

Collar 25A*8L

2



28

89-1713-080003

Flat Washer 8 (large)

2



29

89-1132-080203

Hexagonal Bolt (SW) M8*20

2



30

80-1020-792-00

Flapper

1



31

80-1020-793-10

Flapper Setting

2



32

89-1133-060163

Hexagonal Bolt (PWSW) M6*16

2

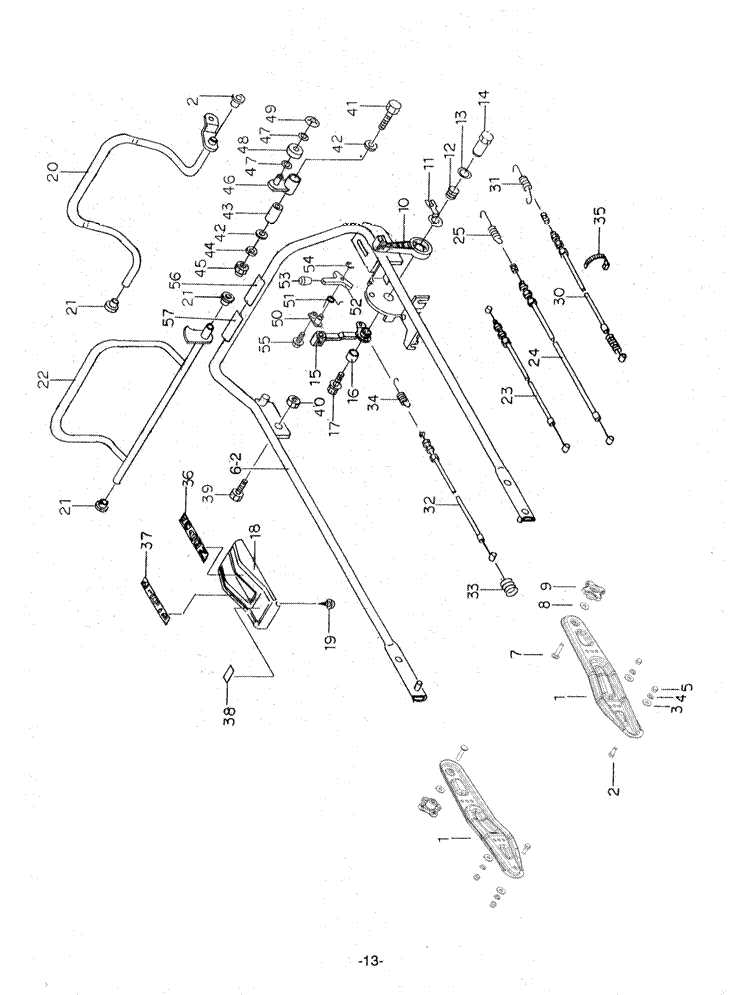

Fig.5 Handle

Fig.5 Handle



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535 PRO

(2Action)

GXV160

1

0278-10200

Handle Setting

2



2

89-1113-080253

Hexagonal Bolt (8T) M8*25

2



3

89-1711-080003

Flat Washer 8

4



4

89-1750-080003

Spring Washer 8

4



5

89-1571-080043

Cap Nut M8

4



6

0278-10100

Handle PRO (φ25.4)

1



7

89-1412-080403

Handle Setting Bolt M8*40

2



8

89-1711-080003

Flat Washer 8

2



9

80-1020-228-10

Knob Nut M8

2



10

80-1020-265-00

Throttle Lever (H)

1



11

80-1020-264-00

Control Washer

1



12

80-1020-263-00

Control Lever Shaft Spring

1



13

89-1711-120003

Flat Washer 12

1



14

80-1020-262-00

Control Lever Shaft

1



15

80-1022-260-00

Driving Change Lever

1



16

80-1020-270-00

Inner Collar

1



17

89-1133-080303

Hexagonal Bolt (PWSW) M8*30

1



18

80-1020-231-00

Control Cover

1



19

89-1161-050123

Tapping Screw 5*12

2



20

80-1022-242-00

Driving Lever

1



21

80-1020-243-00

Driving Lever, Metal

4



22

80-1022-252-00

Blade Lever

1

*2)



0276-10300

Blade Clutch Lever

1

*1) *3)

23

83-1020-955-00

Throttle Wire (H)

1



24

0278-71100

Blade Wire V

1



25

80-1021-968-10

Blade Spring VB

1



30

83-1020-932-00

Driving Wire V

1





0279-73200

Driving Wire

1

*1)

31

80-1022-966-10

Driving Clutch Spring

1



32

83-1020-936-00

Driving Change Wire V

1



33

80-1020-969-00

Change Return Spring

1



34

80-1020-967-00

Driving Change Spring

1



35

83-1415-718-00

Wire Band 150

2



36

80-1020-913-10

Throttle Label (H)

1



37

80-1020-912-10

Change Label

1



39

89-1113-080303

Hexagonal Bolt (8T) M8*30

1



40

89-1511-080043

Hexagonal Nut M8

1



41

89-1113-080503

Hexagonal Bolt (8T) M8*50

1



42

89-1713-080003

Flat Washer 8 (large)

2



43

80-1022-254-00

Inner Pipe 13.8*30

1



44

89-1750-080003

Spring Washer 8

1



45

89-1571-080043

Cap Nut M8

1



46

80-1021-252-00

Blade Wire Arm

1



47

83-1020-395-00

Shim Washer 8*12*0.8

2



48

80-1021-253-00

Roller

1

With Bush 08.07

49

83-1021-195-00

Push Nut 8

1



50

0230-10500

Lock Lever Shaft CMP

1



51

0230-70700

Spring for Lock Lever Return

1



Fig.5 Handle

Fig.5 Handle



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535 PRO

(2Action)

GXV160

52

0230-10400

Lock Lever

1



53

83-1920-425-00

Lever Grip KP204

1



54

89-2521-000050

E Type Ring 5

1



55

89-1139-060163

Hexagonal Bolt (PWSW) M6*16

1



56

0230-71200

Blade Label

1



57

0230-71300

Driving Label

1





Fig.6 Blade & Bag

Fig 6 Blade and Bag



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535 PRO

(2Action)

GXV160

1

80-1020-871-00

Clutch Return Spring (H)

2



2

80-1020-872-00

Collar (H)

2



3

83-1020-148-00

Tapping Bolt M6*14

2



4

80-1020-874-00

Thrust Washer (H)

1



5

80-1020-875-00

Ball Bearing (H)

1



6

0278-70600

Blade (H)Assy

1



7

80-1020-877-00

Ball Retainer (H)

1



8

80-1020-878-00

Blade Disc (H) Assy

1



9

80-1020-879-00

Bush (H)

3



10

80-1020-881-00

Spring (H)

3



11

80-1020-882-00

Blade Setting Bolt (H)

3



12

80-1020-892-00

Woodruff Key 4*16

1





89-2160-040160

Woodruff Key 4*16*6.5



*1)

13

80-1020-883-00

Drive Disc (H)

1



14

80-1020-884-00

Driven Disc (H) Assy

1

with bush

15

80-1020-885-00

Bush (H)

2



16

80-1020-886-00

Clutch Spring (H)

1



17

80-1020-887-00

Ball Control Plate (H) Assy

1



18

80-1020-888-00

Ball Bearing (H)

1



19

83-1020-323-00

Washer 10*30*4.5

1



20

89-1254-100252

Flange Mini Hexagonal Bolt M10*25

1



21

0222-50100

BBC Cover CMP

1



22

80-1020-821-10

Blade 530

1



23

89-1254-100252

Flange Mini Hexagonal Bolt M10*25

2



24

0278-20100

Bag Flame

1



25

80-1022-854-00

Bag Plate

1



26

0230-70400

Bag C

1





80-1022-856-00

Bag C (with Hook)

1

(option)



0278-71500

Bag DB (sew a dustproof cover)

1

(option)

27

0230-71400

Dustproof Cover

1

(option)
