OREC

ISSUED NO. GR536-3

Parts catalogue LAWN MOWER

(EXPORT MODEL)



GR535(2Action) GR536(2Action)









MODEL               CODE

GR535                 0278-○○○○○

GR536                 0279-○○○○○





CONTENTS



Fig. 1

GEAR CASE ----------------------------------

1

Fig. 2

GEAR CASE INSIDE, OUTSIDE----------

3

Fig. 3

SAFETY COVER ------------------------------

5

Fig. 4

WHEEL  ------------------------------------------

7

Fig. 5

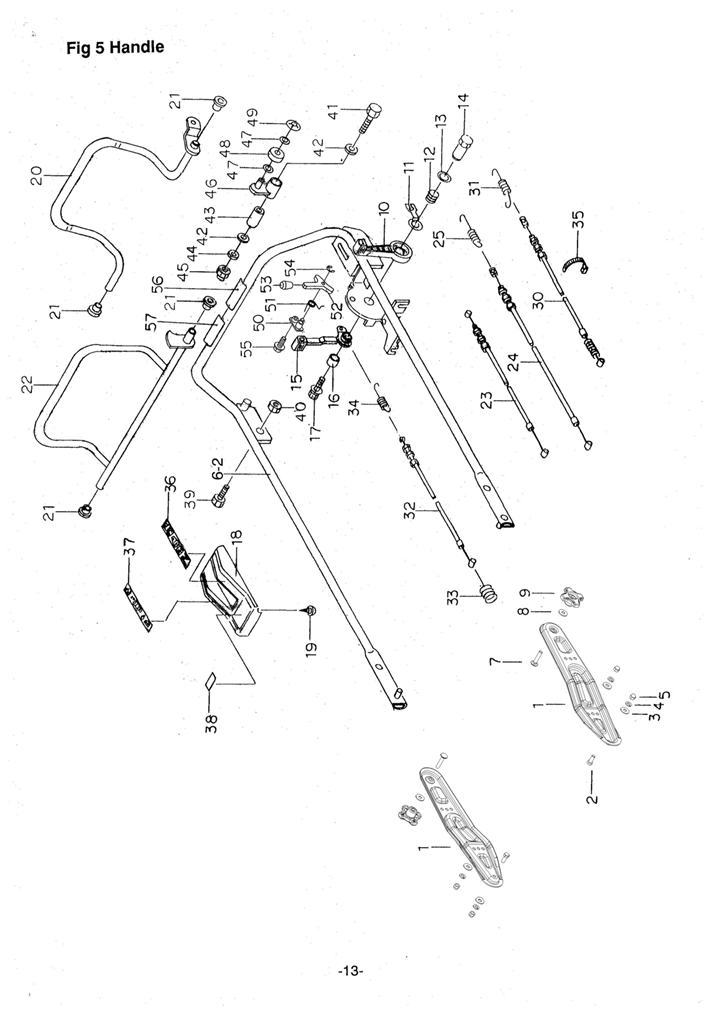

HANDLE  -----------------------------------------

13

Fig. 6

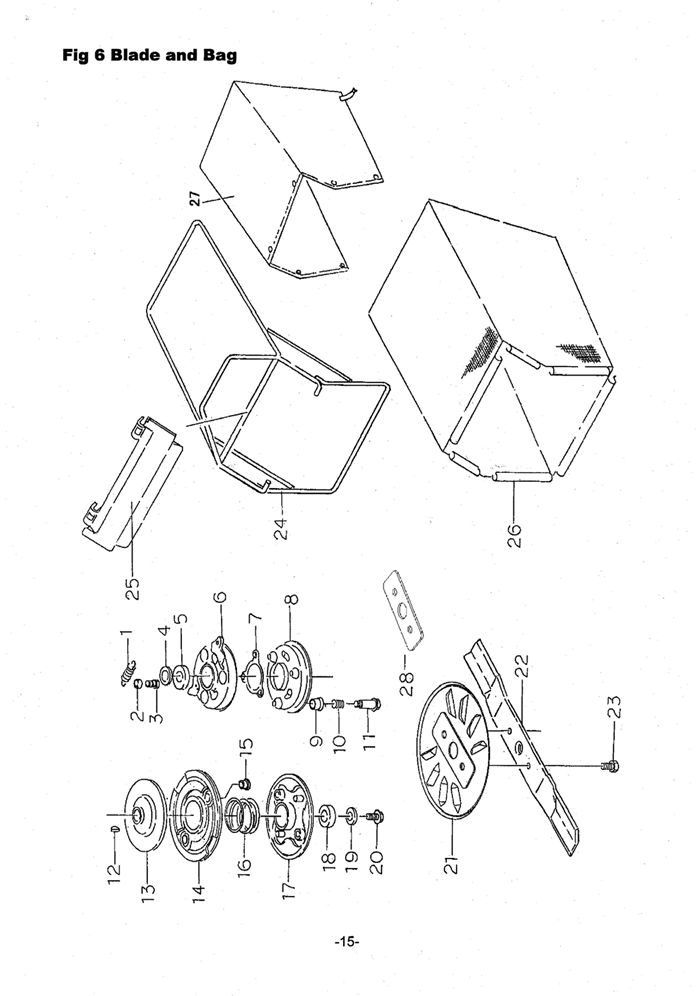

BLADE AND BAG ----------------------------

17









OREC CO.,LTD



Update : April 2009

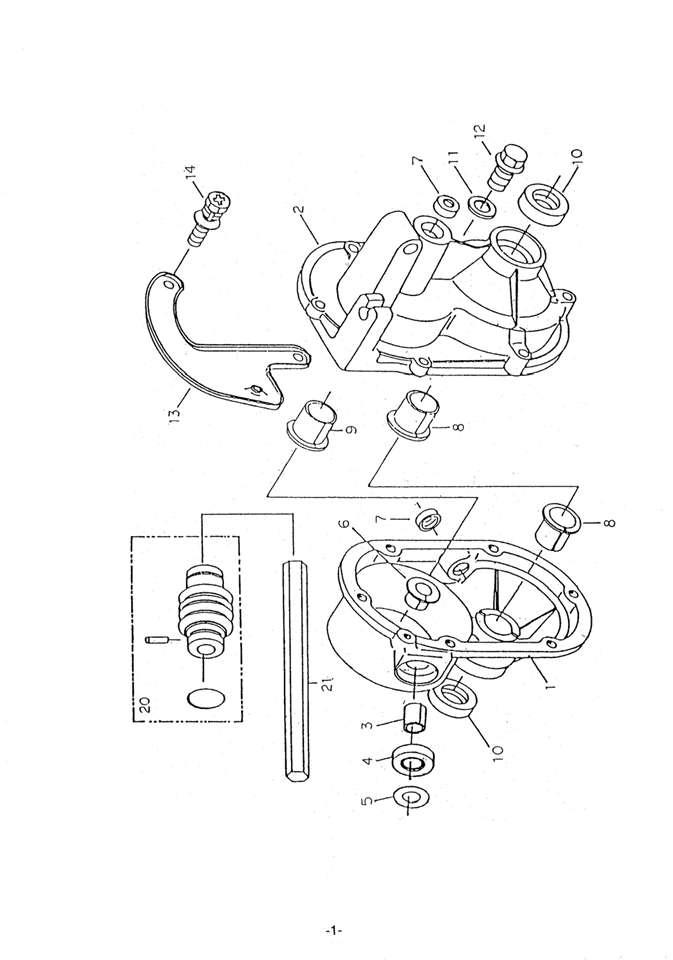

Fig.1 Gear Case

Fig.1 Gear Case



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535

GR536

(2Action)

(2Action)

GXV

160

GXV

160



0278-00000

Gear Case Assy

1

1

Note 1

1

80-1020-101-00

Gear Case (Inside)

1

1



2

80-1020-103-00

Gear Case (Outside)

1

1



3

89-3512-010150

DBB Bush 10.15

1

1



4

89-5121-102007

Oil Seal UE 10.20.7

1

1



5

83-1210-352-00

Thrust Washer 10*22*1.0

1

1



6

89-3511-012100

DU Bush 12.10.20F

1

1



7

89-5131-081404

Oil Seal KE 8.14.4

2

2



8

89-3511-015150

DU Bush 15.15.23F

2

2



9

89-3511-016150

DU Bush 16.15.24F

1

1



10

89-5121-152507

Oil Seal UE 15.25.7

2

2



11

83-1020-349-00

Copper Packing 10.5*18*1.6

1

1



12

89-1254-100143

Flange Mini Hexagonal Bolt M10*14 P=1.

1

1



13

80-1020-198-10

Lock Arm Bracket B

1

1



14

89-1144-060223

Hexagonal Bolt with Cross Hole (PW.SW)

6

6



20

80-1020-515-00

Universal Joint NC-10-37C1

2

2



21

0278-00200

Drive Shaft 140L

1

1



MEMO

Note 1: Transmission ASSY consists from parts 1 to 20(this page) and 1 to 23,25(next page). Note 2: Only for steel wheel type

Note 3: Only for side guard type





*1) Interchangeable

*2) Serial Number : GR535 : ~VG07C01196  GR536 : ~VH07C00558

*3) Serial Number : GR535 : VG07J01245~  GR536 : VH07J00559~

*6) Serial Number : GR535 : ~VG07J01264  GR536 : ~VH07J00638

*7) Serial Number : GR535 : VG07L01765~  GR536 : VH07L00639~

*4) Serial Number : GR535 : ~VG07M02274

*5) Serial Number : GR535 : VG08K01142~

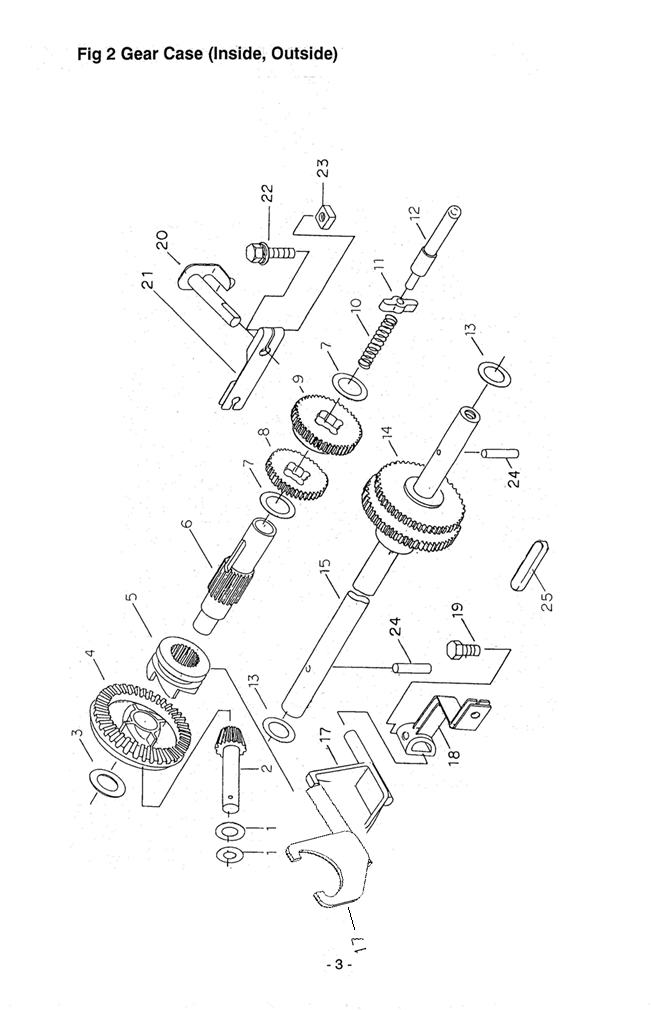

Fig.2 Gear Case (Inside, Outside)

Fig 2 Gear Case (Inside, Outside)



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535

GR536

(2Action)

(2Action)

GXV

160

GXV

160

1

83-1020-351-00

Thrust Washer 10*18*1.0

2

2



2,4

0278-00300

Pinion Bevel & Bevel Gear Assy

1

1



2

0278-00400

Pinion Bevel

1

1



3

83-1020-355-00

Thrust Washer 12*24*1.0

1

1



4

0278-00500

Bevel Gear 53-tooth

1

1



5

80-1020-119-10

Clutch for Driving

1

1



6

80-1020-118-20

Main Shaft

1

1



7

83-1020-363-00

Thrust Washer 16*24*1.0

2

2



8,9

80-1020-125-10

Gear Assy (Low and High)

1

1



8

80-1020-123-10

Gear (Low)

1

1



9

80-1020-121-10

Gear (High)

1

1



10

80-1020-161-00

Driving Shift Spring

1

1



11

80-1020-108-00

Change Guide

1

1



12

80-1020-107-00

Driving Change Shaft

1

1



13

83-1020-361-00

Thrust Washer 15*24*1.0

2

2



14

0230-00300

Axle Gear (Key Type)

1

1



15

0278-00100

Axle (Key Type)

1

1



17

80-1020-113-00

Clutch Fork

1

1



18

80-1020-153-10

Clutch Arm

1

1



19

89-1113-060123

Hexagonal Bolt (8T) M6*12

1

1



20

80-1020-106-00

Driving Shift Arm

1

1



21

80-1020-193-10

Change Arm

1

1



22

89-1144-060253

Hexagonal Bolt with Cross Hole (PW.SW)

1

1



23

83-1020-198-00

Square Nut M6

1

1



24

89-2142-050250

Parallel Pin 5*25

2

2



25

89-2150-050330

Key 5*33 (round)

1

1





Fig.3 Safety Cover

Fig 3 Safety Cover



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535

GR536

(2Action)

(2Action)

GXV

160

GXV

160

1

80-1020-753-00

Rear Cover Spring

1

1



2

80-1020-754-20

Side Plate (Left)

1

1



3

80-1020-755-20

Side Plate (Right)

1

1



4

80-1022-733-10

Gear Case Cover (H)

1

1



5

80-1022-751-00

Rear Cover

1

1

*2)



0278-50800

Rear Cover

1

1

*1) *3)

6

80-1024-952-00

Spacer 6*10



1



7

83-1020-116-00

Hexagonal Bolt 5/16-24*45UNF (H)

3

3



8

83-1020-148-00

Tapping Bolt M6*14

5

5



9

83-1020-314-00

Washer 8*40*2.3



1

*2)



0279-30300

Plate for Rear Wheel Guide



1

*1) *3)

10

83-1515-148-00

Tapping Bolt M6*22



1



11

83-1575-189-00

Flange Cap Nut M6

4

4

Note 3

12

89-1139-060163

Hexagonal Bolt (PWSW) M6*16

2

2



13

89-1232-080203

Mini Hexagonal Bolt (SW) M8*20

10

2



14

89-1232-080252

Mini Hexagonal Bolt (SW) M8*25

2

2



15

89-1390-060123

Welded Bolt M6*12

4

4



16

89-1390-060142

Welded Bolt M6*14

4

4

Note 3

17

89-1571-060043

Cap Nut M6

4

4



18

89-1611-080042

Mini Hexagonal Nut M8

2

2



19

89-1611-080043

Mini Hexagonal Nut M8

10

2



20

89-1750-060003

Spring Washer 6

4

4



21

89-1750-080003

Spring Washer 8

4

4



22

89-2131-080002

Snap Pin 8

1

1



23

0230-20700

Side Guard

2

2

Note 3

24

0230-60110

Shaft Cover 53H

1

1

*2)



0278-60100

Shaft Cover

1

1

*1) *3)

25

0230-60200

Lock Arm Bracket A

1

1



26

0278-20700

Rear Cover Shaft

1

1



27

0278-30300

Rear Wheel Adjusting Plate (L) 8inch

1

1



28

0278-30400

Rear Wheel Adjusting Plate (R) 8inch

1

1



29

0278-30700

Front Wheel Adjusting Plate (L)

1

1



30

0278-50300

Blade Wire Setting

1

1



31

0278-50400

Guide 535

1

1



32

0278-50500

Collar for Engine Setting

1

1



33

0278-50900

Lock Arm

1

1



34

0278-51100

Cover Pro (Body) 535

1

1

Note 3



0278-50100

Cover (Body) 535

1

1



35

0278-70800

Bolt 5/16-24*63UNF (H)

1

1



36

0278-30800

Front Wheel Adjusting Plate (R)

1

1



42

0278-70400

Label (Large)

1

1



43

80-1020-929-00

Notice Label (Cover)

1

1



44

0223-76100

Label, Caution (Large)

1

1



45

0215-83200

Label, Protection Equipment

1

1



46

0223-72910

Attention Mark for Slope

1

1

*1)

47

80-1010-933-00

Label, CE

1

1



48

80-1020-933-00

Label, Noise 98db

1

1



49

80-1488-926-10

Label, Caution for Knife

1

1



50

80-1022-909-00

Notice Label (Cover)

1

1



51

80-1020-926-00

Danger Label

2

2



52

0278-51600

Extension Flapper

1

1

*3)

53

89-1132-060122

Hexagonal Bolt (SW) M6*12

2

2

*3)

54

89-1571-060042

Cap Nut M6

2

2

*3)

Fig.4 Wheel (GR535)

Fig.4 Wheel (GR535)



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535

GR536

(2Action)

(2Action)

GXV

160

GXV

160

1

0278-31500

Front Wheel Arm (L)

1





2

0278-31600

Front Wheel Arm (R)

1





3

80-1022-424-00

Front Wheel Arm Stopper

2





4

80-1020-426-10

Adjuster Grip

2





6

89-1713-080003

Flat Washer 8 (large)

2





7

89-1543-080003

Mini Hexagonal Nut (SW) M8

2





8

83-1022-369-00

Wave Washer 12

2





9,10

80-1022-421-00

Front Wheel Assy







9

80-1022-407-00

Front Wheel

2





10

80-1022-431-00

Bearing KL-4.12

4





11

89-1713-080003

Flat Washer 8 (large)

2





12

89-1541-080003

Hexagonal Nut (SW) M8

2





13

80-1022-441-00

Wheel Cap

2





15

0278-30100

Rear Wheel Arm (Left)

1





16

0278-30200

Rear Wheel Arm (Right)

1





17

80-1022-425-00

Rear Wheel Arm Stopper

2





18

80-1020-426-10

Adjuster Grip

2





19

0278-70700

Arm Bolt

2





20

89-1561-080003

Mini Hexagonal U Nut M8

2





21

83-1020-987-00

Bearing ND-0.2

2





22

80-1020-433-00

Coned Disc Spring

2





23

80-1020-458-00

Ratchet Assembly (Left)

1





24

80-1020-459-00

Ratchet Assembly (Right)

1





25~27

80-1022-422-10

Rear Wheel Assy







25

80-1022-408-10

Rear Wheel

2





26

80-1020-409-00

Clutch Guide

2





27

80-1022-432-10

Bearing 6902 ZZ

2





28

89-1713-080003

Flat Washer 8 (large)

2





29

89-1132-080203

Hexagonal Bolt (SW) M8*20

2





30

80-1022-441-00

Wheel Cap

2





31

80-1020-792-00

Flapper

1





32

80-1020-793-10

Flapper Setting

2





33

89-1133-060163

Hexagonal Bolt (PWSW) M6*16

2





35~36

80-1020-481-00

Steel Front Wheel Assy (OLD)





*6)     Note 2



0278-33700

Steel Front Wheel Assy 8 inch (NEW)

2



*7)

35

80-1020-483-00

Steel Front Wheel CMP (OLD)

2



*6)     Note 2



0278-33100

Steel Front Wheel CMP 8 inch (NEW)





*7)

35-1

80-1020-485-00

Rubber Wheel (OLD)





*6)     Note 2



0278-33500

Rubber Wheel 8 inch (NEW)





*7)

35-2

80-1020-487-00

Steel Front Wheel (OLD)





*6)     Note 2



0278-33300

Steel Front Wheel 8 inch (NEW)





*7)

36

89-3115-062024

Bearing 6202 2RS

4



Note 2

37

0278-30500

Front Wheel Arm (L) 8inch

1



Note 2

38

0278-30600

Front Wheel Arm (R) 8inch

1



Note 2

39

83-1020-359-00

Wave Washer 16

2



Note 2

40

83-1415-344-00

Washer 9*22*2.0

4



Note 2

41

89-1132-080203

Hexagonal Bolt (SW) M8*20

4



Note 2

43~45

80-1020-482-00

Steel Rear Wheel Assy (OLD)





*6)     Note 2



0278-33800

Steel Rear Wheel Assy 8 inch (NEW)





*7)

43

80-1020-484-00

Steel Rear Wheel CMP (OLD)

2



*6)     Note 2



0278-33200

Steel Rear Wheel CMP 8 inch (NEW)





*7)

Fig.4 Wheel (GR535)

Fig.4 Wheel (GR535)



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535

GR536

(2Action)

(2Action)

GXV

160

GXV

160

43-1

80-1020-485-00

Rubber Wheel (OLD)





*6)     Note 2



0278-33500

Rubber Wheel 8 inch (NEW)





*7)

43-2

80-1020-488-00

Steel Rear Wheel (OLD)





*6)     Note 2



0278-33400

Steel Rear Wheel 8 inch (NEW)





*7)

44

89-3115-062024

Bearing 6202 2RS

4



Note 2

45

80-1020-486-00

Collar 25A*8L

2



Note 2

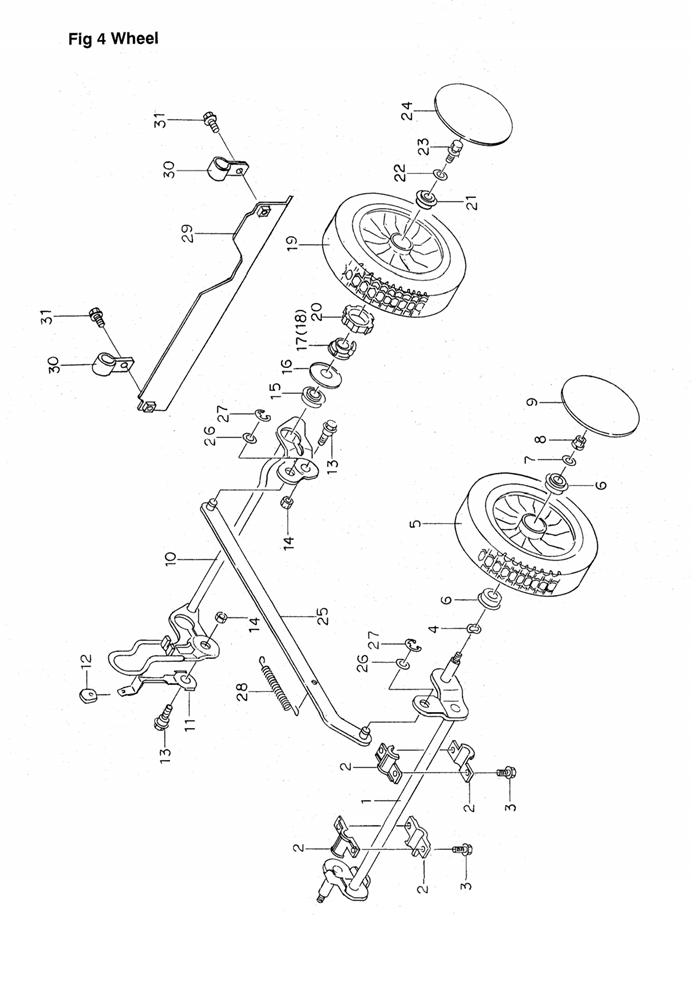

Fig.4 Wheel (GR536)

Fig.4 Wheel (GR536)



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535

GR536

(2Action)

(2Action)

GXV

160

GXV

160

1

80-1023-405-00

Front Wheel Arm



1



2

80-1023-742-00

Arm Bush



4



3

83-1020-148-00

Tapping Bolt M6*14



4



4

83-1022-369-00

Wave Washer 12



2



5,6

80-1022-421-00

Front Wheel Assy







5

80-1022-407-00

Front Wheel



2



6

80-1022-431-00

Bearing KL-4.12



4



7

89-1713-080003

Flat Washer 8 (large)



2



8

89-1541-080003

Hexagonal Nut (SW) M8



2



9

80-1022-441-00

Wheel Cap



2



10

0279-30200

Rear Wheel Arm



1



11

80-1022-425-00

Rear Wheel Arm Stopper



1



12

80-1020-426-10

Adjuster Grip



1



13

0278-70700

Arm Bolt



2



14

89-1561-080003

Mini Hexagonal U Nut M8



2



15

83-1020-987-00

Bearing ND-0.2



2



16

80-1020-433-00

Coned Disc Spring



2



17

80-1020-458-00

Ratchet Assembly (Left)



1



18

80-1020-459-00

Ratchet Assembly (Right)



1



19~21

80-1022-422-10

Rear Wheel Assy







19

80-1022-408-10

Rear Wheel



2



20

80-1020-409-00

Clutch Guide



2



21

80-1022-432-10

Bearing 6902 ZZ



2



22

89-1713-080003

Flat Washer 8 (large)



2



23

89-1132-080203

Hexagonal Bolt (SW) M8*20



2



24

80-1022-441-00

Wheel Cap



2



25

80-1023-416-00

Translation Bar



1





80-1023-416-10

Translation Bar





*1)

26

89-1713-100003

Flat Washer 10 (large)



2



27

89-2521-000083

E Type Ring 8



2



28

80-1023-417-00

Translation Spring



1



29

0222-30100

Flapper CMP



1



30

80-1020-793-10

Flapper Setting



2



31

89-1133-060163

Hexagonal Bolt (PWSW) M6*16



2





Fig.5 Handle

Fig.5 Handle



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535

GR536

(2Action)

(2Action)

GXV

160

GXV

160

1

0278-10200

Handle Setting

2

2



2

89-1113-080253

Hexagonal Bolt (8T) M8*25

2

2



3

89-1711-080003

Flat Washer 8

4

4



4

89-1750-080003

Spring Washer 8

4

4



5

89-1571-080043

Cap Nut M8

4

4



6

0230-10200

Handle C

1

1

*6)



0278-10100

Handle PRO (φ25.4)

1

1

*1) *7)

7

89-1412-080403

Handle Setting Bolt M8*40

2

2



8

89-1711-080003

Flat Washer 8

2

2



9

80-1020-228-10

Knob Nut M8

2

2



10

80-1020-265-00

Throttle Lever (H)

1

1



11

80-1020-264-00

Control Washer

1

1



12

80-1020-263-00

Control Lever Shaft Spring

1

1



13

89-1711-120003

Flat Washer 12

1

1



14

80-1020-262-00

Control Lever Shaft

1

1



15

80-1022-260-00

Driving Change Lever

1

1



16

80-1020-270-00

Inner Collar

1

1



17

89-1133-080303

Hexagonal Bolt (PWSW) M8*30

1

1



18

80-1020-231-00

Control Cover

1

1



19

89-1161-050123

Tapping Screw 5*12

2

2



20

80-1022-242-00

Driving Lever

1

1



21

80-1020-243-00

Driving Lever, Metal

4

4



22

80-1022-252-00

Blade Lever





*2)



0276-10300

Blade Clutch Lever

1

1

*1) *3)

23

83-1020-955-00

Throttle Wire (H)

1

1



24

0278-71100

Blade Wire V

1

1



25

80-1021-968-10

Blade Spring VB

1

1



30

83-1020-932-00

Driving Wire V









0279-73200

Driving Wire

1

1

*1)

31

80-1022-966-10

Driving Clutch Spring

1

1



32

83-1020-936-00

Driving Change Wire V

1

1



33

80-1020-969-00

Change Return Spring

1

1



34

80-1020-967-00

Driving Change Spring

1

1



35

83-1415-718-00

Wire Band 150

2

2



36

80-1020-913-10

Throttle Label (H)

1

1



37

80-1020-912-10

Change Label

1

1



39

89-1113-080303

Hexagonal Bolt (8T) M8*30

1

1



40

89-1511-080043

Hexagonal Nut M8

1

1



41

89-1113-080503

Hexagonal Bolt (8T) M8*50

1

1



42

89-1713-080003

Flat Washer 8 (large)

2

2



43

80-1022-254-00

Inner Pipe 13.8*30

1

1



44

89-1750-080003

Spring Washer 8

1

1



45

89-1571-080043

Cap Nut M8

1

1



46

80-1021-252-00

Blade Wire Arm

1

1



47

83-1020-395-00

Shim Washer 8*12*0.8

2

2



48

80-1021-253-00

Roller

1

1

With Bush 08.07

49

83-1021-195-00

Push Nut 8

1

1



50

0230-10500

Lock Lever Shaft CMP

1

1



51

0230-70700

Spring for Lock Lever Return

1

1



52

0230-10400

Lock Lever

1

1



53

83-1920-425-00

Lever Grip KP204

1

1



Fig.5 Handle

Fig.5 Handle



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535

GR536

(2Action)

(2Action)

GXV

160

GXV

160

54

89-2521-000050

E Type Ring 5

1

1



55

89-1139-060163

Hexagonal Bolt (PWSW) M6*16

1

1



56

0230-71200

Blade Label

1

1



57

0230-71300

Driving Label

1

1





Fig.6 Blade and Bag

Fig 6 Blade and Bag



Ref.



Parts No.



Parts Name

Quantity



Remarks

GR535

GR536

(2Action)

(2Action)

GXV

160

GXV

160

1

80-1020-871-00

Clutch Return Spring (H)

2

2



2

80-1020-872-00

Collar (H)

2

2



3

83-1020-148-00

Tapping Bolt M6*14

2

2



4

80-1020-874-00

Thrust Washer (H)

1

1



5

80-1020-875-00

Ball Bearing (H)

1

1



6

0278-70600

Blade (H)Assy

1

1



7

80-1020-877-00

Ball Retainer (H)

1

1



8

80-1020-878-00

Blade Disc (H) Assy

1

1

with Bush (H)

9

80-1020-879-00

Bush (H)

3

3



10

80-1020-881-00

Spring (H)

3

3



11

80-1020-882-00

Blade Setting Bolt (H)

3

3



12

80-1020-892-00

Woodruff Key 4*16

1

1





89-2160-040160

Woodruff Key 4*16*6.5





*1)

13

80-1020-883-00

Drive Disc (H)

1

1



14

80-1020-884-00

Driven Disc (H) Assy

1

1



15

80-1020-885-00

Bush (H)

2

2



16

80-1020-886-00

Clutch Spring (H)

1

1



17

80-1020-887-00

Ball Control Plate (H) Assy

1

1



18

80-1020-888-00

Ball Bearing (H)

1

1



19

83-1020-323-00

Washer 10*30*4.5

1

1



20

89-1254-100252

Flange Mini Hexagonal Bolt M10*25 P=1.

1

1



21

0222-50100

BBC Cover CMP

1

1

(option)

22

80-1020-821-10

Blade 530

1

1



23

89-1254-100252

Flange Mini Hexagonal Bolt M10*25 P=1.

2

2



24

0278-20100

Bag Flame

1

1



25

80-1022-854-00

Bag Plate

1

1



26

0230-70400

Bag C

1

1





80-1022-856-00

Bag C (with Hook)

1

1

(option)



0278-71500

Bag DB (sew a dustproof cover)

1

1

(option)

27

0230-71400

Dustproof Cover

1

1

(option)

28

0230-50100

Blade Spacer 4.5H (H)

1

1
