OREC                                               ISSUED NO. SH50C-4

Parts catalogue BUSH CUTTER

(EXPORT MODEL)

SH50 SH50C

SH50C(2Action)



MODEL               CODE NO.



SH50                   0206-?????

SH50C                 0206-?????





CONTENTS

Fig.1     HANDLE------------------------------------------------------ 1

Fig.2     TRANSMISSION------------------------------------------- 3

Fig.3     FRAME & FRONT WHEEL-------------------------- 5

Fig.4     GEAR BOX, ROTARY COVER & TIRE-------- 9









OREC CO.,LTD.







Update : Dec 2003

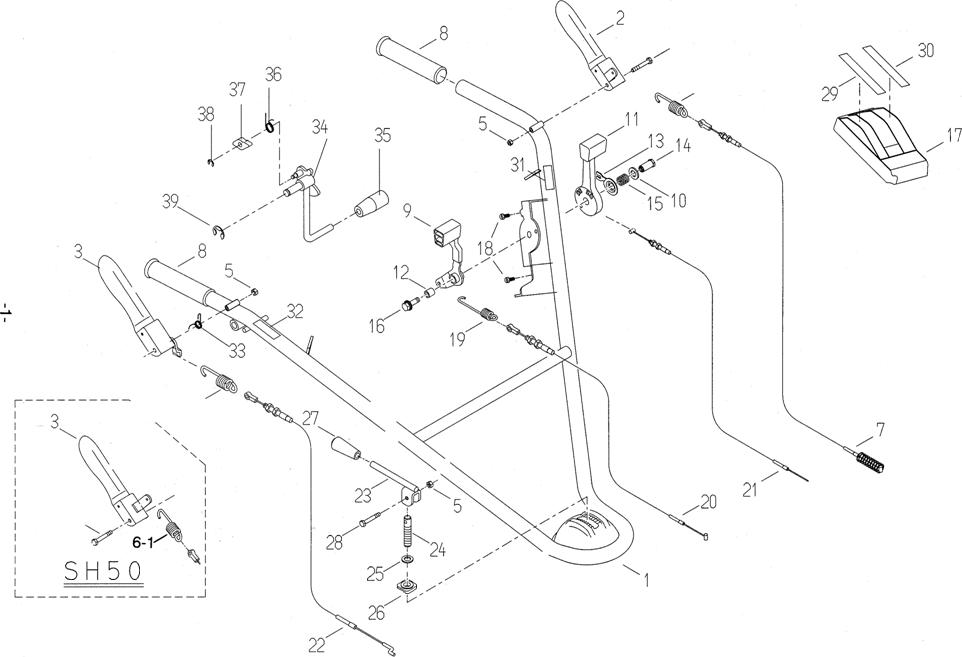

Casella di testo: Fig.1
Casella di testo: HANDLE

4-1



6-1































4-2

OLD TYPE              6-2









4-1

Casella di testo: mmozzato 2017-10-19 09:24:25 -------------------------------------------- 0245-73820 nuovo cavo trazione sostituisce il 0201-70200 Fig.1 HANDLE



Ref.



Parts No.



Parts Name

Quantity

(2Action)



Remarks

SH50

GX160

SH50C

GX160

SH50C

GX160

1

0206-10110

Handle

1

1



*4)



0206-10200

Handle





1

*5)

2

0203-10200

Driving Clutch Lever

1

1

1



3

0203-10300

Knife Clutch Lever

1

1



*4)



0206-10300

Knife Clutch Lever





1

*5)

4-1

89-1111-060402

Hexagonal Bolt M6*40

2

2

1



4-2

89-1113-060452

Hexagonal Bolt M6*45





1

*5)

5

89-1551-060002

U Nut M6

3

3

3



6-1

80-1515-966-00

Clutch Spring

2

2

1



6-2

80-1417-966-00

Clutch Spring





1

*5)

7

0201-70200

Driving Clutch Wire

1

1

1



8

83-1515-411-00

Grip

2

2

2



9

80-1022-260-00

Driving Change Lever

1

1

1



10

89-1711-120003

Flat Washer 12

1

1

1



11

80-1020-265-00

Throttle Lever

1

1

1



12

80-1020-270-00

Inner Collar

1

1

1



13

80-1020-264-00

Control Washer

1

1

1



14

80-1020-262-00

Control Lever Shaft

1

1

1



15

80-1020-263-00

Control Lever Shaft Spring

1

1

1



16

89-1139-080302

Hexagonal Bolt(PWSW) M8*30

1

1

1



17

80-1020-231-00

Control Cover

1

1

1



18

89-1161-050122

Tapping Screw with Cross Hole

2

2

2



19

80-1020-967-00

Driving Change Spring

1

1

1



20

0201-70300

Driving Clutch Wire

1

1

1



21

0203-70200

Throttle Wire

1

1

1



22

0201-70400

Knife Tension Wire

1

1

1



23

0203-20400

Handle Fixing Lever

1

1

1



24

0203-20500

Handle Fixing Bolt

1

1

1



25

89-1851-120000

Plate Spring M12

2

2

2



26

80-1516-251-00

Handle Fixing Washer

1

1

1



27

83-1210-425-00

Lever Grip 10

1

1

1



28

89-1113-060302

Hexagonal Bolt(8T) M6*30

1

1

1



29

80-1020-912-00

Label, Driving Shift

1

1

1

*6)



80-1020-912-10

Label, Driving Shift





1

*1) *7)

30

80-1020-913-00

Label, Throttle(H)

1

1

1

*6)



80-1020-913-10

Label, Throttle(H)





1

*1) *7)

31

0206-70100

Label, Driving

1

1

1



32

0206-70300

Label, Blade

1

1



*4)



0206-70900

Label, Blade





1

*5)

33

0206-70800

Lever return spring





1

*5)

34

0206-10400

Blade tension lever





1

*5)

35

80-1417-255-00

Lever Grip(Red) 10





1

*5)

36

0211-70400

Stopper return spring





1

*5)

37

80-1417-253-00

Stopper





1

*5)

38

89-2521-000050

E Type Ring 5





1

*5)

39

89-2521-000100

E Type Ring 10





1

*5)

MEMO

*1)Interchangeable

*2)Serial Number : ~XT02A00317

*3)Serial Number : XT02J00011~

*4)Serial Number : ~XT02M00094

*5)Serial Number : XT03C00001~

*6)Serial Number : ~XT003G00132

*7)Serial Number : XT03K00133~



-2-

Casella di testo: háCasella di testo: —8SCasella di testo: 8Fig.2 TRA N SMISS I ON

Fig.2 TRANSMISSION



Ref.



Parts No.



Parts Name

Quantity

(2Action)



Remarks

SH50

GX160

SH50C

GX160

SH50C

GX160

1-43

0203-00100

Transmission ASSY

1

1

1



1

0203-00200

Transmission Case (L)

1

1

1



2

0203-00300

Transmission Case (R)

1

1

1



3

80-1516-118-00

Main Shaft

1

1

1



4

83-1020-363-00

Thrust Washer 16*24*1

2

2

2



5

80-1515-123-00

Main Shaft Gear 59T

1

1

1



6

80-1020-123-10

Low Gear

1

1

1



7

80-1515-122-00

Main Shaft Gear 32T

1

1

1



8

80-1020-161-00

Driving Shift Spring

1

1

1



9

80-1020-108-00

Driving Shift Guide

1

1

1



10

80-1020-107-00

Driving Change Shaft

1

1

1



11

83-1020-361-00

Thrust Washer 15*24*1

2

2

2



12

80-1515-119-00

Driving Clutch Gear 15T

1

1

1



13

89-3511-015150

Collar DU Bush 15*15*23F

2

2

2



14

80-1516-127-00

2nd Shaft

1

1

1



15

80-1516-129-00

2nd Shaft 48T

1

1

1



16

80-1020-122-00

Collar

1

1

1



17

80-1516-128-00

2nd Shaft 39T

1

1

1



18

83-1020-355-00

Thrust Washer 12*24*1

2

2

2



19

80-1515-131-00

2nd Shaft Sprocket 10T

1

1

1



20

89-3511-012100

Collar DU Bush 12*10*20F

2

2

2



21

89-3511-018100

Collar DU Bush 18*10*26F

1

1

1



22

83-1830-368-00

Thrust Washer 18*26*1

2

2

2



23

0203-00400

30T Sprocket Boss

1

1

1



24

0203-00500

Axle

1

1

1



25

89-2150-050350

Key(round) 5*35

1

1

1



26

89-3510-018120

DU Bush 18*12

1

1

1



27

80-1515-114-10

Driving Clutch Fork

1

1

1



28

89-6512-035062

Chain #35-62L

1

1

1



29

83-1515-148-00

Hexagonal Tap Tight M6*22

12

12

12



30

80-1515-185-00

Driving Shift Arm Holder

1

1

1



31

83-1020-148-00

Hexagonal Tap Tight M6*14

4

4

4



32

80-1515-186-00

Wire Holder

2

2

2



33

89-5121-183008

Oil Seal UE. 18.30.8

2

2

2



34

89-5121-152507

Oil Seal UE. 15.25.7

1

1

1



35

89-5131-081404

Oil Seal UE. 8.14.4

2

2

2



36

83-1517-685-00

Oil Cap

1

1

1



37

83-1415-348-00

Packing 8.5*16*1.3

1

1

1



38

83-1020-143-00

Hexagonal Tap Tight M8*18

1

1

1



39

80-1515-106-00

Driving Shift Arm

1

1

1



40

80-1020-193-10

Driving Change Arm

2

2

2



41

89-1144-060253

Hexagonal Bolt with Cross Hole(PW.S

2

2

2



42

83-1020-198-00

Square Nut M6

1

1

1



43

89-1511-060043

Hexagonal Nut M6

1

1

1



MEMO



-4-

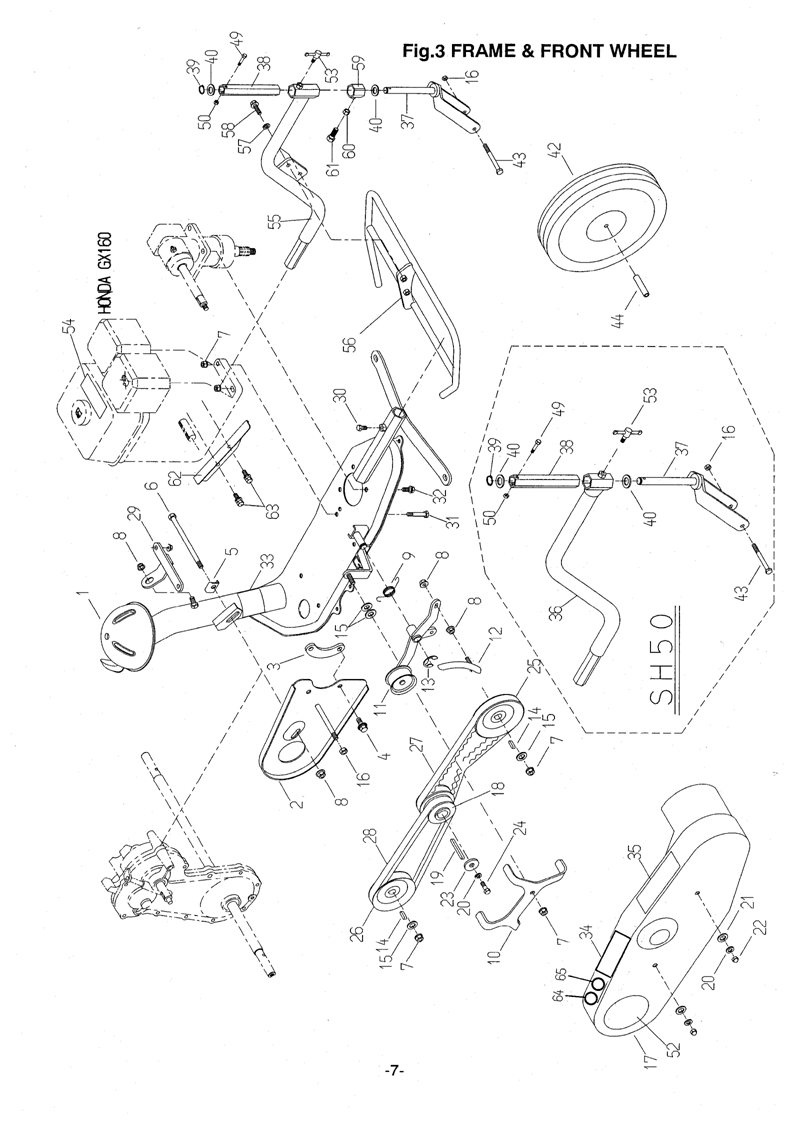

Fig.3 FRAME & FRONT WHEEL



Ref.



Parts No.



Parts Name

Quantity

(2Action)



Remarks

SH50

GX160

SH50C

GX160

SH50C

GX160

1

0206-20110

Engine Frame

1

1

1



2

0203-60100

Belt Cover Inside

1

1

1



3

80-1516-509-00

Belt Cover Inside Spacer

1

1

1



4

89-1233-080202

Mini Hexagonal Bolt(PWSW) M8*20

2

2

2



5

80-1517-507-00

Metal Holder

1

1

1



6

89-1213-081052

Mini Hexagonal Bolt(8T) M8*105

1

1

1



7

89-1543-080002

Mini Hexagonal Nut(SW) M8

7

7

7



8

89-1631-080042

Flange Mini Hexagonal Nut M8

4

4

4



9

80-1515-547-00

Knife Tension Return Spring

1

1

1



10

80-1516-575-00

Belt Holder

1

1

1



11

0203-20210

Knife Tension Arm

1

1

1



12

0203-20310

Knife Brake

1

1







0203-20320

Knife Brake





1

*1) *5)

13

89-2521-000100

E-Type Snap Ring 10

1

1

1



14

89-2150-050180

Key(round) 5*18

2

2

2



15

89-1713-080002

Flat Washer 8

4

4

4



16

89-1561-080002

Mini U Nut M8

2

2

2



17

0206-60100

Belt Cover

1

1

1



18

80-1517-514-10

Engine Pulley(H)

1

1

1



19

89-2151-050300

Key(half round) 5*30

1

1

1



20

89-1750-080002

Spring Washer 8

3

3

3



21

89-1711-080002

Flat Washer 8

2

2

2



22

89-1671-080042

Mini Bag Nut M8

2

2

2



23

83-1020-312-00

Washer 8*30*3.2

1

1

1



24

89-1213-080202

Mini Hexagonal Bolt(8T) M8*20

1

1

1



25

80-1516-571-00

Knife Pulley

1

1

1



26

0203-70100

Transmission Pulley

1

1

1



27

89-6132-002401

V Belt SA24HP II

1

1

1



28

89-6122-002401

V Belt LA24

1

1

1



29

0206-20200

Anti-Vibration Stay

1

1

1



30

89-1211-080162

Mini Hexagonal Bolt M8*16

1

1

1



31

89-1213-080402

Mini Hexagonal Bolt(8T) M8*40

4

4

4



32

89-1232-080202

Mini Hexagonal Bolt(SW) M8*20

4

4

4



33

Not for Sale

Label, Serial Number

1

1

1



34

80-1488-928-00

Label, Caution for Belt Involving

1

1

1

*6)



80-1488-928-10

Label, Caution for Belt Involving





1

*1) *7)

35

83-1488-907-00

Label, Caution for Slope

1

1

1

*6)

36

0206-30210

Front Wheel Arm

1

1

1

*2)

37

0206-30320

Front Wheel Fork

1

1

1



38

0206-30410

Front Wheel Fork Bracket

1

1

1



39

89-2511-000160

Snap Ring 16

1

1

1



40

83-1020-363-00

Thrust Washer 16*24*1

2

2

2



42

80-1517-727-00

Front Wheel

1

1

1



43

89-1213-080802

Mini Hexagonal Bolt(8T) M8*80

1

1

1



44

80-1517-728-00

Front Wheel Collar

1

1

1



49

89-1113-060352

Hexagonal Bolt(8T) M6*35

1

1

1



50

89-1551-060002

U Nut M6

1

1

1



52

0203-71000

Label, Belt Cover

1

1

1



53

83-1210-484-00

Free Handle M8*20

1

1

1



54

83-1415-909-00

Sticker for Engine (Z18-6)

1

1

1

*6)



0223-76200

Sticker for Engine





1

*1) *7)

55

0206-30220

Front Wheel Arm



1

1

*1) *3)

56

0206-80600

Front Guard CMP



1

1

*3)

57

89-1750-080002

Spring Washer 8



2

2

*3)

58

89-1213-080202

Mini Hexagonal Bolt(8T) M8*20



2

2

*3)



-6-


Fig.3 FRAME & FRONT WHEEL



Ref.



Parts No.



Parts Name

Quantity

(2Action)



Remarks

SH50

GX160

SH50C

GX160

SH50C

GX160

59

0206-80200

Cutting Height Stopper CMP



1

1

*3)

60

89-1611-080042

Mini Hexagonal Nut M8



1

1

*3)

61

89-1213-080252

Mini Hexagonal Bolt(8T) M8*25



1

1

*3)

62

0206-60200

Belt Cover Inside Front(H)





1

*5)

63

89-1232-080122

Mini Hexagonal Bolt(SW) M8*12





2

*5)

64

0223-72900

Attention Mark for Slope





1

*7)

65

0215-83200

Label, Protection Equipment





1

*7)

MEMO



-8-

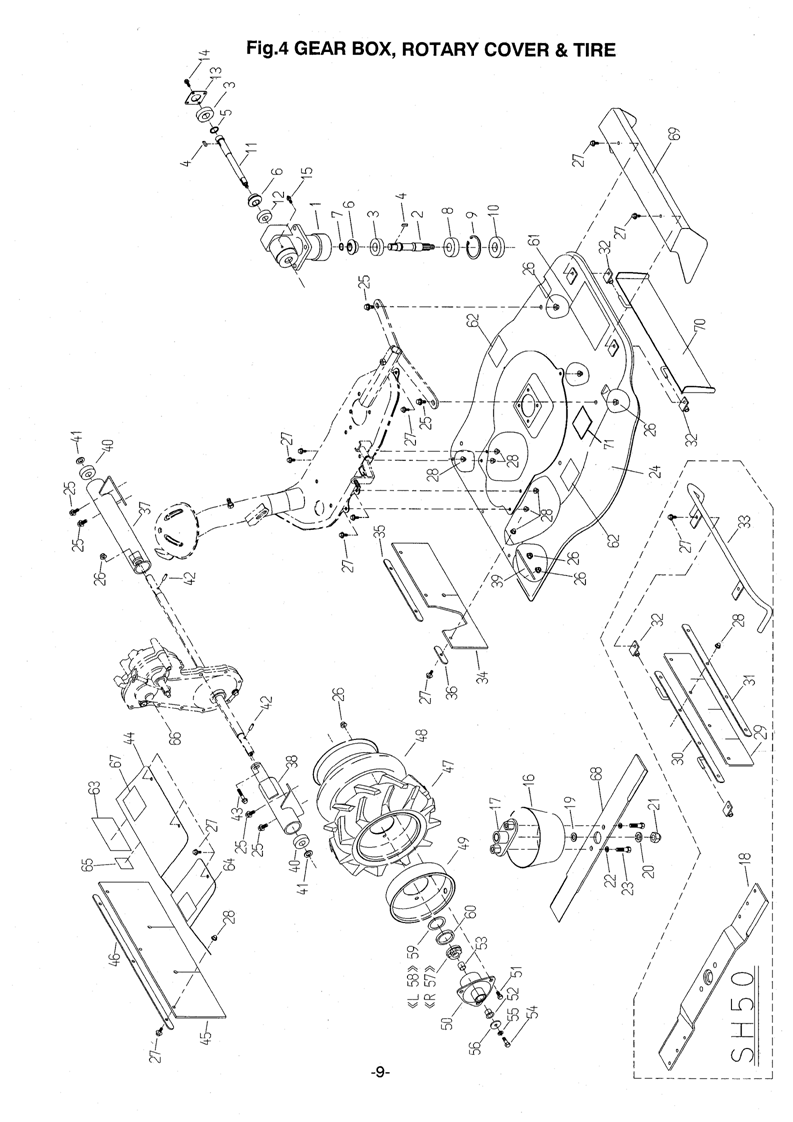

Fig.4 GEAR BOX, ROTARY COVER & TIRE



Ref.



Parts No.



Parts Name

Quantity

(2Action)



Remarks

SH50

GX160

SH50C

GX160

SH50C

GX160

1-15

0203-51000

Gear Box ASSY

1

1

1



1

0203-50100

Gear Box

1

1

1



2

0203-50300

Vertical Shaft

1

1

1



3

89-3115-060044

Bearing 6004 2RS

2

2

2



4

89-2150-050180

Key(round) 5*18

2

2

2



5

83-1515-626-00

Thrust Washer 22*27*2

1

1

1



6

80-1517-618-00

Straight Bevel 20T

2

2

2



7

89-2511-000170

Snap Ring 17

1

1

1



8

89-3115-062044

Bearing 6204 2RS

1

1

1



9

89-2512-000470

Snap Ring 47

1

1

1



10

89-5131-204706

Oil Seal KE 20.47.6

1

1

1



11

0203-50200

Horizontal Shaft

1

1

1



12

89-3115-062024

Bearing 6202 2RS

1

1

1



13

80-1515-607-00

Gear Box Cap B

1

1

1



14

83-1020-148-00

Hexagonal Tap Tight M6*14

4

4

4



15

83-1415-975-00

Grease Nipple M6

1

1

1



16

80-1035-836-00

Knife Neck Guard

1

1

1



17

0203-50610

Knife Bracket

1

1

1



18

80-1035-821-00

Blade

1

1

1

*2)

19

89-1711-120002

Flat Washer 12

1

1

1



20

89-1750-120002

Spring Washer 12

1

1

1



21

0203-70800

Bag Nut(slender) M12

1

1

1



22

89-1750-100002

Spring Washer 10

2

2

2



23

89-1254-100252

Flange Hexagonal Bolt(slender) M10*

2

2

2



24

0203-50510

Rotary Cover

1

1

1



25

89-1233-080202

Mini Hexagonal Bolt(PWSW) M8*20

6

6

6



26

89-1631-080042

Flange Mini Hexagonal Nut M8

13

13

13



27

89-1137-060152

Hexagonal Bolt(PW) M6*15

20

20

20



28

83-1575-189-00

Flange Bag Nut M6

20

20

20



29

80-1035-734-00

Front Flapper

1

1

1

*2)

30

80-1035-735-00

Front Flapper Setting

1

1

1

*2)

31

80-1035-736-00

Front Flapper Holder

1

1

1

*2)

32

80-1035-737-00

Flapper Shaft Receiver

2

2

2



33

0206-80100

Foot Guard

1

1

1

*2)

34

0203-60600

Flapper B

1

1

1



35

0203-60700

Flapper Holder A

1

1

1



36

0203-60800

Flapper Holder B

1

1

1



37

0203-60300

Axle Cover(L)

1

1

1



38

0203-60400

Axle Cover(R)

1

1

1



39

0203-60500

Axle Reinforcing Plate

2

2

2



40

89-3115-062024

Bearing 6202 2RS

2

2

2



41

83-1020-361-00

Thrust Washer 15*24*1

2

2

2



42

89-2142-050250

Parallel Pin 5*25

2

2

2



43

89-1251-080502

Flange Mini Hexagonal Bolt M8*50

1

1

1



44

0203-60910

Transmission Cover

1

1

1



45

0203-61000

Flapper A

1

1

1



46

0203-61100

Flapper Holder C

1

1

1



47-49

80-1515-411-00

Tire ASSY(without Boss)

2

2

2



47

80-1515-401-00

Tire(3.25*5)

2

2

2



48

80-1515-404-00

Tube

2

2

2



49

80-1515-407-00

Wheel

2

2

2



50

0203-30700

Wheel Boss

2

2

2



51

89-1211-080162

Mini Hexagonal Bolt M8*16

6

6

6



52

89-3511-015150

Collar DU Bush 15.15.23F

2

2

2



53

89-3510-015150

DU Bush 15.15.

2

2

2



-10-


Fig.4 GEAR BOX, ROTARY COVER & TIRE



Ref.



Parts No.



Parts Name

Quantity

(2Action)



Remarks

SH50

GX160

SH50C

GX160

SH50C

GX160

54

89-1213-080252

Mini Hexagonal Bolt(8T) M8*25

2

2

2



55

89-1750-080002

Spring Washer 8

2

2

2



56

83-1020-312-00

Washer 8*30*3.2

2

2

2



57

80-1020-459-00

Ratchet(R)

1

1

1



58

80-1020-458-00

Ratchet(L)

1

1

1



59

0203-70600

Rondella

2

2

2



60

0203-70400

Clutch Guide seal - Feltro

2

2

2



61

0203-71100

Label, Main (Shuttle Mower)

1

1

1



62

80-1488-926-00

Label, Caution for Knife

2

2

2

*6)



80-1488-926-10

Label, Caution for Knife





2

*1) *7)

63

80-1484-A47-00

Label, Caution (large)

1

1

1

*6)



0223-76100

Label, Caution (large)





1

*1) *7)

64

83-1415-913-00

Label, Protection for Eyes

1

1

1

*6)

65

80-1010-933-00

Label, CE

1

1

1



66

83-1516-916-00

Label, Gear Oil

1

1

1



67

0203-70700

Label SH50

1





*2)



0206-70400

Label SH50C



1

1

*3)

68

0214-70700

Blade



1

1

*1) *3)

69

0206-80700

Front Side Cover



1

1

*1) *3)

70

0214-60200

Front Flapper CMP



1

1

*1) *3)

71

83-1415-912-10

Label, Caution for Hitting Object





1

*7)

MEMO

-12-
