OREC                             ISSUED NO. SP300A-1

Parts catalogue Spider Mower

(EXPORT MODEL) SP300A



MODEL                 CODE

SP300A              0306-○○○○○

































CONTENTS



Fig. 1

HANDLE -----------------------------

1

Fig. 2

CUTTING ----------------------------

4

Fig. 3

DRIVING -----------------------------

6

Fig. 4

TRANSMISSION -------------------

8

Fig. 5

ENGINE ------------------------------

19

Fig. 6

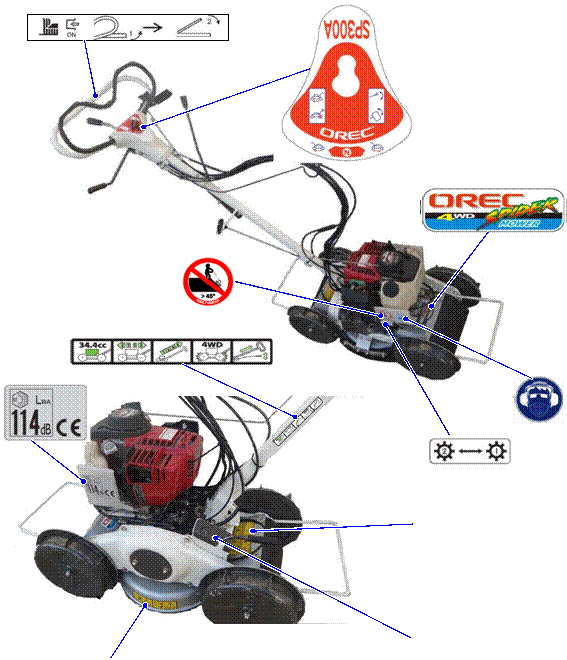

LABEL --------------------------------

20



OREC CO.,LTD

Update : Aug 2015



1/20



HANDLE    1/3





Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0010-71500

Thrust Washer 19*25*1.0

1



2

0208-12500

Spring, Stretch Lever

1



3

0229-12400

Handle Stretch Lever CMP

1



4

0305-10110

Handle Turn Plate CMP

1



5

0306-11200

Low Handle CMP (EU)

1



6

0305-10300

Middle Handle Pipe

1



7

0305-10700

Bolt, Handle Setting

1



8

0305-70300

Lever Grip 8

1



9

89-1113-060402

Hexagonal Bolt (8T) M6*40

1



10

89-1433-080353

Hexagonal Hole Bolt M8*35

2



11

89-1553-060002

Bag Hexagonal U Nut M6

3



12

89-1711-060002

Flat Washer 6

2



13

89-1713-060002

Flat Washer 6 (large)

2



14

89-1713-080003

Flat Washer 8 (large)

2



15

89-1750-080003

Spring Washer 8

2



16

89-2511-000180

Snap Ring (S18)

1



2/20

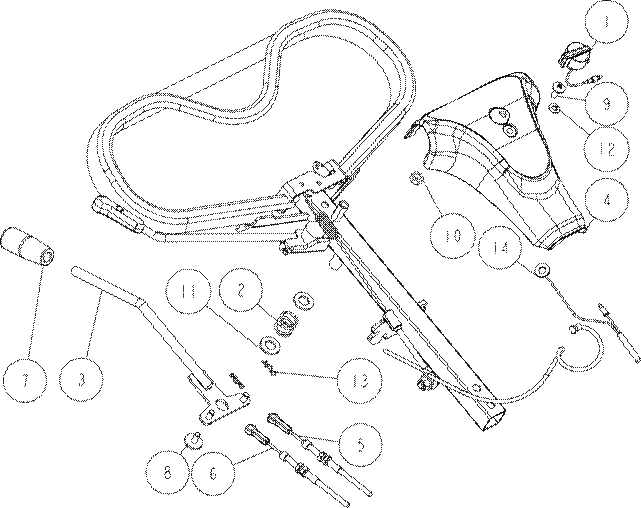

HANDLE    2/3











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0016-72500

Engine Stop Switch

1



2

0219-10800

Lever control Spring

1



3

0305-10600

Change Lever CMP

1



4

0305-70800

Handle Bonnet

1



5

0305-71110

Forward Wire

1



6

0305-71210

Backward Wire

1



7

83-1210-425-00

Lever Grip 10

1



8

83-1565-111-00

Hexagonal Bolt (with Big Washer) M6*16

1



9

89-1159-060168

Truss Mini Screw M6*16

1



10

89-1611-080042

Mini Hexagonal Nut M8

1



11

89-1711-120002

Flat Washer 12

2



12

89-1750-060002

Spring Washer 6

1



13

89-2132-060002

Snap Pin 6 (with stopper)

2



14

0306-71300

Wire Harness, E/G Stop (H)

1



3/20



HANDLE    3/3



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0229-74300

Rubber Cap

1



2

0306-11100

Upper Handle CMP (EU)

1



3

0306-11300

Driving Clutch Lever CMP (EU)

1



4

0305-10800

Handle Up/Down, Right/Left Lever CMP

1



5

0229-74200

Wire Guide

1



6

0305-70300

Lever Grip 8

1



7

0306-71100

Wire, Throttle (H)

1



8

0306-71400

Wire, Brake

1



9

0305-71510

Wire, Handle Direction

1



10

83-1565-111-00

Hexagonal Bolt (with Big Washer) M6*16

1



11

89-1561-080002

Mini Hexagonal U Nut M8

1



12

89-1711-080002

Flat Washer 8

3



13

89-2132-060002

Snap Pin 6 (with stopper)

1



14

89-2521-000082

E Type Ring 8

2



15

0306-71200

Wire, Cutting Clutch

1



16

0306-11400

Blade Lever CMP (EU)

1



17

0305-70200

Lever Cap

1



18

80-1515-262-00

Arm Grip (Black)

1



19

83-1490-198-00

Hexagonal U Nut M8 (Lock)

1



20

0306-70100

Clutch Return Spring

1



4/20

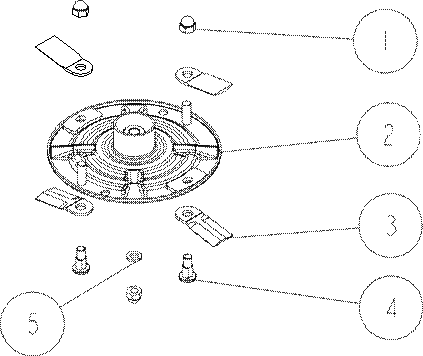

CUTTING    1/2





Ref.

Parts Number

Parts Name

Quantity

Remarks

1,3,4,5

0305-81100

Knife Set (including bolt / nut) SP300

1



1

0208-73200

U Cap Nut M10

3



2

0306-50100

Rotary Disk CMP

1



3

0305-70500

Knife (SP300)

4



4

0305-70900

Knife Setting Bolt (SP300)

2



5

89-1750-100002

Spring Washer 10

1



5/20

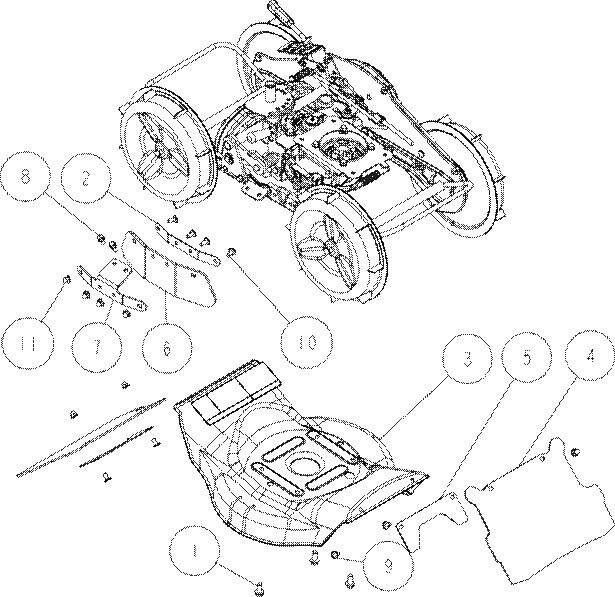

CUTTING    2/2













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0031-70800

Tapping Bolt M8*14

4



2

0305-20910

Side Flapper Setting

1



3

0305-60100

Rotary Cover CMP

1



4

0305-60200

Front and Back Flapper

2



5

0305-60300

Front and Back Flapper Setting

2



6

0305-60410

Side Flapper

1



7

0305-60520

Side Flapper Stay

1



8

89-1132-060162

Hexagonal Bolt (SW) M6*16

2



9

89-1390-060122

Welded Bolt M6*12

4



10

89-1390-060142

Welded Bolt M6*14

4



11

89-1581-060042

Flange Cap Nut M6

8



6/20

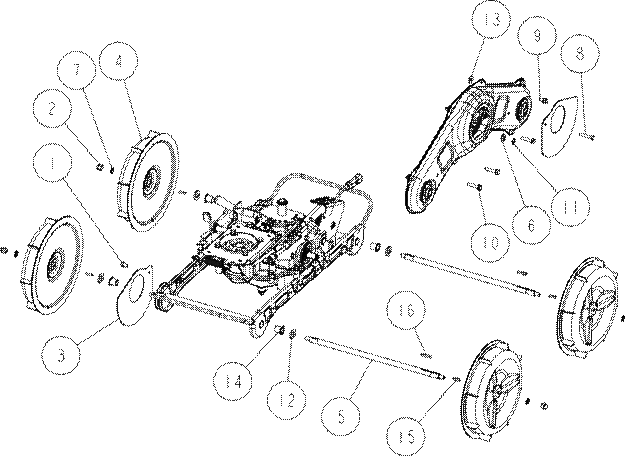

DRIVING    1/2















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0305-76100

Hexagonal Bolt (Meck) M6*10

1



2

0208-31000

Mini Hexagonal U Cap Nut M8 (Meck)

4



3

0305-21100

Dust Guard

2



4

0305-30100

Wheel CMP (SP300)

4



5

0305-30200

Axle

2



6

83-1020-351-00

Thrust Washer 10*18*1.0

1



7

89-5230-080000

Seal Washer 8

4



8

0305-76200

Hexagonal Bolt (Meck) M6*30

1



9

89-1132-060122

Hexagonal Bolt (SW) M6*12

1



10

89-1135-060302

Hexagonal Bolt (SW) M6*30

3



11

89-2511-000100

Snap Ring (S10)

1



12

89-1711-120002

Flat Washer 12

4



13

89-1713-060002

Flat Washer 6 (large)

1



14

89-3511-012150

DU Bush 12.15.20F

4



15

89-2150-040180

Key 4*18 (round)

4



16

89-2150-040250

Key 4*25 (round)

2



7/20

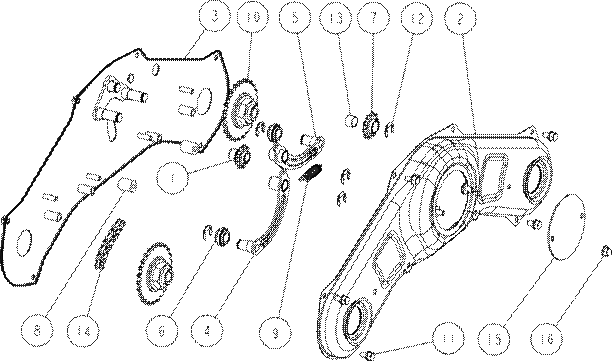

DRIVING    2/2





















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0202-30500

Sprocket, 9T

1



2

0306-42100

Chain Case Out CMP (EU)

1



3

0305-40200

Chain Case in CMP

1



4

0305-40300

Tension Arm B CMP

1



5

0305-40400

Tension Arm B CMP

1



6

0305-40500

Chain Roller

2



7

0305-40600

Tensioner Sprocket

1



8

0305-40700

Idler Rubber

2



9

0305-40800

Tension Spring

1



10

0305-41000

Axle Sprocket

2



11

89-1132-060122

Hexagonal Bolt (SW) M6*12

5



12

89-2521-000100

E Type Ring 10

5



13

89-3510-012100

DU Bush 12.10

1



14

89-6512-035130

Chain #35-130L

1



15

0306-42200

Chain Case Cover

1



16

89-1581-060042

Flange Cap Nut M6

2



8/20

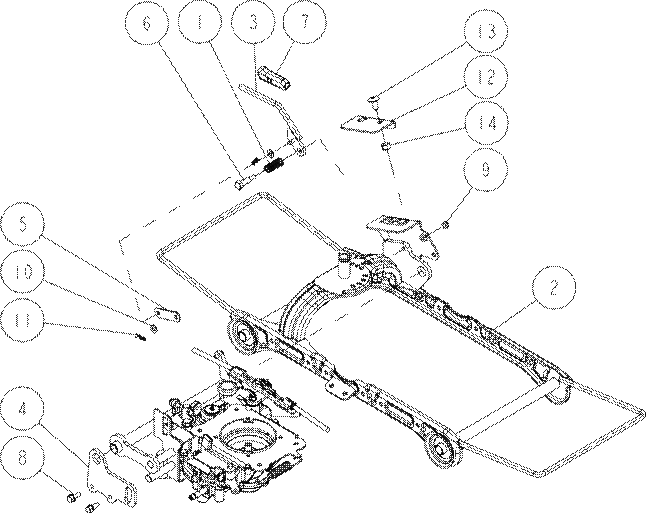

TRANSMISSION    1/11











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

80-1515-741-00

Spring for Cutting Height Lever

1



2

0306-21100

Frame CMP (EU)

1



3

0305-20200

Cutting Height Lever CMP

1



4

0306-20200

Cutting Height Adjust Arm

1



5

0305-20500

Connecting Plate

1



6

0305-20700

Step Bolt M6

1



7

0305-70300

Lever Grip 8

1



8

89-1132-060162

Hexagonal Bolt (SW) M6*16

2



9

89-1551-060002

Hexagonal U Nut M6

1



10

89-1711-060002

Flat Washer 6

2



11

89-2132-060002

Snap Pin 6 (with stopper)

2



12

0306-21200

Cutting Height Safety Guide

1



13

89-1159-080168

Truss Mini Screw M8*16

1



14

89-1561-080002

Mini Hexagonal U Nut M8

1



9/20

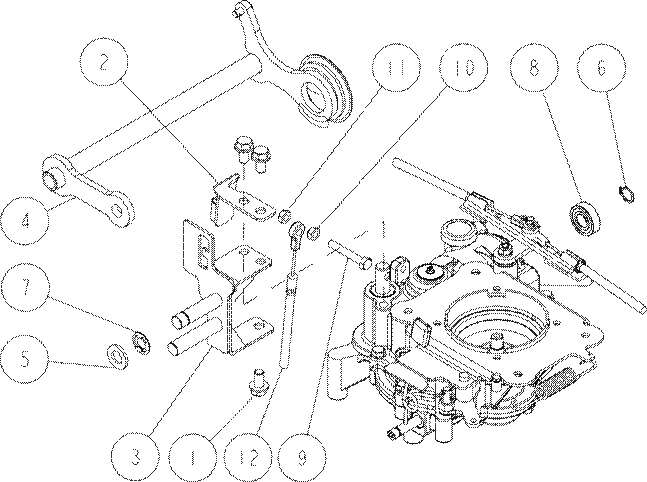

TRANSMISSION    2/11















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0031-70800

Tapping Bolt M8*14

3



2

0306-11500

M/C Stay CMP(EU)

1



3

0306-20100

Clutch Guide CMP

1



4

0305-20400

Cutting Height Arm CMP

1



5

89-1711-120002

Flat Washer 12

1



6

89-2511-000120

Snap Ring (S12)

1



7

89-2521-000100

E Type Ring 10

1



8

89-3115-060014

Bearing 6001 2RS

1



9

89-1113-060402

Hexagonal Bolt (8T) M6*40

1



10

89-1513-060042

Hexagonal Nut (3 sorts) M6

1



11

89-1551-060002

Hexagonal U Nut M6

1



12

0306-71200

Wire, Cutting Clutch

1



10/20

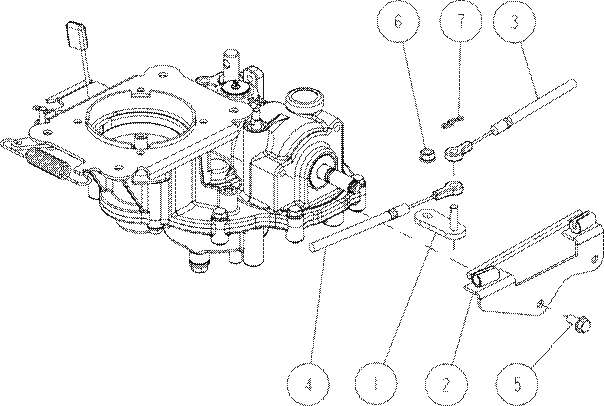

TRANSMISSION    3/11



























Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0305-03300

Direction Change Arm CMP

1



2

0305-03400

Direction Change Wire Holder CMP

1



3

0305-71110

Forward Wire

1



4

0305-71210

Backward Wire

1



5

83-1020-148-00

Tapping Bolt M6*14

2



6

89-1541-060002

Hexagonal Nut (SW) M6

1



7

89-2132-060002

Snap Pin 6 (with stopper)

1



11/20

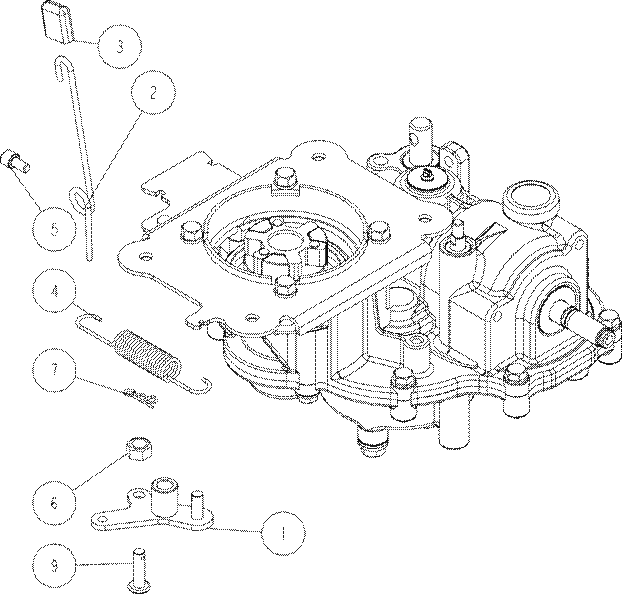

TRANSMISSION    4/11











Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0305-02800

Brake Arm CMP

1



2

0305-70100

Speed Change Lever

1



3

0305-70200

Lever Cap

1



4

0305-70700

Brake Return Spring

1



5

89-1425-050102

Hexagonal Hole Bolt M5*10

1



6

89-1611-080042

Mini Hexagonal Nut M8

1



7

89-2132-060002

Snap Pin 6 (with stopper)

1



8

89-2132-080002

Snap Pin 6 (with stopper)

1



9

89-2181-060222

Flat Head Pin 6*22

1



12/20

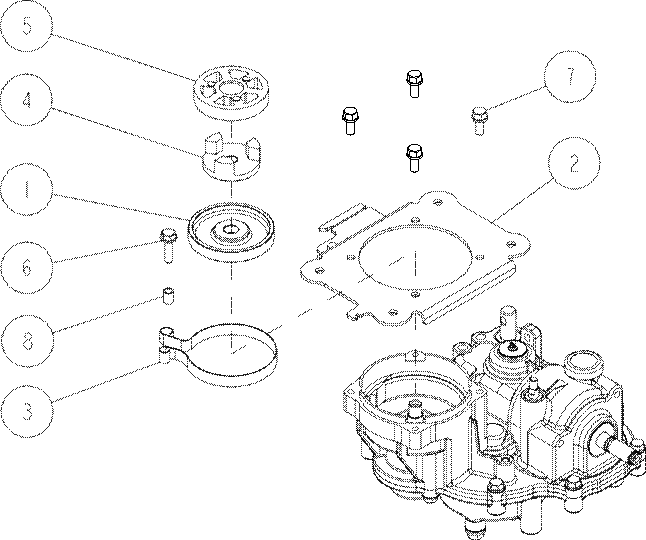

TRANSMISSION    5/11

















Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0305-02200

Brake Drum

1



2

0305-02500

Engine Setting Plate CMP

1



3

0305-03100

Breke Spring

1



4

0305-04200

Coupling

1



5

0305-04310

Coupling Rubber

1



6

83-1515-148-00

Tapping Bolt M6*22

1



7

89-1132-060162

Hexagonal Bolt (SW) M6*16

4



8

89-3510-006100

DU Bush 6.10

1



13/20

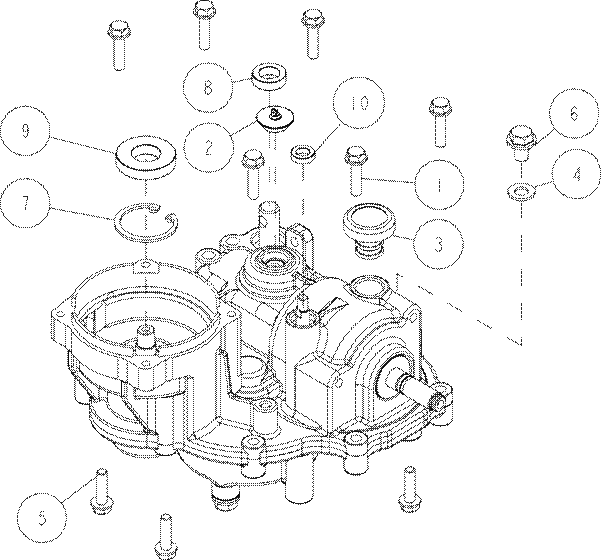

TRANSMISSION    6/11













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0208-73800

Hexagon Tap Tight M6*25

6



2

0305-70400

SC15-5A(Air Breather)

1



3

83-1140-682-10

Oil Cap 16

1



4

83-1415-348-00

Packing 8.5*16*1.3

1



5

83-1515-148-00

Tapping Bolt M6*22

3



6

89-1251-080122

Flange Mini Hexagonal Bolt M8*12

1



7

89-2512-000350

Snap Ring (R35)

1



8

89-5121-122006

Oil Seal UE 12.20.6

1



9

89-5125-173507

Oil Seal UE 17.35.7F

1



10

89-5130-081404

Oil Seal KE 8.14.4

1



14/20

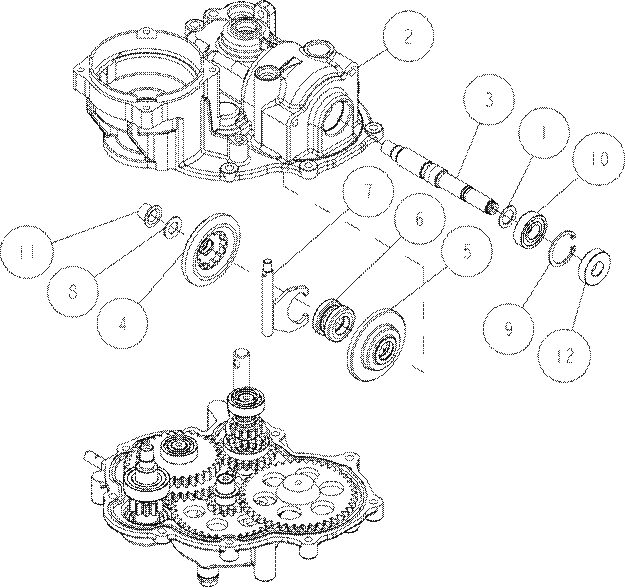

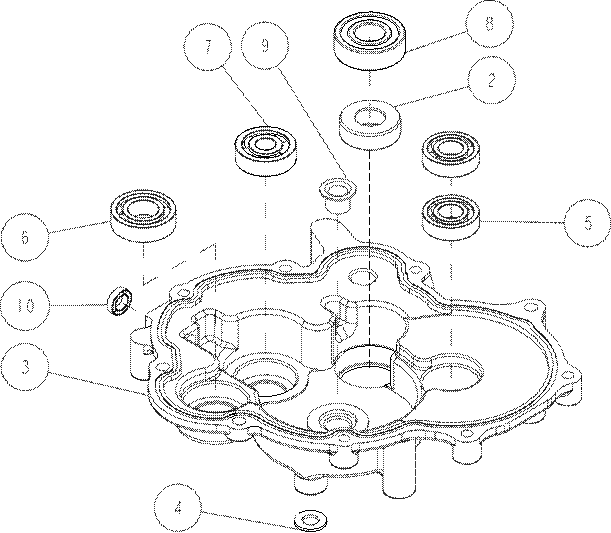

TRANSMISSION    7/11









Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0208-71100

Thrust Washer 12*18*1.0

1



2

0305-00100

Mission Case U

1



3

0305-00600

Direction Change Shaft

1



4

0305-01200

30T Bevel Gear A

1



5

0305-01300

30T Bevel Gear B

1



6

0305-01800

Direction Change Dock

1



7

0305-02400

Direction Change Fork CMP

1



8

83-1020-351-00

Thrust Washer 10*18*1.0

1



9

89-2512-000280

Snap Ring (R28)

1



10

89-3115-060014

Bearing 6001 2RS

1



11

89-3511-010100

DU Bush 10.10.18F

1



12

89-5121-122807

Oil Seal UE 12.28.7

1



15/20

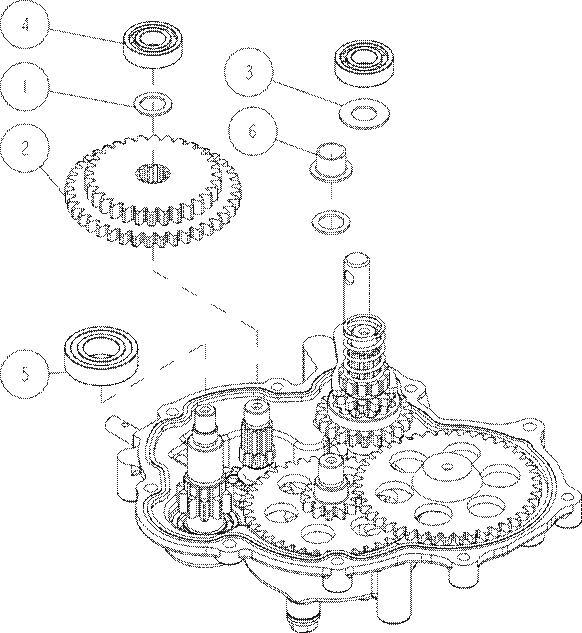

TRANSMISSION    8/11













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0208-71100

Thrust Washer 12*18*1.0

2



2

0305-01410

Knife Gear CMP

1



3

83-1020-355-00

Thrust Washer 12*24*1.0

1



4

89-3111-060014

Bearing 6001

2



5

89-3115-060034

Bearing 6003 2RS

1



6

89-3511-012100

DU Bush 12.10.20F

1




16/20

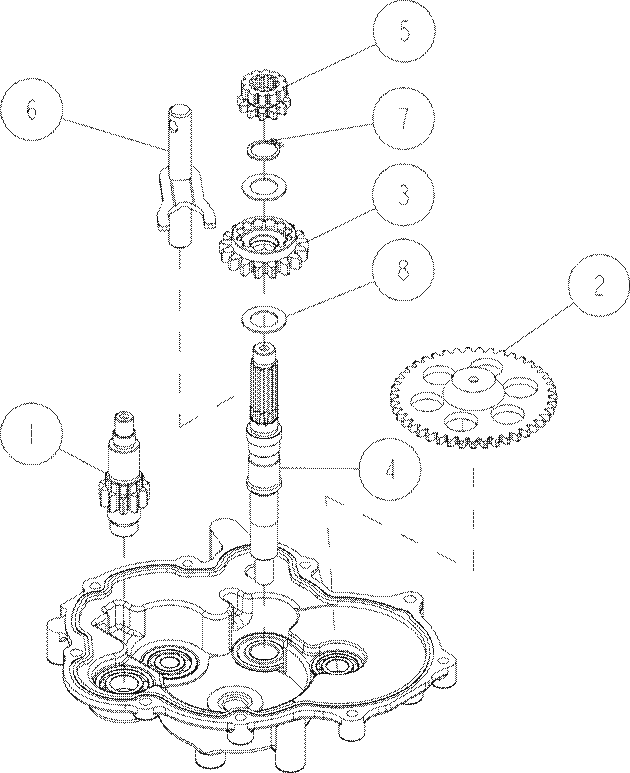

TRANSMISSION    9/11



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0305-00300

Input Shaft

1



2

0305-01100

Pinion Gear CMP

1



3

0305-01520

17T Clutch Gear

1



4

0305-01610

Knife Shaft

1



5

0305-01700

Knife Clutch

1



6

0305-02100

Knife Clutch Fork

1



7

89-2511-000150

Snap Ring (S15)

1



8

83-1020-361-00

Thrust Washer 15*24*1.0

2



17/20

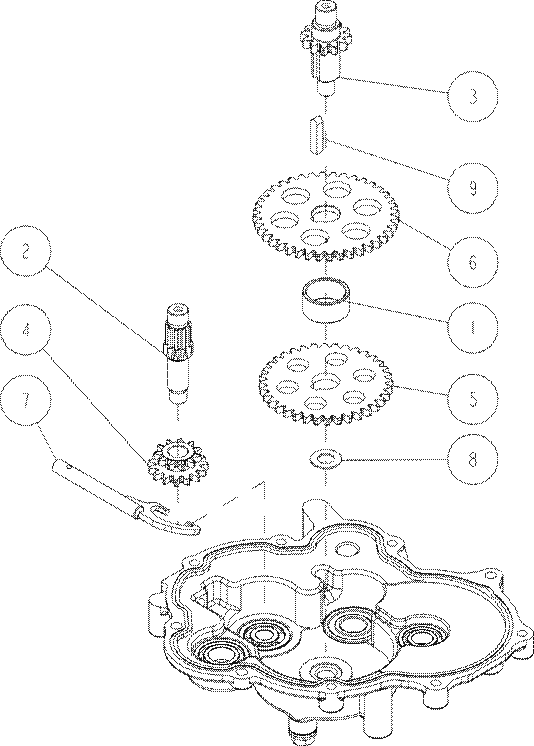

TRANSMISSION    10/11



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0208-02300

Collar B

1



2

0305-00400

2nd Shaft

1



3

0305-00500

Change Shaft

1



4

0305-00700

11-15T Gear

1



5

0305-00800

36T Gear

1



6

0305-00900

40T Gear A

1



7

0305-02900

Shift Arm CMP

1



8

83-1020-351-00

Thrust Washer 10*18*1.0

1



9

89-2151-050230

Key 5*23 (half round)

1



18/20



TRANSMISSION    11/11













Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0031-70800

Tapping Bolt M8*14

1



2

0229-34200

Oil Seal MUD 15*30*10

1



3

0305-00200

Mission Case D

1



4

83-1415-348-00

Packing 8.5*16*1.3

1



5

89-3111-060014

Bearing 6001

2



6

89-3111-060024

Bearing 6002

1



7

89-3111-062004

Bearing 6200

1



8

89-3115-062024

Bearing 6202 2RS

1



9

89-3511-010100

DU Bush 10.10.18F

1



10

89-5130-081404

Oil Seal KE 8.14.4

1



19/20



ENGINE    1/1



Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0208-03300

Inner Collar D

4



2

0208-09700

Bush

4



3

0208-09910

Vibration-proof Rubber

8



4

0305-02300

Clutch Drum CMP

1



5

0305-04100

Drum Case

1



6

0305-04200

Coupling

1



7

0305-09800

Flat Washer 6*30*2.3

4



8

0305-61100

Engine Protection Cover L

1



9

0305-61200

Engine Protection Cover R

1



10

83-1020-148-00

Tapping Bolt M6*14

4



11

89-1135-060302

Hexagonal Bolt (SW) M6*30

8



12

89-1713-060002

Flat Washer 6 (large)

5



13

89-2512-000420

Snap Ring (R42)

1



14

89-3115-060044

Bearing 6004 2RS

1



15

0306-04100

Offset Stay CMP (EU)

1



16

89-1132-060162

Hexagonal Bolt (SW) M6*16

1



17

0306-71300

Wire Harness, E/G Stop (H)

1



18

9011-0071

GX35NT TAR (HONDA)

1



20/20

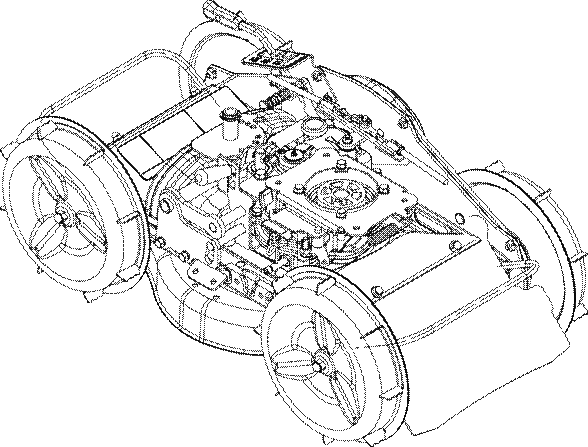

LABEL    1/1

①                    ⑧





➃

⑨

②

⑤                                        ⑩

⑥



③

④                            ⑦

Ref.

Parts Number

Parts Name

Quantity

Remarks

1

0306-73800

Blade Label (SP300)

1



2

0306-73700

Label, Function (SP300)

1



3

0306-73600

Label, Caution (Small)

1



4

0306-73500

Label, Caution for Knife / Hitting Object

1



5

0306-73400

Label, Noise 114db

1



6

0306-73300

Label, Speed Change

1



7

0306-73200

Label, Cutting Height

1



8

0306-73100

Label,Control (SP300)

1



9

0202-74600

Attention Mark for Slope 45°

1



10

0215-83200

Label, Protection Equipment

1



11

0326-74300

Label, Main (Spider Mower)

1
