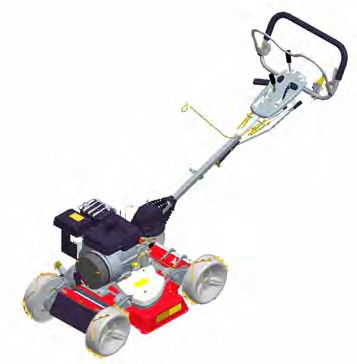

OREC                                           ISSUED NO. SP1000-1

Parts catalogue

Spider Mower

(EXPORT MODEL) SP1000

MODEL                CODE


SP1000                 0202-○○○○○



CONTENTS



HANDLE

1-8

DRIVING & CUTTING

9-12

CHAIN CASE

13

TRANSMISSION

14-22

GEAR FRAME

23

FRONT WHEEL

24

REAR WHEEL

25

WHEEL

26

DRIVE CHAIN CASE

27

ENGINE

28

OREC CO.,LTD

Update : April 2010

1/28



HANDLE 1











10

0016-72500

Engine Stop Switch

1



9

0202-74100

Label, Control Panel

1



8

0208-12110

Control Panel

1



7

0229-20700

Wire Harness, E/G Stop

1



6

0229-74200

Wire Guide

1



5

0229-74300

Rubber Cap

1



4

89-1144-060122

Hexagonal Bolt with Cross Hole (PWSW)

3



3

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



2

89-1561-080002

Mini Hexagonal U Nut M8

1



1

89-1711-080002

Flat Washer 8

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

2/28



HANDLE 2













13

0208-11200

Change Arm A CMP

1



12

0208-11300

Change Arm B CMP

1



11

0208-11710

Change Lever CMP

1



10

0229-11100

Change Guide CMP

1



9

0229-70600

Wire, Velocity Change

1



8

0229-70700

Wire, Direction Change

1



7

0229-71800

Center Spring

1



6

83-1210-425-00

Lever Grip 10

1



5

89-1111-060402

Hexagonal Bolt M6*40

1



4

89-1135-060142

Hexagonal Bolt (SW) M6*14

1



3

89-1551-060002

Hexagonal U Nut M6

1



2

89-1713-060002

Flat Washer 6 (large)

1



1

89-2521-000060

E Type Ring 6

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

3/28



HANDLE 3









16

0202-10400

Driving Clutch Lever

1



15

0202-10700

Collar, Clutch Lever

1



14

0202-11300

Lock Lever CMP

1



13

0202-71100

Wire, Throttle (M. E/G)

1



12

0202-72200

Spring, Clutch Lever

1



11

0229-13100

Rubber, L20

2



10

0229-70900

Wire, Driving Clutch

1



9

0254-10600

Lock Spring

1



8

0287-12300

Drive Joint

1



7

0287-12500

Release Lever CMP

1



6

0287-12600

Spring, Release Lever

1



5

83-1515-177-00

Push Nut 6

1



4

89-1541-060002

Hexagonal Nut (SW) M6

1



3

89-1711-060002

Flat Washer 6

1



2

89-1713-060002

Flat Washer 6 (large)

1



1

89-2132-060002

Snap Pin 6 (with stopper)

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

4/28

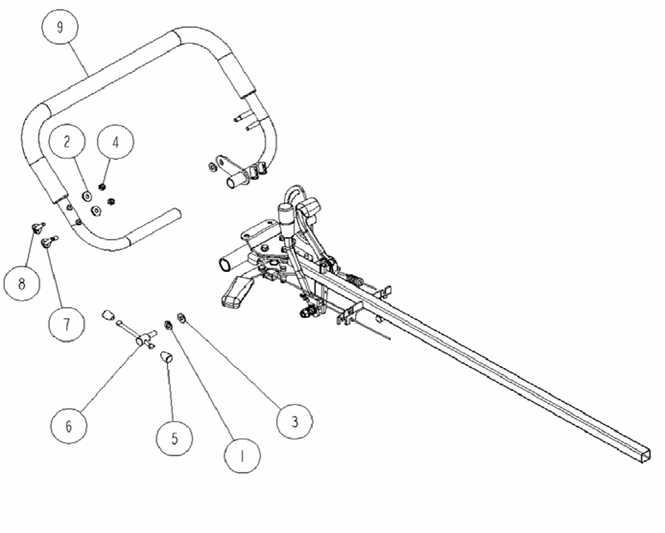

HANDLE 4











9

0202-10300

Upper Handle CMP

1



8

0202-10600

Driving Stopper Shaft

1



7

0208-13100

Clutch Lever Shaft CMP

1



6

83-1210-484-00

Free Handle M8*20

1



5

83-1310-429-00

Grip 6

2



4

89-1551-060002

Hexagonal U Nut M6

2



3

89-1711-080002

Flat Washer 8

2



2

89-1711-060002

Flat Washer 6

2



1

89-1750-080002

Spring Washer 8

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

5/28



HANDLE 5

















10

0208-03300

Inner Collar D

3



9

0208-09700

Bush

3



8

0208-09910

Vibration-proof Rubber

6



7

0208-73700

Hexagon Bolt M6*30

3



6

0216-10400

Lock Lever

1



5

0229-10710

Upper Handle Adapter

1



4

0229-11500

Panel Stay

1



3

0229-70800

Wire, Cutting Clutch

1



2

89-1135-060142

Hexagonal Bolt (SW) M6*14

1



1

89-1713-060002

Flat Washer 6 (large)

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

6/28



HANDLE 6









15

0229-10500

Middle Handle CMP

1



14

0229-10900

Handle Up/Down & L/R Lever

1



13

0229-11600

Cutting Height Adjust Lever

1



12

0229-70400

Wire, Cutting Height

1



11

0229-70500

Wire, Handle Direction

1



10

80-1020-263-00

Control Lever Shaft Spring

1



9

80-1515-262-00

Arm Grip (Black)

1



8

83-1493-198-00

Hexagonal U Nut M6 (Lock)

1



7

83-1711-426-00

Lever Grip 12

1



6

89-1561-080002

Mini Hexagonal U Nut M8

1



5

89-1711-060002

Flat Washer 6

1



4

89-1711-080002

Flat Washer 8

3



3

89-2132-060002

Snap Pin 6 (with stopper)

2



2

89-2181-060142

Flat Head Pin 6*14

1



1

89-2181-060162

Flat Head Pin 6*16

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

7/28



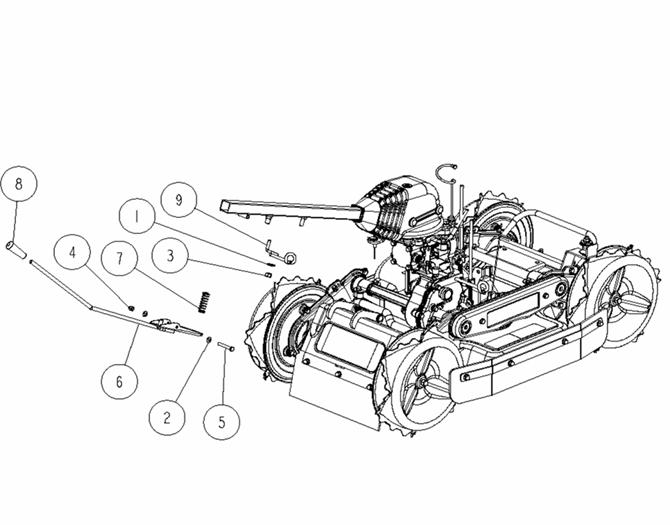

HANDLE 7













9

0202-72100

Grip Guide

1



8

0207-72600

Lever Grip 8 (black)

1



7

0208-12500

Spring, Stretch Lever

1



6

0229-12400

Handle Stretch Lever CMP

1



5

89-1113-060402

Hexagonal Bolt (8T) M6*40

1



4

89-1553-060002

Bag Hexagonal U Nut M6

1



3

89-1561-080002

Mini Hexagonal U Nut M8

1



2

89-1711-060002

Flat Washer 6

2



1

89-1711-080002

Flat Washer 8

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

8/28



HANDLE 8





15

0202-10800

Low Handle CMP

1



14

0202-11100

Handle Turn Plate CMP

1



13

0202-11200

Handle Bonnet

1



12

0202-73200

Wire, Rear Guard

1



11

0208-10320

Up/Down Arm CMP

1



10

0208-12710

Bolt, Handle Setting

2



9

0208-71900

Spring, Handle Up/Down

1



8

0208-73300

Plain Washer 10

1



7

0208-73600

U Nut M10

1



6

0229-70500

Wire, Handle Direction

1



5

89-1561-100002

Mini Hexagonal U Nut M10

2



4

89-1711-060002

Flat Washer 6

1



3

89-1750-100002

Spring Washer 10

1



2

89-2132-060002

Snap Pin 6 (with stopper)

1



1

89-2521-000050

E Type Ring 5

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

9/28

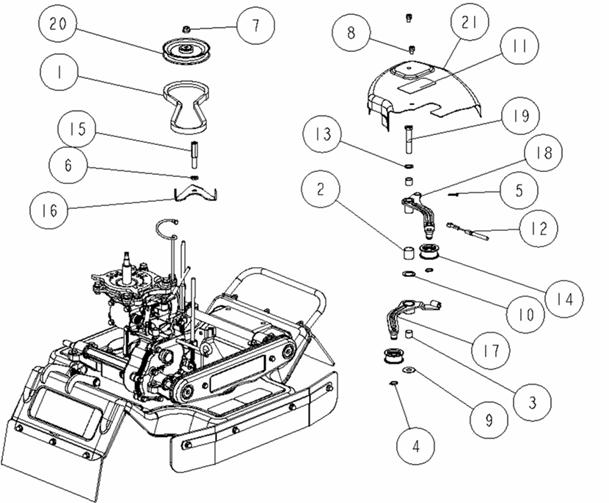

DRIVING & CUTTING 1





21

0202-60100

Belt Cover CMP

1



20

0208-40220

Knife Pulley

1



19

0208-40310

Tension Shaft

1



18

0208-40430

Tension Arm A CMP

1



17

0208-40530

Tension Arm B CMP

1



16

0208-40720

Belt Holder

1



15

0208-41100

Belt Holder Setting Bolt

1



14

0208-42100

Tension Pulley

2



13

0208-71100

Thrust Washer 12*18*1.0

1



12

0229-70800

Wire, Cutting Clutch

1



11

80-1488-928-10

Label, Caution for Belt Involving

1



10

83-1819-367-00

ｽﾗｽﾄﾜｯｼｬｰ18*22*1.0

1



9

83-1830-353-00

Thrust Washer 10*26*1.0

1



8

89-1144-060122

Hexagonal Bolt with Cross Hole (PWSW)

2



7

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



6

89-1750-080002

Spring Washer 8

1



5

89-2132-060002

Snap Pin 6 (with stopper)

1



4

89-2511-000120

Snap Ring (S12)

2



3

89-3510-012120

DU Bush 12.12

2



2

89-3510-018200

DU Bush 18.20

1



1

89-6122-002303

V Belt LA-23 (SG1000)

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

10/28

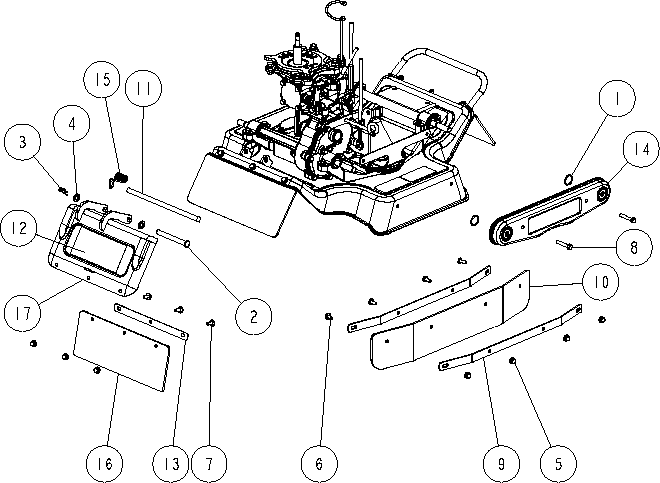

DRIVING & CUTTING 2













17

0202-50500

Rear Guard CMP

1



16

0202-50600

Rear Flapper

1



15

0202-73100

Return Spring, Rear Guard

1



14

0208-39200

Drive Chain Case Assy

1



13

0208-73110

Flapper Holder

1



12

0223-76100

Label, Caution (Large)

1



11

0229-62200

Sealing Tape

1



10

0229-63100

Side Flapper

1



9

0229-63200

Flapper Holder

2



8

89-1135-060402

Hexagonal Bolt (SW) M6*40

2



7

89-1137-060152

Hexagonal Bolt (PW) M6*15

3



6

89-1390-060152

Welded Bolt M6*15

4



5

89-1581-060042

Flange Cap Nut M6

7



4

89-1711-100002

Flat Washer 10*18*1.6

2



3

89-2131-100002

Snap Pin 10

1



2

89-2181-100902

Flat Head Pin 10*90

1



1

89-5221-020000

O Ring P20

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

11/28

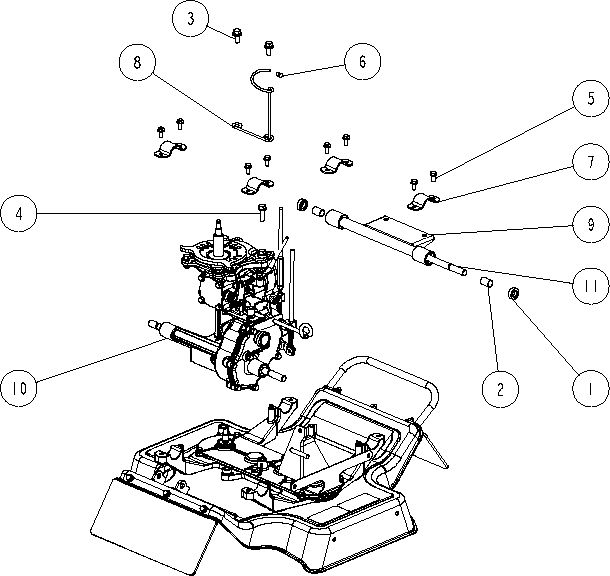

DRIVING & CUTTING 3











11

0202-00600

Driving Axle B

1



10

0202-05000

Transmission Assy

1



9

0202-31600

Drive Axle Holder CMP

1



8

0202-71500

Wire Guide

1



7

0208-20310

Frame Setting

4



6

0229-74300

Rubber Cap

1



5

83-1020-148-00

Tapping Bolt M6*14

8



4

83-1482-143-00

Tapping Bolt M8*25

1



3

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



2

89-3510-012200

DU Bush 12.20

2



1

89-5121-122207

Oil Seal UE 12.22.7

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

12/28



DRIVING & CUTTING 4









18

0202-29000

Gear Frame ASSY

1



17

0202-50100

Rotary Cover CMP

1



16

0202-50700

Front Bumper CMP

1



15

0208-60220

Knife Neck Guard

2



14

0208-70110

Flapper

2



13

0208-73110

Flapper Holder

2



12

0208-73200

U Cap Nut M10

2



11

0229-72400

Label, OREC

1



10

0229-82100

Bar Knife

4



9

80-1020-719-00

Hexagonal Tap Tight M8*18

4



8

83-1415-912-10

Label, Caution for Hitting Object

2



7

80-1488-926-10

Label, Caution for Knife

2



6

89-1137-060152

Hexagonal Bolt (PW) M6*15

6



5

89-1581-060042

Flange Cap Nut M6

6



4

89-1611-080042

Mini Hexagonal Nut M8

1



3

89-1611-100042

Mini Hexagonal Nut M10

1



2

89-1713-080002

Flat Washer 8 (large)

4



1

89-1750-100002

Spring Washer 10

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

13/28



CHAIN CASE

















9

0208-31700

Drive Axle 11T Sprocket

2



8

0208-31820

Drive Chain Case Inner

1



7

0208-31910

Drive Chain Case Outer

1



6

0208-32110

Trim L772    (GUARNIZIONE)

1



5

0208-32420

Idle Rubber

2



4

0208-71200

Thrust Wacher DC

2



3

80-1020-903-00

Label (Small)

1



2

83-1020-361-00

Thrust Washer 15*24*1.0

2



1

89-6512-035074

Chain #35-74L

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

14/28



TRANSMISSION 1











14

0208-40120

Gear Box Pulley

1



13

0229-01800

Spring, Wire Return

1



12

0229-06100

Direction Change Wire Holder

1



11

0287-01100

Driving Change Arm

1



10

80-1515-186-00

Wire Holder

2



9

83-1020-148-00

Tapping Bolt M6*14

3



8

83-1020-198-00

Square Nut M6

1



7

83-1140-682-10

Oil Cap 16

2



6

83-1482-311-00

Washer 6.5*22*3.2

1



5

83-1761-126-00

Hexagonal Bolt (Meck) M6X18

1



4

89-1144-060253

Hexagonal Bolt with Cross Hole (PW.SW

1



3

89-1156-050102

Cross recess Headed Screw (SW) M5*10

1



2

89-1750-060002

Spring Washer 6

1



1

89-2150-050180

Key 5*18 (round)

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

15/28



TRANSMISSION 2









14

0202-90200

Recoil Guide B CMP

1



13

0207-06100

Air Bleezer

1



12

0208-73800

Hexagon Tap Tight M6*25

2



11

0287-02400

Transmission Case R

1



10

83-1020-148-00

Tapping Bolt M6*14

1



9

83-1515-148-00

Tapping Bolt M6*22

4



8

89-1113-060202

Hexagonal Bolt (8T) M6*20

1



7

89-1251-080122

Flange Mini Hexagonal Bolt M8*12

1



6

89-1511-060042

Hexagonal Nut M6

1



5

89-3511-010100

DU Bush 10.10.18F

1



4

89-3511-012100

DU Bush 12.10.20F

2



3

89-5121-122207

Oil Seal UE 12.22.7

1



2

89-5230-060000

Seal Washer 6

1



1

89-5230-080000

Seal Washer 8

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

16/28



TRANSMISSION 3













19

0208-01010

Main Axle 17T/11T Gear

1



18

0208-01210

Driving Axle 32T

1



17

0208-01320

Driving Axle 38T A

1



16

0208-01820

Shift Fork CMP

1



15

0208-02300

Collar B

1



14

0208-03400

Shift Fork Axle

1



13

0208-71100

Thrust Washer 12*18*1.0

3



12

0229-00700

Main Axle

1



11

0229-00900

Main Axle 36T Gear

1



10

0229-01100

13T Gear Boss

1



9

0287-01100

Driving Change Arm

1



8

83-1020-198-00

Square Nut M6

1



7

83-1020-351-00

Thrust Washer 10*18*1.0

1



6

83-1020-355-00

Thrust Washer 12*24*1.0

1



5

89-1144-060253

Hexagonal Bolt with Cross Hole (PW.SW

1



4

89-2111-030012

Spring Pin 3*12

1



3

89-2151-040220

Key 4*22 (half round)

1



2

89-2511-000120

Snap Ring (S12)

1



1

89-5130-081404

Oil Seal KE 8.14.4

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

17/28



TRANSMISSION 4

















14

0202-00700

Driving Axle

1



13

0208-00500

Bevel Gear 30T

1



12

0208-01910

Clutch Fork CMP

1



11

0229-00800

Driving Clutch Gear 11T

1



10

0287-01100

Driving Change Arm

1



9

0287-01400

Driving Axle 38T B

1



8

83-1020-198-00

Square Nut M6

1



7

83-1020-355-00

Thrust Washer 12*24*1.0

1



6

89-1144-060253

Hexagonal Bolt with Cross Hole (PW.SW

1



5

89-2150-050150

Key 5*15 (round)

1



4

89-2511-000250

Snap Ring (S25)

1



3

89-2512-000470

Snap Ring (R47)

1



2

89-3111-060054

Bearing 6005

1



1

89-5130-081404

Oil Seal KE 8.14.4

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

18/28



TRANSMISSION 5

















9

0208-01600

Direction Change Arm CMP

1



8

0208-03100

Transmission Case Cover

1



7

0287-01700

Direction Change Arm Shaft

1



6

83-1020-148-00

Tapping Bolt M6*14

4



5

89-1251-080122

Flange Mini Hexagonal Bolt M8*12

1



4

89-2111-030012

Spring Pin 3*12

1



3

89-5130-081404

Oil Seal KE 8.14.4

1



2

89-5222-045000

O Ring G45

1



1

89-5230-080000

Seal Washer 8

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

19/28

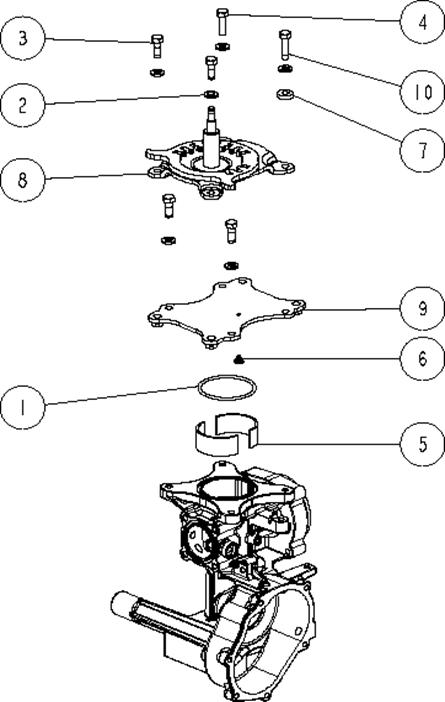

TRANSMISSION 6



10

0023-72300

Hexagonal Bolt(8T) M8*28(Meck)

1



9

0202-00100

Transmission Case Upper Cover CMP

1



8

0202-10500

Handle Turn Table CMP

1



7

0202-10900

Handle Collar

1



6

0229-03400

Air Breather

1



5

0229-05600

Collar R

2



4

83-1260-111-00

Hexagonal Bolt (Meck) M8*28

2



3

83-1761-112-00

Hexagonal Bolt (Meck) M8*20

4



2

89-1750-080002

Spring Washer 8

6



1

89-5222-060000

O Ring G60

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

20/28



TRANSMISSION 7







12

0202-00200

Bevel Gear A 26T

1



11

0202-00300

Bevel Gear B 26T

1



10

0202-00400

Bevel Gear 24T

1



9

0202-00500

Direction Change Dock M

1



8

0208-00210

Vertical Axle A

1



7

0287-00100

Clutch Shaft CMP

1



6

89-2511-000100

Snap Ring (S10)

1



5

89-2511-000120

Snap Ring (S12)

1



4

89-2512-000280

Snap Ring (R28)

1



3

89-3111-069074

Bearing 6907

1



2

89-3111-160054

Bearing 16005

1



1

89-3115-060014

Bearing 6001 2RS

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

21/28



TRANSMISSION 8











8

0229-02500

Bevel Gear 20T

1



7

0229-02600

Vertical Axle B

1



6

89-2512-000400

Snap Ring (R40)

2



5

89-3111-062034

Bearing 6203

1



4

89-3115-060034

Bearing 6003 2RS

1



3

89-5121-174008

Oil Seal UE 17.40.8

1



2

89-5121-223808

Oil Seal UE 22.38.8

1



1

89-5221-010001

O Ring P10

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

22/28



TRANSMISSION 9















7

0202-00800

Transmission Case L

1



6

89-2512-000350

Snap Ring (R35)

2



5

89-3111-062024

Bearing 6202

1



4

89-3115-062024

Bearing 6202 2RS

1



3

89-3511-012100

DU Bush 12.10.20F

2



2

89-5121-122207

Oil Seal UE 12.22.7

1



1

89-5125-173507

Oil Seal UE 17.35.7F

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

23/28



GEAR FRAME











14

0202-31700

Drive Case Holder

1



13

0208-20110

Knife Gear Frame A

1



12

0208-20210

Knife Gear Frame B

1



11

0208-50330

Knife Shaft A

1



10

0208-50420

Knife Shaft B

1



9

0208-50810

Knife Gear 40T

2



8

0208-50910

Idle Gear 40T CMP

2



7

0208-71100

Thrust Washer 12*18*1.0

4



6

83-1020-148-00

Tapping Bolt M6*14

3



5

83-1035-148-00

Tapping Bolt M6*18

6



4

89-3115-060014

Bearing 6001 2RS

6



3

89-3115-060024

Bearing 6002 2RS

2



2

89-5121-122507

Oil Seal UE 12.25.7

1



1

89-5121-153007

Oil Seal UE 15.30.7

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

24/28



FRONT WHEEL

















9

0202-31300

Front Wheel Reinforement CMP

1



8

0202-32000

Wheel Assy

2



7

0208-32600

Dust Seal 19

1



6

80-1484-354-10

Brake Rod Roller

1



5

83-1020-355-00

Thrust Washer 12*24*1.0

2



4

83-1751-311-00

Flat Washer 8*25*2.3

1



3

89-1135-060142

Hexagonal Bolt (SW) M6*14

4



2

89-1543-080002

Mini Hexagonal Nut (SW) M8

1



1

89-3510-012200

DU Bush 12.20

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

25/28

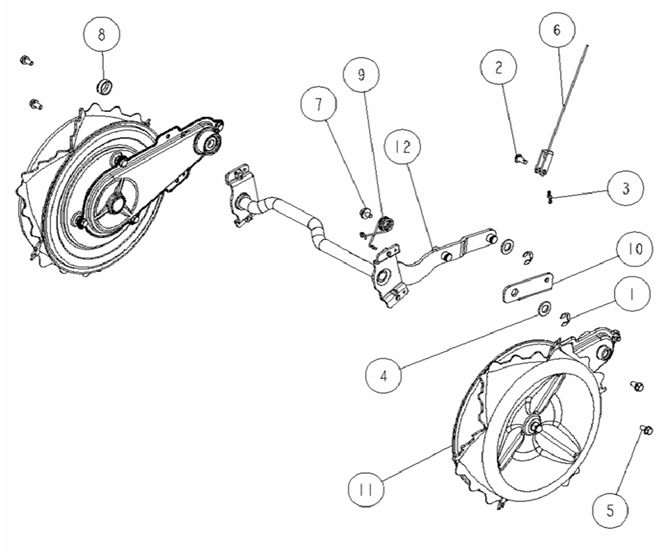

REAR WHEEL











12

0202-31400

Rear Wheel Reinforcement CMP

1



11

0202-32000

Wheel Assy

2



10

0208-32200

Cutting Height Adjust Wire Arm

1



9

0208-32500

Spring, Cutting Height Adjust Arm

1



8

0208-32600

Dust Seal 19

1



7

0208-72700

Hexagonal Bolt (PW Large,SW) M6*12

1



6

0229-70400

Wire, Cutting Height

1



5

89-1135-060142

Hexagonal Bolt (SW) M6*14

4



4

89-1711-120002

Flat Washer 12

2



3

89-2132-060002

Snap Pin 6 (with stopper)

1



2

89-2181-060142

Flat Head Pin 6*14

1



1

89-2521-000100

E Type Ring 10

2



Ref.

Parts Number

Parts Name

Quantity

Remarks

26/28



WHEEL





















8

0202-30400

Spike Wheel

1



7

0202-31000

Chain Case ASSY

1



6

0202-31800

Rear Wheel Dust Cover

1



5

0208-31000

Hexagon U Cap Nut M8

1



4

89-1541-060002

Hexagonal Nut (SW) M6

3



3

89-2150-050200

Key 5*20 (round)

1



2

89-5222-065000

O Ring G65

1



1

89-5230-080000

Seal Washer 8

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

27/28



DRIVE CHAIN CASE











19

0202-30100

Chain Case Outer CMP

1



18

0202-30200

Chain Case Inner CMP

1



17

0202-30500

Sprocket, 9T

1



16

0202-30600

Sprocket, 25T

1



15

0202-30700

Drive Shaft

1



14

0202-30800

Tightner Spring

1



13

0202-30900

Thrust Wacher 12*65*1.0

1



12

0202-31100

Limitter Spring

4



11

0229-34200

Oil Seal MUD 15*30*10

1



10

83-1020-361-00

Thrust Washer 15*24*1.0

1



9

89-1135-060122

Hexagonal Bolt (SW) M6*12

1



8

89-1135-060182

Hexagonal Bolt (SW) M6*18

3



7

89-2511-000120

Snap Ring (S12)

1



6

89-3115-060014

Bearing 6001 2RS

2



5

89-3115-060034

Bearing 6003 2RS

1



4

89-3410-060000

Steel Ball 6.0

4



3

89-3511-015100

DU Bush 15.10.23F

1



2

89-5121-122207

Oil Seal UE 12.22.7

1



1

89-6512-035054

Chain #35-54L

1



Ref.

Parts Number

Parts Name

Quantity

Remarks

28/28



ENGINE











14

0202-31500

Engine Reinforce M

1



13

0202-60200

Muffler Guard

1



12

0202-71300

Recoil Cover CMP

1



11

0202-71400

Stud Bolt

3



10

0214-72100

Label, Caution for Engine etc

1



9

89-1113-061052

Hexagonal Bolt (8T) M6*105

4



8

89-1138-060122

Hexagonal Bolt (SW) M6*12

1



7

89-1138-060142

Hexagonal Bolt (SW) M6*14

2



6

89-1233-080202

Mini Hexagonal Bolt (PWSW) M8*20

2



5

89-1253-080162

Flange Mini Hexagonal Bolt (8T) M8*16

4



4

89-1581-060042

Flange Cap Nut M6

3



3

89-1711-060002

Flat Washer 6

1



2

89-1750-060002

Spring Washer 6

7



1

ENGINE

GB100PN-451

1



Ref.

Parts Number

Parts Name

Quantity

Remarks
